DAS ACTION-525 Users Manual

User's Manual
ACTION-508 / ACTION-512 / ACTION-M512
ACTION-515 / ACTION-525 / ACTION-S18 / ACTION-S218
Antes de utilizar el equipo, lea la sección “Precauciones de seguridad” de este manual. Conserve este manual para futuras consultas.
Before operating the device, please read the “Safety precautions” section of this manual. Retain this manual for future reference.
CONTENTS
SAFETY PRECAUTIONS
WARRANTY
DECLARATION OF CONFORMITY
INTRODUCTION
CONFIGURATIONS
2x ACTION-508
2x ACTION-508 + 1x ACTION-S18
2x ACTION-512 + 2x ACTION-S18
2x ACTION-515) + 2x ACTION-S18
2x ACTION-525 + 2x ACTION-S218
2x ACTION-M512

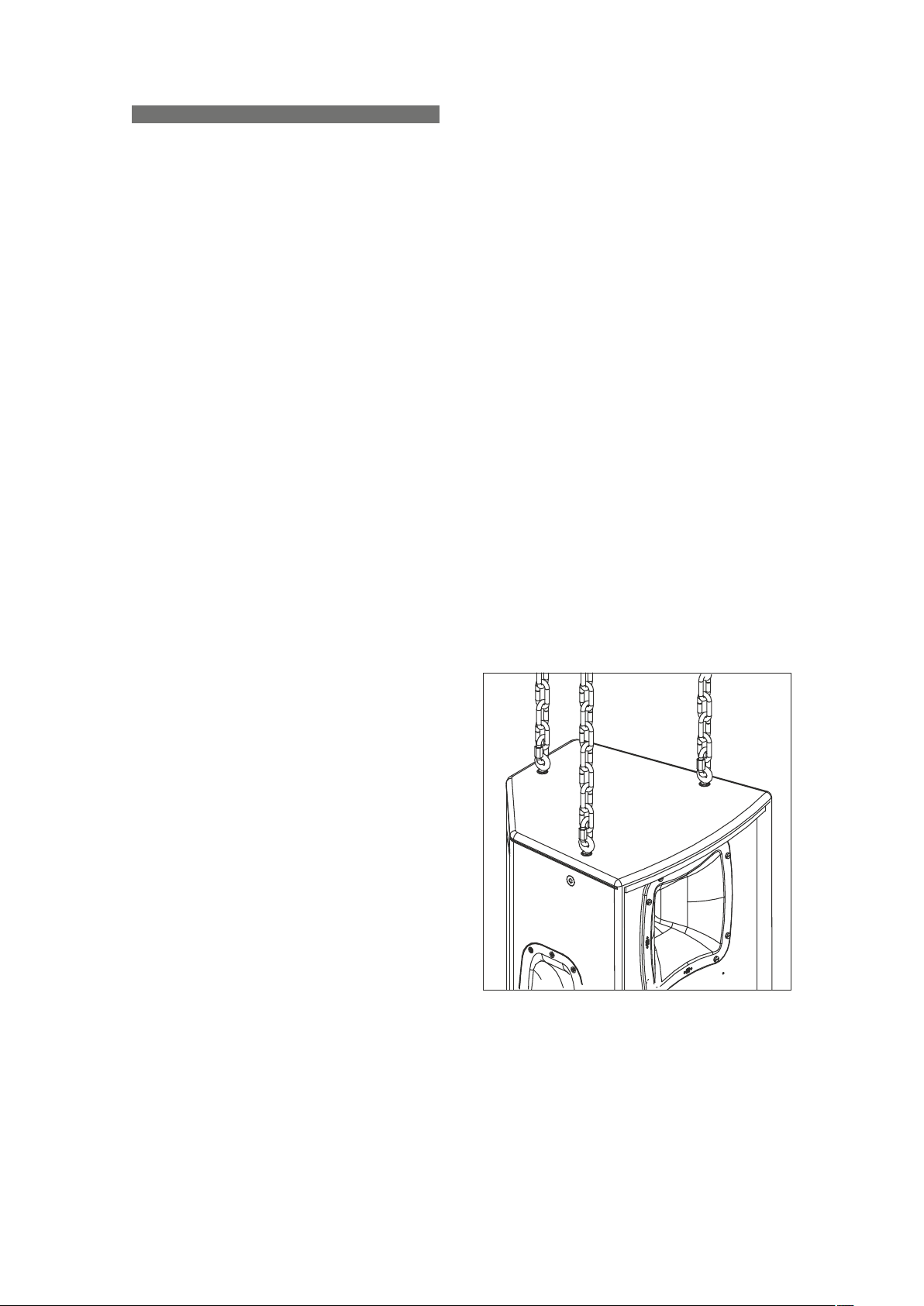

RIGGING SYSTEM

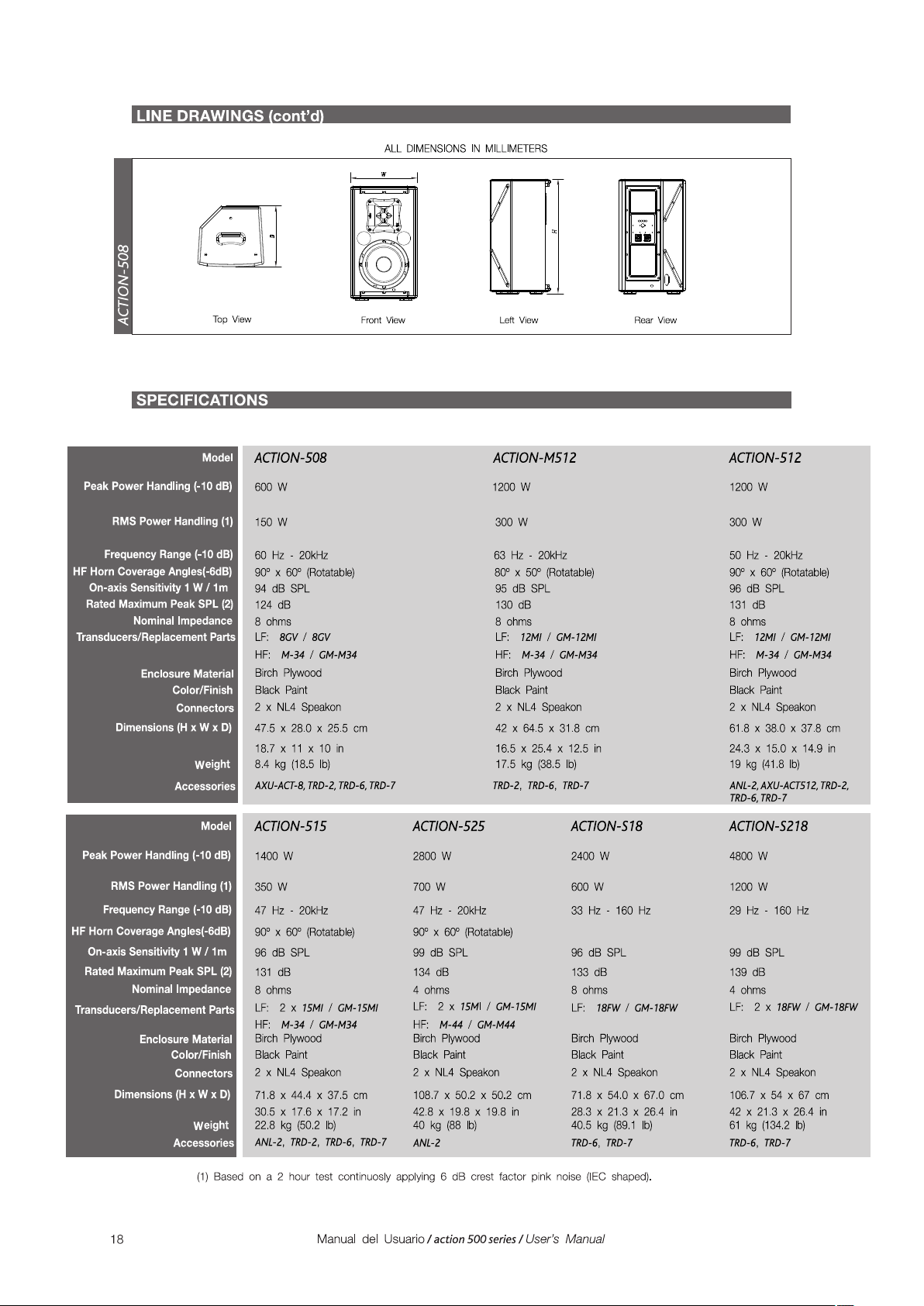

LINE DRAWINGS
SPECIFICATIONS
3
4
5
6 - 7
8 - 13
14 - 16
17 - 18
18
Manual del Usuario / action 500 series / User’s Manual
action-500 passive series
Cajas acústicas pasivas / Passive loudspeaker enclosures
Precauciones de Seguridad Safety Precautions
Conserve y lea todas estas instrucciones. Siga todas las advertencias. El signo de exclamación dentro de un triángulo indica la existencia de componentes internos cuyo reemplazo puede afectar a la seguridad.
El doble cuadrado indica equipo de Clase II. The double square indicates Class II device.
Las especificaciones se encuentran en la etiqueta de la parte posterior del producto.
El colgado del equipo sólo debe realizarse utilizando los herrajes de colgado recomendados y por personal cualificado. No cuelgue la caja de las asas.
No exponga este equipo a la lluvia o humedad. No exponga el equipo a salpicaduras ni coloque sobre él objetos que contengan líquidos, tales como vasos y botellas. Equipo IP-20.
Este símbolo indica que el presente producto no puede ser tratado como residuo doméstico normal, sino que debe entregarse en el correspondiente punto de recogida de equipos eléctricos y electrónicos.
Equipo diseñado para funcionar entre 15ºC y 35ºC con una humedad relativa máxima del 75%.
El cableado exterior conectado al equipo requiere de su instalación por una persona instruida o el uso de cables flexibles ya preparados.
Keep these instructions. Heed all warnings. Follow all instructions. The exclamation point inside an equilateral triangle indicates the existence of internal components whose substitution may affect safety.
The specifications can be found on the rear label of the product.
The appliance should be flown only from the rigging points and by qualified personnel. Do not suspend the box from the handles.
Do not expose this device to rain or moisture. Do not place any objects containing liquids, such as bottles or glasses, on the top of the unit. Do not splash liquids on the unit. IP-20 equipment.
This symbol on the product indicates that this product should not be treated as household waste. Instead it shall be handed over to the appicable collection point for the recycling of electrical and electronic equipment.
Working temperature ranges from 15ºC to 35ºC with a relative humidity of 75%.
The outer wiring connected to the device requires installation by an instructed person or the use of a flexible cable already prepared.
El equipo cuenta con dos conectores de entrada en paralelo para facilitar la conexión de varias cajas en paralelo.
No emplace altavoces en proximidad a equipos sensibles a campos magnéticos, tales como monitores de televisión o material magnético de almacenamiento de datos.
Para las cajas con vaso para trípode, la altura máxima de seguridad desde el suelo a la base de la caja montada sobre trípode modelo TRD-2, con pies a 55 cm del eje del trípode, es:
ACTION-508 -------------->125 cm ACTION-512 ------------->115 cm ACTION-515 ------------->105 cm
No existen partes ajustables por el usuario en el interior de este equipo. Cualquier operación de mantenimiento o reparación debe ser realizada por personal cualificado. Es necesario el servicio técnico cuando el aparato se haya dañado de alguna forma, tal como que haya caído líquido o algún objeto en el interior del aparato, haya sido expuesto a lluvia o humedad, no funcione correctamente o haya recibido un golpe.
Limpie con un paño seco. No use limpiadores con disolventes.
Note that the two Speakon input connectors are wired in parallel to provide easy parallel connection of several enclosures.
Do not place loudspeakers in proximity to devices sensitive to magnetic fields such as television monitors or data storage magnetic material.
For enclosures with tripod socket, the maximum safety height from floor to bottom of enclosure when mounting on a TRD-2 tripod, with legs spread 55cm from the central pole, is:
ACTION-508 -------------->125 cm ACTION-512 ------------->115 cm ACTION-515 ------------->105 cm
55 cm
No user serviceable parts inside. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
Clean only with a dry cloth. Do not use any solvent based cleaners.
Manual del Usuario / action 500 series / User’s Manual
3
GARANTÍA
Todos nuestros productos están garantizados por un periodo de 24 meses desde la fecha de compra.
Las garantías sólo serán válidas si son por un defecto de fabricación y en ningún caso por un uso incorrecto del producto.
Las reparaciones en garantía pueden ser realizadas, exclusivamente, por el fabricante o el servicio de asistencia técnica autorizado.
Otros cargos como portes y seguros, son a cargo del comprador en todos los casos.
Para solicitar reparación en garantía es imprescindible que el producto no haya sido previamente manipulado e incluir una fotocopia de la factura de compra.
WARRANTY
All our products are warrantied against any manufacturing defect for a period of 2 years from date of purchase.
The warranty excludes damage from incorrect use of the product.
All warranty repairs must be exclusively undertaken by the factory or any of its authorised service centers.
To claim a warranty repair, do not open or intend to repair the product.
Return the damaged unit, at shippers risk and freight prepaid, to the nearest service center with a copy of the purchase invoice.
4
Manual del Usuario / action 500 series / User’s Manual
DECLARACIÓN DE CONFORMIDAD
DECLARATION OF CONFORMITY
DAS Audio Group, S.L.
C/ Islas Baleares, 24 - 46988 - Pol. Fuente del Jarro - Valencia. España (Spain).
Declara que : Declares that :
ACTION-508 / ACTION-512 / ACTION-M512
ACTION-515 / ACTION-525 / ACTION-S18 / ACTION-S218
Cumple con los objetivos esenciales de las Directivas: Abide by essential objectives relating Directives:
l De Baja Tensión / Low Voltage 2014/35/UE
l RoHS 2011/65/UE
l RAEE (WEEE) 2012/19/UE
Y es conforme a las siguientes Normas Armonizadas Europeas: In accordance with Harmonized European Norms:
l EN 60065:2014.- Audio, video and similar electronic apparatus. Safety
requirements.
l EN 50581:2012.- Technical documentation for the assessment of
electrical and electronic products with respect to the restriction of hazardous substances.
Manual del Usuario / action 500 series / User’s Manual
5
INTRODUCTION
The action 500 series inherits the exceptional sound quality and rugged build that have made DAS professional systems an internacional sound reinforcement standard. Designed from “real-world” experience, they offer users outstanding performance, absolute reliability, and unparalleled convenience. Whether it is in a high-profile venue or on the stage of a major event, the action series will provide the power and definition needed to make your performance a success.
Features
ACTION-508
- 2-way, full-range system
- 8 bass loudspeaker, 8GV (1,5" VCD)
- Compression driver , M-34 (1,4" VCD) with titanium diaphragm
- Asymmetric enclosure design for stage monitor use
- Built-in rigging points
- Stand mountable
The ACTION-508 is a compact 2-way passive full-range loudspeaker that utilizes a 8” low frequency transducer and a full compression driver. The multi-angle cabinet is constructed of Birch plywood protected by an enviormentally friendly ISO-flex black paint finish. A rear located handle and a robust steel grille are provided. A 35 mm tripod socket allows for stand mounting.
ACTION-512
- Two-way full-range system
- 12" bass loudspeaker, 12MI (2,5" VCD)
- Compression driver , M-34 (1,4" VCD) with titanium diaphragm
- Asymmetric enclosure design for stage monitor use
- Built-in rigging points (eyebolt based)
- Stand mountable
The ACTION-512 is a 2-way passive full-range loudspeaker that utilizes a 12” low frequency transducer and a 1” exit compression driver. The multi-angle cabinet is constructed of Birch plywood protected by an environmentally friendly black paint finish. Two bar handles and a steel grille are provided. A 35mm tripod socket with angle double (0º and ­10º) allows for stand mounting.
ACTION-M512
- Dedicated stage monitor
- 12" bass loudspeaker, 12MI (2,5" VCD)
- Compression driver , M-34 (1,4" VCD) with titanium diaphragm
- Low profile enclosure design for minimum visual impact
- Black paint finish
- Stand mountable
The ACTION-M512 is a dedicated stage monitor designed for use with external amplification. The enclosure is constructed from Birch plywood and is protected with a black paint finish. Two side located handles facilitate handling and a steel grille protects the components. A pole mount socket adds versatility to the ACTION-M512.
6
Manual del Usuario / action 500 series / User’s Manual
