User's Manual
ACTION-508A / ACTION-512A / ACTION-M512A / ACTION-515A
ACTION-525A / ACTION-S18A / ACTION-S118A / ACTION-S218A
Antes de utilizar el equipo, lea la sección
“Precauciones de seguridad” de este manual.
Conserve este manual para futuras consultas.
Before operating the device, please read the
“Safety precautions” section of this manual.
Retain this manual for future reference.
CONTENTS
SAFETY PRECAUTIONS
WARRANTY
DECLARATION OF CONFORMITY
INTRODUCTION

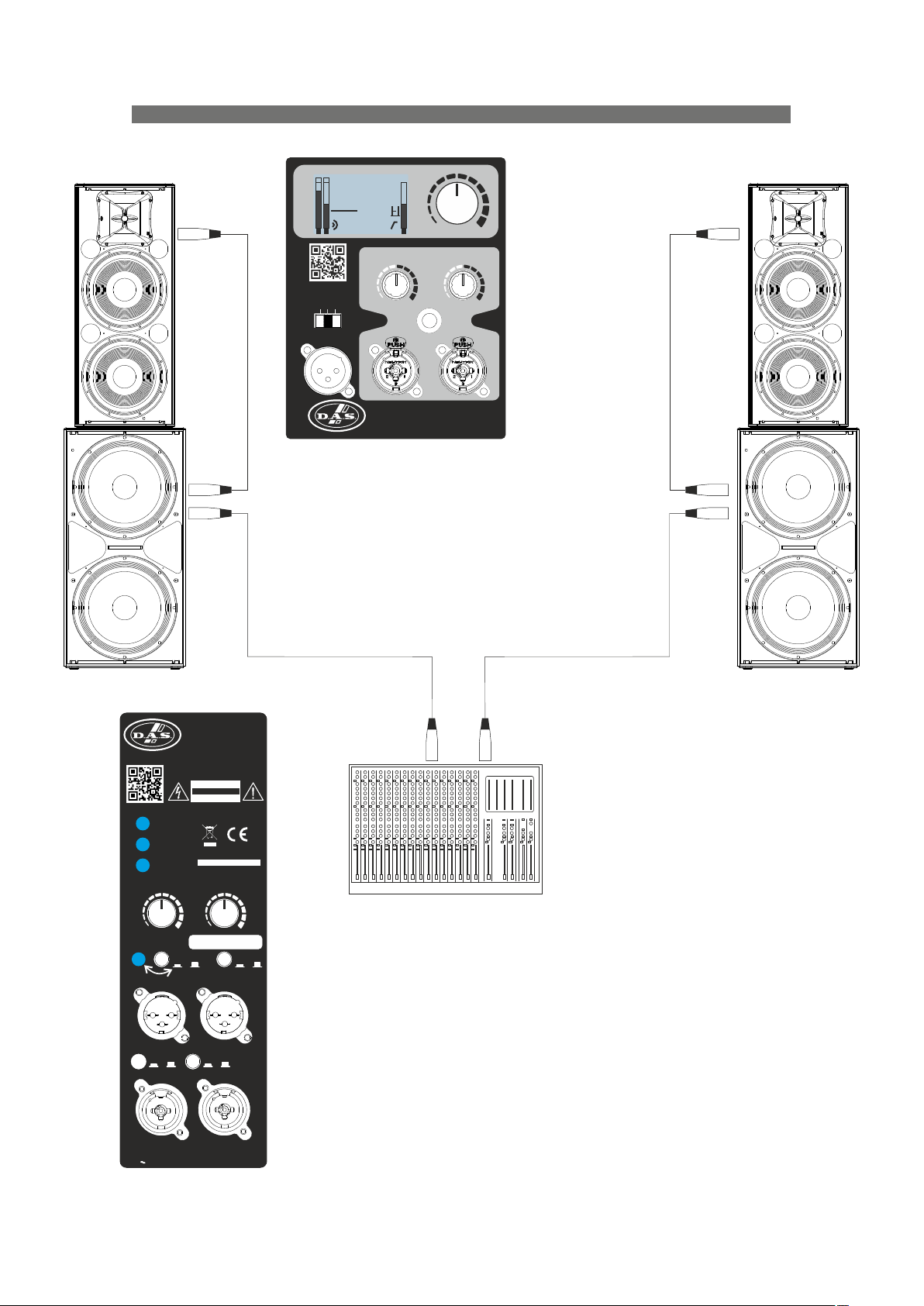

CONFIGURATIONS
2x ACTION-508A + 1x ACTION-S18A
2x ACTION-512A + 2x ACTION-S18A
2x ACTION-515A + 1x ACTION-S118A
2x ACTION-525A + 2x ACTION-S218A
LINE DRAWINGS
SPECIFICATIONS

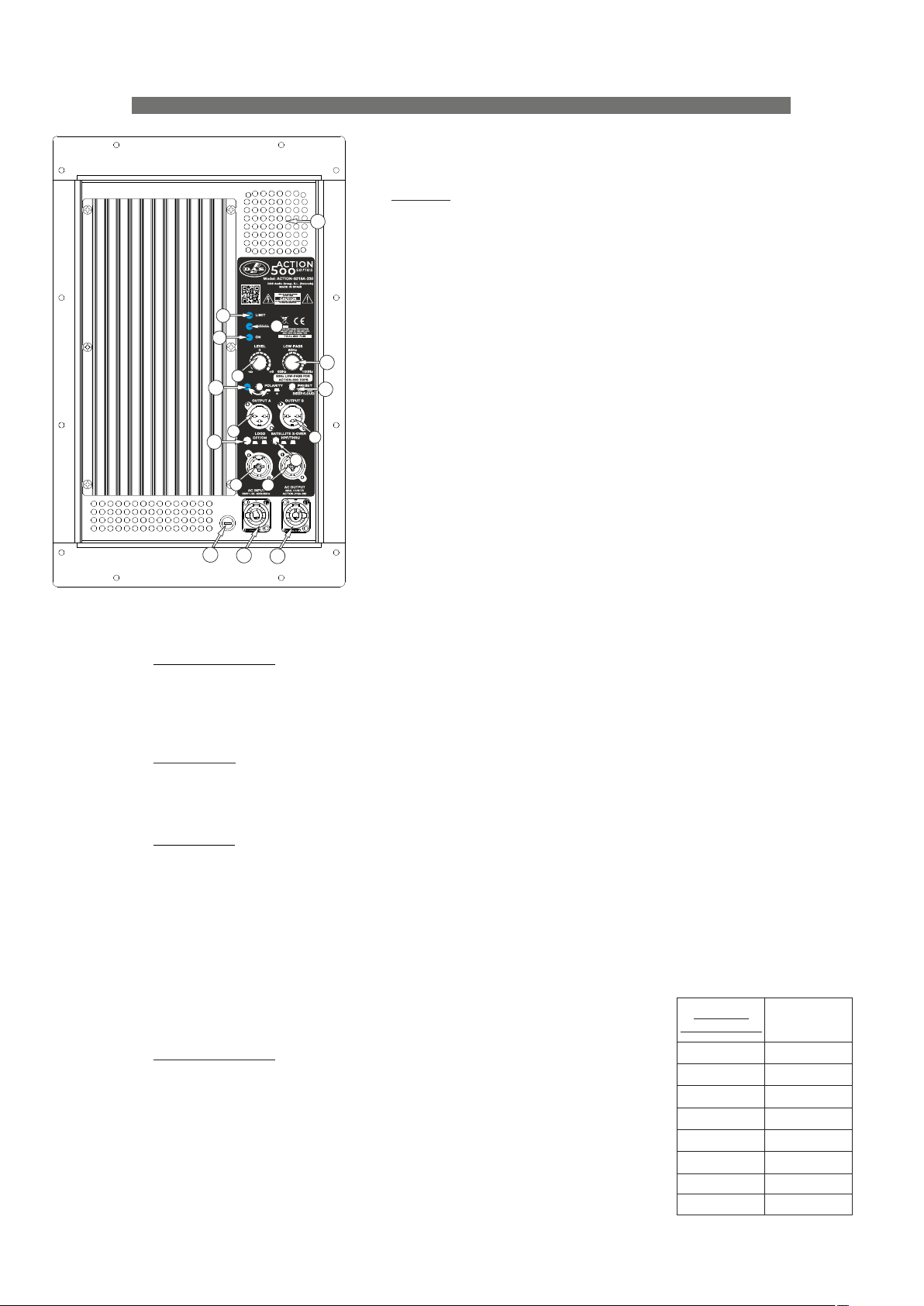

AMPLIFIER
Description
ON / OFF
Overload indicators
Equalisation
Overheating
Low mains voltage
3
4
5
6 - 7
8 - 11
12 - 13
13
14 - 16
Current consumption
Troubleshooting

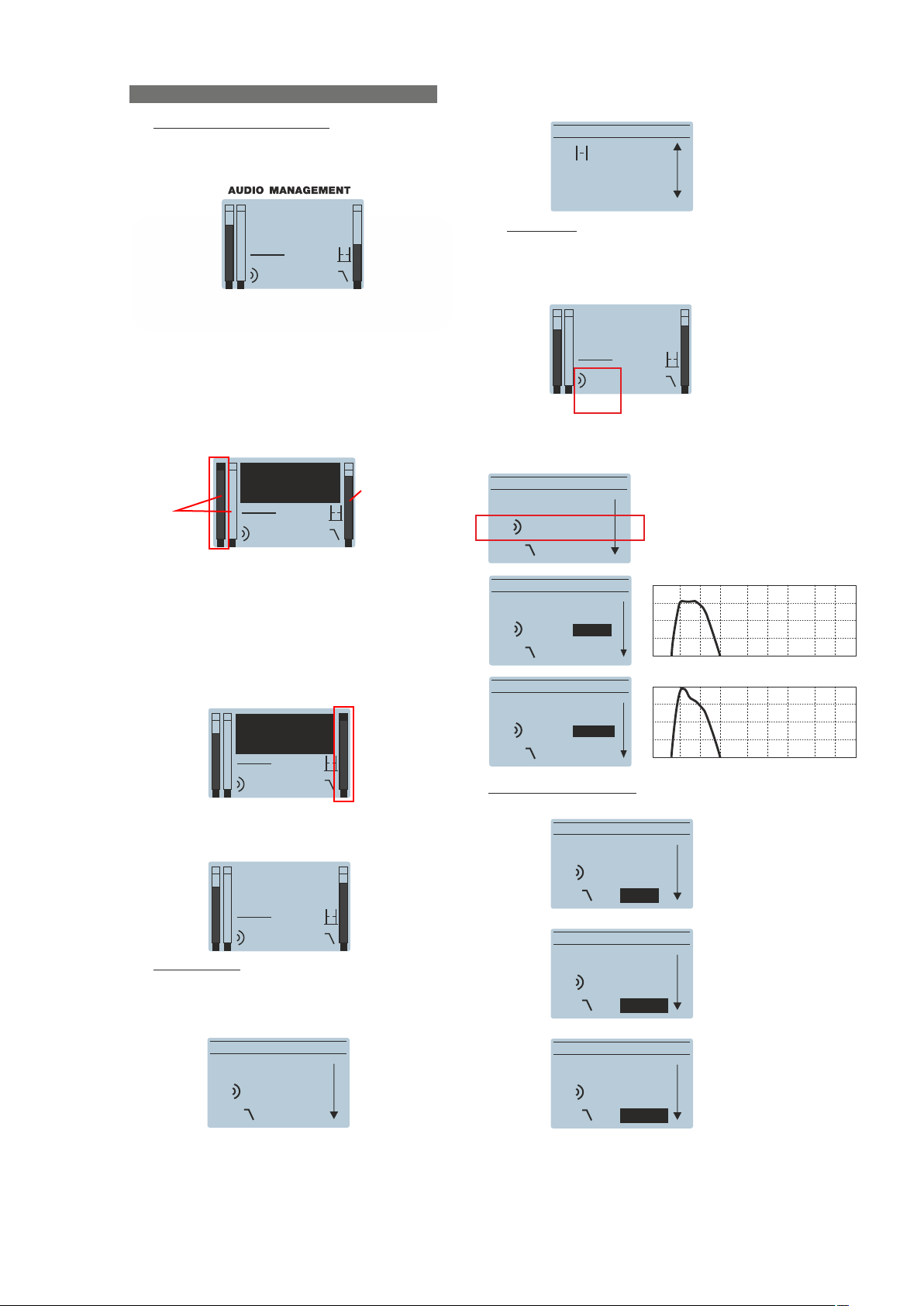

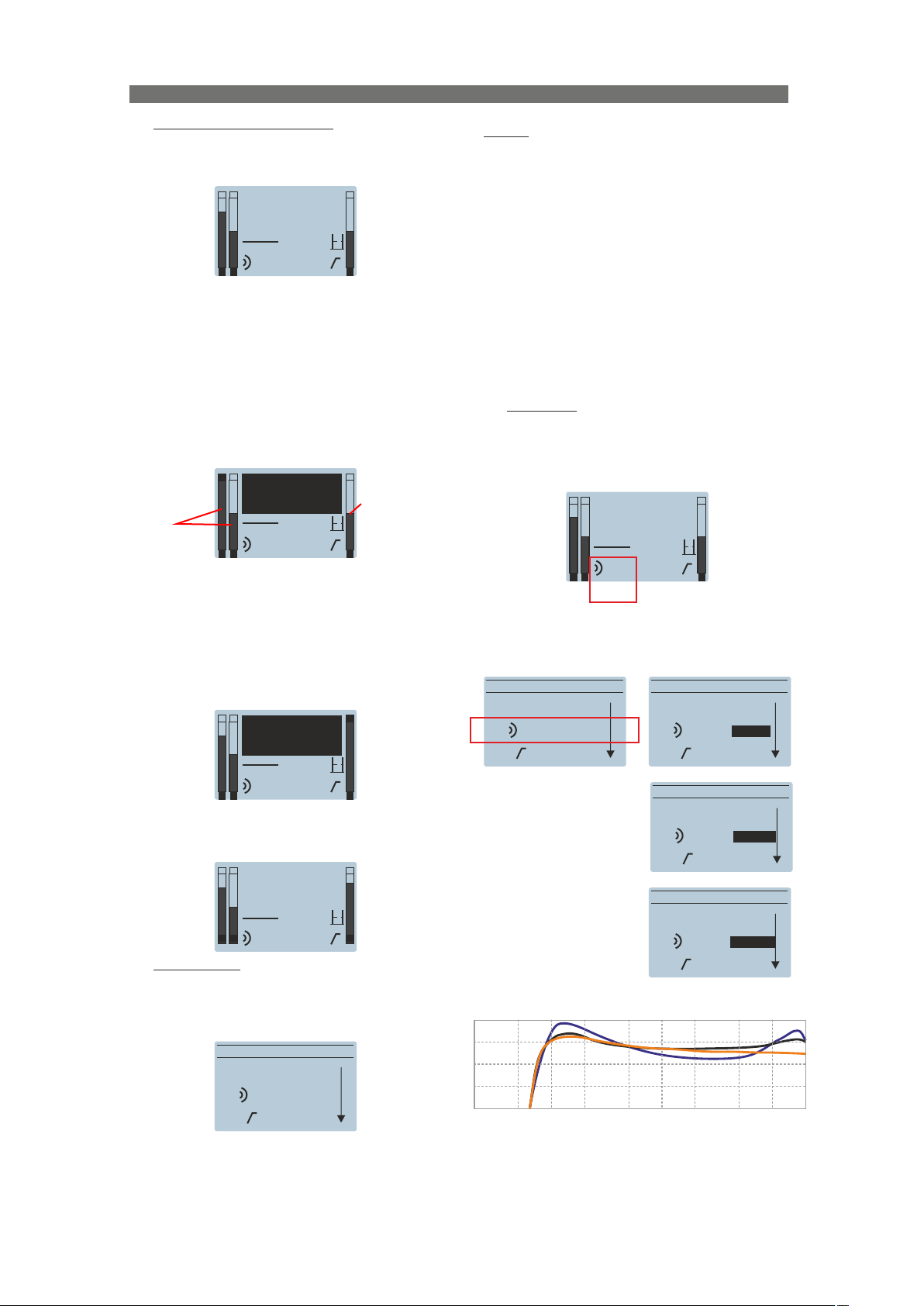

DISPLAY
Adjusting the levels

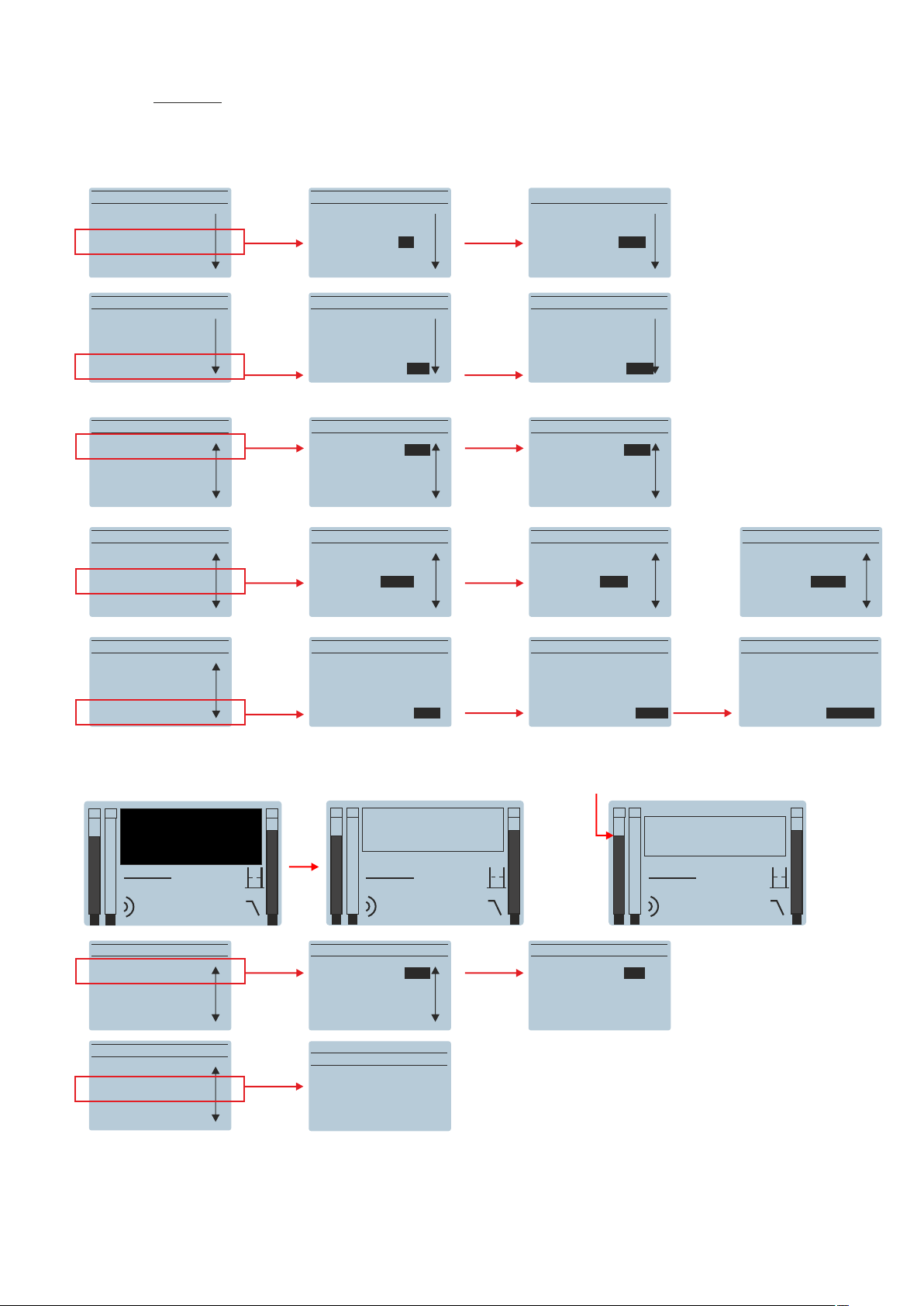

Main Menu
System presets

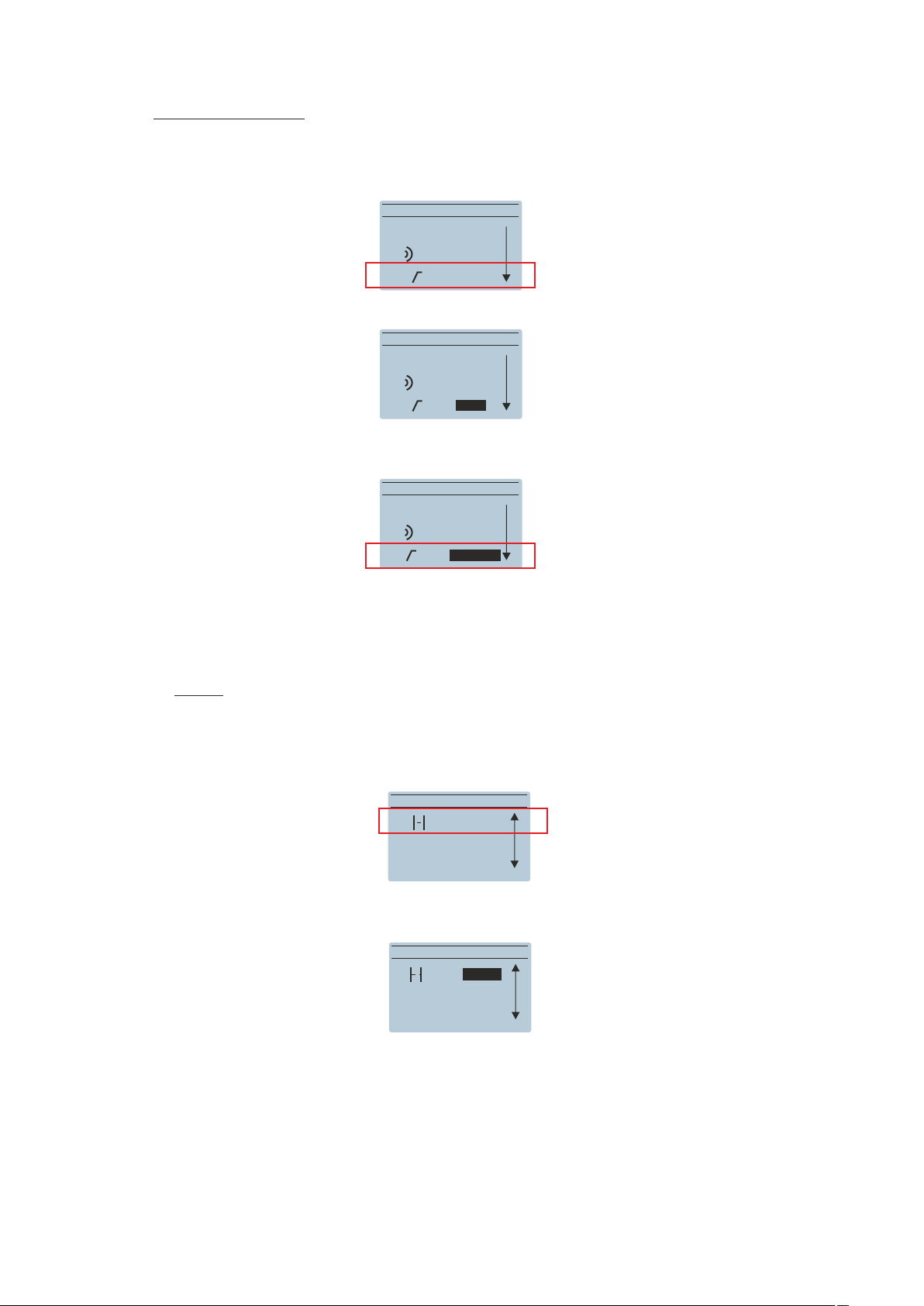

HPF (High Pass Filter)
Delay
Options

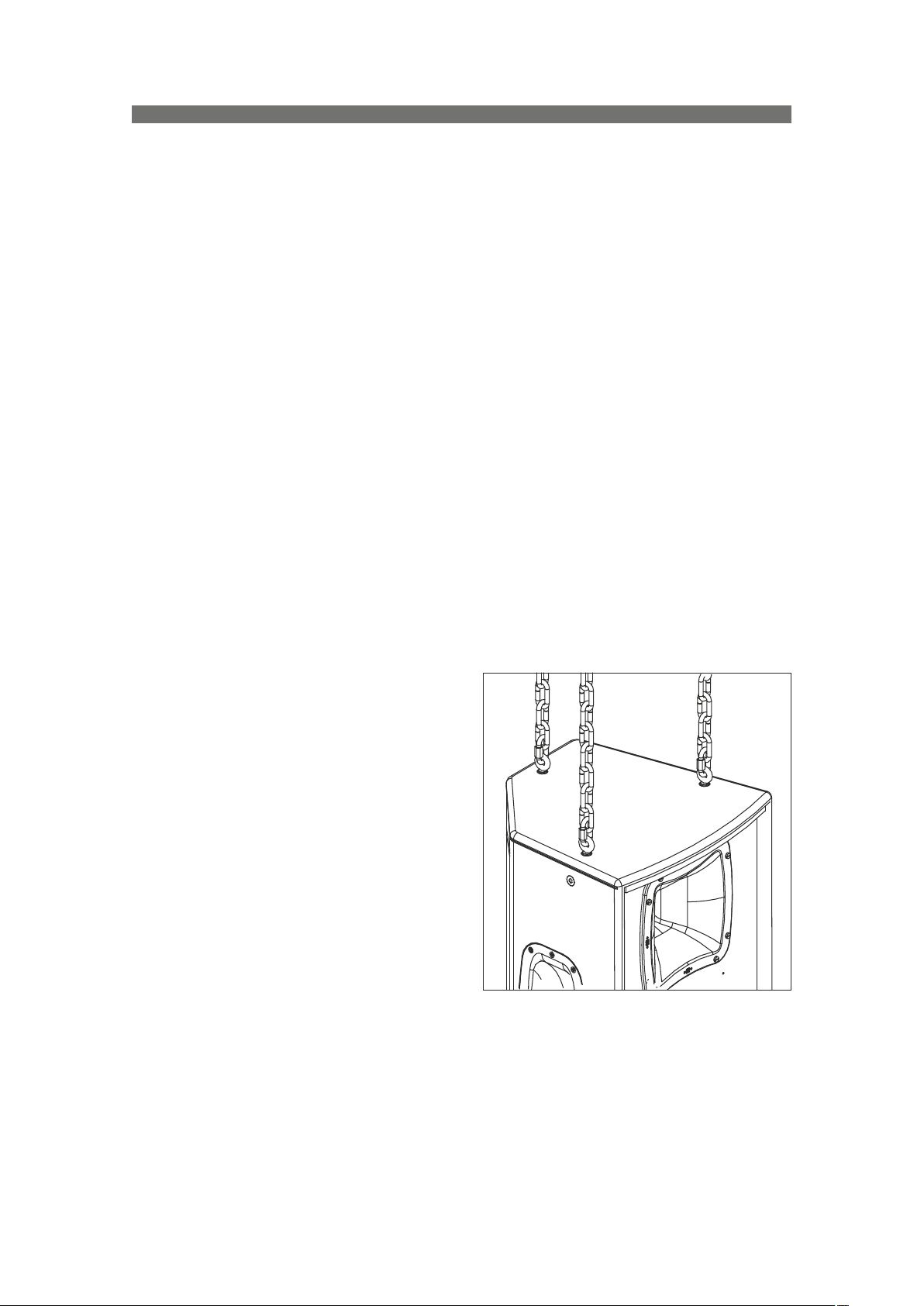

RIGGING SYSTEM
ANNEX
Line connections: unbalanced and balanced
17 - 21
22 - 24
25
Manual del Usuario / action 500 series / User’s Manual
Precauciones de Seguridad
action-500 active series
Cajas acústicas activas / Self-powered loudspeaker enclosures
Safety Precautions
El signo de exclamación dentro de un triángulo indica la
existencia de importantes instrucciones de operación y
mantenimiento en la documentación que acompaña al producto.
Conserve y lea todas estas instrucciones. Siga las advertencias.
ATENCIÓN: Es un producto clase A, por lo que en entornos
domésticos puede causar radio-interferencias, en cuyo caso el
usuario tendrá que tomar las medidas oportunas.
De acuerdo con EN55103-2, usar el equipo sólo en entornos E1,
E2, E3 ó E4.
No desconecte la tierra en el conector de alimentación pues es
peligroso e ilegal. Equipo de Clase I. El producto debe ser
conectado a un enchufe con toma de tierra. Sólo use este
equipo con el cable de red de alimentación adecuado para su
país.
El signo del rayo con la punta de flecha, alerta contra la
presencia de voltajes peligrosos no aislados. Para reducir el
riesgo de choque eléctrico, no retire la cubierta.
No instale el aparato cerca de ninguna fuente de calor como
radiadores, estufas u otros aparatos que produzcan calor. Debe
instalarse siempre sin bloquear la libre circulación de aire por las
aletas del radiador.
No exponga este equipo a la lluvia o humedad. No use este
aparato cerca del agua (piscinas y fuentes, por ejemplo). No
exponga el equipo a salpicaduras ni coloque sobre él objetos
que contengan líquidos, tales como vasos y botellas.
Equipo IP-20.
Este símbolo indica que el presente producto no puede ser
tratado como residuo doméstico normal, sino que debe
entregarse en el correspondiente punto de recogida de equipos
eléctricos y electrónicos.
Equipo diseñado para funcionar entre 15ºC y 45ºC con una
humedad relativa máxima del 95%, con un rango de ±10% de la
tensión nominal de alimentación indicada en la etiqueta trasera
(según IEC 60065). Si debe sustituir el fusible preste atención al
tipo y rango.
El cableado exterior conectado al equipo requiere de su
instalación por una persona instruida o el uso de cables flexibles
ya preparados.
Si el aparato es conectado permanentemente, la instalación
eléctrica del edificio debe incorporar un interruptor multipolar con
separación de contacto de al menos 3mm en cada polo.
Para desconectar el dispositivo debe usar el enchufe.
Desconecte este aparato durante tormentas eléctricas,
terremotos o cuando no se vaya a emplear durante largos
periodos.
No emplace altavoces en proximidad a equipos sensibles a
campos magnéticos, tales como monitores de televisión o
material magnético de almacenamiento de datos.
Para las cajas con vaso para trípode, la altura máxima de
seguridad desde el suelo a la base de la caja montada sobre
trípode modelo TRD-2, con pies a 55 cm del eje del trípode, es:
ACTION-508A ------------->125 cm
ACTION-512A ------------->115 cm
ACTION-515A ------------->105 cm
El colgado del equipo sólo debe realizarse utilizando los herrajes
de colgado recomendados y por personal cualificado. No
cuelgue la caja de las asas.
No existen partes ajustables por el usuario en el interior de este
equipo. Cualquier operación de mantenimiento o reparación
debe ser realizada por personal cualificado. Es necesario el
servicio técnico cuando el equipo se haya dañado de alguna
forma, como que haya caído líquido o algún objeto en el interior
del aparato, haya sido expuesto a lluvia o humedad, no funcione
correctamente, haya recibido un golpe o su cable de red esté
dañado.
Limpie con un paño seco. No use limpiadores con disolventes.
La reventa del producto sólo es posible incluyendo el manual de
usuario. Cualquier cambio producido en el producto tiene que
ser documentado por escrito y aprobado por el comprador en el
momento de la reventa.
55 cm
The exclamation point inside an equilateral triangle is intended to
alert the users to the presence of important operating and
mainten ance (servi cing) instruc tions in the li terature
accompanying the product. Heed all warnings. Follow all
instructions. Keep these instructions.
WARNING: This is a class A product. In a domestic environment
this product may cause radio interferences in which case the
user may be required to take adequate measures.
Use this product only in E1, E2, E3 or E4 environments
according to EN55103-2.
Do not remove mains connector ground, it is dangerous and
illegal. Class I device. The product must be connected to a
mains socket outlet with protective earth connection. Only use
this equipment with an appropriate mains cord for your country.
The lightning and arrowhead symbol warns about the presence
of uninsulated dangerous voltage. To reduce the risk of electric
shock, do not remove the cover.
Do not install near any heat sources such as radiators, heat
registers, stoves or other apparatus that produce heat. The
circulation of air through the heatsink must not be blocked.
Do not expose this device to rain or moisture. Do not use this
apparatus near water (for example, swimming pools and
fountains). Do not place any objects containing liquids, such as
bottles or glasses, on the top of the unit. Do not splash liquids
on the unit. IP-20 equipment.
This symbol on the product indicates that this product should
not be treated as household waste. Instead it shall be handed
over to the appicable collection point for the recycling of
electrical and electronic equipment.
Working temperature ranges from 15ºC to 45ºC with a relative
humidity of 95%, with ±10% of the rated main voltage value
indicated on the rear label (according to IEC 60065). If the fuse
needs to be replaced, please pay attention to correct type and
ratings.
The outer wiring connected to the device requires installation by
an instructed person or the use of a flexible cable already
prepared.
If the apparatus is connected permanently, the electrical system
of the building must incorporate a multipolar switch with a
separation of contact of at least 3mm in each pole.
To disconnect the device, you should use the mains plug. Unplug
this apparatus during lightning storms, earthquakes or when
unused for long periods of time.
Do not place loudspeakers in proximity to devices sensitive to
magnetic fields such as television monitors or data storage
magnetic material.
For enclosures with tripod socket, the maximum safety height
from floor to bottom of enclosure when mounting on a TRD-2
tripod, with legs spread 55cm from the central pole, is:
ACTION-508A ------------->125 cm
ACTION-512A ------------->115 cm
ACTION-515A ------------->105 cm
The appliance should be flown only from the rigging points and
by qualified personnel. Do not suspend the box from the
handles.
No user serviceable parts inside. Refer all servicing to qualified
service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally or has been dropped.
Clean only with a dry cloth. Do not use any solvent based
cleaners.
Reselling of the product is only possible if the user manual is
aviable. Any changes made to the product have to be
documented in writing and passed on to the buyer in the event
of resale.
Manual del Usuario / action 500 series / User’s Manual
3
GARANTÍA
Todos nuestros productos están garantizados por un periodo de 24
meses desde la fecha de compra.
Las garantías sólo serán válidas si son por un defecto de
fabricación y en ningún caso por un uso incorrecto del producto.
Las reparaciones en garantía pueden ser realizadas,
exclusivamente, por el fabricante o el servicio de asistencia técnica
autorizado.
Otros cargos como portes y seguros, son a cargo del comprador
en todos los casos.
Para solicitar reparación en garantía es imprescindible que el
producto no haya sido previamente manipulado e incluir una
fotocopia de la factura de compra.
WARRANTY
All our products are warrantied against any manufacturing defect
for a period of 2 years from date of purchase.
The warranty excludes damage from incorrect use of the product.
All warranty repairs must be exclusively undertaken by the factory
or any of its authorised service centers.
To claim a warranty repair, do not open or intend to repair the
product.
Return the damaged unit, at shippers risk and freight prepaid, to
the nearest service center with a copy of the purchase invoice.
4
Manual del Usuario / action 500 series / User’s Manual
DECLARACIÓN DE CONFORMIDAD
DECLARATION OF CONFORMITY
DAS Audio Group, S.L.
C/ Islas Baleares, 24 - 46988 - Pol. Fuente del Jarro - Valencia. España
(Spain).
Declara que :
Declares that :
ACTION-508A / ACTION-512A / ACTION-M512A / ACTION-515A
ACTION-525A / ACTION-S18A / ACTION-S118A / ACTION-S218A
Cumple con los objetivos esenciales de las Directivas:
Abide by essential objectives relating Directives:
l de Baja Tensión (Low Voltage Directive) 2014/35/UE
l de Compatibilidad Electromagnética (EMC) 2014/30/UE
l RoHS 2011/65/UE
l RAEE (WEEE) 2012/19/UE
Y es conforme a las siguientes Normas Armonizadas Europeas:
In accordance with Harmonized European Norms:
l EN 60065:2014.- Audio, video and similar electronic apparatus. Safety
requirements.
l EN 55032:2012.- Electromagnetic compatibility of multimedia equipment.
Emission requirements.
l EN 55103-2:2009.- Electromagnetic compatibility. Product family
standard for audio, video, audio-visual and entertainment lighting control
apparatus for professional use. Part 2:Immunity.
l EN 50581:2012.- Technical documentation for the assessment of
electrical and electronic products with respect to the restriction of
hazardous substances.
Manual del Usuario / action 500 series / User’s Manual
5
INTRODUCTION
The action 500 series inherits the exceptional sound quality and rugged build that have made DAS
professional systems an internacional sound reinforcement standard. Designed from “real-world” experience,
they offer users outstanding performance, absolute reliability, and unparalleled convenience. Whether it is in a
high-profile venue or on the stage of a major event, the action 500 series will provide the power and definition
needed to make your performance a success.
Settings
ACTION-508A
- Compact multi-purpose system with monitor position
- 8” bass loudspeaker, 8GV (1,5" VCD).
- Compressor driver with titanium diaphragm, M-34 (1,4" VCD).
- Reduces size and weight
- Pole mount socket
The ACTION-508A offers a multi-angle enclosure which allows it to
be used in stage monitor applications as well as a compact P.A.
system. The 720 W peak power of the Class D amplifier provides
extended bandwith, improved dynamic range and exceptionally low
distortion-features hard to find on other systems in this market segment.
The 8GV loudspeaker provides accurate low frequency reproduction.
High frequencies are handled by the M-34 compression driver with 1”
exit and titanium diaphragm offering excellent performance.
ACTION-512A
-Two-way powered system.
-12” bass loudspeaker, 12MI4 (2,5" VCD).
-Compressor driver with titanium diaphragm, M-34 (1,4" VCD).
-Asimetric encolusure design for stage monitor use.
-Built-in rigging points (eyebolt based).
-Stand mountable.
The ACTION-512A is a powered loudspeaker (2 channel Class D
amplifier), that utilizes a 12” low frequency transducer and a 1” exit
compression driver. The multi-angle cabinet is constructed of Birch plywood
protected by an environmentally friendly black paint finish. Two bar handles
and a steel grille are provided. A 35mm tripod socket with angle double (0º
and -10º) allows for stand mounting.
ACTION-515A
-Two-way powered system
-15” bass loudspeaker, 15MI4 (2,5" VCD)
-Compression driver with titanium diaphragm, M-34 (1,4" VCD)
-Asymmetric enclosure design for stage monitor use
-Built-in rigging points (eyebolt bassed)
-Stand mountable
ACTION-515A is a powered loudspeaker (2 channel Class D amplifier),
uses a 15” low frequency transducer and a 1” exit compression driver with
titanium diaphragm. The cabinet is constructed from Birch plywood and
finished with an envinonmentally friendly black paint finish. Two bar handles
are provided and a steel grille protects components. A 35mm tripod socket
with angle double (0º and -10º) allows for stand mounting. Rigging points
provide a safe and simple solution for suspending the ACTION-515A
ACTION-M512A
-Dedicated powered stage monitor.
-12” bass loudspeaker, 12MI4 (2,5" VCD).
-Compression driver with titanium diaphragm, M-34 (1,4" VCD).
-Low profile enclosure design for minimum visual impact.
-Black paint finish.
-Stand mountable.
The ACTION-M512A is a dedicated powered stage monitor (2channel
Class D amplifier). The enclosure ir constructed from Birch plywood and is
protected with a black paint finish. Two side located handles facilitate
handling and a steel grille protects the components. A pole mount socket
adds versatility to the ACTION-M512A.
6
Manual del Usuario / action 500 series / User’s Manual
INTRODUCTION (cont'd)INTRODUCCIÓN (cont.)
ACTION-525A
- 2-way powered system
- 2 x 15" bass loudspeaker, 15MI (2,5" VCD)
- Compression driver with titanium diaphragm, M-44
(1,75" VCD)
- Two steel-reinforced handles
The ACTION-525A is a powered loudspeaker (2 channel
Class D amplifier), that utilizes two 15” bass loudspeakers for
extra low frequency punch and higher SPL. High frequencies
are handled by a 1” compression driver with titanium
diaphragm. The trapezoidal cabinet is constructed using Birch
plywood and protected with a hard-wearing black paint finish.
Two bar handles and a steel grille sealed against corrosion
using a polyamide powder coat finish are provided. Rigging
points provide a safe and simple way to fly the ACTION-525A
cabinets.
ACTION-S18A
- Bass-reflex powered subwoofer system
- 18" low frequency transducer, 18FW4 (3" VCD)
- Precise and powerful bass reproduction
- Top located pole mount socket
The ACTION-S18A bass powered system (Class D amplifier)
incorporates a 18” low frequency transducer with a 3" voice
coil mounted as a direct radiator into a bass-reflex cabinet. The
loudspeaker is protected by a perforated steel grille, sealed
against corrosion using a powder coat finish. The ACTION-S18A
is designed for use in biamped systems. A top located polemount socket permits mounting full-range systems above the
ACTION-S18A and two bar handles makes moving easy.
ACTION-S118A
- Powered horn-bass subwoofer system
- Class D 3200W amplifier
- 1x 18" long excursion woofer, 18LX (4" VCD)
- Deep/Loud EQ selector
- Filtered output defeat switch
- Variable 80-125 Hz high-pass filter
- Gain control and polarity switch
- Top located pole mount socket
The ACTION-S118A horn bass powered system (Class D
amplifier) incorporates a 18” long excursion woofer with a 4"
voice coil mounted as a direct radiator with load cabinet. The
loudspeaker is protected by a perforated steel grille, sealed
against corrosion using a powder coat finish. The ACTION-
S118A is designed for use in biamped systems. A top located
pole-mount socket permits mounting full-range systems above
the ACTION-S118A and two bar handles makes moving easy.
ACTION-S218A
- High output bass-reflex powered subwoofer system
- Twin 18" loudspeakers, 18FW4 (3" VCD)
- Durable black paint finish
- Side located bar handles
This bass-reflex powered subwoofer system uses dual 18"
bass loudspeakers equipped with 3" voice coils. The
exceptional power handling capacity and efficiency provide high
sound pressure levels of powerful bass. Two hand locations
facilitate handling. The cabinet is designed to be stacked in the
vertical position in order to reduce the units "on-stage"
footprint.
Manual del Usuario / action 500 series / User’s Manual
7
CONFIGURATIONS
ACTION-S18A
VOLUME
AUDIO MANAGEM ENT
0.0m
loud Top
0 dB
R
L
OUTPUT 2
PUSH FOR DSP
OUTPUT 1
O
1 2
www.dasaudio.com
Made in Spain
INPUT 2
INPUT 1
se ri es
AC TION
5oo
Select LPF(Low Pass Filter)
Top mode in the Action-S18A.
DAS Audio Group, S.L. (Valencia)
ACTION-508A ACTION-508A
TRD-2 TRD-2
VOLUME
AUDIO MANAGEM ENT
0.0m
live Sub
0 dB
Mixer
MAX-oo
0
CH 2
PUSH FOR DSP
MICLINE MICLINE
O
0
CH 1
1 2
GAIN
MAX-oo
CH 2
MIX
CH 1
www.dasaudio.com
Made in Spain
AUX IN
INPUT 1 INPUT 2
OUTPUT
se ri es
AC TION
5oo
DAS Audio Group, S.L. (Valencia)
Select HPF (High Pass Filter)
SUB mode in the Action-508A.
8
Manual del Usuario / action 500 series / User’s Manual
CONFIGURATIONS (cont´d)
ACTION-512A
VOLUME
0.0m
ACTION-S18A
TRD-6
OUTPUT 2
VOLUME
AUDIO MANAGEM ENT
MAX-oo
0
CH 2
PUSH FOR DSP
MICLINE MICLINE
O
0
CH 1
AUX IN
GAIN
MAX-oo
INPUT 1 INPUT 2
se ri es
AC TION
5oo
0.0m
loud Top
0 dB
PUSH FOR DSP
OUTPUT 1
O
1 2
www.dasaudio.com
Made in Spain
Mixer
INPUT 2
INPUT 1
se ri es
AC TION
5oo
Select LPF(Low Pass Filter)
Top mode in the Action-S18A.
DAS Audio Group, S.L. (Valencia)
0 dB
AUDIO MANAGEM ENT
ACTION-512A
live Sub
CH 2
MIX
1 2
CH 1
www.dasaudio.com
Made in Spain
OUTPUT
Select HPF (High Pass Filter)
DAS Audio Group, S.L. (Valencia)
SUB mode in the Action-512A.
TRD-6
ACTION-S18A
Manual del Usuario / action 500 series / User’s Manual
9
CONFIGURATIONS (cont´d)
ACTION-515A
TRD-2 TRD-2
AUDIO MANAGEM ENT
VOLUME
0 dB
0.0m
live Sub
1 2
www.dasaudio.com
Made in Spain
MIX
CH 1
CH 2
OUTPUT
DAS Audio Group, S.L. (Valencia)
O
PUSH FOR DSP
CH 1
0
MICLINE MICLINE
GAIN
MAX-oo
AUX IN
INPUT 1 INPUT 2
AC TION
5oo
CH 2
0
se ri es
Select HPF (High Pass Filter)
SUB mode in the Action-515A.
ACTION-S118A
L
R
Mixer
ACTION-515A
MAX-oo
AC TIO N
5oo
Model: ACTION-S118A-230
DAS Audio Group, S.L. (Valencia)
LIMIT
SIGNAL
ON
LEVEL
0 80Hz
+6-oo
POLARITY
- +
OUTPUT A OUTPUT B
se rie s
MADE IN SPAIN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE
FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE REPLACE
ONLY WITH THE SAME TYPE
T10 A L 250V FUSE
LOW-PASS
80Hz LOW-PASS FOR
ACTION-500 TOPS
PRESET
DEEP/LOUD
100Hz63Hz
10
230V
Select 80Hz in the
Manual del Usuario / action 500 series / User’s Manual
SATELLITE X-OVE R
LOGO
OFF/ON
AC INPUT
1.8A 50Hz/60Hz
HPF/THRU
AC OUTPUT
MAX. 7 UNITS
ACTION-118A-230
Action-S118A
CONFIGURATIONS (cont´d)
ACTION-525A
AUDIO MANAGEM ENT
VOLUME
0 dB
0.0m
live Sub
1 2
www.dasaudio.com
Made in Spain
MIX
CH 1
CH 2
OUTPUT
DAS Audio Group, S.L. (Valencia)
Select HPF (High Pass Filter)
SUB mode in the Action-525A.
O
PUSH FOR DSP
CH 1
0
MICLINE MICLINE
GAIN
MAX-oo
AUX IN
INPUT 1 INPUT 2
AC TION
5oo
CH 2
0
se ri es
ACTION-525A
MAX-oo
ACTION-S218A
LIMIT
SIGNAL
ON
LEVEL
0 80Hz
OUTPUT A OUTPUT B
LOGO
OFF/ON
AC TIO N
5oo
Model: ACTION-S218A-230
DAS Audio Group, S.L. (Valencia)
+6-oo
POLARITY
- +
SATELLITE X-OVE R
se rie s
MADE IN SPAIN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE
FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE REPLACE
ONLY WITH THE SAME TYPE
T10 A L 250V FUSE
LOW-PASS
80Hz LOW-PASS FOR
ACTION-500 TOPS
PRESET
DEEP/LOUD
HPF/THRU
100Hz63Hz
ACTION-S218A
Mixer
AC OUTPUT
230V
AC INPUT
3A 50Hz/60Hz
MAX. 4 UNITS
ACTION-218A-230
Select 80Hz mode in
the Action-S218A
Manual del Usuario / action 500 series / User’s Manual
11
LINE DRAWINGS
14
ALL DIMENSIONS IN MILLIMETERS
ACTION-508A
ACTION-M512AACTION-515AACTION-525AACTION-S18A ACTION-512A
Top View
Right View
Bottom View Right ViewFront View Rear View
Front View
Front View
Left View
Left View
Rear View
Rear View
12
Bottom View
Bottom View
Top View Right ViewFront View
Front View
Manual del Usuario / action 500 series / User’s Manual
Right ViewFront View
Right View
Rear View
Rear View
Rear View
AMPLIFIER
2
6
4
8
Amplifier :
ACTION-508A
ACTION-512A
ACTION-515A
ACTION-525A
2
10
Amplifier :
ACTION-S18A
1
2
1
Description
1) MASTER VOLUMEN AND DSP CONTROL:
5
3
5
7
3
5
6
3
4
5
7
3
Use the encoder to select the desired output volume
and push/hold it to access to the different DSP and cabinet
settings.
2) MAIN SCREEN:
In the main screen all selected parameters and settings
are shown. Besides this, there are two input level indicators
on the left , one output level indicator on the right and the
center area is reserved to display messages as Input Clip or
Limit.
3) INPUT CONNECTORS:
1/4” Jack+XLR combined socket-type input signal
connectors. This is a balanced connector just like the LOOP
THRU connector with the following pin assignments:
1 or S =GND (ground).
2 or T =(+) Non inverted input.
3 or R =(-) Inverted input.
4) OUTPUT CONNECTORS:
XLR-type output signal connector for connecting several
units together and sending them all the same signal. Except
in ACTION-S18A, the user can select the output signal with a
11
10
8
9
10
11
Amplifier :
ACTION-M512A
switch.
5) INPUT GAIN CONTROL:
For channels 1, 2 and AUX IN, gain control, line and
microphone.
6) OUTPUT MIX SELECTOR:
It allows the user to select which input channel signal to be sent to other cabinets. In
ACTION-508A, ACTION-M512A, ACTION-512A, ACTION-515A and ACTION-525A: User can
select Ch1, Ch2 or both (Mix). In ACTION-S118A and ACTION-S218A: User can select the
same input signal or filtered signal (HPF) with a cut-off frequency of 100 Hz.
1
7) AUX IN:
3.5 mm audio jack input for connecting external audio media devices, such as MP3
players. The input source is controlled with Gain control 1.
8) AC INPUT :
4
4
Standard IEC-60320 (only ACTION-S18A) or PowerCon NAC3FCA mains connector
(inserted, rotated and locked for ON). Only use this equipment with an appropriate
mains cord.
3
3
9) AC OUTPUT (only ACTION-M512A, ACTION-S118A and ACTION-S218A) :
PowerCon NAC3FCB connector for AC loop thru to other units (see unit’s label). Only
use this equipment with an appropriate mains cord.
10) POWER :
Mains power ON/OFF switch.
11) FUSE :
Fuse holder. Only use the recommended fuse type and size.
12) LIMIT (only ACTION-S118A and ACTION-S218A) :
Red LED indicates amplifier saturation. Amplifier limiter indicator lights.
13) SIGNAL (only ACTION-S118A and ACTION-S218A) :
Green LED indicates signal presence.
14) ON (only ACTION-S118A and ACTION-S218A) :
Green LED indicates that the unit is ON.
15) LOW-PASS CROSSOVER (only ACTION-S118A and ACTION-S218A) :
8
Button for adjusting the upper cut-off frequency for the subwoofer unit (see label). We
11
recommend a cut-off frequency of 80 Hz.
16) POLARITY (only ACTION-S118A and ACTION-S218A) :
Switch for inverting the phase of the unit. The LED indicates the inverted phase.
17) PRESET DEEP/LOUD (only ACTION-S118A and ACTION-S218A) :
Button for switching between two types of frequency response, DEEP or LOUD.
18) LOGO OFF / ON (only ACTION-S118A and ACTION-S218A) :
Press the button to illuminate the logo.
19) Fan (only ACTION-S118A and ACTION-S218A).
14
Manual del Usuario / action 500 series / User’s Manual
AMPLIFIER (cont'd)
12
14
5
16
4
18
3
3
11
8
Amplifier :
ACTION-S118A
ACTION-S218A
ON / OFF
19
A sound system should be switched on sequentially. Switch on
the self-powered units last in your sound system (switch on the
subwoofer before the mid-high system). Switch on the sound sources
such as CD players or turntables, then the mixer, then the processors,
and finally the self-powered unit. If you have several units, it is
recommended that you switch them on sequentially one at a time.
Follow the inverse order when switching off, turning self-powered
13
15
units off before any other element in the sound system.
Disconnect the device by removing the mains connector from the
mains socket. The mains connector and mains socket must always
17
be freely accessible and never covered or blocked in any way. The
mains cable can be detached from the device by disconnecting the
4
6
standard IEC-60320 connector (only ACTION-S18A). Always
disconnect the device by removing the mains connector from the
mains socket before detaching the mains cable at the standard IEC60320 connector (only ACTION-S18A).
The rest of models use a power cable equipped with a Neutrik
PowerCon NC3FCA connector. Power can be daisy chained via the
NC3FCB output connector (see details on product label).
9
IMPORTANT: Do not disconnect the unit while in use.
Ensure that the device is disconnected from the mains by
observing that the ON LED is turned off. Please note that the ON LED
can stay on for several seconds after the mains power has been
disconnected.
Overload indicator
This device has an indicator (LIMIT LED) that lights when the signal is excessive.
The indicator should not be lit continuously. This distorts the signal (quickly fatiguing
your ears) and may damage the speakers. Therefore, it is recommended that you never
work with this LED on; at most it should blink only occasionally.
Equalisation
The unit does not need extreme settings of equalisation to produce quality sound.
Avoid high levels of gain on the equalisers. Gain values above +3 dB on a console’s EQ
are not recommended.
Overheating
This equipment does not normally overheat during normal conditions of use. When
overheating occurs, the unit protects itself. You should then find out why and if
necessary contact an authorised dealer for technical assistance.
Normally it is enough just to let the unit cool down after you have corrected the
problem so that the system functions properly again.
ACTION-S118A and ACTION-S218A amplifiers are equipped with fan and heatsink to
maintain the correct operating temperature.
Keep grilles clean and dust-free.
Do not block or obstruct in any way the air entrance or exit while the equipment is
in use.
Air circulates from the bottom to the top of the amplifier.
Low mains voltage
If mains voltage falls below the shutdown voltage for the unit, it will stop playing.
When acceptable levels are regained, the unit will switch back on automatically.
Therefore the current consumed by a 115V version is double the 230V version to
achieve the same acoustic power level.
Pink Noise
Mains 230 Vrms
ACTION-508A
ACTION-512A
ACTION-M512A
ACTION-515A
ACTION-525A
ACTION-S18A
ACTION-S118A
ACTION-S218A
1/3 Power
0.8A
1.1A
1.1A
1.1A
1.1A
1.4A
1.8A
3A
Manual del Usuario / action 500 series / User’s Manual
15
Troubleshooting
PROBLEM
CAUSE
SOLUTION
No sound from the unit. The
SIGNAL LED does not light up.
Full power cannot be obtained. The
LIMIT LED never lights up.
Sound is distorted. The LIMIT LED
is not on, or only lights up
occasionally.
Sound is distorted and very loud
and LIMIT LED lights up.
Hum or buzz when a mixer is
connected to the unit.
Hum or buzz when using lighting
controls in the same building.
The ON LED does not light up when
the mains connector is connected
and the unit is switched to ON.
1 – The signal source is sending no
signal.
2 – Defective cable.
3 - The amplifier has overheated.
The signal source does not have a
hot enough output.
The mixer or signal source is
distorting.
The system is overloaded and has
reached maximum power.
1.– The console probably has unbalanced outputs. You may be using
an i ncor re c t un-b ala nced t o
balanced cable.
2.– The mixer and the powered
speaker are not plugged into the
same mains outlet.
3.– The audio signal cable is too
long or too close to an AC cable
1.– The audio signal cable is too
long or too close to the lighting
cable.
2.– On a sound system with threephase AC, the lighting equipment
and the UNIT are connected to the
same phase.
1.– Bad or loose AC connection to
the UNIT or the mains outlet.
2 – Faulty AC cable.
3 – Blown Fuse.
4 - The mains voltage is out of
range.
1 – Check that the mixer or sound
source is sending signal to the UNIT.
2 – Check that the cable from the
sound source to the UNIT is
connected correctly. Replace the
cable if defective.
3 - Allow the unit to cool down for
some minutes and it will function
again. Check the main output level
of the mixer or channel gains since
the unit will have been functioning
with excessive levels.
If using a mixer, use the balanced
ou t p u t i f a v a i l a b l e . Use a
professional mixer with a hotter
output.
Turn mixer channel gains down.
Check that none of your signal
sources are distorting.
Turn down the mixer's output.
1.– Read the appendix of this
manual to make a correct unbalanced to balanced cable.
2.– Connect the mixer and the unit
to the same mains outlet.
3.– Use a cable that is as short as
possible and/or move the audio
signal cable away from mains
cables.
1.– Move the audio signal cable
away from lighting cables. Try to find
out at what point the noise is leaking
into the system.
2.– Connect the sound system to a
different phase than the lights. You
may need the help of an electrician.
1.– Check your connections.
2.– Check the cables, connectors
and AC power with a suitable mains
tester.
3.- Replace the blown fuse for
another of the same type and size.
4.- If the multimeter determines that
the mains voltage is out the range,
you may need the assistance of an
electrician to find an appropriate
solution.
16
Manual del Usuario / action 500 series / User’s Manual
DISPLAY (except ACTION-S18A, ACTION-S118A & ACTION-S218A)
ADJUSTING THE LEVELS:
By default the state of the screen is the
following:
Once the input source (s) have been
connected to the amplifier´s cabinet, the user has
to adjust the levels.
For the two input channels (1 and 2), two
independent gain controls are available. Be
careful when setting the input volume and do not
exceed the maximum level shown on the meters:
(input clip shown on channel one)
peak
meters
Exceeding the limits
may cause
speaker failure!!
After having set the input volume values
under the maximum level, user has to adjust
ouput volume with the master control. The level
is shown in the right meter of the screen. As with
the inputs be careful not exceeding the limit:
(LIMIT shown)
After these two volume adjustments the
screen will show something like this (when
having the input sources ON):
MAIN MENU:
live off
1 2
live off
1C2
LIMIT
live off
1L2
+ 2 dB
1 2
live off
0 dB
0.0m
INPUT
CLIP
0.0m
0.0m
0.0m
O
RMS
meter
O
Exceeding the limits
may cause
speaker failure!!
O
It is highly recommendable
working with output volume
below 0dB. If maximum level
is required us er should
increase the output level
(higher than 0dB)
O
Notes:
The only models in this series that do not
have a display are: ACTION-S118A and ACTION-
S218A.
In the model ACTION-M512A the preset
activated by default is "Monitor" while in the
other models it is "Live". While your preset is
"Monitor" the display will turn off completely
during use.
If in the "LOGO" menu we have chosen the
"Limit" option, the anagram will flash when the
limiter is activated. If we have chosen "On" it will
remain lit, while if the option chosen is "Off" it
will remain off.
PRESETS:
Three factory settings (live, dance, monitor)
depending on the type of music/use that has
been configured inside the unit:
0 dB
0.0m
live off
1 2
live preset
With the encoder go to Preset Sub-menu and
press the knob to access to the different options:
MAIN MENU
BACK
PRESET: Live
HPF: Off
O
MAIN MENU
BACK
PRESET: Live >
HPF: Off
MAIN MENU
BACK
PRESET: <dance>
HPF: Off
MAIN MENU
BACK
PRESET:<monitor>
HPF: Off
As stated previously by pushing the encoder
Differences between Presets
the user can access to the following options in
the MENU:
MAIN MENU
BACK
PRESET: Live
HPF: Off
dBSPL
dBSPL
dBSPL
Live
Dance
Monitor
10k5k2k1k500200100502020 20k
10k5k2k1k500200100502020 20k
10k5k2k1k500200100502020 20k
Note: to enter and select and option always push the encoder. For going back in the menu, the user
has to select Back on the screen and press the encoder or just pushing the encoder.
After 30 seconds without using the unit it will go back to the main screen automatically.
Manual del Usuario / action 500 series / User’s Manual
17
HPF (High Pass Filter):
Two options are available for the cabinets. Go to the HPF Sub-menu and press the encoder. Options
appear:
MAIN MENU
BACK
PRESET: Live
HPF: Off
MAIN MENU
BACK
PRESET:Live
HPF: Off>
MAIN MENU
BACK
PRESET:Live
HPF: <SUB>
when combining with subwoofer :
ACTION-S18A, ACTION-S118A or ACTION-S218A
DELAY:
The user can set up a delay in the cabinets by using the delay Sub-menu; from 0 to 9.9m in 0.1m
steps. Delay units can be selected between meters or feet:
MAIN MENU
Delay: 0.0m
OPTIONS
BACK
MAIN MENU
Delay: 9.9m
OPTIONS
BACK
18
Manual del Usuario / action 500 series / User’s Manual
OPTIONS:
In this sub-menu the user can configure all the non-audio related options. Remember that in order to
access each parameter it is necessary to push the encoder:
OPTIONS MENU
BACK
BRIGHT: 0
CONTRAST: 0
OPTIONS MENU OPTIONS MENU OPTIONS MENU
BACK BACK BACK
BRIGHT: 0 BRIGHT: 0 BRIGHT: 0
CONTRAST: 0
OPTIONS MENU
DIMMING: on
LOGO: on
MENU LOCK: off
DIMMING: When active the screen lowers its luminosity after a few seconds. Default is "on"
OPTIONS MENU
DIMMING: on
LOGO: on
MENU LOCK: off
OPTIONS MENU
DIMMING: on
LOGO: on
MENU LOCK: off
OPTIONS MENU OPTIONS MENU
BACK BACK
BRIGHT: 0 BRIGHT: +10
CONTRAST: 0 CONTRAST: 0
CONTRAST: -10 CONTRAST: +10
OPTIONS MENU
DIMMING: <on
LOGO: on
MENU LOCK: off
OPTIONS MENU
DIMMING: on
LOGO: <on>
MENU LOCK: off
OPTIONS MENU
DIMMING: on
LOGO: on LOGO: on LOGO: on
MENU LOCK: off>
OPTIONS MENU
DIMMING: off>
LOGO: on
MENU LOCK: off
OPTIONS MENU
DIMMING: on
LOGO: off >
MENU LOCK: off
OPTIONS MENU OPTIONS MENU
DIMMING: on DIMMING: on
MENU LOCK: <on> MENU LOCK:<pw292
By increasing the
c o n t r a s t t h e
s c re e n c a n b e
easil y se en from
lower positions.
OPTIONS MENU
DIMMING: on
LOGO: <Limit
MENU LOCK: off
A. User can LOCK the Display and Master Volume Control by enabling this option MENU LOCK: ON
B. User can LOCK the Display and Master Volume Control WITH PASSWORD by enabling this option MENU LOCK: pw292
In case A to unlock just press the encoder: In case B to unlock PUSH encoder and enter the 3 digit password (292):
LOCKED
+ 0 dB
PUSH TO UNLOCK
0 0.0m
live off
1 2
OPTIONS MENU
STAND-BY: off
DLY UNITS: m
RESET DEVICE
STAND-BY:When no signal is detected the amplifer shuts down. Time can be selected
OPTIONS MENU OPTIONS MENU OPTIONS MENU
STAND-BY: off STAND-BY: off STAND-BY: off
DLY UNITS: m
RESET DEVICE RESET DEVICE RESET DEVICE
OPTIONS MENU RESET DEVICE
RESET DEVICE Are you sure?
INFORMATION NO YES
BACK
O
OPTIONS MENU OPTIONS MENU
STAND-BY: off> STAND-BY:<5min>
DLY UNITS: m DLY UNITS: m
RESET DEVICE RESET DEVICE
DLY UNITS: m>
LOCKED
+ 0 dB
PUSH TO UNLOCK
0 0.0m
live off
1 2
This option resets the device to the following values:
O
DLY UNITS: <ft
PASSWORD: _ _ _
+ 0 dB
0 0.0m
live off
1 2
O
Preset: live
HPF: off
Delay: 0m
Stand-By: off
Dimming: On
Manual del Usuario / action 500 series / User’s Manual
19
DISPLAY (only ACTION-S18A)
ADJUSTING THE LEVELS
By default the state of the screen is the
following:
By scrolling down the encoder more options
appear:
MAIN MENU
Delay: 0.0m
OPTIONS: off
BACK
Once the input source has been connected to
the amplifier´s cabinet, the user has to check the
gain structure of the system.
Adjust level output from your processor
and/or mixing console in order to prevent INPUT
CLIP (left signal meter):
peak
meters
Exceeding the limits
may cause damage
in the system
After having set the input volume values
under the maximum level, user has to adjust
ouput volume with the master control. The level
is shown in the right meter of the screen. As with
the inputs be careful not exceeding the limit:
(LIMIT shown)
After these two volume adjustments the
screen will show something like this (when
having the input sources ON):
MAIN MENU:
As stated previously by pushing the encoder
the user can access to the following options in
the MENU:
loud Top
1 2
C
0 dB
loud Top
1 2
0 dB
LIMIT
loud Top
1 2
0 dB
loud Top
1 2
MAIN MENU
PRESET: loud
LPF: Top
0 dB
0.0m
INPUT
CLIP
0.0m
0.0m
0.0m
BACK
O
RMS
meter
O
L
Exceeding the limits
may cause damage
in the system
O
O
PRESETS:
Two factory settings (loud and deep)
depending on the type of music/use has been
configured by default:
0 dB
0.0m
loud Top
1 2
loud preset
With the encoder go to Preset Sub-menu
and press the knob to access the different
options:
MAIN MENU
BACK
PRESET: loud
LPF: Top
MAIN MENU
BACK
PRESET: loud >
LPF: Top
MAIN MENU
BACK
PRESET: <deep
LPF: Top
LPF (Low Pass Filter):
There are 3 different options:
MAIN MENU
BACK
PRESET: loud
LPF: Top>
MAIN MENU
BACK
PRESET: loud
LPF:<63Hz>
MAIN MENU
BACK
PRESET: loud
LPF:<100Hz
O
dBSPL
dBSPL
Combination with
ACTION-508A, ACTION-M512A,
ACTION-512A, ACTION-515A
and ACTION-525A
10k5k2k1k500200100502020 20k
10k5k2k1k500200100502020 20k
Note: to enter and select and option always push the encoder. For going back in the menu, the user
has to select Back on the screen and press the encoder or just pushing the encoder.
After 30 seconds without using the unit it will go back to the main screen automatically.
20
Manual del Usuario / action 500 series / User’s Manual
OPTIONS:
In this sub-menu the user can configure all the non-audio related options. Remember that in order to
access each parameter it is necessary to push the encoder:
OPTIONS MENU
BACK
BRIGHT: 0
CONTRAST: 0
OPTIONS MENU OPTIONS MENU OPTIONS MENU
BACK BACK BACK
BRIGHT: 0 BRIGHT: 0 BRIGHT: 0
CONTRAST: 0
OPTIONS MENU
DIMMING: on
LOGO: on
MENU LOCK: off
DIMMING: When active the screen lowers its luminosity after a few seconds. Default is "on"
OPTIONS MENU
DIMMING: on
LOGO: on
MENU LOCK: off
OPTIONS MENU
DIMMING: on
LOGO: on
MENU LOCK: off
OPTIONS MENU OPTIONS MENU
BACK BACK
BRIGHT: 0 BRIGHT: +10
CONTRAST: 0 CONTRAST: 0
CONTRAST: -10 CONTRAST: +10
OPTIONS MENU
DIMMING: <on
LOGO: on
MENU LOCK: off
OPTIONS MENU
DIMMING: on
LOGO: <on>
MENU LOCK: off
OPTIONS MENU
DIMMING: on
LOGO: on LOGO: on LOGO: on
MENU LOCK: off>
OPTIONS MENU
DIMMING: off>
LOGO: on
MENU LOCK: off
OPTIONS MENU OPTIONS MENU
DIMMING: on DIMMING: on
LOGO: off > LOGO: <limit
MENU LOCK: off MENU LOCK: off
OPTIONS MENU OPTIONS MENU
DIMMING: on DIMMING: on
MENU LOCK: <on> MENU LOCK:<pw292
A. User can LOCK the Display and Master Volume Control by enabling this option MENU LOCK: ON
B. User can LOCK the Display and Master Volume Control WITH PASSWORD by enabling this option MENU LOCK: pw292
In case A to unlock just press the encoder: In case B to unlock PUSH encoder and enter the 3 digit password (292):
LOCKED
0 dB
PUSH TO UNLOCK
UNLOCKED
0 dB
+ 0dB
Password: 0 0 0
0 dB
+ 0dB
0.0m
loud Top
1 2
OPTIONS MENU
DLY UNITS: m
RESET DEVICE
INFORMATION
OPTIONS MENU
DLY UNITS: m
RESET DEVICE
INFORMATION
0.0m
0.0m
O
1 2
loud Top
OPTIONS MENU OPTIONS MENU
DLY UNITS: m> DLY UNITS:<ft
RESET DEVICE RESET DEVICE
INFORMATION INFORMATION
RESET DEVICE
Are you sure?
NO YES
O
This option resets the device to the following values:
loud Top
1 2
O
Preset: loud
LPF: Top
Dimming: on
LOGO: on
MENU LOCK: off
Manual del Usuario / action 500 series / User’s Manual
21
RIGGING
Warnings
This manual contains needed information for
flying DAS Audio line array systems, description of
the elements and safety precautions. To perform
any operations related to flying the system, read
the present document first, and act on the
warnings and advice given. The goal is to allow the
user to become familiar with the mechanical
elements required to fly the acoustic system, as
well as the safety measures to be taken during
set-up and teardown.
Absolutely no risks should be taken with
regards to public safety. When flying enclosures
from ceiling support structures, extreme care
should be taken to assure the load bearing
capabilities of the structures so that the installation
is absolutely safe. Do not fly enclosures from
unsafe structures. Consult a certified professional if
needed. All flying accessories that are not supplied
by DAS Audio are the user's responsibility. Use at
your own risk.
Only experienced installers with adequate
knowledge of the equipment and local safety
regulations should fly speaker boxes. It is the
user's responsibility to ensure that the systems to
be flown (including flying accessories) comply with
state and local regulations.
The working load limits in this manual are the
results of tests by independent laboratories. It is
the user's responsibility to stay within safe limits. It
is the user's responsibility to follow and comply
with safety factors, resistance values, periodical
supervisions and warnings given in this manual.
Product improvement by means of research and
development is on going at DAS. Specifications
are subject to change without notice.
It is common practice to apply 5:1 safety
factors for enclosures and static elements. For
slings and elements exposed to material fatigue
due to friction and load variation the following
ratios must be met; 5:1 for steel cable slings, 4:1
for steel chain slings and 7:1 polyester slings.
Thus, an element with a breaking load limit of
1000 kg may be statically loaded with 200 kg (5:1
safety factor) and dynamically loaded with 142 kg
(7:1 safety factor).
Introduction
Flyable action 500 series models feature 6
internal steel angles, with 2 mounting threads
each, so that 12 flying points are available (2 on
each side, 3 on the top panel and 3 on the bottom
panel and 2 on the rear panel). Eyebolt flying
points are factory sealed with M10 screws, which
are replaced with eyebolts on the flying points as
required. Flying with eyebolts is very economical
and safe, and is specially recommended for fixed
installations where the boxes are permanently
fixed.
The illustration shows the internal metal
hardware of an enclosure with eyebolt flying.
When flying a system, the working load must
be lower than the resistance of each individual
flying point in the enclosure, as well as each box.
Hanging hardware should be regularly inspected
and suspect units replaced if in doubt. This is
important to avoid injury and absolutely no risks
should be taken in this respect. It is highly
recommended that you implement an inspection
and maintenance program on flying elements,
including reports to be filled out by the personnel
that will carry out the inspections. Local
regulations may exist that, in case of accident,
may require you to present evidence of inspection
reports and corrective actions after defects were
found.
22
Manual del Usuario / action 500 series / User’s Manual
RIGGING (cont'd)
Flying with eyebolts
The Allen-head screws must be removed and
replaced by M10 eyebolts on one side of the
enclosure. Each rigging point has 200 kg (440 lb)
working load limit. Then choose the slings or
chains of required load resistance and length,
bearing in mind that the length difference between
the front and back slings or chains will determine
the vertical orientation. Alternatively, the back
bottom eyebolt points can be used to provide
vertical orientation.
The ANL-2 set is an optional set of four
eyebolts and four carabiners. (Dimensions are in
milimetres).
ANL-2
Each ANL-2 eyebolt has a rated working load
of 200 kg. (440 lb). Each ANL-2 carabiner has a
working load of 330 kg (726 lb). If using other
hardware, make sure it is rated to handle the
required load.
When using eyebolts it is important to bear in
mind that the rated working load is only true for a
load applied in the plane of the eye, and is
significantly reduced for other angles. The drawing
illustrates the concept. The table shows the
variation of the working load as a function of the
load angle. In the case of the ANL-2 eyebolt, this
means that the 200 kg working load becomes 60
kg at 45 degrees. Do not use eyebolt flying if the
load angle is higher than 45 degrees.
The following illustrations show different views
on eyebolt flying for a single box. The length of the
back cables or chains determines the vertical
angle of the box.
% Working
load
0 Degrees
100% 65% 30% 25%
30 Degrees 45 Degrees More than 45
Manual del Usuario / action 500 series / User’s Manual
Degrees
23
RIGGING (cont'd)
Instructions for AXU (only ACTION-508 and ACTION-512 enclosures)
Introduction
The AXU-ACT8 are designed for ACTION-508 and ACTION-508A enclosures.
The AXU-ACT12 are designed for ACTION-512 and ACTION-512A enclosures.
Safety Precautions
Wall plugs provided are to be used in brick walls only.
For other wall materials, source the suitable wall plug
before use.
DAS Audio is not responsible for use other than the
recommended or whether it be the result of insufficient
strength of the support structure. Use only the screws
and wall plugs supplied on surfaces that will provide
sufficient support. Do not use on surfaces such as plaster,
and gypsum. It is highly recommended and in most parts
of the world mandatory, that a safety cable be used to
secure the enclosure to the structure.
To ensure optimum safety, the installation should be
checked thoroughly at regular intervals replacing all
deteriorated elements.
Loosen the screws before reorienting the speaker.
Never force the rigging elements.
Contact a licensed rigger if there is any doubt.
Mounting instructions
You can consult the AXU-ACT8 mounting instructions for ACTION-508A enclosures on the web:
www.dasaudio.com
You can consult the AXU-ACT12 mounting instructions for ACTION-512A enclosures on the web:
www.dasaudio.com
TRD-6 / TRD-7 accessories
The models ACTION-512A and ACTION-515A dispose the 35mm tripod socket with angle double (0º and -
10º) for stand mounting.
-10º
0º
24
Manual del Usuario / action 500 series / User’s Manual
ANNEX: Line connections: unbalanced and balanced
There are two basic ways to transport an audio signal with microphone or line level:
Unbalanced line: Utilising a two conductor cable, it transports the signal as the voltage between them.
Electromagnetic interference can get added to the signal as undesired noise. Connectors that carry
unbalanced signals have two pins, such as RCA (Phono) and ¼” (6.35mm, often referred to as jack) mono. 3
pin connector such as XLR (Cannon) may also carry unbalanced signals if one of the pins is unused.
Balanced line: Utilising a three conductor cable, one of them acts as a shield against electromagnetic
noise and is the ground conductor. The other two have the same voltage with respect to the ground
conductor but with opposite signs. The noise that cannot be rejected by the shield affects both signal
conductors in the same way. At the device’s input the two signals get summed with opposite sign, so that
noise is cancelled out while the programme signal doubles in level. Most professional audio devices use
balanced inputs and outputs. Connectors that can carry balanced signal have three pins, such as XLR
(Cannon) and ¼” (6.35mm) stereo.
The graphs that follow show the recommended connection with different types of connectors to balanced
processor or amplifier inputs. The connectors on the left-hand side come from a signal source, and the ones
on the right hand side go to the inputs of the processor or amplifier. Note that on the unbalanced connectors
on the left-hand side, two terminals are joined inside the connector. If hum occurs with balanced to balanced
connections, try disconnecting the sleeve (ground) on the input connector. Note that the illustrations show
what should be connected to what, but that pin locations on an actual XLR connector are different. Also, pin
2 hot is assumed on XLR connectors.
Manual del Usuario / action 500 series / User’s Manual
25
www.dasaudio.com
UM_ACT5A_01_EN
DAS Audio Group, S.L. C/. Islas Baleares, 24. 46988 Fuente del Jarro. Paterna. Valencia. España. Tel.: +34 96 134 0860
