DAP Audio HP-3000 operation manual
HP-500 / HP-900 / HP-1500 / HP-2100/ HP-3000 V1
Ordercode:
□D4175 □D4176 □D4177 □D4178 □D4179
MANUAL
ENGLISH
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: D4175 / D4176 / D4177 / D4178 / D4179 1
HP-500 / HP-900 / HP-1500 / HP-2100/ HP-3000
Table of contents
Warning ............................................................................................................................................................................... 2
Safety Instructions ......................................................................................................................................................... 2
Operating Determinations .......................................................................................................................................... 4
Return Procedure .......................................................................................................................................................... 5
Claims .............................................................................................................................................................................. 5
Description of the device ................................................................................................................................................. 6
Frontside.......................................................................................................................................................................... 7
D4175: HP-500 ............................................................................................................................................................. 7
D4176: HP-900 ............................................................................................................................................................. 7
D4177: HP-1500 ........................................................................................................................................................... 7
D4178: HP-2100 ........................................................................................................................................................... 8
D4179: HP-3000 ........................................................................................................................................................... 8

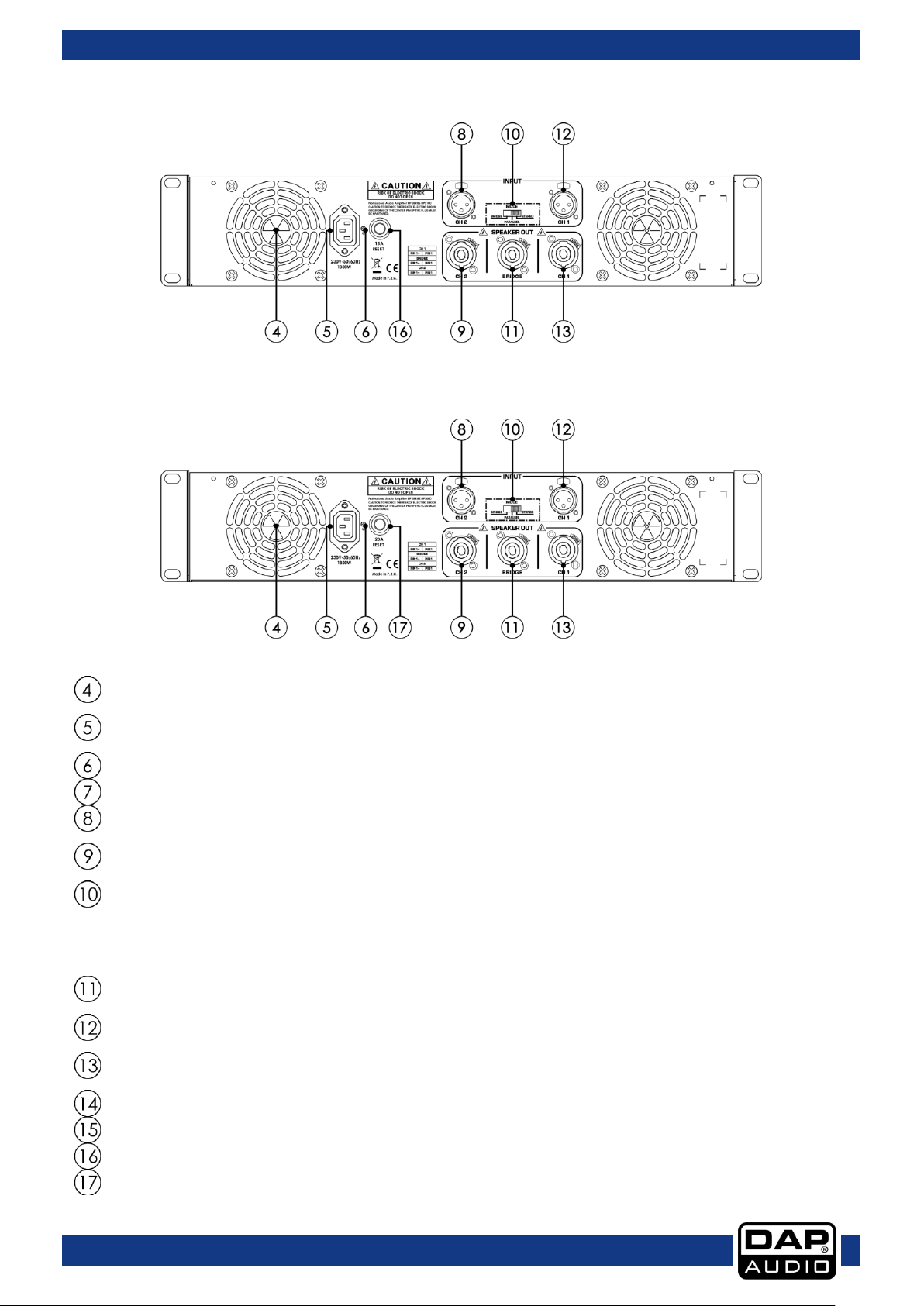

Backside ......................................................................................................................................................................... 9
D4175: HP-500 ............................................................................................................................................................. 9
D4176: HP-900 ............................................................................................................................................................. 9
D4177: HP-1500 ........................................................................................................................................................... 9
D4178: HP-2100 .........................................................................................................................................................10
D4179: HP-3000 .........................................................................................................................................................10
Installation .........................................................................................................................................................................11
Set Up and Operation .....................................................................................................................................................11
Mode Selection ...........................................................................................................................................................11
Connection examples ....................................................................................................................................................12
Stereo Connection .....................................................................................................................................................12
Parallel Connection ....................................................................................................................................................13

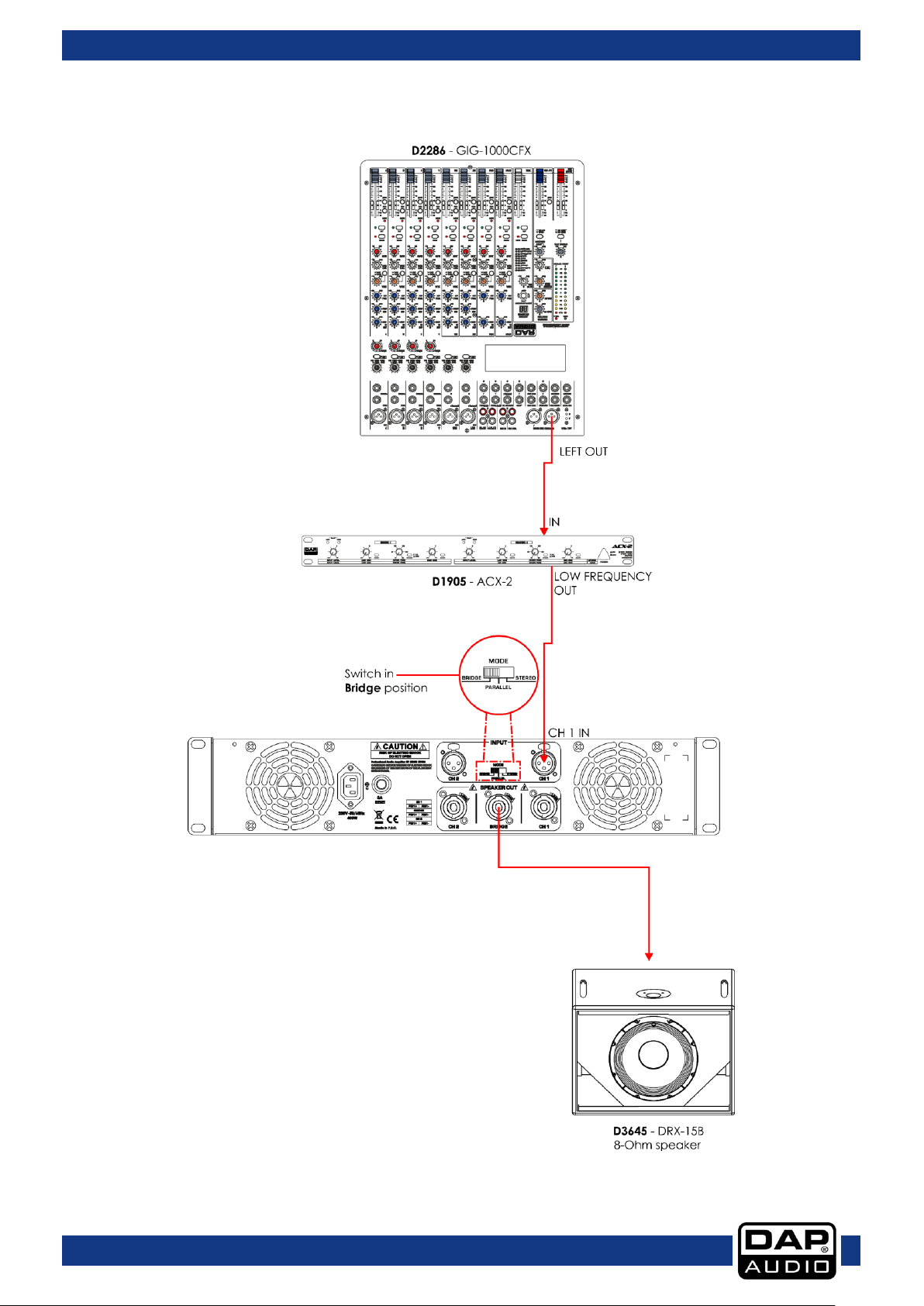

Bridge Connection .....................................................................................................................................................14

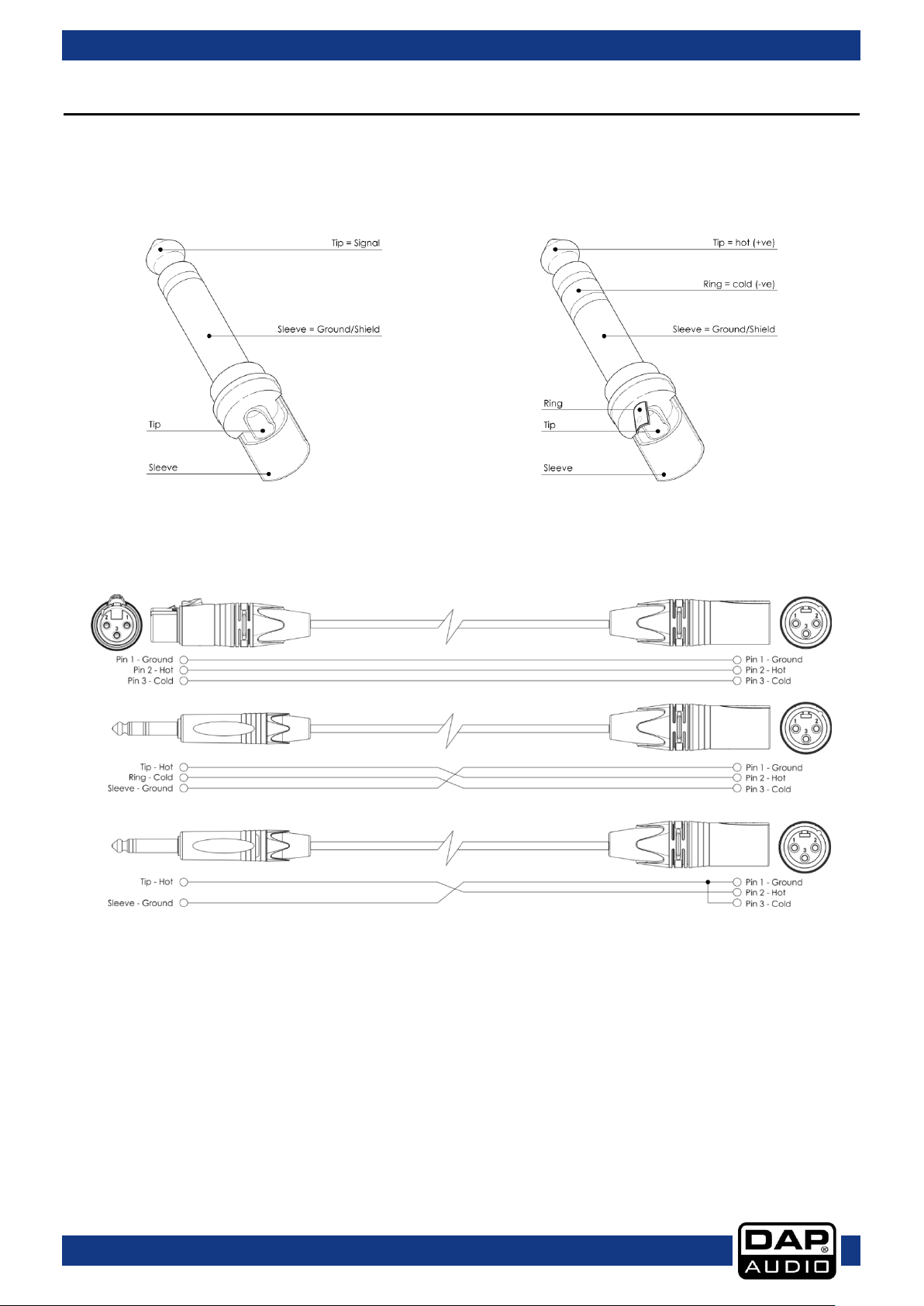

Connection Cables .........................................................................................................................................................15
Maintenance ....................................................................................................................................................................16
Troubleshooting ...............................................................................................................................................................16
Product Specifications ....................................................................................................................................................17
Dimensions HP-500/ HP-900/ HP-1500/ HP-2100/ HP-3000 ......................................................................................18
Ordercode: D4175 / D4176 / D4177 / D4178 / D4179 2
HP-500 / HP-900 / HP-1500 / HP-2100/ HP-3000
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
● DAP Audio HP-500 / HP-900 / HP-1500 / HP-2100/ HP-3000
● IEC power cable (1,5 m)
● User manual
Safety Instructions
Every person involved with the installation, operation and maintenance of this system has to:
● be qualified
● follow the instructions of this manual
Ordercode: D4175 / D4176 / D4177 / D4178 / D4179 3
HP-500 / HP-900 / HP-1500 / HP-2100/ HP-3000
Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the system.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the system are not subject to
warranty.
This system contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the system.
● Always let the device cool down before cleaning or servicing.
● Always disconnect power from the mains, when system is not used. Only handle the power cord by
the plug. Never pull out the plug by tugging the power cord.
● Always operate the unit with the AC ground wire connected to the electrical system ground.
● Avoid flames and do not put close to flammable liquids or gases.
● Avoid ground loops! Always be sure to connect the power amps and the mixing console to the
same electrical circuit to ensure the same phase!
● Before changing the ground, always turn off your amplifier.
● Connecting amplifier outputs to oscilloscopes or other test equipment, while the amplifier is in bridge
mode, may damage both, the amplifier and test equipment.
● Do not connect this device to a dimmer pack.
● Do not drive the inputs with a signal level higher than required to drive the equipment to full output.
● Do not insert objects into air vents.
● Do not open the device and do not modify the device.
● Do not open this device. Risk: hazardous radiation exposure.
● Do not switch the system on and off in short intervals, as this would reduce the system’s life.
● Do not put your equipment next to TV, radio, etc., because of interference or distortion.
● If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
● If the system has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your system. Leave the
system switched off until it has reached room temperature.
● If you connect other parts of the system, beware ground loops.
● If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material) and return it to your Dap Audio dealer for service.
● In system setup, the amplifier's output power must be 50%-100% higher than the loaded loudspeakers
rated power.
● In typical use, please set the volume to 0dB position.
● Make sure that the amplifier is turned down, before turning the power on or off. In this way you can
avoid supersonic frequencies, which could damage your speakers.
● Make sure that the available voltage is not higher than stated on the rear panel.
● Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
● Make sure that the signals coming into the mixer are balanced, otherwise hum could be created.
● Make sure you do not use the wrong kind of cables or defective cables.
● Make sure you use DI boxes to balance unbalanced signals; All incoming signals should be clear
● Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
● Never remove warning or informative labels from the unit.
● Never use anything to cover the ground contact.
● Only use device indoors, avoid contact with water or other liquids.
● Please read this manual carefully and keep it for future reference.
Ordercode: D4175 / D4176 / D4177 / D4178 / D4179 4
HP-500 / HP-900 / HP-1500 / HP-2100/ HP-3000
● Please turn off the power switch, when replacing the power cord, signal cable or selecting the input
mode switch.
● Prevent distortion! Make sure that all components connected to the device have sufficient power
ratings. Otherwise, distortion will be generated because the components are operated at their limits.
● Sometimes, when you want to send one signal to more than one amplifier, you should use a signal
distributor.
● The best way to avoid ground loops is connecting the electrical system ground to one central point
("star" system). In this case the mixer can act as a central point.
● This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
● The user is responsible for correct positioning and operating of the HP amplifier. The manufacturer will
not accept liability for damages caused by the misuse or incorrect installation of this device.
● Repairs, servicing and electric connection must be carried out by a qualified technician.
● WARRANTY: Till one year after date of purchase.
Operating Determinations
This system is not designed for permanent operation. Consistent operation breaks will ensure that the
system will serve you for a long time without defects.
If this system is operated in any other way than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.
You endanger your own safety and the safety of others !
Improper installation can cause serious damage to people and property !
Ordercode: D4175 / D4176 / D4177 / D4178 / D4179 5
HP-500 / HP-900 / HP-1500 / HP-2100/ HP-3000
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a device is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.
