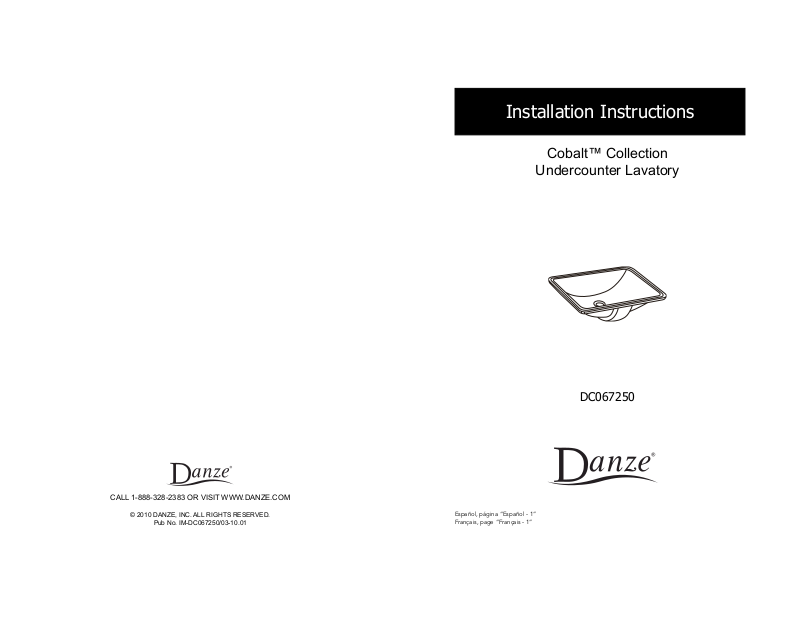

Danze DC067250 Installation Manual [en, es, fr]
CALL 1-888-328-2383 OR VISIT WWW.DANZE.COM
© 2010 DANZE, INC. ALL RIGHTS RESERVED.
Español, página “Español - 1”
Français, page “Français - 1”
Installation Instructions
Cobalt™ Collection
Undercounter Lavatory
DC067250
Pub No. IM-DC067250/03-10.01
IntroductIon to danze
Thank you for choosing Danze. We believe that elements in your bathroom should
awaken your senses like a splash of cool water. That’s what you will experience
with Danze.
Danze is a manufacturer of high quality decorative plumbing products for your
powder room, kitchen and bath. We offer a broad variety of products, designs &
finishes to suit your own particular needs. You can feel confident that our products will provide years of beauty and trouble-free performance.
danze VItreous chIna Products
Danze vitreous china products include toilets, bidets and lavatories. Our fixtures
reflect state-of-the-art design and engineering, and meet or exceed the most
rigorous plumbing codes throughout North America. Operating fixtures are
equipped with first quality valves and accessories to give you years of troublefree service.
Should you have questions about your Danze purchase, contact us at our website
www.danze.com, or call our technical service center during business hours at
888-328-2383.
Danze, Inc. reserves the right to make product specification changes and to
change or discontinue models without notice or obligation in North America.
Before InstallatIon
Check to make sure you have the following parts included in the lavatory
package:
( A ) Lavatory
( Z ) Cutting Template
( D ) Mounting Hardware
( C ) Expansion anchors (4 each)
( E ) Machine screws (4 each)
( J ) Wood Screws (4 each)
( P ) Mounting Clips (4 each)
( V ) Welcome to Danze Kit
(W) Installation Instructions
( X ) Homeowner Care Manual
( Y ) Warranty Parts Guide
2
FINISHED
FLOOR
3/8” COLD
3/8” HOT
1 1/4” WASTE
8
”
13 1/2
”
10
”
6 3/4
”
18 3/4
”
16 7/8
”
5
1/4
”
14 1/2
”
12 5/8
”
5/8”
7/8”
Rubbing
Alcohol
tools requIred
P
E
J
C
A
D
Scissors
Adhesive Caulk Drill Cloth Rubbing Alcohol
Carpenter’s Level Pencil
Saber Saw
Product dImensIons
Hole Saw
InstallatIon InstructIons
1. Use a pencil to lightly mark the centerlines for
location of lavatory (A) in slab or counter top.
2. Cut out template (Z). Line up centerline arrows on the template (Z) with the centerlines
marked on the slab or counter top. Trace around
the outside of the template (Z). (The dimensional
drawing to the right of the template indicates
the suggested drilling for a widespread lavatory
faucet (not included) relative to the cutout. Make
sure there is adequate room behind the cutout
for the faucet being installed before cutting the
slab or counter top.)
3. Cut opening in slab or counter top following
traced line.
4. Assemble drain (not included) in lavatory (A)
according to the manufacturer’s recommendations.
3
5. Mount the lavatory (A) to underside of the
slab or counter top using the included mounting
hardware (D).
4
