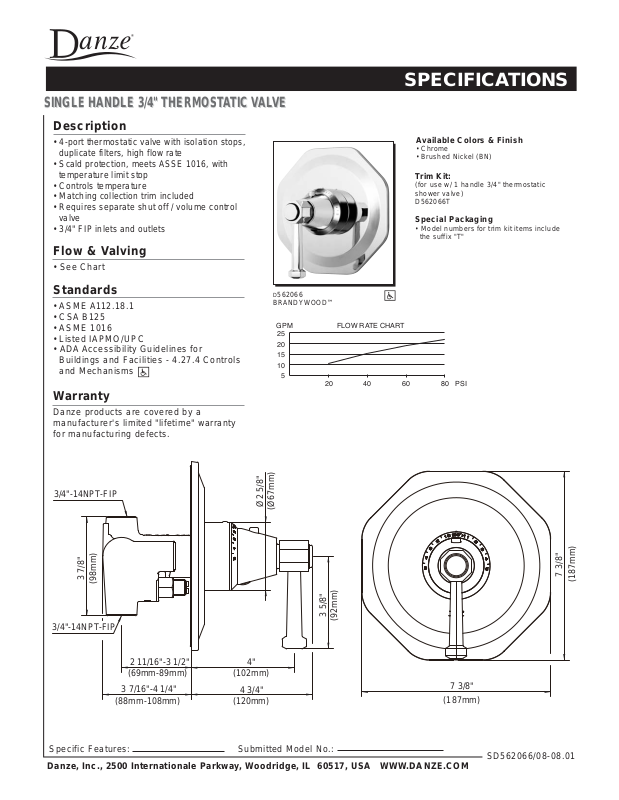

Danze D562066 Spec Sheets

SINGLE HANDLE 3/4" THERMOSTATIC VALVE

SINGLE HANDLE 3/4" THERMOSTATIC VALVE

Description

•

4-port thermostatic valve with isolation stops,

duplicate filters, high flow rate

• Scald protection, meets ASSE 1016, with
temperature limit stop

• Controls temperature

• Matching collection trim included

• Requires separate shut off / volume control
valve

• 3/4" FIP inlets and outlets

Flow & Valving

• See Chart

SPECIFICATIONS

Available Colors & Finish

• Chrome

• Brushed Nickel (BN)

Trim Kit:

(for use w/ 1 handle 3/4" thermostatic
shower valve)
D562066T

Special Packaging

• Model numbers for trim kit items include
the suffix "T"

Standards

• ASME A112.18.1

• CSA B125

• ASME 1016

• Listed IAPMO/UPC

• ADA Accessibility Guidelines for
Buildings and Facilities - 4.27.4 Controls
and Mechanisms

Warranty

Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.

3/4"-14NPT-FIP

3 7/8"

(98mm)

D562066

BRANDYWOOD™

GPM FLOW RATE CHART
25

20
15

10

5

Ø2 5/8"

(Ø67mm)

20 40 60 80 PSI

7 3/8"

(187mm)

3 5/8"

(92mm)

3/4"-14NPT-FIP

2 11/16"-3 1/2"

(69mm-89mm)

3 7/16"-4 1/4"

(88mm-108mm)

4"

(102mm)

4 3/4"

(120mm)

7 3/8"

(187mm)

Specific Features: Submitted Model No.:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM

SD562066/08-08.01
