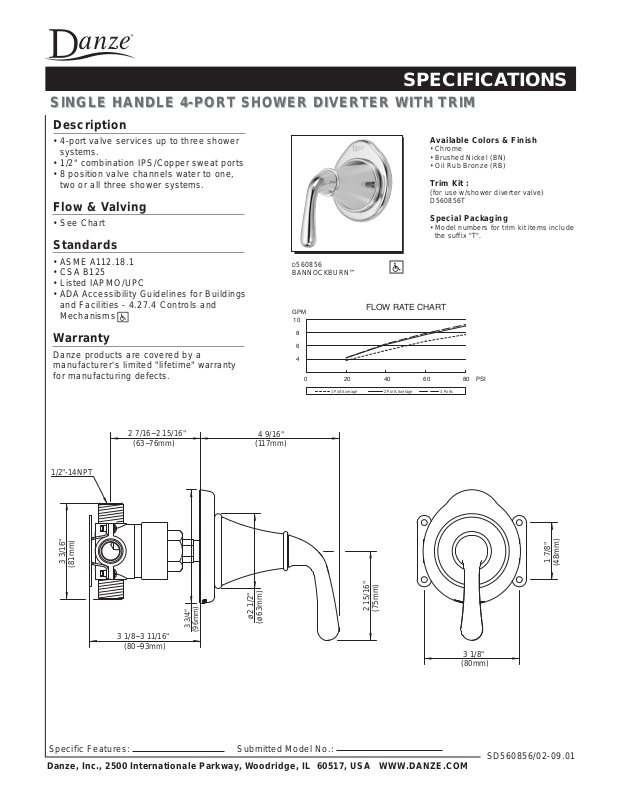

Danze D560856 Spec Sheets

SPECIFICATIONS

SINGLE HANDLE 4-PORT SHOWER DIVERTER WITH TRIM

SINGLE HANDLE 4-PORT SHOWER DIVERTER WITH TRIM

Description

• 4-port valve services up to three shower
systems.

• 1/2" combination IPS/Copper sweat ports

• 8 position valve channels water to one,
two or all three shower systems.

Flow & Valving

• See Chart

Standards

• ASME A1 12.18.1

• CSA B125

• Listed IAPMO/UPC

• ADA Accessibility Guidelines for Buildings
and Facilities - 4.27.4 Controls and
Mechanisms

Warranty

Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.

D560856

BANNOCKBURN™

GPM

10

8

6

4

20 40 60 80 PSI 0

1 Port Average 2 Ports Average 3 Ports

FLOW RATE CHART

Available Colors & Finish

• Chrome

• Brushed Nickel (BN)

• Oil Rub Bronze (RB)

Trim Kit :

(for use w/shower diverter valve)
D560856T

Special Packaging

• Model numbers for trim kit items include
the suffix "T".

1/2"-14NPT

3 3/16"

(81mm)

2 7/16~2 15/16"

(63~76mm)

3 1/8~3 11/16"

(80~93mm)

3 3/4"

(96mm)

4 9/16"

(117mm)

ø2 1/2"

(ø63mm)

2 15/16"

(75mm)

3 1/8"

(80mm)

1 7/8"

(48mm)

Specific Features: Submitted Model No.:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM

SD560856/02-09.01
