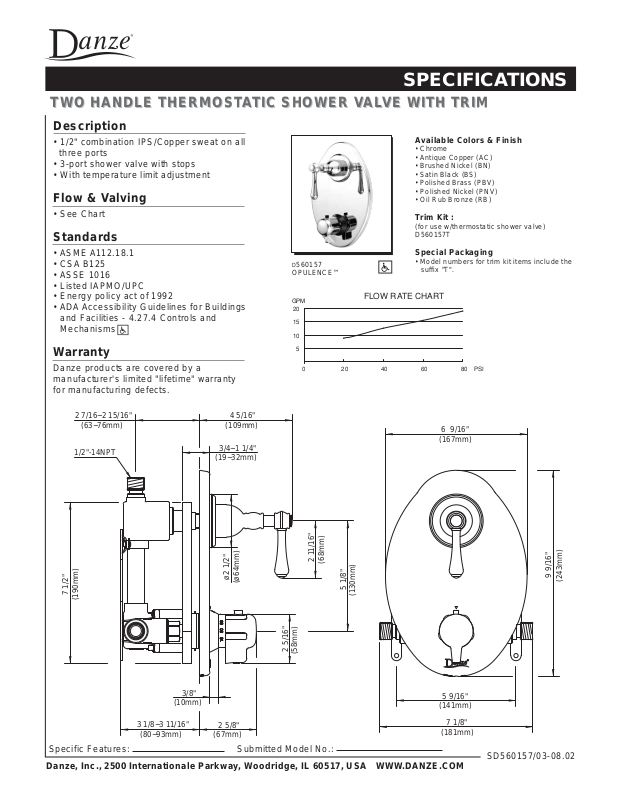

SPECIFICATIONS

TWO HANDLE THERMOSTATIC SHOWER VALVE WITH TRIM

Description

• 1/2" combination IPS/Copper sweat on all three ports

• 3-port shower valve with stops

• With temperature limit adjustment

Flow & Valving

• See Chart

Standards

• ASME A1 12.18.1

• CSA B125

• ASSE 1016

• Listed IAPMO/UPC

• Energy policy act of 1992

• ADA Accessibility Guidelines for Buildings and Facilities - 4.27.4 Controls and Mechanisms

Warranty

Danze products are covered by a manufacturer's limited "lifetime" warranty for manufacturing defects.

D560157

OPULENCE™

GPM

FLOW RATE CHART

20 40 60 80 PSI0

Available Colors & Finish

• Chrome

• Antique Copper (AC)

• Brushed Nickel (BN)

• Satin Black (BS)

• Polished Brass (PBV)

• Polished Nickel (PNV)

• Oil Rub Bronze (RB)

Trim Kit :

(for use w/thermostatic shower valve) D560157T

Special Packaging

• Model numbers for trim kit items include the suffix "T".

2 7/16~2 15/16"

(63~76mm)

1/2"-14NPT

7 1/2"

(190mm)

3/8"

(10mm)

3 1/8~3 11/16"

(80~93mm)

4 5/16"

(109mm)

3/4~1 1/4"

(19~32mm)

ø2 1/2"

(ø64mm)

2 5/8"

(67mm)

2 5/16"

(58mm)

2 11/16"

(68mm)

5 1/8"

(130mm)

6 9/16"

(167mm)

5 9/16"

(141mm)

7 1/8"

(181mm)

Specific Features: Submitted Model No.:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM

9 9/16"

(243mm)

SD560157/03-08.02
