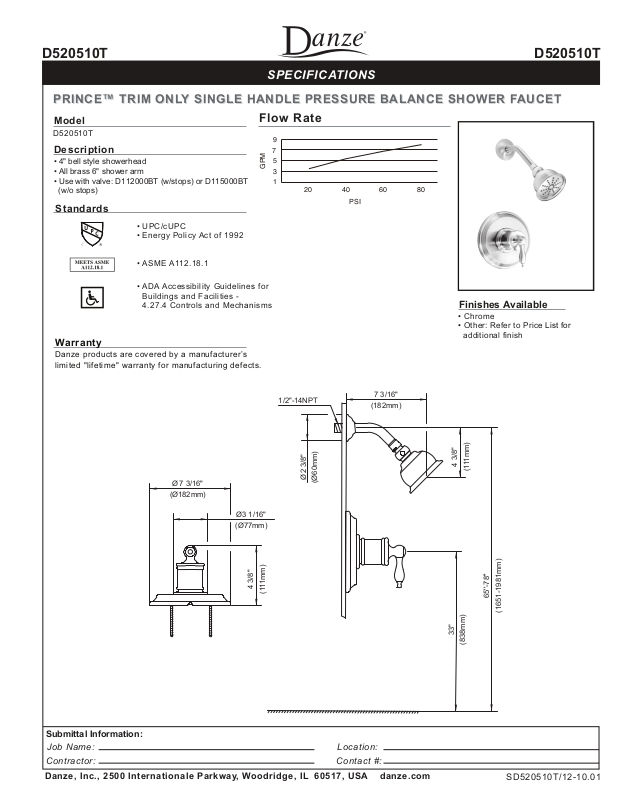

SPECIFICATIONS

PRINCE™ TRIM ONLY SINGLE HANDLE PRESSURE BALANCE SHOWER FAUCET

PRINCE™ TRIM ONLY SINGLE HANDLE PRESSURE BALANCE SHOWER FAUCET

T015025DT015025D

Model

D520510T

Description

• 4" bell style showerhead

• All brass 6" shower arm

• Use with valve: D112000BT (w/stops) or D115000BT
(w/o stops)

Standards

• UPC/ cUPC

• Energy Policy Act of 1992

• ASME A112.18.1

• ADA Accessibilit y Guidelines for
Buildings and Facilities -

4.27.4 Controls and Mec hanisms

Warranty

Danze pr oducts are co vered by a manufactur er’s
limited "lifetime" warranty for manufacturing defects.

Flow Rate

9

7
5

GPM

3
1

20 40 60 80

1/2"-14NPT

PSI

Finishes Available

• Chrome

• Other: Refer to Price List for

additional finish

7 3/16"

(182mm)

Ø 2 3/8"

Ø 7 3/16"

(Ø182mm)

Ø3 1/16"

(Ø77mm)

4 3/8"

(111mm)

(Ø60mm)

Submittal Information:

Job Name: Locat ion:

Contractor: Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com

4 3/8"

33"

(111mm)

65''-78''

(1651-1981mm)

(838mm)

SD520510T/12-10.01
