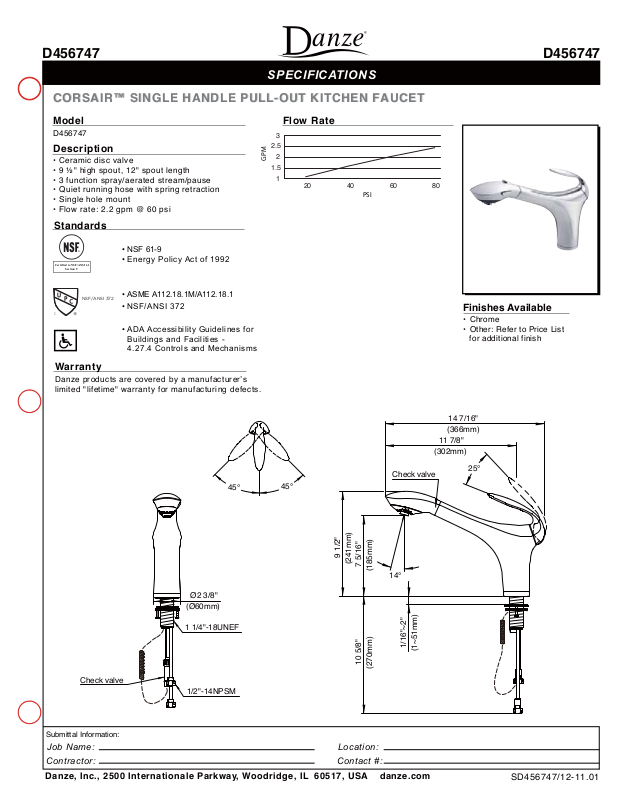

SPEC IFICATIONS

CORSAIR™ SINGLE HANDLE PULL-OUT KITCHEN FAUCET

CORSAIR™ SINGLE HANDLE PULL-OUT KITCHEN FAUCET

747654D747654D

Model

D456747

Description

• Cer amic disc valve

• 9 ½ " high spout, 12" spout lengt h

• 3 f unction spray/aerated stream/pause

• Quiet running hose with spring retraction

• Single hole mount

• Flow rate: 2 .2 gpm @ 60 psi

Standards

• NSF 61-9

Certified to NSF/ANSI 61

Section 9

NSF/ANSI 372

• Energy P olicy Act of 1992

• ASME A112.18.1M/A112.18.1

• NSF/ANSI 372

• ADA Accessibili ty Guidelines for

Buildings and F aciliti es -

4.2 7.4 Contr ols and Mechanism s

Warranty

Danze p roducts are cove red b y a manufactur er’s
limited " lifetime" warranty for manufacturing defects.

Flow Rate

3

2.5

2

GPM

1.5

1

20 40 60 80

PSI

Finishes Available

• Chrome

• Other: Refer to Price List

for additional finish

Check valve

45°

Ø2 3/8"

(Ø60mm)

1 1/4"-18UNEF

1/2"-14NPSM

45°

9 1/2"

(241mm)

7 5/16"

(185mm)

10 5/8"

(270mm)

Check valve

14°

1/16"~2"

(1~51mm)

14 7/16"

(366mm)

11 7/8"

(302mm)

25°

Submittal Information:

Jo b Name: Loc at ion:

Contractor: Conta ct #:

Danze, Inc., 2500 Internationale Parkway, Woodridge , IL 60517, USA danze.c om

SD456747/12-11.01
