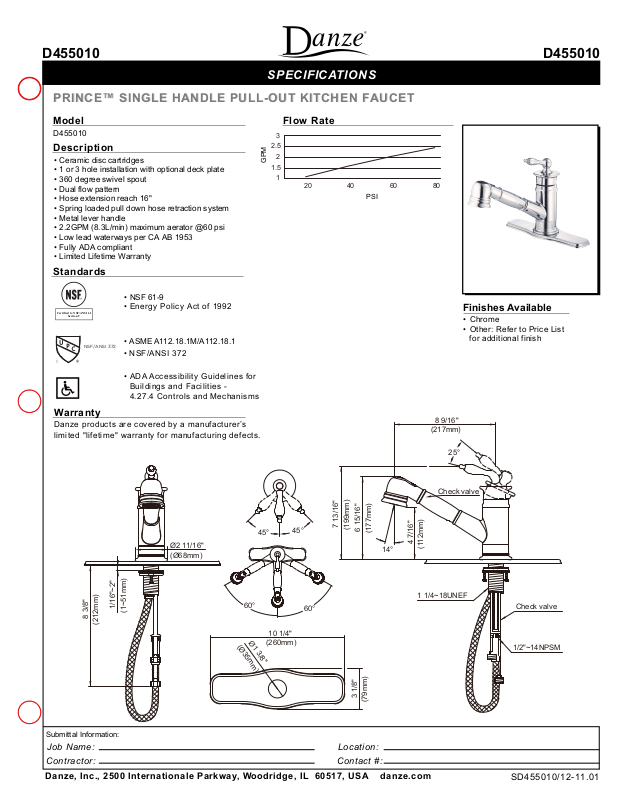

SPECIFIC ATIONS
PRINCE™ SINGLE HANDLE PULL-OUT KITCHEN FAUCET
PRINCE™ SINGLE HANDLE PULL-OUT KITCHEN FAUCET
010554D010554D
Model
D455010
Description
• Ceramic disc cartridges
• 1 or 3 hole installation with optional deck plate
• 360 degree swivel spout
• Dual flow pattern
• Hose extension reach 16"
• Spring loaded pull down hose retraction system
• Metal lever handle
• 2.2GPM (8.3L/min) maximum aerator @60 psi
• Low lead waterways per CA AB 1953
• Fully ADA compliant
• Limited Lifetime Warranty
Standards
• NSF 61-9
Certified to NSF/ANSI 61
Section 9
NSF/ANSI 372
• Energy P olicy Act of 199 2
• ASME A112.18.1M/A112.18.1
• NSF/ANSI 372
• ADA Accessibility Guidelines for
Buildings and F acilities -
4.27.4 Control s and Mechanis ms
Warranty
Danze products are covered by a manufact urer’s
limit ed "lifet ime" wa rranty fo r manufac turing defe cts.
Flow Rate
3
2.5
2
GPM
1.5
1
20 40 60 80
PSI
Finishes Available
• Chrome
• Other: Refer to Price List
for additional finish
8 9/16"
(217mm)
25°
7 13/16"
(199mm)
6 15/16"
(177mm)
3 1/8"
(79mm)
14°
4 7/16"
(112mm)
1 1/4~18UNEF
8 3/8"
(212mm)
Submittal Information:
1/16"~2"
(1~51mm)
Ø2 11/16"
(Ø68mm)
45°
60°
Ø1 3/8"
(Ø35mm)
45°
60°
10 1/4"
(260mm)
Jo b Name: Loc at ion:
Cont ract or : Cont ac t #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
Check valve
Check valve
1/2"~14NPSM
SD455010/12-11.01
