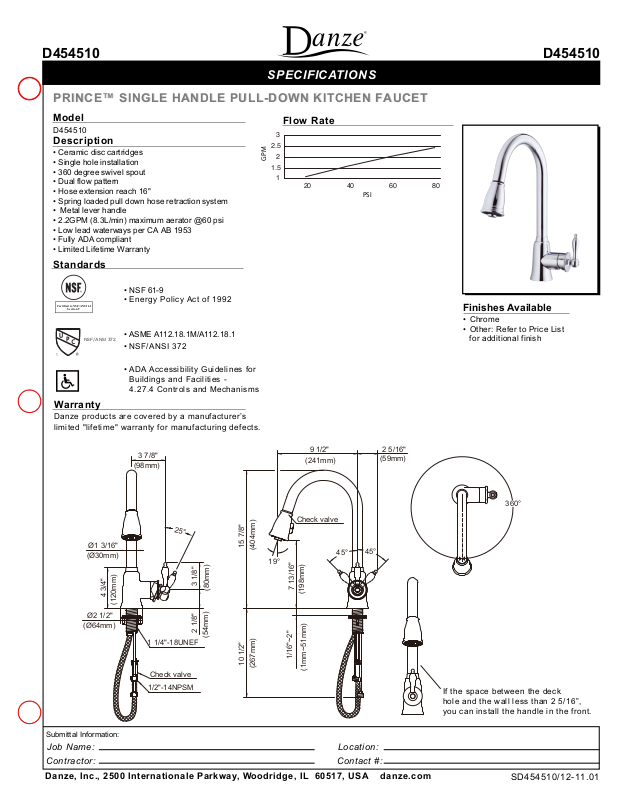

Danze D454510 Spec Sheets
SPECIFIC ATIONS
PRINCE™ SINGLE HANDLE PULL-DOWN KITCHEN FAUCET
PRINCE™ SINGLE HANDLE PULL-DOWN KITCHEN FAUCET
015454D015454D
Model
D454510
Description
• Ceramic disc cartridges
• Single hole installation
• 360 degree swivel spout
• Dual flow pattern
• Hose extension reach 16"
• Spring loaded pull down hose retraction system
• Metal lever handle
• 2.2GPM (8.3L/min) maximum aerator @60 psi
• Low lead waterways per CA AB 1953
• Fully ADA compliant
• Limited Lifetime Warranty
Standards
• NSF 61-9
Certified to NSF/ANSI 61
Section 9
NSF/ANSI 372
• Energy P olicy Act of 199 2
• ASME A112.18.1M/A112.18.1
• NSF/ANSI 372
• ADA Accessibility Guidelines for
Buildings and F acilities -
4.27.4 Control s and Mechanis ms
Warranty
Danze products are covered by a manufact urer’s
limit ed "lifet ime" wa rranty for manufac turing defe cts.
3 7/8"
(98mm)
Flow Rate
3
2.5
2
GPM
1.5
1
20 40 60 80
9 1/2"
(241mm)
PSI
2 5/16"
(59mm)
Finishes Available
• Chrome
• Other: Refer to Price List
for additional finish
Check valve
25°
Ø1 3/16"
(Ø30mm)
4 3/4"
Ø2 1/2"
(Ø64mm)
Submittal Information:
(120mm)
1 1/4"-18UNEF
Check valve
1/2"-14NPSM
3 1/8"
2 1/8"
(54mm)
(80mm)
15 7/8"
(404mm)
10 1/2"
(267mm)
19°
7 13/16"
(198mm)
1/16"~2"
(1mm~51mm)
45°
45°
Jo b Name: Loc at ion:
Cont ract or : Cont ac t #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
360°
If the space between the deck
hole and the wall less than 2 5/16”,
you can install the handle in the front.
SD454510/12-11.01
