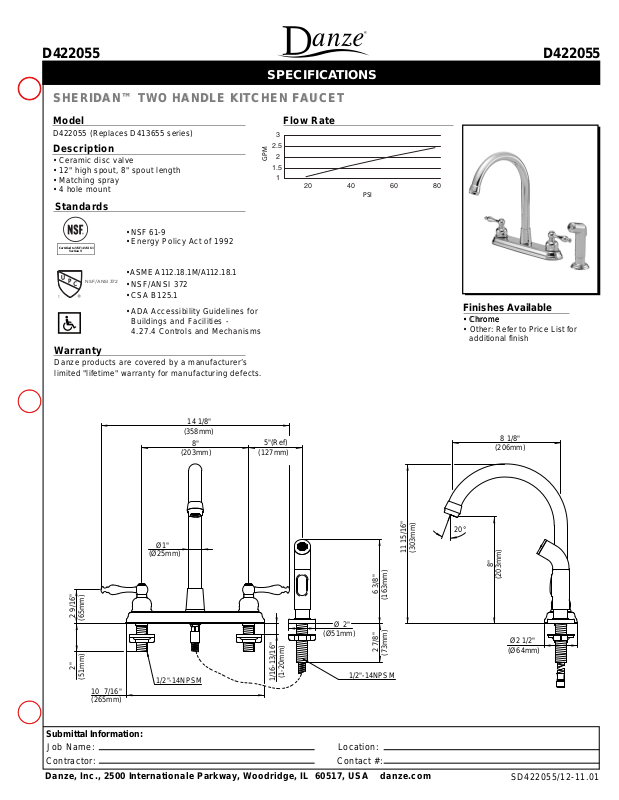

Danze D422055 Specs
D422055 D422055
SPECIFICATIONS
SHERIDAN™ TWO HANDLE KITCHEN FAUCET
SHERIDAN™ TWO HANDLE KITCHEN FAUCET
Model
D422055 (Replaces D413655 series)
Description
• Ceramic disc valve
• 12" high spout, 8" spout length
• Matching spray
• 4 hole mount
Standards
• NSF 61-9
Certified to NSF/ANSI 61
Section 9
NSF/ANSI 372
• Energy Policy Act of 1992
• ASME A112.18.1M/A112.18.1
• NSF/ANSI 372
• CSA B125. 1
• ADA Accessibility Guidelines for
Buildings and Facilities -
4.27.4 Controls and Mechanisms
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufacturing defects.
Flow Rate
3
2.5
2
GPM
1.5
1
20 40 60 80
PSI
Finishes Available
• Chrome
• Chrome
• Other: Refer to Price List for
additional finish
2 9/16"
(65mm)
2"
(51mm)
10 7/16"
(265mm)
Ø1"
(Ø25mm)
1/2"-14NPSM
14 1/8"
(358mm)
8"
(203mm)
5"(Ref)
(127mm)
1/16-13/16"
(1-20mm)
Ø2"
(Ø51mm)
6 3/8"
2 7/8"
1/2"-14NPSM
11 15/16"
(163mm)
(73mm)
8 1/8"
(206mm)
20°
(303mm)
8"
(203mm)
Ø2 1/2"
(Ø64mm)
Submittal Information:
Job Name: Location:
Contractor: Contact #:
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
SD422055/12-11.01
