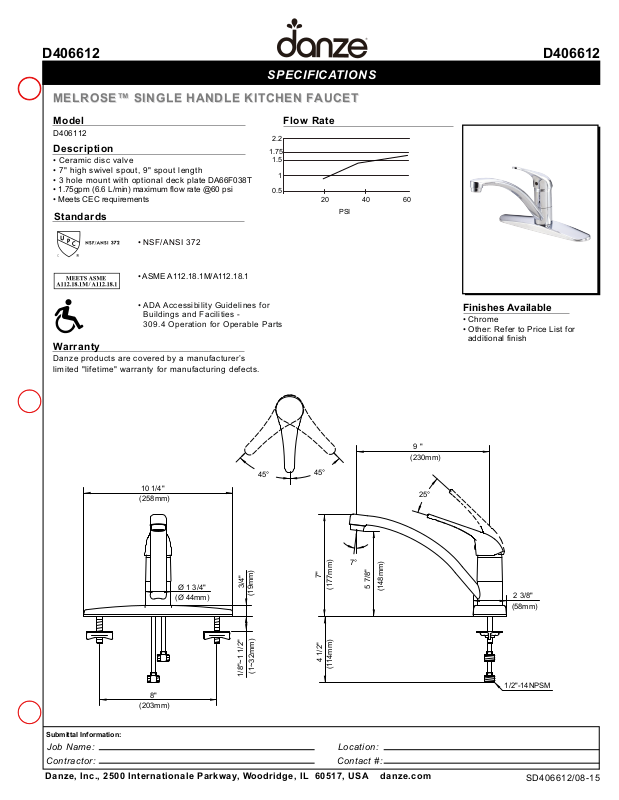

SPECIFICATIONS
MELROSE™ SINGLE HANDLE KITCHEN FAUCET
MELROSE™ SINGLE HANDLE KITCHEN FAUCET
216604D216604D
Model
D406112
Description
• Ceramic disc valve
• 7" high swivel spout, 9" spout length
• 3 hole mount with optional deck plate DA66F038T
• 1.75gpm (6.6 L/min) maximum flow rate @60 psi
• Meets CEC requirements
Standards
• NSF/ANSI 372
• ASME A112.18.1M/A112.18.1
• ADA Accessibility Guidelines for
Buildings and Facilities -
309.4 Operation for Operable Parts
Warranty
Danze products are covered by a manufacturer’s
limited "lifetime" warranty for manufactur ing defects.
Flow Rate
2.2
1.75
1.5
1
0.5
20 40 60
PSI
Finishes Available
• Chrome
• Other: Refer to Price List for
additional finish
9 "
(230mm)
45°
7"
(177mm)
4 1/2"
(114mm)
25°
7°
5 7/8"
(148mm)
Submittal Information:
10 1/4"
(258mm)
8"
(203mm)
Ø 1 3/4"
(Ø 44mm)
45°
3/4"
(19mm)
(1~32mm)
1/8"~1 1/2"
Job Name: Locat ion:
Contract or: Contact # :
Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA danze.com
2 3/8"
(58mm)
1/2"-14NPSM
SD406612/08-15
