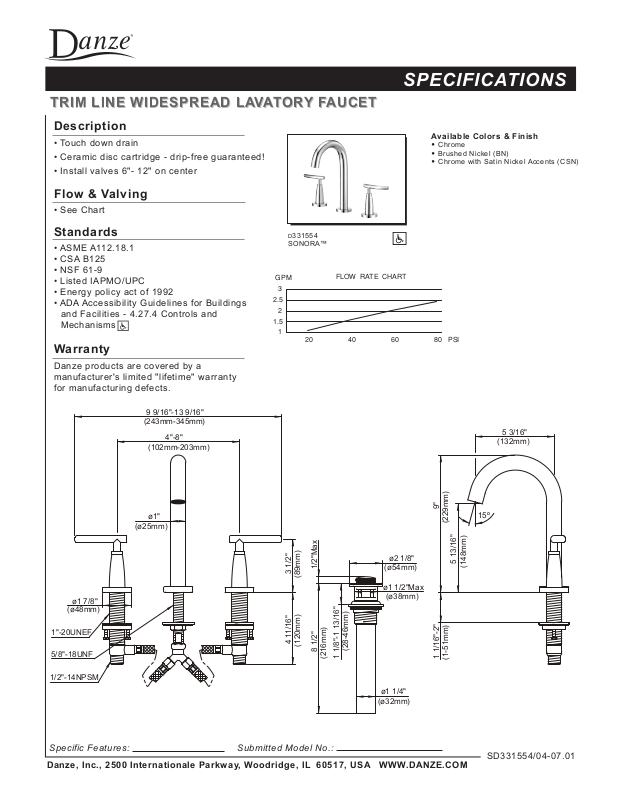

TRIM LINE WIDESPREAD LAVATORY FAUCET

TRIM LINE WIDESPREAD LAVATORY FAUCET

SPECIFICATIONS

Description

• Touch down drain

• Ceramic disc cartridge - drip-free guaranteed!

• Install valves 6"- 12" on center

Flow & Valving

• See Chart

Standards

• ASME A112.18.1

• CSA B125

• NSF 61-9

• Listed IAPMO/UPC

• Energy policy act of 1992

• ADA Accessibility Guidelines for Buildings
and Facilities - 4.27.4 Controls and
Mechanisms

Warranty

Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.

9 9/16"-13 9/16"

(243mm-345mm)

4"-8"

(102mm-203mm)

D331554

SONORA™

GPM

3

2.5

2

1.5

1

Available Colors & Finish

• Chrome

• Brushed Nickel (BN)

• Chrome with Satin Nickel Accents (CSN)

FLOW RATE CHART

20 40 60 80

PSI

5 3/16"

(132mm)

9"

ø1 7/8"

(ø48mm)

1"-20UNEF

5/8"-18UNF

1/2"-14NPSM

ø1"

(ø25mm)

3 1/2"

(89mm)

4 11/16"

(120mm)

1/2"Max

8 1/2"

(216mm)

1 1/8"-1 13/16"

ø2 1/8"

(ø54mm)

ø1 1/2"Max

(ø38mm)

(28-46mm)

ø1 1/4"

(ø32mm)

(229mm)

5 13/16"

1 1/16"-2"

(1-51mm)

Specific Features: Submitted Model No.:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM

15º

(148mm)

SD331554/04-07.01
