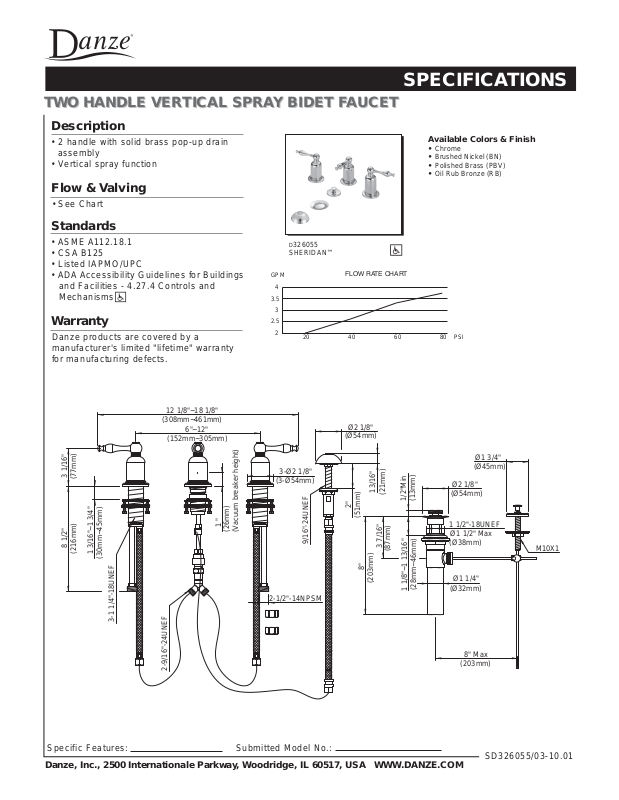

Danze D326055 Spec Sheets

TWO HANDLE VERTICAL SPRAY BIDET FAUCET

TWO HANDLE VERTICAL SPRAY BIDET FAUCET

Description

• 2 handle with solid brass pop-up drain
assembly

• Vertical spray function

Flow & Valving

• See Chart

Standards

• ASME A1 12.18.1

• CSA B125

• Listed IAPMO/UPC

• ADA Accessibility Guidelines for Buildings

and Facilities - 4.27.4 Controls and
Mechanisms

Warranty

Danze products are covered by a
manufacturer's limited "lifetime" warranty
for manufacturing defects.

D326055

SHERIDAN™

GPM

4

3.5
3

2.5
2

FLOW RATE CHART

SPECIFICATIONS

Available Colors & Finish

• Chrome

• Brushed Nickel (BN)

• Polished Brass (PBV)

• Oil Rub Bronze (RB)

PSI

80 60 40 20

3 1/16"

(77mm)

8 1/2"

(216mm)

1 3/16"~1 3/4"

(30mm~45mm)

3-1 1/4"-18UNEF

12 1/8"~18 1/8"

(308mm~461mm)

6"~12"

(152mm~305mm)

2-9/16"-24UNEF

1 "

(26mm)

(Vacuum breaker height)

2-1/2"-14NPSM

3-Ø2 1/8"

(3-Ø54mm)

Ø2 1/8"

(Ø54mm)

9/16"-24UNEF

2"

(51mm)

13/16"

8"

(203mm)

(21mm)

3 7/16"

(87mm)

1/2"Min

(13mm)

(28mm~46mm)

1 1/8"~1 13/16"

(Ø54mm)

1 1/2"-18UNEF

Ø1 1/2" Max

(Ø38mm)

(Ø32mm)

Ø1 3/4"

(Ø45mm)

Ø2 1/8"

M10X1

Ø1 1/4"

8" Max

(203mm)

Specific Features: Submitted Model No.:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA WWW.DANZE.COM

SD326055/03-10.01
