VLT®FCD Series
■ Contents
Introduction to FCD 300
................................................................................ 3
Software version ...................................................................................................... 3
General warning ...................................................................................................... 4
These rules concern your safety ............................................................................. 4
Warning against unintended start ........................................................................... 4
Technology ............................................................................................................... 5
CE labelling ............................................................................................................ 7
Order form ............................................................................................................... 8
Ordering numbers for FCD 300, 380-480 V .......................................................... 10
Order form ............................................................................................................. 14
PC software and serial communication ................................................................. 15
Accessories for FCD 300 ...................................................................................... 16
The LCP 2 control unit, option .............................................................................. 23
Parameter selection ............................................................................................... 27
Installation
.......................................................................................................... 29
Mechanical measurements .................................................................................... 29
Mechanical dimensions, motor mounting .............................................................. 29
Mechanical dimensions, stand alone mounting .................................................... 29
Mechanical installation ........................................................................................... 30
General information about electrical installation ................................................... 32
EMC-correct electrical installation ......................................................................... 34

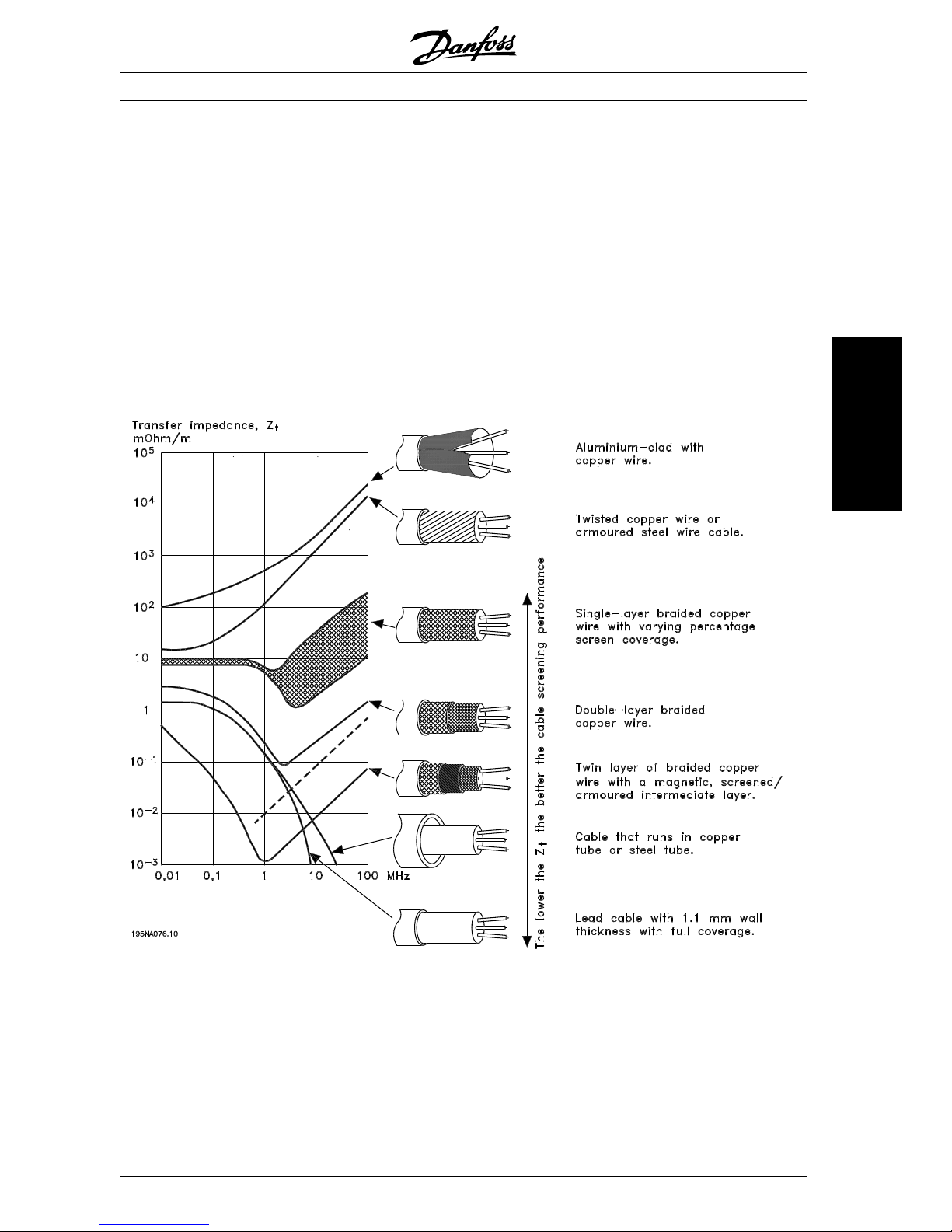

Earthing of screened/armoured control cables ..................................................... 36

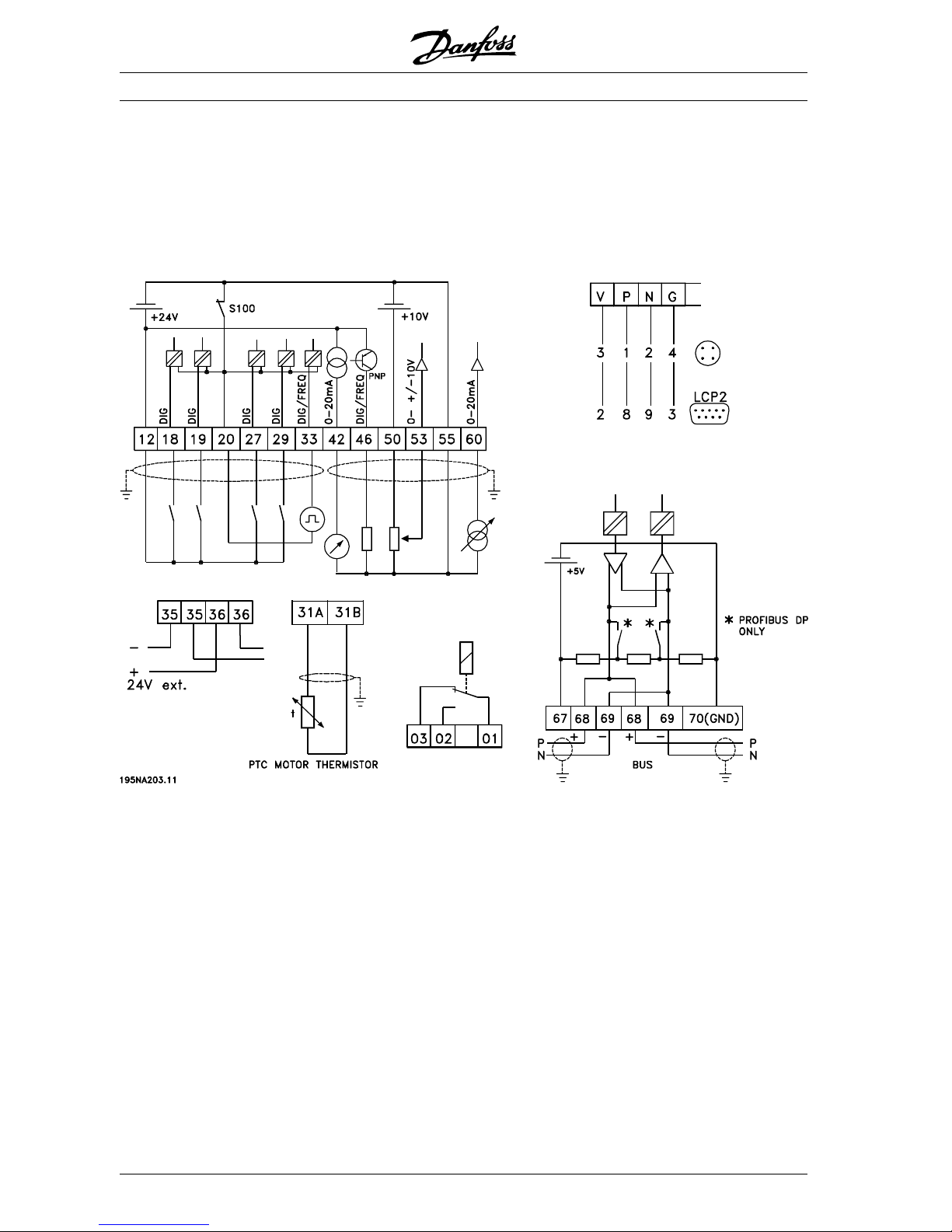

Diagram ................................................................................................................. 37
Electrical installation .............................................................................................. 38
Mains connection ................................................................................................... 39
Pre-fuses ................................................................................................................ 39
Motor connection ................................................................................................... 39
Direction of motor rotation ..................................................................................... 39
Parallel connection of motors ................................................................................ 39
Motor cables .......................................................................................................... 40
Motor thermal protection ....................................................................................... 40
Brake connection ................................................................................................... 40
Earth connection .................................................................................................... 41
Control of mechanical brake .................................................................................. 41
Electrical installation, control cables ...................................................................... 42
Elektrical installation, control terminals ................................................................. 43
VLT Software Dialog .............................................................................................. 43
Relay connection ................................................................................................... 43

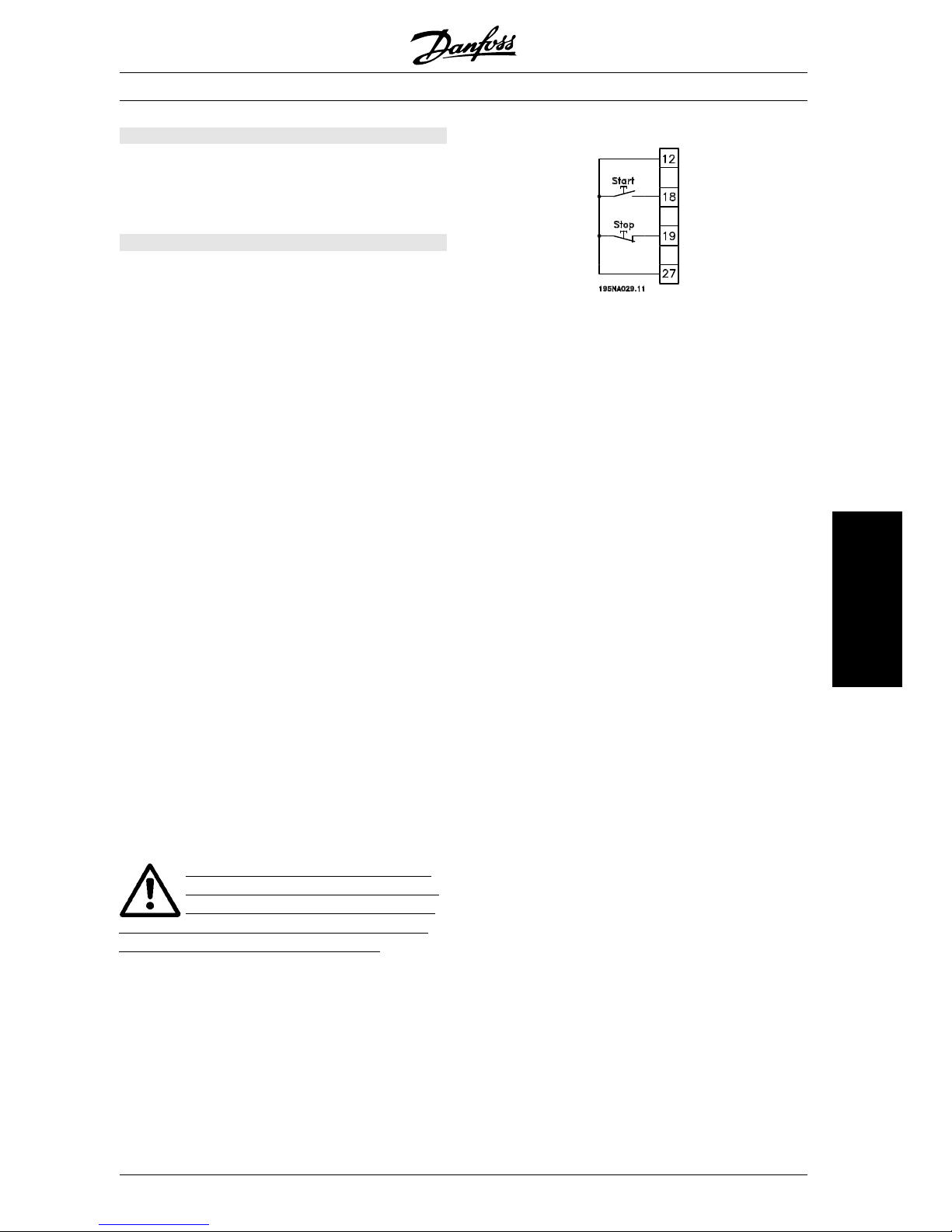

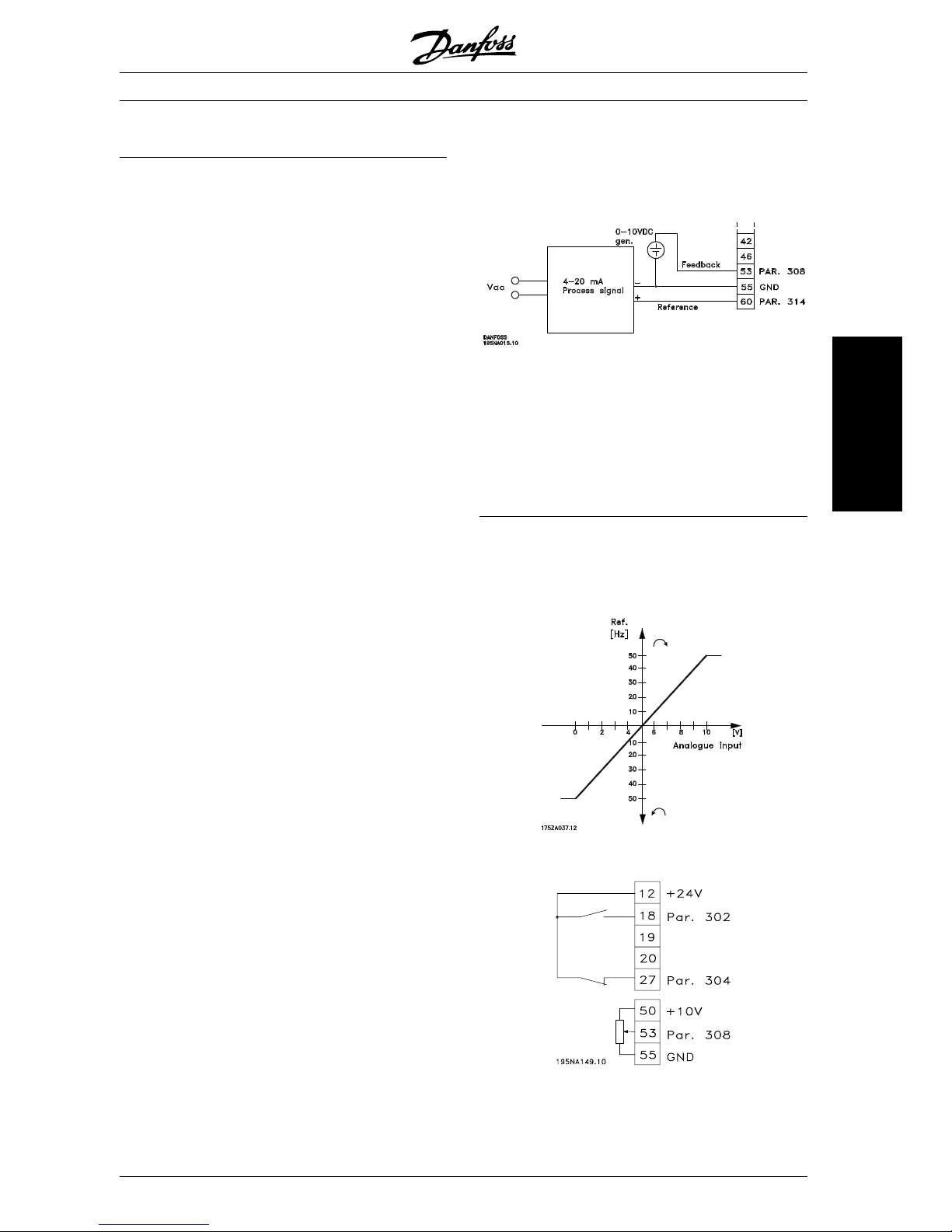

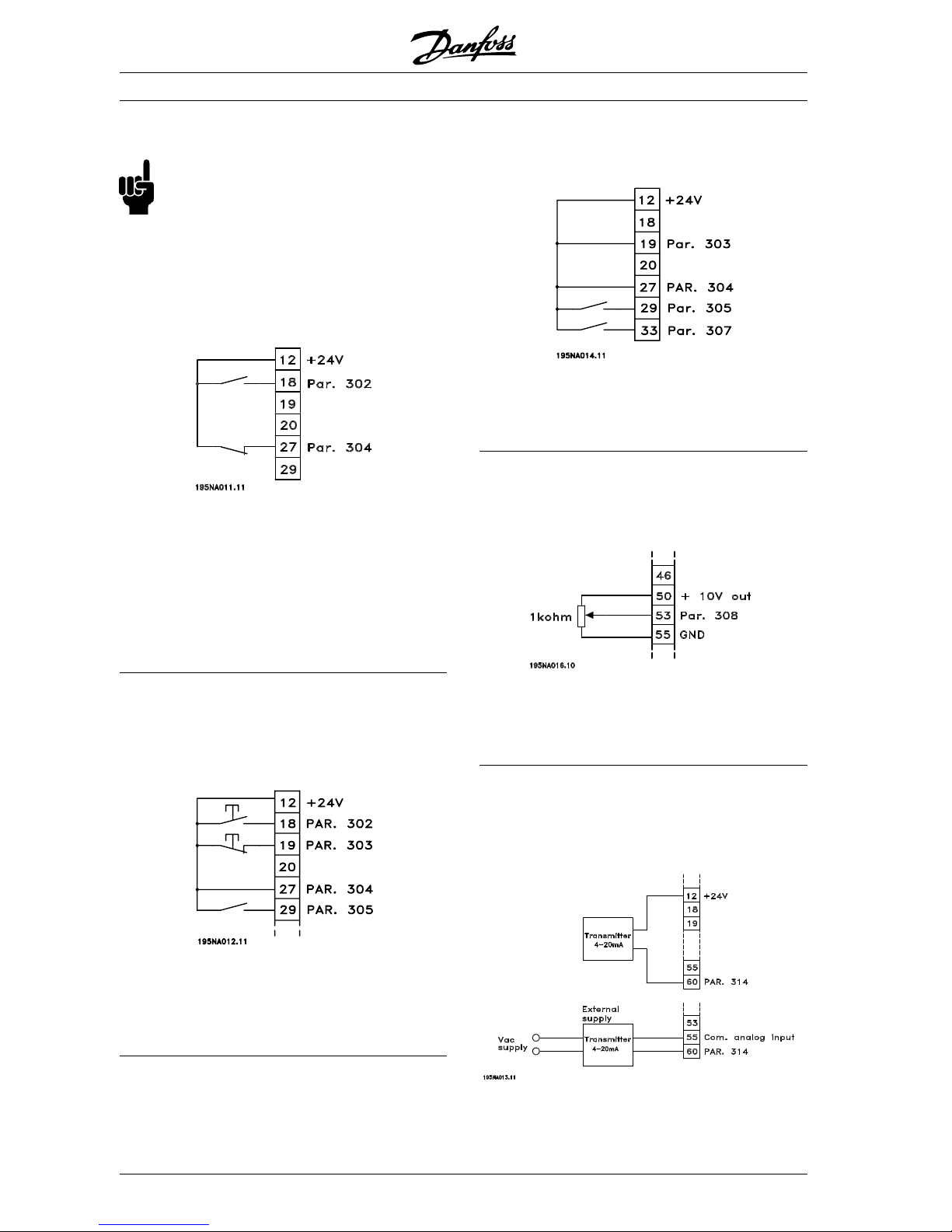

Connection examples ............................................................................................ 44
Programming ..................................................................................................... 48
Operation & Display ............................................................................................... 48
Setup configuration ................................................................................................ 48
Load and Motor ..................................................................................................... 56
DC Braking ............................................................................................................ 60
References & Limits .............................................................................................. 65
Handling of references .......................................................................................... 66
Reference function ................................................................................................. 69
Inputs and outputs ................................................................................................. 74
Special functions .................................................................................................... 83
PID functions ......................................................................................................... 85
MG.04.A1.02 - VLT is a registered Danfoss trade mark
1
VLT®FCD Series

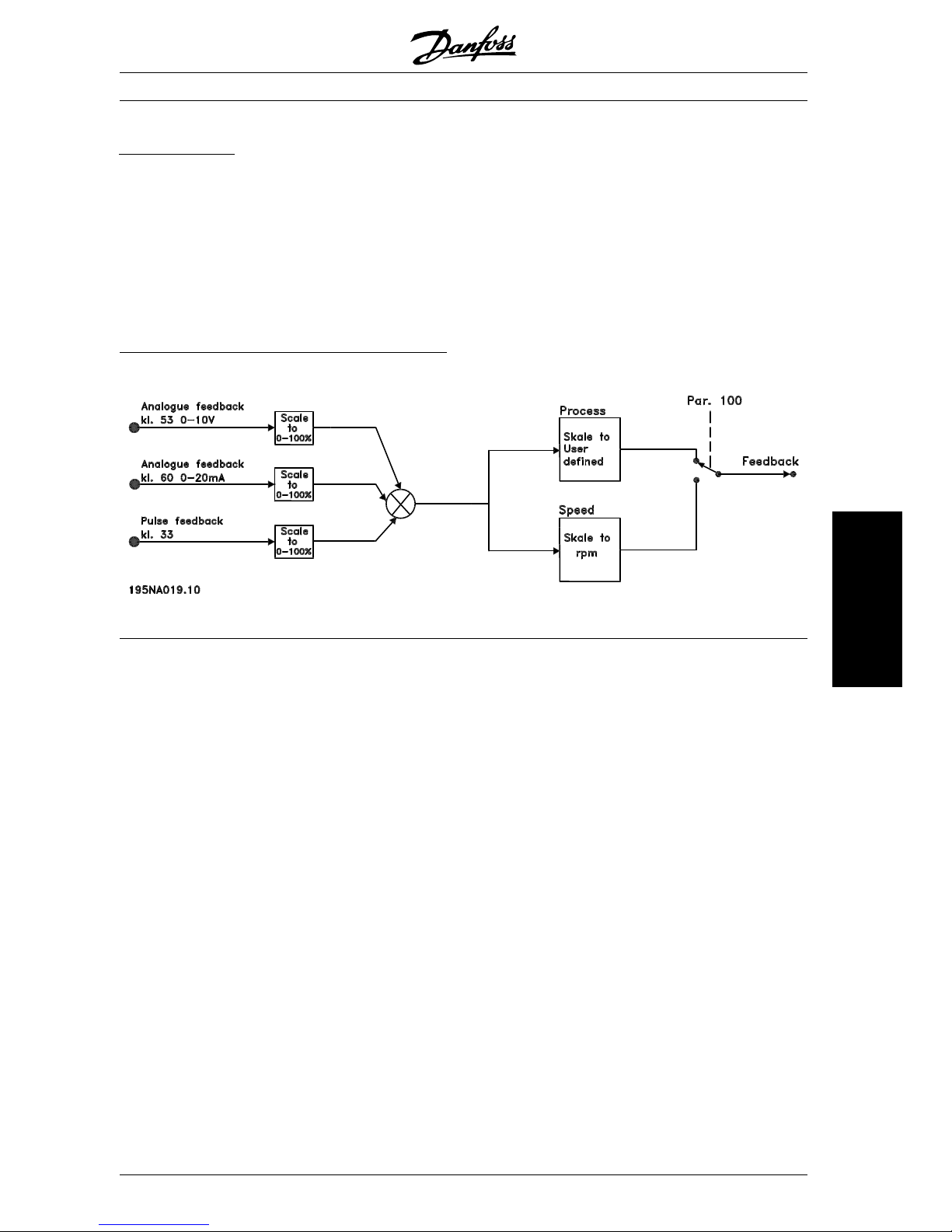

Handling of feedback ............................................................................................. 87
Serial communication for FCD 300 ....................................................................... 94
Control Word according toFC protocol ................................................................ 100
Status Word according toFC Profile .................................................................... 101
Control word according to Fieldbus Profile ......................................................... 103
Status word according to profidrive protocol ....................................................... 104

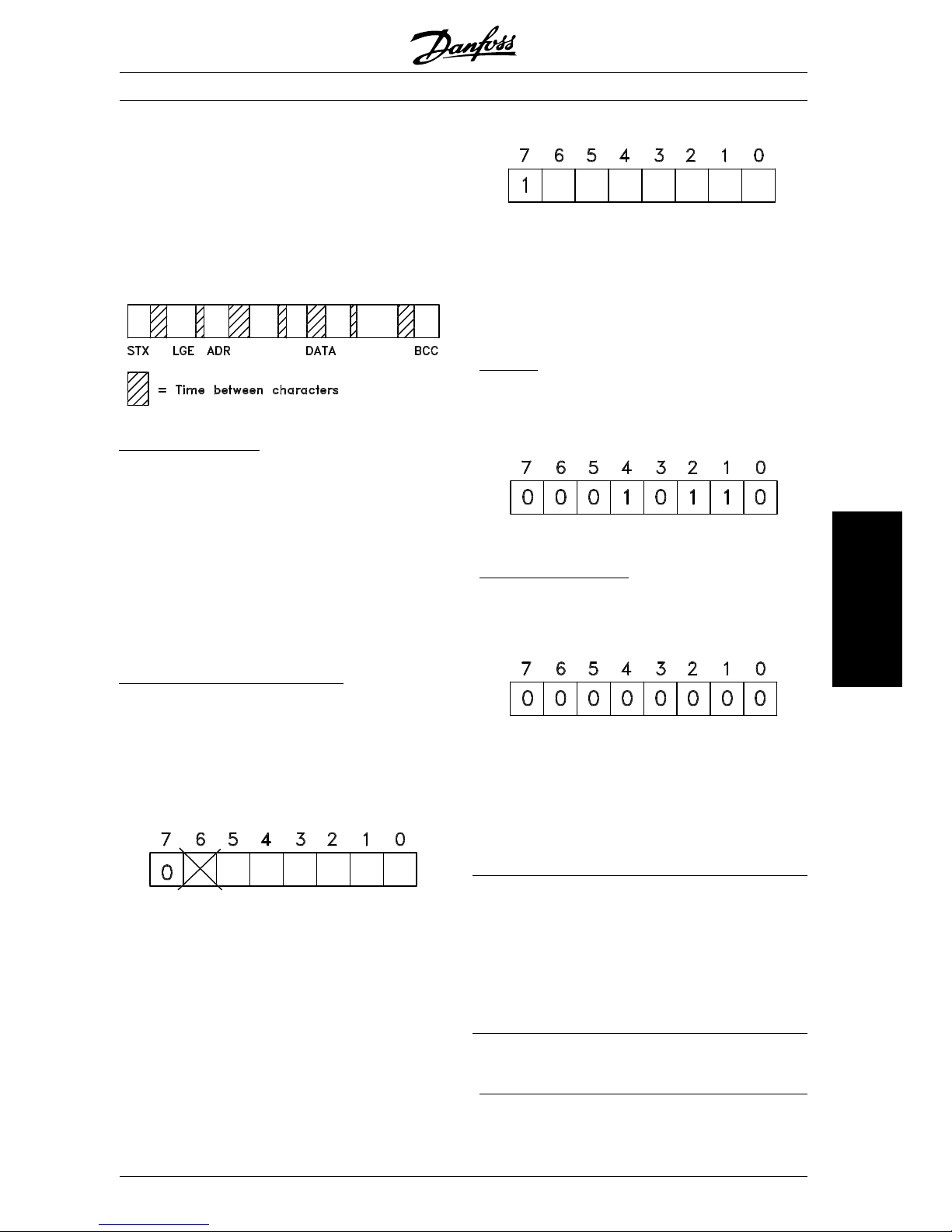

Serial communication .......................................................................................... 106
Technical functions .............................................................................................. 113
All about FCD 300 ......................................................................................... 118
Special conditions ................................................................................................ 118
Galvanic isolation (PEL V) .................................................................................... 118
Earth leakage current and RCD relays ............................................................... 118
Extreme operating conditions .............................................................................. 118
dU/dt on motor ..................................................................................................... 119
Switching on the input ......................................................................................... 119
Acoustic noise ...................................................................................................... 119
Temperature-dependent switch frequency ........................................................... 119
Derating for air pressure ...................................................................................... 120
Derating for running at low speed ....................................................................... 120
Motor cable lengths ............................................................................................. 120
Vibration and shock ............................................................................................. 120
Air humidity .......................................................................................................... 120
UL Standard ......................................................................................................... 120
Efficiency .............................................................................................................. 120
Mains supply interference/harmonics .................................................................. 121
Power factor ......................................................................................................... 121
Generic EMC standards / product standards ...................................................... 122
EMC emission ...................................................................................................... 122
EMC Immunity ..................................................................................................... 122
Status messages ................................................................................................. 125
Warnings/alarm messages .................................................................................. 125
Warning words, extended status words and Alarmwords ................................... 129
General technical data ......................................................................................... 130
Technical data, mains supply 3 x 380 - 480 V .................................................... 134
Available literature ............................................................................................... 135
Supplied with the unit .......................................................................................... 135
Factory Settings ................................................................................................... 136
MG.04.A1.02 - VLT is a registered Danfoss trade mark
2
VLT®FCD Series
195NA193.10
FCD 300 Series
Design guide
Software version: 1.0x
This design guide can be used for all FCD 300 Series frequency converters with software version 1.0x.
The software version number can be seen from parameter
640 Software version no.
NB!:
This symbol indicates
something that should be noted by the reader.
Indicates a general warning.
This symbol indicates a warning of high voltage.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
3
Introduction to FCD 300
VLT®FCD Series
■ General warning
The voltage of the frequency converter is
d
angerous whenever the converter is con-
n
ected to mains. Incorrect fitting of the
m
otor or frequency converter may cause damage to
the equipment, serious injury or death. Consequently, it is essential to comply with the instructions
in this manual as well as local and national rules and
s
afety regulations
■ These rules concern your safety
1. The frequency converter must be disconnected
from the mains if repair work is to be carried out.
Check that the mains supply has been disconnected and that the prescribed time has passed
before removing the inverter part from the installation.
2. The [STOP/RESET] key on the optional control
panel does not disconnect the equipment from
mains and is thus not to be used as a safety
switch.
3. The unit must be properly connected to the earth,
the user must be protected against the supply
voltage and the motor must be protected against
overloading pursuant to prevailing national and local regulations.
4. The earth leakage currents are higher than 3.5
mA.
5. Protection against motor overload is not included
in the factory setting. If this function is required,
set parameter 128
Motor thermal protection to
data value ETR trip or data value ETR warning.
For the North American market: The ETR functions provide overload protection of the motor,
class 20, in accordance with NEC.
■ Warning against unintended start
1. The motor can be brought to a stop by means of
digital commands, bus commands, references or
a local stop, while the frequency converter is connected to mains. If personal safety considerations
make it necessary to ensure that no unintended
start occurs, these stop functions are not sufficient.
2. While parameters are being changed, the motor
may start. Consequently, the stop key [STOP/RESET] on the optional control panel must always be
activated, following which data can be modified.
3. A motor that has been stopped may start if faults
occur in the electronics of the frequency converter, or if a temporary overload or a fault in the
supply mains or the motor connection ceases.
195NA194.10
Warning:
It can be extremely dangerous to touch the electrical parts
even when the AC line supply has been disconnected.
For FCD 300: wait at least 4 minutes.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
4
VLT®FCD Series
■ Technology
■ Control principle
A frequency converter rectifies AC voltage from the
mains supply into DC voltage, following which it
changes this voltage to an AC voltage with variable
amplitude and frequency.
The motor thus receives a variable voltage and frequency, which enables infinitely variable speed
control of three-phase, standard AC motors.
1. Mains voltage
3 x 380 - 480 V AC, 50 / 60 Hz.
2
. Rectifier
Three-phase rectifier bridge which rectifies AC voltage into DC voltage.
3
. Intermediate circuit
DC voltage
=
√2 x mains voltage [V].
4
. Intermediate circuit coils
Evens out the intermediate circuit current and limits
the load on mains and components (mains transformer, cables, fuses and contactors).
5
. Intermediate circuit capacitor
Evens out the intermediate circuit voltage.
6
. Inverter
Converts DC voltage into a variable AC voltage with
a variable frequency.
7
. Motor voltage
Variable AC voltage depending on supply voltage.
Variable frequency: 0.2 - 132 / 1 - 1000 Hz.
8
. Control card
Here is the computer that controls the inverter which
generates the pulse pattern by which the DC voltage
is converted into variable AC voltage with a variable
frequency.
■ The decentral concept
The FCD 300 Adjustable speed drive is designed for
decentral mounting, e.g. in the food and beverage
industry, in the automotive industry, or for other material handling applications.
With the FCD 300 it is possible to utilize the cost
saving potential by placing the power electronics decentrally, and thus make the central panels obsolete
saving cost, space and effort for installation and
wiring.
The unit is flexible in its mounting options for as well
stand alone mounting and motor mounting. It is also
possible to have the unit pre-mounted on a Danfoss
Bauer geared motor (3 in one solution). The basic
design with a plugable electronic part and a flexible
and “spacious” wiring box is extremely servicefriendly and easy to change electronics without the
need for unwiring.
The FCD 300 is a part of the VLT frequency converter family, which means similar funcionality ,
programming, and operating as the other family
members.
■ Cleaning
The enclosure (IP66/NEMA type 4x indoor) will offer
protection against dirt and water ingress, and is designed suitable for cleaning as performed in food and
beverage plants with the concentrations of cleaning
solvent as recommended by the manufacturer. High
pressure cleaning in very short distance or long time
with hot water may damage gaskets and lables.
■ FCD 300 control principle
A frequency converter is an electronic unit which is
able to infinitely variably control the rpm of an AC
motor. The frequency converter governs the motor
speed by converting the regular voltage and frequency from mains, e.g. 400 V / 50 Hz, into variable
magnitudes. Today the frequency converter controlled AC motor is a natural part of all types of
automated plants.
The FCD 300 Series has an inverter control system
called VVC (Voltage Vector Control). VVC controls
an induction motor by energizing with a variable frequency and a voltage suitable for it. If the motor load
changes, so does its energizing and speed. That is
why the motor current is measured on an ongoing
MG.04.A1.02 - VLT is a registered Danfoss trade mark
5
Introduction to FCD 300
VLT®FCD Series
basis, and a motor model is used to calculate the
actual voltage requirement and slip of the motor.
■ Programmable inputs and outputs in four Setups
In the FCD 300 Series it is possible to program the
different control inputs and signal outputs and to select four different user-defined Setups for most
parameters. It is easy for the user to program the required functions on the control panel or via serial
communication.
■ Mains protection
The FCD 300 Series is protected against the transients that may occur on the mains, such as
coupling with a phase compensation system or transients from fuses blown or when lightening strikes.
Rated motor voltage and full torque can be maintained down to approx. 10% undervoltage in the
mains supply.
As all 400 V units in the FCD 300 Series have intermediate circuit coils, there is only a low amount of
harmonic mains supply interference. This gives a
good power factor (lower peak current), which reduces the load on the mains installation.
■ Frequency converter protection
The current measurement in the intermediate circuit
constitutes perfect protection of the FCD 300 Series
in case there is a short-circuit or an earth fault on
the motor connection.
Constant monitoring of the intermediate circuit current allows switching on the motor output, e.g. by
means of a contactor.
Efficient monitoring of the mains supply means that
the unit will stop in the case of a phase drop-out (if
the load exceeds approx. 50%). In this way, the inverter and the capacitors in the intermediate circuit
are not overloaded, which would dramatically reduce
the service life of the frequency converter.
The FCD 300 Series offers temperature protection
as standard. If there is a thermal overload, this function cuts out the inverter.
■ Reliable galvanic isolation
In the FCD 300 all digital inputs/outputs, analogue
inputs/outputs and the terminals for serial communication are supplied from or in connection with
circuits that comply with PELV requirements. PELV
is also complied with in relation to relay terminals at
max. 250 V, so that they can be connected to the
mains potential.
See section Galvanic Isolation (PELV) for further details.
■ Advanced motor protection
The FCD 300 Series has integral electronic motor
protection.
The frequency converter calculates the motor temperature on the basis of current, frequency and time.
As opposed to traditional, bimetallic protection, electronic protection takes account of reduced cooling at
low frequencies because of reduced fan speed (motors with internal fan). This function cannot protect
the individual motors when motors are connected in
parallel. Thermal motor protection can be compared
to a protective motor switch, CTI.
To give the motor maximum protection against overheating when it is covered or blocked, or if the fan
should fail, you can install a thermistor and connect it
to the frequency converter’s thermistor input (Digital
input), see parameter 128 Thermal motor protection.
NB!:
This function cannot protect the individual
motors in the case of motors linked in parallel.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
6
VLT®FCD Series
■ CE labelling
What is CE labelling?
The purpose of CE labelling is to avoid technical obstacles to trade within EFTA and the EU. The EU has
introduced the CE label as a simple way of showing
whether a product complies with the relevant EU directives. The CE label says nothing about the
specifications or quality of the product. Frequency
converters are regulated by three EU directives:
The machinery directive (98/37/EEC)
All machines with critical moving parts are covered
by the machinery directive, which came into force on
1 January 1995. Since a frequency converter is
largely electrical, it does not fall under the machinery
directive. However, if a frequency converter is supplied for use in a machine, we provide information on
safety aspects relating to the frequency converter.
We do this by means of a manufacturer’s declaration.
The low-voltage directive (73/23/EEC)
Frequency converters must be CE labelled in accordance with the low-voltage directive, which came
into force on 1 January 1997. The directive applies
to all electrical equipment and appliances used in
the 50 - 1000 Volt AC and the 75 - 1500 Volt DC
voltage ranges. Danfoss CE labels in accordance
with the directive and issues a declaration of conformity upon request.
The EMC directive (89/336/EEC)
EMC is short for electromagnetic compatibility. The
presence of electromagnetic compatibility means
that the mutual interference between different components/appliances is so small that the functioning of
the appliances is not affected.
The EMC directive came into force on 1 January
1996. Danfoss CE labels in accordance with the directive and issues a declaration of conformity upon
request. In order that EMC-correct installation can
be carried out, this manual gives detailed instructions for installation. In addition, we specify the
standards which our different products comply with.
We offer the filters that can be seen from the specifications and provide other types of assistance to
ensure the optimum EMC result.
In the great majority of cases, the frequency converter is used by professionals of the trade as a
complex component forming part of a larger appliance, system or installation. It must be noted that the
responsibility for the final EMC properties of the appliance, system or installation rests with the installer.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
7
Introduction to FCD 300
VLT®FCD Series
■ Order form
This section makes it easier for you to specify and
order an FCD 300.
Choice of frequency converter
The frequency converter must be chosen on the basis of the present motor current at maximum loading
of the unit. The frequency converter’s rated output
current I
INV.
must be equal to or greater than the re-
quired motor current.
Mains voltage
FCD 300 is available for mains voltage range: 380480 V.
The frequency converter is connected to a mains
voltage of:
- 3 x 380 - 480 V three-phase AC voltage
3 x 380 - 480 Volt mains voltage
Typical shaft output
P
INV.
Max. constant output current
I
INV.
Max. constant output power
at 400 V S
INV.
Type [kW] [HP] [A] [kVA]
303 0.37 0.50 1.4 1.0
305 0.55 0.75 1.8 1.2
307 0.75 1.0 2.2 1.5
311 1.1 1.5 3.0 2.0
315 1.5 2.0 3.7 2.6
322 2.2 3.0
5.2 3.6
330 3.0 4.0 7.0 4.8
■ Enclosure
All FCD 300 units are supplied with IP 66, NEMA 4x
(Indoor) enclosure as standard.
■ Brake
FCD 300 is available with or without an integral
brake module. See also the section entitled Brake
resistors for ordering a brake resistor.
Including mechanical brake control/supply.
■ 24 V external supply
Back up of control supply with 24 V DC is available
as optional function.
■ RFI filter
FCD 300 has an integral 1A RFI-filter. The integral
1A RFI filter complies with EMC standards EN
55011-1A. See the sections Cable lengths and
Cross section for further details.
■ Harmonic filter
The harmonic currents do not affect power consumption directly, but they increase the heat losses
in the installation (transformer, cables). That is why
in a system with a relatively high percentage of rectifier load it is important to keep the harmonic currents
at a low level so as to avoid a transformer overload
and high cable temperature. For the purpose of ensuring low harmonic currents, the units are fitted with
coils in their intermediate circuit as standard. This
reduces the input current I
RMS
by typically 40 %.
■ Display unit
On the FCD 300 unit there are 5 indicator lamps for
voltage (ON), warning, alarm, status and bus.
In addition, an LCP control panel to be connected
via a plug to the frequency converter is available as
an option. The LCP control panel can be installed
up to 3 metres away from the frequency converter,
e.g. on a front panel, by means of a mounting kit.
All displays of data are via a 4-line alpha-numerical
display, which in normal operation is able to show 4
operating data items and 3 operation modes continu-
MG.04.A1.02 - VLT is a registered Danfoss trade mark
8
VLT®FCD Series
ously. During programming, all the information
required for quick, efficient parameter Setup of the
frequency converter is displayed. As a supplement
to the display, the LCP has three indicator lamps for
voltage (ON), warning (WARNING) and alarm
(ALARM). Most of the frequency converter’s parameter Setups can be changed immediately via the LCP
control panel. See also the section entitled The LCP
control unit in the Design Guide.
■ Fieldbus protocols
Danfoss frequency converters are able to fulfill many
different functions in a process control system. The
frequency converter can be integrated directly in an
overall surveillance system, which will allow detailed
process data to be transferred via serial communication.
The protocols listed below are based on an RS 485
bus system with a maximum transmission speed of
9600 baud. The following telegram profiles are supported as standard:
- FC protocol, which is a profile adapted to Dan-
foss.
- Profidrive protocol, which supports the profidrive
profile
See Serial communication for FCD 300 for further
details of telegram profiles.
■ Fieldbus option
The increasing information requirements in industry
make it necessary to collect or visualize many different process data. Important process data help the
system technician with the daily monitoring of the
system. The large amounts of data involved in major
systems make a higher transmission speed than
9600 baud desirable.
Profibus is a fieldbus system, which can be used for
linking automation devices such as sensors and
actuators with the controls by means of a twoconductor cable.
Profibus DP is a very fast communication protocol,
made specially for communication between the automation system and various types of equipment.
Danfoss FCD 300 can be supplied with the Profibus
®
DP in a 3 mbit and a 12 mbit version. Units with
Profibus protocol can either be controlled by FC protocol or Profidrive protocol.
Profibus is a registered trade mark.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
9
Introduction to FCD 300
VLT®FCD Series
■ Ordering numbers for FCD 300, 380-480 V
0.37
kW
For motor mounting
FCD 303 3 x 380-480 V
Unit Fieldbus Ordering no.
ST* - 175N1698
ST - 175N1699
ST Profibus DP 3 MB 175N1700
ST Profibus DP 12 MB 175N1701
ST AS(i)** 175N1702
EX - 175N1703
EX Profibus DP 3 MB 175N1704
EX Profibus DP 12 MB 175N1705
EX AS(i)** 175N1706
EB - 175N1707
EB Profibus DP 3 MB 175N1708
EB Profibus DP 12 MB 175N1709
EB AS(i)** 175N1710
0.55
kW
For motor mounting
FCD 305 3 x 380-480 V
Unit Fieldbus Ordering no.
ST* - 175N1750
ST - 175N1751
ST Profibus DP 3 MB 175N1752
ST Profibus DP 12 MB 175N1753
ST AS(i)** 175N1754
EX - 175N1755
EX Profibus DP 3 MB 175N1756
EX Profibus DP 12 MB 175N1757
EX AS(i)** 175N1758
EB - 175N1759
EB Profibus DP 3 MB 175N1760
EB Profibus DP 12 MB 175N1761
EB AS(i)** 175N1762
0.37
kW
For stand alone mounting
FCD 303 3 x 380-480 V
Unit Fieldbus Ordering no.
ST* - 175N1711
ST - 175N1712
ST Profibus DP 3 MB 175N1713
ST Profibus DP 12 MB 175N1714
ST AS(i)** 175N1715
EX - 175N1716
EX Profibus DP 3 MB 175N1717
EX Profibus DP 12 MB 175N1718
EX AS(i)** 175N1719
EB - 175N1720
EB Profibus DP 3 MB 175N1721
EB Profibus DP 12 MB 175N1722
EB AS(i)** 175N1723
0.55
kW
For stand alone mounting
FCD 305 3 x 380-480 V
Unit Fieldbus Ordering no.
ST* - 175N1763
ST - 175N1764
ST Profibus DP 3 MB 175N1765
ST Profibus DP 12 MB 175N1766
ST AS(i)** 175N1767
EX - 175N1768
EX Profibus DP 3 MB 175N1769
EX Profibus DP 12 MB 175N1770
EX AS(i)** 175N1771
EB - 175N1772
EB Profibus DP 3 MB 175N1773
EB Profibus DP 12 MB 175N1774
EB AS(i)** 175N1775
ST: Standard unit.
EX: Unit with 24 V external supply.
EB: Unit with 24 V external supply and brake.
*: Only cable entries on the right side.
**: For availability , contact Danfoss.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
10
VLT®FCD Series
0.75
kW
For motor mounting
FCD 307 3 x 380-480 V
Unit Fieldbus Ordering no.
ST* - 175N1802
ST - 175N1803
ST Profibus DP 3 MB 175N1804
ST Profibus DP 12 MB 175N1805
ST AS(i)** 175N1806
EX - 175N1807
EX Profibus DP 3 MB 175N1808
EX Profibus DP 12 MB 175N1809
EX AS(i)** 175N1810
EB - 175N1811
EB Profibus DP 3 MB 175N1812
EB Profibus DP 12 MB 175N1813
EB AS(i)** 175N1814
1.1 kW For motor mounting
FCD 311 3 x 380-480 V
Unit Fieldbus Ordering no.
ST* - 175N1854
ST - 175N1855
ST Profibus DP 3 MB 175N1856
ST Profibus DP 12 MB 175N1857
ST AS(i)** 175N1858
EX - 175N1859
EX Profibus DP 3 MB 175N1860
EX Profibus DP 12 MB 175N1861
EX AS(i)** 175N1862
EB - 175N1863
EB Profibus DP 3 MB 175N1864
EB Profibus DP 12 MB 175N1865
EB AS(i)** 175N1866
0.75
kW
For stand alone mounting
FCD 307 3 x 380-480 V
Unit Fieldbus Ordering no.
ST* - 175N1815
ST - 175N1816
ST Profibus DP 3 MB 175N1817
ST Profibus DP 12 MB 175N1818
ST AS(i)** 175N1819
EX - 175N1820
EX Profibus DP 3 MB 175N1821
EX Profibus DP 12 MB 175N1822
EX AS(i)** 175N1823
EB - 175N1824
EB Profibus DP 3 MB 175N1825
EB Profibus DP 12 MB 175N1826
EB AS(i)** 175N1827
1.1 kW For stand alone mounting
FCD 311 3 x 380-480 V
Unit Fieldbus Ordering no.
ST* - 175N1867
ST - 175N1868
ST Profibus DP 3 MB 175N1869
ST Profibus DP 12 MB 175N1870
ST AS(i)** 175N1871
EX - 175N1872
EX Profibus DP 3 MB 175N1873
EX Profibus DP 12 MB 175N1874
EX AS(i)** 175N1875
EB - 175N1876
EB Profibus DP 3 MB 175N1877
EB Profibus DP 12 MB 175N1878
EB AS(i)** 175N1879
ST: Standard unit.
EX: Unit with 24 V external supply.
EB: Unit with 24 V external supply and brake.
*: Only cable entries on the right side.
**: For availability , contact Danfoss.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
11
Introduction to FCD 300
VLT®FCD Series
1.5 kW For motor mounting
FCD 315 3 x 380-480 V
Unit Fieldbus Ordering no.
ST* - 175N1906
ST - 175N1907
ST Profibus DP 3 MB 175N1908
ST Profibus DP 12 MB 175N1909
ST AS(i)** 175N1910
EX - 175N1911
EX Profibus DP 3 MB 175N1912
EX Profibus DP 12 MB 175N1913
EX AS(i)** 175N1914
EB - 175N1915
EB Profibus DP 3 MB 175N1916
EB Profibus DP 12 MB 175N1917
EB AS(i)** 175N1918
2.2
kW**
For motor mounting
FCD 322 3 x 380-480 V
Unit Fieldbus Ordering no.
ST* - 175N1958
ST - 175N1959
ST Profibus DP 3 MB 175N1960
ST Profibus DP 12 MB 175N1961
ST AS(i)** 175N1962
EX - 175N1963
EX Profibus DP 3 MB 175N1964
EX Profibus DP 12 MB 175N1965
EX AS(i)** 175N1966
EB - 175N1967
EB Profibus DP 3 MB 175N1968
EB Profibus DP 12 MB 175N1969
EB AS(i)** 175N1970
1.5 kW For stand alone mounting
FCD 315 3 x 380-480 V
Unit Fieldbus Ordering no.
ST* - 175N1919
ST - 175N1920
ST Profibus DP 3 MB 175N1921
ST Profibus DP 12 MB 175N1922
ST AS(i)** 175N1923
EX - 175N1924
EX Profibus DP 3 MB 175N1925
EX Profibus DP 12 MB 175N1926
EX AS(i)** 175N1927
EB - 175N1928
EB Profibus DP 3 MB 175N1929
EB Profibus DP 12 MB 175N1930
EB AS(i)** 175N1931
2.2
kW**
For stand alone mounting
FCD 322 3 x 380-480 V
Unit Fieldbus Ordering no.
ST* - 175N1971
ST - 175N1972
ST Profibus DP 3 MB 175N1973
ST Profibus DP 12 MB 175N1974
ST AS(i)** 175N1975
EX - 175N1976
EX Profibus DP 3 MB 175N1977
EX Profibus DP 12 MB 175N1978
EX AS(i)** 175N1979
EB - 175N1980
EB Profibus DP 3 MB 175N1981
EB Profibus DP 12 MB 175N1982
EB AS(i)** 175N1983
ST: Standard unit.
EX: Unit with 24 V external supply.
EB: Unit with 24 V external supply and brake.
*: Only cable entries on the right side.
**: For availability , contact Danfoss.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
12
VLT®FCD Series
3.0
kW
**
For motor mounting
FCD 330 3 x 380-480 V
Unit Fieldbus Ordering no.
ST* - 175N2010
ST - 175N2011
ST Profibus DP 3 MB 175N2012
ST Profibus DP 12 MB 175N2013
ST AS(i)** 175N2014
EX - 175N2015
EX Profibus DP 3 MB 175N2016
EX Profibus DP 12 MB 175N2017
EX AS(i)** 175N2018
EB - 175N2019
EB Profibus DP 3 MB 175N2020
EB Profibus DP 12 MB 175N2021
EB AS(i)** 175N2022
3.0
kW
**
For stand alone mounting
FCD 330 3 x 380-480 V
Unit Fieldbus Ordering no.
ST* - 175N2023
ST - 175N2024
ST Profibus DP 3 MB 175N2025
ST Profibus DP 12 MB 175N2026
ST AS(i)** 175N2027
EX - 175N2028
EX Profibus DP 3 MB 175N2029
EX Profibus DP 12 MB 175N2030
EX AS(i)** 175N2031
EB - 175N2032
EB Profibus DP 3 MB 175N2033
EB Profibus DP 12 MB 175N2034
EB AS(i)** 175N2035
ST: Standard unit.
EX: Unit with 24 V external supply.
EB: Unit with 24 V external supply and brake.
*: Only cable entries on the right side.
**: For availability , contact Danfoss.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
13
Introduction to FCD 300
VLT®FCD Series
MG.04.A1.02 - VLT is a registered Danfoss trade mark
14
VLT®FCD Series
■ PC software and serial communication
Danfoss offers various options for serial communication. Using serial communication, it is possible to
monitor, program and control one or several frequency converters from a centrally located computer.
In addition, all FCD 300 units have an RS 485 port
as standard, thereby enabling communication e.g.
with a PC. For this purpose, a program called VLT
Software Dialog is available.
VLT Software Dialog comes in three modules, as a
minimum containing the programs of the Basic module.
The Basic module covers:
TEST RUN used for controlling and running in a frequency converter, including
- Setting of reference value.
- simultaneous showing of selected parameters in
the form of graphs.
- option of DDE link, e.g. to spreadsheet.
PARAMETER SETUP is used for setting up and
transmitting parameter sets, including:
- setting of frequency converter parameters.
- parameter sets can be collected from and copied
to a frequency converter.
- documentation / setup print incl. charts.
HISTORY where the different development stages of
VLT Software dialog can be studied.
BUS ADDRESS SETUP is used for addressing FCD
300.
The logging module covers:
LOGGING is used for collecting and displaying historical or real-time operating data.
- presentation of selected parameters from several
frequency converters in the form of graphs.
- collection of log data for file.
- option of DDE link, e.g. to spreadsheet.
MODEM SETUP is used to set up the frequency converter’s modem. The module sets up the frequency
converter’s modem via the PC’s communication port.
The template module covers:
TEMPLATE SETUP is used for setting up template
files for PARAMETER SETUP.
- the template file acts as a screen that limits the
number of accessible parameters when a parameter file is to be made or edited in PARAMETER
SETUP
- the template file may contain preset values for
the parameters of the frequency converter
NB!:
The Logging and Template modules call for
the Basic module to be installed on the same
PC.
Guided tour covers:
Guided tour offers a demonstration of the VLT Software Dialog program.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
15
Introduction to FCD 300
VLT®FCD Series
■ Accessories for FCD 300
Type Description Ordering no.
LCP2 control unit LCP2 for programming the frequency converter 175N0131
Cable for LCP2 control unit Cable from LCP2 to frequency converter 175N0162
LCP2 remote-mounting kit Kit for remote-mounting of LCP2 (incl. 3 m cable,
excl. LCP2)
175N0160
LOP2 (Local Operation Pad) LOP can be used for setting the reference
and start/stop via the control terminals.
175N0128
VLT Software Dialog CD-ROM version* 175Z0953
Motor adaption plate Plate for adapting to non Danfoss Bauer motors. 175N2115
Membrane Membrane for preventing condensation. 175N2116
Internal brake resistor Brake resistor for mounting inside the terminal box. 175N2117
Plug kit for LCP2 Plug for LCP2 for mounting in the terminal box. 175N2118
Motor star terminal Terminal for interconnection of motor wires (star point). 175N2119
* Incl. the modules Basis, Logging, Template,
Guided Tour in 6 languages (Danish, English, German, Italian, Spanish and French).
MG.04.A1.02 - VLT is a registered Danfoss trade mark
16
VLT®FCD Series
■ Dynamic braking
With the FCD 300 the dynamic braking quality in an
application can be improved in two ways, either with
the aid of brake resistors or AC braking.
Danfoss offers a complete range of brake resistors
for all FCD 300 frequency converters.
It is the job of the brake resistor to apply a load to
the intermediate circuit during braking, thereby ensuring that the brake power can be absorbed by the
brake resistor.
Without a brake resistor, the intermediate circuit voltage of the frequency converter would go on rising,
until cutting out for protection. The advantage of using a brake resistor is that you can brake quickly with
large loads, e.g. on a conveyor belt.
Danfoss has chosen a solution in which the brake
resistor is not integrated into the frequency converter. This gives the user the following advantages:
- The resistor’s cycle time can be selected as required.
- The heat generated during braking can be
diverted outside the panel cabinet, where the energy can possibly be utilised.
- No overheating of the electronic components,
even if the brake resistor is overloaded.
An internal brake resistorcan be mounted on the
small brake duty cycles.
AC braking is an integrated function that is used for
applications in which there is a need for limited dynamic braking. The AC braking function makes it
possible to reduce the brake power in the motor instead of in a brake resistor. The function is intended
for applications where the required braking torque is
less than 50% of rated torque. AC braking is selected in par. 400 Brake function.
NB!:
The AC brake cannot be used if the required
braking torque is more than 50% of rated
braking torque. In such instances a brake resistor
must be used.
■ Brake Setup
The figure shows a brake Setup with a frequency
converter.
In the following paragraphs, expressions and
acronyms are used about brake Setups that can be
seen from the figure.
■ Calculation of brake resistance
To ensure that the frequency converter does not cut
out for safety reasons when the motor brakes, the
resistance value is selected on the basis of the peak
braking effect and the intermediate circuit voltage:
Rbr=
U
DC
2
P
peak
[]
It can be seen that the brake resistance depends on
the intermediate circuit voltage (UDC).
With frequency converters that have a mains voltage
of 3 x 380 - 480 Volt, the brake will be active at 770
Volt (UDC).
You can also choose to use the brake resistance
recommended by Danfoss (R
REC
). This is a guarantee that the frequency converter is able to brake at
the highest braking torque (M
BR
). The recommended
brake resistance can be seen from the ordering table
for brake resistors.
R
REC
calculated as:
R
rec
=
U
DC22
100
P
motor
2
Mbr
(%)
2
motor2inv
[]
NB!:
Remember to check that the brake resistance
can manage a voltage of 850 Volt or 430 Volt,
if Danfoss brake resistors are not being used.
motor
is typically 0.90 and
INV
is typically 0.98. For
400 Volt, R
REC
at 160% braking torque can be writ-
ten as:
400
volt R
rec
=
420139
P
motor
[]
MG.04.A1.02 - VLT is a registered Danfoss trade mark
17
Introduction to FCD 300
VLT®FCD Series
NB!:
The minimum brake resistance selected
should have an ohmic value no more than
10% lower than that recommended by Danfoss. I
f a
l
ower brake resistance is selected there is a risk of
o
vercurrent, which can destroy the unit.
■ Calculation of braking power
When calculating the braking power, it must be
ensured that the mean and peak powers can be dissipated to the brake resistor. The mean power is
determined by the period time of the process, i.e. for
how long the brake is applied in relation to the
period time of the process. The peak power is determined by the braking torque, which means that
during braking the brake resistor must be able to
dissipate the energy input. The figure shows the relation between mean power and peak power.
■ Calculation of peak power of brake resistor
P
PEAK, MEC
is the peak power at which the motor
brakes on the motor shaft. It is calculated as follows:
P
P E AK;MEC
=
P
MOTOR
2MBR
(%)
100
[W]
P
peak
is the term describing the braking power that is
applied to the brake resistor when the motor applies
the brakes. P
PEAK
is smaller than P
PEAK, MEC
, as the
power is reduced by the efficiency of the motor and
the frequency converter. The peak effect is calculated as follows:
P
PEAK
=
P
MOTOR
2MBR
(%)
2
INV
2MOTOR
100
[W]
If you select Danfoss’ recommended braking resistor
(R
REC
), you are certain that the braking resistance
can generate a braking torque of 160% on the motor
shaft.
■ Calculation of mean power on brake resistor
The mean power is determined by the period of the
process, i.e. how long you brake in relation to the
period of the process.
Duty-cycle for braking is calculated as follows:
Duty0cycle
=
T
b
2
100
T
p
[%]
T
p
= The process time in seconds.
T
b
= The braking time in seconds.
Danfoss sells brake resistors with variable dutycycles up to 40%. For example, with a 10%
duty-cycle, brake resistors can take up P
peak
in 10%
of the process period. The remaining 90% of the period time is spent on redirecting surplus heat.
The mean power at 10% duty cycle can be calculated as follows:
P
avg
=
P
peak
10
[W]
The mean power at 40% duty cycle can be calculated as follows:
P
avg
=
P
peak
2:5
[W]
These calculations apply to intermittent braking with
period times of up to 120 seconds.
NB!:
Period times longer than 120
sec. may lead to overheating of the resistor.
■ Continuous braking
For continuous braking, a brake resistor should be
selected in which the constant braking power does
not exceed the mean power P
AVG
of the brake resistor.
Please contact your Danfoss supplier for further information.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
18
VLT®FCD Series
■ Optimal braking using resistor
Dynamic braking is useful from maximum speed
down to around 8% of rated speed. Below 8%
speed DC braking can be used if necessary.
The most effective method is to switch from dynamic
to DC braking.
■ Brake cable
Max. length [m]: 10 m
The connection cable to the brake resistor must be
screened/armoured. Connect the screen to the conductive backplate at the frequency converter and to
the brake resistor metal cabinet by means of cable
clamps.
NB!:
If Danfoss brake resistors are not used,
it must be ensured that induction for the brake
resistor is low.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
19
Introduction to FCD 300
VLT®FCD Series
■ Safety functions in connection with installation
When a brake resistor is installed, the best possible
endeavours should be made to avoid overloads, as
the heat generating from a brake resistor may involve a fire risk.
NB!:
The brake resistor
should be fitted to a nonflammable material.
For protection of the installation, a thermal relay is
fitted that cuts out the frequency converter if the
brake current is too high. Danfoss’ 40% brake resis-
tors contain a KLIXON switch. Flat pack resistors
are self-protecting.
The brake current setting on the thermal relay is calculated as follows:
I
THERMAL
=
r
P
AV G
R
BR
RBRis the brake resistor value at any given time.
The drawing shows an installation with a thermal relay.
■ Ordering numbers for brake resistors
Flatpack brake resistors IP 54
Type P
motor
[kW]
R
MIN
[]
Size [] / [W]
per item
Duty cycle % Order no.
175Uxxxx
303 (400 V) 0.37 747 830/ 100 W 20 1000
305 (400 V) 0.55 747 830/ 100 W 20 1000
307 (400 V) 0.75 558 620/ 100 W 14 1001
311 (400 V) 1.10 387 430/ 100 W 8 1002
315 (400 V) 1.50 297 310/ 200 W 16 0984
322 (400 V) 2.20 198 210/ 200 W 9 0987
330 (400 V)
3.00 135 150/ 200 W 5.5 0989
MG.04.A1.02 - VLT is a registered Danfoss trade mark
20
VLT®FCD Series
Coiled wire brake resistors Duty-cycle 40%
Type
P
motor
[kW]
R
MIN
[
]
R
REC
[]
P
peak
[kW]
P
avg.
[kW]
Order no.
175U0xxx
303 (400 V) 0.37 747 830 0.60 0.25 976
305 (400 V)
0.55 747 830 0.60 0.25 976
307 (400 V) 0.75 558 620 0.90 0.36 910
311 (400 V) 1.10 387 430 1.32 0.53 911
315 (400 V) 1.50 297 330 1.80 0.72 912
322 (400 V) 2.20 198 220 2.60 1.06 913
330 (400 V) 3.00 135 150 3.60 1.44 914
R
REC
= Recommended brake resistor.
P
peak
= Max. brake effect at 160% brake torque.
P
avg
= Mean power based on Duty-cycle.
See dimensions of Coiled wire brake resistors in instructions MI.50.D2.XX.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
21
Introduction to FCD 300
VLT®FCD Series
■ Dimensions of Flatpack brakeresistors
100 W 200 W
MG.04.A1.02 - VLT is a registered Danfoss trade mark
22
VLT®FCD Series
■ The LCP 2 control unit, option
The FCD 300 can be combined with an LCP control
unit (Local Control Panel - LCP 2) which makes up a
complete interface for operation and programming of
the frequency converter. The LCP 2 control unit can
be attached up to three metres from the frequency
converter, e.g. on a front panel, using an accessory
kit.
The control panel is divided into five functional
groups:
1. Display.
2. Keys used to change the display function.
3. Keys used to change the programme parameters.
4. Indicator lamps.
5. Local control keys.
All data is displayed via a 4-line alphanumeric display, which during normal operation will be able to
continuously display 4 items of operating data and 3
operating modes. During programming all information needed for quick, effective parameter setup of
the frequency converter will be displayed. As a supplement to the display, there are three indicator
lamps for voltage (ON), warning (WARNING) and
alarm (ALARM). All frequency converter parameter
Setups can be changed immediately from the control
panel, unless this function has been programmed as
Locked [1] via parameter 018 Lock for data changes.
■ Control keys for parameter Setup
The control keys are divided into functions, in such a
way that the keys between the display and the indicator lamps are used for parameter Setup, including
selection of the display’s view mode during normal
operation.
[DISPLAY/STATUS] is used to select the display’s
view mode or to change back to Display mode from
either Quick Menu or Menu mode.
[QUICK MENU] provides access to the parameters
used in the Quick Menu. It is possible to switch between Quick Menu and Menu mode.
[MENU] gives access to all parameters. It is possible to switch between Menu mode and Quick Menu.
[CHANGE DATA] is used to change a parameter
that has been selected either in Menu mode or
Quick Menu.
[CANCEL] is used if a change to the selected parameter is not to be implemented.
[OK] is used to confirm a change to a selected pa-
rameter.
[+ / -] are used for selecting parameters and for
changing parameter values.
These keys are also used in Display mode to switch
between the readouts of operating variables.
[< >] are used for selecting parameter group and to
move the cursor when changing a numerical value.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
23
Introduction to FCD 300
VLT®FCD Series
■ Indicator lamps
At the bottom of the control panel are a red alarm
lamp, a yellow warning lamp and a green voltage indicator lamp.
If certain threshold values are exceeded, the alarm
and/or warning lamp are activated, while a status or
alarm text is shown on the display.
NB!:
The voltage indicator lamp is activated when
voltage is connected to the frequency con-
verter.
■ Local control
[STOP/RESET] is used for stopping the motor con-
nected or for resetting the frequency converter after
a drop-out (trip). Can be set to active or inactive via
parameter 014 Local stop.
If stop is activated Display line 2 will flash.
NB!:
If an external stop function is not selected and
the [STOP/RESET] key is set to inactive, the
motor can only be stopped by disconnecting the voltage to the motor or the frequency converter.
[JOG] changes the output frequency to a preset frequency while the key is held down. Can be set to
active or inactive via parameter 015 Local jog.
[FWD / REV] changes the direction of rotation of the
motor, which is indicated by means of the arrow on
the display. Can be set to active or inactive via parameter 016 Local reversing. The [FWD/REV] key is
only active when parameter 002 Local/remote opera-
tion is set to Local control.
[START] is used to start the frequency converter. Is
always active, but cannot override a stop command.
NB!:
If the local control keys are set to inactive,
these will both become active when the frequency converter is set to Local control and Remote
control via parameter 002 Local/remote operation,
with the exception of [FWD/REV], which is only active in Local control.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
24
VLT®FCD Series
■ Display mode
VAR 2
SETUP
1
STATUS
VAR 1.1 VAR 1.2 VAR 1.3
In normal operation, up to 4 different display data
items can optionally be shown continuously: 1,1,
1,2, 1,3 and 2. The present operation status or
alarms and warnings that have been generated are
displayed in line 2 in the form of a number.
In the event of alarms this is displayed in lines 3 and
4 with explanatory text.
A warning will appear flashing in line 2 with explanatory text in line 1. The active Setup will also appear
on the display.
The arrow indicates the selected direction of rotation. Here the frequency converter shows that it has
an active reversing signal. The body of the arrow will
disappear if a stop command is given, or if the output frequency drops below 0.1 Hz.
The bottom line displays the frequency transformer’s
status. The scrollbar shows which operating values
can be displayed in lines 1 and 2 in Display mode.
Changes are made using the [+ / -] keys.
Operating data Unit
Resulting reference [%]
Resulting reference [unit]
Feedback [unit]
Output frequency [Hz]
Output frequency x scaling [-]
Motor current [A]
Torque [%]
Power [kW]
Power [HP]
Motor voltage [V]
DC link voltage [V]
Thermal load motor [%]
Thermal load [%]
Hours run [hours]
Digital input [binary]
Pulse reference [Hz]
External reference [%]
Status word [hex]
Heatsink temperature [C]
Alarm word [hex]
Control word [hex]
Warning word [hex]
Extended status word [hex]
Analogue input 53 [V]
Analogue input 60 [mA]
Three operating data items can be shown in the first
display line, and one operating variable can be
shown in the second display line. Is programmed via
parameters 009, 010, 011 and 012 Display readout.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
25
Introduction to FCD 300
VLT®FCD Series
■ Display modes
The LCP control unit has different display modes,
which depend on the mode selected for the frequency converter.
Display mode I:
This display mode is standard after startup or initialisation.
50.0 Hz
FREQUENCY
MOTOR IS RUNNING
Line 2 shows the data value of an operating data
item with unit, and line 1 contains a text that explains
line 2. In the example,
Frequency has been selected
as readout via parameter 009 Large display readout.
In normal operation, another variable can be entered
immediately using the [+ / -] keys.
Display mode II:
Switch between Display modes I and II is performed
by briefly pressing the [DISPLAY / STATUS] key.
MOTOR IS RUNNING
50.0 Hz
24.3% 30.2% 13.8A
In this mode, all data values for four operating data
items with any pertaining units are shown, see table.
In the example, the following have been selected:
Frequency, Reference, Torque and Current as readout in the first and second line.
Display mode III:
This display mode is called up as long as the
[DISPLA Y / STATUS] key is held down. When the
key is released it switches back to Display mode II,
unless the key is held down for less than approx. 1
sec., in which case the system always reverts to Display mode I.
50.0 Hz
SETUP
1
MOTOR IS RUNNING
REF% TORQUE CURR A
Here you can read out the parameter names and
units for operating data in the first and second lines.
Line 2 in the display remains unchanged.
Display mode IV:
This display mode can be called up during operation
if a change has to be made in another Setup without
stopping the frequency converter. This function is
activated in parameter 005 Programming Setup.
MOTOR IS RUNNING
50.0 Hz
24.3% 30.2% 13.8A
SETUP
12
Here the programming Setup number 2 will flash to
the right of the active Setup.
■ Parameter Setup
A frequency converter’s comprehensive work area
can be accessed via a large number of parameters,
making it possible to adapt its functionality for a specific application. To provide a better overview of the
many parameters, there is a choice of two programming modes - Menu mode and Quick Menu mode.
The former provides access to all parameters. The
latter takes the user through the parameters, which
make it possible to start operating the frequency converter in most cases, in accordance with the Setup
made. Regardless of the mode of programming, a
change of a parameter will take effect and be visible
both in the Menu mode and in the Quick menu mode.
Structure for Quick menu mode v Menu mode
In addition to having a name, each parameter is
linked up with a number which is the same regardless of the programming mode. In Menu mode,
parameters will be split into groups, with the first
MG.04.A1.02 - VLT is a registered Danfoss trade mark
26
VLT®FCD Series
digit (left) of the parameter number indicating the
group number of the parameter in question.
• Using the [QUICK MENU] key, it is possible to get
access to the most important parameters of the
frequency converter. After programming, the frequency converter is in most cases ready for
operation. Scroll through the Quick menu using
the [+ / -] keys and change the data values by
pressing [CHANGE DATA] + [OK].
• The Menu mode allows choosing and changing
all parameters as required. However, some parameters will be "shaded off", depending on the
choice in parameter 100 Configuration.
■ Quick menu with LCP 2 control unit
Start Quick Setup by pressing the [QUICK MENU]
key, which will bring out the following display values:
50.0 Hz
SETUP
1
QUICK MENU X OF Y
001 LANGUAGE
ENGLISH
At the bottom of the display, the parameter number
and name are given together with the status/value of
the first parameter under the Quick menu. The first
time the [QUICK MENU] key is pressed after the unit
has been switched on, the readouts always start in
pos. 1 - see table below.
Pos. Parameter no. Unit
1 001 Language
2 102 Motor power [kW]
3 103 Motor voltage [V]
4 104 Motor frequency [Hz]
5 105 Motor current [A]
6 106 Rated motor speed [rpm]
7 107 AMT
8 204 Minimum reference [Hz]
9 205 Maximum reference [Hz]
10 207 Ramp-up time [sec]
11 208 Ramp-down time [sec]
12 002 Local/remote operation
13 003 Local reference [Hz]
■ Parameter selection
Menu mode is started by pressing the [MENU] key,
which produces the following readout on the display:
50.0 Hz
FREQUENCY
0 KEYB.&DISPLAY
Line 3 on the display shows the parameter group
number and name.
In Menu mode, the parameters are divided into
groups. Selection of parameter group is effected using the [< >] keys.
The following parameter groups will be accessible:
Group no. Parameter group
0 Operation & Display
1 Load & Motor
2 References & Limits
3 Inputs & Outputs
4 Special functions
5 Serial communication
6 Technical functions
When the required parameter group has been selected, each parameter can be chosen by means of
the [+ / -] keys:
FREQUENCY
001 LANGUAGE
ENGLISH
50.0 Hz
The 3rd line of the display shows the parameter
number and name, while the status/value of the selected parameter is shown in line 4.
Changing data
Regardless of whether a parameter has been selected under the Quick menu or the Menu mode, the
procedure for changing data will be the same.
Pressing the [CHANGE DATA] key gives access to
MG.04.A1.02 - VLT is a registered Danfoss trade mark
27
Introduction to FCD 300
VLT®FCD Series
changing the selected parameter, following which the
underlining in line 4 will flash on the display. The
procedure for changing data depends on whether
the selected parameter represents a numerical data
value or a text value.
Changing a data value
If the selected parameter is a text value, the text
value is changed by means of the [+ / -] keys.
50.0 Hz
FREQUENCY
001 LANGUAGE
ENGLISH
The bottom display line will show the value that will
be entered (saved) when acknowledgment is given
[OK].
Change of numeric data value
If the selected parameter is represented by a numerical data value, a digit is first chosen using the [< >]
keys.
50.0 Hz
SETUP
1
FREQUENCY
130 START FREQUENCY
09.0 HZ
The selected digit can then be changed infinitely
variably using the [+ / -] keys:
50.0 Hz
SETUP
1
FREQUENCY
130 START FREQUENCY
10.0 HZ
The chosen digit is indicated by the digit flashing.
The bottom display line shows the data value that
will be entered (saved) when signing off with [OK].
■ Manual initialisation
NB!:
Manual initialisation is n
ot possible on the
LCP 2 175N0131 control unit. It is, however,
possible to perform an initialisation via par. 620 Op-
eration mode:
The following parameters are not set to zero when
initialising via par. 620 Operation mode.
- par. 500 Address
- par. 501 Baud rate
- par. 600 Operating hours
- par. 601 Hours run
- par. 602 kWh counter
- par. 603 Number of power-ups
- par. 604 Number of overtemperatures
- par. 605 Number of overvoltages
- par. 615-617 Fault log
- par. 678Configure Control Card
MG.04.A1.02 - VLT is a registered Danfoss trade mark
28
VLT®FCD Series
■ Mechanical dimensions, motor mounting
FCD 303–315 340–480 Volt
FCD 322–330 340-480 Volt
■ Mechanical dimensions, stand alone mounting
The drawings below give the mechanical dimensions. All dimensions are in mm.
FCD 303-315 380-480 Volt
FCD 322–330 380–480 Volt
MG.04.A1.02 - VLT is a registered Danfoss trade mark
29
Installation
VLT®FCD Series
■ Mechanical installation
Please pay attention to the requirements
t
hat apply to integration and remote
m
ounting. These must be complied with
t
o avoid serious injury or damage, especially when
installing large units.
The FCD 300 is consists of two parts: The installation part and the The electronics part.
The two parts must be separated, and the installation part is to be mounted first. After wiring, the
electronics is to be fixed to the installation part by
the attached 6 screws. For compressing the gasket
the screws must be tightened with 3 Nm.
The FCD 300 can be applied as following:
- Stand alone mounted close to the motor
- Motor mounted
or might be delivered pre mounted on a Danfoss
Bauer (geared) motor. Please contact the Danfoss
Bauer sales organisation for further information.
The frequency converter is cooled by means of air
circulation. For the unit to be able to release its cooling air, the minimum free distance above and below
the unit must be m
inimum 100 mm. To protect the
unit from overheating, it must be ensured that the
ambient temperature does not rise above the max.
temperature stated for the frequency converter and
that the 24-hour average temperature is not exceeded. The max. temperature and 24-hour average
can be seen in
General technical data. If the ambient temperature is higher, derating of the frequency
converter is to be carried out. See Derating for am-
bient temperature. Please note that the service life
of the frequency converter will be reduced if derating
for ambient temperature is not considered.
S
tand alone mounting ("wall mounting")
For best cooling the unit should be mounted vertically, however where space limitations require it,
horizontal mounting is allowable. The integrated 3
wall mounting brackets in the wall mounting version
can be used for fixing the installation box to the
mounting surface, keeping a distance for possible
cleaning between the box and the mounting surface.
M
otor mounting
The installation box should be mounted on the surface of the motor frame, typically instead of the
motor terminal box. The motor/geared motor may be
mounted with the shaft vertically or horizontally. The
unit mustnot be mounted upside down (the heat sink
pointing down). The cooling of the electronics is in-
dependent on the motor cooling fan. For motor
mounting (non Danfoss Bauer motors) an adaptor
plate should usually be applied. For that purpose a
neutral plate incl gasket and screws for attaching to
the installation box. is available. The appropriate
drillings and gasket for the motor housing are applied locally. Please make sure, that the mechanical
strength of the mounting screws and the threads are
sufficient for the application. The specified resistance against mechanical vibrations does not cover
the mounting onto a non Danfoss Bauer motor, as
the stability of the motor frame and threads are outside Danfoss Drive’s control and responsibility.
Please be aware, that the frequency converter may
not be used to lift the motor/geared motor.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
30
VLT®FCD Series
1. Prepare the adaptor plate for mounting on
the motor by drilling the fixing holes and
the hole for the cables.
2. Mount the plate on the motor with the nor-
mal terminal box gasket.
3. Knock out the 4 screw holes for mounting
the adaptor plate (outer holes)
4. Mount the terminal box onto the motor by
the 4 sealing screws and the gasket supplied.
■ Spacing for mechanical installation

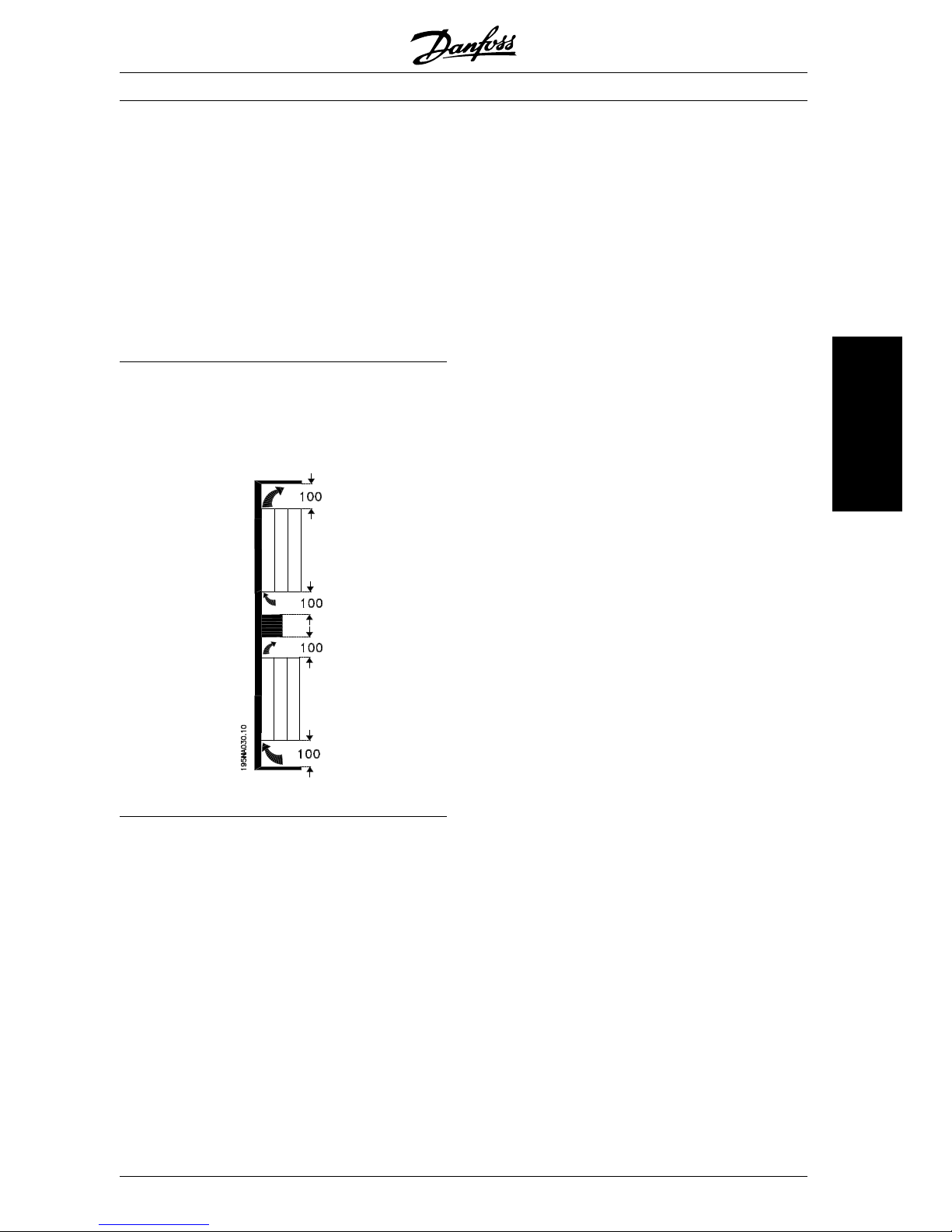

All units require a minimum of 100 mm air from other
components above and below the enclosure.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
31
Installation
VLT®FCD Series
■ General information about electrical installation
■ High voltage warning
The voltage of the frequency converter
i
s dangerous whenever the equipment is
connected to mains.Incorrect fitting of the
motor or frequency converter may cause damage to
the equipment, serious injury or death. Consequently, the instructions in this manual, as well as
national and local rules and safety regulations must
b
e complied with.
Touching the electrical parts may be fatal
- even after the equipment has been disconnected
f
rom mains: Wait at least 4 minutes.
NB!:
It is the user’sorfitter’s responsibility to
ensure correct earthing and protection in ac-
cordance with national and local standards.
■ Earthing
The following basic points must be considered at installation:
• Safety earthing: Please note that the frequency
converter has a high leakage current and must
be earthed appropriately for safety reasons. Apply local safety regulations.
• High frequency earthing: Keep earthing cables as
short as possible.
Connect the different earthing systems, thereby ensuring the lowest possible conductor impedance.
The lowest possible conductor impedance is
achieved by keeping the conductor as short as possible and by using the greatest possible surface
area. A flat conductor, for example, has a lower HFimpedance than a round conductor, calculated for
the same conductor cross-section C
VESS
. If several
units are installed on a common metal structure, it
should be used as a joint earth reference plate. The
metal cabinets of the different units must be fitted to
the metal structure at the lowest possible HFimpedance. With this feature, different HF-voltages
will not arise in different units, and there will be no
noise currents in cables used to connect units.
Noise radiation will be reduced. In order to achieve
a low HF-impedance, the fastening bolts of the units
can be used as HF-connection to the metal structure. It is necessary to remove any layers of isolating
paint or similar from the attachment points.
■ Cables
The control cable and the mains cable should be installed separately from motor cables to prevent noise
transfer. As a rule a distance of 20 cm is sufficient,
but it is recommended that the distance is as great
as possible, particularly when cables are installed in
parallel over large distances.
For sensitive signal cables such as telephone or
data cables the greatest possible distance is recommended. Please note that the required distance
depends on the installation and the sensitivity of the
signal cables, and that for this reason exact values
cannot be given.
When being placed in cable trenches, sensitive cables may not be placed in the same cable trench as
the motor cable. If signal cables run across power
cables, this is done at an angle of 90 degrees. Remember that all noise-filled inlet and outlet cables to
a cabinet must be screened/armoured.
See also
EMC-compliant electrical installation.
■ Screened/armoured cables
The screen must have low HF impedance, which is
achieved by a braided screen of copper, aluminium
or iron. Screen reinforcement intended for mechanical protection, for example, is not suitable for
EMC-correct installation.
See also Use of EMC-correct cables.
■ Extra protection
ELCB relays, multiple protective earthing or earthing
can be used as extra protection, provided that local
safety regulations are complied with. In the case of
an earth fault, a DC content may develop in the
faulty current. Never use an RCD (ELCB relay), type
A, as it is not suitable for DC faulty currents. If ELCB
relays are used, local regulations must be complied
with.
If ELCB relays are used, they must be:
- Suitable for protecting equipment with a DC content in the faulty current (3-phase bridge rectifier)
- Suitable for a pulse-shaped, brief discharge on
power-up
- Suitable for a high leakage current.
■ High voltage test
A high voltage test can be performed by shortcircuiting terminals U, V, W, L1, L2 and L3, and
MG.04.A1.02 - VLT is a registered Danfoss trade mark
32
VLT®FCD Series
applying max. 2160 V DC in 1 sec. between this
short-circuit and PE-terminal.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
33
Installation
VLT®FCD Series
■ EMC-correctelectrical installation
General points to be observed to ensure EMCcorrect electrical installation.
- Use only screened/armoured motor cables and
screened/armoured control cables.
- Connect the screen to earth at both ends.
- Avoid installation with twisted screen ends (pigtails), since this ruins the screening effect at high
frequencies. Use cable clamps instead.
- It is important to ensure good electrical contact
from the installation plate through the installation
screws to the metal structure of the frequency
converter.
- Use toothed discs and galvanically conductive installation plates.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
34
VLT®FCD Series
■ Use of EMC compliant cables
In order to comply with requirements for EMC immunity of the control cables and EMC emissions from
the motor cables screened/armoured cables must be
used.
The ability of a cable to reduce the amount of ingoing and outgoing radiation of electric noise depends
on the transfer impedance (Z
T
). The screen of a cable is normally designed to reduce the transfer of
electric noise, and a screen with a lower Z
T
is more
effective than a screen with a higher Z
T
.
Z
T
is rarely stated by cable manufacturers, but it is
often possible to estimate Z
T
by looking at and as-
sessing the physical design of the cable.
Z
T
can be assessed on the basis of the following
factors:
- the contact resistance between the individual
screen conductors.
- Screen coverage, i.e. the physical area of the cable covered by the screen. Is often stated as a
percentage and should be no less than 85%.
- The screen type, i.e. braided or twisted pattern. A
braided pattern or closed pipe is recommended.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
35
Installation
VLT®FCD Series
■ Earthing of screened/armoured control cables
In general control cables must be screened/armoured, and the screen must be connected to the
unit’s metal cabinet with a cable clamp at each end.
The drawing below shows the correct way to perform
the earthing, and what to do when in doubt.
1. Correct earthing
Control cables and cables for serial communication must be attached with cable clamps at both
ends to ensure maximum possible electrical contact.
2. Incorrect earthing
Do not use twisted screen ends that are plaited
together (pigtails), as these increase screen
impedance at higher frequencies.
3. Protection with respect to earth potential be-
tween PLC and VLT
If the earth potential between the VLT frequency
converter and the PLC (etc.) is different, electric
noise may occur that will disturb the whole system. This problem can be solved by fitting an
equalising cable, to be placed next to the control
cable. Minimum cable cross-section: 16 mm
2
.
4. In the event of a 50/60 Hz earth loop
If very long control cables are used, 50/60 Hz
earth loops can arise, and these can interfere
with the whole system. This problem is resolved
by attaching one end of the screen to the earth
via a 100 nF capacitor (short pin length).
MG.04.A1.02 - VLT is a registered Danfoss trade mark
36
VLT®FCD Series
■ Diagram
* Integrated brake and mechanical brake control and
external 24 V are options.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
37
Installation
VLT®FCD Series
■ Electrical installation

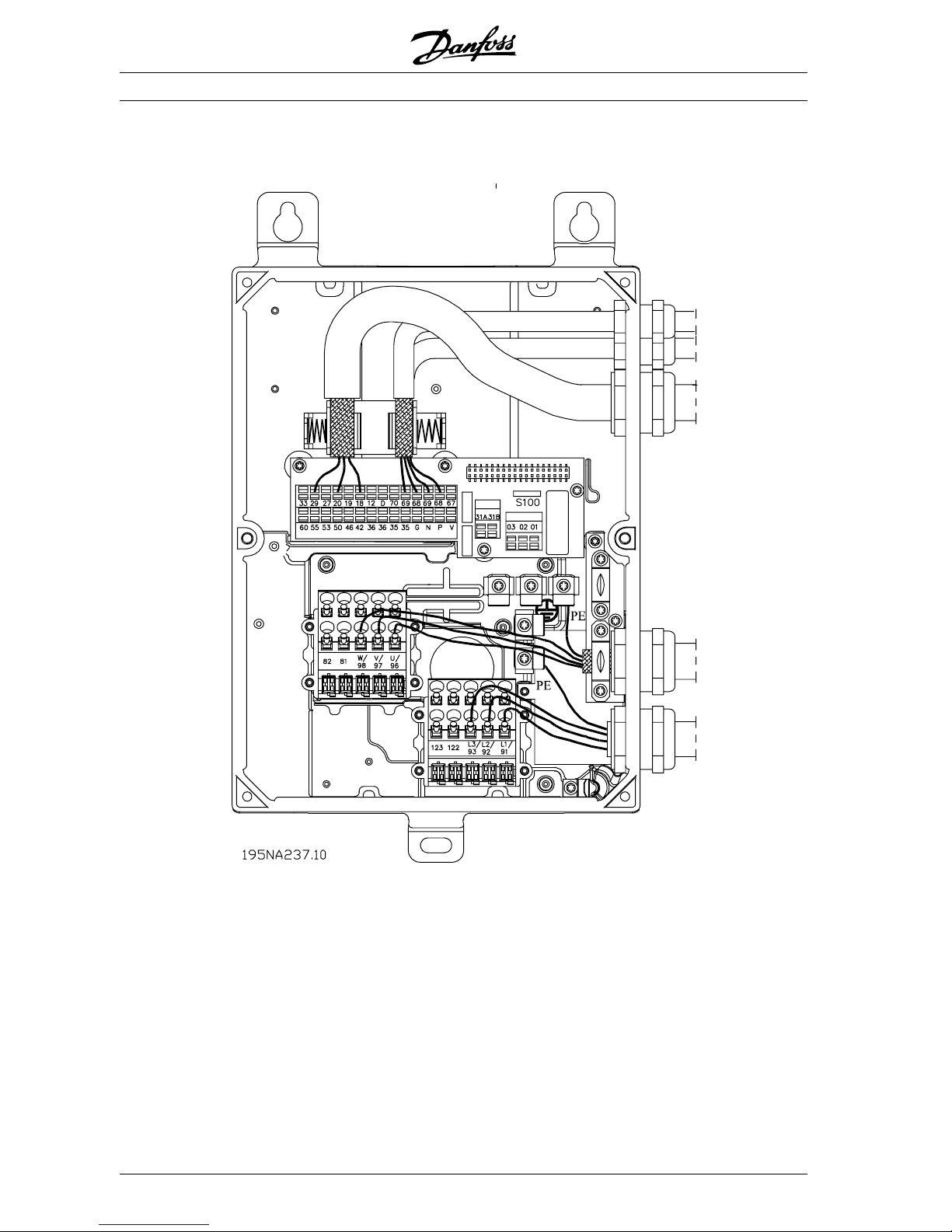

FCD 303-315 380-480 V
MG.04.A1.02 - VLT is a registered Danfoss trade mark
38
VLT®FCD Series
■ Mains connection
No.
91 92 93 Mains voltage 3 x 380-480 V
L1 L2 L3
PE Earth connection
NB!:
Please check that the mains voltage fits
the mains voltage of the frequency converter,
which can be seen from the nameplate.
See Technical data for correct dimensioning of cable
cross-section.
■ Pre-fuses
See Technical data for correct dimensioning of pre-
fuses.
■ Motor connection
Connect the motor to terminals 96, 97, 98. Connect
earth to PE- terminal.
No. 96 97 98 Motor voltage 0-100% of
mains voltage
UVW3 wires out of motor
U1W2V1U2W1V26 wires out of motor, Delta
connected
U1 V1 W1 6 wires out of motor, Star con-
nected
U2, V2, W2 to be interconnected separately (optional
terminal block)
PE Earth connection
See Technical data for correct dimensioning of cable
cross-section.
All types of three-phase asynchronous standard motors can be connected to a frequency converter.
Normally, small motors are star-connected (230/400
V,
1
/ Y). Large motors are delta-connected (400/690
V,
1
/ Y). The correct connection mode and voltage
can be read from the motor nameplate.
NB!:
In motors without phase insulation paper, an
LC filter should be fitted on the output of the
frequency converter.
■ Direction of motor rotation
The factory setting is for clockwise rotation with the
frequency converter transformer output connected
as follows:
Terminal 96 connected to U-phase.
Terminal 97 connected to V-phase.
Terminal 98 connected to W-phase.
The direction of rotation can be changed by switching two phases on the motor terminals.
■ Parallel connection of motors
MG.04.A1.02 - VLT is a registered Danfoss trade mark
39
Installation
VLT®FCD Series
The frequency converter is able to control several
motors connected in parallel. If the motors are to
have different rpm values, use motors with different
rated rpm values. Motor rpm is changed simultaneously, which means that the ratio between the rated
rpm values is maintained across the range. The total
current consumption of the motors is not to exceed
the maximum rated output current I
INV
for the fre-
quency converter.
Problems may arise at the start and at low rpm values if the motor sizes are widely different. This is
because the small motors’ relatively high ohmic resistance in the stator calls for a higher voltage at the
start and at low rpm values.
In systems with motors connected in parallel, the
electronic thermal relay (ETR) of the frequency converter cannot be used as motor protection for the
individual motor. For this reason further motor protection must be used, e.g. thermistors in each motor
(or an individual thermal relay).
NB!:
Parameter 107 Automatic motor adap-
tion, AMT cannot be used when motors are
connected in parallel. Parameter 101 Torque characteristic must be set to Special motor characteristics
[8] when motors are connected in parallel.
■ Motor cables
See Technical data for correct dimensioning of motor
cable cross-section and length. Always comply with
national and local regulations on cable cross-section.
NB!:
If an unscreened/unarmoured cable is used,
some EMC requirements are not complied
with, see EMC test results in the Design Guide.
If the EMC specifications regarding emission are to
be complied with, the motor cable must be screened/
armoured, unless otherwise stated for the RFI filter
in question. It is important to keep the motor cable
as short as possible so as to reduce the noise level
and leakage currents to a minimum. The motor cable screen must be connected to the metal cabinet of
the frequency converter and to the metal cabinet of
the motor. The screen connections are to be made
with the biggest possible surface area (cable clamp).
This is enabled by different installation devices in different frequency converters. Mounting with twisted
screen ends (pigtails) is to be avoided, since these
spoil the screening effect at high frequencies. If it is
necessary to break the screen to install a motor iso-
lator or motor relay, the screen must be continued at
the lowest possible HF impedance.
■ Motor thermal protection
The electronic thermal relay in UL-approved frequency converters has received the UL-approval for
single motor protection, when parameter 128 Motor
thermal protection has been set for ETR Trip and
parameter 105 Motor current, I
M, N
has been programmed to the rated motor current (see motor
nameplate).
■ Brake connection
No.
81 (optional) 82 (optional) Brake resistor
terminals
R- R+
The connection cable to the brake resistor must be
screened/armoured. Connect the screen to the
metal cabinet of the frequency converter and to the
metal cabinet of the brake resistor by means of cable clamps. Dimension the cross-section of the
brake cable to match the brake torque.
See chapterDynamic Braking for dimensionering of
brake resistors.
NB!:
Please note that voltages up to 850 V DC occur on the terminals.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
40
VLT®FCD Series
■ Earth connection
As leak current to the earth is higher than 3.5 mA,
the frequency converter must always be earthed according to prevailing national and local regulations.
To guarantee that the earth cable has a good mechanical connection to PE-termina, the cable cross
section must be at least 10 mm
2
or 2 rated earth
wires that are terminated separately . To increase
safety you can install an RCD (Residual Current Device), which guarantees that the frequency converter
trips when leak current becomes too high. See also
RCD Application Note MN.90.GX.02.
■ Control of mechanical brake
No.
122* 123*
MBR- MBR+ Mechanical brake
(UDC=0.45 X
Mains Voltage)
* (optional)
In lifting/lowering applications you need to be able to
control an electromagnetic brake. The brake is controlled using the special mechanical brake control/
supply terminals, a relay output or digital output (terminal 46). See
Connection of mechanical brake for
further details.
The output must be kept voltage-free for the period
of time during which the frequency converter is not
able to ’support’ the motor, for example due to the
load being too great. If not using the special mechanical brake control/supply terminals (122-123),
select Mechanical brake control in parameter 323 or
341 for applications with an electromagnetic brake.
When the output frequency exceeds the brake cut
out value set in par. 138, the brake is released if the
motor current exceeds the preset value in parameter
140. When stopping the brake is engaged when the
output frequency is less than the brake engaging frequency, which is set in par. 139.
If the frequency converter is placed at alarm status
or in an overvoltage situation the mechanical brake
is cut in immediately.
NB!:
This application is only
for lifting/lowering without a counterbalance.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
41
Installation
VLT®FCD Series
■ Electrical installation, control cables
Control cables must be screened/armoured. The
screen must be connected to the frequency converter chassis by means of a clamp. Normally, the
screen must also be connected to the chassis of the
controlling unit (use the instructions for the unit in
question). In connection with very long control ca-
bles and analogue signals, in rare cases depending
on the installation, 50/60 Hz earth loops may occur
because of noise transmitted from mains supply cables. In this connection, it may be necessary to
break the screen and possibly insert a 100 nF capacitor between the screen and the chassis.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
42
VLT®FCD Series
■ Elektrical installation, control terminals
See section entitled Earthing of screened/armoured
control cables in the Design Guide for the correct
termination of control cables.
No. Function
01-03 Relay outputs 01-03 can be used for
indicating status and alarms/warnings.
12 24 V DC voltage supply.
18-33 Digital inputs.
20, 55 Common frame for input
and output terminals. Can be separated
with switch S100
31a,
31b
Motor thermistor
35 Common (-) for external 24 V control
back up supply. Optional.
36 External + 24 V control back up supply.
Optional.
42
Analog output for displaying frequency,
reference, current or torque.
46 Digital output for displaying status,
warnings or alarms, as well as
frequency output.
50 +10 V DC supply
voltage for potentiometer
53 Analogue voltage input 0 - +/- 10 V DC.
60 Analogue current input 0/4 - 20 mA.
67 + 5 V DC supply voltage
to Profibus.
68, 69 RS 485, Serial communication.
70 Ground for terminals 67, 68 and 69.
Normally this terminal is not to be used.
D For future use
V +5V , red
P RS485(+), yellow
N RS485(-), green
G OV, blue
■ VLT Software Dialog
Connection to terminals 68–70.
■ Relay connection
See parameter 323 Relay output for programming of
relay output.
No. 01 - 02 1 - 2 make (normally open)
01 - 03 1 - 3 break (normally closed)
■ LCP 2 plug, optional
An LCP 2 control unit can be connected to a plug
which is mounted in the housing. Ordering number:
175N0131.
LCP control units with ordering number 175Z0401
are not to be connected.
■ Installation of 24 Volt external supply (optional)
24 V external DC supply can be used as low-voltage
supply to the control card. This enables full operation of the LCP2 and serial bus (incl. parameter
setting) without connection to mains.
Please note that a warning of low voltage will be
given when 24 V DC has been connected; however
there will be no tripping.
NB!:
Use 24 V DC supply of type PELV to ensure
correct galvanic isolation (type PELV) on the
control terminals of the VLT frequency converter.
Beware of unintended start of the motor,
if the mains power is applied during operation on the external 24 V back up supply.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
43
Installation
VLT®FCD Series
■ Connection examples
NB!:
In the connection examples below, it should
be noted, that the Switch S100 must not be
changed from factory settings (closed).
■ Start/stop
Start/stop using terminal 18 and coasting stop using
terminal 27.
Par. 302 Digital input = Start [7]
Par. 304 Digital input = Coasting stop inverted [2]
For Precise start/stop the following settings are
made:
Par. 302 Digital input = Precise start/stop [27]
Par. 304 Digital input = Coasting stop inverted [2]
■ Pulse start/stop
Pulse start using terminal 18 and pulse stop using
terminal 19. In addition, the jog frequency is activated via terminal 29.
Par. 302 Digital input = Pulse start [8]
Par. 303 Digital input = Stop inverted [6]
Par. 304 Digital input = Coasting stop inverted [2]
Par. 305 Digital input = Jog [13]
■ Speed up/down
Speed up/down using terminals 29/33.
Par. 303 Digital input = Freeze reference [14]
Par. 305 Digital input = Speed up [16]
Par. 307 Digital input = Speed down [17]
■ Potentiometer reference
Voltage reference via a potentiometer.
Par. 308 Analog input = Reference [1]
Par. 309 Terminal 53, min. scaling = 0 Volt.
Par. 310 Terminal 53, max. scaling = 10 Volt.
■ Connection of a 2-wire transmitter
Connection of a 2-wire transmitter as feedback to
terminal 60.
Par. 314 Analog input = Feedback [2]
Par. 315 Terminal 60, min. scaling =4mA
MG.04.A1.02 - VLT is a registered Danfoss trade mark
44
VLT®FCD Series
Par. 316 Terminal 60, max. scaling =20mA ■ 4-20 mA reference
4-20 mA reference on terminal 60 and speed feedback signal on terminal 53.
Par. 100 Configuration = Speed closed loop [1]
Par. 308 Analog input = Feedback [2]
Par. 309 Terminal 53, min. scaling = 0 Volt.
Par. 310 Terminal 53, max. scaling = 10 Volt.
Par. 314 Analog input = Reference [1]
Par. 309 Terminal 60, min. scaling = 4 mA.
Par. 310 Terminal 60, max. scaling = 20 mA.
■ 50 Hz anti-clockwise to 50 Hz clockwise.
With internally supplied potentiometer.
Par. 100 Configuration = Speed regulation open
loop [0]
MG.04.A1.02 - VLT is a registered Danfoss trade mark
45
Installation
VLT®FCD Series
Par. 200 Output frequency range = Both direc-
tions, 0-132 Hz [1]
Par. 203 Reference range = Min. ref. - Max. ref.
[0]
Par. 204 Min. reference = - 50 Hz
Par. 205 Max. reference =50Hz
Par. 302 Digital input = Start [7]
Par. 304 Digital input = Coasting stop inverted [2]
Par. 308 Analogue input = Reference [1]
Par. 309 Terminal 53, min. scaling = 0 Volt.
Par. 310 Terminal 53, max. scaling = 10 Volt.
■ Preset references
Switch between 8 preset references via two digital
inputs and Setup 1 and Setup 2.
Par. 004 Active Setup = Multisetup 1 [5]
Par. 204 Min. reference =0Hz
Par. 205 Max. reference =50Hz
Par. 302 Digital input = Start [7]
Par. 303 Digital input = Choice of Setup, lsb [31]
Par. 304 Digital input = Coasting stop inverted [2]
Par. 305 Digital input = Preset ref., lsb [22]
Par. 307 Digital input = Preset ref., msb [23]
Setup 1 contains the following preset references:
Par. 215 Preset reference 1 = 5.00%.
Par. 216 Preset reference 2 = 10.00%.
Par. 217 Preset reference 3 = 25.00%.
Par. 218 Preset reference 4 = 35.00%.
Setup 2 contains the following preset references:
Par. 215 Preset reference 1 = 40.00%.
Par. 216 Preset reference 2 = 50.00%.
Par. 217 Preset reference 3 = 70.00%.
Par. 218 Preset reference 4 = 100.00%.
This table shows what the output frequency is:
Preset
ref., msb
Preset
ref., lsb
Selection
of Setup
Output fre-
quency[Hz]
0 0 0 2.5
0 1 0 5
1 0 0 10
1 1 0 17.5
0 0 1 20
0 1 1 25
1 0 1 35
1 1 1 50
■ Connection of mechanical brake
Use of the relay for 230V AC brake
Par. 302 Digital input = Start [7]
Par. 304 Digital input = Coasting stop inverted [2]
Par. 323 Relay output = Mechanical brake control
[25]
Mechanical brake control [25] = ’0’ => Brake is
closed.
Mechanical brake control [25] = ’1’ => The brake is
open.
See more detailed parameter settings under Control
of mechanical brake.

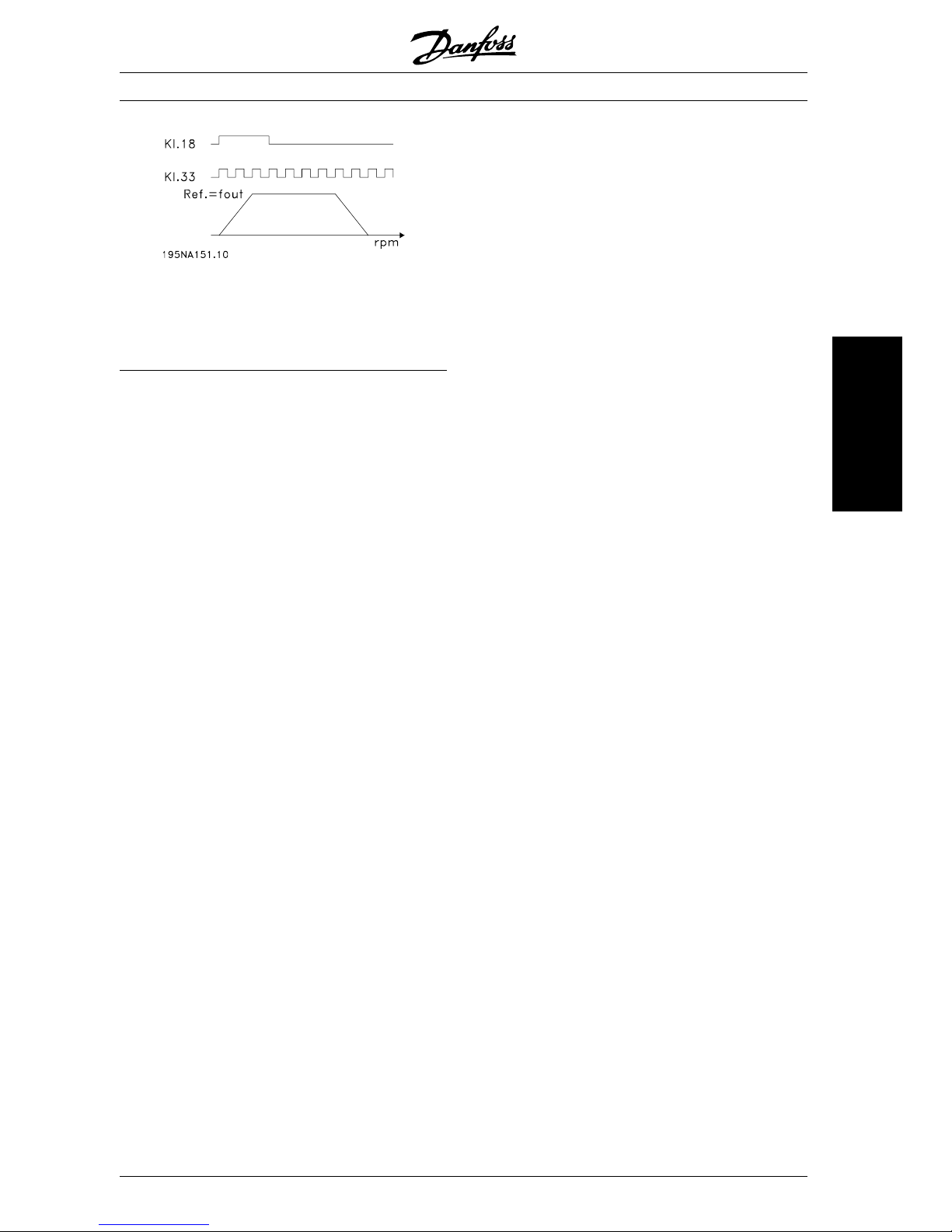

■ Counter stop via terminal 33.
The start signal (terminal 18) must be active, i.e.
logical ’1’, until the output frequency is equal to the
reference. The start signal (terminal 18 = logical ’0’)
must then be removed before the counter value in
parameter 344 has managed to stop the VLT frequency converter.
MG.04.A1.02 - VLT is a registered Danfoss trade mark
46
VLT®FCD Series
Par. 307 Digital input = Pulse input [30]
Par. 343 Precise stop function = Counter stop
with reset [1]
Par. 344 Counter value = 100000
MG.04.A1.02 - VLT is a registered Danfoss trade mark
47
Installation
VLT®FCD Series
■ Operation & Display
001
001 Language
(LANGUAGE)
Value:
✭English (ENGLISH)
[0]
German (DEUTSCH)
[1]
French (FRANCAIS)
[2]
Danish (DANSK)
[3]
Spanish (ESP ANOL)
[4]
Italian (ITALIANO)
[5]
Function:
This parameter is used to choose the language to
be shown in the display whenever the LCP control
unit is connected.
Description of choice:
There is a choice of the languages shown. The factory setting may vary.
002
002 Local/remoteoperation
(OPERATION SITE)
Value:
✭Remote operation (REMOTE)
[0]
Local operation (LOCAL)
[1]
Function:
There is a choice of two different modes of operation
of the frequency converter; Remote operation [0] or
Local operation [1]. See also parameter 013 Local
control if Local operation [1] is selected.
Description of choice:
If Remote operation [0] is selected, the frequency
converter is controlled via:
1. the control terminals or via serial communication.
2. The [START] key. This cannot, however, override
stop commands transmitted via the digital inputs
or via serial communication.
3. The [STOP/RESET] and [JOG] keys, on the condition that these are active.
If Local operation [1], is selected, the frequency converter is controlled via:
1. the [START] key. This cannot, however, override
stop commands via the digital inputs (see parameter 013 Local control).
2. The [STOP/RESET] and [JOG] keys, on the condition that these are active.
3. The [FWD/REV] key, on the condition that is has
been selected as active in parameter 016 Local
reversing, and that parameter 013 Local control is
set at Local control and open loop [1] or Local
control as parameter 100 [3]. Parameter 200 Output frequency range is set at Both directions.
4. parameter 003 Local reference where the reference can be set using the [+] and [-] keys.
5. an external control command that can be connected to the digital inputs (see parameter 013
Local control).
NB!:
The [JOG] and [FWD/REV]
keys are located on the LCP control unit.
003
003 Local reference
(LOCAL REFERENCE)
Value:
Par.013 Local control must be set to [1] or [2]:
0-f
MAX
(par. 202)
✭ 000,000.000
Par. 013 Local control must be set to [3] or [4] and
parameter 203 Reference/feedback range to [0]:
Ref
MIN
- Ref
MAX
(par. 204-205)
✭ 000,000.000
Par. 013 Local control must be set to [3] or [4] and
parameter 203 Reference/feedback range to [1]:
- Ref
MAX
- + Ref
MAX
(par. 204-205)
✭ 000,000.000
Function:
In this parameter, the local reference can be set
manually. The unit of the local reference depends on
the configuration selected in parameter 100 Configu-
ration.
Description of choice:
In order to protect the local reference, parameter
002 Local/remote operation must be set to Local op-
eration [1]. Local reference cannot be set via serial
communication.
■ Setup configuration
There is a choice of four Setups (parameter Setups),
which can be programmed independently of one
another. The active Setup can be selected in parameter 004 Active Setup. When an LCP control unit is
connected, the active Setup number will be appear
in the display under “Setup”. It is also possible to
preset the frequency converter to Multisetup, so that
it is possible to shift Setups using the digital inputs
or serial communication. Setup shift can be used in
a plant in which, for example, one Setup is used for
daytime operation and another one at night time.
In parameter 006 Setup copying it is possible to
copy from one Setup to another. Using parameter
007 LCP copy all Setups can be transferred from
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
48
VLT®FCD Series
one frequency converter to another by moving the
LCP control panel. First all parameter values are
copied to the LCP control panel, which can then be
moved to another frequency converter. Here all parameter values can be copied from the LCP control
unit to the frequency converter.

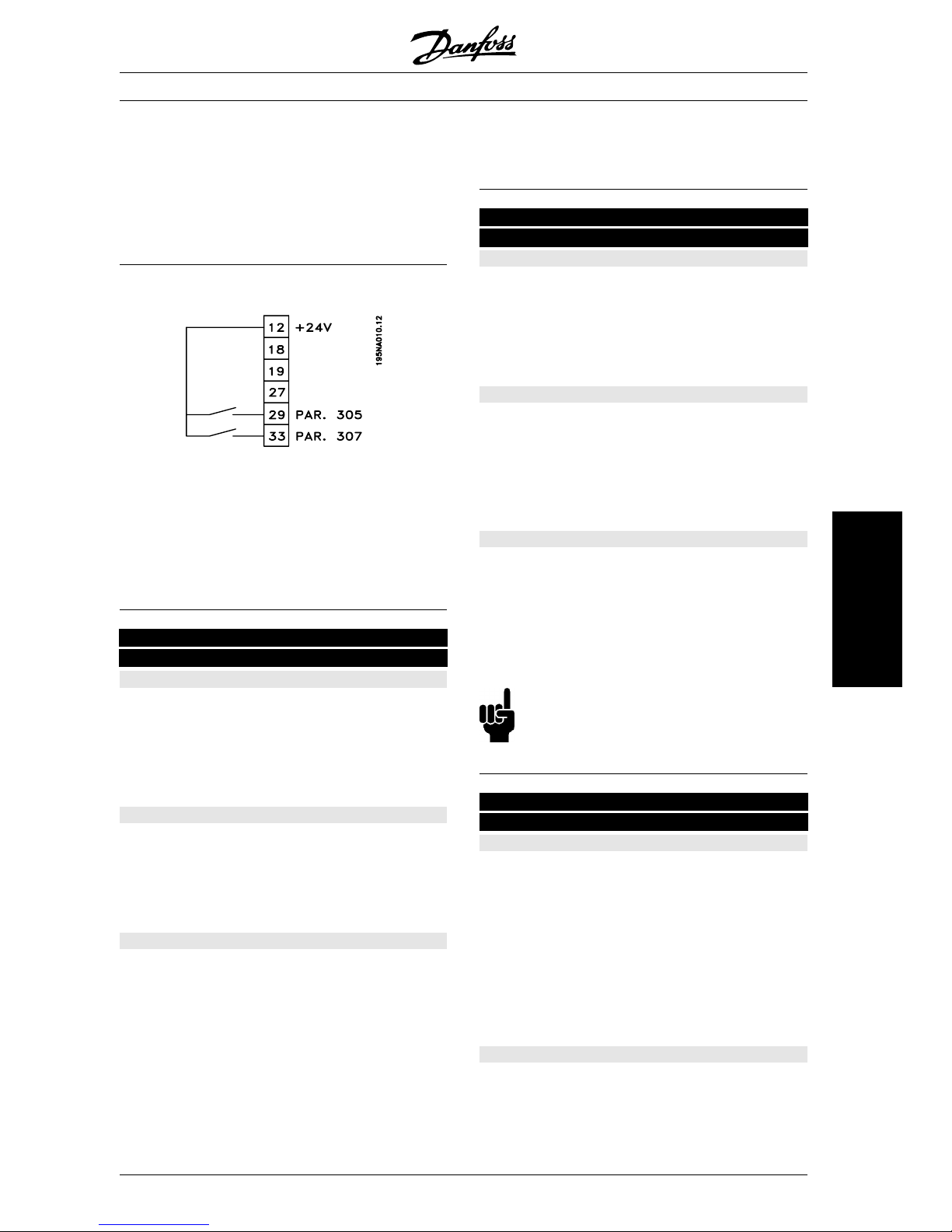

■ Setup shift
- Selection of Setup via terminals 29 and 33.
Par. 305 Digital input = Selection of Setup, lsb
[31]
Par. 307 Digital input =Selection of Setup, msb
[32]
Par. 004 Active setup = Multi Setup [5]
004
004 Active Setup
(ACTIVE SETUP)
Value:
Factory Setup (FACTORY SETUP)
[0]
✭Setup 1 (SETUP 1)
[1]
Setup 2 (SETUP 2)
[2]
Setup 3 (SETUP 3)
[3]
Setup 4 (SETUP 4)
[4]
Multi Setup (MULTI SETUP)
[5]
Function:
The active parameter Setup is selected here. All parameters can be programmed in four individual
parameter Setups. Shifts between Setups can be
made in this parameter via a digital input or via serial communication.
Description of choice:
Factory Setup [0] contains the factory-set parameter
values. Setup 1-4 [1]-[4] are four individual Setups
which can be selected as required. Multi Setup [5] is
used where remote-controlled shifts between the
four Setups via a digital input or via serial communication is required.
005
005 Programming Setup
(EDIT SETUP)
Value:
Factory Setup (FACTORY SETUP)
[0]
Setup 1 (SETUP 1)
[1]
Setup 2 (SETUP 2)
[2]
Setup 3 (SETUP 3)
[3]
Setup 4 (SETUP 4)
[4]
✭Active Setup (ACTIVE SETUP)
[5]
Function:
You can select which Setup you want to programme
during operation (applies both via the control panel
and the serial communication port). It is, for example, possible to programme Setup 2 [2], while the
active Setup is set to Setup 1 [1] in parameter 004
Active Setup.
Description of choice:
Factory Setup [0] contains the factory-set data and
can be used as a source of data if the other Setups
are to be reset to a known status. Setup 1-4 [1]-[4]
are individual Setups that can be programmed freely
during operation. If Active Setup [5] is selected, the
programming Setup will be equal to parameter 004
Active Setup.
NB!:
If data is modified or copied to the active
Setup, the modifications have an immediate
effect on the unit’s operation.
006
006 Setup copying
(SETUP COPY)
Value:
✭No copying (NO COPY)
[0]
Copy to Setup 1 from #
(COPY TO SETUP 1 )
[1]
Copy to Setup 2 from #
(COPY TO SETUP 2)
[2]
Copy to Setup 3 from #
(COPY TO SETUP 3)
[3]
Copy to Setup 4 from #
(COPY TO SETUP 4)
[4]
Copy to all Setups from # (COPY TO ALL)
[5]
Function:
You can copy from the selected active Setup in parameter 005 Programming setup to the selected
Setup or Setups in this parameter.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
49
Programming
VLT®FCD Series
NB!:
Copying is only possible in Stop (motor
stopped in connection with a stop command).
Description of choice:
Copying begins when the required copying function
has been selected and the [OK]/[CHANGE DATA]
key has been pushed. The display indicates when
copying is in progress.
007
007 LCP copy
(LCP COPY)
Value:
✭No copying (NO COPY)
[0]
Upload all parameters (UPL. ALL PAR.)
[1]
Download all parameters (DWNL. ALL PAR.)
[2]
Download size-independent parameters
(DWNL.OUTPIND.P AR.)
[3]
Function:
Parameter 007 LCP copy is used if you want to use
the LCP2 control panel’s integral copy function. The
function is used if you want to copy all parameter setups from one frequency converter to another by
moving the LCP2 control panel.
Description of choice:
Select Upload all parameters [1] if you want all parameter values to be transferred to the control panel.
Select Download all parameters [2] if all parameter
values transferred are to be copied to the frequency
converter to which the control panel is attached. Select Download size-independent par. [3] if you only
want to downloade the size-independent parameters.
This is used when downloading to a frequency converter with a different rated power size than that from
which the parameter setup originates.
NB!:
Upload/download can only be performed in
stop mode. Download can o
nly be performed
to a frequency converter with the same software
version number, see parameter 626 Database identi-
fication no.
008
008 Display scaling of output frequency
(FREQUENCY SCALE)
Value:
0.01 - 100.00
✭ 1.00
Function:
In this parameter, the factor is selected by which the
output frequency is to be multiplied. The value is
shown in the display, provided parameters 009-012
Display readout have been set to Output frequency x
scaling [5].
Description of choice:
Set the required scaling factor.
009
009 Large display readout
(DISPLAY LINE 2)
Value:
No readout (NONE)
[0]
Resulting reference [%]
(REFERENCE [%])
[1]
Resulting reference [unit]
(REFERENCE [UNIT])
[2]
Feedback [unit] (FEEDBACK [UNIT])
[3]
✭Frequency [Hz] (FREQUENCY [HZ])
[4]
Output frequency x scaling
(FREQUENCY X SCALE)
[5]
Motor current [A] (MOTOR CURRENT [A])
[6]
Torque [%] (TORQUE [%])
[7]
Power [kW] (POWER [KW])
[8]
Power [HP] (POWER [HP][US])
[9]
Motor voltage [V]
(MOTOR VOLTAGE [V])
[11]
DC link voltage [V]
(DC LINK VOLTAGE [V])
[12]
Thermal load motor [%]
(MOTOR THERMAL [%])
[13]
Thermal load [%]
(FC. THERMAL[%])
[14]
Running hours [Hours]
(RUNNING HOURS])
[15]
Digital input [Bin]
(DIGIT AL INPUT[BIN])
[16]
Analog input 53 [V]
(ANALOG INPUT 53 [V])
[17]
Analog input 60 [mA]
(ANALOG INPUT 60 [MA])
[19]
Pulse reference [Hz]
(PULSE INPUT 33. [HZ])
[20]
External reference [%]
(EXTERNAL REF. [%])
[21]
Status word [Hex] (STATUS WORD [HEX])
[22]
Heatsink temperature [
C]
(HEATSINK TEMP [
C])
[25]
Alarm word [Hex] (ALARM WORD [HEX])
[26]
Control word [Hex] (CONTROL WORD [HEX])
[27]
Warning word [Hex]
(WARNING WORD [HEX])
[28]
Extended status word [Hex]
(EXT . STATUS [HEX])
[29]
Communication option card warning
(COMM OPT WARN [HEX])
[30]
Pulse count
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
50
VLT®FCD Series
(PULSE COUNTER)
[31]
Pulse input 29
(PULSE INPUT 29)
[32]
Function:
In this parameter you can select the data value that
you wish to display in the LCP control unit display
line 2 when the frequency converter is switched on.
The display will also be included in the scrollbar in
display mode. In parameters 010-012 Display read-
out you can select a further three data values, which
are displayed in display line 1.
Description of choice:
No readout can only be selected in parameters 010012 Small display readout.
Resulting reference [%] gives, as a percentage, the
resulting reference in the range from Minimum reference, Ref
MIN
to Maximum reference, Ref
MAX
.
Reference [unit] gives the resulting reference with
unit Hz in Open loop.InClosed loop the reference
unit is selected in parameter 416 Process units.
Feedback [unit] gives the resulting signal value
using the unit/scaling selected in parameter 414 Min-
imum feedback, FB
LOW
, 415 Maximum feedback,
FB
HIGH
and 416 Process units.
Frequency [Hz] gives the output frequency of the fre-
quency converter.
Output frequency x scaling [-] equals the present
output frequency f
M
multiplied by the factor set in pa-
rameter 008 Display scaling of output frequency.
Motor current [A] gives the phase current of the motor measured as an effective value.
Torque [%] denotes the motor’s present load in rela-
tion to the motor’s rated torque.
Power [kW] gives the present power that the motor is
absorbing in kW.
Power [HP] gives the present power that the motor is
absorbing in HP.
Motor voltage[V] gives the voltage supplied to the
motor.
DC link voltage [V] gives the intermediate circuit voltage of the frequency converter.
Thermal load motor [%] gives the calculated/estimated load on the motor. 100 % is the cut-out limit.
Thermal load [%] gives the calculated/estimated
thermal load on the frequency converter. 100 % is
the cut-out limit.
Running hours [Hours] gives the number of hours
that the motor has tun since the last reset in parameter 619 Reset of running hours counter.
Digital input [Binary code] gives the signal status
from the 5 digital inputs (18, 19, 27, 29 and 33). Terminal 18 corresponds to the bit on the extreme left.
0` ’ = no signal, 1` ’ = signal connected.
Analog input 53 [V] gives the voltage value of terminal 53.
Analog input 60 [mA] gives the present value of terminal 60.
Pulse input 33[Hz] gives the frequency in Hz connected to terminal 33.
External reference [%] gives the sum of external references as a percentage (sum of analogue/pulse/
serial communication) in the range from Minimum
reference, Ref
MIN
to Maximum reference, Ref
MAX
.
Status word [Hex] gives one or several status conditions in a Hex code. See Serial communication in
the Design Guide for further information.
Heatsink temp.[
C] gives the present heatsink temperature of the frequency converter. The cut-out limit
is 90-100
C, while cutting back in occurs at 70 ± 5
C.
Alarm word [Hex] gives one or several alarms in hex
code. See Serial communication in the Design
Guide for further information.
Control word [Hex] gives the control word for the fre-
quency converter. See Serial communication in the
Design Guide for further information.
Warning word [Hex] gives one or several warnings in
hex code. See Serial communication in the Design
Guide for further information.
Extended status word [Hex] gives one or several sta-
tus modes in Hex code. See Serial communication
in the Design Guide for further information.
Communication option card warning [Hex] gives a
warning word if there is a fault in the communication
bus. Only active if communication options are installed.
If there are no communication options 0 Hex is displayed.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
51
Programming
VLT®FCD Series
Pulse input 29[Hz] gives the frequency in Hz connected to terminal 29.
Pulse count gives the number of pulses that the unit
has registered.
010
010 Small display line 1.1
(DISPLAY LINE 1.1)
Value:
See par. 009 Large display readout
✭ Reference [%] [1]
Function:
In this parameter, the first of three data values can
be selected that is to be displayed in the LCP control
unit display, line 1, position 1. This is a useful function, e.g. when setting the PID regulator, as it gives
a view of process reactions to reference changes.
The display readout is activated by pushing the
[DISPLA Y STATUS] key.
Description of choice:
See parameter 009 Large display readout.
011
011 Small display readout 1.2
(DISPLAY LINE 1.2)
Value:
See parameter 009 Large display readout
✭ Motor current [A][6]
Function:
See the functional description given under parameter
010 Small display readout.
Description of choice:
See parameter 009 Large display readout.
012
012 Small display readout 1.3
(DISPLAY LINE 1.3)
Value:
See parameter 009 Large display readout
✭ Power [kW][8]
Function:
See the functional description given under parameter
010 Small display readout.
Description of choice:
See parameter 009 Large display readout.
013
013 Local control
(LOC CTRL/CONFIG.)
Value:
Local not active (DISABLE)
[0]
Local control and open loop
(LOC CTRL/OPEN LOOP)
[1]
Remote-operated control and open loop
(LOC+DIG CTRL/AS P100)
[2]
Local control as parameter 100
(LOC CTRL/AS P100)
[3]
✭Remote-operated control as parameter 100
(LOC+DIG CTRL/AS P100)
[4]
Function:
This is where the required function is selected if, in
parameter 002 Local/remote operation, Local opera-
tion [1] has been chosen.
Description of choice:
If Local not active [0] is selected, it is not possible to
set a reference via parameter 003 Local reference.
In order to enable a shift to Local not active [0], parameter 002 Local/remote operation must be set to
Remote operation [0].
Local control and open loop [1] is used if the motor
speed is to be set via parameter 003 Local reference. When this choice is made, parameter 100
Configuration automatically shifts to Speed regulation, open loop [0].
Remote-operated control and open loop [2] functions
in the same way as Local control and open loop [1];
however, the frequency converter can also be controlled via the digital inputs.
Local control as parameter 100 [3] is used when the
motor speed is to be set via parameter 003 Local
reference, but w
ithout parameter 100 Configuration
automatically shifting to Speed regulation, open loop
[0].
Remote-operated control as parameter 100 [4]
works the same way as Local control as parameter
100 [3]; however, the frequency converter can also
be controlled via the digital inputs.
Shifting from Remote operation to Local operation in
parameter 002 Local/remote operation, while this parameter has been set to Remote-operated control
and open loop [1]: The present motor frequency and
direction of rotation will be maintained. If the present
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
52
VLT®FCD Series
direction of rotation does not respond to the reversing signal (negative reference), the reference will be
set to 0.
Shifting from Local operation to Remote operation in
parameter 002 Local/remote control, while this parameter has been set to Remote-operated control
and open loop [1]: The configuration selected in pa-
rameter 100 Configuration will be active. The shift
will be smooth.
Shifting from Remote control to Local control in
parameter 002 Local/remote operation, while this parameter has been set to Remote-operated control as
parameter 100 [4]: the present reference will be
maintained. If the reference signal is negative, the
local reference will be set to 0.
Shifting from Local operation to Remote operation in
parameter 002 Local/remote operation, while this parameter has been set to Remote operation: The
local reference will be replaced by the remoteoperated reference signal.
014
014 Local stop
(LOCAL STOP)
Value:
Not active (DISABLE)
[0]
✭Active (ENABLE)
[1]
Function:
In this parameter, the local [STOP]-key can be engaged or disengaged on the control panel and on
the LCP control panel.
Description of choice:
If Not active [0] is selected in this parameter, the
[STOP]-key will be inactive.
NB!:
If Not active [0] is selected, the motor cannot be stopped by means of the [STOP]-key.
015
015 Local jog
(LOCAL JOGGING)
Value:
✭Not active (DISABLE)
[0]
Active (ENABLE)
[1]
Function:
In this parameter, the jog function on the LCP control panel can be engaged/disengaged.
Description of choice:
If Not active [0] is selected in this parameter, the
[JOG]-key will be inactive.
016
016 Local reversing
(LOCAL REVERSING)
Value:
✭Not active (DISABLE)
[0]
Active (ENABLE)
[1]
Function:
In this parameter you can select/deselect the reversing function on the LCP control panel. The key can
only be used if parameter 002 Local/remote opera-
tion is set to Local operation [1] and parameter 013
Localcontrol to Local control, open loop [1] or Local
control as parameter 100 [3].
Description of choice:
If Disable [0] is selected in this parameter, the [FWD/
REV] key will be disabled. See also parameter 200
Output frequency range.
017
017 Local reset of trip
(LOCAL RESET)
Value:
Not active (DISABLE)
[0]
✭Active (ENABLE)
[1]
Function:
In this parameter, the reset function on the control
panel can be engaged/disengaged.
Description of choice:
If Not active [0] is selected in this parameter, the reset function will be inactive.
NB!:
Select Not active [0], only if an external reset
signal has been connected via the digital in-
puts.
018
018 Lock for data changes
(DATA CHANGE LOCK)
Value:
✭Not locked (NOT LOCKED)
[0]
Locked (LOCKED)
[1]
Function:
In this parameter, it is possible to ’lock’ the controls
to disable data changes via the control keys.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
53
Programming
VLT®FCD Series
Description of choice:
If Locked [1] is selected, data changes in the parameters cannot be made; however, it will still be
possible to make data changes via serial communication. Parameter 009-012 Display readout can be
changed via the control panel.
019
019 Operating mode at power-up, local opera-
tion
(POWER UP ACTION)
Value:
Auto restart, use saved reference
(AUTO RESTART)
[0]
✭Forced stop, use saved reference
(LOCAL=STOP)
[1]
Forced stop, set ref. to 0
(LOCAL=STOP, REF=0)
[2]
Function:
Setting of the required operating mode when the
mains voltage is engaged. This function can only be
active if Local operation [1] has been selected in parameter 002 Local/remote operation.
Description of choice:
Auto restart, use saved ref. [0] is selected if the frequency converter is to start using the local reference
(set in parameter 003 Local reference) and the start/
stop state given via the control keys immediately
prior to the mains voltage being cut out.
Forced stop, use saved ref. [1] is selected if the frequency converter is to remain stopped when the
mains voltage is engaged, until the [START]-key is
activated. After a start command the motor speed is
ramped up to the saved reference in parameter 003
Local reference.
Forced stop, set ref. to 0 [2] is selected if the fre-
quency converter is to remain stopped when the
mains voltage is cut back in. Parameter 003 Local
reference is to be zeroed.
NB!:
In remote operation (parameter 002 Local/
remote operation) the start/stop state at the
time of mains connection will depend on the external
control signals. If Pulse start [8] is selected in parameter 302 Digital input, the motor will remain
stopped after mains connection.
024
024 Userdefined Quick Menu
(USER QUICKMENU)
Value:
✭Not active (DISABLE)
[0]
Active (ENABLE)
[1]
Function:
In this parameter you can opt out of the standard
setup of the Quick menu key on the control panel
and the LCP2 control panel.
Using this function, in parameter 025 Quick Menu
setup the user can select up to 20 parameters for
the Quick Menu key.
Description of choice:
If not active [0] is selected, the standard setup of the
Quick Menu key is active.
If Active [1] is selected, the user-defined Quick Menu
is active.
025
025 Quick Menu setup
(QUICK MENU SETUP)
Value:
[Index 1 - 20] Value: 0 - 999
✭ 000
Function:
In this parameter you define which parameters are
required in the Quick Menu when parameter 024
User-defined Quick Menu is set to Active [1].
´
Up to 20 parameters can be selected for the userdefined Quick Menu.
NB!:
Please note that this parameter can only be
set using an LCP2 control panel. See Order
form.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
54
VLT®FCD Series
Description of choice:
The Quick Menu is set up as follows:
1. Select parameter 025 Quick Menu setup and
press [CHANGE DATA].
2. Index 1 indicates the first parameter in Quick
Menu. You can scroll between the index numbers
using the [+ / -] keys. Select Index 1.
3. Using [< >] you can scroll between the three figures. Press the [<] key once ad the last number
in the parameter number can be selected using
the [+ / -] keys.
Set Index 1 to 100 for parameter 100 Configura-
tion.
4. Press [OK] when Index 1 has been set to 100.
5. Repeat steps 2 - 4 until all parameters required
have been set to the Quick Menu key.
6. Press [OK] to complete the Quick Menu setup.
If parameter 100 Configuration is selected at Index
1, Quick Menu will start with this parameter every
time Quick Menu is activated.
Please note that parameter 024 User-defined Quick
Menu and parameter 025 Quick Menu setup are reset to the factory setting during initialisation.
026
026 LED Status
(LED STATUS)
Value:
Overload (OVERLOAD)
[0]
Therm. warn/alarm 36 (OVERTEMP)
[1]
Thermistor/ETR (THERMAL MOTOR)
[2]
Digital input 18 (DIGIT AL INPUT 18)
[3]
Digital input 19 (DIGIT AL INPUT 19)
[4]
Digital input 27 (DIGIT AL INPUT 27)
[5]
Digital input 29 (DIGIT AL INPUT 29)
[6]
Digital input 33 (DIGIT AL INPUT 33)
[7]
As relay par. 323 (AS RELAY / P323)
[8]
As dig.outp. par.341 (AD DIG. OUT. / P341)
[9]
As mech.brake output
(AS MECH. BRAKE OUTPUT)
[10]
Function:
This parameter enables the user to visualize different situations using the Status LED.
Description of choice:
Select the function to be visualized.
✭ = factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
55
Programming
VLT®FCD Series
■ Load and Motor
■ Configuration
Selection of configuration and torque characteristics
has an effect on which parameters can be seen in
the display. If Open loop [0] is selected, all parameters relating to PID regulation will be filtered out.
This means that the user only sees the parameters
that are relevant for a given application.
100
100 Configuration
(CONFIGURATION)
Value:
✭Speed regulation, open loop
(SPEED OPEN LOOP)
[0]
Speed regulation, closed loop
(SPEED CLOSED LOOP)
[1]
Process regulation, closed loop
(PROCESS CLOSED LOOP)
[3]
Function:
This parameter is used to select the configuration to
which the frequency converter is to be adapted. This
makes adaptation to a given application simple,
since the parameters not used in a given configuration are hidden (not active).
Description of choice:
If Speed regulation, open loop [0] is selected, normal speed control is obtained (without feedback
signal) with automatic load and slip compensation to
ensure a constant speed at varying loads. Compensations are active, but may be disabled in parameter
134 Load compensation and parameter 136 Slip
compensation as required.
If Speed regulation, closed loop [1] is selected, better speed accuracy is obtained. A feedback signal
must be added, and the PID regulator must be set in
parameter group 400 Special functions.
If Process regulation, closed loop [3] is selected, the
internal process regulator is activated to enable precise regulation of a process in relation to a given
process signal. The process signal can be set to the
relevant process unit or as a percentage. A feedback signal must be added from the process and the
process regulator must be set in parameter group
400 Special functions.
101
101 Torque characteristic
(TORQUE CHARACT)
Value:
✭Constant torque
(CONSTANT TORQUE)
[1]
Variable torque low
(TORQUE: LOW)
[2]
Variable torque medium
(TORQUE: MED)
[3]
Variable torque high
(TORQUE: HIGH)
[4]
Variable torque low with CT start
(VT LOW CT START)
[5]
Variable torque medium with CT start
(VT MED CT START)
[6]
Variable torque high with CT start
(VT HIGH CT START)
[7]
Special motor mode
(SPECIAL MOTOR MODE)
[8]
✭ CT = Constant torque
Function:
This parameter enables a choice of principle for
adaptation of the U/f ratio of the frequency converter
to the torque characteristic of the load. See par. 135
U/f ratio.
Description of choice:
If Constant torque [1] is selected, a load-dependent
U/f characteristic is obtained, in which output voltage
and output frequency are increased at increasing
loads in order to maintain constant magnetization of
the motor.
Select Variable torque low [2], Variable torque
medium [3] or Variable torque high [4], if the load is
square (centrifugal pumps, fans).
Variable torque - low with CT start [5], - medium with
CT start [6] or high with CT start [7], are selected if
you need a greater breakaway torque than can be
achieved with the three first characteristics.
NB!:
Load and slip compensation are not active
if variable torque or special motor mode have
been selected.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
56
VLT®FCD Series

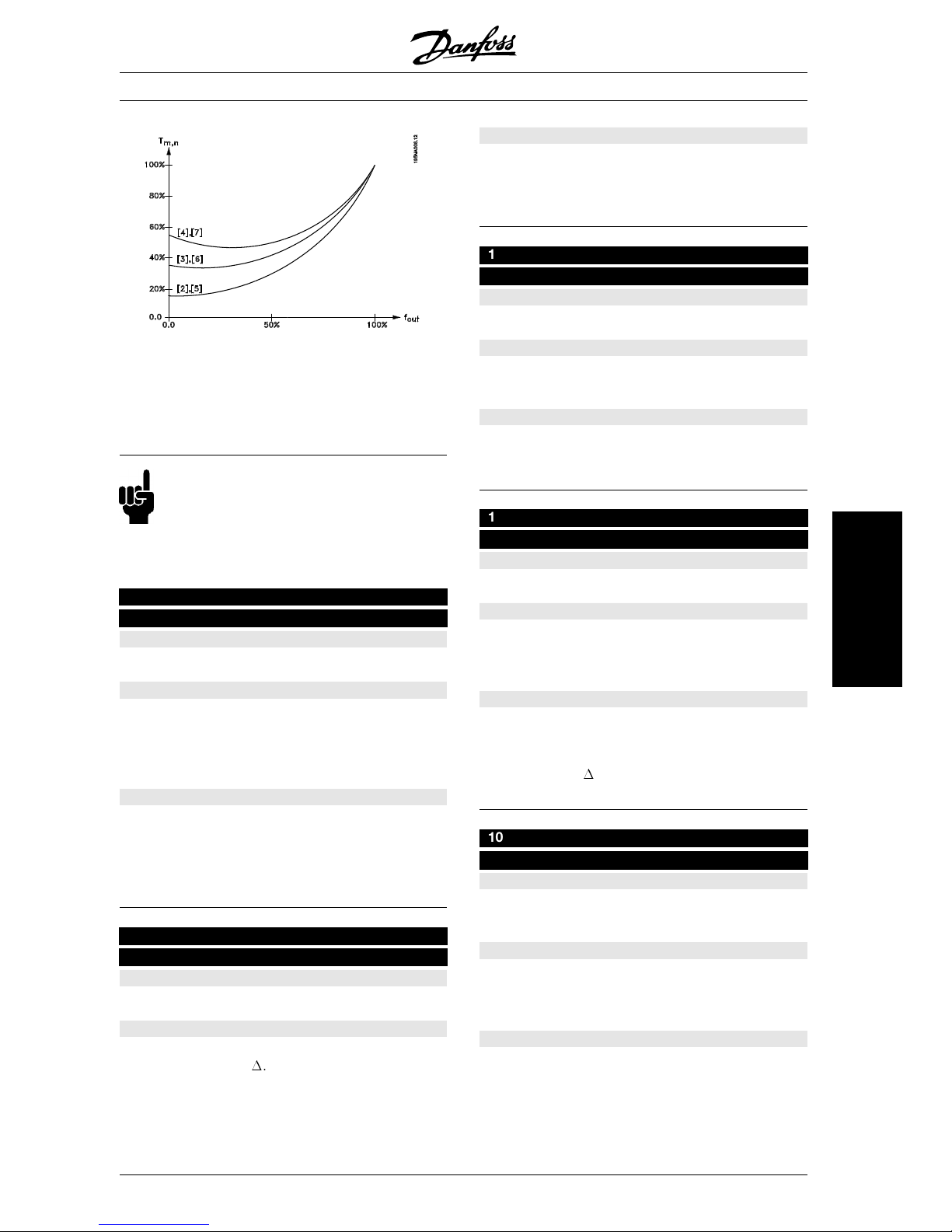

Select Special motor mode [8], if a special U/f setting is needed that is to be adapted to the present
motor. The break points are set in parameters 423428 Voltage/frequency.
NB!:
Please note that if a value set in the name-
plate parameters 102-106 is changed, there
will be an automatic change of parameter 108 Stator
resistance and 109 Stator reactance.
102
102 Motor power P
M,N
(MOTOR POWER)
Value:
0.18 - 4 kW
✭ Depends on unit
Function:
Here you must set a power value [kW] P
M,N
, corresponding to the motor’s rated power. The factory
sets a rated power value [kW] P
M,N
, that depends on
the type of unit.
Description of choice:
Set a value that matches the nameplate data on the
motor. Settings between one size below (for FCD
303 two sizes below) and one size over the factory
setting are possible.
103
103 Motor voltage U
M,N
(MOTOR VOLTAGE)
Value:
50 - 999 V
✭ 400 V
Function:
This is where to set the rated motor voltage U
M,N
for
either star Y or delta
1
.
Description of choice:
Select a value that corresponds to the nameplate
data on the motor, regardless of the frequency converter’s mains voltage.
104
104 Motor frequency f
M,N
(MOTOR FREQUENCY)
Value:
24-1000 Hz
✭ 50 Hz
Function:
This is where to select the rated motor frequency
f
M,N
.
Description of choice:
Select a value that corresponds to the nameplate
data on the motor.
105
105 Motor current I
M,N
(MOTOR CURRENT)
Value:
0,01 - I
MAX
✭ Depends on choice of motor
Function:
The nominal, rated current of the motor I
M,N
forms
part of the frequency converter calculation of features such as torque and motor thermal protection.
Description of choice:
Set a value that corresponds to the nameplate data
on the motor. Set the motor current I
M,N
taking into
account whether the motor is star-connected Y or
delta-connected
1
.
106
106 Rated motor speed
(MOTOR NOM. SPEED)
Value:
100 - f
M,N
x 60 (max. 60000 rpm)
✭ Depends on parameter 102 Motor power, P
M,N
Function:
This is where to set the value that corresponds to
the rated motor speed n
M,N
that can be seen from
the nameplate data.
Description of choice:
Select a value that corresponds to the nameplate
data on the motor.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
57
Programming
VLT®FCD Series
NB!:
The max. value equals f
M,N
x 60. f
M,N
to be
set in parameter 104 Motor frequency, f
M,N
.
107
107 Automatic motor tuning, AMT
(AUTO MOTOR TUN.)
Value:
✭Optimisation off (AMT OFF)
[0]
Optimisation on (AMT START)
[2]
Function:
Automatic motor tuning is an algorithm that measures stator resistance R
S
without the motor axle
turning. This means that the motor is not delivering
any torque.
AMT can be used with benefit when initialising units
where the user wishes to optimise adjustment of the
frequency converter to the motor being used. This is
used in particular when the factory setting does not
sufficiently cover the motor.
For the best possible tuning of the frequency converter it is recommended that AMT is performed on
a cold motor. It should be noted that repeated AMT
runs can cause heating of the motor, resulting in an
increase in the stator resistance R
S
. As a rule, how-
ever, this is not critical.
AMT is performed as follows:
S
tart AMT:
1. Give a STOP signal.
2. Parameter 107 Automatic motor tuning is set at
value [2] Optimisation on.
3. A START signal is given and parameter 107 Auto-
matic motor tuning is reset to [0] when AMT has
been completed.
C
omplete AMT:
AMT is completed by giving a RESET signal. Parameter 108 Stator resistance, Rs is updated with
the optimised value.
I
nterrupting AMT:
AMT can be interrupted during the optimisation procedure by giving a STOP signal.
When using the AMT function the following points
should be observed:
- For AMT to be able to define the motor parame-
ters as well as possible, the correct type plate
data for the motor connected to the frequency
converter must be keyed into parameters 102 to
106.
- Alarms will appear in the display if faults arise
during tuning of the motor.
- As a rule the AMT function will be able to measure the R
S
values for motors that are 1-2 times
larger or smaller than the frequency converter’s
nominal size.
- If you wish to interrupt automatic motor tuning,
press the [STOP/RESET] key.
NB!:
AMT may not be performed on motors connected in parallel, nor may setup changes be
made while AMT is running.
Description of choice:
Select Optimisation on [2] if you want the frequency
converter to perform automatic motor tuning.
108
108 Stator resistance R
S
(STATOR RESISTAN)
Value:
0.000 - X.XXX
✭ Depends on choice of motor
Function:
After setting of parameters 102-106 Nameplate data,
a number of adjustments of various parameters is
carried out automatically , including stator resistance
R
S
. A manually entered R
S
must apply to a cold motor. The shaft performance can be improved by
fine-tuning R
S
and X
S
, see procedure below.
NB!:
Parameters 108 Stator resistance R
S
and 109
Stator reactance X
S
are normally not to be
changed if nameplate data has been set.
Description of choice:
R
S
can be set as follows:
1. Use the factory settings of R
S
which the frequency converter itself chooses on the basis of
the motor nameplate data
2. The value is stated by the motor supplier.
3. The value is obtained through manual measurements: R
S
can be calculated by measuring the
resistance R
PHASE-PHASE
between two phase ter-
minals. R
S
= 0.5 x R
PHASE-PHASE
✭ = factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
58
VLT®FCD Series
4. RSis set automatically when AMT has been completed. See parameter 107 Auto motor adaption.
109
109 Stator reactance X
S
(STATOR REACTANCE)
Value:
0.00 - X,XX
✭ Depends on choice of motor
Function:
After setting of parameters 102-106 Nameplate data,
a number of adjustments of various parameters are
made automatically , including stator reactance X
S
.
The shaft performance can be improved by finetuning R
S
and X
S
, see procedure below.
Description of choice:
X
S
can be set as follows:
1. The value is stated by the motor supplier.
2. The value is obtained through manual measure-
ments X
S
is obtained by connecting a motor to
mains and measuring the phase-phase voltage
U
M
and the idle current
8
.
Xs
=
Um
p
3xI
3. Use the factory settings of X
S
which the frequency converter itself chooses on the basis of
the motor nameplate data.
117
117 Resonance dampening
(RESONANCE DAMP.)
Value:
0 - 100 %
✭ 0%
Function:
Reduces the output voltage when running at low
load for avoiding resonance phenomena..
Description of choice:
If 0 is selected, there will be no reduction. If 100 %
is selected, the voltage is reduced to 50% at no load.
119
119 High start torque
(HIGH START TORQ.)
Value:
0.0 - 0.5 sec.
✭ 0.0 sec.
Function:
To ensure a high start torque approx. 1.8 x I
INV.
can
be permitted for max. 0.5 sec. The current is, however, limited by the frequency converter’s (inverter’s)
safety limit. 0 sec. corresponds to no high start
torque.
Description of choice:
Set the necessary time for which a high start torque
is required.
120
120 Start delay
(START DELAY)
Value:
0.0 - 10.0 sec.
✭ 0.0 sec.
Function:
This parameter enables a delay of the start-up time
after the conditions for start have been fulfilled.
When the time has passed, the output frequency will
start by ramping up to the reference.
Description of choice:
Set the necessary time before commencing to accelerate.
121
121 Start function
(START FUNCTION)
Value:
DC hold during start delay time
(DC HOLD/DELA Y TIME)
[0]
DC brake during start delay time
(DC BRAKE/DELA Y TIME)
[1]
✭Coasting during start delay time
(COAST/DELA Y TIME)
[2]
Start frequency/voltage clockwise
(CLOCKWISE OPERA TION)
[3]
Start frequency/voltage in reference direction
(VERTICAL OPERATION)
[4]
Function:
This is where to choose the required mode during
the start delay time (parameter 120 Start delay time).
Description of choice:
Select DC hold during start delay time [0] to energize the motor with a DC hold voltage during the
start delay time. Set voltage in parameter 137 DC
hold voltage.
Choose DC brake during start delay time [1] to energize the motor with a DC brake voltage during the
start delay time. Set voltage in parameter 132 DC
brake voltage.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
59
Programming
VLT®FCD Series
Choose Coasting during start delay time [2] and the
motor will not be controlled by the frequency converter during the start delay time (inverter turned off).
Choose Start frequency/voltage clockwise [3] to obtained the function described in parameter 130 Start
frequency and 131 Voltage at start during start delay
time. Regardless of the value assumed by the reference signal, the output frequency equals the setting
in parameter 130 Start frequency and the output
voltage will correspond to the setting in parameter
131 Voltage at start.
This functionality is typically used in hoist applications. It is used in particular in applications in which
a cone anchor motor is applied, where the direction
of rotation is to start clockwise followed by the reference direction.
Select Start frequency/voltage in reference direction
[4] to obtain the function described in parameter 130
Start frequency and 131 Voltage at start during the
start delay time.
The direction of rotation of the motor will always follow in the reference direction. If the reference signal
equals zero, the output frequency will equal 0 Hz,
while the output voltage will correspond to the setting in parameter 131 Voltage at start. If the
reference signal is different from zero, the output frequency will equal parameter 130 Start frequency
and the output voltage will equal parameter 131 Volt-
age at start. This functionality is used typically for
hoist applications with counterweight. It is used in
particular for applications in which a cone anchor
motor is applied. The cone anchor motor can break
away using parameter 130 Start frequency and parameter 131 Voltage at start.
122
122 Function at stop
(FUNCTION AT STOP)
Value:
✭Coasting (COAST)
[0]
DC hold (DC HOLD)
[1]
Function:
This is where to choose the function of the frequency converter after the output frequency has
become lower than the value in parameter 123 The
min. frequency for activation of function at stop or
after a stop command and when the output frequency has been ramped down to 0 Hz.
Description of choice:
Select Coasting [0] if the frequency converter is to
’let go’ of the motor (inverter turned off).
Select DC hold [1] if parameter 137 DC hold voltage
is to be activated.
123
123 Min. frequency for activation of function at
stop
(MIN.F.FUNC.STOP)
Value:
0,1 - 10 Hz
✭ 0,1 Hz
Function:
In this parameter, the output frequency is set at
which the function selected in parameter 122 Func-
tion at stop is to be activated.
Description of choice:
Set the required output frequency.
■ DC Braking
During DC braking DC voltage is supplied to the motor, and this will cause the shaft to be brought to a
standstill. In parameter 132 DC brake voltage DC
brake voltage can be preset from 0-100%. Max. DC
brake voltage depends on the motor data selected.
In parameter 126 DC braking time DC braking time
is determined and in parameter 127 DC brake cut-in
frequency the frequency at which DC braking
becomes active is selected. If a digital input is programmed to DC braking inverse [5] and shifts from
logic ’1’ to logic ’0’, DC braking will be activated.
When a stop command becomes active, DC braking
is activated when the output frequency is less than
the brake cut-in frequency.
NB!:
DC braking may not be used if the inertia in
the motor shaft is more than 20 times greater
than the motor’s internal inertia.
126
126 DC brake time
(DC BRAKING TIME)
Value:
0 - 60 sec.
✭ 10 sec
Function:
In this parameter, the DC brake time is set at which
parameter 132 DC brake voltage is to be active.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
60
VLT®FCD Series
Description of choice:
Set the required time.
127
127 DC brake cut-in frequency
(DC BRAKE CUT-IN)
Value:
0.0 (OFF) - par. 202
Output frequency high limit, f
MAX
✭ OFF
Function:
In this parameter, the DC brake cut-in frequency is
set at which the DC brake is to be activated in connection with a stop command.
Description of choice:
Set the required frequency.
128
128 Thermal motor protection
(MOT.THERM PROTEC)
Value:
✭No protection (NO PROTECTION)
[0]
Thermistor warning
(THERMISTOR WARN)
[1]
Thermistor trip (THERMISTOR TRIP)
[2]
ETR warning 1 (ETR WARNING 1)
[3]
ETR trip 1 (ETR TRIP 1)
[4]
ETR warning 2 (ETR WARNING 2)
[5]
ETR trip 2 (ETR TRIP 2)
[6]
ETR warning 3 (ETR WARNING 3)
[7]
ETR trip 3 (ETR TRIP 3)
[8]
ETR warning 4 (ETR WARNING 4)
[9]
ETR trip 4 (ETR TRIP 4)
[10]
Function:
The frequency converter can monitor the motor temperature in two different ways:
- Via a PTC thermistor that is mounted on the mo-
tor. The thermistor is connected between terminal
31a / 31b. See parameter 300 Digital inputs.
- Thermal load calculation (ETR - Electronic Ther-
mal Relay), based on present load and time. This
is compared with the rated motor current I
M,N
and
rated motor frequency f
M,N
. The calculations take
into account the need for lower loading at low
speeds due to the motor’s internal ventilation being reduced.
ETR functions 1-4 do not begin to calculate the load
until you switch to the Setup in which they have
been selected. This means that you can use the
ETR function even when changing between two or
more motors.
Description of choice:
Select No protection [0] if you do not want a warning
or trip when a motor is overloaded.
Select Thermistor warning [1] if you want a warning
when the connected thermistor becomes too hot.
Select Thermistor trip [2] if you want a trip when the
connected thermistor becomes too hot.
Select ETR Adv. if you want a warning when the
motor is overloaded according to the calculations.
You can also programme the frequency converter to
give a warning signal via the digital output.
Select ETR Trip if you want a trip when the motor is
overloaded according to the calculations.
Select ETR warning 1-4 if you want a warning when
the motor is overloaded according to the calculations.
You can also programme the frequency converter to
give a warning signal via one of the digital outputs.
Select ETR Trip 1-4 if you want a trip when the motor is overloaded according to the calculations.
NB!:
This function cannot protect the individual
motors in the case of motors linked in parallel.
130
130 Start frequency
(START FREQUENCY)
Value:
0.0 - 10.0 Hz
✭ 0.0 Hz
Function:
The start frequency is active for the time set in parameter 120 Start delay, after a start command. The
output frequency will ’jump’ to the next preset frequency. Certain motors, such as conical anchor
motors, need an extra voltage/start frequency
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
61
Programming
VLT®FCD Series
(boost) at start to disengage the mechanical brake.
To achieve this parameters 130 Start frequency and
131 Initial voltage are used.
Description of choice:
Set the required start frequency. It is a precondition
that parameter 121 Start function, is set to Start fre-
quency/voltage clockwise [3] or Start frequency
voltage in reference direction [4] and that in parame-
ter 120 Start delay a time is set and a reference
signal is present.
131
131 Initial voltage
(INITIAL VOLTAGE)
Value:
0.0 - 200.0 V
✭ 0.0 V
Function:
Initial voltage is active for the time set in parameter
120 Start delay, after a start command. This parameter can be used for example for lifting/dropping
applications (conical anchor motors).
Description of choice:
Set the required voltage necessary to cut out the
mechanical brake. It is assumed that parameter 121
Start function, is set to Start frequency/voltage clockwise [3] or Start frequency/voltage in reference
direction [4] and that in parameter 120 Start delay a
time is set, and that a reference signal is present.
132
132 DC brake voltage
(DC BRAKE VOLTAGE)
Value:
0 - 100% of max. DC brake voltage
✭ 0%
Function:
In this parameter, the DC brake voltage is set which
is to be activated at stop when the DC brake
frequency set in parameter 127 DC brake cut-in fre-
quency is reached, or if DC braking inverse is active
via a digital input or via serial communication. Subsequently, the DC brake voltage will be active for the
time set in parameter 126 DC brake time.
Description of choice:
To be set as a percentage value of the max. DC
brake voltage, which depends on the motor.
133
133 Start voltage
(START VOLTAGE)
Value:
0.00 - 100.00 V
✭ Depends on unit
Function:
A higher start torque can be obtained by increasing
the start voltage. Small motors (< 1.0 kW) normally
require a high start voltage.
Description of choice:
The factory setting will be suitable for must applications, the value may need to be increase gradually
for high torque application.
W
arning: If the use of star t voltage
i
s exaggerated, this may lead to over-
e
nergizing and overheating of the motor
and the frequency converter may cut out.
134
134 Load compensation
(LOAD COMPENSATIO)
Value:
0.0 - 300.0%
✭ 100.0%
Function:
In this parameter, the load characteristic is set. By
increasing the load compensation, the motor is given
an extra voltage and frequency supplement at
increasing loads. This is used e.g. in motors/applications in which there is a big difference between the
full-load current and idle-load current of the motor.
NB!:
If this value is set too high, the frequency
converter may cut out because of overcurrent.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
62
VLT®FCD Series
Description of choice:
If the factory setting is not adequate, load compensation must be set to enable the motor to start at the
given load.
W
arning: Should be set to 0% in
c
onnection with synchronous and parallel-
coupled motors and in the case of quick
load changes. Too high load compensation may lead
to instability.
135
135 U/f-ratio
(U/F RATIO)
Value:
0.00 - 20.00 V/Hz
✭ Depends on unit
Function:
This parameter enables a shift in the ratio between
output voltage (U) and output frequency (f) linearly ,
so as to ensure correct energizing of the motor and
thus optimum dynamics, accuracy and efficiency.
The U/f-ratio only affects the voltage characteristic if
a selection has been made of
Constant torque [1]
parameter 101 Torque characteristic.
Description of choice:
The U/f-ratio is only to be changed if it is not possible to set the correct motor data in parameter
102-109. The value programmed in the factory settings is based on idle operation.
136
136 Slip compensation
(SLIP COMP.)
Value:
-500 - +500% of rated slip compensation
✭ 100%
Function:
Slip compensation is calculated automatically , on the
basis of such data as the rated motor speed n
M,N
.In
this parameter, the slip compensation can be finetuned, thereby compensating for tolerances on the
value for n
M,N
. Slip compensation is only active if a
selection has been made of Speedregulation, open
loop [0] in parameter 100 Configuration and Constant
torque [1] in parameter 101 Torque characteristic.
Description of choice:
Key in a % value.
137
137 DC hold voltage
(DC HOLD VOLTAGE)
Value:
0 - 100% of max. DC hold voltage
✭ 0%
Function:
This parameter is used to keep the motor (holding
torque) at start/stop.
Description of choice:
This parameter can only be used if a selection has
been made of DC hold in parameter 121 Start
function or 122 Function at stop. To be set as a percentage value of the max. DC hold voltage, which
depends on the choice of motor.
138
138 Brake cut out value
(BRAKE CUT OUT)
Value:
0.5 - 132.0/1000.0 Hz
✭ 3.0 Hz
Function:
Here you can select the frequency at which the external brake is released, via the output defined in
parameter 323 Relay output 1-3 or 341 Digital output,
terminal 46 (optionally also terminal 122 and 123).
Description of choice:
Set the required frequency.
139
139 Brake cut in frequency
(BRAKE CUT IN)
Value:
0.5 - 132.0/1000.0 Hz
✭ 3.0 Hz
Function:
Here you can select the frequency at which the external brake is activated; this takes place via the
output defined in parameter 323 Relay output 1-3 or
341 Digital output terminal 46 (Optionally also 122
and 123).
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
63
Programming
VLT®FCD Series
Description of choice:
Set the required frequency.
140
140 Current, minimum value
(CURRENT MIN VAL)
Value:
0 % of Inom - 100 % of Inom
✭ 0%
Function:
This is where the user selects the minimum motor
current running for the mechanical brake to be released. Current monitoring is only active from stop
until the point when the brake is released.
Description of choice:
This is an extra safety precaution, aimed at guaranteeing that the load is not lost during start of a lifting/
lowering operation.
142
142 Leakage reactance X
L
(LEAK. REACTANCE)
Value:
0.000 - XXX,XXX
✭ Depends on choice of motor
Function:
After setting of parameters 102-106 Nameplate data,
a number of adjustments of various parameter is
made automatically , including the leakage reactance
X
L
. The shaft performance can be improved by fine-
tuning the leakage eactance X
L
NB!:
Parameter 142 The leakage reactance X
L
is
normally not to be changed if the nameplate
data have been set, parameters 102-106.
Description of choice:
X
L
can be set as follows:
1. The value is stated by the motor supplier.
2. Use the factory settings of X
L
which the frequency converter itself chooses on the basis of
the motor nameplate data.
144
144 Gain AC brake
(GAIN AC BRAKE)
Value:
1.00 - 1.50
✭ 1.30
Function:
This parameter is used to set the AC brake. Using
par. 144 it is possible to adjust the size of the generator torque that can be applied to the motor without
the intermediate circuit voltage exceeding the warning level.
Description of choice:
The value is increased if a greater possible brake
torque is required. If 1.0 is selected, this corresponds to the AC brake being inactive.
NB!:
If the value in par. 144 is increased, the
motor current will simultaneously increase significantly when generator loads are applied. The
parameter should therefore only be changed if it is
guaranteed during measurement that the motor current in all operating situations will never exceed the
maximum permitted current in the motor. Please
note: that the current c
annot be read out from the
display.
146
146 Reset voltage vector
(RESET VECTOR)
Value:
*Off (OFF)
[0]
Reset (RESET)
[1]
Function:
When the voltage vector is reset it is set to the same
starting point each time a new process commences.
Description of choice:
Select reset (1) when running unique processes
each time they arise. This will enable repetitive precision when stopping to be improved. Select Off (0)
for example for lifting/lowering operations or synchronous motors. It is an advantage that the motor
and the frequency converter are always synchronised.
✭ = factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
64
VLT®FCD Series

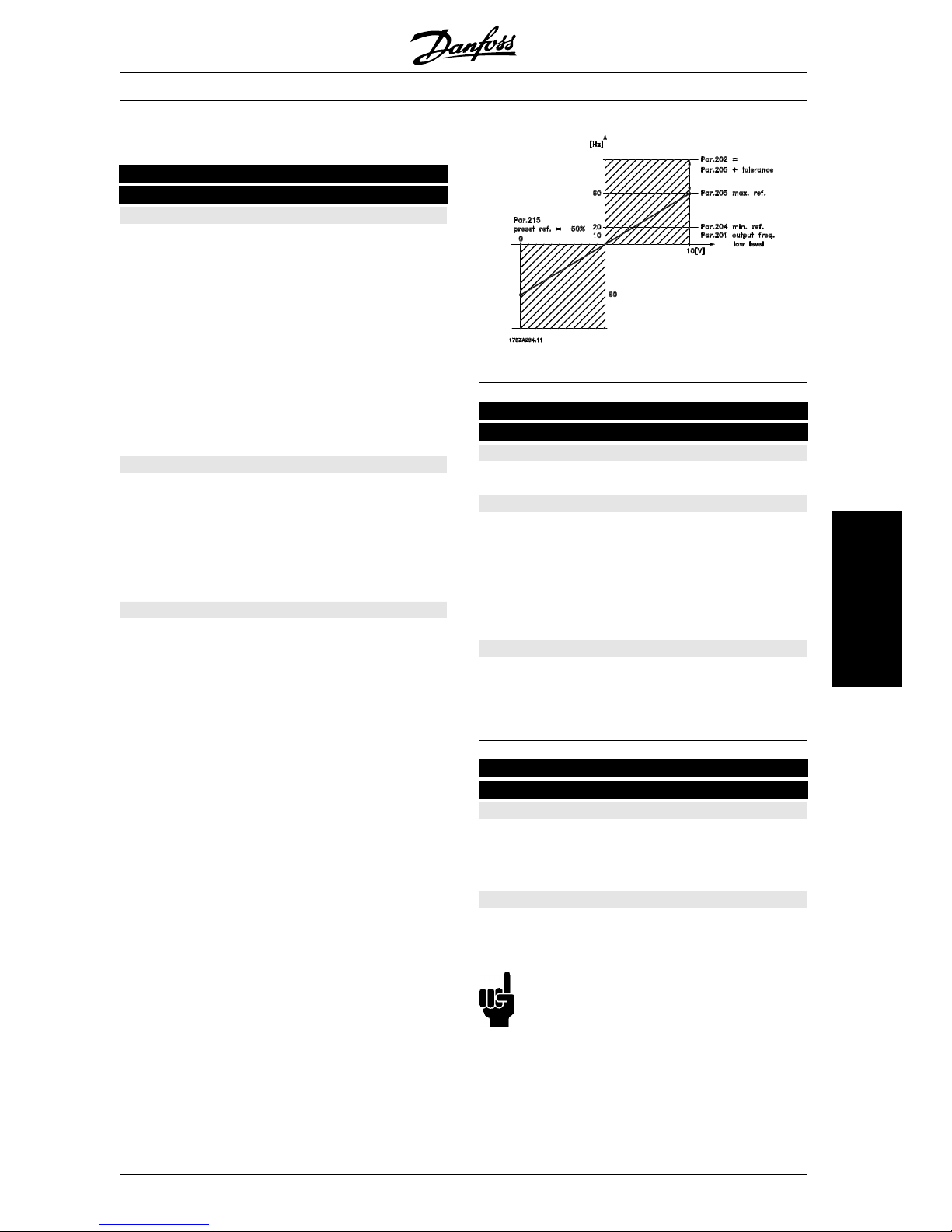

■ References & Limits
200
200 Output frequency range
(OUT FREQ. RNG/ROT)
Value:
✭Only clockwise, 0 - 132 Hz
(132 HZ CLOCKWISE)
[0]
Both directions, 0 - 132 Hz
(132 HZ BOTH DIRECT)
[1]
Anti-clockwise only, 0 - 132 Hz
(132 HZ COUNTER CLOCK)
[2]
Clockwise only, 0 - 1000 Hz
(1000 HZ CLOCK WISE)
[3]
Both directions, 0 - 1000 Hz
(1000 HZ BOTH DIRECT)
[4]
Anti-clockwise only, 0 - 1000 Hz
(1000 HZ COUNTER CLOCK)
[5]
Function:
This parameter guarantees protection against unwanted reversing. Furthermore, the maximum output
frequency can be selected that is to apply regardless
of the settings of other parameters. This parameter
has no function if
Process regulation, closed loop
has been selected in parameter 100 Configuration.
Description of choice:
Select the required direction of rotation as well as
the maximum output frequency. Please note that if
Clockwise only [0]/[3] or Anti-clockwise only [2]/[5] is
selected, the output frequency will be limited to the
range f
MIN-fMAX
.IfBoth directions [1]/[4] is selected,
the output frequency will be limited to the range ±
f
MAX
(the minimum frequency is of no significance).
201
201 Output frequency low limit, f
MIN
(MIN OUTPUT FREQ)
Value:
0.0 - f
MAX
✭ 0.0 Hz
Function:
In this parameter, a minimum motor frequency limit
can be selected that corresponds to the minimum
speed at which the motor is allowed to run. If Both
directions has been selected in parameter 200 Output frequency range, the minimum frequency is of no
significance.
Description of choice:
The value chosen can range from 0.0 Hz to the frequency set in parameter 202 Output frequency high
limit, f
MAX
.
202
202 Output frequency high limit, f
MAX
(MAX. OUTPUT FREQ)
Value:
f
MIN
- 132/1000 Hz (par. 200 Output frequency
range)
✭ 132 Hz
Function:
In this parameter, a maximum output frequency limit
can be selected that corresponds to the highest
speed at which the motor is allowed to run.
NB!:
The output frequency of the frequency con-
verter can never assume a value higher than
1/10 of the switching frequency (parameter 411
Switching frequency).
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
65
Programming
VLT®FCD Series
Description of choice:
A value can be selected from f
MIN
to the value cho-
sen in parameter 200 Output frequency range.
■ Handling of references

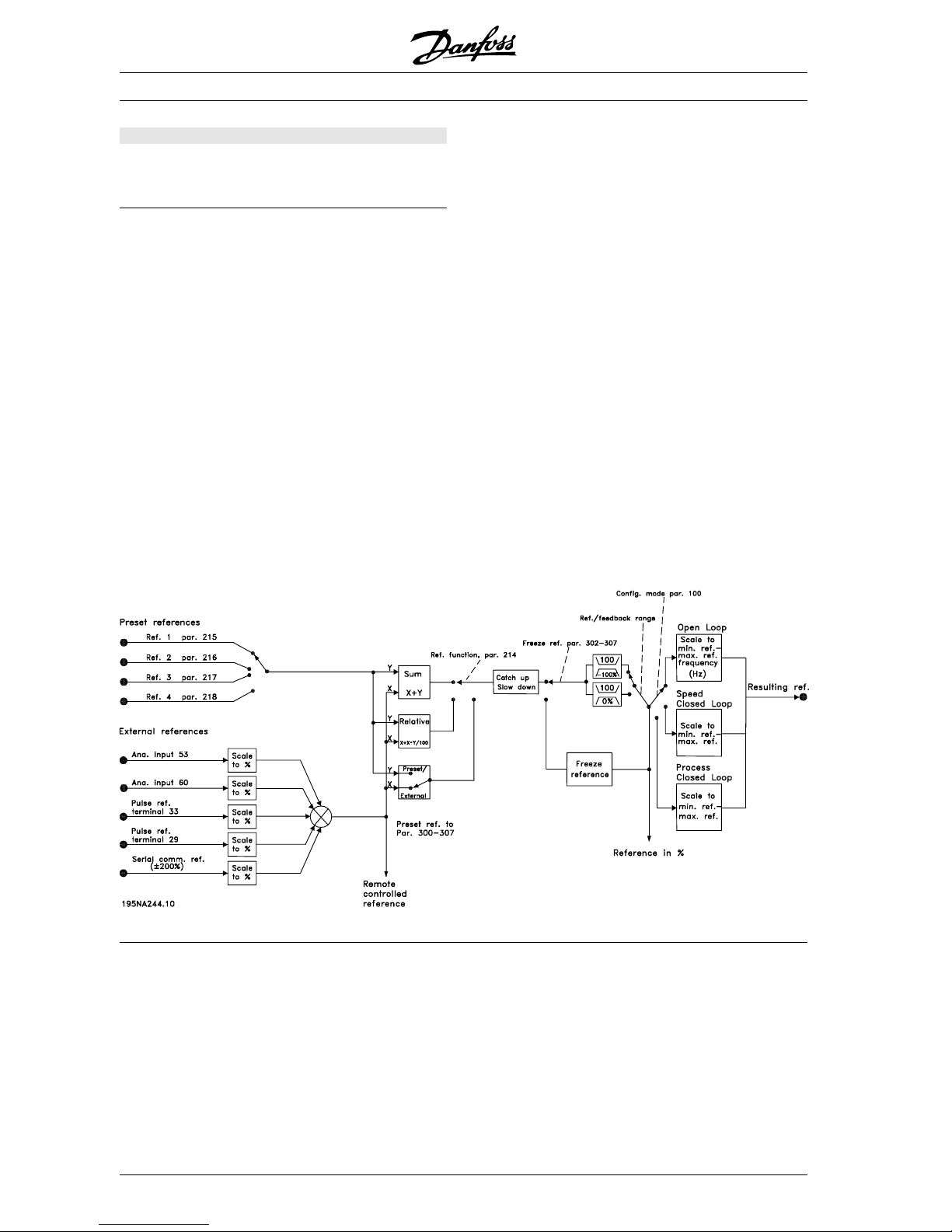

Handling of references is described in the block diagram below. The block diagram shows how a change
in one parameter can affect the resulting reference.
Parameters 203 to 205 Reference and parameter
214 Reference function define how the handling of
references can be performed. The parameters mentioned can be active in both closed and open loop.
Remote controlled references are defined as:
- External references, such as analogue inputs 53
and 60, pulse references via terminal 33 and references from serial communication.
- Preset references
The resulting reference can be shown on the LCP
control unit’s display by selecting Reference [%] in
parameters 009-012 Display readout and can be
shown as one unit by selecting Reference [unit].
The sum of the external references can be shown on
the LCP control unit’s display as a % of the area from
Minimum reference, Ref
MIN
to Maximum reference,
Ref
MAX
. Select External reference, % [25] in parame-
ters 009-012 Display readout if a readout is desired.
It is possible to have both references and external
references simultaneously . In parameter 214 Refer-
ence function a selection can be made to determine
how preset references should be added to the external references.
There is also an independent local reference in parameter 003 Local reference, in which the resulting
reference is set using the [+/-] keys. When the local
reference has been selected, the output frequency
range is limited by parameter 201 Output frequency
low limit, f
MIN
and parameter 202 Output frequency
high limit, f
MAX
.
The local reference unit depends on the selection in
parameter 100 Configuration.
✭ = factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
66
VLT®FCD Series
203
203 Reference range
(REFERENCE RANGE)
Value:
✭Min. reference - Max reference (MIN - MAX)
[0]
-Max. reference - Max. reference (-MAX - +MAX)
[1]
Function:
In this parameter you select whether the reference
signal must be positive or whether it can be both
positive and negative. The minimum limit may be a
negative value, unless in parameter 100 Configura-
tion a selection has been made of Speed regulation,
closed loop. You should select Min ref. - Max. ref.
[0], if Process regulation, closed loop [3] has been
selected in parameter 100 Configuration.
Description of choice:
Select the required range.
204
204 Minimum reference, Ref
MIN
(MIN.REFERENCE)
Value:
Par. 100 Config. = Open loop [0].
-100,000.000 - par. 205 Ref
MAX
✭ 0.000 Hz
Par. 100 Config. = Closed loop [1]/[3].
-Par. 414 Minimum feedback - par. 205 Ref
MAX
✭ 0.000 Hz
Function:
Minimum reference is an expression of the minimum
possible value of the total of all references. If in parameter 100 Configuration, Speed regulation, closed
loop [1] or Process regulation, closed loop [3] is
selected, the minimum reference is limited by parameter 414 Minimum feedback. Minimum reference is
ignored if the local reference is active.
The reference unit can be defined from the following
table:
Par. 100 Configuration Unit
Open loop [0] Hz
Speed reg, closed loop [1] rpm
Process reg, closed loop [3] Par. 416
Description of choice:
The minimum reference is preset if the motor has to
run at a minimum speed, regardless of whether the
resulting reference is 0.
205
205 Maximum reference, Ref
MAX
(MAX.REFERENCE)
Value:
Par. 100 Config. = Open loop [0].
Par. 204 Ref
MIN
- 1000.000 Hz
✭ 50.000 Hz
Par. 100 Config. = Closed loop [1]/[3].
Par. 204 Ref
MIN
- Par. 415 Max. feedback
✭ 50.000 Hz
Function:
The maximum reference gives the highest value that
can be assumed by the sum of all references. If
Closed loop [1]/[3] is selected in parameter 100 Con-
figuration the maximum reference cannot exceed the
value in parameter 415 Maximum feedback.
Maximum reference is ignored if the local reference
is active.
The reference unit can be defined from the following
table:
Par. 100 Configuration Unit
Open loop [0] Hz
Speed reg, closed loop [1] rpm
Process reg, closed loop [3] Par. 416
Description of choice:
Maximum reference is set, if the speed of the motor
is to be max. the set value, regardless of the
whether the resulting reference is greater than the
maximum reference.
206
206 Ramp type
(RAMP TYPE)
Value:
✭Linear (LINEAR)
[0]
Sin shaped (SIN SHAPED)
[1]
Sin
2
shaped (S-SHAPED 2)
[2]
Function:
You can choose between a linear, an S-shaped and
an S
2
ramp process.
Description of choice:
Select the required ramp type depending on the required acceleration/deceleration process.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
67

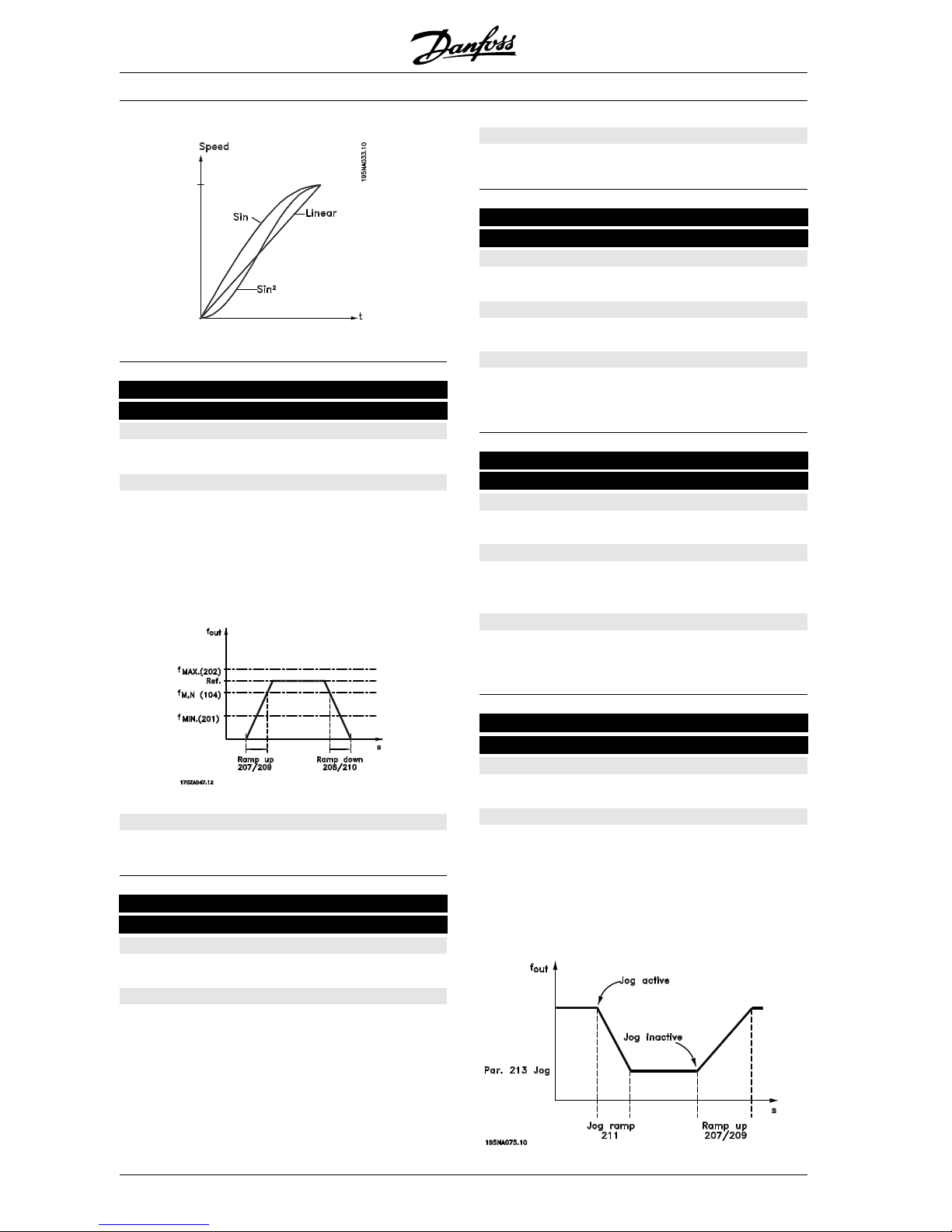

Programming
VLT®FCD Series
207
207 Ramp-up time 1
(RAMP-UP TIME 1)
Value:
0.02 - 3600.00 sec
✭ 3.00 sec
Function:
The ramp-up time is the acceleration time from 0 Hz
to the rated motor frequency f
M,N
(parameter 104
Motor frequency, f
M,N
). It is assumed that the output
current will not reach the current limit (set in parameter 221 Current limit I
LIM
).
Description of choice:
Set the required ramp-up time.
208
208 Ramp-down time 1
(RAMP DOWN TIME 1)
Value:
0.02 - 3600.00 sec
✭ 3.00 sec
Function:
The ramp-down time is the deceleration time from
the rated motor frequency f
M,N
(parameter 104 Motor
frequency, f
M,N
) to 0 Hz, provided no overvoltage
arises in the inverter because of generating operation of the motor.
Description of choice:
Set the required ramp-down time.
209
209 Ramp-up time 2
(RAMP UP TIME 2)
Value:
0.02 - 3600.00 sec.
✭ 3.00 sec
Function:
See description of parameter 207 Ramp-up time 1.
Description of choice:
Set the required ramp-up time. Shift from ramp 1 to
ramp 2 by activating Ramp 2 via a digital input.
210
210 Ramp-down time 2
(RAMP DOWN TIME 2)
Value:
0.02 - 3600.00 sec.
✭ 3.00 sec
Function:
See description of parameter 208 Ramp-down time
1.
Description of choice:
Set the required ramp-down time. Shift from ramp 1
to ramp 2 by activating Ramp 2 via a digital input.
211
211 Jog ramp time
(JOG RAMP TIME)
Value:
0.02 - 3600.00 sec.
✭ 3.00 sec
Function:
The jog ramp time is the acceleration/deceleration
time from 0 Hz to the rated motor frequency f
M,N
(parameter 104 Motor frequency, f
M,N
). It is assumed
that the output current will not reach the current limit
(set in parameter 221 Current limit I
LIM
).
✭ = factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
68
VLT®FCD Series
The jog ramp time starts if a jog-signal is given via
the LCP control panel, one of the digital inputs or the
serial communication port.
Description of choice:
Set the required ramp time.
212
212 Quick-stop ramp-down time
(Q STOP RAMP TIME)
Value:
0.02 - 3600.00 sec.
✭ 3.00 sec
Function:
The quick-stop ramp-down time is the deceleration
time from the rated motor frequency to 0 Hz, provided no overvoltage arises in the inverter because
of generating operation of the motor, or if the generated current exceeds the current limit in parameter
221
Current limit I
LIM
. Quick-stop is activated via one
of the digital inputs or the serial communication.
Description of choice:
Set the required ramp-down time.
213
213 Jog frequency
(JOG FREQUENCY)
Value:
0.0 - Par. 202 Output frequency high limit, f
MAX
✭ 10.0 Hz
Function:
Jog frequency f
JOG
means a fixed output frequency
that the frequency converter supplies to the motor
when the Jog function is activated. Jog can be activated via the digital inputs, serial communication or
via the LCP control panel, on the condition that this
is active in parameter 015 Local jog.
Description of choice:
Set the required frequency.
■ Reference function
The example shows how the resulting reference is
calculated when Preset references is used together
with Sum and Relative in parameter 214 Reference
function. The formula for the calculation of the resulting reference can be seen in the section entitled
All about the FCD 300. See also the drawing in
Handling of references.
The following parameters are preset:
Par. 204 Minimum reference 10 Hz
Par. 205 Maximum reference 50 Hz
Par. 215 Preset reference 15 %
Par. 308 Term.53, Analogue input Reference
Par. 309 Term.53, min. scaling 0V
Par. 310 Term.53, max. scaling 10 V
When parameter 214 Reference function is set to
Sum [0] one of the preset Preset references(par.
215-218) is added to the external references as a
percentage of the reference range. If terminal 53 is
applied an analogue input voltage of 4 Volt will be
the resulting reference:
Par. 214 Reference function = Sum [0]:
Par. 204 Minimum reference 10.0 Hz
Reference contribution at 4 Volt 16.0 Hz
Par. 215 Preset reference 6.0 Hz
Resulting reference 32.0 Hz
When parameter 214 Reference function is set to
Relative [1] the defined Preset references (par. 215-
218) are added as a percentage of the total of the
present external references. If terminal 53 is applied
to an analogue input voltage of 4 Volt the resulting
reference will be:
Par. 214 Reference function = Relative [1]:
Par. 204 Minimum reference 10.0 Hz
Reference effect at 4 Volt 16.0 Hz
Par. 215 Preset reference 2.4 Hz
Resulting reference 28.4 Hz
The graph shows the resulting reference in relation
to the external reference, which varies from 0-10
Volt. Parameter 214 Reference function is programmed to Sum [0] and Relative [1] respectively.
Also shown is a graph in which parameter 215 Pre-
set reference 1 is programmed to 0 %.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
69

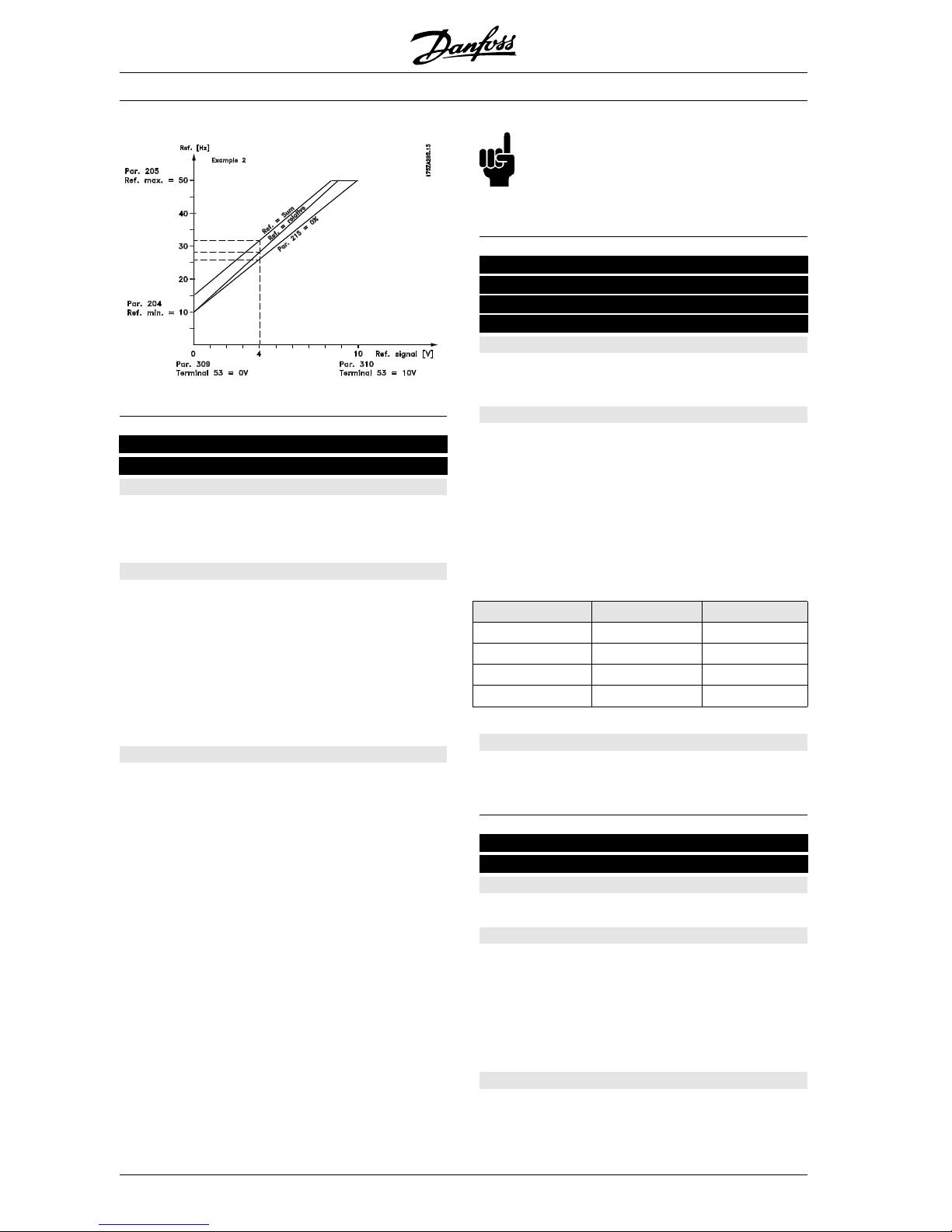

Programming
VLT®FCD Series
214
214 Reference function
(REF FUNCTION)
Value:
✭Sum (SUM)
[0]
Relative (RELA TIVE)
[1]
External/preset (EXTERNAL/PRESET)
[2]
Function:
It is possible to define how preset references are to
be added to the other references; for this purpose,
use Sum or Relative. It is also possible by using the
External/preset to select whether a shift between external references and preset references is required.
External reference is the sum of the analogue references, pulse references and any references from
serial communication.
Description of choice:
If Sum [0] is selected, one of the adjusted preset references (parameters 215-218 Preset reference)is
summarized as a percentage of the reference range
(Ref
MIN
- Ref
MAX
), added to the other external references.
If Relative [1] is selected, one of the added preset
references (parameters 215-218 Preset reference)is
summarized as a percentage of the sum of present
external references
If External/preset [2] is selected, it is possible via a
digital input to shift between external references or
preset references. Preset references will be a percentage value of the reference range.
NB!:
If Sum or Relative is selected, one of the
preset references will always be active. If the
preset references are to be without influence, they
must be set to 0% (factory setting).
215
215 Preset reference 1 (PRESET REF. 1)
216
216 Preset reference 2 (PRESET REF. 2)
217
217 Preset reference 3 (PRESET REF. 3)
218
218 Preset reference 4 (PRESET REF. 4)
Value:
-100.00% - +100.00%
✭ 0.00%
of the reference range/external reference
Function:
Four different preset references can be programmed
in parameters 215-218 Preset reference.
The preset reference is stated as a percentage of
the reference range (Ref
MIN
- Ref
MAX
) or as a percentage of the other external references, depending
on the choice made in parameter 214 Reference
function. The choice between preset references can
be made via the digital inputs or via serial communication.
Preset ref., msb
Preset ref. lsb
0 0 Preset ref. 1
0 1 Preset ref. 2
1 0 Preset ref. 3
1 1 Preset ref. 4
Description of choice:
Set the preset reference(s) that is/are to be the options.
219
219 Catch up/Slow down reference
(CATCH UP/SLW DWN)
Value:
0.00 - 100% of the given reference
✭ 0.00%
Function:
In this parameter, the percentage value can be set
which will either be added to or deducted from the
remote-controlled references.
The remote-controlled reference is the sum of preset
references, analogue references, pulse reference
and any references from serial communication.
Description of choice:
If Catch up is active via a digital input, the percentage value in parameter 219 Catch up/Slow down
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
70
VLT®FCD Series
reference will be added to the remote-controlled reference.
If Slow down is active via a digital input, the percentage value in parameter 219 Catch up/Slow down
reference will be deducted from the remotecontrolled reference.
221
221 Current limit, I
LIM
(CURRENT LIMIT)
Value:
0 - XXX.X % of par. 105
✭ 160 %
Function:
In this parameter, the maximum output current I
LIM
is
set. The factory-set value corresponds to the maximum output current I
MAX
. If the current limit is to be
used as motor protection, set the rated motor current. If the current limit is set above 100% (the rated
output current of the frequency converter, I
INV.
), the
frequency converter can only handle a load intermittently, i.e. for short periods at a time. After the load
has been higher than I
INV.
, it must be ensured that
for a period the load is lower than I
INV.
. Please note
that if the current limit is set at a lower value than
I
INV.
, the acceleration torque will be reduced to the
same extent.
Description of choice:
Set the required maximum output current I
LIM
.
223
223 Warning: Low current, I
LOW
(WARN. CURRENT LO)
Value:
0.0 - par. 224 Warning: High current, I
HIGH
✭ 0.0 A
Function:
If the output current falls below the preset limit I
LOW
a warning is given.
Parameters 223-228 Warning functions are out of
function during ramp-up after a start command and
after a stop command or during stop.The warning
functions are activated when the output frequency
has reached the resulting reference. The signal outputs can be programmed to give a warning signal
via terminal 46 and via the relay output.
Description of choice:
The lower signal limit of the output current I
LAV
must
be programmed within the normal working range of
the frequency converter.
224
224 Warning: High current, I
HIGH
(WARN. CURRENT HI)
Value:
Par. 223 Warn.: Low current, I
LOW
-I
MAX
✭ I
MAX
Function:
If the output current exceeds the preset limit I
HIGH
a
warning is given.
Parameters 223-228 Warning functions do not work
during ramp-up after a start command and after stop
command or during stop. The warning functions are
activated when the output frequency has reached
the resulting reference. The signal outputs can be
programmed to give a warning signal via terminal 46
and via the relay output.
Description of choice:
The output current’s upper signal limit I
HIGH
must be
programmed within the frequency converter’s normal
operating range. See drawing at parameter 223
Warning: Low current, I
LOW
.
225
225 Warning: Low frequency, f
LOW
(WARN.FREQ. LOW)
Value:
0.0 - par. 226
Warn.: High frequency, f
HIGH
✭ 0.0 Hz
Function:
If the output frequency falls below the preset limit
f
LOW
, a warning is given.
Parameters 223-228 Warning functions are out of
function during ramp-up after a start command and
after stop command or during stop. The warning
functions are activated when the output frequency
has reached the resulting reference. The signal out-
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
71
Programming
VLT®FCD Series
puts can be programmed to give a warning signal
via terminal 46 and via the relay output.
Description of choice:
The lower signal limit of the output frequency f
LOW
must be programmed within the normal operating
range of the frequency converter. See drawing at
parameter 223 Warning: Low current, I
LOW
.
226
226 Warning: High frequency f
HIGH
(WARN.FREQ.HIGH)
Value:
Par. 200 Frequency range = 0-132 Hz [0]/[1].
par. 225 f
LOW
- 132 Hz
✭ 132.0 Hz
Par. 200 Frequency range = 0-1000 Hz [2]/[3].
par. 225 f
LOW
- 1000 Hz
✭ 132.0 Hz
Function:
If the output frequency exceeds the preset limit f
HIGH
a warning is given.
Parameters 223-228 Warning functions do not work
during ramp-up after a start command and after stop
command or during stop. The warning functions are
activated when the output frequency has reached
the resulting reference. The signal outputs can be
programmed to give a warning signal via terminal 46
and via the relay output.
Description of choice:
The output frequency’s upper signal limit f
HIGH
must
be programmed within the frequency converter’s normal operating range. See drawing at parameter 223
Warning: Low current, I
LOW
.
227
227 Warning: Low feedback, FB
LOW
(WARN.FEEDB. LOW)
Value:
-100,000.000 - par. 228 Warn.:FB
HIGH
✭ -4000.000
Function:
If the feedback signal falls below the preset limit
FB
LOW
, a warning is given.
Parameters 223-228 Warning functions are out of
function during ramp-up after a start command and
after a stop command or during stop. The warning
functions are activated when the output frequency
has reached the resulting reference.The signal outputs can be programmed to give a warning signal
via terminal 46 and via the relay output.The unit for
feedback in Closed loop is programmed in parameter 416 Process units.
Description of choice:
Set the required value within the feedback range
(parameter 414 Minimum feedback, FB
MIN
and 415
Maximum feedback, FB
MAX
).
228
228 Warning: High feedback, FB
HIGH
(WARN.FEEDB HIGH)
Value:
Par. 227 Warn.: FB
LOW
- 100,000.000
✭ 4000.000
Function:
If the feedback signal gets above the preset limit
FB
HIGH
, a warning is given.
Parameters 223-228 Warning functions are out of
function during ramp-up after a start command and
after a stop command or during stop. The warning
functions are activated when the output frequency
has reached the resulting reference. The signal outputs can be programmed to give a warning signal
via terminal 46 and via the relay output. The unit for
feedback in Closed loop is programmed in parameter 416 Process units.
Description of choice:
Set the required value within the feedback range
(parameter 414 Minimum feedback, FB
MIN
and 415
Maximum feedback, FB
MAX
).
229
229 Frequence bypass, bandwidth
(FREQ BYPASS B.W.)
Value:
0 (OFF) - 100 Hz
✭ 0Hz
Function:
Some systems call for some output frequencies to
be avoided because of mechanical resonance
problems in the system. In parameters 230-231 Fre-
quency bypass these output frequencies can be
programmed. In this parameter a bandwidth can be
defined on either side of these frequencies.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
72
VLT®FCD Series
Description of choice:
The frequency set in this parameter will be centered
around parameters 230 Frequency bypass 1 and
231 Frequency bypass 2.
230
230 Frequency bypass 1 (FREQ. BYPASS 1)
231
231 Frequency bypass 2 (FREQ. BYPASS 2)
Value:
0 - 1000 Hz
✭ 0.0 Hz
Function:
Some systems call for some output frequencies to
be avoided because of mechanical resonance problems in the system.
Description of choice:
Enter the frequencies to be avoided. See also parameter 229 Frequency bypass, bandwidth.
✭ = factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
73
Programming
VLT®FCD Series
■ Inputs and outputs
Digital inputs Term. no. 18 19 27 29 33
par. no. 302 303 304 305 307
Value:
No function (NO OPERATION) [0] [0] [0] [0]
✭[0]
Reset (RESET) [1] [1] [1] [1] [1]
Coasting stop inverse (MOTOR COAST IN-
VERSE)
[2] [2] [2] [2] [2]
Reset and coasting inverse (RESET AND COAST
INV.)
[3] [3]
✭[3]
[3] [3]
Quick-stop inverse (QUICK-STOP INVERSE) [4] [4] [4] [4] [4]
DC braking inverse (DC-BRAKE INVERSE) [5] [5] [5] [5] [5]
Stop inverse (STOP INVERSE) [6] [6] [6] [6] [6]
Start (START)
✭[7]
[7] [7] [7] [7]
Pulse start (LATCHED START) [8] [8] [8] [8] [8]
Reversing (REVERSING) [9]
✭[9]
[9] [9] [9]
Reversing and start (START REVERSING) [10] [10] [10] [10] [10]
Start clockwise (ENABLE FORWARD) [11] [11] [11] [11] [11]
Start anti-clockwise (ENABLE REVERSE) [12] [12] [12] [12] [12]
Jog (JOGGING) [13] [13] [13]
✭[13]
[13]
Freeze reference (FREEZE REFERENCE) [14] [14] [14] [14] [14]
Freeze output frequency (FREEZE OUTPUT) [15] [15] [15] [15] [15]
Speed up (SPEED UP) [16] [16] [16] [16] [16]
Speed down (SPEED DOWN) [17] [17] [17] [17] [17]
Catch-up (CATCH-UP) [19] [19] [19] [19] [19]
Slow-down (SLOW-DOWN) [20] [20] [20] [20] [20]
Ramp 2 (RAMP 2) [21] [21] [21] [21] [21]
Preset ref, LSB (PRESET REF, LSB) [22] [22] [22] [22] [22]
Preset ref, MSB (PRESET REF, MSB) [23] [23] [23] [23] [23]
Preset reference on (PRESET REFERENCE
ON)
[24] [24] [24] [24] [24]
Precise stop, inverse (PRECISE STOP INV.) [26] [26]
Precise start/stop (PRECISE START/STOP) [27] [27]
Pulse reference (PULSE REFERENCE) [28]1[28]
Pulse feedback (PULSE FEEDBACK) [29]
1
[29]
Pulse input (PULSE INPUT) [30]
Selection of Setup, lsb (SETUP SELECT LSB) [31] [31] [31] [31] [31]
Selection of Setup, msb (SETUP SELECT MSB) [32] [32] [32] [32] [32]
Reset and start (RESET AND START) [33] [33] [33] [33] [33]
Encoder reference ( ENCODER REFER-
ENCE)
[34]
2
[34]
2
Encoder feedback (ENCODER FEEDBACK) [35]
2
[35]
2
Encoder input (ENCODER INPUT) [36]2[36]
2
1
Cannot be selected if Pulse output is selected in
par. 341 Digital output terminal 46.
2
Settings are identical for terminal 29 and 33
✭ = factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
74
VLT®FCD Series
Function:
In these parameters 302-307 Digital inputs it is possible to choose between the different enabled
functions related to the digital inputs (terminals 18-
33).
Description of choice:
No operation is selected if the frequency converter is
not to react to signals transmitted to the terminal.
Reset resets the frequency converter after an alarm;
however, a few alarms cannot be reset (trip locked)
without first disconnecting the mains supply and reconnecting it. See table under List of warnings and
alarms. Reset is activated on the leading edge of
the signal.
Coasting stop inverse is used for making the frequency converter "let go" of the motor immediately
(output transistors are "turned off"), which means
that the motor runs freely to stop. Logic ’0’ leads to
coasting to stop.
Reset and coasting inverse are used to activate motor coast simultaneously with reset. Logical ’0’
means motor coast stop and reset. Reset is activated on the falling edge.
Quick stop inverse is used for activating the quickstop ramp down set in parameter 212 Quick stop
ramp-down time. Logic ’0’ leads to quick stop.
DC-braking inverse is used for stopping the motor by
energizing it with a DC voltage for a given time, see
parameters 126, 127 and 132 DC brake. Please note
that this function is only active if the value in parameter 126 DC braking time and 132 DC brake voltage
is different from 0. Logic ’0’ leads to DC braking.
Stop inverse, a logic ’0’ means that the motor speed
is ramped down to stop via the selected ramp.
None of the stop commands mentioned
above are to be used as repair switches.
C
heck that all voltage inputs are discon-
n
ected and that the prescribed time (4 mins.) has
p
assed before repair work is commenced.
Start is selected if a start/stop command is required.
Logic ’1’ = start, logic ’0’ = stop.
Latched start, if a pulse is applied for min. 14 ms,
the frequency converter will start the motor, provided
no stop command has been given. The motor can
be stopped by briefly activating Stop inverse.
Reversing is used for changing the direction of rotation of the motor shaft. Logic ’0’ will not lead to
reversing. Logic ’1’ will lead to reversing. The reverse signal only changes the direction of rotation, it
does not activate the start. Is not active at Process
regulation, closed loop. See also parameter 200
Output frequency range/direction.
Reversing and start is used for start/stop and for
reversing with the same signal. No active start command is allowed at the same time. Is not active for
Process regulation, closed loop. See also parameter
200 Output frequency range/direction.
Start clockwise is used if you want the motor shaft
only to be able to rotate clockwise when started.
Should not be used for Process regulation, closed
loop.
Start anticlockwise is used if you want the motor
shaft only to be able to rotate anticlockwise when
started. Should not be used for Process regulation,
closed loop. See also parameter 200 Output frequency range/direction.
Jog is used to override the output frequency to the
jog frequency set in parameter 213 Jog frequency.
Jog is active regardless of whether a start command
has been given, yet not when Coast stop, Quick-stop
or DC braking are active.
Freeze reference freezes the present reference. The
reference can now only be changed via Speed up
and Speed down.Iffreeze reference is active, it will
be saved after a stop command and in the event of
mains failure.
Freeze output freezes the present output frequency
(in Hz). The output frequency can now only be
changed via Speed up and Speed down.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
75
Programming
VLT®FCD Series
NB!:
If Freeze output is active the frequency con-
verter can only be stopped if you select Motor
coast, Quick stop or DC braking via a digital input.
Speed up and Speed down are selected if digital
control of the up/down speed is required. This function is only active if Freeze reference or Freeze
output frequency has been selected.
If Speed up is active the reference or output frequency will be increased, and if Speed down is
active the reference or output frequency will be reduced. The output frequency is changed via the
preset ramp times in parameters 209-210 Ramp 2.
One pulse (logic ’1’ minimum high for 14 ms and a
minimum break time of 14 ms) will lead to a speed
change of 0.1 % (reference) or 0.1 Hz (output frequency). Example:
Term.29Term.33Freeze ref/
freeze outp.
Function
0 0 1 No speed change
0
1 1 Speed up
1
0 1 Speed down
1
1 1 Speed down
Freeze reference can be changed even if the frequency converter has stopped. The reference will
also be saved if the mains are disconnected
Catch-up/Slow-down is selected if the reference
value is to be increased or reduced by a programmable percentage value set in parameter 219
Catch-up/Slow-down reference.
Slow-down Catch-up Function
0 0 Unchanged speed
0
1 Increase by % value
1
0 Reduce by % value
1
1 Reduce by % value
Ramp 2 is selected if a shift between ramp 1
(parameters 207-208) and ramp 2 (parameters 209-
210) is required. Logic ’0’ leads to ramp 1 and logic
’1’ leads to ramp 2.
Preset reference, lsb and Preset reference, msb
makes it possible to select one of the four preset references, see the table below:
Preset ref.
msb
Preset ref.
lsb
Function
0 0 Preset ref. 1
0
1 Preset ref. 2
1
0 Preset ref. 3
1
1 Preset ref. 4
Preset reference on is used for shifting between
remote-controlled reference and preset reference. It
is assumed that External/preset [2] has been selected in parameter 214 Reference function. Logic
’0’ = remote-controlled references are active, logic ’1’
= one of the four preset references is active, as can
be seen from the table above.
Precise stop, inverse is selected to obtain a high degree of accuracy when a stop command is repeated.
A logic 0 means that the motor speed is ramped
down to stop via the selected ramp.
Precise start/stop is selected to obtain a high degree
of accuracy when a start and stop command is repeated.
Pulse reference is selected if the reference signal
applied is a pulse train (frequency). 0 Hz corresponds to parameter 204 Minimum reference,
Ref
MIN
. The frequency set in parameter 327/328
Pulse Max 33/29 corresponds to parameter 205
Maximum reference Ref
MAX
.
Pulse feedback is selected if the feedback signal
used is a pulse train (frequency). In parameter 327/
328 Pulse Max 33/29 the maximum pulse feedback
frequency is set.
Pulse input is selected if a specific number of pulses
must lead to a Precise stop, see parameter 343 Pre-
cise stop and parameter 344 Counter value.
Selection of Setup, lsb and Selection of Setup, msb
gives the possibility to select one of the four setups.
It is, however, a condition that parameter 004 is set
to Multisetup.
Reset and start can be used as a start function. If
24 V are connected to the digital input, this will
cause the frequency converter to reset and the motor will ramp up to the preset reference.
Encoder reference is selected if the reference signal
applied is a pulse train (frequency). 0 Hz corresponds to parameter 204 Minimum reference,
Ref
MIN
. The frequency set in parameter 327/328
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
76
VLT®FCD Series
Pulse Max 33/29 corresponds to parameter 205
Maximum reference Ref
MAX
.
Encoder feedback is selected if the feedback signal
used is a pulse train (frequency). In parameter 327/
328 Pulse Max 33/29 the maximum pulse feedback
frequency is set.
Encoder input is selected if a specific number of
pulses must lead to a Precise stop, see parameter
343 Precise stop and parameter 344 Counter value.
308
308 Terminal 53, analogue input voltage
(AI [V]53FUNCT.)
Value:
No function (NO OPERATION)
[0]
✭Reference (REFERENCE)
[1]
Feedback (FEEDBACK)
[2]
Function:
In this parameter it is possible to select the function
required to be connected to terminal 53. Scaling of
the input signal is made in parameter 309 Terminal
53, min. scaling and parameter 310 Terminal 53,
max. scaling.
Description of choice:
No function [0]. Is selected if the frequency converter
is not to react to signals connected to the terminal.
Reference [1]. If this function is selected, the reference can be changed by means of an analogue
reference signal. If reference signals are connected
to more than one input, these reference signals must
be added up.
If a voltage feedback signal is connected, select
Feedback [2] on terminal 53.
309
309 Terminal 53 Min. scaling
(AI 53 SCALE LOW)
Value:
0.0 - 10.0 Volt
✭ 0.0 Volt
Function:
This parameter is used for setting the signal value
that is to correspond to the minimum reference or
the minimum feedback, parameter 204 Minimum ref-
erence, Ref
MIN
/ 414 Minimum feedback, FB
MIN
Description of choice:
Set the required voltage value. For reasons of accuracy, compensation should be made for voltage
losses in long signal cables. If the Time out function
is to be used (parameter 317 Time out and 318
Function after time out), the value set must be
higher than 1 Volt.
310
310 Terminal 53 Max. scaling
(AI 53 SCALE HIGH)
Value:
0 - 10.0 Volt
✭ 10.0 Volt
Function:
This parameter is used for setting the signal value
that is to correspond to the maximum reference value
or maximum feedback, parameter 205 Maximum ref-
erence, Ref
MAX
/ 414 Maximum feedback, FB
MAX
.
Description of choice:
Set the required voltage value. For reasons of accuracy, compensation should be made for voltage
losses in long signal cables.
314
314 Terminal 60, analogue input current
(AI [MA] 60 FUNCT)
Value:
✭No function (NO OPERA TION)
[0]
Reference (REFERENCE)
[1]
Feedback (FEEDBACK)
[2]
Function:
This parameter allows a choice between the different
functions available for the input, terminal 60. Scaling
of the input signal is effected in parameter 315 Ter-
minal 60, min. scaling and parameter 316 Terminal
60, max. scaling.
Description of choice:
No function [0]. Is selected if the frequency converter
is not to react to signals connected to the terminal.
Reference [1]. If this function is selected, the reference can be changed by means of an analogue
reference signal. If reference signals are connected
to more than one input, these reference signals must
be added up.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
77
Programming
VLT®FCD Series
If one current feedback signal is connected, select
Feedback [2] on terminal 60.
315
315 Terminal 60 Min. scaling
(AI 60 SCALE LOW)
Value:
0.0 - 20.0 mA
✭ 0.0 mA
Function:
In this parameter you can set the signal value that
will correspond to the minimum reference or minimum feedback, parameter 204 Minimum reference,
Ref
MIN
/ 414 Minimum feedback, FB
MIN
.
Description of choice:
Set the required current value. If the Time out function is to be used (parameter 317 Time out and 318
Function after time out) the value set must be higher
than 2 mA.
316
316 Terminal 60 Max. scaling
(AI 60 SCALE HIGH)
Value:
0.0 - 20.0 mA
✭ 20.0 mA
Function:
This parameter is used for setting the signal value
that is to correspond to the maximum reference
value, parameter 205 Maximum reference value,
Ref
MAX
.
Description of choice:
Set the required current value.
317
317 Time out
(LIVE ZERO TIME O)
Value:
1 - 99 sec.
✭ 10 sec.
Function:
If the signal value of the reference or feedback signal connected to one of the input terminals 53 or 60
falls below 50 % of the minimum scaling for a period
longer than the time set, the function selected in parameter 318 Function after time out will be activated.
This function is only active if in parameter 309 Termi-
nal 53, min. scaling a value higher than 1 Volt has
been selected, or if in parameter 315 Terminal 60,
min. scaling a value higher than 2 mA has been selected.
Description of choice:
Set the required time.
318
318 Function after time out
(LIVE ZERO FUNCT.)
Value:
✭No operation ( NO OPERATION)
[0]
Freeze output frequency
( FREEZE OUTPUT
FREQ.)
[1]
Stop (STOP)
[2]
Jog (JOG)
[3]
Max. speed (MAX SPEED)
[4]
Stop and trip (STOP AND TRIP)
[5]
Function:
This parameter allows a choice of the function to be
activated after the expiry of the Time out (parameter
317 Time out). If a time-out function occurs at the
same time as a bus time-out function (parameter
513 Bus time interval function), the time-out function
in parameter 318 will be activated.
Description of choice:
The output frequency of the frequency converter can
be:
- frozen at the present frequency [1]
- overruled to stop [2]
- overruled to jog frequency [3]
- overruled to max. output frequency [4]
- overruled to stop with subsequent trip [5]
319
319 Analogue output terminal 42
(AO 42 FUNCTION)
Value:
No function (NO OPERA TION)
[0]
External reference min.-max. 0-20 mA
(REF MIN-MAX = 0-20 MA)
[1]
External reference min.-max. 4-20 mA
(REF MIN-MAX = 4-20 MA)
[2]
Feedback min.-max. 0-20 mA
(FB MIN-MAX = 0-20 MA)
[3]
Feedback min.-max. 4-20 mA
(FB MIN-MAX = 4-20 MA)
[4]
Output frequency 0-max 0-20 mA
(0-FMAX = 0-20 MA)
[5]
Output frequency 0-max 4-20 mA
(0-FMAX = 4-20 MA)
[6]
✭Output current 0-I
INV.
0-20 mA
(0-IMAX = 0-20 MA)
[7]
Output current 0-I
INV.
4-20 mA
(0-IMAX = 4-20 MA)
[8]
Output power 0-P
M,N
0-20 mA
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
78
VLT®FCD Series
(0-PNOM = 0-20 MA)
[9]
Output power 0-P
M,N
4-20 mA
(0-PNOM = 4-20 MA)
[10]
Inverter temperature 20-100
C 0-20 mA
(TEMP 20-100 C=0-20 MA)
[11]
Inverter temperature 20-100
C 4-20 mA
(TEMP 20-100 C=4-20 MA)
[12]
Function:
The analogue output can be used for stating a process value. It is possible to choose two types of
output signals 0 - 20 mA or 4 - 20 mA.
If used as a voltage output (0 - 10 V), a pull-down
resistor of 500
must be fitted to common (terminal
55). If the output is used as a current output the resulting resistance from the equipment connected
may not exceed 500
.
Description of choice:
No function. Is selected if the analogue output is not
to be used.
External Ref
MIN
- Ref
MAX
0-20 mA/4-20 mA.
An output signal is obtained, which is proportional to
the resulting reference value in the interval Minimum
reference, Ref
MIN
- Maximum reference, Ref
MAX
(pa-
rameters 204/205).
FB
MIN
-FB
MAX
0-20 mA/ 4-20 mA.
An output signal is obtained, which is proportional to
the feedback value in the interval Minimum feedback, FB
MIN
- Maximum feedback, FB
MAX
(parameter
414/415).
0-f
MAX
0-20 mA/4-20 mA.
An output signal is obtained, which is proportional to
the output frequency in the interval 0 - f
MAX
(parame-
ter 202 Output frequency, high limit, f
MAX
).
0-I
INV.
0-20 mA/4-20 mA.
An output signal is obtained, which is proportional to
the output current in the interval 0 - I
INV.
.
0-P
M,N
0-20 mA/4-20 mA.
An output signal is obtained, which is proportional to
the present output power. 20 mA corresponds to the
value set in parameter 102 Motor power, P
M,N
.
0 - Temp.
MAX
0-20 mA/4-20 mA.
An output signal is obtained, which is proportional to
the present heatsink temperature. 0/4 mA corre-
sponds to a heatsink temperature of less than 20
C,
and 20 mA corresponds to 100
C.
323
323 Relay output 1-3
(RELAY 1-3 FUNCT.)
Value:
No function (NO OPERA TION)
[0]
✭Unit ready (UNIT READY)
[1]
Enable/no warning (ENABLE/NO WARNING)
[2]
Running (RUNNING)
[3]
Running in reference, no warning
(RUN ON REF/NO WARN)
[4]
Running, no warnings
(RUNNING/NO WARNING)
[5]
Running in reference range, no warnings
(RUN IN RANGE/ NO WARN)
[6]
Ready - mains voltage within range
(RDY NO OVER/UNDERVOL)
[7]
Alarm or warning
(ALARM OR WARNING)
[8]
Current higher than current limit, par. 221
(CURRENT LIMIT)
[9]
Alarm (ALARM)
[10]
Output frequency higher than f
LOW
par. 225
(ABOVE FREQUENCY LOW)
[11]
Output frequency lower than f
HIGH
par. 226
(BELOW FREQUENCY HIGH)
[12]
Output current higher than I
LOW
par. 223
(ABOVE CURRENT LOW)
[13]
Output current lower than I
HIGH
par. 224
(BELOW CURRENT HIGH)
[14]
Feedback higher than FB
LOW
par. 227
(ABOVE FEEDBACK LOW)
[15]
Feedback lower than FB
HIGH
par. 228
(UNDER FEEDBACK HIGH)
[16]
Relay 123 (RELA Y 123)
[17]
Reversing (REVERSE)
[18]
Thermal warning (THERMAL WARNING)
[19]
Local operation (LOCAL MODE)
[20]
Pulse output (PULSE OUTPUT)
[21]
Out of frequency range, par. 225/226
(OUT OF FREQ RANGE)
[22]
Out of current range
(OUT OF CURRENT RANGE)
[23]
Out of feedback range
(OUT OF FDBK. RANGE)
[24]
Mechanical brake control
(MECH. BRAKE CONTROL)
[25]
Function:
The relay output can be used for giving the present
status or warning. The output is activated (1–2
make) when a given condition is fulfilled.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
79
Programming
VLT®FCD Series
Description of choice:
No function. Is selected if the frequency converter is
not to react to signals.
Unit ready, there is a supply voltage on the control
card of the frequency converter, and the frequency
converter is ready for operation.
Enable, no warning, the frequency converter is ready
for operation, but no start command has been given.
No warning.
Running, a start command has been given.
Running in reference, no warning speed according
to reference.
Running, no warning, a start command has been
given. No warning.
Ready - mains voltage within range, the frequency
converter is ready for use; the control card is receiving a supply voltage; and there are no active control
signals on the inputs. The mains voltage lies within
the voltage limits.
Alarm or warning, the output is activated by an
alarm or warning.
Current limit, the output current is higher than the
value programmed in parameter 221 Current limit
I
LIM
.
Alarm, The output is activated by an alarm.
Output frequency higher than f
LOW
, the output fre-
quency is higher than the value set in parameter 225
Warning: Low frequency, f
LOW
.
Output frequency lower than f
HIGH
, the output fre-
quency is lower than the value set in parameter 226
Warning: High frequency, f
HIGH
.
Output current higher than I
LOW
, the output current is
higher than the value set in parameter 223 Warning:
Low current, I
LOW
Output current lower than I
HIGH
, the output current is
lower than the value set in parameter 224 Warning:
High current, I
HIGH
.
Feedback higher than FB
LOW
, the feedback value is
higher than the value set in parameter 227 Warning:
Low feedback, FB
LOW
.
Feedback lower than FB
HIGH
, the feedback value is
lower than the value set in parameter 228 Warning:
High current, I
HIGH
.
Relay 123 is only used in connection with Profidrive.
Reversing, The relay output is activated when the di-
rection of motor rotation is anti-clockwise. When the
direction of motor rotation is clockwise, the value is 0
VDC.
Thermal warning, above the temperature limit in either the motor or the frequency converter, or from a
thermistor connected to a digital input.
Local operation, the output is active when in parameter 002 Local/remote operation, Local operation [1]
has been selected.
Pulse output can only be selected in par. 341 Digital
output terminal 46.
Out of the frequency range, the output frequency is
out of the programmed frequency range in parameters 225 and 226.
Out of the current range, the motor current is out of
the programmed range in parameters 223 and 224.
Out of the feedback range, the feedback signal is out
of the programmed range in parameters 227 and
228.
Mechanical brake control, enables you to control an
external mechanical brake (see section about control
of mechanical brake in the Design Guide).
327
327 Pulse Max. 33
(PULSE MAX 33)
Value:
150 - 67600 Hz
✭ 5000 Hz
Function:
This parameter is used for setting the signal value
that corresponds to the maximum value set in parameter 205 Maximum reference, Ref
MAX
or to the
maximum feedback value set in parameter 415 Max-
imum feedback, FB
MAX
.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
80
VLT®FCD Series
Description of choice:
Set the required pulse reference or pulse feedback
to be connected to terminal 33.
328
328 Pulse Max. 29
(PULSE MAX 29)
Value:
1000 - 67600 Hz
✭ 5000 Hz
Function:
This parameter is used for setting the signal value
that corresponds to the maximum value set in parameter 205
Maximum reference, Ref
MAX
or to the
maximum feedback value set in parameter 415 Max-
imum feedback, FB
MAX
.
Description of choice:
Set the required pulse reference or pulse feedback
to be connected to terminal 29.
341
341 Digital output terminal 46
(DO 46 FUNCTION)
Value:
✭Drive ready (UNIT READ Y)
[1]
✭ See the selection made in parameter 323 Relay
output.
Function:
The digital output can be used for giving the present
status or warning. The digital output (terminal 46)
gives a 24 V DC signal when a given condition is fulfilled.
Description of choice:
Pulse output is to be selected if a pulse sequence is
required that corresponds to the reference value.
Pulse output can only be selected in parameter 341
Digital output. Pulse Output cannot be selected if
Pulse Reference or Pulse Feedback is selected in
parameter 305.
See parameter 323 Relay output for the other descriptions.
342
342 Terminal 46, max. pulse scaling
(DO 46 MAX. PULS)
Value:
150 - 10000 Hz
✭ 5000 Hz
Function:
This parameter is used for setting the pulse output
signal’s maximum frequency.
Description of choice:
Set the required frequency.
343
343 Precise stop function
(PRECISE STOP)
Value:
✭Normal ramp stop (NORMAL)
[0]
Counter stop with reset
(COUNT STOP NO RESET)
[1]
Counter stop without reset
(COUNT STOP NO RESET)
[2]
Speed-compensated stop (SPD CMP STOP)
[3]
Speed-compensated counter stop with reset
(SPD CMP CSTOP W. RES)
[4]
Speed-compensated counter stop without reset
(SPD CMP CSTOP NO RES)
[5]
Function:
In this parameter you select which stop function is
performed in response to a stop command. All six
data selections contain a precise stop routine, thus
ensuring a high level of repeat accuracy.
The selections are a combination of the functions
described below.
NB!:
Pulse start [8] may n
ot be
used together with the precise stop function.
Description of choice:
Normal ramp stop [0] is selected to achieve high
repetitive precision at the stopping point.
Counter stop. Once it has received a pulse start signal the frequency converter runs until the number of
pulses programmed by the user have been received
at input terminal 33. In this way an internal stop
signal will activate the normal ramp down time (parameter 208).
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
81
Programming
VLT®FCD Series
The counter function is activated (starts timing) at
the flank of the start signal (when it changes from
stop to start)
Speed compensated stop. To stop at precisely the
same point, regardless of the present speed, a stop
signal received is delayed internally when the present speed is lower than the maximum speed (set in
parameter 202).
Reset. Counter stop and Speed-compensated stop
can be combined with or without reset.
Counter stop with reset [1]. After each precise stop
the number of pulses counted during ramp down 0
Hz is reset.
Counter stop without reset [2]. The number of
pulses counted during ramp down to 0 Hz is deducted from the counter value in parameter 344.
344
344 Counter value
(PULSE COUNT PRE.)
Value:
1 - 999999
✭ 100000 pulses
Function:
In this parameter you can select the counter value to
be used in the integrated precise stop function (parameter 343).
Description of choice:
The factory setting is 100000 pulses. The highest
frequency (max. resolution) that can be registered at
terminal 33 is 67.6 kHz.
349
349 Speed comp delay
(SPEED COMP DELAY)
Value:
0 ms - 100 ms
✭ 10 ms
Function:
In this parameter the user can set the system’s delay time (Sensor, PLC, etc.). If you are running
speed-compensated stop, the delay time at different
frequencies has a major influence on the way in
which you stop.
Description of choice:
The factory setting is 10 ms. This means that it is
assumed that the total delay from the Sensor, PLC
and other hardware corresponds to this setting.
NB!:
Only active for speed-compensated stop.
✭ = factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
82
VLT®FCD Series
400
400 Brake function
(BRAKE FUNCTION)
Value:
✭Off (OFF)
[0]
Resistor brake
(RESISTOR)
[1]
AC brake (AC BRAKE)
[4]
Function:
Resistor brake [1] is selected if the frequency converter has an integral brake transistor and brake
resistor is connected to terminals 81, 82. A higher
intermediate circuit voltage is permitted during braking (generated operation) when a brake resistor is
connected.
AC brake [4] can be selected to improve braking
without using brake resistors. Please note that AC
brake [4] is not as effective as Resistor brake [1].
Description of choice:
Select Resistor brake [1] if a brake resistor is connected.
Select AC brake [4] if short-term generated loads occur. See parameter 144 Gain AC brake to set the
brake.
NB!:
A change of selection will not become active
until the mains voltage has been discon-
nected and reconnected.
405
405 Reset function
(RESET MODE)
Value:
✭Manual reset (MANUAL RESET)
[0]
Automatic reset x 1
(AUTOMA TIC X 1)
[1]
Automatic reset x 3
(AUTOMA TIC X 3)
[3]
Automatic reset x 10
(AUTOMA TIC X 10)
[10]
Reset at power-up
(RESET AT POWER UP)
[11]
Function:
This parameter makes it possible to select whether
reset and restart after a trip are to be manual or
whether the frequency converter is to be reset and
restarted automatically. Furthermore, it is possible to
select the number of times a restart is to be attempted. The time between each attempt is set in
parameter 406 Automatic restart time.
Description of choice:
If Manual reset [0] is selected, reset is to be carried
out via the [STOP/RESET] key, a digital input or se-
rial communication. If the frequency converter is to
carry out an automatic reset and restart after a trip,
select data value [1], [3] or [10].
If Reset at power-up [11] is selected, the frequency
converter will carry out a reset if there has been a
fault in connection with the mains failure
The motor may start without warning.
406
406 Automatic restart time
(AUTORESTART TIME)
Value:
0 - 10 sec.
✭ 5 sec.
Function:
This parameter allows setting of the time from tripping until the automatic reset function begins. It is
assumed that automatic reset has been selected in
parameter 405 Reset function.
Description of choice:
Set the required time.
409
409 Trip delay overcurrent, I
LIM
(TRIP DELAY CUR.)
Value:
0 - 60 sec. (61=OFF)
✭ OFF
Function:
When the frequency converter registers that the output current has reached the current limit
I
LIM
(parameter 221 Current limit) and remains there
for the preset time, it is disconnected. Can be used
to protect the application, like the ETR will protect
the motor if selected.
Description of choice:
Select how long the frequency converter should
maintain the output current at the current limit I
LIM
before it disconnects. At OFF parameter 409 Tr ip
delay overcurrent, I
LIM
is not working, i.e. disconnec-
tion will not take place.
411
411 Switching frequency
(SWITCH FREQ.)
Value:
3000 - 14000 Hz
✭ 4500 Hz
Function:
The set value determines the switching frequency of
the inverter. If the switching frequency is changed,
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
83
Programming
VLT®FCD Series
this may help to minimise possible acoustic noise
from the motor.
NB!:
The output frequency of the frequency converter can never assume a value higher than
1/10 of the switching frequency.
Description of choice:
When the motor is running, the switching frequency
is adjusted in parameter 411 Switching frequency
until the frequency has been obtained at which the
motor is as low-noise as possible.
NB!:
The switching frequency is reduced
automatically as a function of the load. See
Temperature-Dependent Switching Frequency under
Special Conditions.
413
413 Overmodulation function
(OVERMODULATION)
Value:
Off (OFF)
[0]
✭On (ON)
[1]
Function:
This parameter allows connection of the overmodulation function for the output voltage.
Description of choice:
Off [0] means that there is no overmodulation of the
output voltage, which means that torque ripple on
the motor shaft is avoided. This can be a good feature, e.g. on grinding machines.
On [1] means that an output voltage can be obtained
which is greater than the mains voltage (up to 5 %).
414
414 Minimum feedback, FB
MIN
(MIN. FEEDBACK)
Value:
-100,000.000 - par. 415 FB
MAX
✭ 0.000
Function:
Parameter 414 Minimum feedback, FB
MIN
and 415
Maximum feedback, FB
MAX
are used to scale the
display text to make it show the feedback signal in a
process unit proportionally to the signal on the input.
Description of choice:
Set the value to be shown on the display as the minimum feedback signal value on the selected
feedback input (parameters 308/314 Analog inputs).
415
415 Maximum feedback, FB
MAX
(MAX. FEEDBACK)
Value:
FB
MIN
- 100,000.000
✭ 1500.000
Function:
See description of parameter 414 Minimum feedback, FB
MIN
.
Description of choice:
Set the value to be shown on the display when the
maximum feedback has been obtained on the selected feedback input (parameter 308/314 Analogue
inputs).
416
416 Process units
(REF/FEEDB. UNIT)
Value:
✭No unit ( NO UNIT)
[0]
% (%)
[1]
ppm (PPM)
[2]
rpm (RPM)
[3]
bar (BAR)
[4]
Cycles/min (CYCLE/MI)
[5]
Pulses/s (PULSE/S)
[6]
Units/s (UNITS/S)
[7]
Units/min. (UNITS/MI)
[8]
Units/h (UNITS/H)
[9]
C(
C)
[10]
Pa (PA)
[11]
l/s (L/S)
[12]
m
3
/s (M3/S)
[13]
l/min. (L/M)
[14]
m
3
/min. (M3/MIN)
[15]
l/h (L/H)
[16]
m
3
/h (M3/H)
[17]
Kg/s (KG/S)
[18]
Kg/min. (KG/MIN)
[19]
Kg/hour (KG/H)
[20]
Tons/min. (T/MIN)
[21]
Tons/hour (T/H)
[22]
Metres (M)
[23]
Nm (NM)
[24]
m/s (M/S)
[25]
m/min. (M/MIN)
[26]
F(
F)
[27]
In wg (IN WG)
[28]
gal/s (GAL/S)
[29]
Ft
3
/s (FT3/S)
[30]
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
84
VLT®FCD Series
Gal/min. (GAL/MIN)
[31]
Ft
3
/min. (FT3/MIN)
[32]
Gal/h (GAL/H)
[33]
Ft
3
/h (FT3/H)
[34]
Lb/s (LB/S)
[35]
Lb/min. (LB/MIN)
[36]
Lb/hour (LB/H)
[37]
Lb ft (LB FT)
[38]
Ft/s (FT/S)
[39]
Ft/min. (FT/MIN)
[40]
Function:
Select among different units to be shown on the display. The unit is read out if an LCP control unit can
be connected, and if Reference [unit] [2] or
Feedback [unit] [3] has been selected in one of parameters 009-012 Display read-out, and in Display
mode. The unit is used in Closed loop also as a unit
for Minimum/Maximum reference and Minimum/Maximum feedback.
Description of choice:
Select the required unit for the reference/feedback
signal.
■ FCD 300 Regulators
The FCD 300 has two integrated PID regulators, one
to regulate speed and one to regulate processes.
Speed regulation and process regulation require a
feedback signal back to an input. There are a number of settings for both PID regulators that are made
in the same parameters, but selection of regulator
type will affect the selections that have to be made
in the shared parameters.
In parameter 100 Configuration it is possible to select regulator type, Speed regulation, closed loop [1]
or Process regulation, closed loop [3].
S
peed regulation
This PID regulation is optimised for use in applications in which there is a need to maintain a
particular motor speed. The parameters that are
specific for the speed regulator are parameter 417 to
parameter 421.
P
rocess regulation
The PID regulator maintains a constant process
mode (pressure, temperature, flow, etc.) and adjusts
the motor speed on the basis of the reference/setpoint and feedback signal.
A transmitter provides the PID regulator with a feedback signal from the process as an expression of the
process’s actual mode. The feedback signal varies
as the process load varies.
This means that there is a variance between the reference/setpoint and the actual process mode. This
variance is compensated by the PID regulator by
means of the output frequency being regulated up or
down in relation to the variance between the reference/setpoint and the feedback signal.
The integrated PID regulator in the frequency
converter has been optimised for use in process applications. This means that there are a number of
special functions available in the frequency converter.
Previously it was necessary to obtain a system to
handle these special functions by installing extra I/O
modules and programming the system. With the frequency converter the need to install extra modules
can be avoided. The parameters that are specificto
the Process Regulator are parameter 437 to parameter 444.
■ PID functions
U
nit of reference/feedback
When Speed regulation, closed loop is selected in
parameter 100 Configuration the unit of reference/
feedback is always rpm.
When Process regulation, closed loop is selected in
parameter 100 Configuration the unit is defined in
parameter 416 Process units.
F
eedback
A feedback range must be preset for both regulators.
At the same time this feedback range limits the potential reference range so that if the sum of all
references lies outside the feedback range, the reference will be limited to lie within the feedback range.
The feedback signal must be connected to a terminal on the frequency converter. If feedback is
selected on two terminals simultaneously , the two
signals will be added together.
Use the overview below to determine which terminal
is to be used and which parameters are to be programmed.
Feedback type Terminal Parameters
Pulse 29, 33 305, 307, 327,
328
Voltage 53 308, 309, 310
Current 60 314, 315, 316
A correction can be made for loss of voltage in long
signal cables when a transmitter with a voltage output is used. This is done in parameter group 300
Min./Max scaling.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
85
Programming
VLT®FCD Series
Parameters 414/415 Minimum/Maximum feedback
must also be preset to a value in the process unit
corresponding to the minimum and maximum scaling
values for signals that are connected to the terminal.
R
eference
In parameter 205 Maximum reference, Ref
MAX
it is
possible to preset a maximum reference that scales
the sum of all references, i.e. the resulting reference.
The minimum reference in parameter 204 is an expression of the minimum value that the resulting
reference can assume.
All references will be added together and the sum
will be the reference against which regulation will
take place. It is possible to limit the reference range
to a range that is smaller than the feedback range.
This can be an advantage if you want to avoid an
unintentional change to an external reference making the sum of the references move too far away
from the optimal reference. The reference range
cannot exceed the feedback range.
If preset references are desired, they are preset in
parameters 215 to 218 Preset reference. See
description Reference Function and Handling of Ref-
erences.
If a current signal is used as the feedback signal, it
will only be possible to use voltage as an analogue
reference. Use the overview below to determine
which terminal is to be used and which parameters
are to be programmed.
Reference
type
Terminal Parameters
Pulse 29, 33 305, 307, 327,
328
Voltage 53 308, 309, 310
Current 60 314, 315, 316
Preset
references
215-218
Bus reference 68+69
Note that the bus reference can only be preset via
serial communication.
NB!:
It is best to preset terminals
that are not being used to No function [0].
D
ifferentiator gain limit
If very rapid variations occur in an application in either the reference signal or the feedback signal, the
deviation between the reference/setpoint and the
process’s actual mode will change quickly. The differentiator can then become too dominant. This is
because it is reacting to the deviation between the
reference and the process’s actual mode, and the
quicker the variance changes the more powerful the
differentiator’s frequency contribution becomes. The
differentiator’s frequency contribution can therefore
be limited in such a way that both a reasonable
differentiation time for slow changes and an appropriate frequency contribution for quick changes can
be preset. This is done using the speed regulation in
parameter 420 Speed PID Differentiator gain limit
and Process regulation in parameter 443 Process
PID Differentiator gain limit.
L
owpass filter
If there is a lot of noise in the feedback signal, these
can be dampened using an integratedlowpass filter.
A suitable lowpass filter time constant is preset.
If the lowpass filter is preset to 0.1 s, the cut-off frequency will be 10 RAD/sec, corresponding to (10 / 2
x
) = 1.6 Hz. This will mean that all currents/voltages that vary by more than 1.6 oscillations per
second will be dampened. In other words, there will
only be regulation on the basis of a feedback signal
that varies by a frequency of less than 1.6 Hz. The
appropriate time constant is selected in Speed Regulation in parameter 421 Speed PID lowpass filter
time and in Process Regulation in parameter 444
Process PID lowpass filter time.
I
nverse regulation
Normal regulation means that the motor speed is increased when the reference/setpoint is greater than
the feedback signal. If it is necessary to run inverse
regulation, in which the speed is reduced when the
reference/setpoint is greater than the feedback signal, parameter 437 PID normal/inverted control must
be programmed at Inverted.
A
nti Windup
In the factory the process regulator is preset with an
active anti windup function. This function means that
when either a frequency limit, a current limit or a
voltage limit is reached, the integrator is initialised at
a frequency corresponding to the present output frequency. This is a means of avoiding the integration of
a variance between the reference and the process’s
actual mode that cannot be deregulated by means of
a change of speed. This function can be deselected
in parameter 438 Process PID anti windup.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
86
VLT®FCD Series
Starting conditions
In some applications the optimal setting of the process regulator will mean that a relatively long period
of time will pass before the required process condition is achieved. In these applications it can be a
good idea to define an output frequency to which the
frequency converter must run the motor before the
process regulator is activated. This is done by programming a start frequency in parameter 439
Process PID start frequency.
■ Handling of feedback
Feedback handling is depicted in this flowchart.
The flowchart shows which parameters can affect
the handling of feedback and how. A choice can be
made between voltage, current and pulse feedback
signals.
✭ = factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
87
Programming
VLT®FCD Series
NB!:
Parameters 417-421 are only used, if in parameter 100
Configuration the selection made
is Speed regulation, closed loop [1].
417
417 Speed PID proportional gain
(SPEED PROP GAIN)
Value:
0.000 (OFF) - 1.000
✭ 0.010
Function:
Proportional gain indicates how many times the fault
(deviation between the feedback signal and the setpoint) is to be amplified.
Description of choice:
Quick regulation is obtained at high amplification, but
if the amplification is too high, the process may become unstable in the case of overshooting.
418
418 Speed PID integral time
(SPEED INT. TIME)
Value:
20.00 - 999.99 ms (1000 = OFF)
✭ 100 ms
Function:
The integral time determines how long the PID regulator takes to correct the error. The greater the error,
the quicker the integrator frequency contribution will
increase. The integral time is the time the integrator
needs to achieve the same change as the proportional amplification.
Description of choice:
Quick regulation is obtained through a short integral
time. However, if this time is too short, it can make
the process unstable. If the integral time is long, major deviations from the required reference may occur,
since the process regulator will take long to regulate
if an error has occurred.
419
419 Speed PID differential time
(SPEED DIFF. TIME)
Value:
0.00 (OFF) - 200.00 ms
✭ 20.00 ms
Function:
The differentiator does not react to a constant error.
It only makes a contribution when the error changes.
The quicker the error changes, the stronger the gain
from the differentiator will be. The contribution is
proportional to the speed at which errors change.
Description of choice:
Quick control is obtained by a long differential time.
However, if this time is too long, it can make the process unstable. When the differential time is 0 ms,
the D-function is not active.
420
420 Speed PID D- gain limit
(SPEED D-GAIN LIM)
Value:
5.0 - 50.0
✭ 5.0
Function:
It is possible to set a limit for the gain provided by
the differentiator. Since the D-gain increases at
higher frequencies, limiting the gain may be useful.
This enables obtaining a pure D-gain at low frequencies and a constant D-gain at higher frequencies.
Description of choice:
Select the required gain limit.
421
421 Speed PID lowpass filter time
(SPEED FILT. TIME)
Value:
20 - 500 ms
✭ 100 ms
Function:
Noise in the feedback signal is dampened by a first
order lowpass filter to reduce the noise’s impact on
the regulation. This might be an advantage, e.g. if
there is a great amount of noise on the signal. See
drawing.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
88
VLT®FCD Series
Description of choice:
If a time constant (t) of 100 ms is programmed, the
cut-off frequency for the lowpass filter will be 1/0.1 =
10 RAD/sec., corresponding to (10 / 2 x
) = 1.6 Hz.
The PID regulator will then only regulate a feedback
signal that varies with a frequency of less than 1.6
Hz. If the feedback signal varies by a higher frequency than 1.6 Hz, it will be dampened by the
lowpass filter.
423
423 U1 voltage
(U1 VOLTAGE)
Value:
0.0 - 999.0 V
✭ par. 103
Function:
Parameters 423-428 are used when in parameter
101 Torque characteristic a selection has been made
of Special motor characteristic [8]. It is possible to
determine a U/f characteristic on the basis of four
definable voltages and three frequencies. The voltage at 0 Hz is set in parameter 133 Start voltage.
Description of choice:
Set the output voltage (U1) that is to match the first
output frequency (F1), parameter 424 F1 frequency.
424
424 F1 frequency
(F1 FREQUENCY)
Value:
0.0 - par. 426 F2 frequency
✭ Par. 104 Motor frequency
Function:
See parameter 423 U1 voltage.
Description of choice:
Set the output frequency (F1) that is to match the
first output voltage (U1), parameter 423 U1 voltage.
425
425 U2 voltage
(U2 VOLTAGE)
Value:
0.0 - 999.0 V
✭ par. 103
Function:
See parameter 423 U1 voltage.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
89
Programming
VLT®FCD Series
Description of choice:
Set the output voltage (U2) that is to match the
second output frequency (F2), parameter 426 F2 fre-
quency.
426
426 F2 frequency
(F2 FREQUENCY)
Value:
Par. 424 F1 frequency - par. 428 F3 frequency
✭ Par. 104 Motor frequency
Function:
See parameter 423 U1 voltage.
Description of choice:
Set the output frequency (F2) that is to match the
second output voltage (U2), parameter 425 U2 volt-
age.
427
427 U3 voltage
(U3 VOLTAGE)
Value:
0.0 - 999.0 V
✭ par. 103
Function:
See parameter 423 U1 voltage.
Description of choice:
Set the output voltage (U3) that is to match the third
output frequency (F3), parameter 428 F3 frequency.
428
428 F3 frequency
(F3 FREQUENCY)
Value:
Par. 426 F2 frequency - 1000 Hz
✭ Par. 104 Motor frequency
Function:
See parameter 423 U1 voltage.
Description of choice:
Set the output frequency (F3) that is to match the
third output voltage (U3), parameter 427 U3 voltage.
NB!:
Parameters 437-444 are only used if in
parameter 100 Configuration a selection has
been made of Process regulation, closed loop. [3].
437
437 Process PID normal/inverse control
(PROC NO/INV CTRL)
Value:
✭Normal ( NORMAL)
[0]
Inverse ( INVERSE)
[1]
Function:
It is possible to choose whether the process regulator is to increase/reduce the output frequency if
there is a deviation between the reference/setpoint
and the actual process mode.
Description of choice:
If the frequency converter is to reduce the output frequency in case the feedback signal increases, select
Normal [0].
If the frequency converter is to increase the output
frequency in case the feedback signal increases, select Inverse [1].
438
438 Proces PID anti windup
(PROC ANTI WINDUP)
Value:
Not active (DISABLE)
[0]
✭Active (ENABLE)
[1]
Function:
It is possible to select whether the process regulator
is to continue regulating on a deviation even if it is
not possible to increase/reduce the output frequency.
Description of choice:
The factory setting is Enable [1], which means that
the integration link is initialised in relation to the actual output frequency if either the current limit, the
voltage limit or the max./min. frequency has been
reached. The process regulator will not engage
again until either the error is zero or its sign has
changed. Select Disable [0] if the integrator is to
continue integrating on the deviation, even if it is not
possible to remove the fault by such control.
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
90
VLT®FCD Series
NB!:
If Disable [0] is selected, it will mean that
when the deviation changes its sign, the integrator will first have to integrate down from the level
obtained as a result of the former error, before any
change in output frequency occurs.
439
439 Process PID start frequency
(PROC START VALUE)
Value:
f
MIN
-f
MAX
(parameter 201/202)
✭ Par. 201 Output frequency, low limit, f
MIN
Function:
When the start signal comes, the frequency converter will react in the form of Open loop and will not
change to Closed loop until the programmed start
frequency is reached. This makes it possible to set a
frequency that corresponds to the speed at which
the process normally runs, which will enable the required process conditions to be reached sooner.
Description of choice:
Set the required start frequency.
NB!:
If the frequency converter is running a the cur-
rent limit before the required start frequency is
obtained, the process regulator will not be activated.
For the regulator to be activated anyway, the start
frequency must be lower to the required output frequency. This can be done during operation.
440
440 Proces PID proportioanl gain
(PROC. PROP. GAIN)
Value:
0.0 - 10.00
✭ 0.01
Function:
The proportional gain indicates the number of times
the deviation between the setpoint and the feedback
signal is to be applied.
Description of choice:
Quick regulation is obtained by a high gain, but if the
gain is too high, the process may become unstable
due to overshoot.
441
441 Process PID integration time
(PROC. INTEGR. T.)
Value:
0.01 - 9999.99 (OFF)
✭ OFF
Function:
The integrator provides an increasing gain at a constant error between the reference/setpoint and the
feedback signal. The greater the error, the quicker
the integrator frequency contribution will increase.The integral time is the time needed by the
integrator to make the same change as the proportional gain.
Description of choice:
Quick regulation is obtained at a short integral time.
However, this time may become too short, which can
make the process unstable due to overswing. If the
integral time is long, major deviations from the
required setpoint may occur, since the process regulator will take a long time to regulate in relation to a
given error.
442
442 Process PID differentiation time
(PROC. DIFF. TIME)
Value:
0.00 (OFF) - 10.00 sec.
✭ 0.00 sec.
Function:
The differentiator does not react to a constant error.
It only makes a gain when an error changes. The
quicker the deviation changes, the stronger the gain
from the differentiator. The gain is proportional to
the speed at which the deviation changes.
Description of choice:
Quick regulation is obtained with a long differentiation time. However, this time may become too long,
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
91
Programming
VLT®FCD Series
which can make the process unstable due to overswing.
443
443 Process PID diff. gain limit
(PROC. DIFF.GAIN)
Value:
5.0 - 50.0
✭ 5.0
Function:
It is possible to set a limit for the differentiator gain.
The differentiator gain will increase if there are fast
changes, which is why it can be beneficial to limit
this gain. Thereby a pure differentiator gain is obtained at slow changes and a constant differentiator
gain where quick changes to the deviation occur.
Description of choice:
Select a differentiator gain limit as required.
444
444 Process PID lowpass filter time
(PROC FILTER TIME)
Value:
0.02 - 10.00
✭ 0.02
Function:
Noise in the feedback signal is dampened by a first
order lowpass filter to reduce the noise’s impact on
the process regulation. This can be an advantage
e.g. if there is a lot of noise on the signal.
Description of choice:
Select the required time constant (t). If a time
constant (t) of 0.1 s is programmed, the cut-off frequency for the lowpass filter will be 1/0.1 = 10 RAD/
sec., corresponding to (10 / 2 x
) = 1.6 Hz. The
process regulator will thus only regulate a feedback
signal that varies by a frequency lower than 1.6 Hz.
If the feedback signal varies by a higher frequency
than 1.6 Hz, it will be dampened by the lowpass filter.
445
445 Flying start
(FLYINGSTART )
Value:
✭Off (DISABLE)
[0]
OK - same direction
(OK-SAME DIRECTION)
[1]
OK - both directions
(OK-BOTH DIRECTIONS)
[2]
DC brake and start
(DC-BRAKE BEF. START)
[3]
Function:
This function makes it possible to ’catch’ a rotating
motor shaft, which is no longer controlled by the frequency converter, e.g. because of a mains drop-out.
The function is activated each time a start command
is enabled. For the frequency converter to be able to
’catch’ the rotating motor shaft, the motor speed
must be lower than the frequency that corresponds
to the frequency in parameter 202 Output frequency,
high limit, f
MAX
.
Description of choice:
Select Disable [0] if this function is not required.
Select OK - same direction [1] if the motor shaft is
only able to rotate in the same direction when cutting
in. OK - same direction [1] should be selected if in
parameter 200 Output frequency range a selection
has been of Clockwise only.
Select OK - both directions [2] if the motor is able to
rotate in both directions when cutting in.
Select DC brake and start [3] if the frequency converter is to be able to brake the motor using the DC
brake first, followed by start. It is assumed that parameters 126-127/132 DC brake are enabled. In the
case of higher ’Windmilling’ (rotating motor) effects,
the frequency converter is not able to ’catch’ a rotating motor without selecting DC brake and start.
Limitations:
- Too low inertia will lead to load acceleration,
which can be dangerous or prevent correct catching of a rotating motor. Use the DC brake instead.
- If the load is driven, e.g. by ’Windmilling’ (rotating
motor) effects, the unit may cut out because of
overvoltage.
- Flying start does not work at lower values than
250 rpm.
451
451 Speed PID feedforward factor
(FEEDFORWARD FACT)
Value:
0 - 500 %
✭ 100 %
Function:
This parameter is only active if in parameter 100
Configuration the selection made is Speed regulation, closed loop. The FF function sends a larger or
smaller part of the reference signal outside the PID
controller in such a way that the PID controller only
has an influence on part of the control signal. Any
change to the set point will thus have a direct effect
✭
= factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
92
VLT®FCD Series
on the motor speed. The FF factor provides high dynamism when changing the set point and less
overswing.
Description of choice:
The required % value can be selected in the interval
f
MIN-fMAX
. Values over 100 % are used if the set
point variations are only small.
452
452 Controller range
(PID CONTR. RANGE)
Value:
0 - 200 %
✭ 10 %
Function:
This parameter is only active if in parameter 100
Configuration the selection made is Speed regulation, closed loop.
The controller range (bandwidth) limits the output
from the PID controller as a % of motor frequency
f
M,N
.
Description of choice:
The required % value can be selected for motor frequency f
M,N
. If the controller range is reduced the
speed variations will be less during initial tuning.
456
456 Brake Voltage Reduce
(BRAKE VOL REDUCE)
Value:
0 - 50 V
✭ 0
Function:
The user sets the voltage by which the level for
resistor braking is reduced. It is only active when resistor in parameter 400 is selected.
Description of choice:
The greater the reduction value, the faster the reaction to a generator overload. Should only be used if
there are problems with overvoltage in the intermediate circuit.
✭ = factory setting. () = display text [] = value for use in communication via serial communication port
MG.04.A1.02 - VLT is a registered Danfoss trade mark
93
Programming
VLT®FCD Series
■ Serial communication for FCD 300
■ Protocols
All frequency converters are equipped with an RS
485 port as standard, which makes it possible to
choose between two protocols. The two protocols
that can be selected in parameter 512
Telegram Pro-
file, are:
• Profidrive protocol
• Danfoss FC protocol
To select Danfoss FC protocol, parameter 512 Telegram Profile is set to FC protocol [1].
■ Telegram Traffic
C
ontrol and response telegrams
Telegram traffic in a master-slave system is controlled by the master. A maximum of 31 slaves can
be connected to a master, unless repeaters are
used. If repeaters are used, a maximum of 126
slaves can be connected to a master.
The master constantly sends telegrams addressed
to the slaves and waits for response telegrams from
them. The slave’s response time is a maximum of
50 ms.
Only a slave that has received an error-free telegram, addressed to that slave can send a response
telegram.
B
roadcast
A master can send the same telegram simultaneously to all slaves connected to the bus. During this
broadcast communication the slave does not send
any response telegrams back to the master as to
whether the telegram has been correctly received.
Broadcast communication is set up in address format (ADR), see Telegram structure.
C
ontent of a character (byte)
Each character transferred begins with a start bit.
Then 8 data bits are transferred, corresponding to a
byte. Each character is secured via a parity bit,
which is set at "1" when it reaches parity (i.e. when
there is an equal number of 1’s in the 8 data bits
and the parity bit in total). A character is completed
by a stop bit, thus consisting of 11 bits in all.
■ Telegram Structure
Each telegram begins with a start character (STX) =
02 Hex, followed by a byte that denotes the length of
the telegram (LGE) and a byte that denotes the
address of the frequency converter (ADR). Then follows a number of data bytes (variable, depending on
the type of telegram). The telegram is completed by
a data control byte (BCC).
Telegram times
The communication speed between a master and a
slave depends on the baud rate. The frequency converter’s baud rate must be the same as the master’s
baud rate and be selected in parameter 501 Bau-
drate.
After a response telegram from the slave, there must
be a pause of at least 2 characters (22 bits) before
the master can send a new telegram. At a baud rate
of 9600 baud there must be a pause of at least 2.3
ms. When the master has completed the telegram,
the slave’s response time back to the master will be
a maximum of 20 ms, and there will be pause of at
least 2 characters.
Pause time, min: 2 characters
Response time, min: 2 characters
MG.04.A1.02 - VLT is a registered Danfoss trade mark
94
VLT®FCD Series
Response time, max: 20 ms
The time between the individual characters in a telegram may not exceed 2 characters and the telegram
must be completed within 1.5 x nominal telegram
time. At a baud rate of 9600 baud and a telegram
length of 16 bytes the telegram will be completed after 27.5 msec.
Telegram length ( LGE)
The telegram length is the number of data bytes plus
the address byte ADR plus the data control byte
BCC.
The length of telegrams with 4 data bytes is:
LGE = 4 + 1 + 1 = 6 bytes
The length of telegrams with 12 data bytes is:
LGE = 12 + 1 + 1 = 14 bytes
The length of telegrams containing texts is 10+n
bytes. 10 represents the fixed characters, while the
’n’ is variable (depending on the length of the text).
F
requency converter address (ADR)
Two different address formats are used, with the frequency converter’s address range being either 1-31
or 1-126.
1. Address format 1-31
The byte for address range 1-31 has the following
profile:
Bit 7 = 0 (address format 1-31 active)
Bit 6 is not used
Bit 5 = 1: Broadcast, address bits (0-4) are not
used
Bit 5 = 0: No Broadcast
Bit 0-4 = Frequency converter address 1-31
2. Address format 1-126
The byte for address range 1 - 126 has the following
profile:
Bit 7 = 1 (address format 1-126 active)
Bit 0-6 = Frequency converter address 1-126
Bit 0-6 = 0 Broadcast
The slave sends the address byte back unchanged
in the response telegram to the master.
E
xample:
writing to frequency converter address 22 with address format 1-31:
Data control byte (BCC)
The data control byte is explained in this example:
Before the first byte in the telegram is received, the
Calculated CheckSum (BCS) is 0.
When the first byte (02H) has been received:
BCS = BCC EXOR “first byte”
(EXOR = exclusive-or gate)
BCS =00000000
EXOR
1.byte =00000010(02H)
BCC =00000010
Each subsequent byte gates with BCS EXOR and
produces a new BCC, e.g.:
BCS =00000010
EXOR
2ndbyte =11010110(D6H)
BCC =11010100
MG.04.A1.02 - VLT is a registered Danfoss trade mark
95
Programming
VLT®FCD Series
■ Data Character (byte)
The structure of data blocks depends on the type of
telegram. There are three types of telegram, and the
type of telegram applies for both control telegrams
(master ⇒slave) and response telegrams
(slave⇒master). The three types of telegram are:
- Parameter block, used to transfer parameters between master and slave. The data block is made
up of 12 bytes (6 words) and also contains the
process block.
- The process block is made up of a data block of
four bytes (2 words) and contains :
- Control word and reference value
- Status word and present output frequency
(from slave to master)
- Text block, which is used to read or write texts via
the data block.
Parameter commands and responses (AK).
Bits no. 12-15 are used to transfer parameter
commands from master to slave and the slave’s processed responses back to the master.
Parameter commands master⇒slave
Bit no.
15 14 13 12 Parameter command
0 0 0 0 No command
0 0 0 1 Read parameter value
0 0 1 0 Write parameter value in RAM
(word)
0 0 1 1 Write parameter value in RAM
(double word)
1 1 0 1 Write parameter value in RAM
and EEprom (double word)
1 1 1 0 Write parameter value in RAM
and EEprom (word)
1 1 1 1 Read/write text
Response slave⇒master
Bit no. Response
15 14 13 12
0 0 0 0 No response
0 0 0 1 Parameter value transferred
(word)
0 0 1 0 Parameter value transferred
(double word)
0 1 1 1 Command cannot be performed
1 1 1 1 Text transferred
If the command cannot be performed the slave
sends this response: 0111 Command cannot be
performed and gives the following fault report in the
parameter value (PWE):
MG.04.A1.02 - VLT is a registered Danfoss trade mark
96
VLT®FCD Series
Response
(0111)
Fault report
0 The parameter number used
does not exist
1 There is no write access to the
defined parameter
2 Data value exceeds
the parameter’s limits
3 The sub index used
does not exist
4 The parameter is not the array type
5 The data type does not match the
defined parameter
17 Data change in the defined para-
meter is not possible in the fre-
quency
converter’s present mode.
Certain parameters can only be
changed
when the motor is turned off
130 There is no bus access to the
defined parameter
131 Data change is not possible be-
cause
factory Setup is selected
Parameter number (PNU)
Bits no. 0-10 are used to transfer parameter numbers. The relevant parameter’s function is defined in
the parameter description in the section entitled Pro-
gramming.
I
ndex
Index is used together with the parameter number to
read/write-access parameters that have an index,
e.g. parameter 615 Error code. The index is made
up of 2 bytes, one lowbyte and one highbyte, but
only the lowbyte is used as an index.
E
xample - Index:
The first error code (index [1]) in parameter 615 Er-
ror code must be read.
PKE = 1267 Hex (read parameter 615 Error code.)
IND = 0001 Hex - Index no. 1.
The frequency converter will respond in the parameter value block (PWE) with a fault code value from 1
- 99. See Summary of Warnings and Alarms to
identify the fault code.
Parameter value (PWE)
The parameter value block consists of 2 words (4
bytes), and the value depends on the defined command (AK). If the master prompts for a parameter
value, the PWE block does not contain a value.
If you wish the master to change a parameter value
(write), the new value is written in the PWE block
and sent to the slave.
If the slave responds to a parameter request (read
command), the present parameter value in the PWE
block is transferred and returned to the master.
If a parameter contains not a numerical value, but
several data options, e.g. parameter 001 Language
where [0] corresponds to English, and [3] corresponds to Danish, the data value is selected by
entering the value in the PWE block. See Example -
Selecting a data value.
Via serial communication it is only possible to read
parameters that have data type 9 (text string). Parameter 621 - 635 Nameplate data is data type 9.
For example, in parameter 621 Unit type it is possible to read the unit size and mains voltage range.
When a text string is transferred (read) the length of
the telegram is variable, as the texts are of different
lengths. The telegram length is defined in the telegram’s second byte, known as LGE.
To be able to read a text via the PWE block the parameter command (AK) must be set to ’F’ Hex.
The index character is used to indicate whether it is
a read or write command.
In a read command the index must have the following format:
MG.04.A1.02 - VLT is a registered Danfoss trade mark
97
Programming
VLT®FCD Series
Some frequency converters have parameters to
which a text may be written. To be able to write a
text via the PWE block the parameter command
(AK) must be set to ’F’ Hex.
For a write command the text must have the following format:
Data types supported by frequency transformer:
Data types Description
3 Integer 16
4 Integer 32
5 Unsigned 8
6 Unsigned 16
7 Unsigned 32
9 Text string
Unsigned means that there is no operational sign in
the telegram.
Example - Write a parameter value :
Parameter 202 Output frequency high limit, f
MAX
to
be changed to 100 Hz. The value must be recalled
after a mains failure, so it is written in EEPROM.
PKE = E0CA Hex - Write for parameter 202 Out-
put frequency high limit, f
MAX
IND = 0000 Hex
PWE
HIGH
= 0000 Hex
PWE
LOW
= 03E8 Hex - Data value 1000, corre-
sponding to 100 Hz, see conversion.
The response from the slave to the master will be:
Example - Selection of a data value:
You wish to select kg/hour [20] in parameter 416
Process units. The value must be recalled after a
mains failure, so it is written in EEPROM.
PKE = E19F Hex - Write for parameter 416 Pro-
cess units
IND = 0000 Hex
PWE
HIGH
= 0000 Hex
PWE
LOW
= 0014 Hex - Select data option kg/
hour [20]
The response from the slave to the master will be:
Example - Reading a parameter value:
The value in parameter 207 Ramp up time 1 is required.
The master sends the following request:
PKE = 10CF Hex - read parameter 207 Ramp up
time 1
IND = 0000 Hex
PWE
HIGH
= 0000 Hex
PWE
LOW
= 0000 Hex
If the value in parameter 207 Ramp-up time 1 is 10
sec., the response from the slave to the master will
be:
MG.04.A1.02 - VLT is a registered Danfoss trade mark
98
VLT®FCD Series
Conversion:
Under the section entitled Factory Settings the various attributes of each parameter are displayed. As a
parameter value can only be transferred as a whole
number, a conversion factor must be used to transfer
decimals.
E
xample:
Parameter 201 Output frequency, low limit f
MIN
has a
conversion factor of 0.1. If you wish to preset the
minimum frequency to 10 Hz, the value 100 must be
transferred, as a conversion factor of 0.1 means that
the value transferred is multiplied by 0.1. The value
100 will thus be perceived as 10.0.
Conversion table
Conversion
index
Conversion
factor
73 0.1
2 100
110
01
-1 0.1
-2 0.01
-3 0.001
-4 0.0001
-5 0.00001
■ Process Words
The block of process words is divided into two
blocks of 16 bits, which always occur in the defined
sequence.
PCD 1 PCD 2
Control telegram
(master ⇒slave)
Control word Reference-
value
Control telegram
(slave⇒master)
Status word Present outp.
frequency
MG.04.A1.02 - VLT is a registered Danfoss trade mark
99
Programming
VLT®FCD Series
■ Control Word according toFC protocol
To select FC protocol in the control word, parameter
512 Telegram Profile must be set to FC protocol [1].
The control word is used to send commands from a
master (e.g. a PC) to a slave (frequency converter).
Bit Bit = 0 Bit =1
00 Preset ref. lsb
01 Preset ref. msb
02 DC braking
03 Coasting stop
04 Quick stop
05 Freeze outp. freq.
06 Ramp stop Start
07 Reset
08 Jog
09 Ramp 1 Ramp 2
10 Data not valid Data valid
11 No function
12 No function
13 Select Setup, lsb
14 Select Setup, msb
15 Reversing
Bit 00/01:
Bit 00/01 is used to select between the two preprogrammed references (parameters 215-218 Preset
reference) according to the following table:
Preset ref. Parameter Bit 01 Bit 00
1 215 0 0
2 216 0 1
3 217 1 0
4 218 1 1
NB!:
In parameter 508 Selection of preset reference a selection is made to define how Bit 00/
01 gates with the corresponding function on the digital inputs.
B
it 02, DC brake:
Bit 02 = ’0’ causes DC braking and stop. Brake voltage and duration are preset in parameters 132 DC
brake voltage and parameter 126 DC braking time.
Note: In parameter 504 DC brake a selection is
made to define how Bit 02 gates with the corresponding function on a digital input.
B
it 03, Coasting stop:
Bit 03 = ’0’ causes the frequency converter to immediately "let go" of the motor (the output transistors
are "shut off"), so that it coasts to a standstill.
Bit 03 = ’1’ causes the frequency converter to be
able start the motor if the other starting conditions
have been fulfilled. Note: In parameter 502 Coasting
stop a selection is made to define how Bit 03 gates
with the corresponding function on a digital input.
B
it 04, Quick stop:
Bit 04 = ’0’ causes a stop, in which the motor’s
speed is ramped down to stop via parameter 212
Quick stop ramp-down time.
B
it 05, Freeze output frequency:
Bit 05 = ’0’ causes the present output frequency (in
Hz) to freeze. The frozen output frequency can now
only be changed by means of the digital inputs programmed to Speed up and Speed down.
NB!:
If Freeze output is active, the frequency con-
verter cannot be stopped via Bit 06 Start or
via a digital input. The frequency converter can only
be stopped by the following:
• Bit 03 Coasting stop
• Bit 02 DC braking
• Digital input programmed to DC braking, Coasting
stop or Reset and coasting stop.
B
it 06, Ramp stop/start:
Bit 06 = ’0’ causes a stop, in which the motor’s
speed is ramped down to stop via the selected ramp
down parameter.
Bit 06 = ’1’ causes the frequency converter to be
able to start the motor, if the other starting conditions have been fulfilled. Note: In parameter 505
Start a selection is made to define how Bit 06 Ramp
stop/start gates with the corresponding function on a
digital input.
B
it 07, Reset:
Bit 07 = ’0’ does not cause a reset.
Bit 07 = ’1’ causes the reset of a trip. Reset is activated on the signal’s leading edge, i.e. when
changing from logic ’0’ to logic ’1’.
B
it 08, Jog:
Bit 08 = ’1’ causes the output frequency to be determined by parameter 213 Jog frequency.
B
it 09, Selection of ramp 1/2:
MG.04.A1.02 - VLT is a registered Danfoss trade mark
100
Loading...
