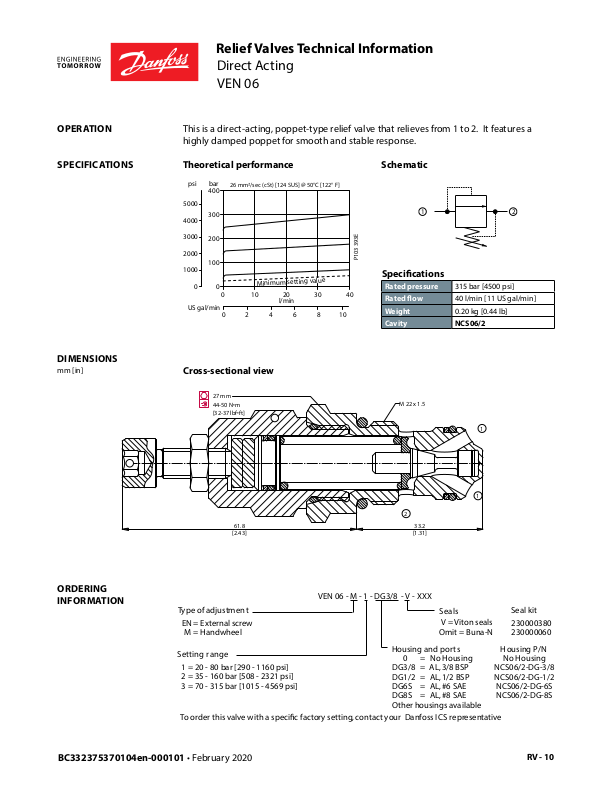

Danfoss VEN 06 Technical Information
Relief Valves Technical Information
Direct Acting
VEN 06
OPERATION |
This is a direct-acting, poppet-type relief valve that relieves from 1 to 2. It features a |
||
|
highly damped poppet for smooth and stable response. |
||
SPECIFICATIONS |
Theoretical performance |
Schematic |
|
|
psi bar |
26 mm²/sec (cSt) [124 SUS] @ 50°C [122° F] |
|
|
400 |
|
|
|
|
|
|
5000
300
4000
3000 200
2000
100
1000
0 0
0
US gal/min
0
Minimum setting value
1 |
2 |
<![endif]>P103 393E
Specifications
Rated pressure |
315 bar [4500 psi] |
10 |
|
20 |
30 |
40 |
|
|
|
|
Rated flow |
40 l/min [11 US gal/min] |
|||||
|
|
l/min |
|
|
|||
2 |
4 |
6 |
8 |
10 |
Weight |
0.20 kg [0.44 lb] |
|
Cavity |
NCS06/2 |
||||||
|
|
|
|
|
DIMENSIONS |
Cross-sectional view |
|
mm [in] |
|
|
|
27 mm |
|
|
44-50 N•m |
M 22 x 1.5 |
|
[32-37 lbf•ft] |
|
1
1
|
2 |
61.8 |
33.2 |
[2.43] |
[1.31] |
ORDERING INFORMATION
VEN 06 - M - 1 - DG3/8 - V - XXX
Type of adjustmen t
EN = External screw
M = Handwheel
Setting r ange
1 = 20 - 80 bar [290 - 1160 psi]
2 = 35 - 160 bar [508 - 2321 psi] 3 = 70 - 315 bar [1015 - 4569 psi]
|
|
|
|
|
|
|
|
Seals |
Seal kit |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
V = Viton seals |
230000380 |
|
|
|
|
|
|
|
|
Omit = Buna-N |
230000060 |
|
|
Housing and po rts |
Housing P/N |
||||||
|
|
||||||||
0 |
|
|
= No Housing |
No Housing |
|||||
|
|
DG3/8 |
= AL, 3/8 BSP |
NCS06/2-DG-3/8 |
|||||
|
|
DG1/2 |
= AL, 1/2 BSP |
NCS06/2-DG-1/2 |
|||||
|
|
DG6S |
= AL, #6 SAE |
NCS06/2-DG-6S |
|||||
|
|
DG8S |
= AL, #8 SAE |
NCS06/2-DG-8S |
|||||
Other housings available
To order this valve with a speci c factory setting, contact your Danfoss ICS representative
BC332375370104en-000101 • February 2020 |
RV - 10 |
