Danfoss SpeedUp Strongboard for Tiles and Laminates Installation guide

Installation Guide

SpeedUp Strongboard for Tiles and Laminates

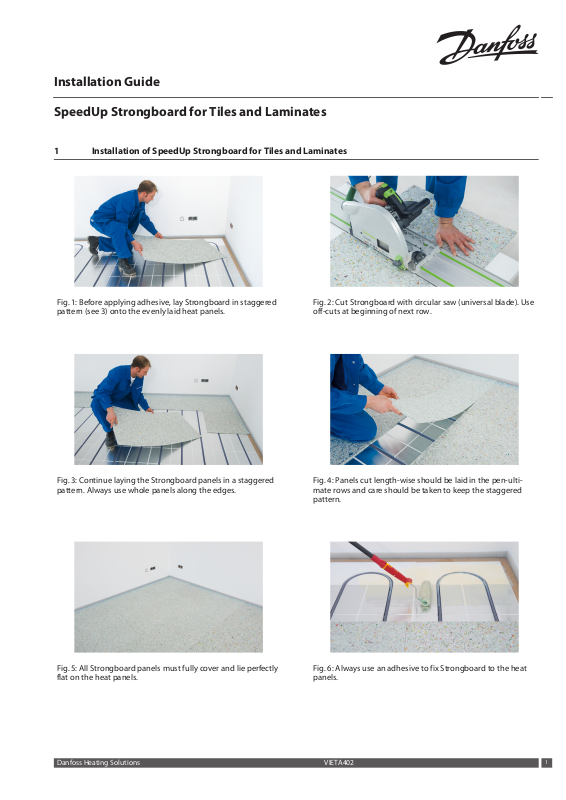

1	Installation of SpeedUp Strongboard for Tiles and Laminates

Fig. 1: Before applying adhesive, lay Strongboard in staggered pattern (see 3) onto the evenly laid heat panels.

Fig. 2: Cut Strongboard with circular saw (universal blade). Use off-cuts at beginning of next row.

Fig. 3: Continue laying the Strongboard panels in a staggered pattern. Always use whole panels along the edges.

Fig. 4: Panels cut length-wise should be laid in the pen-ulti- mate rows and care should be taken to keep the staggered pattern.

Fig. 5: All Strongboard panels must fully cover and lie perfectly flat on the heat panels.

Fig. 6: Always use an adhesive to fix Strongboard to the heat panels.

Danfoss Heating Solutions

VIETA402

1

Installation Guide	SpeedUp Strongboard for Tiles and Laminates

Fig. 7: Allow the adhesive (e.g. Ecofix by Mapei) to evaporate for 10 mins before continuing to lay the panels.

Fig. 9: Tape up short butt ends as well but do not allow the tape to overlap.

Fig. 8: Tape up all butt joints with 140 mm joining tape.

Fig. 10: Protect the finished floor from dirt and from pedestrian traffic to avoid damage with e.g. insulation panels.

Note! To seal joints in bathrooms it is recommend to use the synthetically coated cement-like Mapelastic or Monolastic by Mapei or similar.
