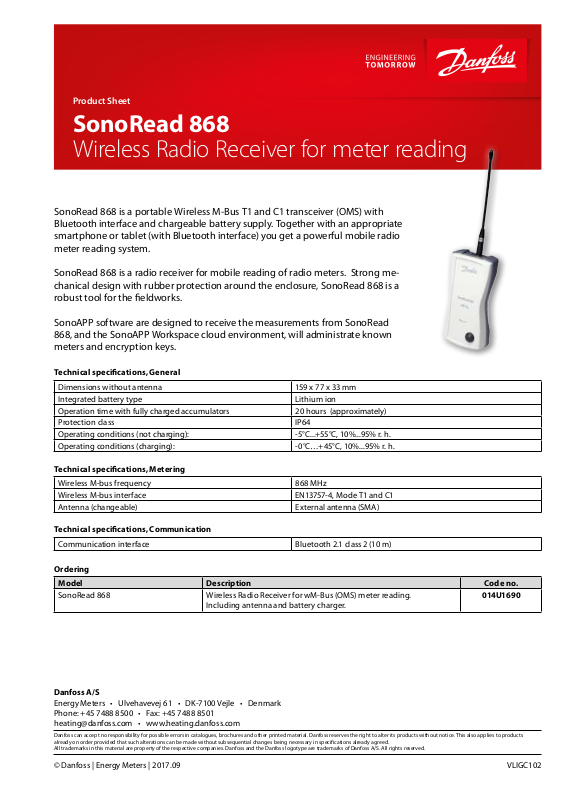

Product Sheet
SonoRead 868
Wireless Radio Receiver for meter reading
SonoRead 868 is a portable Wireless M-Bus T1 and C1 transceiver (OMS) with Bluetooth interface and chargeable battery supply. Together with an appropriate smartphone or tablet (with Bluetooth interface) you get a powerful mobile radio meter reading system.
SonoRead 868 is a radio receiver for mobile reading of radio meters. Strong mechanical design with rubber protection around the enclosure, SonoRead 868 is a robust tool for the fieldworks.
SonoAPP software are designed to receive the measurements from SonoRead 868, and the SonoAPP Workspace cloud environment, will administrate known meters and encryption keys.
Technical specifications, General
Dimensions without antenna |
|
159 x 77 x 33 mm |
|
Integrated battery type |
|
Lithium ion |
|
Operation time with fully charged accumulators |
20 hours (approximately) |
|
|
Protection class |
|
IP64 |
|
Operating conditions (not charging): |
|
-5°C...+55°C, 10%...95% r. h. |
|
Operating conditions (charging): |
|
-0°C…+45°C, 10%...95% r. h. |
|
Technical specifications, Metering |
|
|
|
|
|
|
|
Wireless M-bus frequency |
|
868 MHz |
|
Wireless M-bus interface |
|
EN13757-4, Mode T1 and C1 |
|
Antenna (changeable) |
|
External antenna (SMA) |
|
Technical specifications, Communication |
|
|
|
|
|
|
|
Communication interface |
|
Bluetooth 2.1 class 2 (10 m) |
|
|
|
|
|
Ordering |
|
|
|
|
|
|
|
Model |
Description |
|
Code no. |
SonoRead 868 |
Wireless Radio Receiver for wM-Bus (OMS) meter reading. |
014U1690 |
|
|
Including antenna and battery charger. |
|
|
|
|
|
|
