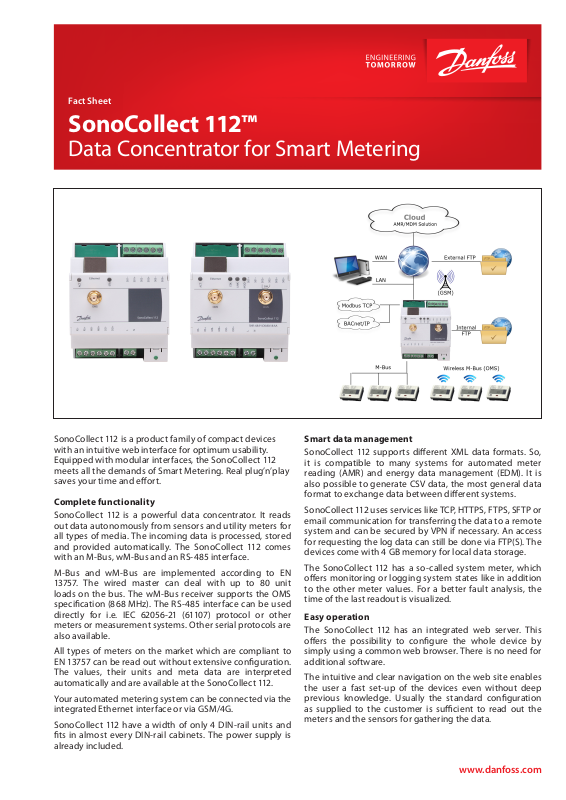

Fact Sheet
SonoCollect 112™
Data Concentrator for Smart Metering
SonoCollect 112 is a product family of compact devices with an intuitive web interface for optimum usability. Equipped with modular interfaces, the SonoCollect 112 meets all the demands of Smart Metering. Real plug’n’play saves your time and effort.
Complete functionality
SonoCollect 112 is a powerful data concentrator. It reads out data autonomously from sensors and utility meters for all types of media. The incoming data is processed, stored and provided automatically. The SonoCollect 112 comes with an M-Bus, wM-Bus and an RS-485 interface.
M-Bus and wM-Bus are implemented according to EN 13757. The wired master can deal with up to 80 unit loads on the bus. The wM-Bus receiver supports the OMS specification (868 MHz). The RS-485 interface can be used directly for i.e. IEC 62056-21 (61107) protocol or other meters or measurement systems. Other serial protocols are also available.
All types of meters on the market which are compliant to EN 13757 can be read out without extensive configuration. The values, their units and meta data are interpreted automatically and are available at the SonoCollect 112.
Your automated metering system can be connected via the integrated Ethernet interface or via GSM/4G.
SonoCollect 112 have a width of only 4 DIN-rail units and fits in almost every DIN-rail cabinets. The power supply is already included.
Smart data management
SonoCollect 112 supports different XML data formats. So, it is compatible to many systems for automated meter reading (AMR) and energy data management (EDM). It is also possible to generate CSV data, the most general data format to exchange data between different systems.
SonoCollect 112 uses services like TCP, HTTPS, FTPS, SFTP or email communication for transferring the data to a remote system and can be secured by VPN if necessary. An access for requesting the log data can still be done via FTP(S). The devices come with 4 GB memory for local data storage.
The SonoCollect 112 has a so-called system meter, which offers monitoring or logging system states like in addition to the other meter values. For a better fault analysis, the time of the last readout is visualized.
Easy operation
The SonoCollect 112 has an integrated web server. This offers the possibility to configure the whole device by simply using a common web browser. There is no need for additional software.
The intuitive and clear navigation on the web site enables the user a fast set-up of the devices even without deep previous knowledge. Usually the standard configuration as supplied to the customer is sufficient to read out the meters and the sensors for gathering the data.
www.danfoss.com
The web site also facilitates service and maintenance of the SonoCollect 112. There is status information available, like warnings for communication errors. Access rights can be set for different users. This allows customization or role based views and meets demands regarding privacy.
Ordering
Model |
Number of |
M-Bus |
wM-Bus |
Ethernet |
Modbus TCP |
BACnet/IP |
GSM/4G |
Code no. |
|
meters |
(OMS) |
||||||||
|
|
|
|
|
|
|
|||
SonoCollect 112 E-WM-80 |
80 |
X |
X |
X |
X |
|
|
014U1603 |
|
SonoCollect 112 G-WM-80 |
80 |
X |
X |
X |
X |
|
X |
014U1605 |
|
SonoCollect 112 EB-WM-80 |
80 |
X |
X |
X |
X |
X |
|
014U1609 |
|
SonoCollect 112 GB-WM-80 |
80 |
X |
X |
X |
X |
X |
X |
014U1612 |
Technical specification, General
Supply voltage for internal power supply |
85..264 VAC, 50Hz, screw terminals |
Power consumption |
<3 W (idle state), max. 10 W (LTE communication + 80 meters) |
Dimensions of housing |
4 TE, 72 x 90 x 61 (W x H x D) in mm without antenna |
Installation, protection class |
DIN rail 35 mm, IP 20 |
Temperature range, humidity |
0..50 °C, 10..95% relative, no condensation |
Integrated web srver |
Configuration web site and local data presentation |
Processor platform |
ARM9-Core i.MX283, 426 MHz, 128 MB RAM |
Memory for local data storage |
4 GB |
Real time clock |
Yes, buffering of up to 7 days, accuracy 20 ppm |
Status indication |
LEDs signaling power, status, activity and WAN information; |
Firmware update |
Directly or via WAN (Internet) incl. integrity check and authentication |
Configuration via WAN |
Complete remote control via WAN (Internet), role based rights |
Technical specification, Metering
M-Bus interface |
Compliant to EN 13757, up to 80 unit loads, auto-scan |
|
Wireless M-Bus interface |
AES decryption, auto-scan, compliant to OMS (868 MHz), models S, T, C External antenna, different fre- |
|
quencies avaliable |
||
|
||
Antenna connector for wM-BUS |
SMA |
|
Serial interface |
RS-485, up to 250 kbps, two-wire, IEC 62056-21, SML |
|
S0 pulse input |
3 channels, IEC 62053-31 |
|
RElay output |
1 digital output, 24 VDC |
|
Number of meters |
Ca. 5000 meters are supported logically |
Technical specification, Communication
Ethernet interface |
100 MBit, RJ45, support for IPv6, support for OpenVPN |
|
LTE (4G) module (SonoCollect 112 G-WM-80) |
Optional, external antenna, slot for Mini-SIM, 2G fallback |
|
Antenna connection for LTE (SonoCollect 112 |
SMA |
|
G-WM-80) |
||
|
||
WAN connection to server system (push) |
TCP / HTTP connection (XML), optionally extensible |
|
Security for WAN (server communication) |
TLS, SSH, OpenVPN |
|
E-Mail transmission (push) |
XML data, CSV data optional, security options available |
|
FTP transfer (push, pull) |
CSV data, security options available |
|
Fallback routing (alternative connection on failure) |
Declaration of further servers and communication paths |
© Danfoss | Energy Metering | 2022.02 |
AM330348908401en-010202 |
