RET1000 MD
Electronic dial setting thermostat, delayed start
Danfoss Heating Installation Guide
For a large print version of these instructions please call Marketing on 0845 121 7400.
Danfoss can accept no responsibility for possible errors in catalogues, brochures, and other printed material. All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
2 |
RET1000 MD |
Installation Instructions
Specifications |
RET1000MD |
Operating Voltage |
230Vac 50/60Hz |
Output |
Volt free |
Setting temp. range |
5-30°C |
Operating temp. range |
0-45°C |
Switch rating |
3A (1) at 230Vac |
Switch type |
1 x SPDT Type 1B |
IP rating |
IP20 |
On/off control |
Yes |
Chrono-proportional control |
Yes |
Delayed start |
Yes |
Construction |
EN 60730-2-9 |
Control pollution situation |
Degree 2 |
Rated impulse voltage |
2.5kV |
Ball pressure test |
75°C |
Dimensions (mm) |
H84 x W84 x D37 |
Software Classification |
A |
|
|
Danfoss Heating
GB
3

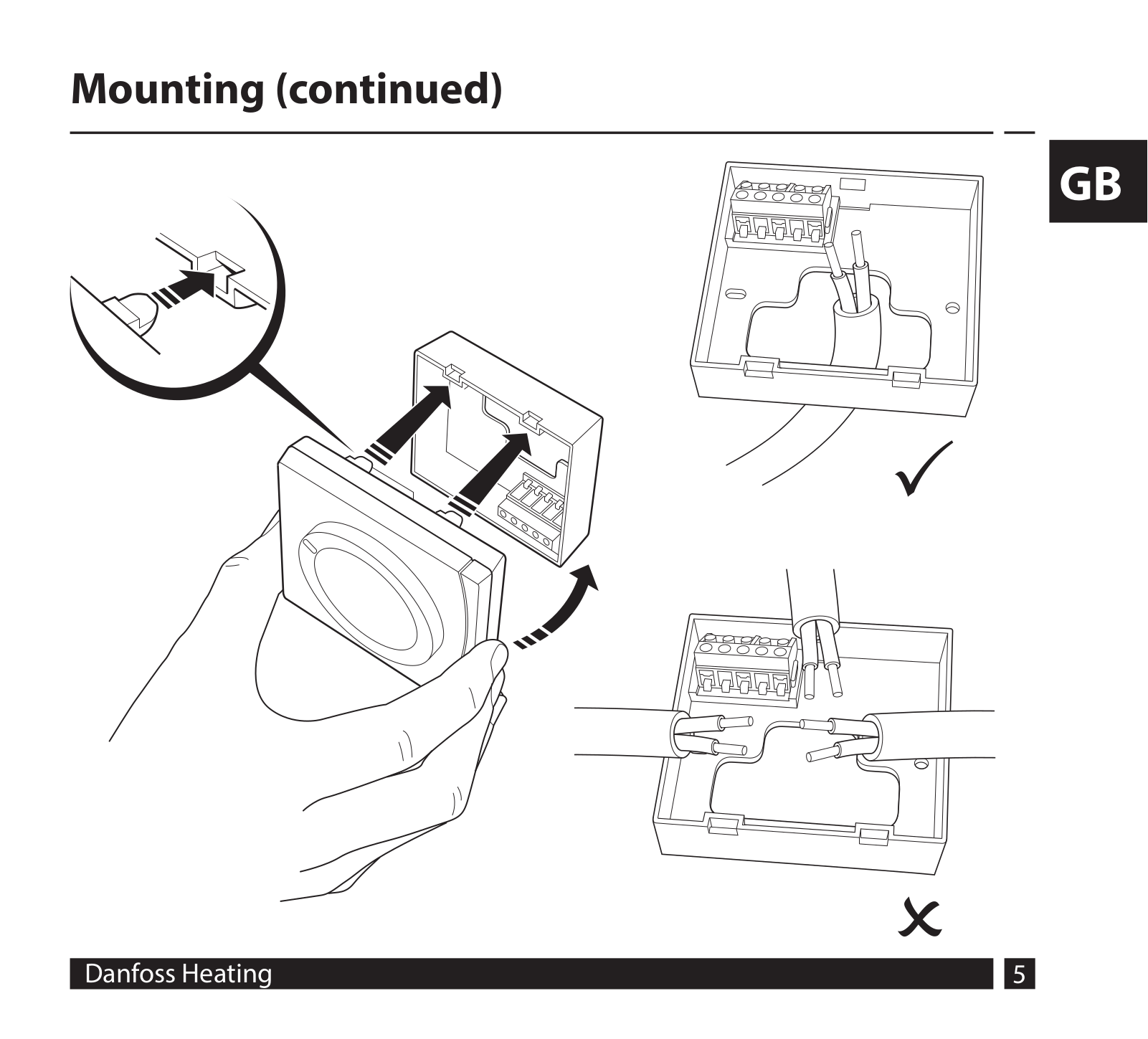

Mounting
GB
Fix at a height of 1.5m approx from the floor, away from draughts or heat sources such as radiators, open fires or direct sunlight.
Please Note:
This product should only be installed by a qualified electrician or competent heating installer and should be in accordance with the current edition of the IEEE wiring regulations.
