User Manual
Remote Control
R13 ATEX Z2 Receiver
www.danfoss.com
User Manual
R13 ATEX Z2 Receiver
Revision history Table of revisions
Date Changed Rev
January 2019 Rebranded to Danfoss Power Solutions 0101
2 | © Danfoss | January 2019 BC292458486592en-000101
User Manual
R13 ATEX Z2 Receiver
Contents
Safety instructions
Technical description
Installation
Troubleshooting
General safety.................................................................................................................................................................................... 4
Safety warnings.................................................................................................................................................................................4
Dimensions.........................................................................................................................................................................................6
Hardware description..................................................................................................................................................................... 7
Receiver installation........................................................................................................................................................................ 8
R13 ATEX Z2 troubleshooting......................................................................................................................................................9
©
Danfoss | January 2019 BC292458486592en-000101 | 3
User Manual
R13 ATEX Z2 Receiver
Safety instructions
R13 ATEX Z2 general safety
The following safety instructions must be read carefully in order to install and use the product properly
and to keep it in perfect working condition and to reduce the risk of misuse.
Potential damage to operator and product.
Do not use this product on machines in potentially explosive atmospheres unless the model is ATEX/
RATEX certified to do so.
•
Strictly adhere to the installation instructions contained in this document.
•
Make sure that professional and competent personnel carry out the installation.
•
Ensure that all site and prevailing safety regulations are fully respected.
•
Make sure that this document is permanently available to the operator and maintenance personnel.
•
Keep the transmission key when the set is not in use.
•
On starting each working day, check to make sure that the STOP button and other safety measures
are working.
•
When in doubt, press the STOP button.
•
Whenever several sets have been installed, make sure the transmitter is the right one. Identify the
machine controlled on the label for this purpose on the transmitter or by using the display (in case it
has one).
•
Service the equipment periodically.
•
When carrying out repairs, only use spare parts from Danfoss.
R13 ATEX Z2 safety warnings
Potential damage to operator and product.
Follow the guidelines below to reduce risk of injury to the operator and the product.
•
Use the device with the manufacturer's battery and battery charger (if applicable).
•
Only allow qualified personnel to operate the equipment.
•
Always set the STOP button in the off position when not in use.
•
Always press STOP before plugging in tether cable (if applicable).
•
Do not operate product when visibility is limited.
•
Make sure product is compatible with the machine.
•
Avoid knocking or dropping the product.
•
Do not use the product if a failure is detected.
Changes or modifications not approved by Danfoss can void the user's authority to operate this product.
4 | © Danfoss | January 2019 BC292458486592en-000101
User Manual
R13 ATEX Z2 Receiver
Safety instructions

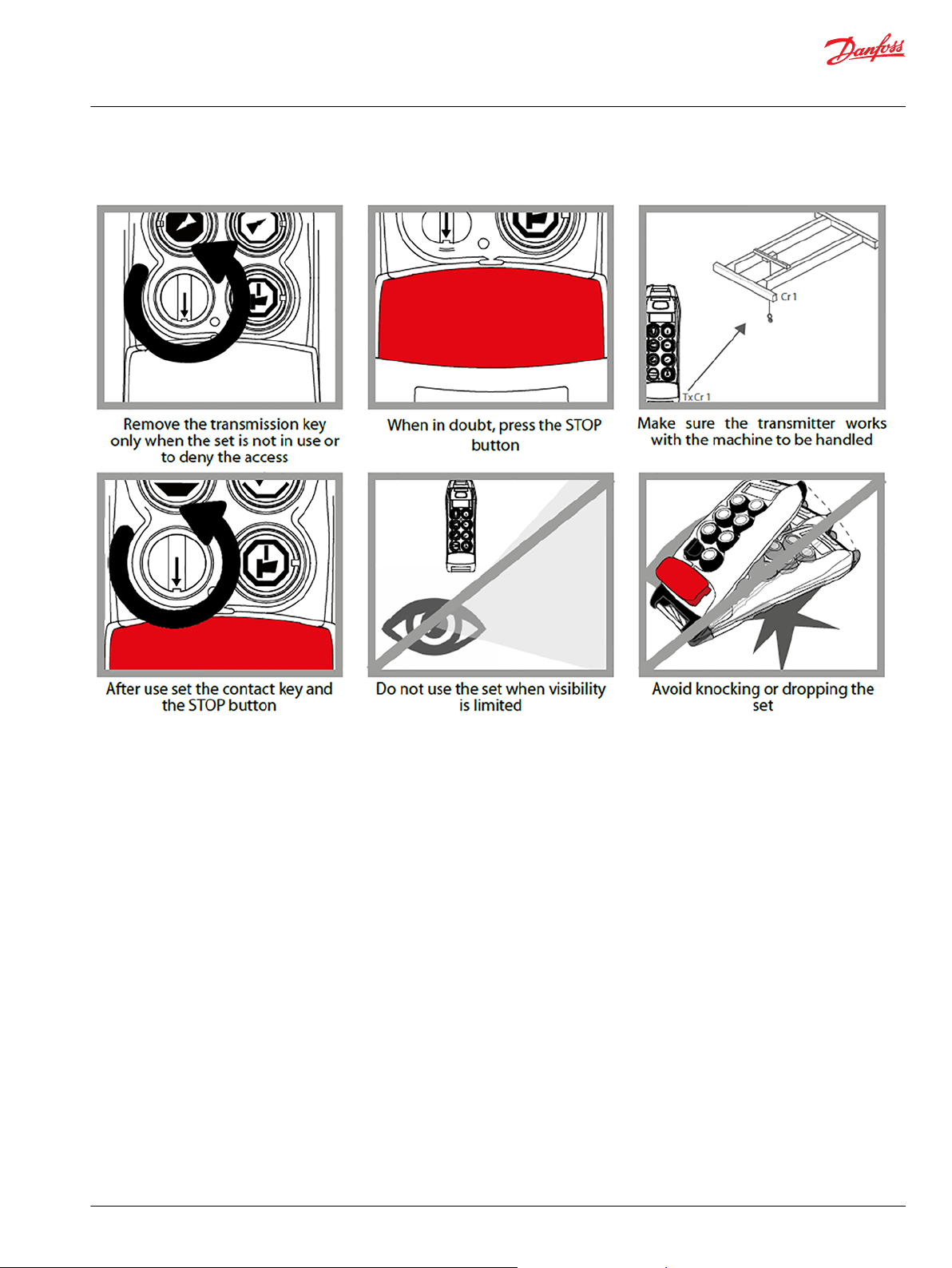

Quick reference precautions
©
Danfoss | January 2019 BC292458486592en-000101 | 5
1
2
84.87
R 2.60
R 2.60
167.25
149.00
104.00
R 2.60
R 2.60
81.55
36.50
60.69
219.73
248.93
37.50
232.00
216.00
R 2.60
R 2.60
R 2.60
R 2.60
User Manual
R13 ATEX Z2 Receiver
Technical description
R13 x dimensions
Dimensions in mm
1. Fixing slots (fixed assembly or anti-vibration)
2. M32 cable gland
6 | © Danfoss | January 2019 BC292458486592en-000101
3
4
6
5
7
8
User Manual
R13 ATEX Z2 Receiver
Technical description

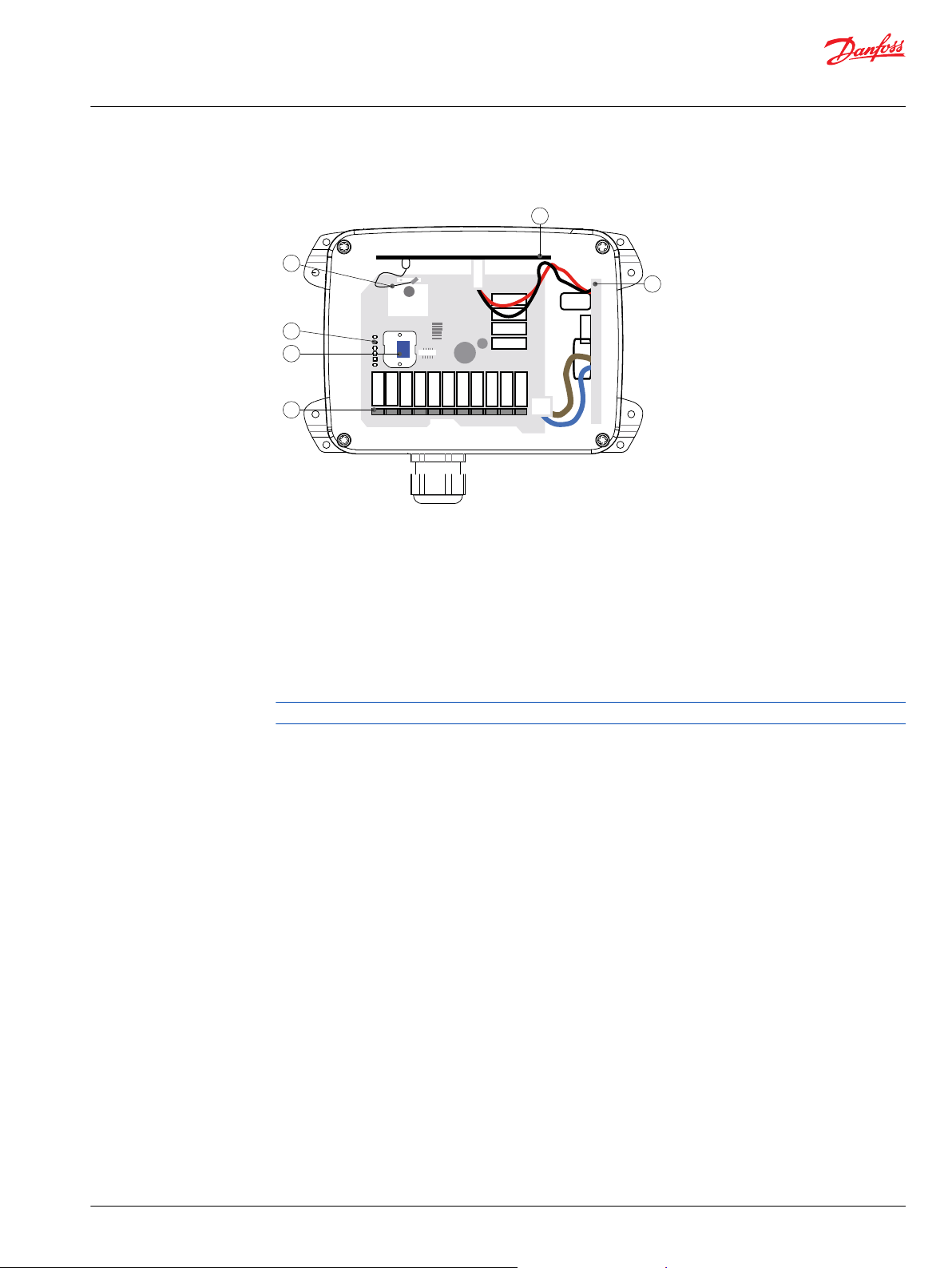

R13 ATEX Z2 hardware description
3. Multi-band antenna
4. Power supply
5. Internal EEPROM
6. Signaling LEDs
7. TR800-CE MCX radio
8. Wiring communication
R13 ATEX Z2 receiver only allows Altern Current (AC) power supply and a maximum of 13 relays.
©
Danfoss | January 2019 BC292458486592en-000101 | 7
User Manual
R13 ATEX Z2 Receiver
Installation

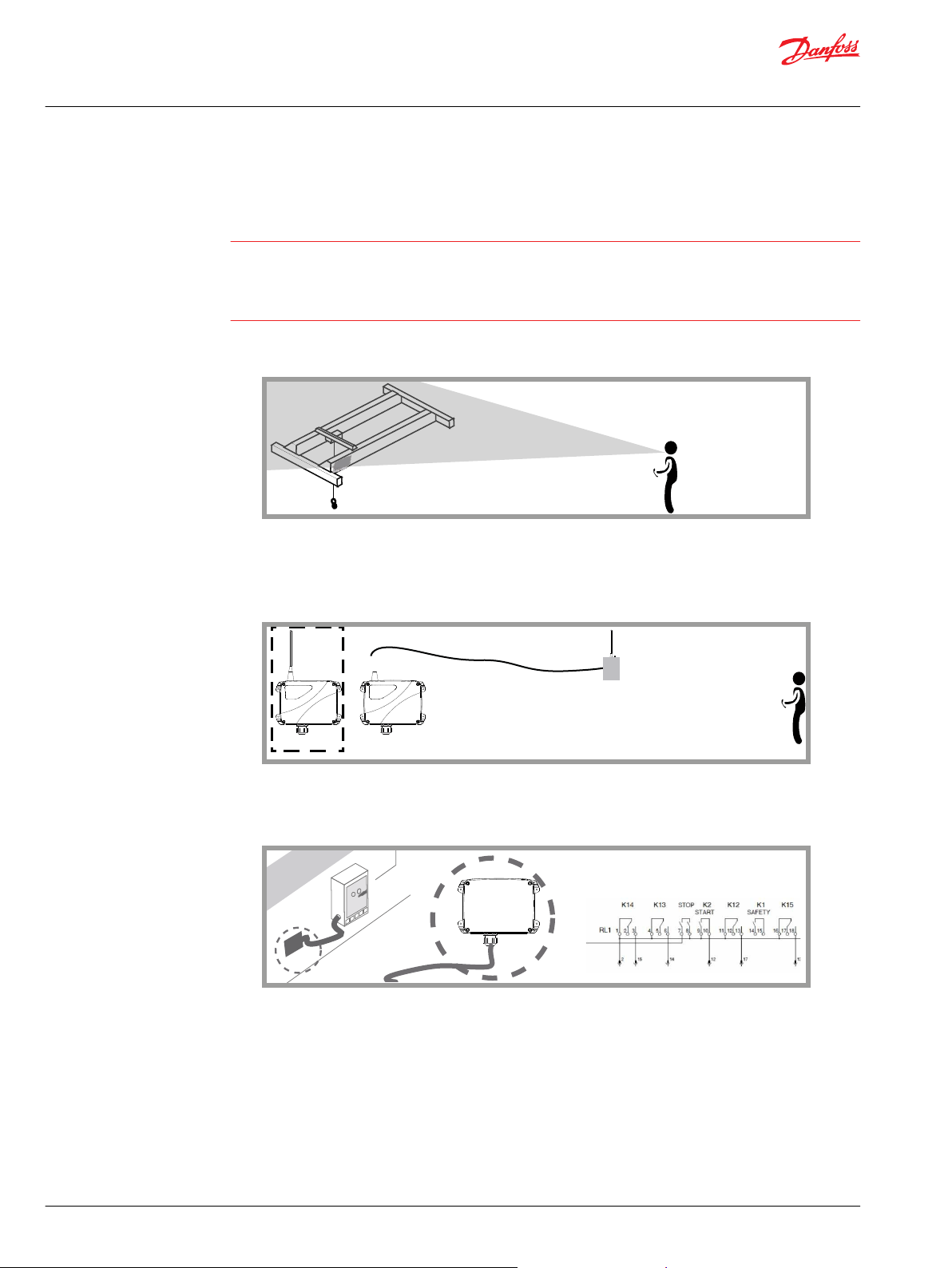

R13 ATEX Z2 receiver installation
The below information describes hazards to be aware of during installation and steps to locate the
receiver.
Risk of shock
Completely shut down the machine when installing the receiver.
Check the power supply and shut off the main switch to disconnect the interface cable between the
receiver and the machine's electrical box.
1. Find an easily accessible and clear location with a direct vision between the receiver's antenna and
the transmitter's working area.
2. Optional: If it is difficult to achieve direct vision between the receiver's antenna and the transmitter's
working area, it is recommended to use an extended antenna in a clear location (only for models that
allow an antenna).
In areas of high vibration, the use of dampers is advised.
3. Proceed to connect the power supply. Use the connection block diagram provided with the system,
where the correspondence between the transmitter maneuvers and the receiver's outputs are
detailed.
4. Check if the electrical installation and verify if there's an option to connect the neutral or the ground
cable. In that case, don't forget to connect the ground cable.
The use of fireproof or flame retardant cables are recommended for the connection.
8 | © Danfoss | January 2019 BC292458486592en-000101
User Manual
R13 ATEX Z2 Receiver
Troubleshooting
Receiver troubleshooting
LED Characteristic Description Action
POWER Green; pulsing Receiver is starting up Wait until start-up process is
HARDOK Green; continuous Receiver hardware OK Operate
Red; pulsing EEPROM error; data corruption; CAN bus error (if CANERR
Red; other Electronic board hardware breakdown Replace device
SIGNAL LED off No radio signal detected -
LED on + transmitter switched
off
LED on + DATA switched off Radio channel occupied by non Danfoss system Change transmitter's frequency
DATA LED off + SINGAL LED on Radio error Replace radio
Green; pulse Receiving good frames OK
ID LED off + DATA LED on No valid ID; Danfoss system nearby If channel not occupied, check
LED on + SIGNAL LED on +
DATA LED on
RELAY Green STOP relay activated ORDER Green - -
activates)
Radio channel occupied Change transmitter's frequency
Valid frames received from the transmitter; correct link OK
finished
Reprogram EEPROM
channel
channel
chosen ID in the transmitter or
reset the receiver
©
Danfoss | January 2019 BC292458486592en-000101 | 9
