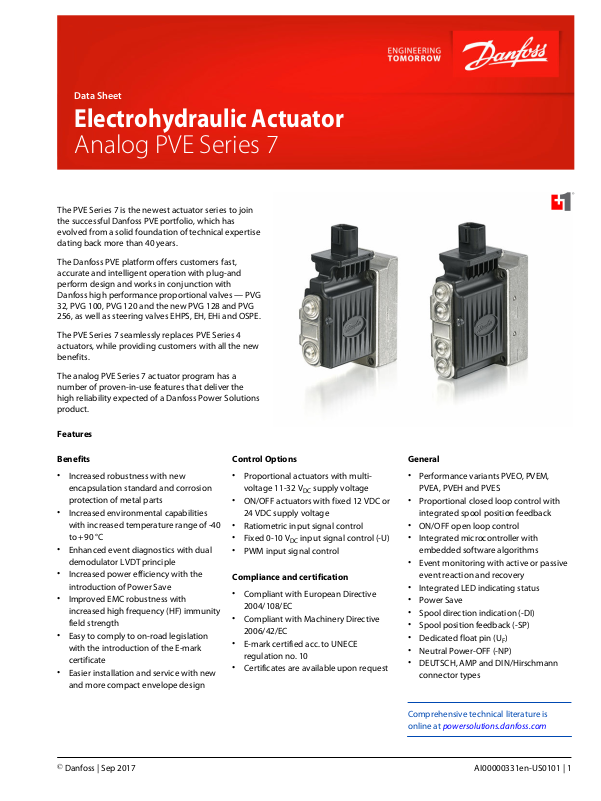

Data Sheet
Electrohydraulic Actuator
Analog PVE Series 7
The PVE Series 7 is the newest actuator series to join
the successful Danfoss PVE portfolio, which has
evolved from a solid foundation of technical expertise
dating back more than 40 years.
The Danfoss PVE platform offers customers fast,
accurate and intelligent operation with plug-and
perform design and works in conjunction with
Danfoss high performance proportional valves — PVG
32, PVG 100, PVG 120 and the new PVG 128 and PVG
256, as well as steering valves EHPS, EH, EHi and OSPE.
The PVE Series 7 seamlessly replaces PVE Series 4
actuators, while providing customers with all the new
benefits.
The analog PVE Series 7 actuator program has a
number of proven-in-use features that deliver the
high reliability expected of a Danfoss Power Solutions
product.
Features
Benefits
•
Increased robustness with new
encapsulation standard and corrosion
protection of metal parts
•
Increased environmental capabilities
with increased temperature range of -40
to +90 °C
•
Enhanced event diagnostics with dual
demodulator LVDT principle
•
Increased power efficiency with the
introduction of Power Save
•
Improved EMC robustness with
increased high frequency (HF) immunity
field strength
•
Easy to comply to on-road legislation
with the introduction of the E-mark
certificate
•
Easier installation and service with new
and more compact envelope design
Control Options
•
Proportional actuators with multivoltage 11-32 VDC supply voltage
•
ON/OFF actuators with fixed 12 VDC or
24 VDC supply voltage
•
Ratiometric input signal control
•
Fixed 0-10 VDC input signal control (-U)
•
PWM input signal control
Compliance and certification
•
Compliant with European Directive
2004/108/EC
•
Compliant with Machinery Directive
2006/42/EC
•
E-mark certified acc. to UNECE
regulation no. 10
•
Certificates are available upon request
General
•
Performance variants PVEO, PVEM,
PVEA, PVEH and PVES
•
Proportional closed loop control with
integrated spool position feedback
•
ON/OFF open loop control
•
Integrated microcontroller with
embedded software algorithms
•
Event monitoring with active or passive
event reaction and recovery
•
Integrated LED indicating status
•
Power Save
•
Spool direction indication (-DI)
•
Spool position feedback (-SP)
•
Dedicated float pin (UF)
•
Neutral Power-OFF (-NP)
•
DEUTSCH, AMP and DIN/Hirschmann
connector types
Comprehensive technical literature is
online at powersolutions.danfoss.com
©
Danfoss | Sep 2017 AI00000331en-US0101 | 1
Technical data
Control specification
Supply Voltage (UDC) PVEO Rated 12 V
Range 11 to 15 V
DC
DC
24 V
DC
22 to 30 V
DC
Maximum ripple 5%
PVEM/A/H/S Rated 11 to 32 V
Range 11 to 32 V
DC
DC
Maximum ripple 5%
Signal Voltage (US) PVEM/A/H/S Neutral US = 0.5 * U
Q: P to A US = (0.5 to 0.25) * U
Q: P to B US = (0.5 to 0.75) * U
PVEH-U/PVES-U Neutral US = 5 V
Q: P to A US = 5 VDC to 2.5 V
Q: P to B US = 5 VDC to 7.5 V
DC
DC
DC
DC
DC
DC
Signal voltage PWM (US) PVEM/A/H/S Neutral US = 50% DUT
Q: P to A US = 50% to 25% DUT
Q: P to B US = 50% to 75% DUT
PWM Frequency (US) PVEM Recommended >200 Hz
PVEA/H/S >1000 Hz
Operating conditions
Pilot pressure PVEO/M/A/H/S Nominal 13.5 bar [196 psi]
Minimum 10.0 bar [145 psi]
Maximum 15.0 bar [218 bar]
PVEO-HP Nominal 25.0 bar [363 psi]
Minimum 21.0 bar [305 psi]
Maximum 25.0 bar [363 psi]
Storage temperature PVEO/M/A/H/S Ambient -50 to +90°C [-58 to +194°F]
Operating temperature PVEO/M/A/H/S Ambient -40 to +90°C [-40 to +194°F]
Oil viscosity PVEO/M/A/H/S Operating range 12 to 75 cSt [65 to 347 SUS]
Minimum 4 cSt [36 SUS]
Maximum 469 cSt [2128 SUS]
Oil cleanliness PVEO/M/A/H/S Maximum 18/16/13 (according to ISO 4406)
