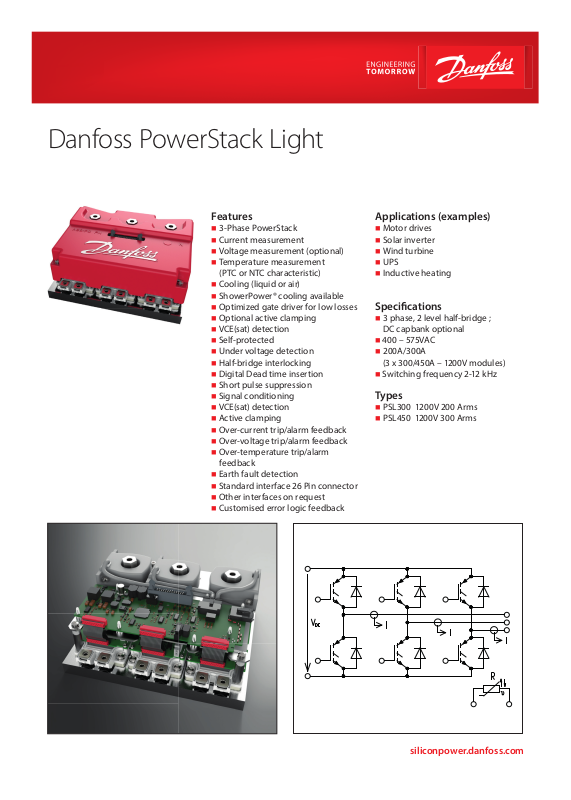

Danfoss PowerStack Light Fact sheet

Danfoss PowerStack Light

Features	Applications (examples)
 3-Phase PowerStack	 Motor drives
 Current measurement	 Solar inverter
 Voltage measurement (optional)	 Wind turbine
 Temperature measurement	 UPS
(PTC or NTC characteristic)	 Inductive heating

Cooling (liquid or air)

ShowerPower® cooling available

 Optimized gate driver for low losses	Speci cations
 Optional active clamping	 3 phase, 2 level half-bridge ;
 VCE(sat) detection	DC capbank optional
 Self-protected	 400 – 575VAC
 Under voltage detection	 200A/300A
 Half-bridge interlocking	(3 x 300/450A – 1200V modules)
 Digital Dead time insertion	 Switching frequency 2-12 kHz
 Short pulse suppression	Types
 Signal conditioning
 VCE(sat) detection	 PSL300 1200V 200 Arms
 Active clamping	 PSL450 1200V 300 Arms

Over-current trip/alarm feedback

Over-voltage trip/alarm feedback

Over-temperature trip/alarm feedback

Earth fault detection

Standard interface 26 Pin connector

Other interfaces on request

Customised error logic feedback

siliconpower.danfoss.com

Danfoss Silicon Power

Based in Flensburg, Germany, Danfoss Silicon Power is a leading developer of customer specific IGBT and MOSFET modules and power stacks for power intensive applications.

Our power modules and power stacks are a preferred choice in demanding automotive and wind power applications and a wide variety of industrial applications.

Our 35,000 m2 research, development and production facility is certified according ISO 9001, ISO/TS 16949,

ISO 14001, ISO 50001 and OHSAS 18001. This enables us to quickly transfer

development projects to high volume production that can be integrated seamlessly into our customers’ supply chain with full focus on quality.

Danfoss Silicon Power is a subsidiary of the Danfoss Group, the largest

industrial company in Denmark. Danfoss employs more than 24,000 people in 100 countries within development, production, sales and support.

Danfoss Silicon Power GmbH, Husumer Strasse 251, 24941 Flensburg, Germany, Tel. [phone], Fax [phone] www.siliconpower.danfoss.com, E-mail: [e-mail]

DKSP.PFP.402.A2.02

Produced for DSP 2016.04
