Danfoss Optyma Application guide

Catalogue | Optyma™ Pack

Optyma™ Pack
Just mount, connect piping
and plug

R22 - 50Hz

www.danfoss.com

Catalogue

Content

Product range & Features ...................................................................................................4

Main product features ......................................................................................................................................................4

Operating range .................................................................................................................................................................4

Designation system ............................................................................................................. 5

Performance data - HBP R22 ............................................................................................... 6

Technical data - HBP ............................................................................................................ 7

Spareparts & Accessories - HBP .......................................................................................... 7

Dimensions .......................................................................................................................... 8

Electrical wiring diagrams .................................................................................................. 9

3AB300139471335en-010101

Catalogue

Product range & Features

Main product features

Service ports outsideOutdoor application Fin and tube heat exchanger

• Weatherproof housing IP54

• Robust and resistant to corrosion

• Compact design

• Fast and easy installation

• Quick connections of suction & liquid
lines

• Shut off valves on receiver and service
valves on service ports for easier &
quick servicing

• L-shape coil (Saves space)

• Stores refrigerant in pump down cycle

Operating range

Optyma™ Pack unit can work in the following evaporating temperature range: HBP

Operating Envelope at SH = 10K

50

45

40

35

30

25

20

Ambient temperature (°C)

15

-6 -4 -2 0 2 4 6 8 10 12

For further detailed information, please contact Danfoss.

4 AB300139471335en-010101

Evaporating temperature (°C)

Catalogue

Designation system

Designation system for the Optyma™ Pack range

OP - H P M D 034 AW W00 E

1 2 3 4 5 6 7 8

1

Application

2

Family

3

Refrigerant

4

Condenser

5

Displacement

6

Compressor Platform

7

Version

H = HBP

P= Package condensing units

M = R22

D : Fin and tube condenser for high ambient applications

Displacement in cm
034 = 34 cm

Compressor Platform
AW = AW (Reciprocating)

W00 : Optyma Pack with Service valves, HP cartridge, LP cartridge switches and
the lters drier

3

3

8

Voltage code

G = 230V-1ph Comp and Fan
E = 400V-3ph Comp and 230V-1ph Fan

5AB300139471335en-010101

Catalogue

Performance data - HBP R22

Cooling capacity Q [kW]

Model

Versions

W00 -5°C -2°C 0°C 5°C 10°C [kW] Btu/Hr

Electrical

(1)

code

Tamb [°C]

35 2.58 2.90 3.14 3.76 4.46 4.15 14145 1. 41 2.95

OP-HPMD 031AW 114X9101 G

38 2.44 2.76 2.98 3.58 4.25
43 2.23 2.52 2.73 3.29 3.92
45 2.43 2.63 3.18 3.79
35 3.84 4. 32 4.65 5.56 6.56 6.12 20873 2.19 2.79

OP-HPMD043AW 114X9102 G

38 3.64 4 .10 4.42 5.29 6.26
43 3. 31 3.74 4.05 4.86 5.77
45 3. 61 3.90 4.70 5.58
35 3.65 4 .11 4.43 5.30 6.27 5.84 19926 2.08 2.81

OP-HPMD043AW 114X9103 E

38 3.46 3.90 4. 21 5.05 5.98
43 3.15 3.56 3.85 4.64 5.51
45 3.43 3.72 4.48 5.33
35 4.79 5.41 5.85 6.98 8 .11 7.6 6 26130 2.89 2.65

OP-HPMD054AW 114X910 4 G

38 4.55 5.16 5.59 6.71 7.84
43 4.14 4.72 5.13 6.22 7. 35
45 4.53 4.94 6.02 7.14
35 4.74 5.36 5.79 6.92 8.04 7.59 25889 2.73 2.78

OP-HPMD054AW 114X9105 E

38 4.51 5.11 5.54 6.65 7.77
43 4 .11 4.68 5.09 6.18 7. 29
45 4.50 4.90 5.98 7.09
35 5.90 6.68 7. 23 8.63 10.02 9.46 32291 3.19 2.97

OP-HPMD063AW 114X9202 G

38 5.62 6.39 6.93 8.32 9.72
43 5.14 5.88 6.40 7. 78 9.18
45 5.66 6.18 7. 54 8.94
35 5.98 6.77 7.32 8.74 10.15 9.58 32703 3.07 3.13

OP-HPMD063AW 114X9203 E

38 5.70 6.47 7.02 8.43 9.84
43 5.21 5.96 6.49 7. 88 9.30
45 5.74 6.26 7. 64 9.06
35 6.57 7. 43 8.04 9.60 11.15 10.53 35919 3.54 2.97

OP-HPMD068AW 114X9201 E

38 6.26 7.10 7. 70 9.25 10.80
43 5.71 6.52 7.10 8.62 10.17
45 6.28 6.84 8.35 9.90

(1)

G - Compressor 230V/1~/50Hz, fan 230V/1~/50Hz

E - Compressor 400V/3~/50Hz, fan 230V/1~/50Hz

(2)

Test condition EN13215, Superheat 10K

(3)

Test condition as per ANSI/AHRI STANDARD 520 (Ambient temp. 35°C , Evaporating temp. 7.2°C, RGT=18.3°C, SC=3K)
Q [kW], Cooling Capacity
P [kW], Power Input

(2)

Rated Performance

Te [°C] Q

(3)

P [kW] COP

For regular updates and detailed capacities, please refer to Coolselector®2 software

6 AB300139471335en-010101

NOTICE

Catalogue

Technical data / Spare parts & accessories - HBP

Technical data - HBP

(2)

Model number

OP-HPMD 031AWW00G AWS4515EGE G M FTHX 2739 1. 2 1 406 A1 547 851 350 1/2" 3/8" 59 56

OP-HPMD043AWW00G AWS4524EGE G M FTHX 2316 1.6 1 406 A1 547 851 350 5/8" 3/8" 60 57

OP-HPMD043AWW00E AWS4524EGF E M FTHX 2316 1.6 1 406 A1 547 851 350 1/2" 3/8" 60 57

OP-HPMD054AWW00G AWS4532EGH G M FTHX 1957 1.9 1 406 A1 547 851 350 5/8" 3/8" 61 58

OP-HPMD054AWW00E AWS4532EGF E M FTHX 1957 1.9 1 406 A1 547 851 350 5/8" 3/8" 61 58

OP-HPMD063AWW00G AWS4538EXC G M FTHX 3527 3.0 1 457 A2 651 1020 444 5/8" 3/8" 77 67

OP-HPMD063AWW00E AWS4538EGF E M FTHX 3527 3.0 1 457 A2 651 1020 444 5/8" 3/8" 77 67
OP-HPMD068AWW00E AWS4542EXG E M FTHX 3527 3.0 1 457 A2 651 1020 444 5/8" 3/8" 78 68

Compressor

Model

(1)

Electrical Code

Condenser Coil Fan Dimensions Weight

Typ e

Refrigerant

(m²/h) (dm) mm mm mm mm inch inch Kg Kg

Airow

Int.

Internal

Blade ø

Number

Housing

Width

Height

line

Depth

Suction

Line

Gross

Liquid

Spareparts & Accessories - HBP

Designation HPMD031AW HPMD043AW HPMD043AW HPMD054AW HPMD054AW HPMD063AW HPMD063AW HPMD068AW

Code Number 114X9101 114 X91 02 114 X91 03 114 X9104 114X 9105 114X9202 114X9203 114X92 01
Compressor

Description
Oil Mineral Oil Mineral Oil Mineral Oil Mineral Oil Mineral Oil Mineral Oil Mineral Oil Mineral Oil
Housing A1 A1 A1 A1 A1 A2 A2 A2

Spare Parts

Compressor 118 U520 9 118U5210 118 U5211 118 U5212 118 U5213 118 U52 14 118U5215 118U 5216
Condenser 118U5179 118U5180 118U518 0 118U5181 118U5181 118U5182 118U5182 118U5182
LP pressure cartridge 118U5187 118U5187 118U5187 118U5187 118U5187 118U5187 118U5187 118U5187
HP pressure cartridge 118U5188 118U518 8 118U5188 118U5188 118U5188 118U5188 118U5188 118U5188
Fan motor 118 U37 65 118U3765 118U 376 5 118U 376 5 118U 3765 118 U3765 118 U3765 118 U3765
Fan blade 118 U5177 118 U5177 118 U5177 118 U5177 118 U5177 118 U5178 118 U5178 118 U5178
Fan cowl/grill 118 U348 3 118 U348 3 118U3 48 3 118U3 48 3 118U3 483 118 U3484 118U 34 84 118U 34 84
Suction valve 118 U3757 118 U37 59 118 U3757 118 U37 59 118U3759 11 8U375 9 118U 375 9 118U 3759
Filter drier 023Z5054 023Z5054 023Z5054 023Z5058 023Z5058 023Z5058 023Z5058 023Z5058
Liquid valve 118 U398 6 118 U39 86 118 U398 6 118 U398 6 118 U398 6 118 U398 6 118 U39 86 118 U398 6

Electrical Spare Parts

Run capacitor
Starting capacitor NA NA NA NA
Starting relay NA NA NA NA

Electrical Characteristics

Wiring Diagram WD1 WD1 WD2 WD1 WD2 WD1 WD2 WD2
LRA Compressor [A] 40 51 22 79 30 92 45 60
MCC Compressor [A] 10.9 16 5.5 19.6 7. 3 24.14 8.6 9.6
Max cont.power [kW] 1.60 2.51 2.39 3.36 3.19 3.73 3.59 4.14
MCC Fan [A] 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1

AWS4515EGE AWS4524EGE AWS4524EGF AWS4532EGH AWS4532EGF AWS4538EXC AWS4538EGF AWS4542EXG

118U5186 118U518 6

NA

118 U5175

NA

NA NA

118 U5176

Net

For service purpose original components (spare parts) recommended by Danfoss should be used.

7AB300139471335en-010101

Catalogue

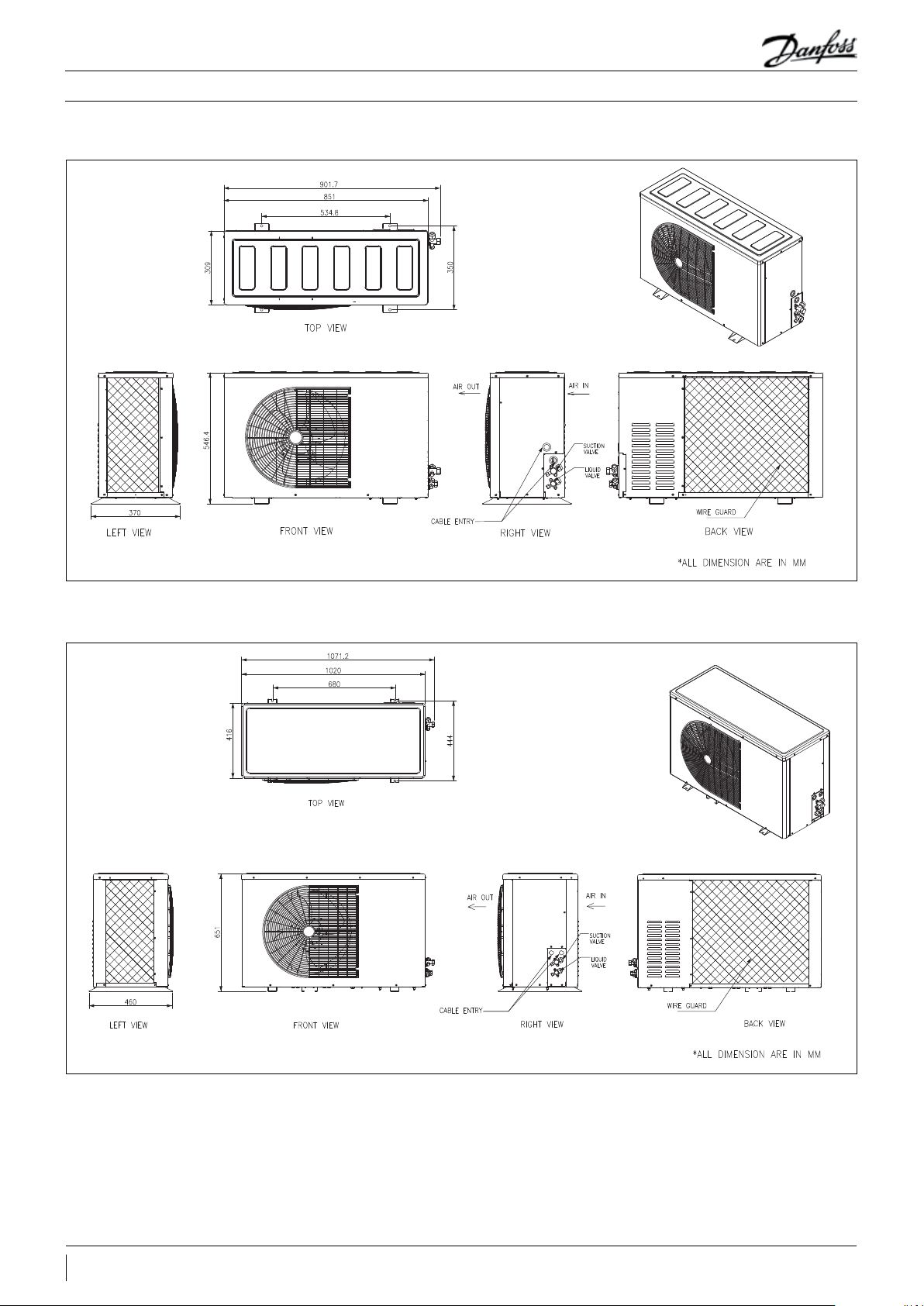

A1 Housing: OP-HPMD031-043-054

Dimensions

A2 Housing: OP-HPMD063-068

8 AB300139471335en-010101

Catalogue

Electrical wiring diagrams

Code G: OP-HPMD031-043-054-063

Code E: OP-HPMD043-054-063-068

LOW PRESSURE SWITCH
HIGH PRESSURE SWITCH

WD 1

High pressure switch

LOW PRESSURE SWITCH
HIGH PRESSURE SWITCH

WD 2

9AB300139471335en-010101
