Danfoss NRVS 15, NRVS 25 Data sheet

Data Sheet
Check valve Type NRVS
For industrial refrigeration in liquid line applications
Check valve type NRVS has no damping feature and therefore can only be used for liquid line applications. NRVS is designed to be mounted directly to PM or solenoid valves EVRA/EVRAT.
Features:
• Ensures correct direction of ow
• Applicable to HCFC, HFC and R717 (Ammonia)
• To get an updated list of certication on the products please contact your local Danfoss Sales Company
AI173386419455en-000601
NRVS 15
NRVS 25
Description
NRVS 15
NRVS 25
Refrigerants
R134a, R22, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R507, R717
R134a, R22, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R507, R717
Used for product
EVRA 10 -15 EVRAT 10 - 15
EVRA 20 - 25 EVRAT 20 - 25 PM 15 - 25
Application
Liquid line applications
Liquid line applications
Media temperature range
-50 °C – 140 °C (-58 °F - 284 °F)
-50 °C – 140 °C (-58 °F - 284 °F)
MWP [bar/psig]
28 bar/406 psig
28 bar/406 psig
kv (m3/h)
1.4 for EVRA/EVRAT 10
2.2 for EVRA/EVRAT 15
4.1 for EVRA/EVRAT 20
7.0 for EVRA
4.0 for PM 15
6.0 for PM 20
7.5 for PM 25
Packing format
Multi pack (12 pcs)
Multi pack (10 pcs)
Check valve, Type NRVS
Portfolio overview
Table 1: NRVS variants
Table 2: Portfolio overview
Media
Refrigerants
Applicable to HCFC, HFC and R717 (Ammonia). Flammable hydrocarbons are not recommended. The valve is only recommended for use in closed circuits. For further information please contact Danfoss (store.danfoss.com/en/).
New refrigerants
Danfoss products are continually evaluated for use with new refrigerants depending on market requirements.
When a refrigerant is approved for use by Danfoss, it is added to the relevant portfolio, and the R number of the refrigerant (e.g. R513A) will be added to the technical data of the code number. Therefore, products for specic refrigerants are best checked at store.danfoss.com/en/, or by contacting your local Danfoss representative.
© Danfoss | Climate Solutions | 2021.02 AI173386419455en-000601 | 2
Temperature of medium
-50 °C – 140 °C (-58 °F - 284 °F)
Maximum working pressure
PS = 28 bar/406 psig
Materials
Valve housing made of Stainless Steel Gaskets are non-asbestos

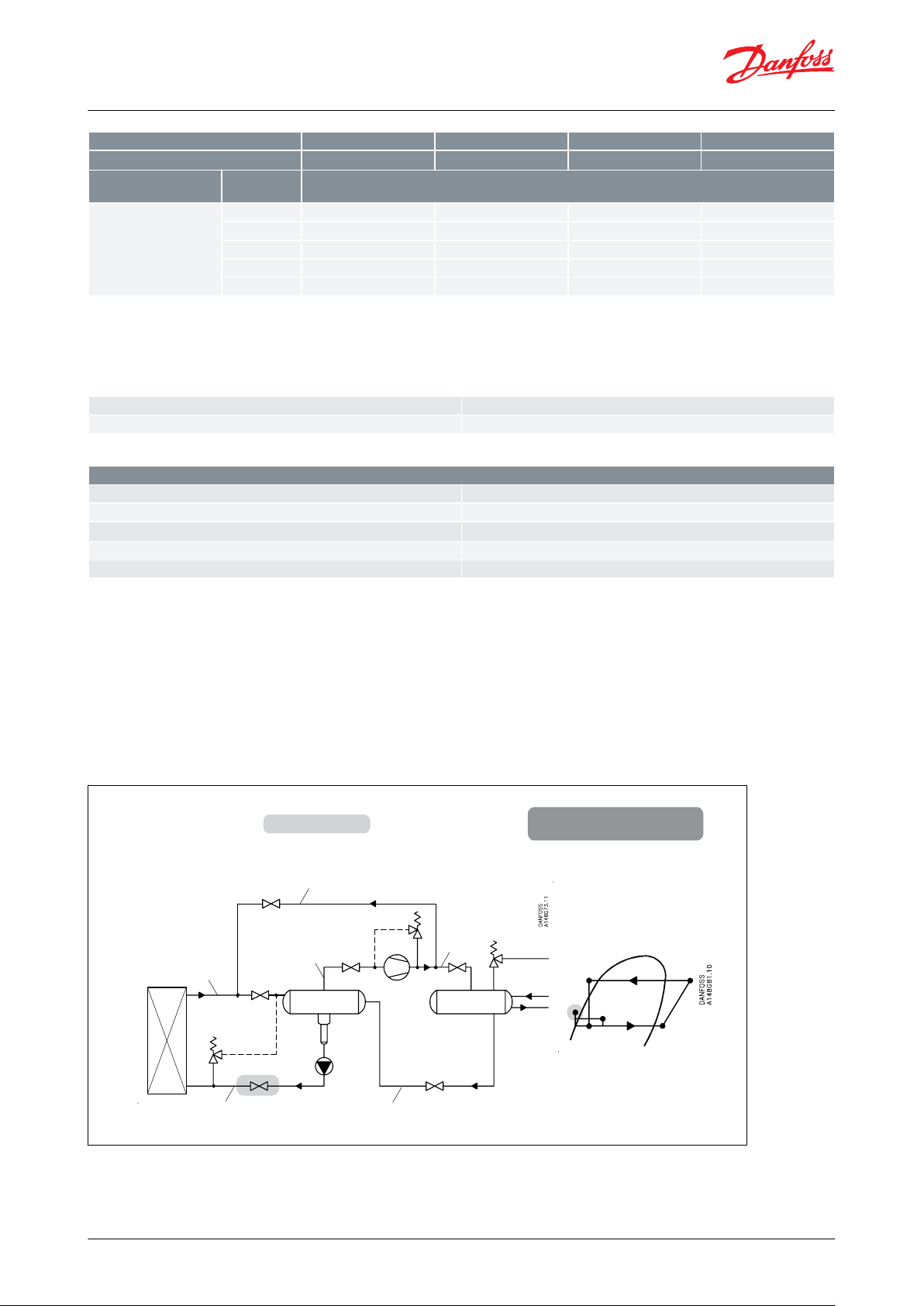

Location of valve in system (marked with grey)
NRVS
Liquid line without phase change Liquid line with or without phase change
Hot gas by-pass & defrost line
Discharge line
Wet suction line
Dry suction line
Danfoss
27N8159_MS
Low pressure liquid line
Valve combination
EVRA/EVRAT 10 + NRVS 15
EVRA/EVRAT 15 + NRVS 15
EVRA/EVRAT 20 + NRVS 25
EVRA + NRVS 25
kv (m3/h)
1.4
2.2
4.1
7
Evaporating temperature
T
e
Pressure
Δp (bar)
Capacities (kW) Q0 at circulation rate 1
R717
-40 °C
0.15
172
270
504
960
0.25
222
349
650
1110
0.3
243
382
713
1216
0.4
281
441
823
1405
0.5
314
493
920
1570
-30 °C
0.15
167
262
489
835
0.25
215
338
631
1078
0.3
236
371
691
1180
0.4
273
428
798
1363
0.5
305
479
893
1524
-20 °C
0.15
161
254
473
808
0.25
208
327
610
1042
0.3
228
359
669
1142
0.4
264
414
772
1319
0.5
295
463
863
1475
Check valve, Type NRVS
Product specications
Pressure and temperature data
Table 3: Pressure and temperature data
Design
Table 4: Design
Capacity tables
For the valve combination of EVRA/EVRAT
Figure 1: For the valve combination of EVRA/EVRAT
Table 5: For the valve combination of EVRA/EVRAT
© Danfoss | Climate Solutions | 2021.02 AI173386419455en-000601 | 3
Valve combination
EVRA/EVRAT 10 + NRVS 15
EVRA/EVRAT 15 + NRVS 15
EVRA/EVRAT 20 + NRVS 25
EVRA + NRVS 25
kv (m3/h)
1.4
2.2
4.1
7
Evaporating temperature
T
e
Pressure
Δp (bar)
Capacities (kW) Q0 at circulation rate 1
R717
-10 °C
0.15
156
245
456
780
0.25
201
316
589
1005
0.3
220
346
645
1102
0.4
254
399
745
1271
0.5
284
447
833
1422
EVRA/EVRAT 10 - 20 + NRVS
0.07 bar
EVRA/EVRAT 25 + NRVS
0.11 bar
An application has the following operating conditions
Refrigerant
R717
Evaporating temperature
-30 °C
Evaporator capacity (Q0)
290 kW
Circulation rate
4
Pressure
Δp ≤ 0.3 bar
Location of valve in system (marked with grey)
NRVS
Liquid line without phase change Liquid line with or without phase change
Hot gas by-pass & defrost line
Discharge line
Wet suction line
Dry suction line
Danfoss
27N8159_MS
Low pressure liquid line
Check valve, Type NRVS
NOTE:
The capacities in the table must be divided by the actual circulation rate, or the evaporator capacities must be multiplied with the actual circulation rate.
Table 6: Minimum opening dierential pressure
Table 7: Example
Solution
290 × 4 = 1160 kW EVRAT 25 + NRVS 25: Q0 = 1180 kW, at Δp = 0.3 bar is chosen
NOTE:
Precise valve capacities can be calculated for various refrigerants by using the Danfoss Coolselector software.
For the valve combination of PM 15-25
Figure 2: For the valve combination of PM 15-25
© Danfoss | Climate Solutions | 2021.02 AI173386419455en-000601 | 4
Valve combination
PM 15
PM 20
PM 25
NRVS 25
NRVS 25
NRVS 25
kv (m3/h)
467.5
Evaporating temperature
T
e
Pressure
Δp (bar)
Capacities (kW) Q0 at circulation rate 1
R717
-50 °C
0.15--
-
0.25
653
979
1224
0.3
715
1072
1340
0.4
825
1238
1547
0.5
923
1384
1730
-40 °C
0.15--
-
0.25
635
951
1188
0.3
695
1043
1303
0.4
803
1204
1506
0.5
897
1346
1683
-30 °C
0.15--
-
0.25
615
922
1152
0.3
675
1011
1265
0.4
779
1169
1460
0.5
871
1306
1632
-20 °C
0.15--
-
0.25
595
894
1114
0.3
653
979
1224
0.4
753
1130
1412
0.5
852
1264
1580
-10 °C
0.15--
-
0.25
575
862
1075
0.3
629
944
1180
0.4
727
1090
1362
0.5
812
1219
1523
Check valve, Type NRVS
Table 8: For the valve combination of PM 15-25
NOTE:
The capacities in the table must be divided by the actual circulation rate, or the evaporator capacities must be multiplied with the actual circulation rate.
Minimum opening dierential pressure:
PM + NRVS will be fully open at Δp = 0.25 bar.
NOTE:
Precise valve capacities can be calculated for various refrigerants by using the Danfoss Coolselector software.
Dimensions and weights
Figure 3: NRVS on valve
© Danfoss | Climate Solutions | 2021.02 AI173386419455en-000601 | 5
Type
L [mm]
B [mm]
Weight
(1)
kg
NRVS 15
47.5780.1
NRVS 25
60.5960.25
Type
L [mm]
B [mm]
Weight
(2)
kg
NRVS 15
78800.1
NRVS 25
98960.25
Check valve, Type NRVS
Table 9: NRVS on valve
(1)
(1)
NRVS without anges and bolts
NRVS without anges and bolts
Figure 4: NRVS stand alone
Table 10: NRVS stand alone
(2)
(2)
NRVS without anges and bolts
NRVS without anges and bolts
© Danfoss | Climate Solutions | 2021.02 AI173386419455en-000601 | 6
Check valve
For valve type
Flanges, gasket and bolts
(1)
Flanges,gaskets and bolts for
NRVS stand alone
(3)
Flange type
Valve type
Code. no.
For valve type
Code no.
Weight
(2)
[kg]
Flange type
Connection size
Check valve
Flanges, gasket and bolts
(1)
NRVS 15
020-2032
EVRA/T 10, EVRA/T 15
027N1255
0.7
3
4 in.
NRVS 25
020-2033
EVRA/T 20, EVRA/T 25,
PM 15, PM 20, PM 25
027N1254
1.1
1 in.
Flanges,gaskets and bolts for NRVS stand alone
(3)
Code no.
Weight
(2)
[kg]
Flange type
Connection size
027N1256
0.256
3
4 in.
027N1257
0.443
1 in.
File name
Document type
Document topic
Approval authority
11-1-0310-2012
Explosive - Safety
Certicate
GPN
UA.089.D.00188-17
UA Declaration
PED
LLC CDC EURO TYSK
UA.TR-089.0993-17
Pressure - Safety
Certicate
PED
LLC CDC EURO TYSK
033F0691.AD
Manufacturers Declaration
RoHS
Danfoss
033F0686.AG
Manufacturers Declaration
PED
Danfoss
033F0453.AD
Manufacturers Declaration
ATEX
Danfoss
RU Д- FR.БЛ08.В.03804
EAC Declaration
Machinery & Equipment
EAC
Check valve, Type NRVS

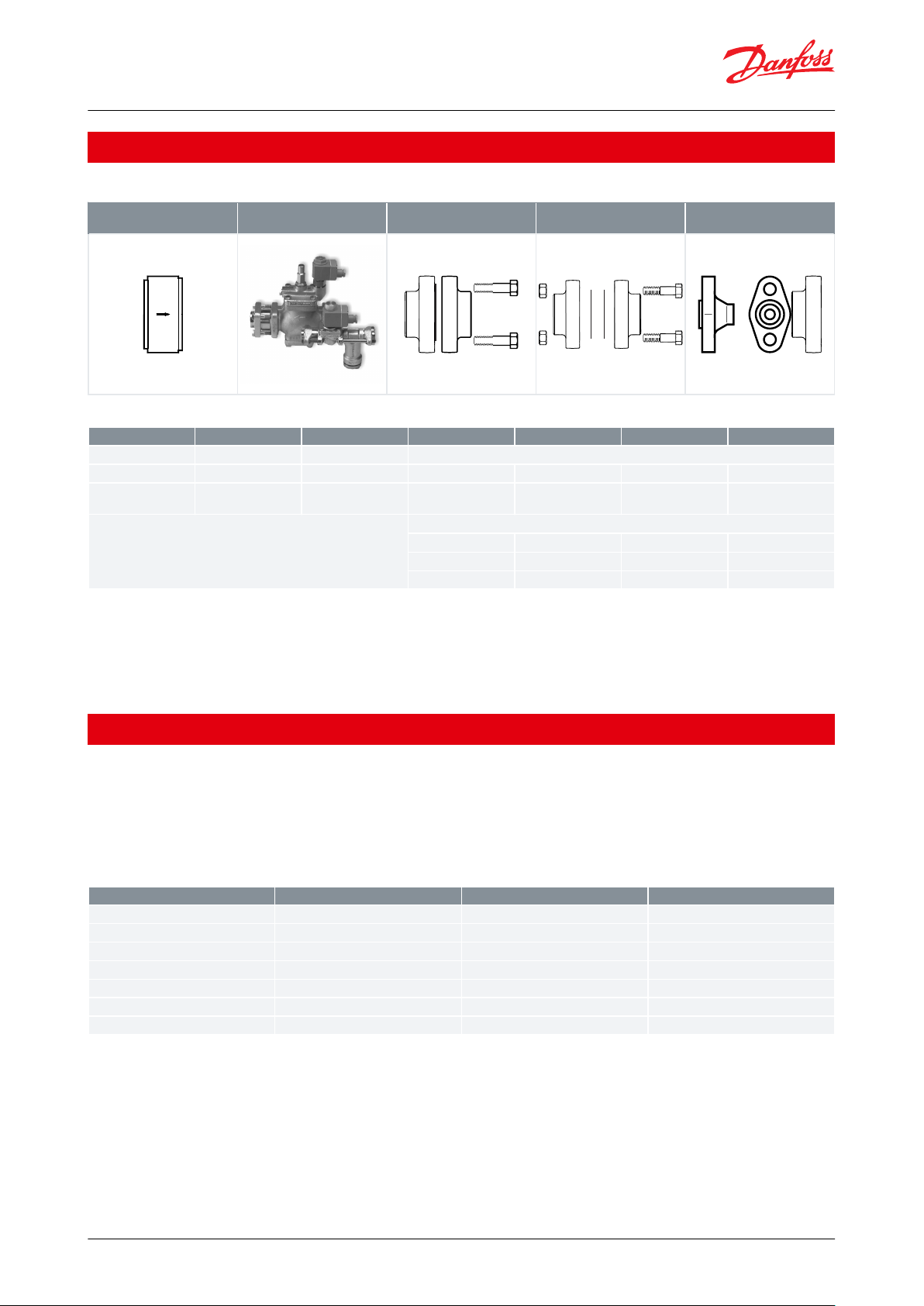

Ordering
Table 11: NRVS 15-25 Ordering
Table 12: NRVS 15-25 Ordering
(1)
(1)
Consists of one standard and one special ange, one gasket and 2 bolts
Consists of one standard and one special ange, one gasket and 2 bolts
(2)
(2)
Flange and bolts only
Flange and bolts only
(3)
(3)
Consist of anges, gaskets, bolts and nuts only. One standard ange and one special ange, two gasket, 2 bolts and 2 nuts.
Consist of anges, gaskets, bolts and nuts only. One standard ange and one special ange, two gasket, 2 bolts and 2 nuts.
NOTE:
One standard ange and one special ange, two gasket, 2 bolts and 2 nuts.
Certicates, declarations, and approvals
The list contains all certicates, declarations, and approvals for this product type. Individual code number may have some or all of these approvals, and certain local approvals may not appear on the list.
Some approvals may change over time. You can check the most current status at danfoss.com or contact your local Danfoss representative if you have any questions.
Table 13: Valid Approvals
© Danfoss | Climate Solutions | 2021.02 AI173386419455en-000601 | 7
