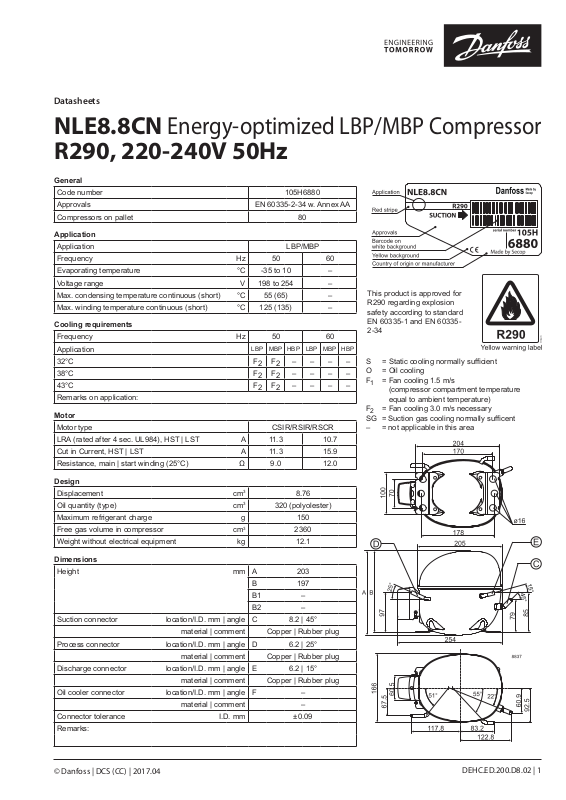

Datasheets
NLE8.8CN
Energy-optimized LBP/MBP Compressor
R290, 220-240V 50Hz
General
Code number 105H6880
Approvals EN 60335-2-34 w. Annex AA
Compressors on pallet 80
Application
Application LBP/MBP
Frequency Hz 50 60
Evaporating temperature °C -35 to 10 –
Voltage range V 198 to 254 –
Max. condensing temperature continuous (short) °C 55 (65) –
Max. winding temperature continuous (short) °C 125 (135) –
Cooling requirements
Frequency Hz 50 60
Application
32°C F2F2– – – –
38°C F2F2– – – –
43°C F2F2– – – –
Remarks on application:
Motor
Motor type CSIR/RSIR/RSCR
LRA (rated after 4 sec. UL984), HST | LST A 11.3 10.7
Cut in Current, HST | LST A 11.3 15.9
Resistance, main | start winding (25°C) Ω 9.0 12.0
LBP MBP HBP LBP MBP HBP
This product is approved for
R290 regarding explosion
safety according to standard
EN 60335-1 and EN 603352-34
S =Staticcoolingnormallysufcient
O = Oil cooling
F1 = Fan cooling 1.5 m/s
(compressor compartment temperature
equal to ambient temperature)
F2 = Fan cooling 3.0 m/s necessary
SG =Suctiongascoolingnormallysufcent
– = not applicable in this area
Design
Displacement cm
Oil quantity (type) cm
Maximum refrigerant charge g 150
Free gas volume in compressor cm
Weight without electrical equipment kg 12.1
Dimensions
Height mm A 203
Suction connector location/I.D. mm | angle C 8.2 | 45°
material | comment Copper | Rubber plug
Process connector location/I.D. mm | angle D 6.2 | 25°
material | comment Copper | Rubber plug
Discharge connector location/I.D. mm | angle E 6.2 | 15°
material | comment Copper | Rubber plug
Oil cooler connector location/I.D. mm | angle F –
material | comment –
Connector tolerance I.D. mm ±0.09
Remarks:
3
3
3
320 (polyolester)
B 197
B1 –
B2 –
8.76
2360
© Danfoss | DCS (CC) | 2017.04
DEHC.ED.200.D8.02 | 1
EN 12900 LBP 220V, 50Hz, fan cooling F
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 259 321 397 426 487 596 723 819 873 1046 1244 1341 1472
Power cons. in W 212 234 257 265 280 302 323 336 342 358 371 375 379
Current cons. in A 1.55 1.61 1.67 1.69 1.74 1.81 1.88 1.92 1.94 2.00 2.04 2.05 2.07
COP in W/W 1.22 1.37 1.54 1.61 1.74 1.97 2.24 2.44 2.55 2.92 3.36 3.58 3.88
2
EN 12900 MBP 220V, 50Hz, fan cooling F
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 242 304 376 404 462 564 683 772 821 981 1165 1254 1375
Power cons. in W 216 241 267 275 293 318 343 358 366 386 404 411 418
Current cons. in A 1.56 1.63 1.70 1.73 1.78 1.86 1.95 2.00 2.03 2.10 2.16 2.19 2.21
COP in W/W 1.12 1.26 1.41 1.47 1.58 1.77 1.99 2.15 2.24 2.54 2.88 3.05 3.29
ASHRAE LBP 220V, 50Hz, fan cooling F
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 236 312 398 430 497 611 742 839 893 1067 1267 1364 1496
Power cons. in W 202 232 264 275 296 328 360 380 390 418 444 454 466
Current cons. in A 1.54 1.63 1.73 1.76 1.84 1.95 2.07 2.15 2.19 2.30 2.41 2.46 2.51
COP in W/W 1.17 1.34 1.51 1.57 1.68 1.86 2.06 2.21 2.29 2.55 2.85 3.00 3.21
ASHRAE MBP/HBP 220V, 50Hz, fan cooling F
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 211 279 356 385 444 545 662 748 796 950 1127 1212 1328
Power cons. in W 200 230 261 272 293 325 356 376 386 413 439 449 460
Current cons. in A 1.54 1.63 1.73 1.76 1.84 1.95 2.07 2.15 2.19 2.30 2.41 2.46 2.51
COP in W/W 1.06 1.21 1.36 1.41 1.51 1.68 1.86 1.99 2.06 2.30 2.57 2.70 2.89
2
2
2
Accessories for NLE8.8CN Figure Code number Test conditions
ePTC starting device 6.3 mm spade connectors
4.8 mm spade connectors 103N0050 Ambient temperature 32°C 32°C 32.2°C 35°C
Starting relay 6.3 mm spade connectors a2 117U7002 Suction gas temperature 20°C 20°C 32.2°C 35°C
Start. capacitor 80 µF 6.3 mm spade connectors c 117U5015 Liquid temperature no subcooling 32.2°C 46.1°C
Cover b 103N2010
Cord relief d 103N1010 Mounting accessories Code number
Protection screen for PTC g – Bolt joint for one comp. Ø: 16 mm 118-1917
a1
– Condensing temperature 40°C 45°C 54.4°C 54.4°C
Bolt joint in quantities Ø: 16 mm 118-1918
Snap-on in quantities Ø: 16 mm 118-1919
© Danfoss | DCS (CC) | 2017.04
EN 12900
LBP MBP
DEHC.ED.200.D8.02 | 2
ASHRAE
LBP MBP
EN 12900 LBP 220V, 50Hz, RC 4 µF, ePTC consumption incl., fan cooling F
Danf
already on order pro
All trademarks in this material are property of the respec
2
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 261 324 401 430 492 602 731 827 881 1056 1257 1354 1486
Power cons. in W 205 226 248 255 269 291 311 323 329 344 356 360 364
Current cons. in A 1.30 1.32 1.37 1.39 1.43 1.50 1.58 1.63 1.65 1.72 1.77 1.79 1.80
COP in W/W 1.28 1.44 1.62 1.69 1.83 2.07 2.35 2.56 2.68 3.07 3.53 3.76 4.08
EN 12900 MBP 220V, 50Hz, RC 4 µF, ePTC consumption incl., fan cooling F
2
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 245 307 380 408 467 569 689 779 829 991 1177 1267 1389
Power cons. in W 208 232 257 265 282 307 331 346 353 373 390 396 403
Current cons. in A 1.31 1.36 1.42 1.45 1.51 1.60 1.70 1.77 1.80 1.89 1.97 2.00 2.02
COP in W/W 1.18 1.32 1.48 1.54 1.66 1.85 2.08 2.25 2.35 2.66 3.02 3.20 3.44
ASHRAE LBP 220V, 50Hz, RC 4 µF, ePTC consumption incl., fan cooling F
2
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 238 315 402 435 502 617 749 848 902 1078 1280 1378 1511
Power cons. in W 194 223 253 264 284 315 346 365 375 401 426 435 446
Current cons. in A 1.26 1.33 1.43 1.46 1.54 1.67 1.80 1.89 1.93 2.06 2.17 2.22 2.27
COP in W/W 1.23 1.41 1.59 1.65 1.77 1.96 2.17 2.32 2.41 2.69 3.01 3.17 3.38
ASHRAE MBP/HBP 220V, 50Hz, RC 4 µF, ePTC consumption incl., fan cooling F
2
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 213 282 360 388 448 550 668 756 804 960 1138 1225 1342
Power cons. in W 192 221 251 261 281 312 342 361 370 397 420 430 441
Current cons. in A 1.26 1.33 1.43 1.46 1.54 1.67 1.80 1.89 1.93 2.06 2.17 2.22 2.27
COP in W/W 1.11 1.28 1.43 1.49 1.59 1.76 1.95 2.09 2.17 2.42 2.71 2.85 3.05

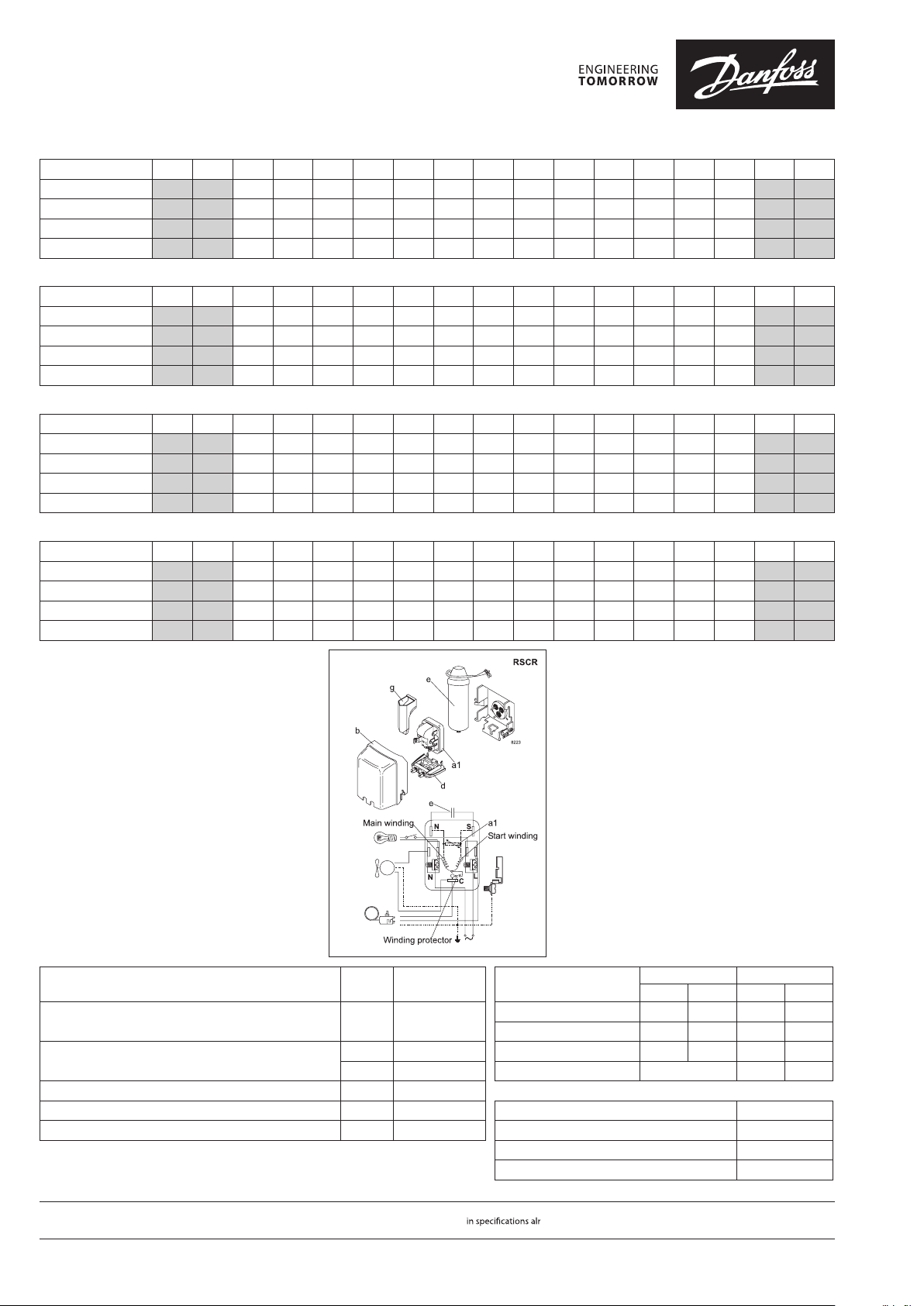

Accessories for NLE8.8CN Figure Code number Test conditions
EN 12900
LBP MBP
ePTC starting device 6.3 mm spade connectors
4.8 mm spade connectors 103N0050 Ambient temperature 32°C 32°C 32.2°C 35°C
a1
– Condensing temperature 40°C 45°C 54.4°C 54.4°C
Run capacitor 4 µF 4.8 mm spade connectors e 117-7119 Suction gas temperature 20°C 20°C 32.2°C 35°C
(optional) Liquid temperature no subcooling 32.2°C 46.1°C
Cover b 103N2010
Cord relief d 103N1010 Mounting accessories Code number
Protection screen for PTC g – Bolt joint for one comp. Ø: 16 mm 118-1917
Bolt joint in quantities Ø: 16 mm 118-1918
Snap-on in quantities Ø: 16 mm 118-1919
oss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products
vided that such alterations can be made without subsequential changes being necessary eady agreed.
tive companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
3 |© Danfoss | DCS (CC) | 2017.04 DEHC.ED.200.D8.02
