NLE12.6MF.2
Data sheet
5 pgs533.59 Kb0

Danfoss NLE12.6MF.2 Data sheet

Download
Datasheets
NLE12.6MF.2
Energy-optimized MBP Compressor
R134a, 220-240V 50/60Hz
General
Code number 105G6387
Approvals EN 60335-2-34 w. Annex AA
Compressors on pallet 80
Application
Application LBP/MBP
Frequency Hz 50 60
Evaporating temperature °C -35 to 10 -35 to 0
Max. condensing temperature continuous (short) °C 65 (70) 65 (70)
Max. winding temperature continuous (short) °C 125 (135) 125 (135)
Cooling requirements
Frequency Hz 50 60
Application
32°C F2F2– F2F2–
38°C F2F2– F2F2–
43°C F2F2– F2F2–
Remarks on application:
Motor
Motor type CSIR/RSIR/RSCR
LRA (rated after 4 sec. UL984), HST | LST A 13.7 14.4
Cut in Current, HST | LST A 13.7 19.4
Resistance, main | start winding (25°C) Ω 4.9 8.9
LBP MBP HBP LBP MBP HBP
S =Staticcoolingnormallysufcient
O = Oil cooling F1 = Fan cooling 1.5 m/s (compressor compartment temperature equal to ambient temperature) F2 = Fan cooling 3.0 m/s necessary
SG =Suctiongascoolingnormallysufcent
– = not applicable in this area
Design
Displacement cm
Oil quantity (type) cm
Maximum refrigerant charge g 600
Free gas volume in compressor cm
Weight without electrical equipment kg 11.5
Dimensions
Height mm A 203
Suction connector location/I.D. mm | angle C 8.2 | 45°
material | comment Copper | Rubber plug
Process connector location/I.D. mm | angle D 6.2 | 25°
material | comment Copper | Rubber plug
Discharge connector location/I.D. mm | angle E 6.2 | 15°
material | comment Copper | Rubber plug
Oil cooler connector location/I.D. mm | angle F –
material | comment –
Connector tolerance I.D. mm ±0.09
Remarks:
3
3
3
320 (polyolester)
B 197
B1 –
B2 –
12.55
2360
© Danfoss | DCS (CC) | 2017.04
DEHC.ED.200.F6.02 | 1
EN 12900 LBP 220V, 50Hz, fan cooling F
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 199 254 334 367 440 572 730 848 914 1123 1360 1472 1623
Power cons. in W 181 205 234 245 268 304 342 368 381 422 461 479 500
Current cons. in A 1.96 1.97 2.02 2.04 2.09 2.17 2.28 2.35 2.39 2.52 2.65 2.71 2.78
COP in W/W 1.10 1.24 1.42 1.50 1.65 1.88 2.14 2.31 2.40 2.67 2.95 3.08 3.24
2
EN 12900 MBP 220V, 50Hz, fan cooling F
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 193 236 305 335 400 521 668 779 841 1040 1265 1373 1518
Power cons. in W 184 207 236 246 269 305 345 372 387 429 472 491 515
Current cons. in A 1.97 1.98 2.02 2.04 2.09 2.18 2.29 2.37 2.42 2.56 2.70 2.77 2.85
COP in W/W 1.05 1.14 1.30 1.36 1.49 1.71 1.94 2.09 2.18 2.42 2.68 2.79 2.95
ASHRAE LBP 220V, 50Hz, fan cooling F
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 241 268 327 355 420 545 703 826 894 1119 1378 1502 1670
Power cons. in W 178 200 228 239 262 301 343 372 388 435 483 504 531
Current cons. in A 1.98 1.99 2.03 2.05 2.10 2.21 2.33 2.43 2.48 2.65 2.83 2.91 3.02
COP in W/W 1.36 1.34 1.43 1.48 1.60 1.81 2.05 2.22 2.31 2.58 2.85 2.98 3.15
ASHRAE MBP 220V, 50Hz, fan cooling F
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 215 239 292 317 374 486 626 735 796 995 1224 1334 1482
Power cons. in W 176 198 226 237 260 298 339 368 384 430 477 498 524
Current cons. in A 1.98 1.99 2.03 2.05 2.10 2.21 2.33 2.43 2.48 2.65 2.83 2.91 3.02
COP in W/W 1.22 1.21 1.29 1.34 1.44 1.63 1.85 2.00 2.08 2.32 2.57 2.68 2.83
2
2
2
Accessories for NLE12.6MF.2 Figure Code number Test conditions
ePTC starting device 6.3 mm spade connectors
4.8 mm spade connectors 103N0050 Ambient temperature 32°C 32°C 32.2°C 35°C
Starting relay 6.3 mm spade connectors a2 117U6005 Suction gas temperature 20°C 20°C 32.2°C 35°C
Start. capacitor 80 µF 6.3 mm spade connectors c 117U5015 Liquid temperature no subcooling 32.2°C 46.1°C
Cover b 103N2010
Cord relief d 103N1010 Mounting accessories Code number
Protection screen for PTC g – Bolt joint for one comp. Ø: 16 mm 118-1917
a1
– Condensing temperature 40°C 45°C 54.4°C 54.4°C
Bolt joint in quantities Ø: 16 mm 118-1918
Snap-on in quantities Ø: 16 mm 118-1919
© Danfoss | DCS (CC) | 2017.04
EN 12900
LBP MBP
DEHC.ED.200.F6.02 | 2
ASHRAE
LBP MBP
EN 12900 LBP 220V, 50Hz, RC 4µF, ePTC consumption incl., fan cooling F
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 202 258 339 373 447 581 741 862 928 1141 1381 1495 1648
Power cons. in W 176 200 228 239 260 295 332 358 371 410 449 465 486
Current cons. in A 1.90 1.92 1.96 1.98 2.03 2.11 2.21 2.29 2.33 2.45 2.57 2.63 2.70
COP in W/W 1.15 1.29 1.49 1.56 1.72 1.97 2.23 2.41 2.50 2.78 3.08 3.21 3.39
2
EN 12900 MBP 220V, 50Hz, RC 4µF, ePTC consumption incl., fan cooling F
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 196 240 310 340 407 529 679 791 854 1056 1285 1395 1541
Power cons. in W 179 201 229 240 261 297 335 362 376 417 459 478 501
Current cons. in A 1.91 1.93 1.97 1.99 2.03 2.12 2.23 2.31 2.35 2.48 2.63 2.69 2.77
COP in W/W 1.10 1.19 1.35 1.42 1.56 1.78 2.02 2.19 2.27 2.53 2.80 2.92 3.08
ASHRAE LBP 220V, 50Hz, RC 4µF, ePTC consumption incl., fan cooling F
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 245 272 333 361 426 553 714 839 908 1137 1399 1526 1697
Power cons. in W 173 194 222 233 255 292 333 362 377 423 469 490 516
Current cons. in A 1.93 1.93 1.97 2.00 2.05 2.15 2.27 2.36 2.41 2.58 2.75 2.83 2.94
COP in W/W 1.42 1.40 1.50 1.55 1.67 1.89 2.14 2.32 2.41 2.69 2.98 3.11 3.29
ASHRAE MBP 220V, 50Hz, RC 4µF, ePTC consumption incl., fan cooling F
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 219 243 297 322 380 493 636 747 809 1011 1243 1355 1506
Power cons. in W 171 193 220 230 252 289 330 358 373 418 464 484 510
Current cons. in A 1.93 1.93 1.97 2.00 2.05 2.15 2.27 2.36 2.41 2.58 2.75 2.83 2.94
COP in W/W 1.28 1.26 1.35 1.40 1.51 1.70 1.93 2.09 2.17 2.42 2.68 2.80 2.95
2
2
2
Accessories for NLE12.6MF.2 Figure Code number Test conditions
ePTC starting device 6.3 mm spade connectors
4.8 mm spade connectors 103N0050 Ambient temperature 32°C 32°C 32.2°C 35°C
Run capacitor 4 µF 4.8 mm spade connectors e 117-7119 Suction gas temperature 20°C 20°C 32.2°C 35°C
(optional) Liquid temperature no subcooling 32.2°C 46.1°C
Cover b 103N2010
Cord relief d 103N1010 Mounting accessories Code number
Protection screen for PTC g – Bolt joint for one comp. Ø: 16 mm 118-1917
a1
– Condensing temperature 40°C 45°C 54.4°C 54.4°C
Bolt joint in quantities Ø: 16 mm 118-1918
Snap-on in quantities Ø: 16 mm 118-1919
© Danfoss | DCS (CC) | 2017.04
EN 12900
LBP MBP
DEHC.ED.200.F6.02 | 3
ASHRAE
LBP MBP
EN 12900 LBP 220V, 60Hz, fan cooling F
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 240 306 403 442 530 689 879 1022 1101 1354
Power cons. in W 216 245 280 293 319 362 408 439 455 503
Current cons. in A 2.33 2.36 2.41 2.43 2.49 2.59 2.72 2.81 2.85 3.00
COP in W/W 1.11 1.25 1.44 1.51 1.66 1.90 2.16 2.33 2.42 2.69
2
EN 12900 MBP 220V, 60Hz, fan cooling F
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 233 285 368 403 482 628 805 939 1013 1253
Power cons. in W 220 247 281 294 321 364 412 444 461 512
Current cons. in A 2.35 2.36 2.41 2.44 2.50 2.60 2.73 2.83 2.88 3.05
COP in W/W 1.06 1.15 1.31 1.37 1.50 1.72 1.96 2.11 2.20 2.45
ASHRAE LBP 220V, 60Hz, fan cooling F
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 291 323 395 428 506 656 847 995 1078 1348
Power cons. in W 212 239 273 286 313 359 409 444 463 518
Current cons. in A 2.37 2.37 2.42 2.45 2.51 2.63 2.78 2.90 2.96 3.16
COP in W/W 1.37 1.35 1.45 1.50 1.62 1.83 2.07 2.24 2.33 2.60
ASHRAE MBP 220V, 60Hz, fan cooling F
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 259 288 352 382 451 585 754 886 959 1199
Power cons. in W 210 236 270 283 310 355 405 439 458 513
Current cons. in A 2.37 2.37 2.42 2.45 2.51 2.63 2.78 2.90 2.96 3.16
COP in W/W 1.23 1.22 1.30 1.35 1.46 1.65 1.86 2.02 2.10 2.34
2
2
2
Accessories for NLE12.6MF.2 Figure Code number Test conditions
ePTC starting device 6.3 mm spade connectors
4.8 mm spade connectors 103N0050 Ambient temperature 32°C 32°C 32.2°C 35°C
Starting relay 6.3 mm spade connectors a2 117U6005 Suction gas temperature 20°C 20°C 32.2°C 35°C
Start. capacitor 80 µF 6.3 mm spade connectors c 117U5015 Liquid temperature no subcooling 32.2°C 46.1°C
Cover b 103N2010
Cord relief d 103N1010 Mounting accessories Code number
Protection screen for PTC g – Bolt joint for one comp. Ø: 16 mm 118-1917
a1
– Condensing temperature 40°C 45°C 54.4°C 54.4°C
Bolt joint in quantities Ø: 16 mm 118-1918
Snap-on in quantities Ø: 16 mm 118-1919
© Danfoss | DCS (CC) | 2017.04
EN 12900
LBP MBP
DEHC.ED.200.F6.02 | 4
ASHRAE
LBP MBP

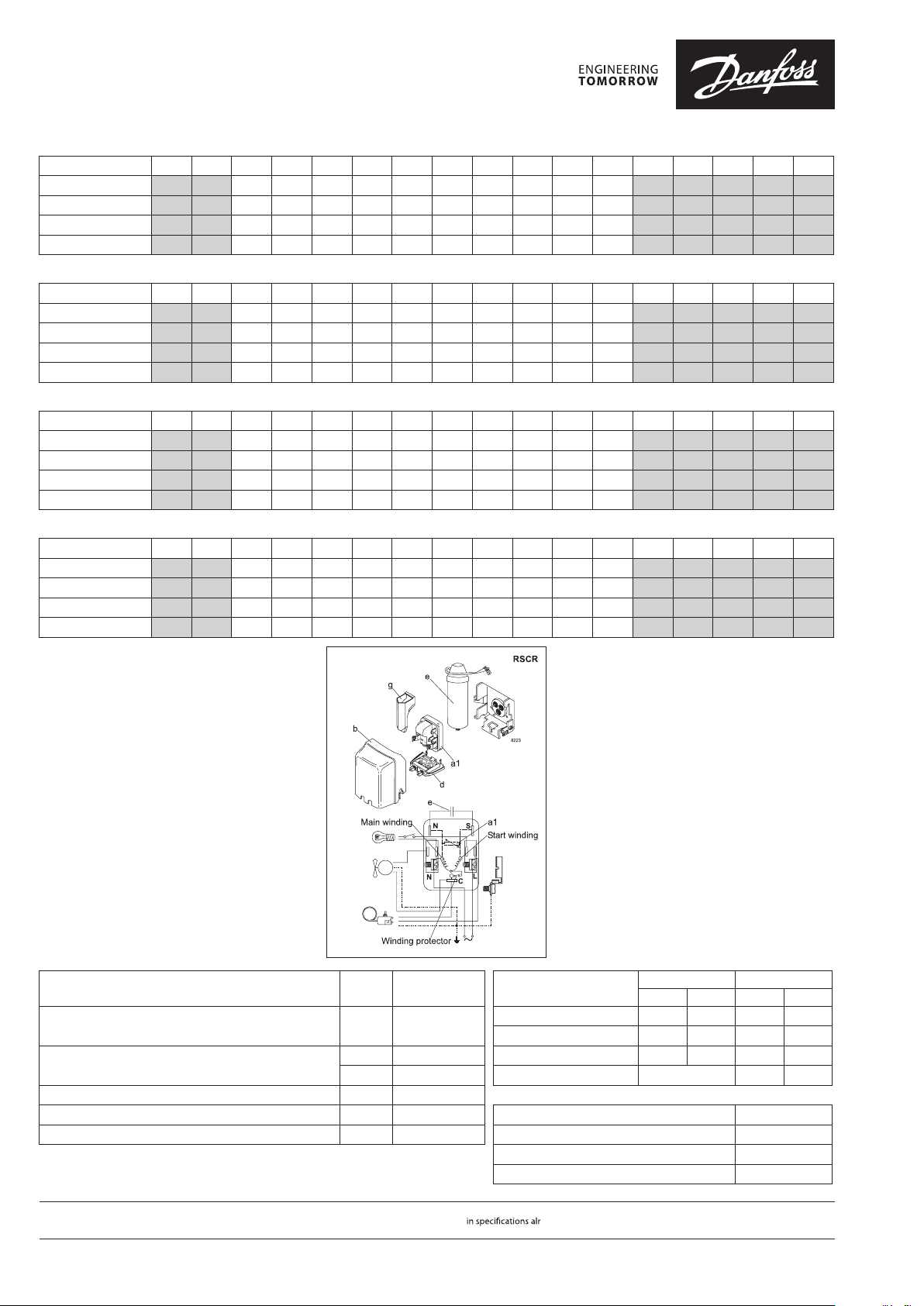

EN 12900 LBP 220V, 60Hz, RC 4µF, ePTC consumption incl., fan cooling F
Danf already on order pro All trademarks in this material are property of the respec
2
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 243 310 409 449 539 700 893 1038 1118 1375
Power cons. in W 210 238 272 285 310 352 397 427 442 489
Current cons. in A 2.27 2.29 2.34 2.37 2.42 2.52 2.64 2.73 2.78 2.92
COP in W/W 1.16 1.30 1.50 1.58 1.74 1.99 2.25 2.43 2.53 2.81
EN 12900 MBP 220V, 60Hz, RC 4µF, ePTC consumption incl., fan cooling F
2
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 236 289 374 410 490 638 818 954 1029 1273
Power cons. in W 214 240 273 286 312 354 400 432 448 498
Current cons. in A 2.28 2.30 2.35 2.37 2.43 2.53 2.66 2.75 2.80 2.96
COP in W/W 1.11 1.20 1.37 1.43 1.57 1.80 2.04 2.21 2.29 2.56
ASHRAE LBP 220V, 60Hz, RC 4µF, ePTC consumption incl., fan cooling F
2
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 295 328 401 435 514 667 860 1010 1094 1370
Power cons. in W 206 232 265 278 304 349 398 432 450 504
Current cons. in A 2.30 2.31 2.36 2.38 2.44 2.56 2.71 2.82 2.88 3.07
COP in W/W 1.43 1.41 1.51 1.56 1.69 1.91 2.16 2.34 2.43 2.72
ASHRAE MBP 220V, 60Hz, RC 4µF, ePTC consumption incl., fan cooling F
2
Evap. temp. in °C -45 -40 -35 -30 -25 -23.3 -20 -15 -10 -6.7 -5 0 5 7.2 10 15 20
Capacity in W 264 293 357 388 458 594 766 899 974 1218
Power cons. in W 204 230 262 275 301 345 393 427 445 498
Current cons. in A 2.30 2.31 2.36 2.38 2.44 2.56 2.71 2.82 2.88 3.07
COP in W/W 1.29 1.27 1.36 1.41 1.52 1.72 1.95 2.11 2.19 2.44
Accessories for NLE12.6MF.2 Figure Code number Test conditions
EN 12900
LBP MBP
ePTC starting device 6.3 mm spade connectors
4.8 mm spade connectors 103N0050 Ambient temperature 32°C 32°C 32.2°C 35°C
a1
– Condensing temperature 40°C 45°C 54.4°C 54.4°C
Run capacitor 4 µF 4.8 mm spade connectors e 117-7119 Suction gas temperature 20°C 20°C 32.2°C 35°C
(optional) Liquid temperature no subcooling 32.2°C 46.1°C
Cover b 103N2010
Cord relief d 103N1010 Mounting accessories Code number
Protection screen for PTC g – Bolt joint for one comp. Ø: 16 mm 118-1917
Bolt joint in quantities Ø: 16 mm 118-1918
Snap-on in quantities Ø: 16 mm 118-1919
oss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products
vided that such alterations can be made without subsequential changes being necessary eady agreed.
tive companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
5 |© Danfoss | DCS (CC) | 2017.04 DEHC.ED.200.F6.02
