Parts Manual
Series 40 MPV035D and MPT035D
Axial Piston Pumps
powersolutions.danfoss.com

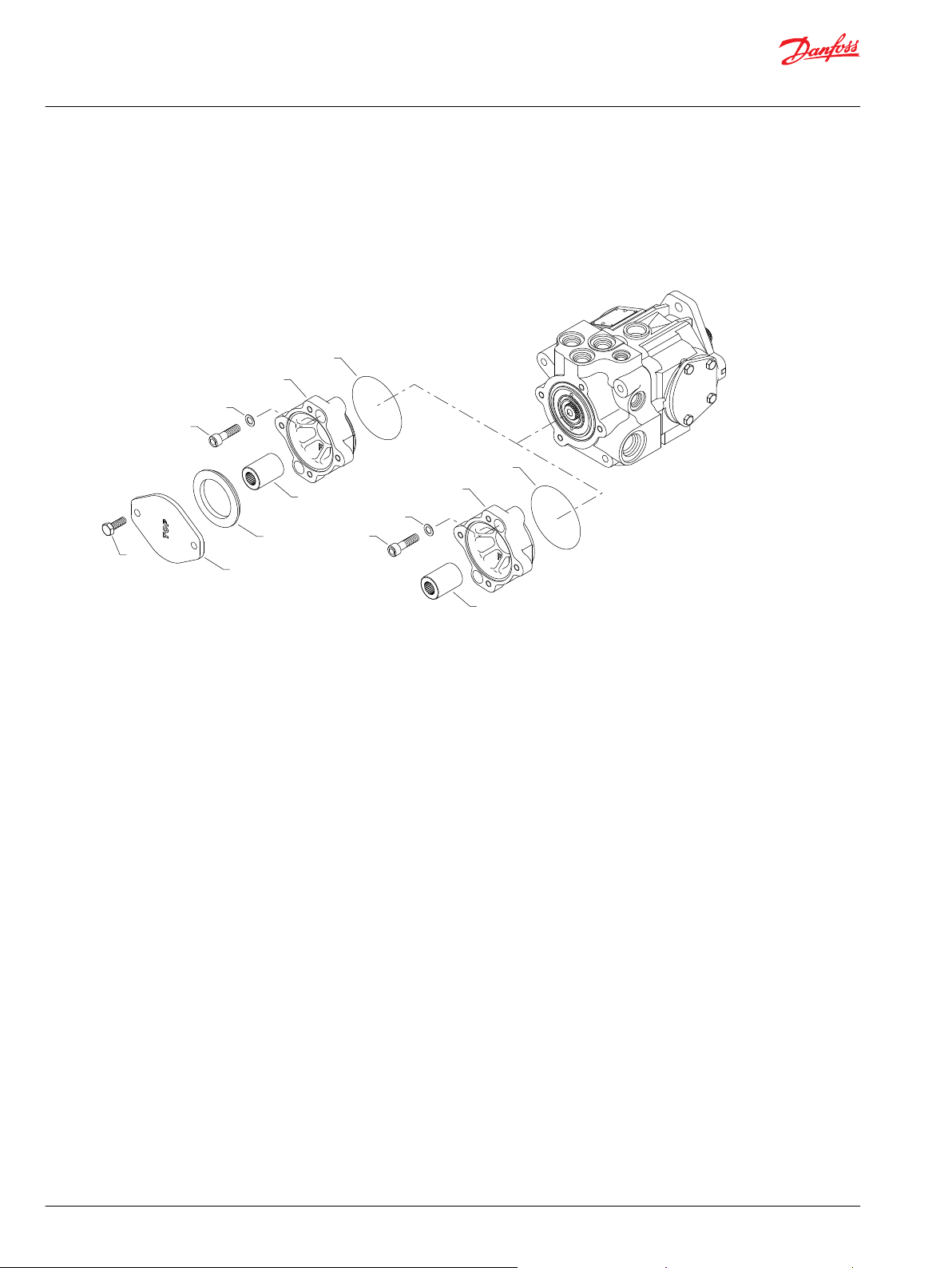

Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Revision history Table of revisions
Date Changed Rev
March 2018 Updated to Engineering Tomorrow design and added SB-2017-012 0301
2 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Contents
General information
Service Parts Identification............................................................................................................................................................5
Nameplate...........................................................................................................................................................................................5
Date code............................................................................................................................................................................................ 6
About service bulletins...................................................................................................................................................................6
Procedure to identify a part..........................................................................................................................................................7
Example of a part identification (MPV035D).....................................................................................................................7
Adobe Acrobat 2-page viewing..................................................................................................................................................8
Order code, variable displacement pump...............................................................................................................................9
Order code, tandem pump.........................................................................................................................................................10
Variable displacement pump
Common parts and special hardware.................................................................................................................................... 12
Swashplate....................................................................................................................................................................................... 14

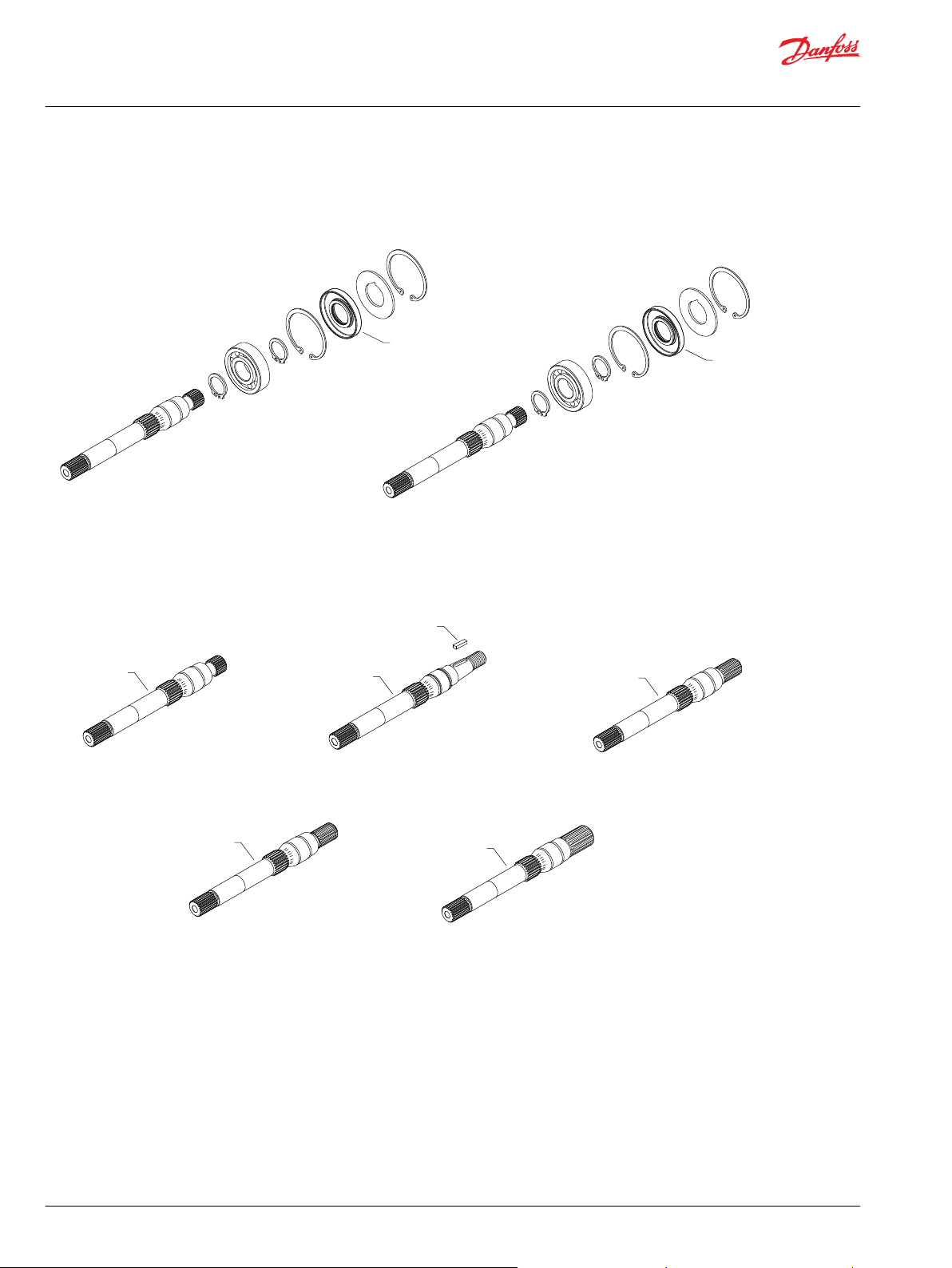

Shaft and shaft seal....................................................................................................................................................................... 16
Valve plate rotation.......................................................................................................................................................................18
Charge pump...................................................................................................................................................................................20
Charge pressure relief/setting...................................................................................................................................................22
S40 MPV charge pressure relief valve C-.......................................................................................................................... 22
Charge pressure relief valve N-W........................................................................................................................................24
Filtration............................................................................................................................................................................................ 26
System pressure protection....................................................................................................................................................... 28
System pressure protection CCA-DAH............................................................................................................................. 28
System pressure protection DAJ-EFF................................................................................................................................ 32
Direct displacement control...................................................................................................................................................... 34

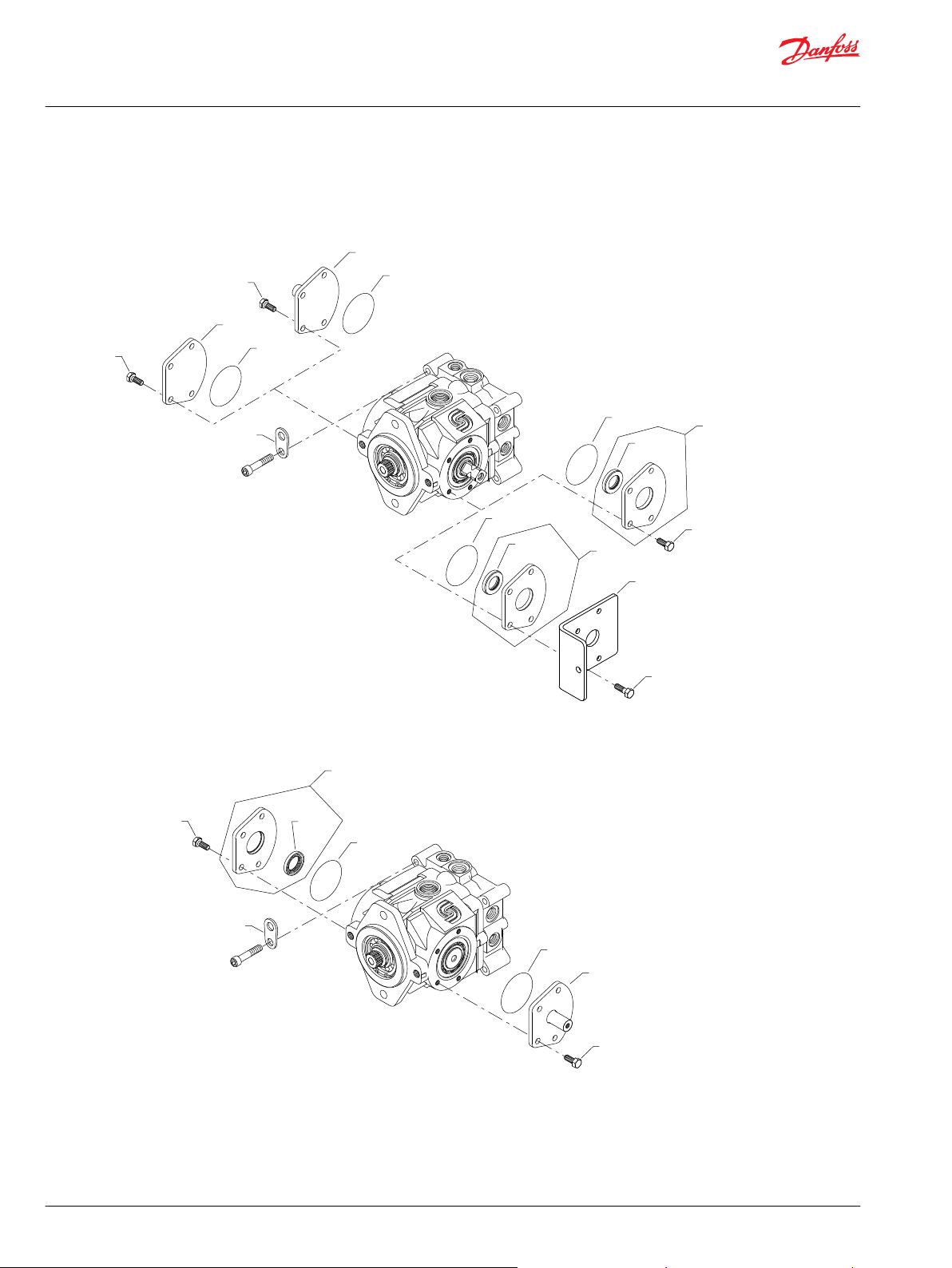

Auxiliary mounting pad...............................................................................................................................................................36
Auxiliary mounting pad A-F..................................................................................................................................................36
Aux mounting pad H-M..........................................................................................................................................................40
S40 MPV seal kit..............................................................................................................................................................................42
Notes...................................................................................................................................................................................................43
Variable displacement tandem pump
Common parts and special hardware.................................................................................................................................... 44
Common parts...........................................................................................................................................................................44
Special hardware GNJ-GUG...................................................................................................................................................46
Special hardware NGC-NVC.................................................................................................................................................. 48
Swashplate....................................................................................................................................................................................... 50
Shaft and shaft seal....................................................................................................................................................................... 52
Valve plate rotation.......................................................................................................................................................................54
Charge pump...................................................................................................................................................................................58
Charge pressure relief/setting...................................................................................................................................................60
Charge pressure relief valve A-E..........................................................................................................................................60
Charge pressure relief valve F-P..........................................................................................................................................62
Filtration............................................................................................................................................................................................ 66

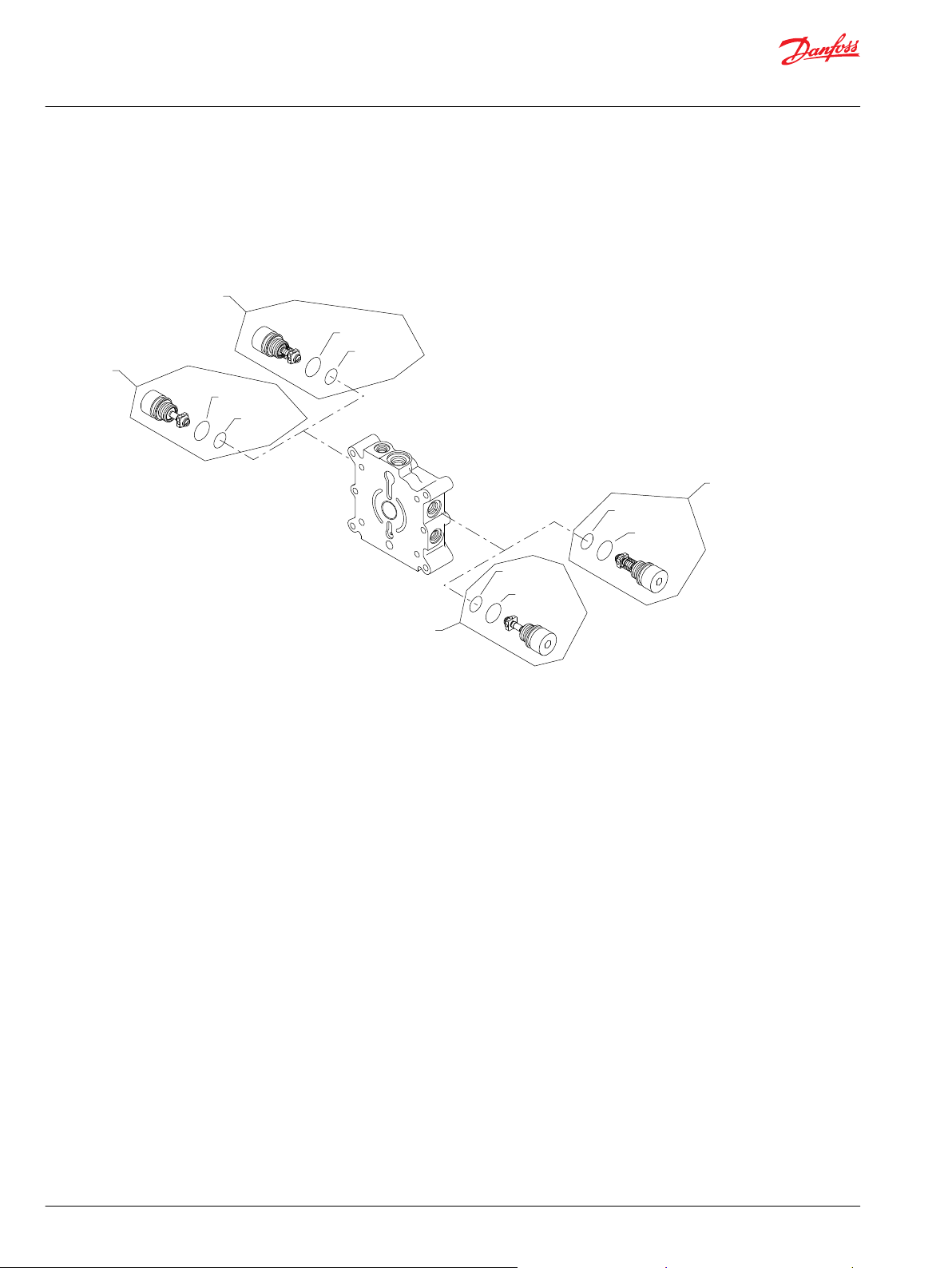

System pressure protection....................................................................................................................................................... 68
System pressure protection AAA-CBA..............................................................................................................................68
System pressure protection (front pump) CCA-DAH...................................................................................................72
System pressure protection (front pump) DAJ-ETT..................................................................................................... 76
S40 MPT system pressure protection (rear pump) AAA-CBA................................................................................... 78
System pressure protection (rear pump) CCA-ETT.......................................................................................................82
Direct displacement control...................................................................................................................................................... 84
DDC (front pump) DA-DR...................................................................................................................................................... 84
DDC (front pump) DS-WN..................................................................................................................................................... 86
DDC (rear pump) DA-DN........................................................................................................................................................88
DDC (rear pump) DR-DW....................................................................................................................................................... 92
DDC (rear pump) DX-WN.......................................................................................................................................................94

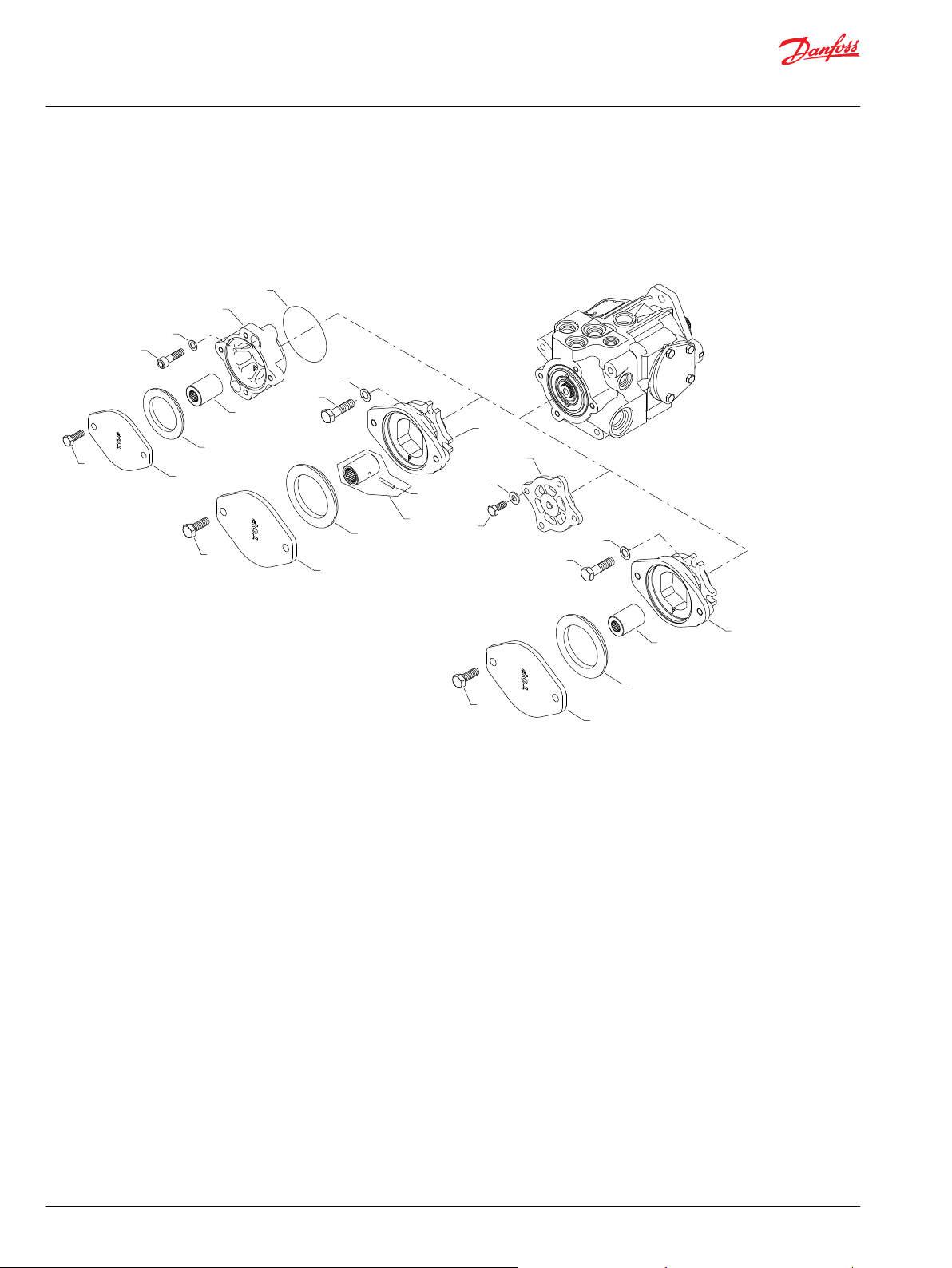

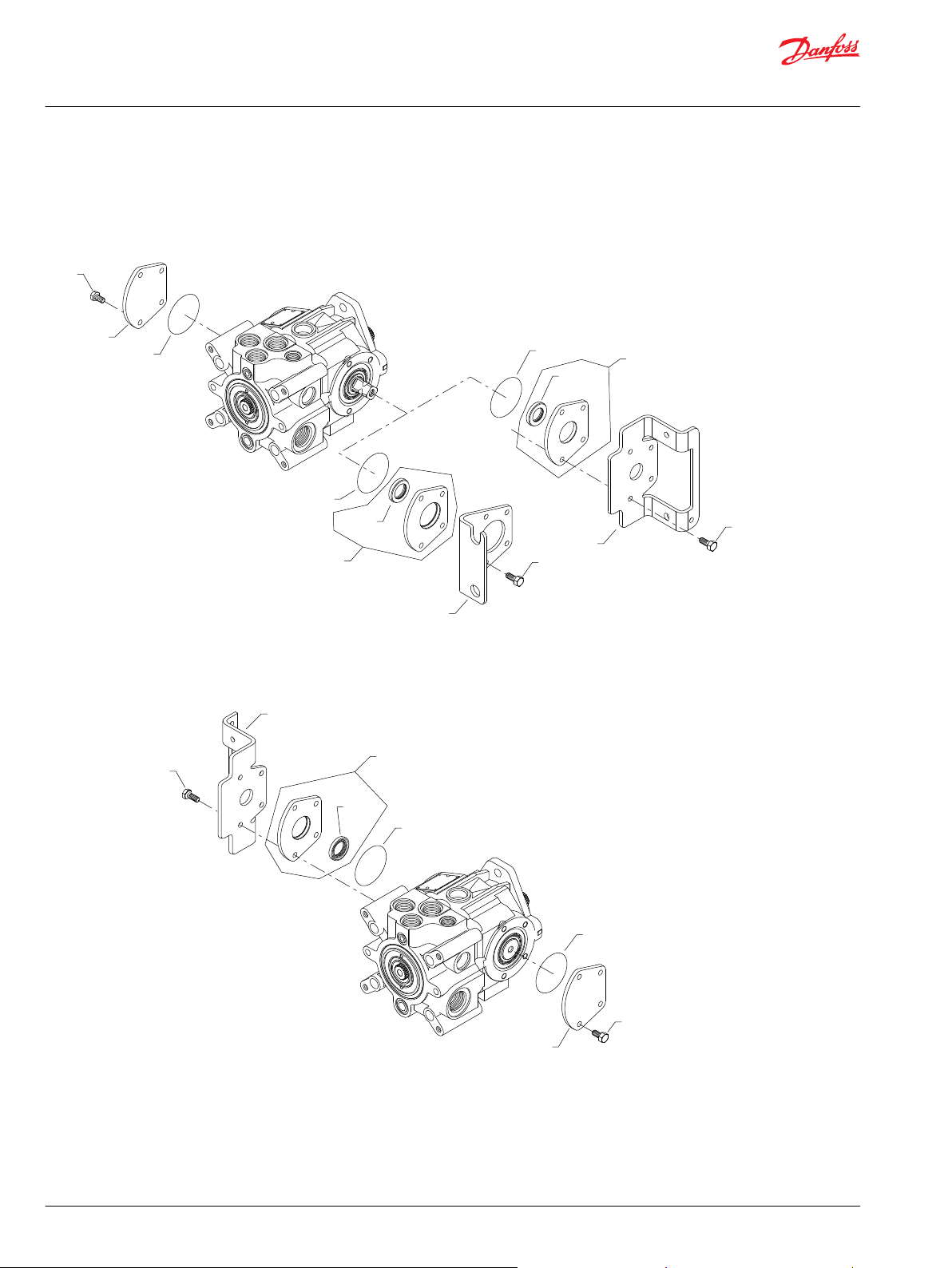

Auxiliary mounting pad...............................................................................................................................................................96
Auxiliary mounting pad 1-6..................................................................................................................................................96
Auxiliary mounting pad A-G.................................................................................................................................................98
Auxiliary mounting pad H-P...............................................................................................................................................102
©
Danfoss | March 2018 AX00000067en-US0301 | 3
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Contents
S40 MPT overhaul seal kit.........................................................................................................................................................104
Service bulletin
SB-1996-014...................................................................................................................................................................................105
SB-1998-092...................................................................................................................................................................................107
SB-1999-040...................................................................................................................................................................................109
SB-2000-026A................................................................................................................................................................................110
SB-2002-021...................................................................................................................................................................................111
SB-2003-018...................................................................................................................................................................................113
SB-2010-037...................................................................................................................................................................................114
SB-2013-002...................................................................................................................................................................................116
SB-2017-012...................................................................................................................................................................................117
4 | © Danfoss | March 2018 AX00000067en-US0301
MADE IN U.S.A.
Serial No. Fabr- Nr
A-16-36-23456
Model Code Typ
Model No.
MPV-035-D-B-A-G-L-S-G
AA-A-A-BGG-DR-A-FF-C
NNN
4352050
Ident-Nr
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
General information
Service Parts Identification
The following information and procedure is used to identify the module group, item number,
manufacture date, part number, and part name of the parts included in the
The parts listed include all parts which may be used when performing either “Minor Repairs”, “Major
Repairs” or “Conversions” on the.
Nameplate
Each unit will have a nameplate affixed to the housing. The nameplate will include the following
information:
Model Code
The Danfoss model code completely defines the specific unit and must be used when ordering parts to
service this product.
Model Number
The Danfoss model number is used by the factory in manufacturing. On repeat orders, a complete unit
can be ordered by the model number.
Serial Number
The Danfoss serial number is used to identify the manufacture date and the unit sequence in the build.
The serial number is also used to identify the units warranty time period.
The letter code indicates the location of original manufacture (assembly).
The first number (2 digits) indicates the year of manufacture. The second number (2 digits) indicates the
calendar week of manufacture.
The third number (5 digits) is a sequential number used to identify a specific unit.
©
Danfoss | March 2018 AX00000067en-US0301 | 5
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
General information
Date code
The date code is defined as the year and week of manufacture. The same item number may list more than
one part number. This indicates that there is more than one configuration for that item number. You will
see that there are different date codes for the different part numbers. Find the date code of your unit
from the nameplate to determine which service part number you need to order.
Example: The service part desired is item G30
Order Code Item Date Begin Date End Part Number Part Name Qty. per
80 G30 89-17 8000243 End cap gasket 1
G30 89-16 8000151 End cap gasket
All units using this order code with a date code prior to 89-17 must use part number “8000151.” All units
with a date code of 89-17 and newer must use part number “8000243.”
About service bulletins
AService Bulletin Number (SB-_ _ _ _ - _ _ _) may follow the “Part Name” of the part you desire. You must
read that Service Bulletin prior to ordering that part. The information contained in these Service Bulletins,
as of the print date of this bulletin, are included at the end of this manual. Service Bulletins contain more
detailed information such as interchangeability, what additional parts are involved, etc. It is suggested
that you add additional Service Bulletins to this manual as you receive them.
Model/Kit
1
(SB-1995-006)
6 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
General information
Procedure to identify a part
The modular design of this product results in a simplified service parts list and part number identification
procedure.
The same item numbers are used for same part names on all units within a product type..
A part number that has another number following it in parentheses is done to make this a world wide
manual. The first number is sold in Germany. The number in parentheses is sold in the United States
(example: 314583 (9008000-0118), customers would order 9008000-0118 if ordering the part in the
United States).
Example of a part identification (MPV035D)
The nameplate on a Series 40 pump has an Order Code of MPV-035-D-B-A-G-L-S-G-AA-A-A-BGG-DR-A- FFC-NNN. Use the following steps to determine the part number of the drive shaft used on this pump.
1. Referring to the input shaft module in the Order code, variable displacement pump, the output shaft
option for this motor is identified by the code G. (MPV-035-D-B-A-G-L-S-G-AA-A-A-BGG-DR-A-FF-CNNN).
2. Referring to the Service Parts List, find the shaft group.
3. Find the order code that relates to this unit, which isG.
4. Use the shaft item string (E01) to find the part number.
The part number found is 4350431.
©
Danfoss | March 2018 AX00000067en-US0301 | 7
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
General information
Adobe Acrobat 2-page viewing
While viewing manual in Adobe Acrobat, the following settings need to be applied to ensure proper
page display.
1. Select “View” → “Page Display” → “Two Page View”
2. Select “View” → “Page Display” → “Show Cover Page in Two Page View”
8 | © Danfoss | March 2018 AX00000067en-US0301
M
P
Product
Frame size
Swashplate
Seal group
Shaft
Rotation
Charge pump
Charge pressure relief valve
Filtration
Displacement limiter
By pass valve
System pressure protection
V
Type
0
3 5
B
D
A
G
L
S
AA A
B
G
G
D
R
A
F F
CA N
N N
Special hardware
Rear auxiliary flange
Control
G
Control handle position
Control orifice
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
General information
Order code
©
Danfoss | March 2018 AX00000067en-US0301 | 9
Swashplate
Seal group
Not applicable
System pressure protection
Control type
Not applicable
Not applicable
Auxiliary mounting pad
Special hardware
Special hardware features
Not applicable
AN N
B
J
J
D
R
A
F F
AA N
N N NNN
Q
D
U
X
V
Y
Z
W
Rear section
S
T
ZZ
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
General information
Order code, tandem pump
Rear tandem section
10 | © Danfoss | March 2018 AX00000067en-US0301
M
P
Product
Frame size
Input shaft
Rotation
Charge pump
Charge pressure relief valve
Filtration
Swashplate
Seal group
Not applicable
Not applicable
System pressure protection
Control type
Not applicable
Not applicable
T
Type
0
3 5
B
D
A
G
W
A
AN N
B
J
J
D
R
A
F F
A
G
E
F
G
H
J
C
D
K
L
M
N
P
R
Front section
+
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
General information
Front tandem section
©
Danfoss | March 2018 AX00000067en-US0301 | 11
B01
B22
B30
B32
*B37
B38
B39
B40
B43
B04
B05
B56
B08
B55
B03
B57
B41
B53
B45
B59
S14
S15
S26
S16
S16
B42
QB24
(GRD)(GRD)
(GNZ)(GNZ)
QB31
B36
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
S40 MPV common parts and special hardware
Parts configuration
* Included in overhaul seal kit Q210
12 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
B01 95-45 4350350 Housing 1
B03 95-45 11083729 Seal support washer 1
B04 95-45 5000731 Ball bearing 1
B05 95-45 9006300-0137 Retaining ring 1
B08 95-45 9006200-0281 Retaining ring 1
B22 95-45 4350291 Cylinder block kit 1
B30 95-45 4350048 Slipper holddown pin retainer 1
B32 95-45 4350253 Piston assembly 9
B36 95-45 4350185 Slipper retainer 1
B37 95-45 4350145 End cap gasket 1
B38 95-45 9001465-0015 Needle bearing 1
B39 95-45 9004700-1910 Slotted pin 1
B40 95-45 5000529 Pin (SB-1998-092 on page 107) 2
B41 95-45 9007210-1014 Screw, M10 x 65 2
B42 95-45 648444 (9007210-1018) Screw, M10 x 90 2
B43 95-45 046151 (9005100-5600) Plug assembly 1
B45 95-45 664524 (9005110-9000) Plug assembly 1
B53 95-45 8800565 Lifting bracket 1
B55 95-45 9006200-0281 Retaining ring 1
B56 95-45 615245 (9006300-0137) Retaining ring 1
B57 95-45 046151 (9005100-5600) Plug assembly 1
B59 95-45 664524 (9005110-9000) Plug assembly 1
QB24 95-45 4350100 Cylinder block assembly 1
QB31 17-12 11178525 SVC kit- ball guide and pins (SB-2017-012 on page
117)
Model/Kit
1
Special hardware
Order code: GNZ
S14 96-10 01-12 5000373 O-ring 1
S15 96-10 01-12 550133511 Gear pump 1
S16 96-10 01-12 9007300-3722 Screw 2
Order code: GRD
S14 98-31 01-12 5000373 O-ring 1
S15 98-31 01-12 111.20.348.00 Gear pump 1
S16 98-31 01-12 9007300-3722 Screw 2
S26 98-31 01-12 9009610-4069 Washer 2
©
Danfoss | March 2018 AX00000067en-US0301 | 13
C02
C01
C08
C07
C01
C10
C08
C07
C02
(B)
(G, H)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
S40 MPV swashplate B-H
Parts configuration
Swashplates shown controlled on right.
14 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Order code: B
Item Date Begin Date End Part Number Part Name Qty. per
C01 95-45 4350383 Swashplate 1
C02 95-45 4350148 Thrust plate 1
C07 95-45 4800470 Bearing kit 1
C08 95-45 4800470 Bearing kit 1
Order code: G
C01 03-07 4350823 Swashplate, 24 mm diameter keyed, 14.6° 1
C02 03-07 4350148 Thrust plate 1
C07 03-07 4800470 Bearing kit 1
C08 03-07 4800470 Bearing kit 1
C10 05-05 1040275 Key 1
Order code: H
C01 03-07 4350822 Swashplate, 24 mm diameter keyed, 16° 1
C02 03-07 4350148 Thrust plate 1
C07 03-07 4800470 Bearing kit 1
C08 03-07 4800470 Bearing kit 1
C10 05-05 1040275 Key 1
Model/Kit
©
Danfoss | March 2018 AX00000067en-US0301 | 15
E01
E01
E02
E01
E02
*B02
B02
(A)(A)
(B)(B)
(N)(N)
(A, G)(A, G)
(Y)(Y)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
S40 MPV shaft and shaft seal
Parts configuration
* Included in overhaul seal kit Q210
16 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Shaft seal
Order code: A
Item Date Begin Date End Part Number Part Name Qty. per
B02 95-45 5000689 Lip seal (SB-2003-018 on page 113) 1
Order code: B
B02 13-03 11103135 Lip seal 1
Shaft
Order code: A
E01 95-45 4350397 Shaft, 13-tooth spline 1
Order code: G
E01 95-45 4350431 Shaft, 15-tooth spline 1
Model/Kit
Order code: N
E01 95-45 4350398 Shaft, tapered 1
E02 95-45 9003310-2514 Key, woodruff 1
Order code: Y
E01 95-45 4350399 Shaft, straight key 1
E02 95-45 9003261-2524 Key, square 1
©
Danfoss | March 2018 AX00000067en-US0301 | 17
F01
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
S40 MPV valve plate rotation
Parts configuration
18 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Order code: 2
Item Date Begin Date End Part Number Part Name Qty. per
F01 98-12 4350729 Valve plate, CCW, 4° index 1
Order code: 4
F01 98-43 4440076 Valve plate, CCW, low force 1
Order code: 5
F01 98-43 4440075 Valve plate, CW, low force 1
Order code: 7
F01 98-12 4350728 Valve plate, CW, 4° index 1
Order code: L
F01 95-45 4350158 Valve plate, CCW 1
Model/Kit
Order code: R
F01 95-45 4350157 Valve plate, CW 1
Order code: W
F01 95-45 4350322 Valve plate, CW, quiet 1
Order code: Y
F01 95-45 4350323 Valve plate, CCW, quiet 1
©
Danfoss | March 2018 AX00000067en-US0301 | 19
*G06
*G04A
G04
*G06
*G07
G04
(design prior to 98-07)
(design after to 98-07)
*G07
G05
G03
G04
G01
*G06
(A)
(S)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
S40 MPV charge pump
Parts configuration
* Included in overhaul seal kit Q210
20 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Order code: A
Item Date Begin Date End Part Number Part Name Qty. per
G04 98-07 4800670 Spacer assembly 1
G04 95-45 98-06 4800179 Spacer 1
G04A 98-07 673533 O-ring 1
G06 98-07 5000352 O-ring 1
G07 95-45 98-06 5000353 O-ring 1
Order code: S
G01 95-45 9004800-1908 Pin 1
G03 95-45 4800170 Gerotor assembly 1
G04 95-45 4800179 Spacer 1
G05 95-45 018564 (9001210-1900) Ball 1
G06 95-45 5000352 O-ring 1
G07 95-45 5000353 O-ring 1
Model/Kit
©
Danfoss | March 2018 AX00000067en-US0301 | 21
H01
H07
H06
*H01A
H08
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Charge pressure relief/setting
S40 MPV charge pressure relief valve C-
Parts configuration
* Included in overhaul seal kit Q210
22 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Order code: C
Item Date Begin Date End Part Number Part Name Qty. per
H01 95-50 4800308 Plug assembly/18 bar [260 psi] 1
H01A 95-50 001149 (9004201-6200) O-ring 1
H06 95-50 4510027 Shim kit 1
H07 95-50 4800176 Spring 1
H08 95-50 4800134 Poppet 1
Order code: E
H01 95-45 4800308 Plug assembly/11 bar [160 psi] 1
H01A 95-45 001149 (9004201-6200) O-ring 1
H06 95-45 4510027 Shim kit 1
H07 95-45 4800176 Spring 1
H08 95-45 4800134 Poppet 1
Model/Kit
Order code: F
H01 95-45 4800308 Plug assembly/7.5 bar [110 psi] 1
H01A 95-45 001149 (9004201-6200) O-ring 1
H06 95-45 4510027 Shim kit 1
H07 95-45 4800714 Spring 1
H08 95-45 4800134 Poppet 1
Order code: G
H01 95-45 4800308 Plug assembly/14 bar [200 psi] 1
H01A 95-45 001149 (9004201-6200) O-ring 1
H06 95-45 4510027 Shim kit 1
H07 95-45 4800176 Spring 1
H08 95-45 4800134 Poppet 1
Order code: H
H01 03-26 4800308 Plug assembly/24 bar [348 psi] 1
H01A 03-26 001149 (9004201-6200) O-ring 1
H06 03-26 4510027 Shim kit 1
H07 03-26 11022448 Spring 1
H08 03-26 4800134 Poppet 1
Order code: M
H01 95-45 4800308 Plug assembly/28.3 bar [410 psi] 1
H01A 95-45 001149 (9004201-6200) O-ring 1
H06 95-45 4510027 Shim kit 1
H07 95-45 11022448 Spring 1
H08 95-45 4800134 Poppet 1
©
Danfoss | March 2018 AX00000067en-US0301 | 23
H01
H10
H07
H06
*H01A
H09
H08
H01
H07
H06
*H01A
H08
(N, R, S, W)
(P)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
MPV035D charge pressure relief valve N-W
Parts configuration
* Included in overhaul seal kit Q210
24 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Order code: N
Item Date Begin Date End Part Number Part Name Qty. per
H01 95-45 4800308 Plug assembly/9 bar [130 psi] 1
H01A 95-45 001149 (9004201-6200) O-ring 1
H06 95-45 4510027 Shim kit 1
H07 95-45 4800149 Spring 1
H08 95-45 4800134 Poppet 1
Order code: P
H01 95-45 00-40 4350305 Plug, anti-stall 1
H01A 95-45 00-40 001149 (9004201-6200) O-ring 1
H06 95-45 00-40 356568 (9009625-0163) Washer 1
H07 95-45 00-40 8800496 Spring 1
H08 95-45 00-40 4350299 Poppet 1
H09 95-45 00-40 076042 (9003509-0012) Nut 1
H010 95-45 00-40 4350301 Anti-stall guide screw 1
Model/Kit
Order code: R
H01 98-40 4800308 Plug assembly/6.2 bar [90 psi] 1
H01A 98-40 001149 (9004201-6200) O-ring 1
H06 98-40 4510027 Shim kit 1
H07 98-40 4800714 Spring 1
H08 98-40 4800134 Poppet 1
Order code: S
H01 03-50 4350846 Plug assembly/18 bar [260 psi], low noise 1
H01A 03-50 001149 (9004201-6200) O-ring 1
H06 03-50 4510027 Shim kit 1
H07 03-50 4800176 Spring 1
H08 03-50 1732454 Poppet 1
Order code: W
H01 99-28 4800308 Plug assembly/20 bar [290 psi] 1
H01A 99-28 001149 (9004201-6200) O-ring 1
H06 99-28 4510027 Shim kit 1
H07 99-28 4800176 Spring 1
H08 99-28 4800134 Poppet 1
©
Danfoss | March 2018 AX00000067en-US0301 | 25
J01
J05
J01
J06
J07
J01
J06
J02
J05
J07
(AA)
(BA)
(NN)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
S40 MPV Filtration
Parts configuration
26 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Order code: AA
Item Date Begin Date End Part Number Part Name Qty. per
J01 95-45 4350257 End cap 1
J05 95-45 001537 (9005100-8700) Plug assembly 1
J07 95-45 001537 (9005100-8700) Plug assembly 1
Order code: BA
J01 95-45 4350257 End cap 1
J06 95-45 001487 (9005001-2500) Pipe plug 1
Order code: NN
J01 95-45 4350257 End cap 1
J02 95-45 001537 (9005110-9200) Plug assembly 1
J05 95-45 001537 (9005100-8700) Plug assembly 1
J06 95-45 001487 (9005001-2500) Pipe plug 1
J07 95-45 001537 (9005100-8700) Plug assembly 1
Model/Kit
©
Danfoss | March 2018 AX00000067en-US0301 | 27
*M023
*M022
M10
*M023
M10
*M022
*M023
M20
*M022
*M023
M20
*M022
(DAB, DAC, DAD, DAE
DAF, DAG, DAH)
(CCA, CDA, CEA, CFA
CGA, CHA, CJA, CMA)
(CCA, CDA, CEA, CFA
CGA, CHA, CJA, CMA)
(DAB, DAC, DAD, DAE
DAF, DAG, DAH)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump

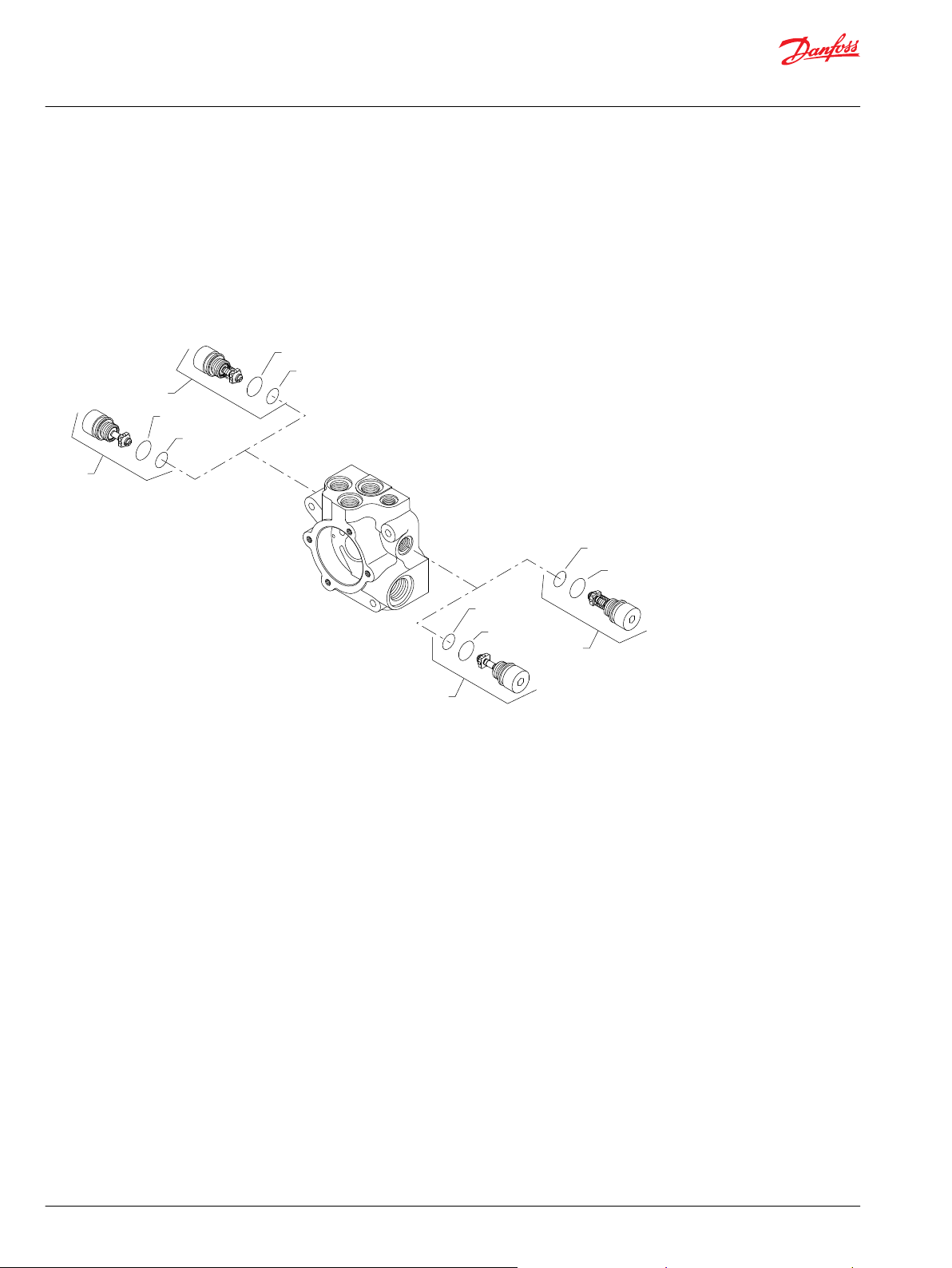

System pressure protection

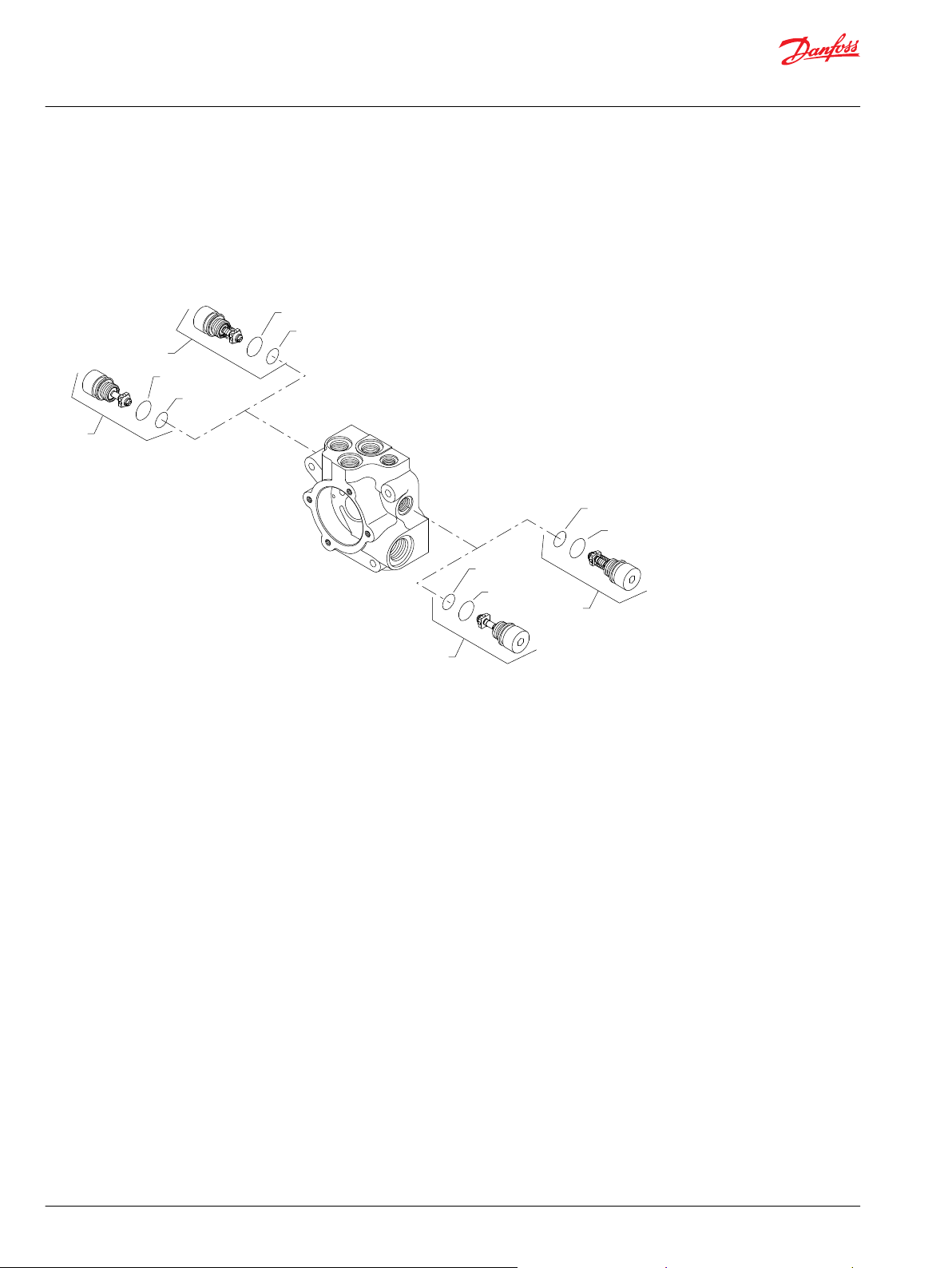

MPV035D system pressure protection CCA-DAH
Parts configuration
* Included in overhaul seal kit Q210
28 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
M022 95-45 001131
(9004201-5000
)
M023 95-45 9004100-2110 O-ring 2
O-ring 2
Order code: CCA
M10 95-45 4350642 SCR valve assembly, 190 bar [2755 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: CDA
M10 95-45 4350641 SCR valve assembly, 210 bar [3045 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: CEA
M10 95-45 4350640 SCR valve assembly, 230 bar [3335 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Model/Kit
Order code: CFA
M10 95-45 4350639 SCR valve assembly, 250 bar [3625 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: CGA
M10 95-45 4350638 SCR valve assembly, 280 bar [4060 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: CHA
M10 95-45 4350637 SCR valve assembly, 300 bar [4350 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: CJA
M10 95-45 4350636 SCR valve assembly, 345 bar [5000 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: CMA
M10 95-45 4350635 SCR valve assembly, 140 bar [2030 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Parts continue to the next 2 pages.
©
Danfoss | March 2018 AX00000067en-US0301 | 29
*M023
*M022
M10
*M023
M10
*M022
*M023
M20
*M022
*M023
M20
*M022
(DAB, DAC, DAD, DAE
DAF, DAG, DAH)
(CCA, CDA, CEA, CFA
CGA, CHA, CJA, CMA)
(CCA, CDA, CEA, CFA
CGA, CHA, CJA, CMA)
(DAB, DAC, DAD, DAE
DAF, DAG, DAH)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Parts configuration
* Included in overhaul seal kit Q210
30 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
M022 95-45 001131
(9004201-5000
)
M023 95-45 9004100-2110 O-ring 2
O-ring 2
Order code: DAB
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
M20 95-45 4350643 SCR valve assembly, 175 bar [2528 psi] (SB-1996-014 on page 105) 1
Order code: DAD
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
M20 95-45 4350641 SCR valve assembly, 210 bar [3045 psi] (SB-1996-014 on page 105) 1
Order code: DAE
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
M20 95-45 4350640 SCR valve assembly, 230 bar [3335 psi] (SB-1996-014 on page 105) 1
Model/Kit
Order code: DAF
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
M20 95-45 4350639 SCR valve assembly, 250 bar [3625 psi] (SB-1996-014 on page 105) 1
Order code: DAG
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
M20 95-45 4350638 SCR valve assembly, 280 bar [4060 psi] (SB-1996-014 on page 105) 1
Order code: DAH
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
M20 95-45 4350637 SCR valve assembly, 300 bar [4350 psi] (SB-1996-014 on page 105) 1
©
Danfoss | March 2018 AX00000067en-US0301 | 31
*M023
*M022
M10
*M023
M10
*M022
*M023
M20
*M022
(DAJ, DAM, EFF)
(DAJ, DAM)
(EFF)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump

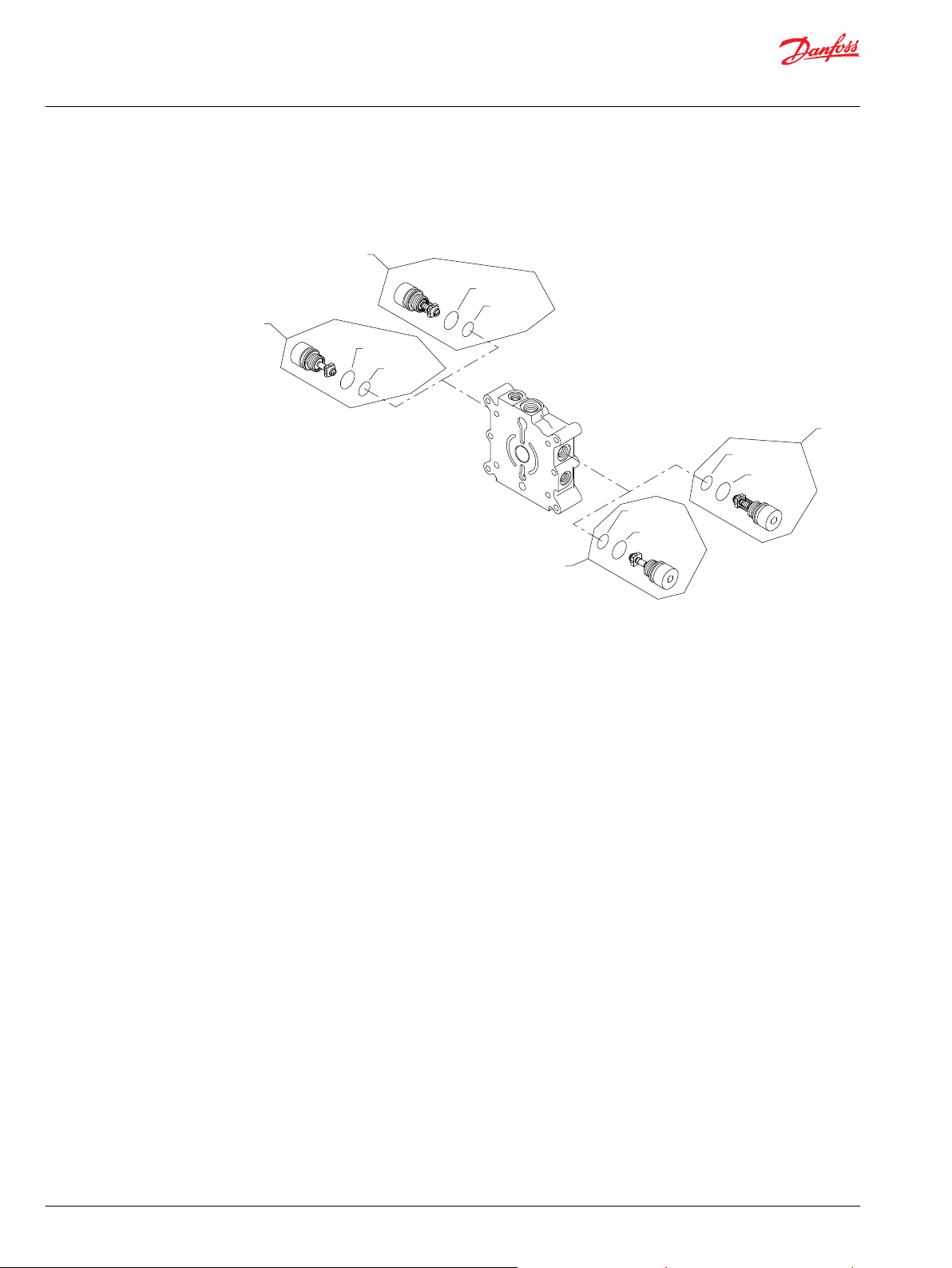

MPV035D system pressure protection DAJ-EFF
Parts configuration
* Included in overhaul seal kit Q210
32 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Common parts
Item Date Begin Date End Part Number Part Name Qty. per
M022 95-45 001131 (9004201-5000) O-ring 2
M023 95-45 9004100-2110 O-ring 2
Order code: DAJ
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on
page 105)
M20 95-45 4350636 SCR valve assembly, 345 bar [5000 psi]
(SB-1996-014 on page 105)
Order code: DAM
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on
page 105)
M20 95-45 4350635 SCR valve assembly, 140 bar [2030 psi]
(SB-1996-014 on page 105)
Model/Kit
1
1
1
1
Order code: EFF
M10 98-47 4250139 SCR valve assembly, 250 bar [3625 psi] 1
M20 98-47 4250139 SCR valve assembly, 250 bar [3625 psi] 1
©
Danfoss | March 2018 AX00000067en-US0301 | 33
*N04
*N02
N01
N03
*N41
N40
N42
*N04
N01
N03
*N41
N40
*N02
N42
(DL)
(DR)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump

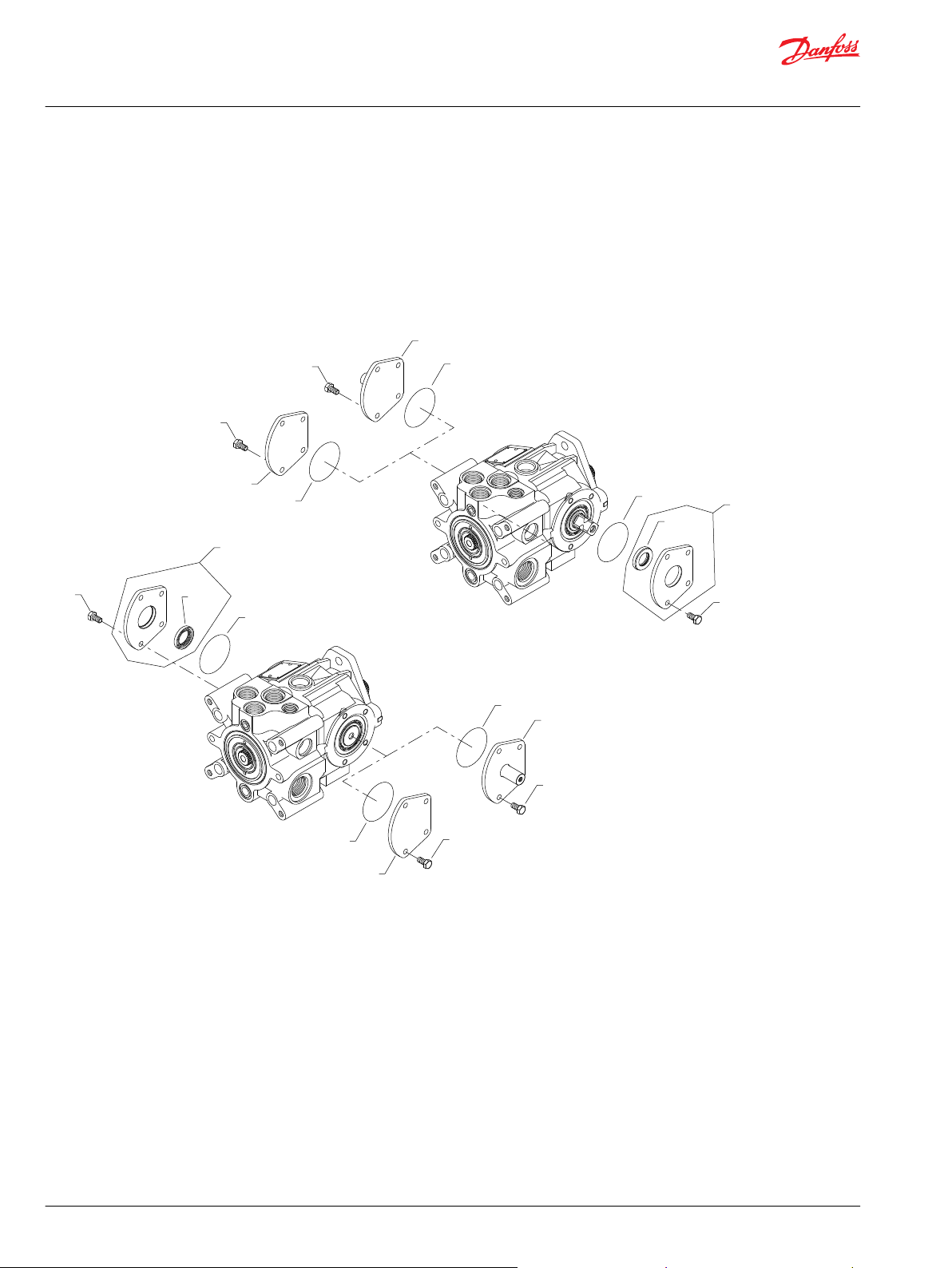

S40 MPV direct displacement control
Parts configuration
* Included in overhaul seal kit Q210
34 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Order code: DL
Item Date Begin Date End Part Number Part Name Qty. per
N01 95-45 4250027 Trunnion cover 1
N02 95-45 5000604 Trunnion lip seal (SB-2000-026A on page 110) 1
N03 95-45 378083 (9007210-0804) Screw 4
N04 95-45 9004300-1460 O-ring 1
N40 95-45 4350732 Trunnion cover assembly, on left side
(SB-1999-040 on page 109)
N41 95-45 9004300-1460 O-ring 1
N42 95-45 378083 (9007210-0804) Screw 4
Order code: DR
N01 95-45 4350732 Trunnion cover assembly, on right side
(SB-1999-040 on page 109)
N02 95-45 5000604 Trunnion lip seal (SB-2000-026A on page 110) 1
N03 95-45 378083 (9007210-0804) Screw 4
N04 95-45 9004300-1460 O-ring 1
N40 95-45 4250027 Trunnion cover 1
N41 95-45 9004300-1460 O-ring 1
N42 95-45 378083 (9007210-0804) Screw 4
Model/Kit
1
1
©
Danfoss | March 2018 AX00000067en-US0301 | 35
S03
S02
S01
S34
S17
S10
S11
S12
S14
S15
S16
S10
S14
S15
S11
S16
S12
S13
*S18
S10
S11
S12
S15
S16
S13
S14
(A, D)
(B)
(F)
(C)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump

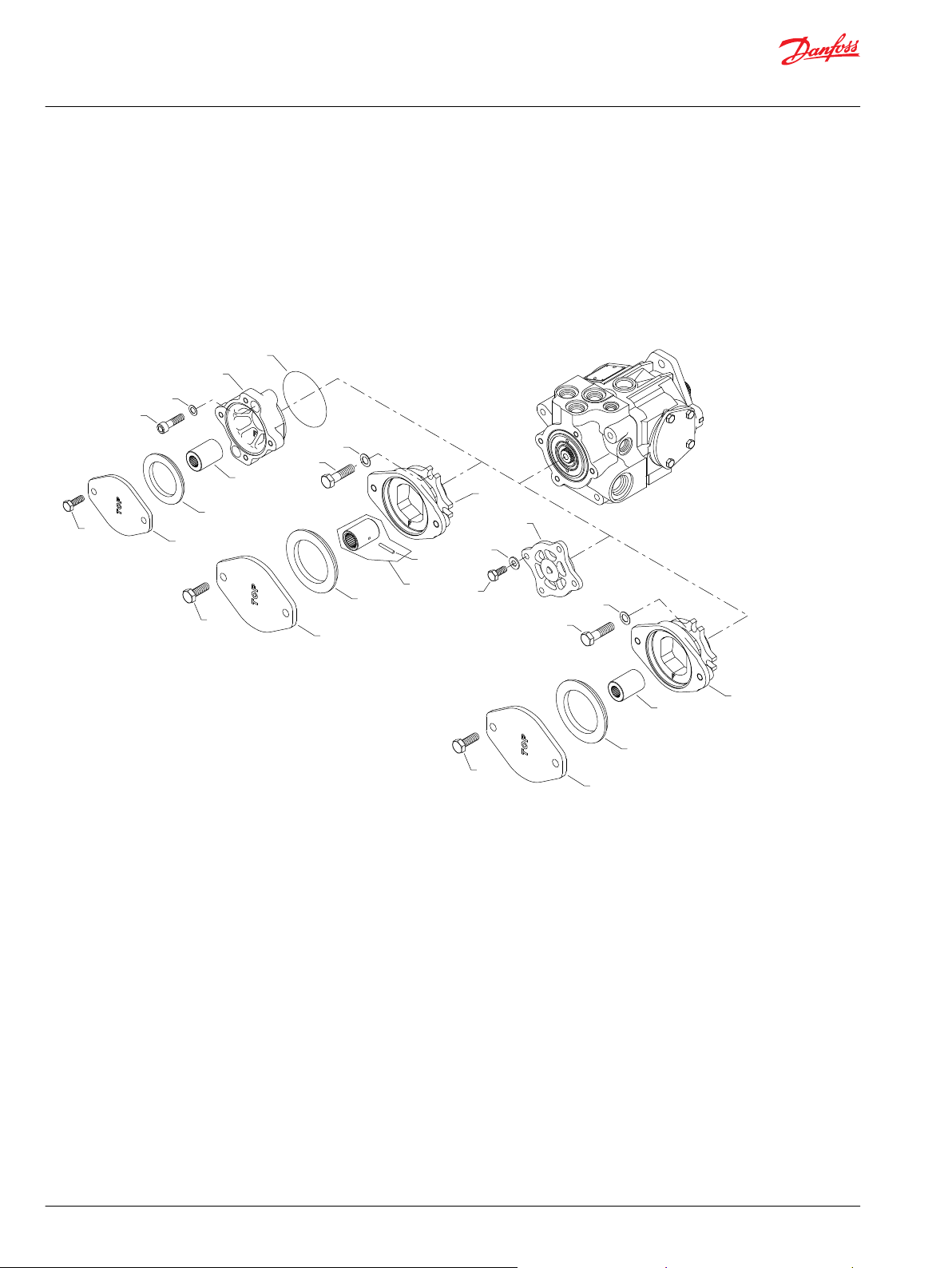

Auxiliary mounting pad
S40 MPV auxiliary mounting pad A-
Parts configuration
* Included in overhaul seal kit Q210
36 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Order code: A
Item Date Begin Date End Part Number Part Name Qty. per
S10 95-45 4800156 Adapter flange, SAE A 1
S11 95-45 732982 (9007314-1009) Screw, M10 x 40 2
S12 95-45 9009625-0154 Washer 2
S13 95-45 4350113 Coupling, 9-tooth spline 1
S14 95-45 4800482 A pad seal 1
S15 95-45 4460586 Cover plate 1
S16 95-45 9007200-3716 Screw 2
S18 14-21 9004101-1530 O-ring 1
Order code: B
S10 95-45 4800157 Adapter flange, SAE B 1
S11 95-45 9007210-1007 Screw, M10 x 30 4
S12 95-45 9009600-4487 Washer 4
S14 05-22 8801061 B pad seal 1
S14 95-45 05-21 9004100-1550 O-ring 1
S15 05-22 8801059 Cover plate 1
S15 95-45 05-21 4460370 Cover plate 1
S16 95-45 9007200-5022 Screw 2
S17 95-45 9004700-1222 Pin 1
S34 95-45 4350691 Coupling assembly, 13-tooth spline 1
Model/Kit
Order code: C
S01 95-45 4800158 Gerotor cover 1
S02 95-45 9007210-1006 Screw, M10 x 25 4
S03 95-45 9009600-4487 Washer 4
Order code: D
S10 95-45 4800182 Adapter flange, SAE A 1
S11 95-45 732982 (9007314-1009) Screw, M10 x 40 2
S12 95-45 9009625-0154 Washer 2
S13 95-45 762534 (4350189) Coupling, 11-tooth spline 1
S14 95-45 4800482 A pad seal 1
S15 95-45 4460586 Cover plate 1
S16 95-45 9007200-3716 Screw 2
S18 14-21 9004101-1530 O-ring 1
Parts continue to the next 2 pages.
©
Danfoss | March 2018 AX00000067en-US0301 | 37
S03
S02
S01
S34
S17
S10
S11
S12
S14
S15
S16
S10
S14
S15
S11
S16
S12
S13
*S18
S10
S11
S12
S15
S16
S13
S14
(A, D)
(B)
(F)
(C)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Parts configuration
* Included in overhaul seal kit Q210
38 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Order code: F
Item Date Begin Date End Part Number Part Name Qty. per
S10 95-45 4800157 Adapter flange, SAE B 1
S11 95-45 9007210-1007 Screw, M10 x 30 4
S12 95-45 9009600-4487 Washer 4
S13 95-45 762534 (4350189) Coupling, 11-tooth spline 1
S14 01-14 8801061 B pad seal 1
S14 95-45 01-13 9004100-1550 O-ring 1
S15 01-14 8801059 Cover plate 1
S15 95-45 01-13 4460370 Cover plate 1
S16 95-45 9007200-5022 Screw 2
Model/Kit
©
Danfoss | March 2018 AX00000067en-US0301 | 39
S10
S14
S15
S11
S16
S12
S13
S40
S10
S11
S12
S13
*S18
(H)
(M)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
MPV035D auxiliary mounting pad H-M
Parts configuration
* Included in overhaul seal kit Q210
40 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Order code: H
Item Date Begin Date End Part Number Part Name Qty. per
S10 03-50 1712494-01 Adapter flange, SAE A 1
S11 03-50 732982 (9007314-1009) Screw, M10 x 40 2
S12 03-50 9009625-0154 Washer 2
S13 03-50 4350113 Coupling, 9-tooth spline 1
S14 03-50 4800482 A pad seal 1
S15 03-50 4460586 Cover plate 1
S16 03-50 9007200-3716 Screw 2
S40 03-50 9004100-2360 O-ring 1
Order code: M
S10 96-08 4800156 Adapter flange, SAE A 1
S11 96-08 732982 (9007314-1009) Screw, M10 x 40 2
S12 96-08 9009625-0154 Washer 2
S13 96-08 4350113 Coupling, 9-tooth spline 1
S18 14-21 9004101-1530 O-ring 1
Model/Kit
©
Danfoss | March 2018 AX00000067en-US0301 | 41
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
S40 MPV seal kit
Item Date Begin Date End Part Number Part Name Qty. per
Q210 95-45 11181820 Overhaul seal kit, MPV035/44D 1
B02 95-45 5000689 Lip seal (SB-2003-018 on page 113) 1
B37 95-45 4350145 End cap gasket 1
G04A 98-07 673533 O-ring, .103 x 3.237, nitrile, 70D 1
G06 95-45 5000352 O-ring, .139 x 1.609, nitrile, 90D 1
G07 95-45 5000353 O-ring, .139 x 3.234, nitrile, 90D 1
H01A 95-45 001149 (9004201-6200) O-ring, .097 x .755, nitrile, 90D 1
M022 95-45 001131 (9004201-5000) O-ring, .087 x .644, nitrile, 90D 2
M023 95-45 9004100-2110 O-ring, .139 x .796, nitrile, 70D 2
N02 95-45 5000604 Trunnion lip seal (SB-2000-026A on page 110) 1
N04 95-45 9004300-1460 O-ring, .099 x 2.612, nitrile, 70D 1
N41 95-45 9004300-1460 O-ring, .099 x 2.612, nitrile, 70D 1
S18 95-45 9004101-1530 O-ring, .103 x 3.487, nitrile, 90D 1
Model/Kit
42 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement pump
Notes
©
Danfoss | March 2018 AX00000067en-US0301 | 43
B22
B30
B32
B01
B40
B62
B64
B04
B05
B70
B08
B03
B61
QB24
*B37
B39
B83
B85
B81
B63
B38
B50
B43
B68
*B80
B82
B41
QB24
B30
B86
B32
B75
B74
B76
B73
B84
B45
B69
B84
QB31
QB31
B36
B36
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Common parts and special hardware
S40 MPT common parts
Parts configuration
* Included in overhaul seal kit Q210
44 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Item Date Begin Date End Part Number Part Name Qty. per
B03 95-45 11083729 Seal support washer 1
B04 95-45 5000731 Ball bearing 1
B05 95-45 9006300-0137 Retaining ring 1
B08 95-45 9006200-0281 Retaining ring 1
B22 95-45 4350291 Cylinder block kit 1
B30 95-45 4350048 Holddown pin retainer 2
B32 95-45 4350253 Piston assembly 18
B36 95-45 4350185 Slipper retainer 2
B37 95-45 4350145 End cap gasket 1
B38 95-45 510993 (9001465-0015) Needle bearing 1
B39 95-45 015701 (9004700-1910) Slotted pin 1
B40 95-45 5000529 Dowel pin (SB-1998-092 on page 107) 2
B41 95-45 654053 (9007314-1012) Screw 4
B43 95-45 046151 (9005100-5600) Plug assembly 1
B45 95-45 664524 (9005110-9000) Plug assembly 1
B50 11-14 5000122 Screw, M10 x 70 4
B50 95-45 11-13 9007314-1014 Screw, M10 x 65 4
B61 95-45 9006200-0281 Retaining ring 1
B62 95-45 664524 (9005110-9000) Plug assembly 1
B63 95-45 046151 (9005100-5600) Plug assembly 1
B64 95-45 664524 (9005110-9000) Plug assembly 1
B68 95-45 046151 (9005100-5600) Plug assembly 1
B69 95-45 664524 (9005110-9000) Plug assembly 1
B70 95-45 615245 (9006300-0137) Retaining ring 1
B73 95-45 9006200-0281 Retaining ring 1
B74 95-45 615245 (9006300-0137) Retaining ring 1
B75 95-45 5000731 Ball bearing 1
B76 95-45 615245 (9006300-0137) Retaining ring 1
B80 95-45 4350145 End cap gasket 1
B81 95-45 510993 (9001465-0015) Needle bearing 1
B82 95-45 015701 (9004700-1910) Slotted pin 1
B83 95-45 5000529 Dowel pin (SB-1998-092 on page 107) 2
B84 95-45 5000529 Dowel pin (SB-1998-092 on page 107) 2
B85 95-45 046151 (9005100-5600) Plug assembly 1
B86 95-45 4350291 Cylinder block kit 1
QB24 95-45 4350100 Cylinder block assembly 2
QB24 95-45 11131906 Cylinder block assembly 1
QB31 17-12 11178525 SVC kit- ball guide and pins (SB-2017-012 on page
117)
Model/Kit
2
©
Danfoss | March 2018 AX00000067en-US0301 | 45
*S14
S15
S16
S26
B01
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
MPT035D special hardware GNJ-GUG
Parts configuration
Generic gear pump shown.
* Included in overhaul seal kit Q210
46 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: GNJ
Item Date Begin Date End Part Number Part Name Qty. per
B01 95-45 4350350 Housing, front pump 1
S14 95-45 5000373 O-ring 1
S15 95-45 111.20.132.00 Gear pump 1
S16 95-45 9007300-3722 Screw 2
S26 95-45 9009610-4069 Washer 2
Order code: GNK
B01 95-45 4350350 Housing, front pump 1
S14 95-45 5000373 O-ring 1
S15 95-45 181.20.B06.00 Gear pump 1
S16 95-45 9007300-3722 Screw 2
S26 95-45 9009610-4069 Washer 2
Model/Kit
Order code: GNS
B01 96-02 4350350 Housing, front pump 1
S14 96-02 5000373 O-ring 1
S15 96-02 111.20.347.00 Gear pump 1
S16 96-02 9007300-3722 Screw 2
S26 96-02 9009610-4069 Washer 2
Order code: GSX
B01 00-45 4350350 Housing, front pump 1
S14 00-45 5000373 O-ring 1
S15 00-45 111.20.134.00 Gear pump 1
S16 00-45 9007300-3722 Screw 2
S26 00-45 9009610-4069 Washer 2
Order code: GUG
B01 04-18 4350350 Housing, front pump 1
S14 04-18 5000373 O-ring 1
S15 04-18 163D71570 Gear pump 1
S16 04-18 9007300-3716 Screw 2
©
Danfoss | March 2018 AX00000067en-US0301 | 47
B01
B01
B01
T010
T010
(NGC, NGC, NNC, NNK, NNN)
(NND, NOD)
(NNH)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
MPT035D special hardware NGC-NVC
Parts configuration
48 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order codes: NGC, NGV
Item Date Begin Date End Part Number Part Name Qty. per
B01 06-10 4350350 Housing, front pump 1
Order code: NNC
B01 06-10 4350350 Housing, front pump 1
Order code: NND
B01 06-10 4350824 Housing, front pump, 4 bolt 1
Order code: NNH
B01 10-29 4350350 Housing, front pump 1
T010 10-29 11082636 Bracket 2
Order codes: NNK, NNN
B01 95-45 4350350 Housing, front pump 1
Model/Kit
Order code: NOD
B01 06-10 4350824 Housing, front pump, 4 bolt 1
Order codes: NOP, NQR
B01 06-10 4350350 Housing, front pump 1
Order code: NVC
B01 11-45 4350350 Housing, front pump 1
©
Danfoss | March 2018 AX00000067en-US0301 | 49
C01
C10
C08
C07
C02
C02
C01
N03
C07
C07
C08
N03
C08
(D)
(B, C)
(B, C)
(D)
(G, H)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
S40 MPT swashplate B-H
Parts configuration
50 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: B
Item Date Begin Date End Part Number Part Name Qty. per
C01 95-45 4350383 Swashplate, standard 1
C02 95-45 4350148 Thrust plate 1
C07 95-45 4800470 Bearing kit 1
C08 95-45 4800470 Bearing kit 1
Order code: C
C01 95-45 11166719 Swashplate, tapped 1
C02 95-45 4350148 Thrust plate 1
C07 95-45 4800470 Bearing kit 1
C08 95-45 4800470 Bearing kit 1
Order code: D
C01 99-24 07-18 4350738 Swashplate, DU bearing 1
C02 99-24 07-18 4350148 Thrust plate 1
C07 99-24 07-18 4250039 Bearing carrier assembly 1
C08 99-24 07-18 4250039 Bearing carrier assembly 1
N03 99-24 07-18 4700010 Journal bearing 2
Model/Kit
Order code: G
C01 03-07 4350823 Swashplate, 24 mm diameter keyed, 14.6° 1
C02 03-07 4350148 Thrust plate 1
C07 03-07 4800470 Bearing kit 1
C08 03-07 4800470 Bearing kit 1
C10 05-05 1040275 Key 1
Order code: H
C01 03-07 4350822 Swashplate, 24 mm diameter keyed, 16° 1
C02 03-07 4350148 Thrust plate 1
C07 03-07 4800470 Bearing kit 1
C08 03-07 4800470 Bearing kit 1
C10 05-05 1040275 Key 1
©
Danfoss | March 2018 AX00000067en-US0301 | 51
E01
E02
E01
*B02
B02
E01
E01
E01
(A)
(B)
(A)
(C)
(G)
(H)
(V)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
S40 MPT shaft and shaft seal
Parts configuration
* Included in overhaul seal kit Q210
52 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Shaft seal
Order code: A
Item Date Begin Date End Part Number Part Name Qty. per
B02 95-45 5000689 Lip seal (SB-2003-018 on page 113) 1
Order code: B
B02 13-03 11103135 Lip seal 1
Order code: C
No parts
Input shaft
Order code: A
E01 95-45 4350425 Shaft, 15-tooth spline 1
Model/Kit
Order code: C
E01 95-45 4350791 Shaft, tapered (SB-2002-021 on page 111) 1
E02 02-27 5000664 Key, square (SB-2002-021 on page 111) 1
E02 95-45 02-26 9003310-2514 Key, woodruff 1
Order code: G
E01 95-45 4350433 Shaft, 15-tooth spline, special 1
Order code: H
E01 95-45 11066019 Shaft,15-tooth spline, no undercut, snap ring
groove
Order code: V
E01 03-07 1715573 Shaft, 18-tooth 1
1
©
Danfoss | March 2018 AX00000067en-US0301 | 53
F01
F02
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
S40 MPT valve plate rotation 2-9, B-Y
Parts configuration
54 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: 2
Item Date Begin Date End Part Number Part Name Qty. per
F01 95-50 03-29 4350729 Valve plate, CCW, 4° index 1
F02 95-50 03-29 4350728 Valve plate, CW, 4° index 1
Order code: 4
F01 97-06 4440076 Valve plate, CCW, low force 1
F02 97-06 4440075 Valve plate, CW, low force 1
Order code: 5
F01 97-11 4440075 Valve plate, CW, low force 1
F02 97-11 4440076 Valve plate, CCW, low force 1
Order code: 8
F01 03-34 4350730 Valve plate, CW, 6° index 1
F02 03-34 4350731 Valve plate, CCW, 6° index 1
Model/Kit
Order code: 9
F01 03-21 4350728 Valve plate, CW, 4° index 1
F02 03-21 4350729 Valve plate, CCW, 4° index 1
Order code: B
F01 95-45 03-29 4350728 Valve plate, CW, 4° index 1
F02 95-45 03-29 4350729 Valve plate, CCW, 4° index 1
Order code: J
F01 14-38 11155056 Valve plate, CW, 5° index 1
F02 14-38 11155058 Valve plate, CCW, 5° index 1
Parts continue to the next 2 pages.
©
Danfoss | March 2018 AX00000067en-US0301 | 55
F01
F02
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Parts configuration
56 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: K
Item Date Begin Date End Part Number Part Name Qty. per
F01 14-38 11155058 Valve plate, CCW, 5° index 1
F02 14-38 11155056 Valve plate, CW, 5° index 1
Order code: L
F01 95-45 4350158 Valve plate, CCW, 1
F02 95-45 4350157 Valve plate, CW 1
Order code: M
F01 95-45 4350285 Valve plate, CW, 0° index 1
F02 95-45 4350284 Valve plate, CCW, 0° index 1
Order code: N
F01 95-45 4350284 Valve plate, CCW, 0° index 1
F02 95-45 4350285 Valve plate, CW, 0° index 1
Model/Kit
Order code: R
F01 95-45 4350157 Valve plate, CW 1
F02 95-45 4350158 Valve plate, CCW 1
Order code: W
F01 95-45 4350322 Valve plate, CW, quiet 1
F02 95-45 4350323 Valve plate, CCW, quiet 1
Order code: Y
F01 95-45 4350323 Valve plate, CCW, quiet 1
F02 95-45 4350322 Valve plate, CW, quiet 1
©
Danfoss | March 2018 AX00000067en-US0301 | 57
*G07
G09
G08
*G07
G09
G08
*G06
G08
G02
G09
*G07
*G06
G04
G03
G01
(A)
(R, S)
(V)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
S40 MPT charge pump A-V
Parts configuration
* Included in overhaul seal kit Q210
58 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: A
Item Date Begin Date End Part Number Part Name Qty. per
G07 95-45 9004100-1530 O-ring 1
G08 95-45 654053 (9007314-1012) Screw, M10 x 55 4
G09 95-45 4350046 Coupling 1
Order code: R
G01 95-45 9004800-1908 Pin 1
G02 95-45 9004800-1206 Pin 1
G03 95-45 4800128-0001 Gerotor assembly, 16.4cc/rev 1
G04 95-45 11111469 Gerotor spacer (SB-2013-002 on page 116) 1
G06 95-45 5000352 O-ring 1
G07 95-45 9004100-2370 O-ring 1
G08 95-45 9007314-1018 Screw, M10 x 90 4
G09 95-45 11104848 Coupling (SB-2013-002 on page 116) 1
Model/Kit
Order code: S
G01 95-45 9004800-1908 Pin 1
G02 95-45 9004800-1206 Pin 1
G03 95-45 4800128-0002 Gerotor assembly, 19.7cc/rev 1
G04 95-45 4800178 Gerotor spacer 1
G06 95-45 5000352 O-ring 1
G07 95-45 9004100-2370 O-ring 1
G08 95-45 9007314-1018 Screw, M10 x 90 4
G09 95-45 11104848 Coupling (SB-2013-002 on page 116) 1
Order code: V
G06 03-05 9004100-1310 O-ring 1
G07 03-05 9004100-1530 O-ring 1
G08 03-05 654053 (9007314-1012) Screw, M10 x 55 4
G09 03-05 4350046 Coupling 1
©
Danfoss | March 2018 AX00000067en-US0301 | 59
H01
H07
H06
*H01A
H08
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Charge pressure relief/setting

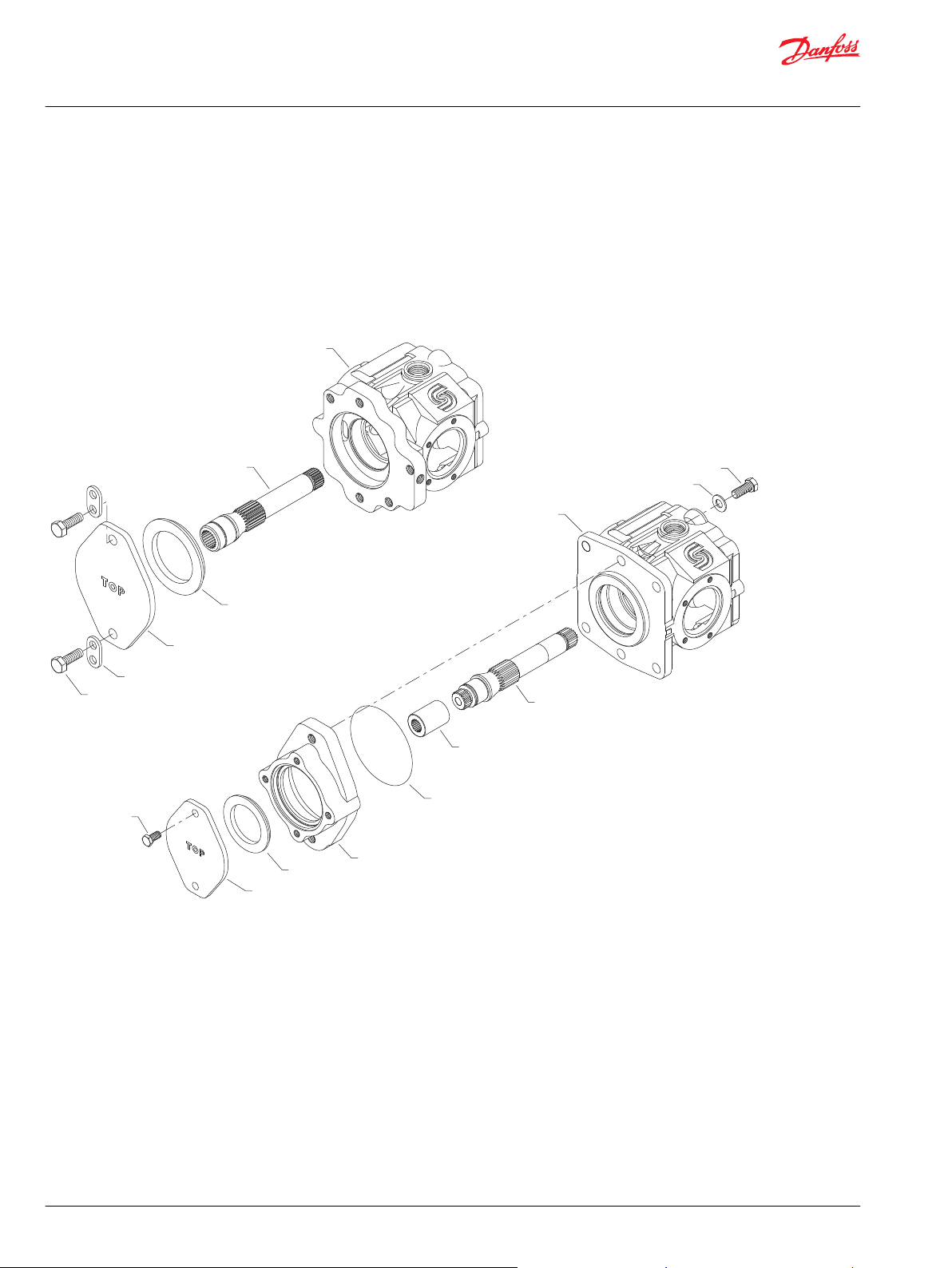

MPT035D charge pressure relief valve A-E
Parts configuration
* Include in overhaul seal kit
60 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: A
Item Date Begin Date End Part Number Part Name Qty. per
H01 95-45 4800308 Plug assembly/16 bar [230 psi] 1
H01A 95-45 001149 (9004201-6200) O-ring 1
H06 95-45 4510027 Shim kit 1
H07 95-45 4800176 Spring 1
H08 95-45 4800134 Poppet 1
Order code: C
H01 95-50 4800308 Plug assembly/18 bar [260 psi] 1
H01A 95-50 001149 (9004201-6200) O-ring 1
H06 95-50 4510027 Shim kit 1
H07 95-50 4800176 Spring 1
H08 95-50 4800134 Poppet 1
Model/Kit
Order code: E
H01 95-45 4800308 Plug assembly/11 bar [160 psi] 1
H01A 95-45 001149 (9004201-6200) O-ring 1
H06 95-45 4510027 Shim kit 1
H07 95-45 4800176 Spring 1
H08 95-45 4800134 Poppet 1
©
Danfoss | March 2018 AX00000067en-US0301 | 61
H01
H07
H06
*H01A
H08
H01
H10
H07
H06
H05
*H09
H08
(F, G, H, J, N, R)
(P)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump

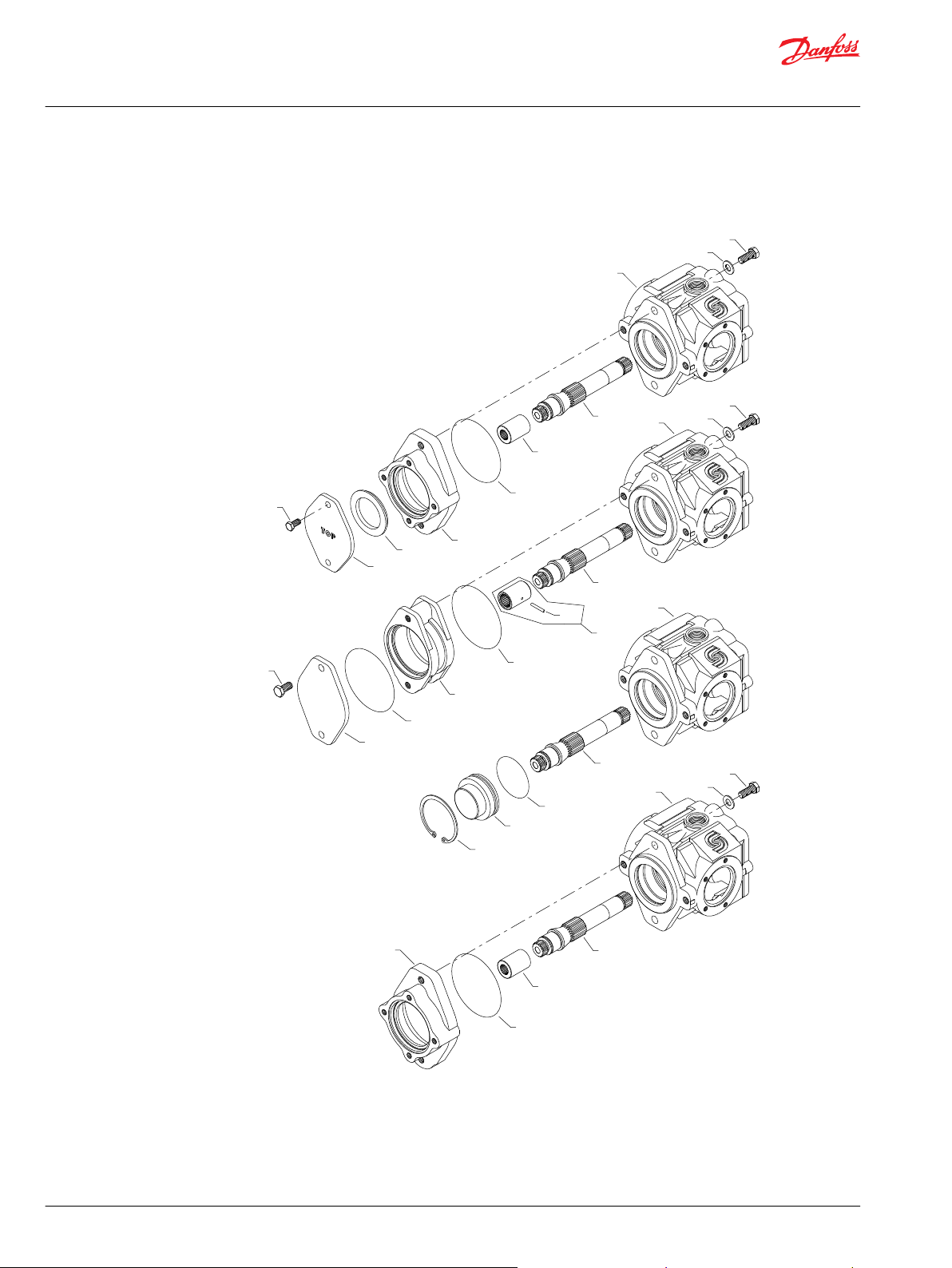

MPT035D charge pressure relief valve F-P
Parts configuration
* Included in overhaul seal kit Q210
62 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: F
Item Date Begin Date End Part Number Part Name Qty. per
H01 95-45 4800308 Plug assembly/7.5 bar [110 psi] 1
H01A 95-45 001149 (9004201-6200) O-ring 1
H06 95-45 4510027 Shim kit 1
H07 95-45 4800714 Spring 1
H08 95-45 4800134 Poppet 1
Order code: G
H01 95-45 4800308 Plug assembly/14 bar [200 psi] 1
H01A 95-45 001149 (9004201-6200) O-ring 1
H06 95-45 4510027 Shim kit 1
H07 95-45 4800176 Spring 1
H08 95-45 4800134 Poppet 1
Model/Kit
Order code: H
H01 95-45 4800308 Plug assembly/24 bar [348 psi] 1
H01A 95-45 001149 (9004201-6200) O-ring 1
H06 95-45 4510027 Shim kit 1
H07 95-45 11022448 Spring 1
H08 95-45 4800134 Poppet 1
Order code: J
H01 97-13 4800308 Plug assembly/22 bar [315 psi] 1
H01A 97-13 001149 (9004201-6200) O-ring 1
H06 97-13 4510027 Shim kit 1
H07 97-13 4800176 Spring 1
H08 97-13 4800134 Poppet 1
Order code: M
H01 13-13 4800308 Plug assembly/24 bar [348 psi] 1
H01A 13-13 001149 (9004201-6200) O-ring 1
H06 13-13 4510027 Shim kit 1
H07 13-13 11022448 Spring 1
H08 13-13 4800134 Poppet 1
Parts continue to the next 2 pages.
©
Danfoss | March 2018 AX00000067en-US0301 | 63

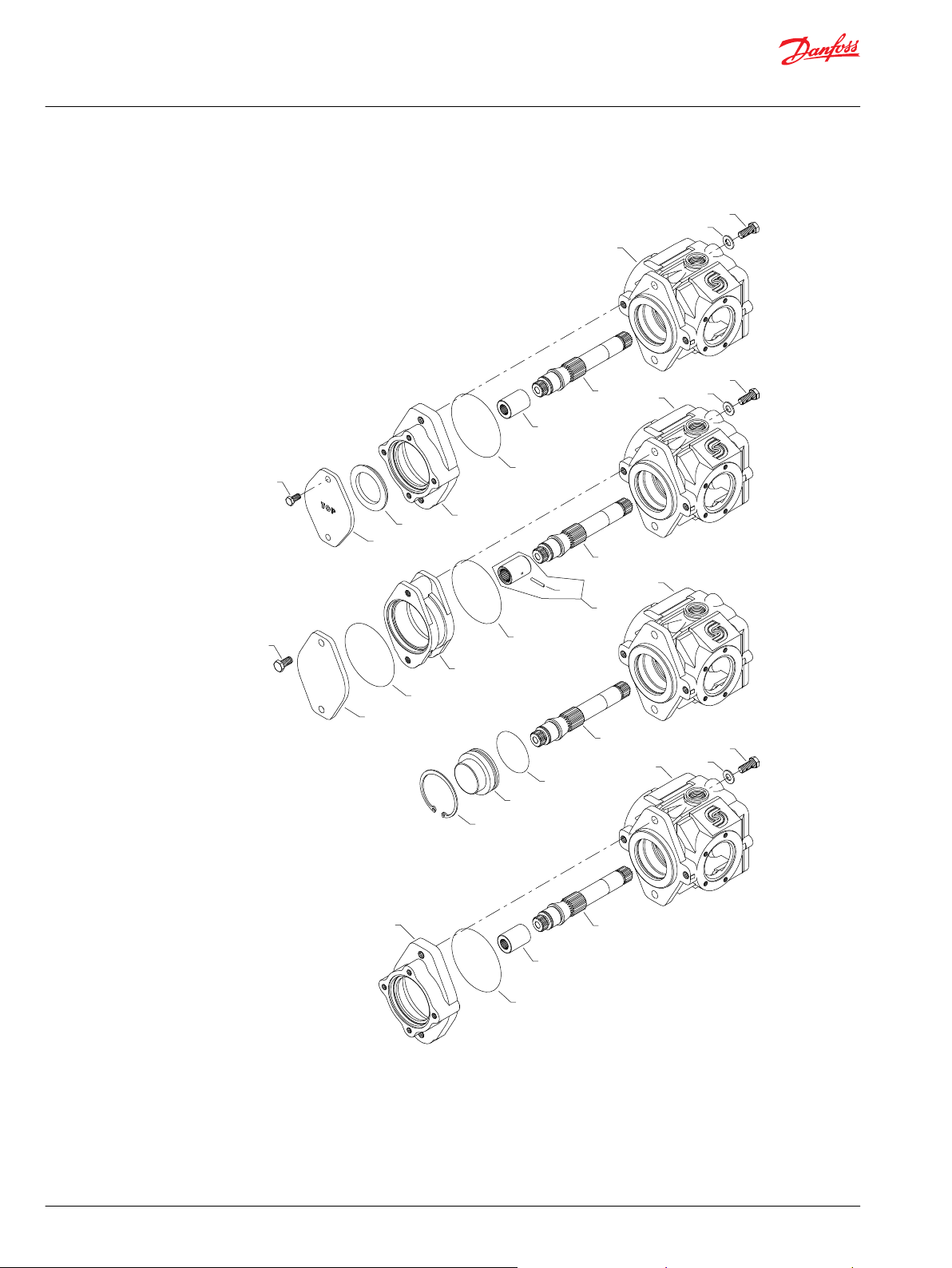

H01
H07
H06
*H01A
H08
H01
H10
H07
H06
H05
*H09
H08
(F, G, H, J, N, R)
(P)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Parts configuration
* Included in overhaul seal kit Q210
64 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: N
Item Date Begin Date End Part Number Part Name Qty. per
H01 95-45 4800308 Plug assembly/9 bar [130 psi] 1
H01A 98-25 001149 (9004201-6200) O-ring 1
H06 98-25 4510027 Shim kit 1
H07 98-25 4800149 Spring 1
H08 98-25 4800134 Poppet 1
Order code: P
H01 95-45 00-40 4350305 Plug, anti-stall 1
H05 95-45 00-40 001149 (9004201-6200) O-ring 1
H06 95-45 00-40 356568 (9009625-0163) Washer 1
H07 95-45 00-40 8800496 Spring 1
H08 95-45 00-40 4350299 Poppet 1
H09 95-45 00-40 076042 (9003509-0012) Nut 1
H010 95-45 00-40 4350301 Anti-stall guide screw 1
Model/Kit
Order code: R
H01 98-40 4800308 Plug assembly/6.2 bar [90 psi] 1
H01A 98-40 001149 (9004201-6200) O-ring 1
H06 98-40 4510027 Shim kit 1
H07 98-40 4800714 Spring 1
H08 98-40 4800134 Poppet 1
©
Danfoss | March 2018 AX00000067en-US0301 | 65
J09
*J12
J13
J01
J05
*J11
J10
J13
J01
J06
J13
J01
*J11
*J12
*J12
*J11
*J12
J09
J13
J01
(AA, BD)
(BA)
(BE)
(NN)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
S40 MPT filtration
Parts configuration
* Included in overhaul seal kit Q210
66 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: AA
Item Date Begin Date End Part Number Part Name Qty. per
J01 95-45 11089077 End cap (SB-2010-037 on page 114) 1
J05 95-45 001537 (9005100-8700) Plug assembly 1
J09 95-45 001537 (9005100-8700) Plug assembly 1
J10 95-45 001537 (9005100-8700) Plug assembly 1
J11 95-45 9004100-1140 O-ring 1
J12 95-45 9004100-1180 O-ring 1
J13 95-45 4350405 End cap 1
Order code: BA
J01 95-45 11089077 End cap (SB-2010-037 on page 114) 1
J06 95-45 001487 (9005001-2500) Pipe plug 1
J09 95-45 001537 (9005100-8700) Plug assembly 1
J11 95-45 9004100-1140 O-ring 1
J12 95-45 9004100-1180 O-ring 1
J13 95-45 4350405 End cap 1
Model/Kit
Order code: BD
J01 01-22 4350713 End cap 1
J05 01-22 001537 (9005100-8700) Plug assembly 1
J09 01-22 001537 (9005100-8700) Plug assembly 1
J10 01-22 001537 (9005100-8700) Plug assembly 1
J11 01-22 9004100-1140 O-ring 1
J12 01-22 9004100-1180 O-ring 1
J13 01-22 4350405 End cap 1
Order code: BE
J01 03-05 11083594 End cap, opposing ports (SB-2010-037 on page
114)
J12 03-05 511852 (9004100-1140) O-ring 1
J13 03-05 4440222 End cap, opposing ports 1
Order code: NN
J01 95-45 11083596 End cap (SB-2010-037 on page 114) 1
J11 95-45 9004100-1140 O-ring 1
J12 95-45 9004100-1180 O-ring 1
J13 95-45 4350405 End cap 1
1
©
Danfoss | March 2018 AX00000067en-US0301 | 67
*M023
*M022
M10
*M023
M10
*M022
*M023
M20
*M022
*M023
M20
*M022
(AAA, CBA)
(BBB, BCC, BDD, BEE, BFF, BGF
BGG, BHH, BJJ, BLL, BNN, BSS, BMM)
(AAA)
(BBB, BCC, BDD, BEE, BFF, BGF, BGG
BHH, BJJ, BLL, BNN, BSS, BMM, CBA)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
System pressure protection
S40 MPT system pressure protection (front pump) AAA-
Parts configuration
* Included in overhaul seal kit Q210
68 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Common parts
Item Date Begin Date
M022 95-45 001131 (9004201-5000) O-ring 2
M023 95-45 9004100-2110 O-ring 2
Order code: AAA
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: BBB
M10 95-45 4350643 SCR valve assembly, 175 bar [2528 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350643 SCR valve assembly, 175 bar [2528 psi] (SB-1996-014 on page 105) 1
Order code: BCC
M10 95-45 4350642 SCR valve assembly, 190 bar [2755 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350642 SCR valve assembly, 190 bar [2755 psi] (SB-1996-014 on page 105) 1
Part Number Part Name Qty. per
End
Model/Kit
Order code: BDD
M10 95-45 4350641 SCR valve assembly, 210 bar [3045 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350641 SCR valve assembly, 210 bar [3045 psi] (SB-1996-014 on page 105) 1
Order code: BEE
M10 95-45 4350640 SCR valve assembly, 230 bar [3335 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350640 SCR valve assembly, 230 bar [3335 psi] (SB-1996-014 on page 105) 1
Order code: BFF
M10 95-45 4350639 SCR valve assembly, 250 bar [3625 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350639 SCR valve assembly, 250 bar [3625psi] (SB-1996-014 on page 105) 1
Order code: BGF
M10 96-28 4350638 SCR valve assembly, 280 bar [4060 psi] 1
M20 96-28 4350639 SCR valve assembly, 250 bar [3625 psi] 1
Order code: BGG
M10 95-45 4350638 SCR valve assembly, 280 bar [4060 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350638 SCR valve assembly, 280 bar [4060 psi] (SB-1996-014 on page 105) 1
Parts continue to the next 2 pages.
©
Danfoss | March 2018 AX00000067en-US0301 | 69
*M023
*M022
M10
*M023
M10
*M022
*M023
M20
*M022
*M023
M20
*M022
(AAA, CBA)
(BBB, BCC, BDD, BEE, BFF, BGF
BGG, BHH, BJJ, BLL, BNN, BSS, BMM)
(AAA)
(BBB, BCC, BDD, BEE, BFF, BGF, BGG
BHH, BJJ, BLL, BNN, BSS, BMM, CBA)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Parts configuration
* Included in overhaul seal kit Q210
70 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Common parts
Item Date Begin Date
M022 95-45 001131 (9004201-5000) O-ring 2
M023 95-45 9004100-2110 O-ring 2
Order code: BHH
M10 95-45 4350637 SCR valve assembly, 300 bar [4350 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350637 SCR valve assembly, 300 bar [4350 psi] (SB-1996-014 on page 105) 1
Order code: BJJ
M10 95-45 4350636 SCR valve assembly, 345 bar [5000 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350636 SCR valve assembly, 345 bar [5000 psi] (SB-1996-014 on page 105) 1
Order code: BLL
M10 95-45 4350646 SCR valve assembly, 415 bar [6020 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350646 SCR valve assembly, 415 bar [6020 psi] (SB-1996-014 on page 105) 1
Part Number Part Name Qty. per
End
Model/Kit
Order code: BMM
M10 95-45 4350635 SCR valve assembly, 140 bar [2030 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350635 SCR valve assembly, 140 bar [2030 psi] (SB-1996-014 on page 105) 1
Order code: BNN
M10 95-45 4350644 SCR valve assembly, 260 bar [3770 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350644 SCR valve assembly, 260 bar [3770 psi] (SB-1996-014 on page 105) 1
Order code: BSS
M10 95-45 4350694 SCR valve assembly, 385 bar [5580 psi] 1
M20 95-45 4350694 SCR valve assembly, 385 bar [5580 psi] 1
Order code: CBA
M10 95-45 4350643 SCR valve assembly, 175 bar [2528 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
©
Danfoss | March 2018 AX00000067en-US0301 | 71
*M023
*M022
M10
*M023
M10
*M022
*M023
M20
*M022
*M023
M20
*M022
(CCA, CDA, CEA, CFA
CGA, CHA, CJA, CMA)
(DAB, DAC, DAD, DAE
DAF, DAG, DAH)
(CCA, CDA, CEA, CFA
CGA, CHA, CJA, CMA)
(DAB, DAC, DAD, DAE
DAF, DAG, DAH)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
MPT035D system pressure protection (front pump) CCA-DAH
Parts configuration
* Included in overhaul seal kit Q210
72 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Common parts
Item Date Begin Date
M022 95-45 001131 (9004201-5000) O-ring 2
M023 95-45 9004100-2110 O-ring 2
Order code: CCA
M10 95-45 4350642 SCR valve assembly, 190 bar [2755 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: CDA
M10 95-45 4350641 SCR valve assembly, 210 bar [3045 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: CEA
M10 95-45 4350640 SCR valve assembly, 230 bar [3335 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Part Number Part Name Qty. per
End
Model/Kit
Order code: CFA
M10 95-45 4350639 SCR valve assembly, 250 bar [3625 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: CGA
M10 95-45 4350638 SCR valve assembly, 280 bar [4060 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: CHA
M10 95-45 4350637 SCR valve assembly, 300 bar [4350 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: CJA
M10 95-45 4350636 SCR valve assembly, 345 bar [5000 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Parts continue to the next 2 pages.
©
Danfoss | March 2018 AX00000067en-US0301 | 73
*M023
*M022
M10
*M023
M10
*M022
*M023
M20
*M022
*M023
M20
*M022
(CCA, CDA, CEA, CFA
CGA, CHA, CJA, CMA)
(DAB, DAC, DAD, DAE
DAF, DAG, DAH)
(CCA, CDA, CEA, CFA
CGA, CHA, CJA, CMA)
(DAB, DAC, DAD, DAE
DAF, DAG, DAH)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Parts configuration
* Included in overhaul seal kit Q210
74 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Common parts
Item Date Begin Date
M022 95-45 001131 (9004201-5000) O-ring 2
M023 95-45 9004100-2110 O-ring 2
Order code: CMA
M10 95-45 4350635 SCR valve assembly, 140 bar [2030 psi] (SB-1996-014 on page 105) 1
M20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: DAB
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
M20 95-45 4350643 SCR valve assembly, 175 bar [2528 psi] (SB-1996-014 on page 105) 1
Order code: DAC
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
M20 95-45 4350642 SCR valve assembly, 190 bar [2755 psi] (SB-1996-014 on page 105) 1
Part Number Part Name Qty. per
End
Model/Kit
Order code: DAD
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
M20 95-45 4350641 SCR valve assembly, 210 bar [3045 psi] (SB-1996-014 on page 105) 1
Order code: DAE
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
M20 95-45 4350640 SCR valve assembly, 230 bar [3335 psi] (SB-1996-014 on page 105) 1
Order code: DAF
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
M20 95-45 4350639 SCR valve assembly, 250 bar [3625 psi] (SB-1996-014 on page 105) 1
Order code: DAG
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
M20 95-45 4350638 SCR valve assembly, 280 bar [4060 psi] (SB-1996-014 on page 105) 1
Order code: DAH
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
M20 95-45 4350637 SCR valve assembly, 300 bar [4350 psi] (SB-1996-014 on page 105) 1
©
Danfoss | March 2018 AX00000067en-US0301 | 75
*M023
*M022
M10
*M023
M10
*M022
*M023
M20
*M022
(DAJ, DAM, EFF, ETT)
(EFF, ETT)
(DAJ, DAM)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
MPT035D system pressure protection (front pump) DAJ-ETT
Parts configuration
* Included in overhaul seal kit Q210
76 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Common parts
Item Date Begin Date
M022 95-45 001131 (9004201-5000) O-ring 2
M023 95-45 9004100-2110 O-ring 2
Order code: DAJ
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
M20 95-45 4350636 SCR valve assembly, 345 bar [5000 psi] (SB-1996-014 on page 105) 1
Order code: DAM
M10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
M20 95-45 4350635 SCR valve assembly, 140 bar [2030 psi] (SB-1996-014 on page 105) 1
Order code: EFF
M10 98-47 4250139 SCR valve assembly, 250 bar [3625 psi] 1
M20 98-47 4250139 SCR valve assembly, 250 bar [3625 psi] 1
Part Number Part Name Qty. per
End
Model/Kit
Order code: ETT
M10 98-31 4350723 SCR valve assembly, 345 bar [5000 psi] 1
M20 98-31 4350723 SCR valve assembly, 345 bar [5000 psi] 1
©
Danfoss | March 2018 AX00000067en-US0301 | 77
*M023
V20
*M022
*M023
*M022
V10
*M023
V20
*M022
*M023
V10
*M022
(AAA, CBA)
(BBB, BBJ, BDD, BEE, BFF, BGG
BHH, BJB, BJJ, BLL BMM, BNN, BSS)
(BBB, BBJ, BDD, BEE, BFF, BGG, BHH
BJB, BJJ, BLL BMM, BNN, BSS, CBA)
(AAA)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
S40 MPT system pressure protection (rear pump) AAA-CBA
Parts configuration
* Included in overhaul seal kit Q210
78 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Common parts
Item Date Begin Date
M022 95-45 001131 (9004201-5000) O-ring 2
M023 95-45 9004100-2110 O-ring 2
Order code: AAA
V10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
V20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: BBB
V10 95-45 4350643 SCR valve assembly, 175 bar [2528 psi] (SB-1996-014 on page 105) 1
V20 95-45 4350643 SCR valve assembly, 175 bar [2528 psi] (SB-1996-014 on page 105) 1
Order code: BBJ
V10 95-45 4350643 SCR valve assembly, 175 bar [2528 psi] (SB-1996-014 on page 105) 1
V20 95-45 4350636 SCR valve assembly, 345 bar [5000 psi] (SB-1996-014 on page 105) 1
Part Number Part Name Qty. per
End
Model/Kit
Order code: BDD
V10 95-45 4350641 SCR valve assembly, 210 bar [3045 psi] (SB-1996-014 on page 105) 1
V20 95-45 4350641 SCR valve assembly, 210 bar [3045 psi] (SB-1996-014 on page 105) 1
Order code: BEE
V10 95-45 4350640 SCR valve assembly, 230 bar [3335 psi] (SB-1996-014 on page 105) 1
V20 95-45 4350640 SCR valve assembly, 230 bar [3335 psi] (SB-1996-014 on page 105) 1
Order code: BFF
V10 95-45 4350639 SCR valve assembly, 250 bar [3625 psi] (SB-1996-014 on page 105) 1
V20 95-45 4350639 SCR valve assembly, 250 bar [3625psi] (SB-1996-014 on page 105) 1
Order code: BGG
V10 95-45 4350638 SCR valve assembly, 280 bar [4060 psi] (SB-1996-014 on page 105) 1
V20 95-45 4350638 SCR valve assembly, 280 bar [4060 psi] (SB-1996-014 on page 105) 1
Parts continue to the next 2 pages.
©
Danfoss | March 2018 AX00000067en-US0301 | 79
*M023
V20
*M022
*M023
*M022
V10
*M023
V20
*M022
*M023
V10
*M022
(AAA, CBA)
(BBB, BBJ, BDD, BEE, BFF, BGG
BHH, BJB, BJJ, BLL BMM, BNN, BSS)
(BBB, BBJ, BDD, BEE, BFF, BGG, BHH
BJB, BJJ, BLL BMM, BNN, BSS, CBA)
(AAA)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Parts configuration
* Included in overhaul seal kit Q210
80 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Common parts
Item Date Begin Date
M022 95-45 001131 (9004201-5000) O-ring 2
M023 95-45 9004100-2110 O-ring 2
Order code: BHH
V10 95-45 4350637 SCR valve assembly, 300 bar [4350 psi] (SB-1996-014 on page 105) 1
V20 95-45 4350637 SCR valve assembly, 300 bar [4350 psi] (SB-1996-014 on page 105) 1
Order code: BJB
V10 95-45 4350636 SCR valve assembly, 345 bar [5000 psi] (SB-1996-014 on page 105) 1
V20 95-45 4350643 SCR valve assembly, 175 bar [2528 psi] (SB-1996-014 on page 105) 1
Order code: BJJ
V10 95-45 4350636 SCR valve assembly, 345 bar [5000 psi] (SB-1996-014 on page 105) 1
V20 95-45 4350636 SCR valve assembly, 345 bar [5000 psi] (SB-1996-014 on page 105) 1
Part Number Part Name Qty. per
End
Model/Kit
Order code: BLL
V10 95-45 4350646 SCR valve assembly, 415 bar [6020 psi] (SB-1996-014 on page 105) 1
V20 95-45 4350646 SCR valve assembly, 415 bar [6020 psi] (SB-1996-014 on page 105) 1
Order code: BMM
V10 95-45 4350635 SCR valve assembly, 140 bar [2030 psi] (SB-1996-014 on page 105) 1
V20 95-45 4350635 SCR valve assembly, 140 bar [2030 psi] (SB-1996-014 on page 105) 1
Order code: BNN
V10 95-45 4350644 SCR valve assembly, 260 bar [3770 psi] (SB-1996-014 on page 105) 1
V20 95-45 4350644 SCR valve assembly, 260 bar [3770 psi] (SB-1996-014 on page 105) 1
Order code: BSS
V10 95-45 4350694 SCR valve assembly, 385 bar [5580 psi] 1
V20 95-45 4350694 SCR valve assembly, 385 bar [5580 psi] 1
Order code: CBA
V10 95-45 4350643 SCR valve assembly, 175 bar [2528 psi] (SB-1996-014 on page 105) 1
V20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
©
Danfoss | March 2018 AX00000067en-US0301 | 81
*M023
V20
*M022
*M023
*M022
V10
*M023
V20
*M022
*M023
V10
*M022
(DAJ, EFF, ETT)
(CAA, CDA, CEA
CGA, CJA)
(CCA, CDA, CEA, CGA
CJA, EFF, ETT)
(DAJ)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
MPT035D system pressure protection (rear pump) CCA-ETT
Parts configuration
* Included in overhaul seal kit Q210
82 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Common parts
Item Date Begin Date
M022 95-45 001131 (9004201-5000) O-ring 2
M023 95-45 9004100-2110 O-ring 2
Order code: CCA
V10 95-45 4350642 SCR valve assembly, 190 bar [2755 psi] (SB-1996-014 on page 105) 1
V20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: CDA
V10 95-45 4350641 SCR valve assembly, 210 bar [3045 psi] (SB-1996-014 on page 105) 1
V20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: CEA
V10 99-17 4350640 SCR valve assembly, 230 bar [3335 psi] 1
V20 99-17 4350634 Check valve poppet assembly 1
Part Number Part Name Qty. per
End
Model/Kit
Order code: CGA
V10 98-24 4350638 SCR valve assembly, 280 bar [4060 psi] 1
V20 98-24 4350634 Check valve poppet assembly 1
Order code: CJA
V10 95-45 4350636 SCR valve assembly, 345 bar [5000 psi] (SB-1996-014 on page 105) 1
V20 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
Order code: DAJ
V10 95-45 4350634 Check valve poppet assembly (SB-1996-014 on page 105) 1
V20 95-45 4350636 SCR valve assembly, 345 bar [5000 psi] (SB-1996-014 on page 105) 1
Order code: EFF
V10 98-47 4250139 SCR valve assembly, 250 bar [3625 psi] 1
V20 98-47 4250139 SCR valve assembly, 250 bar [3625 psi] 1
Order code: ETT
V10 98-31 4350723 SCR valve assembly, 345 bar [5000 psi] 1
V20 98-31 4350723 SCR valve assembly, 345 bar [5000 psi] 1
©
Danfoss | March 2018 AX00000067en-US0301 | 83
*N41
N40
*N02
N42
*N04
N01
N03
*N04
N01
N03
*N04
*N02
N01
N03
*N41
N40
N42
*N41
N40
N42
(DA)
(DA, DL)
(DB)
(DR)
(DB, DR)
(DL)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Direct displacement control
S40 MPT DDC (front pump) DA-DR
Parts configuration
* Included in overhaul seal kit Q210
84 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: DA
Item Date Begin Date End Part Number Part Name Qty. per
N01 03-07 1732161-01 Trunnion cover w/support 1
N02 03-07 5000604 Trunnion lip seal 1
N03 03-07 378083 (9007210-0804) Screw, M8 x 16 4
N04 03-07 9004300-1460 O-ring 1
N40 03-07 4350732 Trunnion cover assembly, on left side 1
N41 03-07 9004300-1460 O-ring 1
N42 03-07 378083 (9007210-0804) Screw, M8 x 16 4
Order code: DB
N01 03-07 4350732 Trunnion cover assembly, on right side 1
N02 03-07 5000604 Trunnion lip seal 1
N03 03-07 378083 (9007210-0804) Screw, M8 x 16 4
N04 03-07 9004300-1460 O-ring 1
N40 03-07 1732161-01 Trunnion cover w/support 1
N41 03-07 9004300-1460 O-ring 1
N42 03-07 378083 (9007210-0804) Screw, M8 x 16 4
Model/Kit
Order code: DL
N01 95-45 4250027 Trunnion cover 1
N02 95-45 5000604 Trunnion lip seal (SB-2000-026A on page 110) 1
N03 95-45 378083 (9007210-0804) Screw, M8 x 16 4
N04 95-45 9004300-1460 O-ring 1
N40 95-45 4350732 Trunnion cover assembly, on left side
(SB-1999-040 on page 109)
N41 95-45 9004300-1460 O-ring 1
N42 95-45 378083 (9007210-0804) Screw, M8 x 16 4
Order code: DR
N01 95-45 4350732 Trunnion cover assembly, on right side
(SB-1999-040 on page 109)
N02 95-45 5000604 Trunnion lip seal (SB-2000-026A on page 110) 1
N03 95-45 378083 (9007210-0804) Screw, M8 x 16 4
N04 95-45 9004300-1460 O-ring 1
N40 95-45 4250027 Trunnion cover 1
N41 95-45 9004300-1460 O-ring 1
N42 95-45 378083 (9007210-0804) Screw, M8 x 16 4
1
1
©
Danfoss | March 2018 AX00000067en-US0301 | 85
*N41
N40
*N02
*N04
N01
N03
*N04
*N02
N01
N03
N40
N42
*N02
N40
N42
*N41
N61
N61
*N41
N42
N64
(DS, DW)(DS, DW)
(DS)(DS)
(WN)(WN)
(DT)(DT)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
MPT035D DDC (front pump) DS-WN
Parts configuration
* Included in overhaul seal kit Q210
86 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: DS
Item Date Begin Date End Part Number Part Name Qty. per
N01 96-07 4250027 Trunnion cover 1
N02 96-07 5000604 Trunnion lip seal 1
N03 96-07 378083 (9007210-0804) Screw, M8 x 16 4
N04 96-07 9004300-1460 O-ring 1
N40 96-07 4350732 Trunnion cover assembly, on left side 1
N41 96-07 9004300-1460 O-ring 1
N42 96-07 507205 Screw, M8 x 20 4
N64 96-07 4440413 Front guide bracket 1
Order code: DT
N01 96-07 4350732 Trunnion cover assembly, on right side 1
N02 96-07 5000604 Trunnion lip seal 1
N03 96-07 507205 Screw, M8 x 20 4
N04 96-07 9004300-1460 O-ring 1
N40 96-07 4250027 Trunnion cover 1
N41 96-07 9004300-1460 O-ring 1
N42 96-07 378083 (9007210-0804) Screw, M8 x 16 4
N61 96-07 4440413 Front guide bracket 1
Model/Kit
Order code: WN
N01 15-44 4250027 Trunnion cover 1
N02 15-44 5000604 Trunnion lip seal 1
N03 15-44 378083 (9007210-0804) Screw, M8 x 16 4
N04 15-44 9004300-1460 O-ring 1
N40 15-44 4350732 Trunnion cover assembly, on left side 1
N41 15-44 9004300-1460 O-ring 1
N42 15-44 507205 Screw, M8 x 20 4
N61 15-44 11183943 Front guide bracket 1
©
Danfoss | March 2018 AX00000067en-US0301 | 87
*Y65
*N02
Y09
Y03
B53
*Y41
Y40
Y42
*Y41
Y40
*N02
Y42
Y43
B53
Y09
*Y65
Y03
Y09
*Y65
Y03
*Y41
Y40
*N02
Y42
(DA)
(DH, DL, DN)
(DA, DH, DL)
(DN)
(DB)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
MPT035D DDC (rear pump) DA-DN
Parts configuration
* Included in overhaul seal kit Q210
88 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: DA
Item Date Begin Date End Part Number Part Name Qty. per
B53 03-07 8800565 Lifting bracket 1
N02 03-07 5000604 Trunnion lip seal 1
Y03 03-07 378083 (9007210-0804) Screw, M8 x 16 4
Y09 03-07 1732161-01 Trunnion cover w/support 1
Y40 03-07 4350732 Trunnion cover assembly, on left side 1
Y41 03-07 9004300-1460 O-ring 1
Y42 03-07 378083 (9007210-0804) Screw, M8 x 16 4
Y65 03-07 9004300-1460 O-ring 1
Order code: DB
B53 03-07 8800565 Lifting bracket 1
N02 03-07 5000604 Trunnion lip seal 1
Y03 03-07 378083 (9007210-0804) Screw, M8 x 16 4
Y09 03-07 4350732 Trunnion cover assembly, on right side 1
Y40 03-07 1732161-01 Trunnion cover w/support 1
Y41 03-07 9004300-1460 O-ring 1
Y42 03-07 378083 (9007210-0804) Screw, M8 x 16 4
Y65 03-07 9004300-1460 O-ring 1
Model/Kit
Order code: DH
N02 10-42 5000604 Trunnion lip seal (SB-2000-026A on page 110) 1
Y03 10-42 378083 (9007210-0804) Screw, M8 x 16 4
Y09 10-42 4250027 Trunnion cover 1
Y40 10-42 4350732 Trunnion cover assembly, on left side
(SB-1999-040 on page 109)
Y41 10-42 9004300-1460 O-ring 1
Y42 10-42 378083 (9007210-0804) Screw, M8 x 16 4
Y65 10-42 9004300-1460 O-ring 1
Parts continue to the next 2 pages.
1
©
Danfoss | March 2018 AX00000067en-US0301 | 89
*Y65
*N02
Y09
Y03
B53
*Y41
Y40
Y42
*Y41
Y40
*N02
Y42
Y43
B53
Y09
*Y65
Y03
Y09
*Y65
Y03
*Y41
Y40
*N02
Y42
(DA)
(DH, DL, DN)
(DA, DH, DL)
(DN)
(DB)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Parts configuration
* Included in overhaul seal kit Q210
90 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: DL
Item Date Begin Date End Part Number Part Name Qty. per
B53 95-45 8800565 Lifting bracket 1
N02 95-45 5000604 Trunnion lip seal (SB-2000-026A on page 110) 1
Y03 95-45 378083 (9007210-0804) Screw, M8 x 16 4
Y09 95-45 4250027 Trunnion cover 1
Y40 95-45 4350732 Trunnion cover assembly, on left side
(SB-1999-040 on page 109)
Y41 95-45 9004300-1460 O-ring 1
Y42 95-45 378083 (9007210-0804) Screw, M8 x 16 4
Y65 95-45 9004300-1460 O-ring 1
Order code: DN
N02 98-24 5000604 Trunnion lip seal (SB-2000-026A on page 110) 1
Y03 98-24 378083 (9007210-0804) Screw, M8 x 16 4
Y09 98-24 4250027 Trunnion cover 1
Y40 98-24 4350732 Trunnion cover assembly, on left side
(SB-1999-040 on page 109)
Y41 98-24 9004300-1460 O-ring 1
Y42 98-24 507205 Screw, M8 x 20 4
Y43 98-24 4440414 Guide bracket 1
Y65 98-24 9004300-1460 O-ring 1
Model/Kit
1
1
©
Danfoss | March 2018 AX00000067en-US0301 | 91
B53
*Y41
Y40
Y42
*Y65
*N02
Y03
Y09
*Y65
*N02
Y03
Y09
Y61
*Y41
Y40
Y42
*Y65
*N02
Y03
Y61
Y09
Y09
*Y65
Y03
*Y41
Y40
*N02
Y43
Y42
Y64
(DR)
(DW)
(DS)
(DT)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
MPT035D DDC (rear pump) DR-DW
Parts configuration
* Included in overhaul seal kit Q210
92 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: DR
Item Date Begin Date End Part Number Part Name Qty. per
B53 95-45 8800565 Lifting bracket 1
N02 95-45 5000604 Trunnion lip seal (SB-2000-026A on page 110) 1
Y03 95-45 378083 (9007210-0804) Screw, M8 x 16 4
Y09 95-45 4350732 Trunnion cover assembly, on right side
(SB-1999-040 on page 109)
Y40 95-45 4250027 Trunnion cover 1
Y41 95-45 9004300-1460 O-ring 1
Y42 95-45 378083 (9007210-0804) Screw, M8 x 16 4
Y65 95-45 9004300-1460 O-ring 1
Order code: DS
N02 96-07 5000604 Trunnion lip seal 1
Y03 96-07 378083 (9007210-0804) Screw, M8 x 16 4
Y09 96-07 4250027 Trunnion cover 1
Y40 96-07 4350732 Trunnion cover assembly, on left side 1
Y41 96-07 9004300-1460 O-ring 1
Y42 96-07 507205 Screw, M8 x 20 4
Y43 96-07 4440414 Guide bracket 1
Y64 96-07 8800565 Lifting bracket 1
Y65 96-07 9004300-1460 O-ring 1
Model/Kit
1
Order code: DT
N02 96-07 5000604 Trunnion lip seal 1
Y03 96-07 507205 Screw, M8 x 20 4
Y09 96-07 4350732 Trunnion cover assembly, on left side 1
Y40 96-07 4250027 Trunnion cover 1
Y41 96-07 9004300-1460 O-ring 1
Y42 96-07 378083 (9007210-0804) Screw, M8 x 16 4
Y61 98-24 4440414 Guide bracket 1
Y65 96-07 9004300-1460 O-ring 1
Order code: DW
B53 96-07 8800565 Lifting bracket 1
N02 96-07 5000604 Trunnion lip seal 1
Y03 96-07 507205 Screw, M8 x 20 4
Y09 96-07 4350732 Trunnion cover assembly, on left side 1
Y40 96-07 4250027 Trunnion cover 1
Y41 96-07 9004300-1460 O-ring 1
Y42 96-07 378083 (9007210-0804) Screw, M8 x 16 4
Y61 98-24 4350761 Trunnion bracket 1
Y03 96-07 507205 Screw, M8 x 20 4
Y65 96-07 9004300-1460 O-ring 1
©
Danfoss | March 2018 AX00000067en-US0301 | 93
*Y65
*N02
Y09
Y03
*Y41
Y40
Y42
Y35
Y09
*Y65
Y03
*Y41
Y40
*N02
Y42
*N02
*Y41
Y40
Y61
Y42
Y03
*Y65
Y09
Y35
Y64
(DX)(DX)
(DY)(DY)
(WN)(WN)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
MPT035D DDC (rear pump) DX-WN
Parts configuration
* Included in overhaul seal kit Q210
94 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: DX
Item Date Begin Date End Part Number Part Name Qty. per
N02 99-22 5000604 Trunnion lip seal (SB-2000-026A on page 110) 1
Y03 99-22 378083 (9007210-0804) Screw, M8 x 16 4
Y09 99-22 4350732 Trunnion cover assembly, on right side 1
Y35 99-22 8800565 Lifting bracket 1
Y40 99-22 4250027 Trunnion cover 1
Y41 99-22 9004300-1460 O-ring 1
Y42 99-22 378083 (9007210-0804) Screw, M8 x 16 4
Y65 99-22 9004300-1460 O-ring 1
Order code: DY
N02 96-28 5000604 Trunnion lip seal (SB-2000-026A on page 110) 1
Y03 96-28 378083 (9007210-0804) Screw, M8 x 16 4
Y09 96-28 4250027 Trunnion cover 1
Y35 96-28 8800565 Lifting bracket 1
Y40 96-28 4350732 Trunnion cover assembly, on left side
(SB-1999-040 on page 109)
Y41 96-28 9004300-1460 O-ring 1
Y42 96-28 378083 (9007210-0804) Screw, M8 x 16 4
Y65 96-28 9004300-1460 O-ring 1
Model/Kit
1
Order code: WN
N02 96-07 5000604 Trunnion lip seal 1
Y03 96-07 378083 (9007210-0804) Screw, M8 x 16 4
Y09 96-07 4250027 Trunnion cover 1
Y40 96-07 4350732 Trunnion cover assembly, on left side 1
Y41 96-07 9004300-1460 O-ring 1
Y42 96-07 507205 Screw, M8 x 20 4
Y61 96-07 11183943 Bracket 1
Y64 96-07 8800565 Lifting bracket 1
Y65 96-07 9004300-1460 O-ring 1
©
Danfoss | March 2018 AX00000067en-US0301 | 95
S35
*S14
S15
S16
S09
S36
S35
S13
*S19
S10
*S14
S15
S11
S12
S09
S16
(1)
(6)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Auxiliary mounting pad
MPT035D aux mounting pad 1-6
Parts configuration
* Included in overhaul seal kit Q210
96 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: 1
Item Date Begin Date End Part Number Part Name Qty. per
S09 01-20 4440421 Housing 1
S14 01-20 8801061 B pad seal 1
S15 01-20 8801059 Cover plate 1
S16 01-20 9007200-5022 Screw 2
S35 01-20 4440194 Shaft, rear 1
S36 01-20 9801000 Lifting bracket 2
Order code: 6
S09 03-18 4350824 Housing 1
S10 03-18 4800161 A flange adapter 1
S11 03-18 9007200-5022 Screw 2
S12 03-18 9009600-5391 Washer 2
S13 03-18 4350113 Coupling, 9-tooth spline 1
S14 03-18 4800482 A pad seal 1
S15 03-18 4460586 Cover plate 1
S16 03-18 9007200-3716 Screw 2
S19 03-18 9004100-1550 O-ring 1
S35 03-18 4350426 Shaft, rear 1
Model/Kit
©
Danfoss | March 2018 AX00000067en-US0301 | 97
S04
S33
S05
S09
S35
S35
S13
*S19
S10
*S14
S15
S11
S12
S09
S16
*S19
S10
*S14
S15
S17
S16
S35
S11
S12
S09
S34
S35
S11
S12
S09
S13
*S19
S10
(A, D)
(B)
(C)
(G)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
MPT035D aux mounting pad A-G
Parts configuration
* Included in overhaul seal kit Q210
98 | © Danfoss | March 2018 AX00000067en-US0301
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Order code: A
Item Date Begin Date End Part Number Part Name Qty. per
S09 95-45 4350350 Housing 1
S10 95-45 4800161 A flange adapter 1
S11 95-45 9007200-5022 Screw 2
S12 95-45 9009600-5391 Washer 2
S13 95-45 4350113 Coupling, 9-tooth spline 1
S14 95-45 4800482 A pad seal 1
S15 95-45 4460586 Cover plate 1
S16 95-45 9007200-3716 Screw 2
S19 95-45 9004100-1550 O-ring 1
S35 95-45 4350426 Shaft, rear 1
Order code: B
S09 95-45 4350350 Housing 1
S10 95-45 4800162 B flange adapter 1
S11 95-45 9007200-5022 Screw, with locking compound 2
S12 95-45 9009600-5391 Washer 2
S14 05-22 8801061 B pad seal 1
S14 95-45 05-21 9004100-1550 O-ring 1
S15 05-22 8801059 Cover plate 1
S15 95-45 05-21 4460370 Cover plate 1
S16 95-45 9007200-5022 Screw, with locking compound 2
S17 95-45 9004700-1222 Pin 1
S19 95-45 9004100-1550 O-ring 1
S34 95-45 4350691 Coupling assembly, 13-tooth spline 1
S35 95-45 4350426 Shaft, rear 1
Model/Kit
Order code: C
S04 95-45 4350689 Cover plate 1
S05 95-45 9004100-1460 O-ring 1
S09 95-45 4350350 Housing 1
S33 95-45 9006200-0281 Retaining ring 1
S35 95-45 4350426 Shaft, rear 1
Parts continue to the next 2 pages.
©
Danfoss | March 2018 AX00000067en-US0301 | 99
S04
S33
S05
S09
S35
S35
S13
*S19
S10
*S14
S15
S11
S12
S09
S16
*S19
S10
*S14
S15
S17
S16
S35
S11
S12
S09
S34
S35
S11
S12
S09
S13
*S19
S10
(A, D)
(B)
(C)
(G)
Parts Manual
Series 40 MPV035D and MPT035D Axial Piston Pumps
Variable displacement tandem pump
Parts configuration
* Included in overhaul seal kit Q210
100 | © Danfoss | March 2018 AX00000067en-US0301
Loading...
