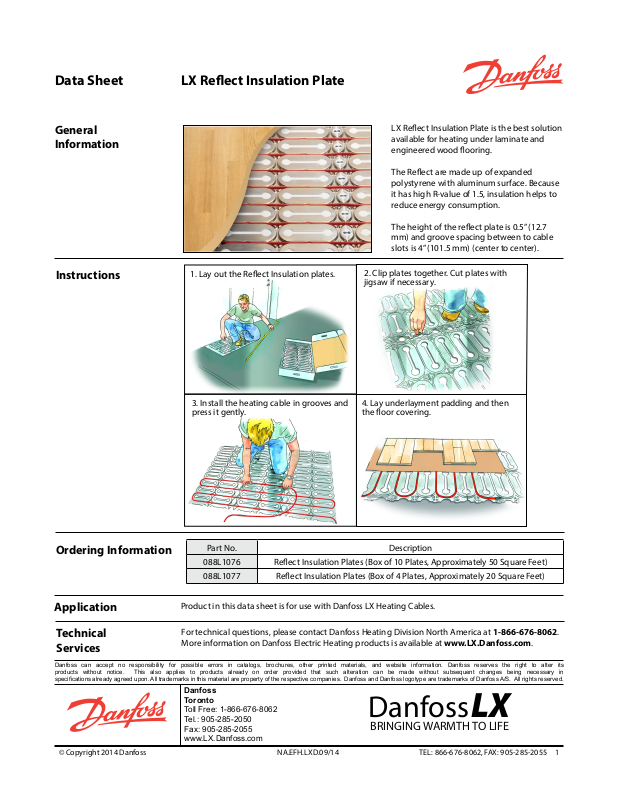

Danfoss LX Reflect Insulation Plate Data sheet

Data Sheet

LX Reflect Insulation Plate

General

Information

LX Reflect Insulation Plate is the best solution available for heating under laminate and engineered wood flooring.

The Reflect are made up of expanded polystyrene with aluminum surface. Because it has high R-value of 1.5, insulation helps to reduce energy consumption.

The height of the reflect plate is 0.5” (12.7 mm) and groove spacing between to cable slots is 4” (101.5 mm) (center to center).

Instructions

1. Lay out the Reflect Insulation plates.

2. Clip plates together. Cut plates with jigsaw if necessary.

3. Install the heating cable in grooves and press it gently.

4. Lay underlayment padding and then the floor covering.

Ordering Information

Part No.	Description
088L1076	Reflect Insulation Plates (Box of 10 Plates, Approximately 50 Square Feet)
088L1077	Reflect Insulation Plates (Box of 4 Plates, Approximately 20 Square Feet)

Application

Product in this data sheet is for use with Danfoss LX Heating Cables.

Technical

Services

For technical questions, please contact Danfoss Heating Division North America at 1-866-676-8062. More information on Danfoss Electric Heating products is available at www.LX.Danfoss.com.

Danfoss	can accept no	responsibility for possible errors in catalogs,	brochures, other printed	materials,	and website information. Danfoss reserves	the right to alter its
products	without notice.	This also applies to products already on	order provided that such	alteration	can be made without subsequent changes	being necessary in

specifications already agreed upon.All trademarks in this material are property of the respective companies. Danfoss and Danfoss logotype are trademarks of DanfossA/S. All rights reserved.
