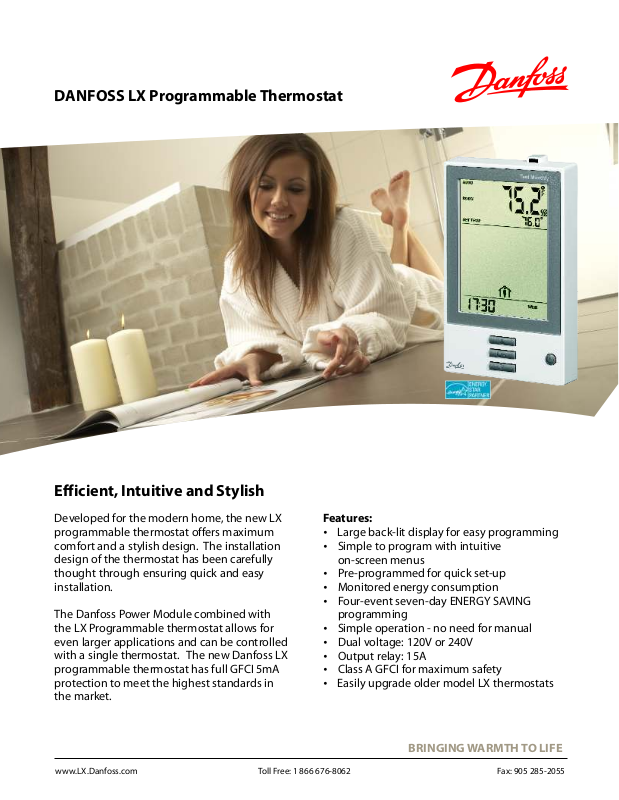

Danfoss LX Programmable Thermostat Fact sheet
DANFOSS LX Thermostat Programmable
Efficient, Intuitive and Stylish
Developed for the modern home, the new LX
programmable thermostat offers maximum
comfort and a stylish design. The installation
design of the thermostat has been carefully
thought through ensuring quick and easy
installation.
The Danfoss Power Module combined with
the LX Programmable thermostat allows for
even larger applications and can be controlled
with a single thermostat. The new Danfoss LX
programmable thermostat has full GFCI 5mA
protection to meet the highest standards in
the market.
www.LX.Danfoss.com Fax: 905 285-2055Toll Free: 1 866 676-8062
Features:
Large back-lit display for easy programming
Simple to program with intuitive
on-screen menus
Pre-programmed for quick set-up
Monitored energy consumption
Four-event seven-day ENERGY SAVING
programming
Simple operation - no need for manual
Dual voltage: 120V or 240V
Output relay: 15A
Class A GFCI for maximum safety
Easily upgrade older model LX thermostats
BRINGING WARMTH TO LIFE
Technical data
Class A GFCI Laminate Wood Floors
The thermostat features a built-in Class A GFCI (Ground Fault The 008L5132 model is designed specifically for laminate &
Circuit Interrupter). Should a ground fault occur, the GFCI engineered wood floors. It uses an air sensor to control the
disconnects both lines to the heating element. The thermostat floor heating with a floor sensor that acts as a high limit to
and GFCI are dual voltage models suitable for 120/240 V, 50/60 prevent the laminate or engineered wood floor from over
Hz power supplies. heating. Please refer to Danfoss Reflect for optimal laminate
and engineered wood heating performance.
Fully Programmable
The thermostats are supplied with factory-set 4-event Backup function
program for automatic comfort and set-back temperatures. In the event of a power failure, an internal circuit will maintain
The factory-set periods and/or temperatures can be changed the programming and time. However, the time must be reset if
according to requirements. the power failure exceeds two hours.
Furthermore, the following programs can be selected:
• 4 events for 5 days and 2 events for days 6+7
• 4 events for 6 days and 2 events for day 7
• 4 events per day
The programmable thermostat features an adaptive function,
allowing it to calculate when the heating must be switched on
to ensure that the comfort temperature is reached at the
required time.
Comfort mode Clock function.............................................. 4-event program
The room temperature can be temporarily changed for a On/Off differential.............................................. 0.7°F (0.4°C)
single event. The comfort mode temperature is reset after a Regulation principle..................................................PWM / PI
selected number of hours. The thermostat will then return to Housing............................................................ Nema 2 (IP21)
the scheduled event program. Floor sensor type.............................. NTC (12 KΩ) 10 ft (3 m.)
Manual mode
The scheduled event program can be cancelled, e.g. during
holidays, and the temperature set for frost protection
purposes instead, e.g. to 41°F (5°C). The new set-point will
remain active until manual mode is cancelled. UL E-file: E157297
Monitoring of energy consumption
Total switch-on time in percent can be displayed for the last 2
days, 30 days or 365 days. Overall energy consumption can
thus be monitored.
TECHNICAL DATA
Supply................................................. 120/240 Vac 50/60 Hz
Load.........................................15A maximum (resistive load)
Power.................... 1.800 W at 120 Vac / 3.600 W at 240 Vac
GFCI..................................................Class A (5 mA trip level)
Temperature range..................... +41 to +104°F.(+5 to +40°C)
Floor limit range.......................... +41 to +104°F.(+5 to +40°C)
Amb. Temp. range........................+32 to +104°F (0 to +40°C)
Dimensions(H/W/D) ............. 4.8/3.0/1.0 inch (123/75/25mm)
c-UL-us according to the following standards:
Thermostat: UL 873
CSA C22.2 No. 24
GFCI: UL 943
CSA C22.2, No. 144. 1-06
Ordering Information
088L5130 Floor sensing
088L5132 Air sensing with floor temperature
limiter
Copyright 2009 Danfoss Inc.
Danfoss Inc.
Toronto
Toll Free: 1 866 676-8062
Phone: 905 285-2050
Fax: 905-285-2055
www.LX.Danfoss.com
Danfoss
LX
BRINGING WARMTH TO LIFE
NA.EFHSS.LXTSTAT
