Danfoss LX205T Operating guide

67567 11/15 ALA

LX205T

Touch Thermostat

Interactive

User Manual

www.lx.danfoss.com

Contents >

© 2015 OJ Electronics A/S

1. Contents

2.

Menu Overview



3

8. Programed Heating Schedule

22

10.3.7 Daylight Saving Time



43

3.

Introduction . . . . . . . . . .



. 4

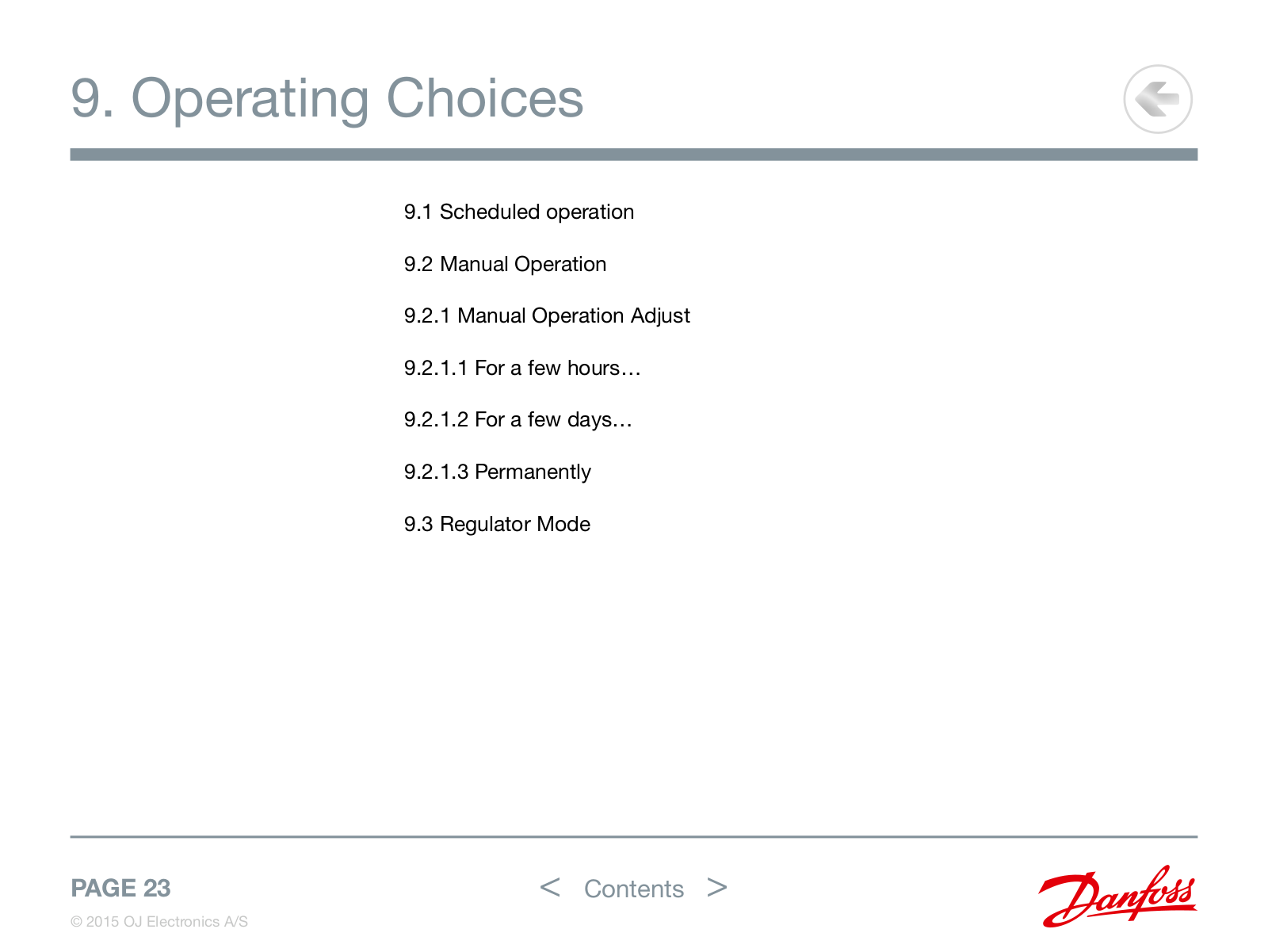

9. Operating Choices . . . . . . .

23

10.3.8 Unit . . . . . . . .

. .

44

4.

General Operation



5

9.1 Scheduled Operation . . . . .

24

10.3.9 Language



45

4.1.Navigation Buttons . . . . . .



. 6

9.2 Manual Operation . . . . . .

. 25

10.3.10 Information . . . . .

.

. 46

5.

Ground Fault: (GFCI) 1/2 . . . .

.

7

9.2.1 Manual Operation Adjust . .

. 26

10.3.11 Support . . . . . .

. .

47

5.

Ground Fault: (GFCI) 2/2 . . . .

.

8

9.2.1.1 Adjust... for a few hours . .

. 27

10.3.12 User Reset . . . . .

.

. 48

6.

Icons 1/2 . . . . . . . . . . .

.

9

9.2.1.2 Adjust... for a few days . .

. 28

10.4 Installer Settings



49

6.

Icons 2/2 . . . . . . . . . . .



10

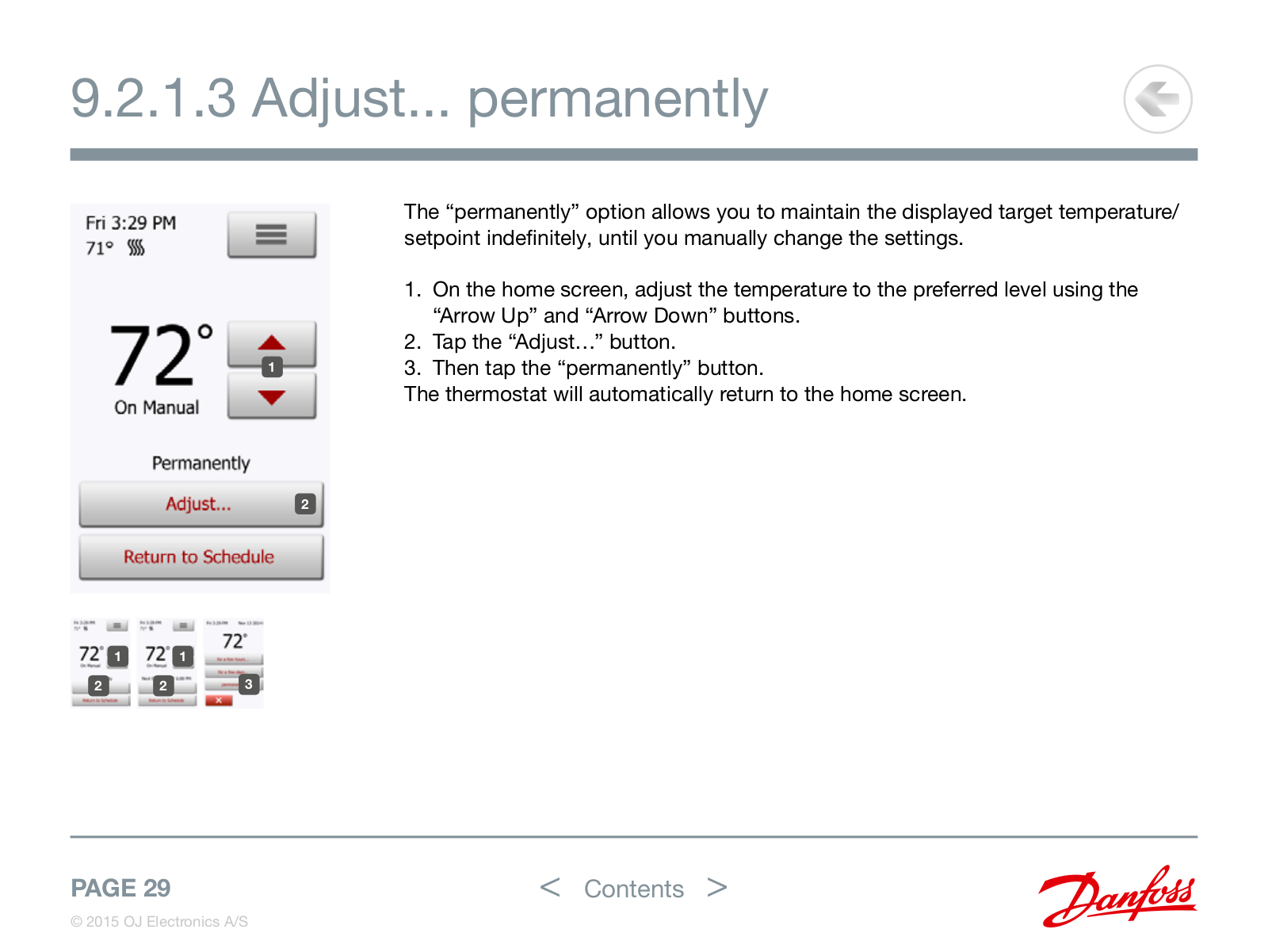

9.2.1.3 Adjust... permanently

29

10.4.1 Adaptive Function



50

7.

Startup Wizard . . . . . . . .

.

11

9.3 Regulator Mode . . . . . . .

30

10.4.2 Open Window . . . .

. .

51

7.1

Set the language



12

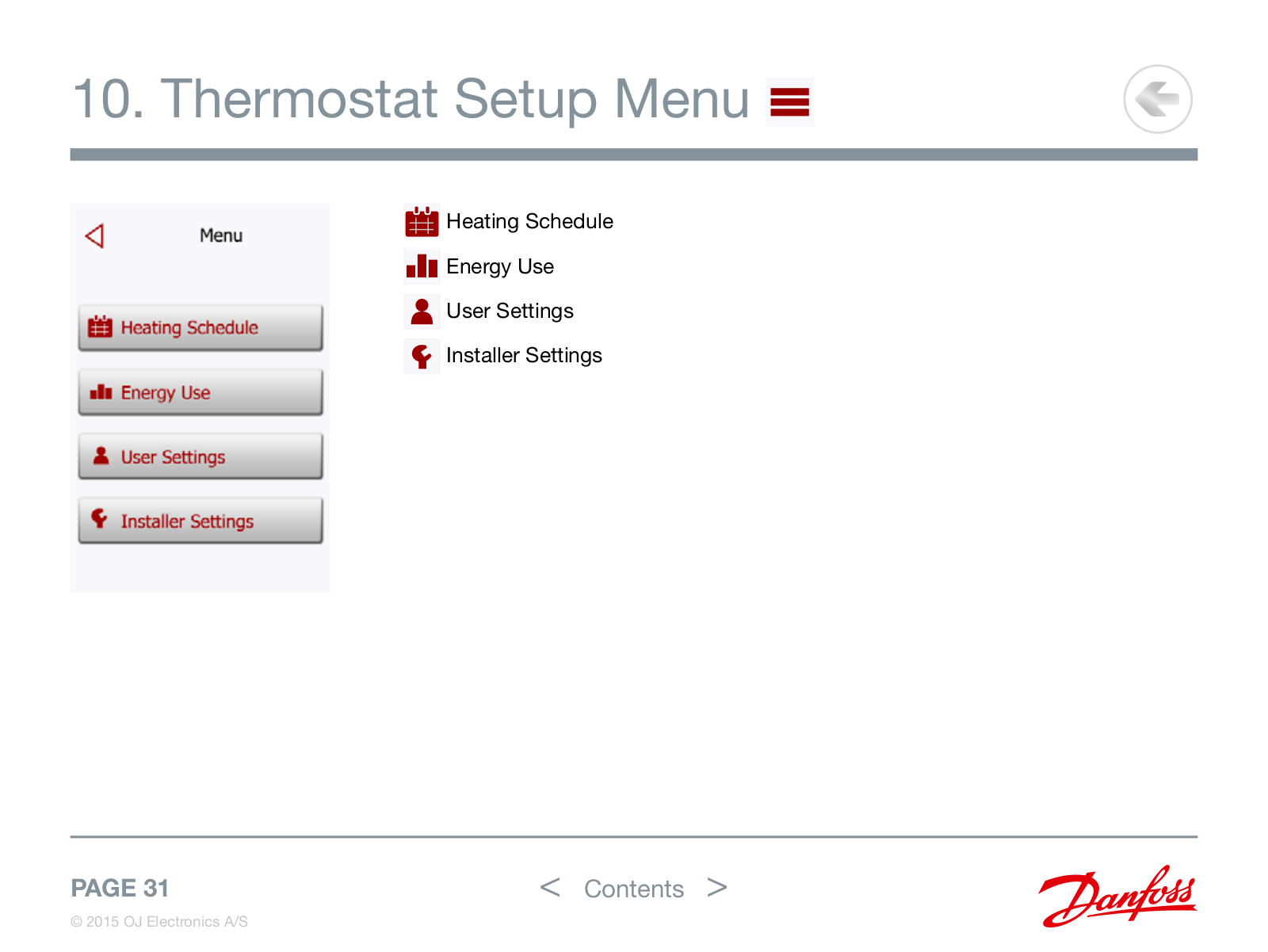

10. Thermostat Setup Menu . . . .

31

10.4.3 Sensor Application 1/2



52

7.2

System Test



13

10.1 Heating Schedule 1/2

32

10.4.3 Sensor Application 2/2



53

7.3

Safety Test (GFCI) . . . . . .

.

14

10.1 Heating Schedule 2/2

33

10.4.4 Sensor Type 1/2



54

7.4

Set the preferred temperature unit



15

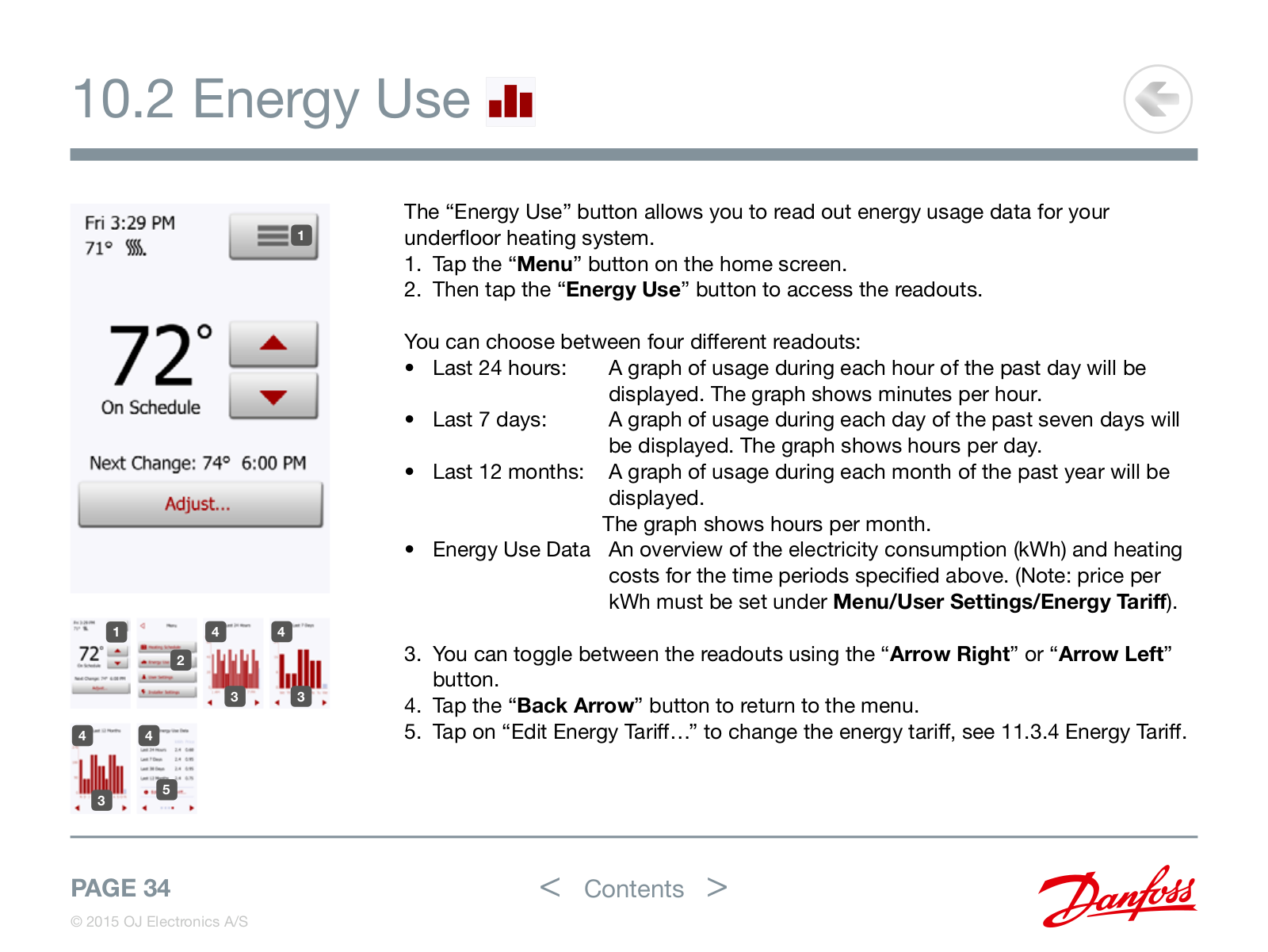

10.2 Energy Use . . . . . . . .

. 34

10.4.4 Sensor Type 2/2



55

7.5

Set the floor load



16

10.3. User Settings . . . . . . .

35

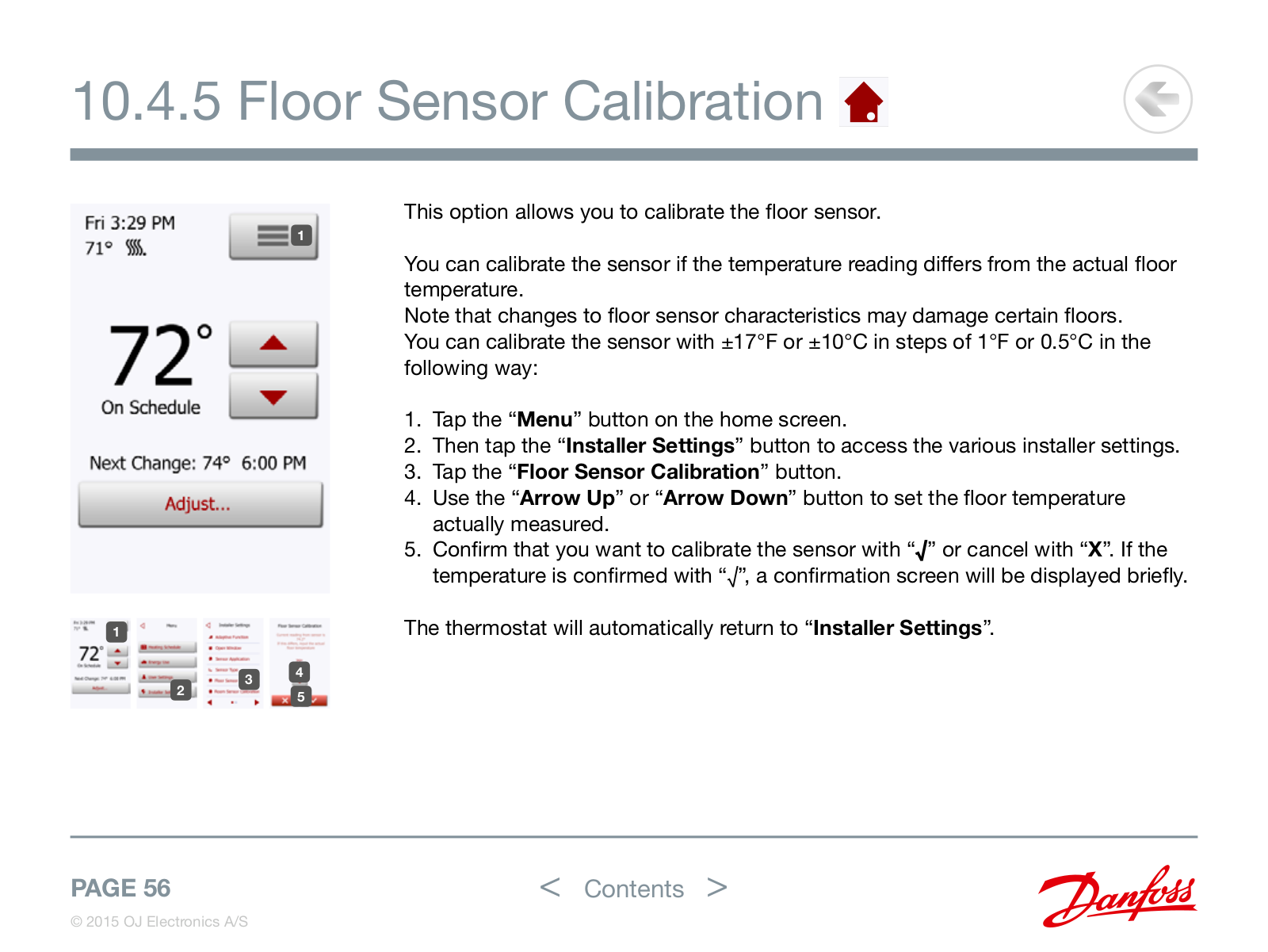

10.4.5 Floor Sensor Calibration

. .

. 56

7.6

Set the sensor type . . . . . .



17

10.3.1 Child Lock 1/2 . . . . . . . .

. 36

10.4.6 Room Sensor Calibration

.

57

7.7

Set the date



18

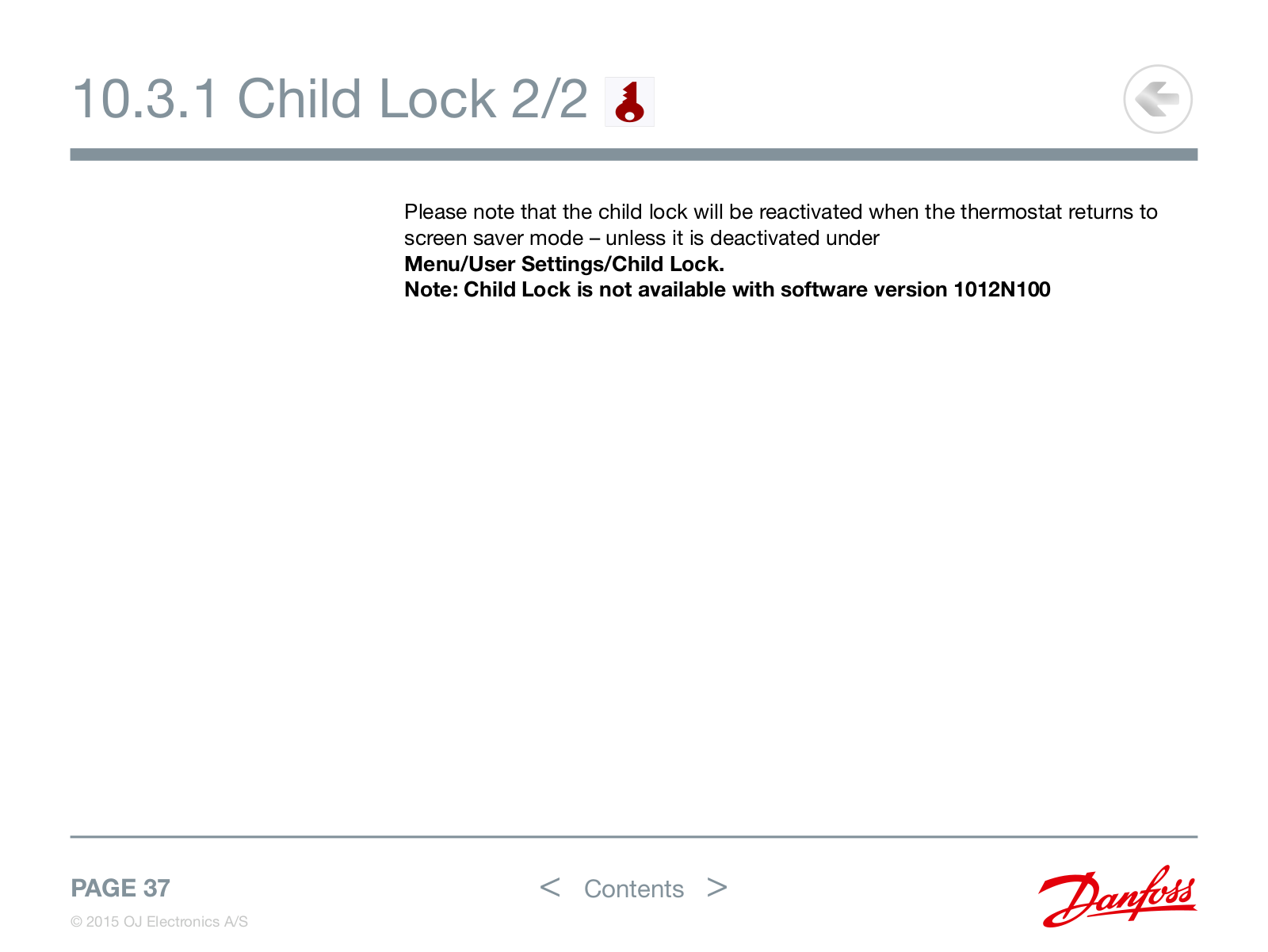

10.3.1 Child Lock 2/2 . . . . . . . .

. 37

10.4.7 Floor Protection 1/2



58

7.8

Set the time . . . . . . . . . . . . . . 19

10.3.2 Display Brightness . . . .

38

10.4.7 Floor Protection 2/2



59

7.9

Set floor protection . . . . . .



20

10.3.3 Screen Saver

39

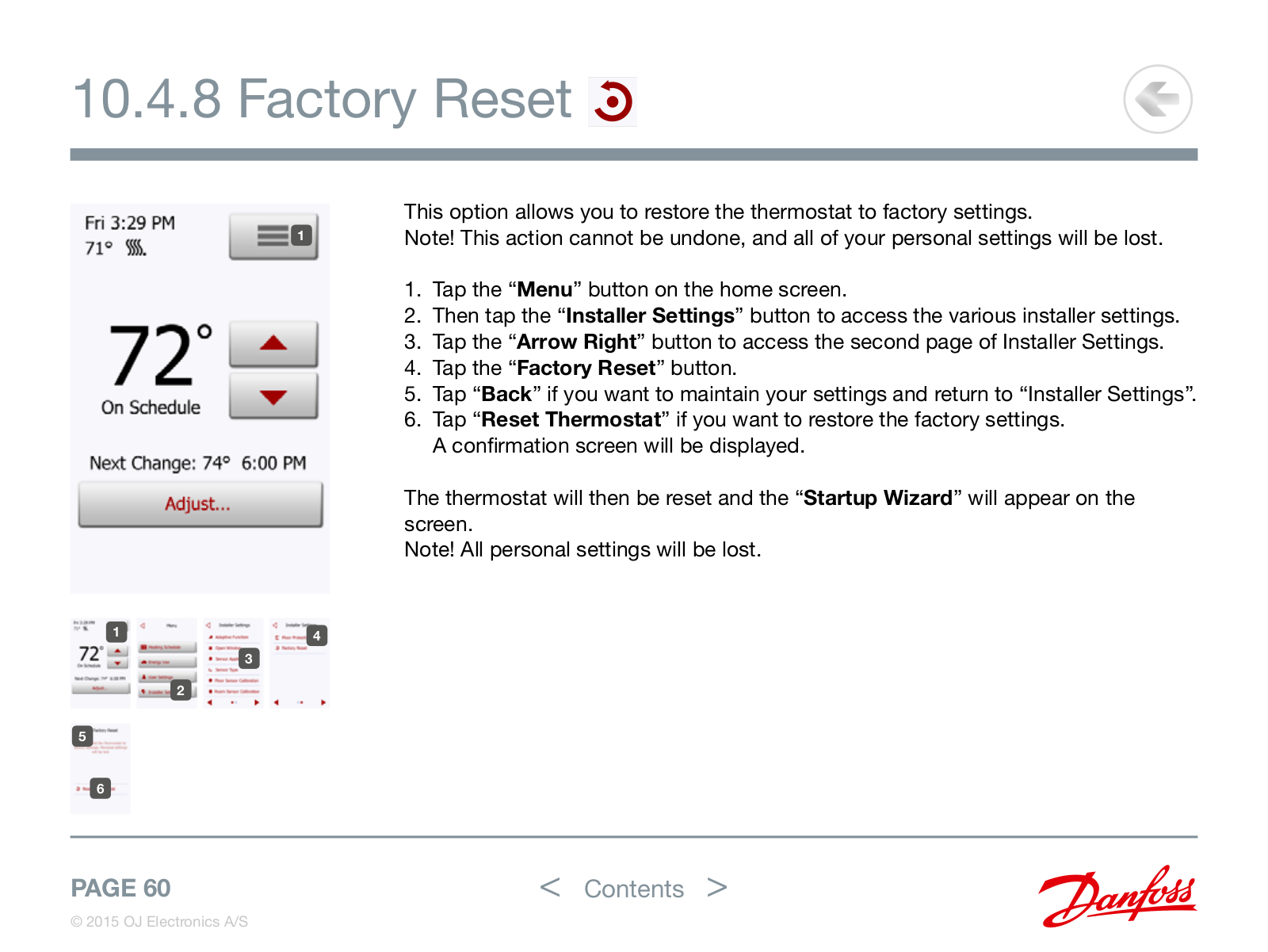

10.4.8 Factory Reset . . . .

. .

60

7.10 Thermostat activation . . . .

.

21

10.3.4 Energy Tariff . . . . . .

. 40

11. Factory Settings



61











10.3.5 Date . . . . . . . . . .

41

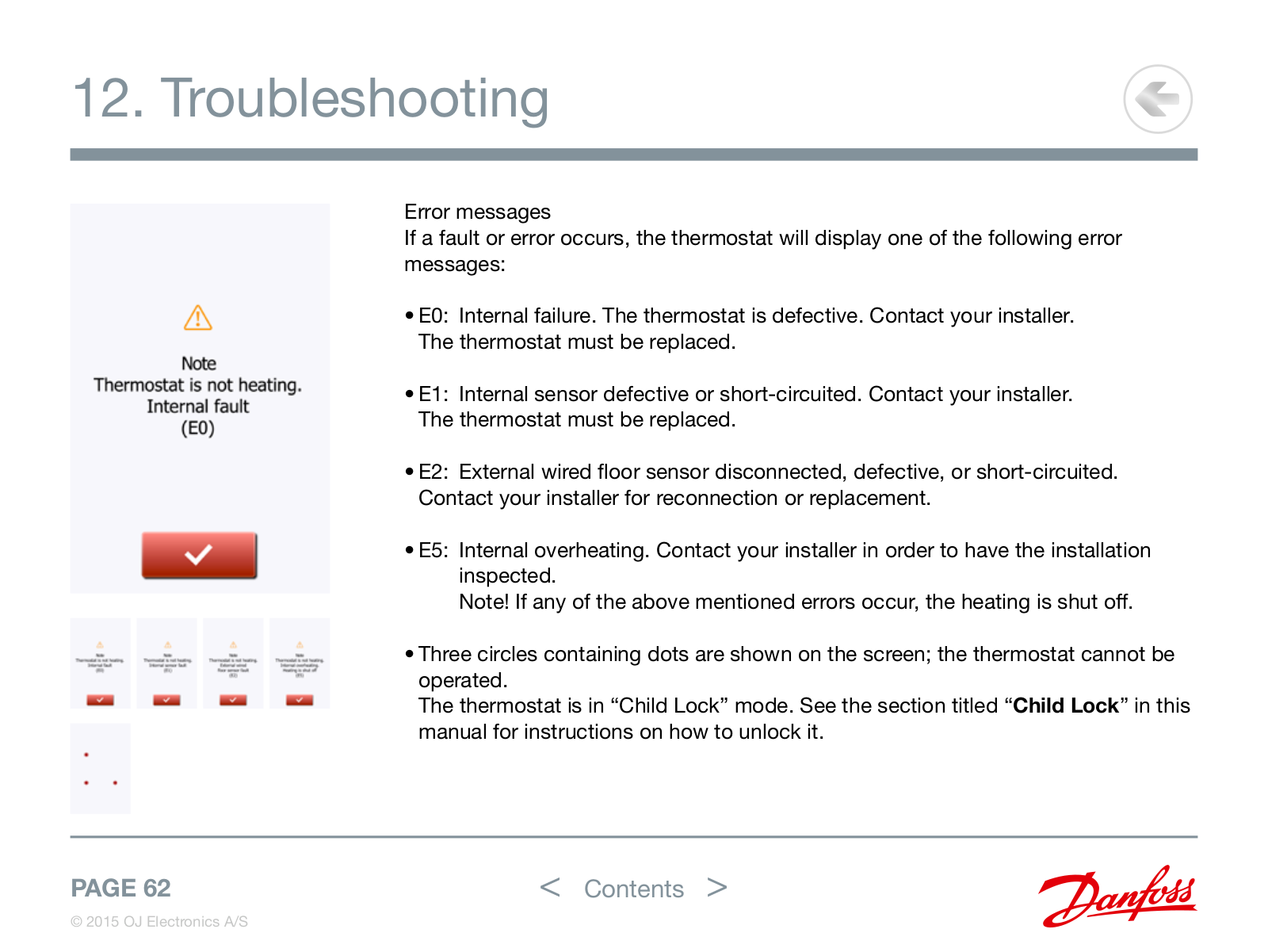

12. Troubleshooting



62











10.3.6 Time . . . . . . . . . . . . . .

. 42







PAGE 2

< Contents >

© 2015 OJ Electronics A/S



Danfoss LX205T Operating guide

2. Menu Overview

Menu Structure

Menu

Heating Schedule

Energy Use

User Settings

Installer Settings

Heating Schedule

View/Edit Schedule

Revert to Factory Schedule

User Settings

Child Lock

Display Brightness

Screen Saver

Energy Tariff

Date

Time

Daylight Saving Time

Unit

Language

Information

Support

User Reset

Installer Settings

Adaptive Function

Open Window

Sensor Application

Sensor Type

Floor Sensor Calibration

Room Sensor Calibration

Floor Protection

Factory Reset

PAGE 3

< Contents >

© 2015 OJ Electronics A/S



3. Introduction

Congratulations on the purchase of your new touch thermostat. We hope that you will enjoy the ease of use offered by the touchscreen and the intuitively designed user interface. You can program the thermostat in any way you would like with the options provided under Heating Schedule and User Settings.

The thermostat will switch your underfloor heating system on at predetermined times each day of the week. You can set individual temperatures for up to six separate events for each day of the week. Lowering the temperature when your home is unoccupied will reduce your energy costs without reducing comfort.

The thermostat comes with a preset heating schedule that is suitable for most homes. Unless you change the settings, the thermostat will operate according to this preset heating schedule.

The thermostat features an adaptive function that automatically changes the heating start times to ensure that the required temperature has been reached at the beginning of any specific event. After a few days, the adaptive function will have learned how much earlier the heating must be switched on.

The resistive touchscreen only requires a soft tap with your fingertip to register the touch.

In this manual, the touch areas on the screen will be referred to as buttons.

PAGE 4

< Contents >

© 2015 OJ Electronics A/S



4. General Operation

The thermostat has two physical buttons. A ground fault (GFCI) test button is located on top of the thermostat, and a power/reset button is located on the right side of the thermostat.

The GFCI should be tested monthly (all settings, including time and date, will be remembered).

The thermostat is an intuitively operated touch thermostat in which the touchscreen is used to navigate through the menus and to change the settings.

The function of the buttons and icons on the home screen can be seen below.

PAGE 5

< Contents >

© 2015 OJ Electronics A/S



4.1.Navigation Buttons



Accept/Back/Cancel/Arrow Up/Arrow Down/Arrow Left/Arrow Right



Whenever you change a parameter setting, you must tap the “Accept” button for the



thermostat to acknowledge the change.



“Accept” is shown on the screen as “√”.



“Back” is shown on the screen as a button marked with a hollow arrow pointing to



the left.



In the various menus and submenus, you will find the “Back” button in the upper



left corner of the touchscreen.



Tap the “Back” button to return to the previous menu.



“Cancel” is shown on the screen as a button marked “X”.



Although “Cancel” has the same effect as “Back”, it also results in all the unsaved



settings being discarded.



As soon as you leave a home screen and enter one of the menus, either a “Back”



button or a “Cancel” button will be shown.



To return to the home screen, tap Back/Cancel once or multiple times depending



on where you are in the menu structure.



“Arrow Up”, “Arrow Down”, “Arrow Left”, and “Arrow Right” are used to toggle



settings and values and to navigate through the menus. The “Arrow Up” and “Arrow



Down” buttons are accelerated buttons. Holding either of them will make the value



change continuously.





PAGE 6

< Contents >

© 2015 OJ Electronics A/S



5. Ground Fault: (GFCI) 1/2



The GFCI thermostat has a built-in GFCI that ensures personal safety in case of



ground faults.



It is important that the GFCI is tested monthly. Installation and use must be



according to the national and local regulations.



Testing the GFCI:



Press the “TEST” button.



The test is successful if the red LED on the right of the thermostat flashes once



every two seconds and “GROUND FAULT” appears on the display. If this does not



occur, check the installation.



Press the “Standby/Reset” button to reset the GFCI.



The red LED will stop flashing and the display returns to normal appearance.



If the test fails, repeat the test. If it continues to fail, ask an electrician to check the



installation.



If, during normal operation, the GFCI trips without the “TEST” button being pressed,



there could be a ground fault! To check whether it is a ground fault or nuisance



tripping, press “Standby/Reset”. If this causes the red LED to stop flashing and



stay off, it was nuisance tripping and the system is operating correctly. If this does



not occur, there is a ground fault! In case of a ground fault, it is important to have



the installation checked by a qualified electrician according to local and national



regulations.





PAGE 7

< Contents >

© 2015 OJ Electronics A/S



5. Ground Fault: (GFCI) 2/2

The red LED on the right of the thermostat can indicate four different GFCI states:

1.LED off – NORMAL state.

2.LED flashing slowly (once every two seconds) – TRIGGERED state. Try pressing the “Standby/Reset” button to reset the GFCI.

3.LED flashing quickly (five flashes per second) – ERROR state. Try switching the power off and then back on again. If the thermostat re-enters ERROR state, either the wiring is wrong (a ground-neutral short exists) or the unit is defective and must be replaced.

4.LED lit constantly – Internal microprocessor malfunction or abnormal hardware fault! Try switching the thermostat off and then back on again. If the LED still lights constantly, the GFCI is defective and the thermostat must be replaced.

Note: The LED lights up briefly without flashing during every power-up.

PAGE 8

< Contents >

© 2015 OJ Electronics A/S



6. Icons 1/2

Icon

Meaning

Icon

















Menu



$









































Heating Schedule



7









Energy Use























































User Settings























































Installer Settings



5°









Child Lock









































Display Brightness



















































Screen Saver







































Meaning

Icon

Meaning

Energy Tariff















Adaptive Function















Date















Open Window





























Time















Sensor Application





























Daylight Saving Time















Sensor Type











































Unit















Floor Protection

























































Language















Floor Sensor













































Calibration

Information















Room Sensor































Calibration

Support















Temperature Scale















































PAGE 9

< Contents >

© 2015 OJ Electronics A/S



6. Icons 2/2

Icon

Meaning

Icon

Meaning



Factory Reset

+

Copy to



Accept



“Adjust… for a few days” in the future is activated



Back



Heating is activated



Cancel



Heating is activated with adaptive mode



Arrow Up



Note



Arrow Down







Arrow Left







Arrow Right





PAGE 10





< Contents >

© 2015 OJ Electronics A/S





7. Startup Wizard

When the system has been installed and turned on for the first time, or after you have performed a factory reset, the system will run a Startup Wizard.

The Wizard will take you through tests, which ensure that the thermostat is fully functional. After the tests, the Wizard leads you through a basic setup routine to ensure that you have the right settings.

PAGE 11

< Contents >

© 2015 OJ Electronics A/S



7.1 Set the language

1

2

First you must set the language. The chosen language will become the default language for the thermostat. The language can be changed under Menu/User Settings/Language.

1.Tap the language you prefer.

2.Tap the “Arrow Right” button to continue.

PAGE 12

< Contents >

© 2015 OJ Electronics A/S



7.2 System Test

System Test is an automatic test of the thermostat and sensors.

If a test results in ‘Fail,’ please contact your installer.

Note: if the thermostat is to operate with an air/room sensor only, the floor sensor test will result in ‘Fail’ being shown.

1. Tap the “Arrow Right” button to continue.

1

PAGE 13

< Contents >

© 2015 OJ Electronics A/S



7.3 Safety Test (GFCI)

1.Press the test button on the top of the thermostat.

The test is successful if the red light in the test button lights up and a Ground Fault error text is shown on the display.

2.Press the power/reset button on the lower right side of the thermostat to reset the GFCI.

3.Tap the “Arrow Right” button to continue.

3

PAGE 14

< Contents >

© 2015 OJ Electronics A/S



7.4 Set the preferred temperature unit

1

2

1.Tap the temperature unit that you prefer.

2.Tap the “Arrow Right” button to continue.

The temperature unit can be changed under Menu/User Settings/Unit

PAGE 15

< Contents >

© 2015 OJ Electronics A/S



7.5 Set the floor load

1.Set the load of the underfloor heating system to be controlled by the thermostat.

2.Tap the “Arrow Right” button to continue.

This setting can be changed later if a factory reset is performed.

1

2

PAGE 16

< Contents >

© 2015 OJ Electronics A/S



7.6 Set the sensor type

1

2

Choose which floor sensor type is used with the thermostat.

1.Tap the sensor type installed in the floor.

2.Tap the “Arrow Right” button to continue.

If you want to use the thermostat with the room sensor only, you must complete the Setup Wizard using “Default” as the floor sensor type before going to: Menu/ Installer Settings/Sensor Application and choosing “Room”.

PAGE 17

< Contents >

© 2015 OJ Electronics A/S



7.7Set the date

1.Tap the “Arrow” buttons to change the values.

2.Tap the preferred date format.

3.Tap the “Arrow Right” button to continue.

The date can be changed under Menu/User Settings/Date

1

2

3

PAGE 18

< Contents >

© 2015 OJ Electronics A/S

7.8Set the time

1.Tap the “Arrow” buttons to change the values.

2.Tap the preferred time format.

3.Tap the “Arrow Right” button to continue.

The time can be changed under Menu/User Settings/Time

1

2

3

PAGE 19

< Contents >

© 2015 OJ Electronics A/S
