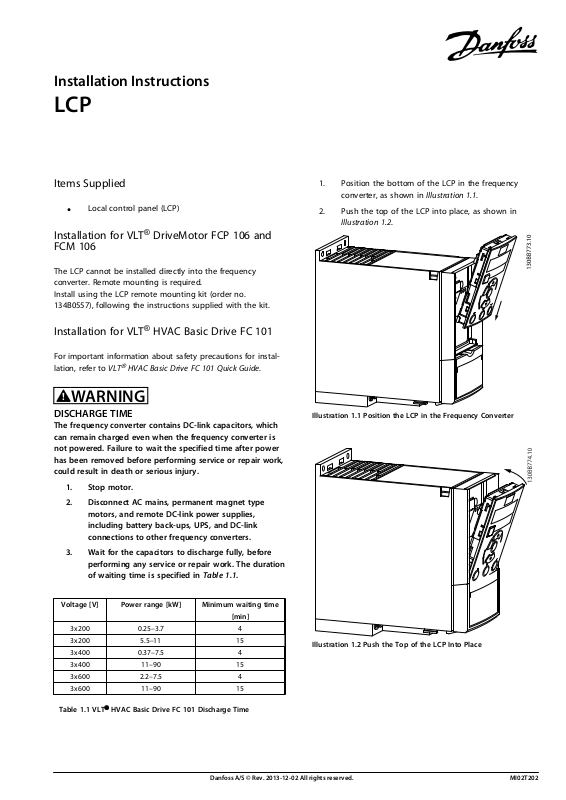

Danfoss Local control panel Installation guide
Installation Instructions
LCP
Items Supplied
•Local control panel (LCP)
Installation for VLT® DriveMotor FCP 106 and FCM 106
The LCP cannot be installed directly into the frequency converter. Remote mounting is required.
Install using the LCP remote mounting kit (order no. 134B0557), following the instructions supplied with the kit.
Installation for VLT® HVAC Basic Drive FC 101
For important information about safety precautions for installation, refer to VLT® HVAC Basic Drive FC 101 Quick Guide.
WARNING
DISCHARGE TIME
The frequency converter contains DC-link capacitors, which can remain charged even when the frequency converter is not powered. Failure to wait the specified time after power has been removed before performing service or repair work, could result in death or serious injury.
1.Stop motor.
2.Disconnect AC mains, permanent magnet type motors, and remote DC-link power supplies, including battery back-ups, UPS, and DC-link connections to other frequency converters.
3.Wait for the capacitors to discharge fully, before performing any service or repair work. The duration of waiting time is specified in Table 1.1.
Voltage [V] |
Power range [kW] |
Minimum waiting time |
|
|
[min] |
|
|
|
3x200 |
0.25–3.7 |
4 |
|
|
|
3x200 |
5.5–11 |
15 |
|
|
|
3x400 |
0.37–7.5 |
4 |
|
|
|
3x400 |
11–90 |
15 |
|
|
|
3x600 |
2.2–7.5 |
4 |
3x600 |
11–90 |
15 |
Table 1.1 VLT® HVAC Basic Drive FC 101 Discharge Time
1.Position the bottom of the LCP in the frequency converter, as shown in Illustration 1.1.
2.Push the top of the LCP into place, as shown in
Illustration 1.2.
Illustration 1.1 Position the LCP in the Frequency Converter
Illustration 1.2 Push the Top of the LCP Into Place
Danfoss A/S © Rev. 2013-12-02 All rights reserved. |
MI02T202 |
132R0082 |
MI02T202 *MI02T202* |
Rev. 2013-12-02 |
