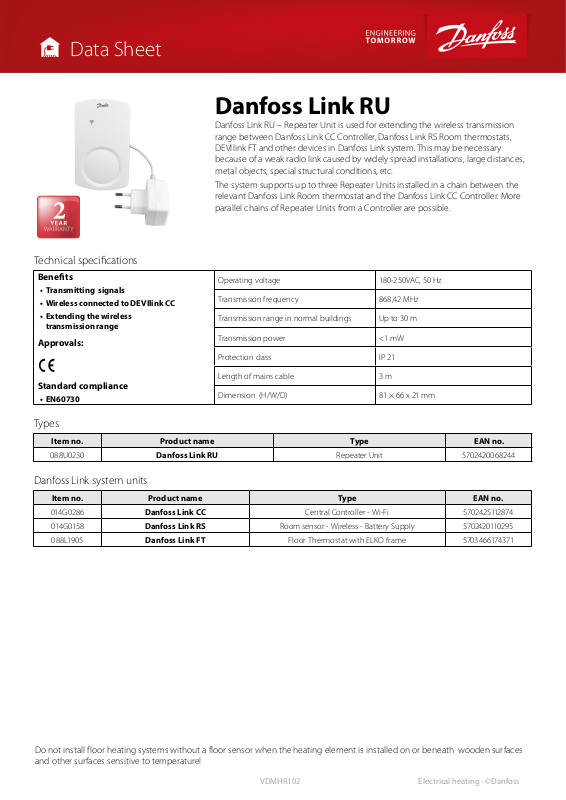

Data Sheet
Danfoss Link RU
Danfoss Link RU – Repeater Unit is used for extending the wireless transmission range between Danfoss Link CC Controller, Danfoss Link RS Room thermostats, DEVIlink FT and other devices in Danfoss Link system. This may be necessary because of a weak radio link caused by widely spread installations, large distances, metal objects, special structural conditions, etc.
The system supports up to three Repeater Units installed in a chain between the relevant Danfoss Link Room thermostat and the Danfoss Link CC Controller. More parallel chains of Repeater Units from a Controller are possible.
Technical specifications
Benefits |
|
Operating voltage |
|
180-250VAC, 50 Hz |
|
|||
|
|
|
|
|
||||
• Transmitting signals |
|
|
|
|
|
|
|
|
|
Transmission frequency |
|
868,42 MHz |
|
||||
• Wireless connected to DEVIlink CC |
|
|
||||||
|
|
|
|
|
|
|||
• Extending the wireless |
|
Transmission range in normal buildings |
Up to 30 m |
|
||||
transmission range |
|
|
|
|
|
|
|
|
|
Transmission power |
|
<1 mW |
|
||||
Approvals: |
|
|
|
|||||
|
|
|
|
|
|
|
||
d |
|
Protection class |
|
IP 21 |
|
|||
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
Standard compliance |
|
Length of mains cable |
|
3 m |
|
|||
|
|
|
|
|
|
|
||
|
Dimension (H/W/D) |
|
81 × 66 x 21 mm |
|
||||
• EN60730 |
|
|
|
|||||
|
|
|
|
|
|
|
||
Types |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Item no. |
|
Product name |
|
|
|
Type |
|
EAN no. |
|
|
|
|
|
|
|
||
088U0230 |
|
Danfoss Link RU |
|
Repeater Unit |
5702420068244 |
|||
|
|
|
|
|
|
|
|
|
Danfoss Link system units |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
Item no. |
|
Product name |
|
|
|
Type |
|
EAN no. |
|
|
|
|
|
|
|
|
|
014G0286 |
|
Danfoss Link CC |
|
|
|
Central Controller - Wi-Fi |
5702425112874 |
|
|
|
|
|
|
|
|
||
014G0158 |
|
Danfoss Link RS |
|
|
Room sensor - Wireless - Battery Supply |
5702420110295 |
||
|
|
|
|
|
|
|
||
088L1905 |
|
Danfoss Link FT |
|
|
Floor Thermostat with ELKO frame |
5703466174371 |
||
|
|
|
|
|
|
|
|
|
Do not install floor heating systems without a floor sensor when the heating element is installed on or beneath wooden surfaces and other surfaces sensitive to temperature!
VDMHR102 |
Electrical heating · ©Danfoss |
