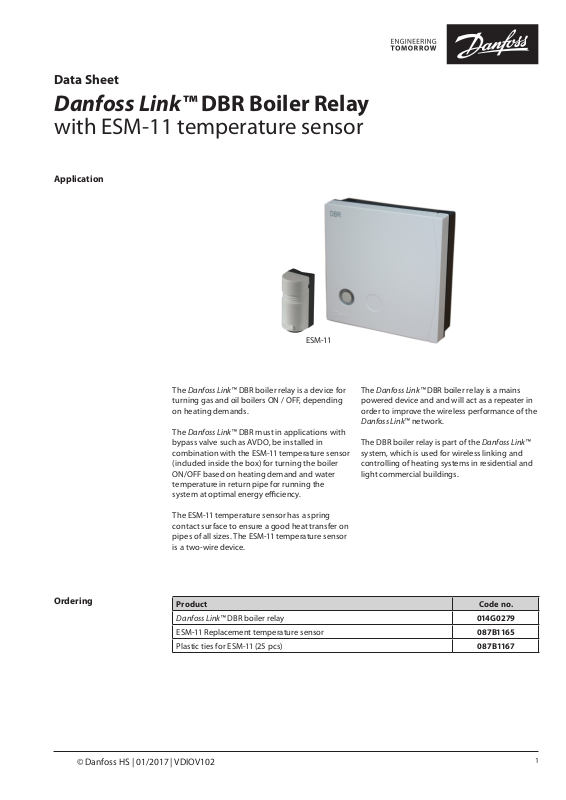

Danfoss Link DBR Boiler Relay Data sheet

Data Sheet
Danfoss Link™ DBR Boiler Relay
with ESM-11 temperature sensor
Application
ESM -11
Ordering
The Danfoss Link™ DBR boiler relay is a device for turning gas and oil boilers ON / OFF, depending on heating demands.
The Danfoss Link™ DBR must in applications with bypass valve such as AVDO, be installed in combination with the ESM-11 temperature sensor (included inside the box) for turning the boiler ON/OFF based on heating demand and water tempera ture in return pipe for running the system at optimal energy efficiency.
The ESM-11 temperature sensor has a spring contact surface to ensure a good heat transfer on pipes of all sizes. The ESM-11 temperature sensor is a two-wire device.
Product Code no.
Danfoss Link™ DBR boiler relay 014G0279
ESM-11 Replacement temperature sensor 087B 1165
Plastic ties for ESM-11 (25 pcs) 0 87B1167
The Danfoss Link™ DBR boiler relay is a mains powered device and and will act as a repeater in order to improve the wireless performance of the Danfoss Link™ network.
The DBR boiler relay is part of the Danfoss Link™ system, which is used for wireless linking and controlling of heating systems in residential and light commercial buildings.
© Danfoss HS | 01/2017 | VDIOV102
1
Data Sheet Danfoss Link™ BR Boiler Relay
Technical Data
Danfoss Link™ DBR Specifications
Operation voltage 230 V~, 50 Hz
Standby consumption 1.6 W
Load
Rated impulse 2.5 kV
Switching Typ e 1B
Regulation ON / OFF
Ambient temperature 0 °C to 45 °C
Transmission frequency Wireless Z-wave 868.42 MHz
Transmission range in normal buildings Up to 30 m
Transmission power Max. 1 mW
Pollution situation Degree 2
Ball pressure test 75 °C
Software classification Class A
Software Version 4.1.0 or higher
IP class 40
Dimensions 84 x 84 x 30 mm
ESM-11 Specifications
Temperature range 0-100 °C
Enclosure IP class IP 32
Time constant 3 s
Materials
Electrical connection Terminal block for 2 wires in base part
Mounting Clamp for tube DN 15-65 supplied
Dimensions 28x 26 x 55 mm
3 A resistive 1 A inductive
Cover: ABS Base: PC (polycarbonate)
2
© Danfoss HS | 01/2017 | VDIOV102
Data Sheet Danfoss Link™ BR Boiler Relay
Condensing
Boiler
Bypass
Valve
(AVDO)
Dynamic Boiler
Relay (DBR)
ESM-11
Temperature
Sensor
70C
70C
50C
50C
Condensing
Boiler
Bypass
Valve
(AVDO)
Dynamic Boiler
Relay (DBR)
ESM-11
Temperature
Sensor
70C
70C
50C
50C
Condensing
Boiler
Dynamic Boiler
Relay (DBR)
70C
70C
50C
50C
Bypass
Valve
(AVDO)
ESM-11
Temperature
Sensor
Installation
In installations with bypass using AVDO, remember to mount and wire the ESM-11 Temperature Sensor included in the pack.
Figure 2Figure 1
Note:
· The ESM-11 Temperature Sensor needs to be mounted on the return pipe.
·Mount the ESM-11 Temperature Sensor in the bypass circuit (figure 1) and not outside of the circuit (figure 2). Pay attention that the ESM-11 must be outside the circuit of an eventual storage tank.
© Danfoss HS | 01/2017 | VDIOV102
3
Data Sheet Danfoss Link™ BR Boiler Relay
Dimensions
84mm
84mm
29mm
Danfoss A/S
Residential Heating Haarupvaenget 11 8600 Silkeborg Denmark Phone:+45 7488 8000 Fax: +45 7488 8100 Email: heating.solutions@danfoss.com www.heating.danfoss.com
