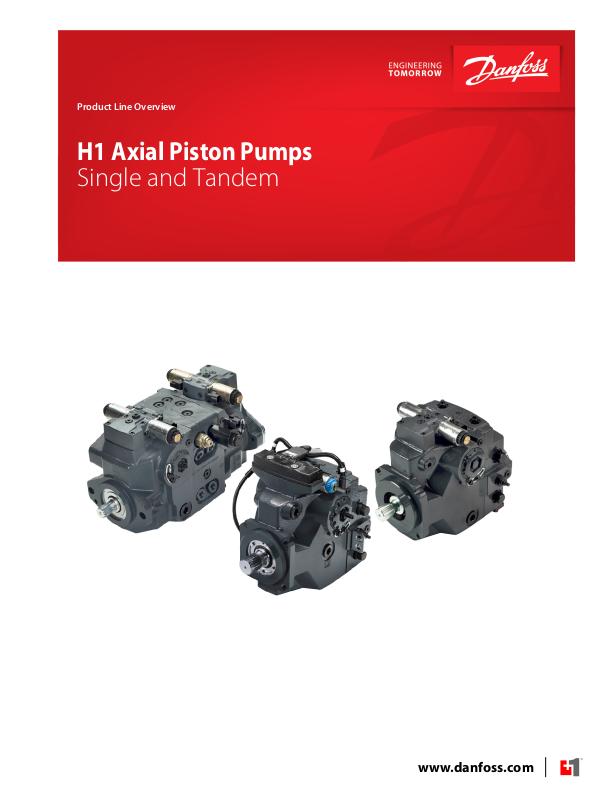

Product Line Overview
H1 Axial Piston Pumps
Single and Tandem
www.danfoss.com
Product Line Overview
H1 Axial Piston Pumps, Single and Tandem
Revision history Table of revisions
Date Changed Rev
February 2022 Added HDC controls and updated control availability for all frames 1001
January 2021 Changed document number from 'AM00000001' and 'L1012919' to 'AM152886484212' and
added 280cc information
April 2017 Converted to DITA CMS. 0802
May 2002 First edition AA
0904
2 | © Danfoss | February 2022 AM152886484212en-001001
Product Line Overview
H1 Axial Piston Pumps, Single and Tandem
Contents
Technical specifications
Overview of H1 Pumps Technical Specifications..................................................................................................................4
Control Options.................................................................................................................................................................................4
H1 Pumps Literature Reference...................................................................................................................................................5
Dimensions
Frame size 045/053 (Single)..........................................................................................................................................................6
Frame size 045/053 (Tandem)......................................................................................................................................................6
Frame size 060-280 (Single)..........................................................................................................................................................7
H1 pumps dimensions....................................................................................................................................................................7
©
Danfoss | February 2022 AM152886484212en-001001 | 3
Product Line Overview
H1 Axial Piston Pumps, Single and Tandem
Technical specifications
Overview of H1 Pumps Technical Specifications
The table shows the available range of H1 pumps as of this printing, with their respective speed, pressure,
weight and mounting flange.
Feature 045 053 060 068 069 078 089 100 115 130 147 165 210 250 280
3
45.0
53.8
60.4
68.0
69.2
78.1
89.2
101.7
115.2
130.0
147.2
165.1
211.5
Displacement cm
[in3]
Rated speed, min
(rpm)
Max. speed, min
(rpm)
Max. working
pressure, bar [psi]
Max pressure, bar
[psi]
Weight dry, kg [lb]
(without PTO/filter)
Mounting flange
1)
Applied pressures above maximum working pressure requires Danfoss application approval.
[2.75]
[3.28]
[3.69]
[4.15]
[4.22]
[4.77]
[5.44]
[6.21]
-1
3400 3400 3500 3500 3500 3500 3300 3300 3200 3200 3000 3000 2600 2600 2600
-1
3500 3500 4000 4000 4000 4000 3800 3800 3400 3400 3100 3100 2800 2800 2800
420
380
420
380
450
450
450
1)
[6092]
[5511]
[6092]
[5511]
[6527]
[6527]
450
400
450
400
480
[6527]
[5802]
[6527]
[5802]
single: 41 [90]
tandem: 65
[143]
SAE B, 2-bolt SAE C, 4-bolt SAE D, 4-bolt SAE E, 4-bolt
single: 50 [110]
tandem: 96.2
[212]
480
[6962]
[6962]
56
[123]56[123]62[137]62[137]83[187]83[187]96[211]96[211]
[6527]
480
[6962]
450
[6527]
480
[6962]
[7.03]
450
[6527]
480
[6962]
[7.93]
450
[6527]
480
[6962]
[8.98]
450
[6527]
480
[6962]
[10.08]
450
[6527]
480
[6962]
[12.91]
450
[6527]
480
[6962]
163
[360]
251.7
[15.36]
450
[6527]
480
[6962]
163
[360]
280.2
[17]
420
[6092]
450
[6527]
163
[360]
Control Options
Control availability
Control type 045/053
tandem
EDC
MDC
HDC
FNR
NFPE
FDC
AC
045/053
single
060/068 069/078 089/100 115/130 147/165 210/250/280
For more information, see https://www.danfoss.com or H1 Pumps Literature Reference on page 5.
4 | © Danfoss | February 2022 AM152886484212en-001001
Product Line Overview
H1 Axial Piston Pumps, Single and Tandem
Technical specifications
H1 Pumps Literature Reference
Available literature for H1 Pumps
Title Literature Type Number
H1 Axial Piston Pumps, Single and Tandem Product Line Overview AM152886484212
H1 Axial Piston Pumps, Single and Tandem Basic Information BC152886483968
H1T 045/053/060/068 Axial Piston Tandem Pumps Technical Information BC152886483958
H1P 045/053 Axial Piston Single Pumps Technical Information BC152886483105
H1P 060/068 Axial Piston Single Pumps Technical Information BC152886483241
H1P 069/078 Axial Piston Single Pumps Technical Information BC152886483133
H1P 089/100 Axial Piston Single Pumps Technical Information BC152886482765
H1P 115/130 Axial Piston Single Pumps Technical Information BC152886483053
H1P 147/165 Axial Piston Single Pumps Technical Information BC152886482989
H1P 210/25/280 Axial Piston Single Pumps Technical Information BC152986484463
H1P 045/053/060/068 Axial Piston Single Pumps Service Manual AX152886481964
H1T 045/053/060/068 Axial Piston Tandem Pumps Service Manual AX152886481761
H1P 069–280 Axial Piston Single Pumps Service Manual AX152886482551
Data sheets for all pump sizes are available.
Further available literature
Title Literature Type Number
H1 Pump Electrical Displacement Control (EDC) Electrical Installation BC152886483648
H1 Pump 3-position Electric Control (FNR) Electrical Installation BC152886483708
H1 Pump Non-Feedback Prop. Electric Control (NFPE) Electrical Installation BC152886483538
H1 Pump Automotive Control (AC) Technical Information BC152986482596
H1 Automotive on PLUS+1 for MC024 Technical Information BC152986484456
Speed and Temperature Sensor Technical Information BC152886482203
Pressure Sensor Technical Information BC152886484429
External Remote Charge Pressure Filter Technical Information BC152886484487
Design Guideline for Hydraulic Fluid Cleanliness Technical Information BC152886482150
Hydraulic Fluids and Lubricants Technical Information BC152886484524
©
Danfoss | February 2022 AM152886484212en-001001 | 5
P301 270
B1 B2
==
L
H1H2
H1H2
B1 B2
==
L
P301 271
Product Line Overview
H1 Axial Piston Pumps, Single and Tandem
Dimensions
Frame size 045/053 (Single)
Frame size 045/053 (Tandem)
6 | © Danfoss | February 2022 AM152886484212en-001001
P301 272
L
B1
H1H2
= =
B2
Product Line Overview
H1 Axial Piston Pumps, Single and Tandem
Dimensions
Frame size 060-280 (Single)
H1 pumps dimensions
Dimensions (mm)
Size L B1 B2 H1 H2
045/053 Single
045/053 Tandem
060/068
069/078
089/100
115/130
147/165
210/250/280
238.2 103.0 129.7 173.3 88.5
405.0 103.0 129.7 173.3 87.0
255.9 106.0 135.5 173.9 99.4
278.3 108.9 138.2 178.9 95.0
295.3 112.4 139.2 187.3 99.0
316.9 121.9 148.1 204.3 110.0
333.3 131.9 152.6 208.3 112.0
418.9 155.0 172.2 245.0 136.0
©
Danfoss | February 2022 AM152886484212en-001001 | 7
