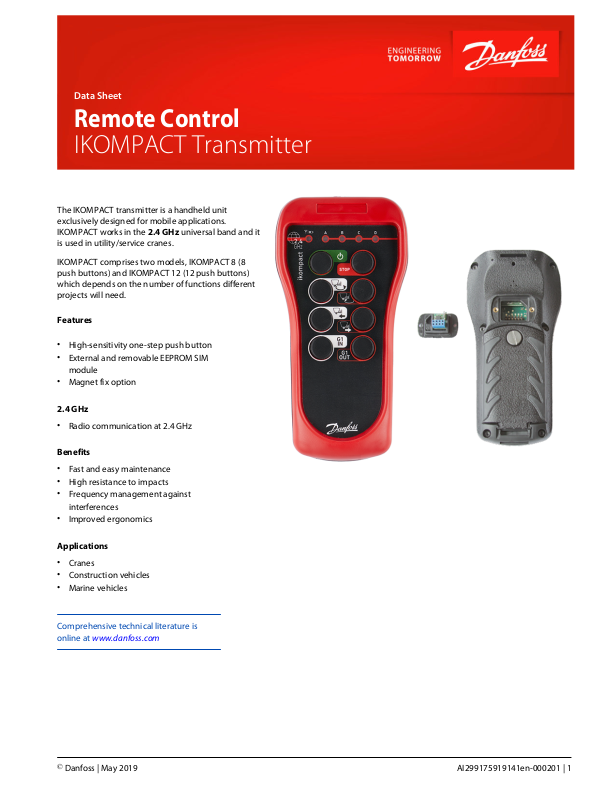

Data Sheet
Remote Control
IKOMPACT Transmitter
The IKOMPACT transmitter is a handheld unit exclusively designed for mobile applications. IKOMPACT works in the 2.4 GHz universal band and it is used in utility/service cranes.
IKOMPACT comprises two models, IKOMPACT 8 (8 push buttons) and IKOMPACT 12 (12 push buttons) which depends on the number of functions different projects will need.
Features
•High-sensitivity one-step push button
•External and removable EEPROM SIM module
•Magnet fix option
2.4 GHz
• Radio communication at 2.4 GHz
Benefits
•Fast and easy maintenance
•High resistance to impacts
•Frequency management against interferences
•Improved ergonomics
Applications
•Cranes
•Construction vehicles
•Marine vehicles
Comprehensive technical literature is online at www.danfoss.com
© Danfoss | May 2019 |
AI299175919141en-000201 | 1 |
Technical data
Specification |
Value |
Stop function |
Cat. 3-PLe EN12849-1 and SIL 3 IEC 61508 / IEC 62061 with Stop button option |
|
|
Ingress protection |
IP65/NEMA4 |
|
|
Anti-condensation system |
N/A |
|
|
Frequency band |
2405 to 2475 MHz |
|
|
Main mechanisms (max number) |
8 or 12 push buttons |
|
|
Auxiliary mechanisms |
N/A |
|
|
Removable EEPROM |
External |
|
|
Battery model |
4 AAA alkaline batteries |
|
|
Operating temperature range |
-20° C to 70° C (-4° F to 158° F) |
|
|
Storage temperature |
(24h): -25/+75° C (-13/+167° F) |
|
|
Weight (with battery) |
250 grams |
|
|
Harness |
Lanyard/hook |
|
|
Display |
N/A |
|
|
Cable connection |
N/A |
|
|
Range limiter |
N/A |
|
|
Associated receivers |
MP08 TR2400 |
|
|
