Danfoss FIA 250-300 Data sheet

Data Sheet

Strainer housing Type FIA 250-300

(10-12 in.) Brings reliability and durability demanded in industrial refrigeration applications

FIA 250-300 (10-12 in.) strainers are a range of angleway strainers, which are carefully designed to give favourable ow conditions. The design makes the strainer easy to install, and ensures quick strainer inspection and cleaning.

FIA strainers are used ahead of automatic controls, pumps, compressors etc., for initial plant start-up and where permanent ltration of the refrigerant is required. The strainer reduces the risk of undesirable system breakdowns and reduces wear and tear on plant components.

FIA 250-300 (10-12 in.) strainers are equipped with a screen mesh of stainless steel, available

in sizes 150 and 250 (microns 72 mesh ()).

(1)

Mesh is the number of threads per inch. μ (microns) is the distance between two threads (1μ = 1 /1000 mm)

1

Mesh is the number of threads per inch. μ (microns) is the distance between two threads (1μ = 1 /1000 mm)

(1)

), (US 100 and

AI270830845132en-000201

Strainer housing, Type FIA 250-300

Features

• Applicable to HC, HCFC, HFC, R717 (Ammonia) and R744 (CO2)

• Available with DIN and ANSI connections

• Filter net of stainless steel mounted direct. without extra gaskets means easy servicing.

• FIA 250-300 (10-12 in.) can be equipped with a magnetic insert for detention of iron particles and other magnetic particles.

• Each strainer clearly marked with type, size and performance range. • Housing and bonnet of low temperature steel in accordance with the requirements of the Pressure Equipment Directive and those of other international classication authorities.

• Temperature range:

◦ -60 °C/+150 °C (-76 °F/+302 °F)

• Max. working pressure:

◦ 40 bar (580 psig)

• Classication: DNV, CRN, BV, EAC etc.

Description

Values

Valve body/connection material

Stainless steel

Equipment

Cover

Connection standard

EN 10220 DIN ANSI/ASME B 36.10

Connection type

Butt weld

Max. working pressure [bar/psig]

40 bar/580 psig

Packing format

Single pack

Strainer housing, Type FIA 250-300

Portfolio overview

Figure 1: FIA 250 - 300

Table 1: Portfolio overview

Media

Refrigerants

FIA strainers are currently authorized by Danfoss for use with more than 70 R-numbers HCFC, non-ammable HFC, Ammonia, CO2 and hydrocarbons.

New refrigerants

Danfoss products are continually evaluated for use with new refrigerants depending on market requirements.

When a refrigerant is approved for use by Danfoss, it is added to the relevant portfolio, and the R number of the refrigerant (e.g. R513A) will be added to the technical data of the code number. Therefore, products for specic refrigerants are best checked at store.danfoss.com/en/, or by contacting your local Danfoss representative.

Housing

The strainer housing is made of special, cold resistant steel.

Strainer Insert

A lter grid and lter net of stainless steel ensure long element life. The lter net oers a very high degree of cleanability

S

T

R

A

I

N

E

R

6 5

4 3 2 1

Danfoss

148H140_01-2018

7

8

No.

Part

Material

DIN

ISO

ASTM

1

Housing

Steel

G20Mn5QT, 10213-3 P285QH+QT, 10222-4

LCC, A352 LF2, A350

2

Gasket

Fibre, Non-asbestos

3

Cover

Steel

P285QH EN10222-4 P275NL1 or 2 EN10028-3

LF2, A350 A, A662

4

Bolts

Stainless steel

A2-70

Type 308

5

Pressure relief screw

Stainless Steel

Strainer housing, Type FIA 250-300

Product specication

Design

Table 2: Design

Figure 2: Example of marking ring, FIA

Material specication

Figure 3: Material specication

Table 3: Material specication according to standards

No.

Part

Material

DIN

ISO

ASTM

6

Packing washer

Stainless steel

7

Eye bolts DIN 580

Steel8Strainer insert

Stainless Steel

Pressure [bar]

Temperature [ºC]

Pressure range

Temperature range

40 bar (580 psig) at -60 °C – +60 °C (-76 °F – +140 °F)

-60 °C – +150 °C (-76 – 302 °F)

36 bar (522 psig) at +60 °C – +80 °C (+140 °F – +176 °F)

32 bar (464 psig) at +80 °C – +120 °C (+176 °F – +248 °F)

28 bar (406 psig) at +120 °C – +150 °C (+248 °F – +302 °F)

Butt-weld DIN (EN 10220)

Butt-weld ANSI (B 36.10 Schedule 40)

DN 250 - 300 (10 in. - 12 in.)

ø

Butt-weld DIN (EN 10220)

Size

ØDTØD

Tmmin.mmmm

in.

250

10

273

6.3

10.75

0.25

30012323.9

7.1

12.75

0.28

Strainer housing, Type FIA 250-300

Pressure and temperature

Figure 4: Pressure/temperature range

Table 4: Pressure and temperature

Connections

Available with the following connections:

Table 5: Connections

Figure 5: DIN

Table 6: DIN

Figure 6: ANSI

Butt-weld DIN (EN 10220)

Size

ØDTØD

Tmmin.mmmm

in.

250

10

273

9.3

10.75

0.25

30012323.9

9.5

12.75

0.28

Liquid Lines

After pumps

150μ [100 mesh] / 250μ [72 mesh]

In front of AKVA valves

100μ [150 mesh]

Protection of automatic regulation equipment

Generally

150μ [100 mesh] / 250μ [72 mesh]

Sensitive equipment, e.g. suction regulators with low temperature

250μ [72 mesh]

Suction Lines

Ahead of screw compressor

250μ [72 mesh]

Ahead of piston compressor

150μ [100 mesh]

Connection size (DN) FIA

µ

Mesh

Wire

Free space

Screen area

mm

in.

%

Plain inserts

cm2in

2

250 (10”)

150

100

0.1

0.004361800

70.9

250720.1

0.004511800

70.9

300 (12”)

150

100

0.1

0.004362590

102

250720.1

0.004512590

102

DN

FIA angle - plain

lter net

µ150

µ250

250

784.5

808.9

300

1062.3

1095.4

Strainer housing, Type FIA 250-300

Table 7: ANSI

Selection of strainer size

The mesh aperture size of the strainer must satisfy the requirements stated by the suppliers of the equipment to be protected. The following recommendations of aperture size apply in general to refrigeration installations:

Table 8: Selection of strainer size



NOTE:

Mesh is the number of threads per inch. μ (microns) is the distance between two threads (1μ = 1 /1000 mm).

Flow coecient (DIN/ANSI)

Table 9: Flow coecient (DIN/ANSI)

Kv values

Table 10: Kv values

Installation

The strainer is designed to resist high internal pressures. However, the piping system in general should be designed to avoid liquid traps and reduce the risk of hydraulic pressure caused by thermal expansion.

Install the strainer with the cover in downward position.

Danfoss recommends replacement/cleaning of the strainer when the dierential pressure loss >0.5 bar (7.3 psi) in the liquid line and >0.05 bar (0.7 psi) in the suction line. The max. permissible dierential pressure is 1 bar (15 psi).

For further information refer to installation guide for FIA.

Danfoss

148H141

Strainer sizeAC

H

F

min.

Weight

FIA 250 (10") mm

210

450.5

334

285

89.6 kg

in.

8.27

17.74

13.14

11.22

197.5 lbs

FIA 300 (12") mm

240

510.5

384

340

122 kg

in.

9.45

20.1

15.12

13.39

269 lbs

Strainer housing, Type FIA 250-300

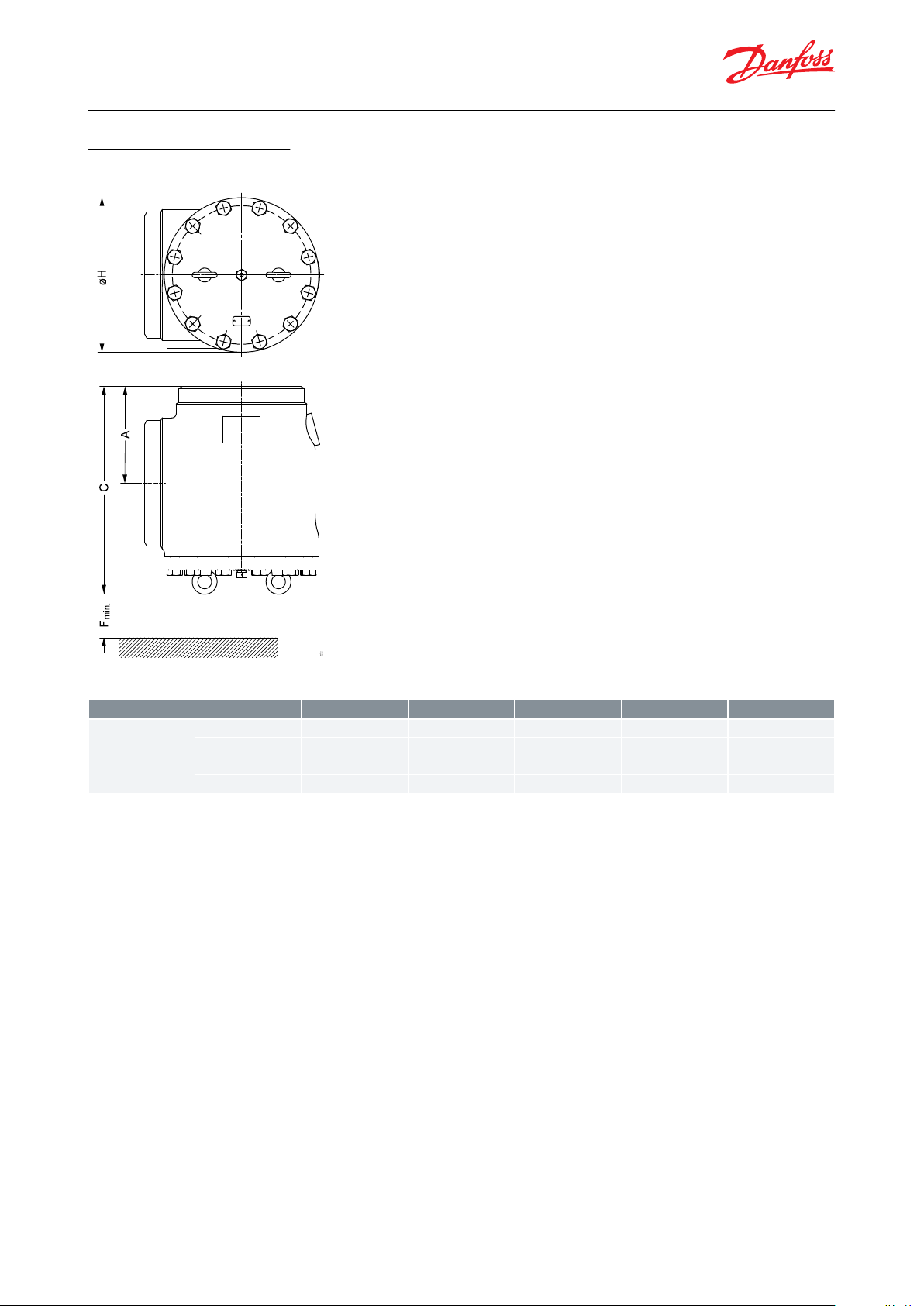

Dimensions and weights

Figure 7: Angleway

Table 11: Angleway

Type

Size

FIA Without strainer insert

Strainer insert 150µ (100 mesh)

Strainer insert 250µ (72 mesh)

mm

in.

Butt-weld DIN (EN 10220) - Angleway

FIA 250 D ANG

25010148H3171

148H3136

148H3175

FIA 300 D ANG

30012148H3172

148H3137

148H3176

Butt-weld ANSI (B 36.10 Schedule 40) - Angleway

FIA 250 A ANG

25010148H3173

148H3136

148H3175

FIA 300 A ANG

30012148H3174

148H3137

148H3176

File name

Document type

Document topic

Approval authority

RU Д-DK.БЛ08.B.00828_19

EAC Declaration

Machinery & Equipment

EAC

0045 202 1204 Z 00354 19 D 001(00)

Pressure - Safety

Certicate

TÜV

BV 03709-F0 BV

Marine - Safety

Certicate

RU Д-DK.РА01.B.72058_20

EAC Declaration

PED

EAC

C-DK.БЛ08.B.01095_20

Pressure - Safety

Certicate

PED

EAC

DNV GL TAP000000S Rev. 1

Marine - Safety

Certicate

DNV GL

033F0685.AJ

EU Declaration

EMCD/PED

Danfoss

033F0691.AD

Manufacturers Declaration

RoHS

Danfoss

033F0691.AD

Manufacturers Declaration

RoHS

Danfoss

0045 202 1204 Z 00355 19 D 001(00)

Pressure - Safety

Certicate

TÜV

033F0453.AD

Manufacturers Declaration

ATEX

Danfoss

19.10048.266

Marine - Safety

Certicate

RMRS

Nominal bore

DN 250 mm (10 in.)

DN 300 (12 in.)

Classied

for

Fluid group I

Category

III

IV

Pressure Equipment Directive (PED)

FIA strainers are approved in accordance with the European standard specied in the Pressure Equipment Directive and are CE marked. For further details / restrictions - see Installation guide.

Strainer housing, Type FIA 250-300

Ordering

The table below is used to identify the strainer required. Please note that you have to order FIA strainer without insert and a strainer insert.

Example: FIA 250 D ANG + 150μ Strainer insert = 148H3171 + 148H3136

Table 12: Ordering

D = Butt-weld DIN A = Butt-weld ANSI ANG = Angleway

Certicates, declarations, and approvals

The list contains all certicates, declarations, and approvals for this product type. Individual code number may have some or all of these approvals, and certain local approvals may not appear on the list.

Some approvals may change over time. You can check the most current status at danfoss.com or contact your local Danfoss representative if you have any questions.

Table 13: Valid Approvals

Table 14: Compliance

Table 15: Conformity Approvals

Online support

Danfoss oers a wide range of support along with our products, including digital product information, software, mobile apps, and expert guidance. See the possibilities below.

The Danfoss Product Store

The Danfoss Product Store is your one-stop shop for everything product related—no matter where you are in the world or what area of the cooling industry you work in. Get quick access to essential information like product specs, code numbers, technical documentation, certications, accessories, and more. Start browsing at store.danfoss.com.

Find technical documentation

Find the technical documentation you need to get your project up and running. Get direct access to our ocial collection of data sheets, certicates and declarations, manuals and guides, 3D models and drawings, case stories, brochures, and much more.

Start searching now at www.danfoss.com/en/service-and-support/documentation.

Danfoss Learning

Danfoss Learning is a free online learning platform. It features courses and materials specically designed to help engineers, installers, service technicians, and wholesalers better understand the products, applications, industry topics, and trends that will help you do your job better.

Create your Danfoss Learning account for free at www.danfoss.com/en/service-and-support/learning.

Get local information and support

Local Danfoss websites are the main sources for help and information about our company and products. Find product availability, get the latest regional news, or connect with a nearby expert—all in your own language.

Find your local Danfoss website here: www.danfoss.com/en/choose-region.

Spare Parts

Get access to the Danfoss spare parts and service kit catalog right from your smartphone. The app contains a wide range of components for air conditioning and refrigeration applications, such as valves, strainers, pressure switches, and sensors.

Download the Spare Parts app for free at www.danfoss.com/en/service-and-support/downloads.

Coolselector®2 - nd the best components for you HVAC/R system

Coolselector®2 makes it easy for engineers, consultants, and designers to nd and order the best components for refrigeration and air conditioning systems. Run calculations based on your operating conditions and then choose the best setup for your system design.

Download Coolselector®2 for free at coolselector.danfoss.com.
