Danfoss ETS 12C, ETS 24C, ETS 25C, ETS 50C, ETS 100C Installation guide [de]

ENGINEERING

Danf

R

0

NormalReverse

GREEN: DRY

YELLOW: WET

Danfoss

34G136.12

MADE IN DENMARK

ETS XXXC

10 Ω, 800mA peak

N0311A

Colibri® Electric
Expansion valve

-40/+70°C / -40/+158°F

PS 50bar / MWP 735psig

034GXXXX

TOMORROW

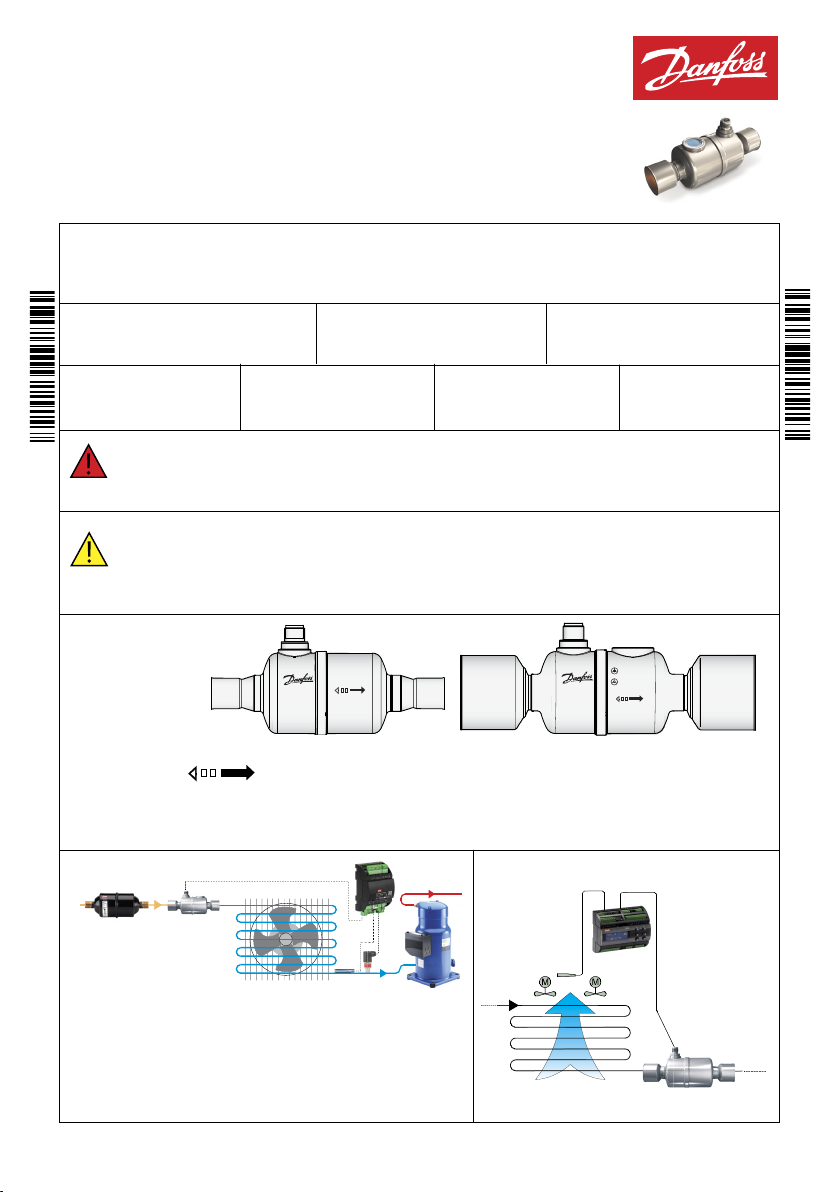

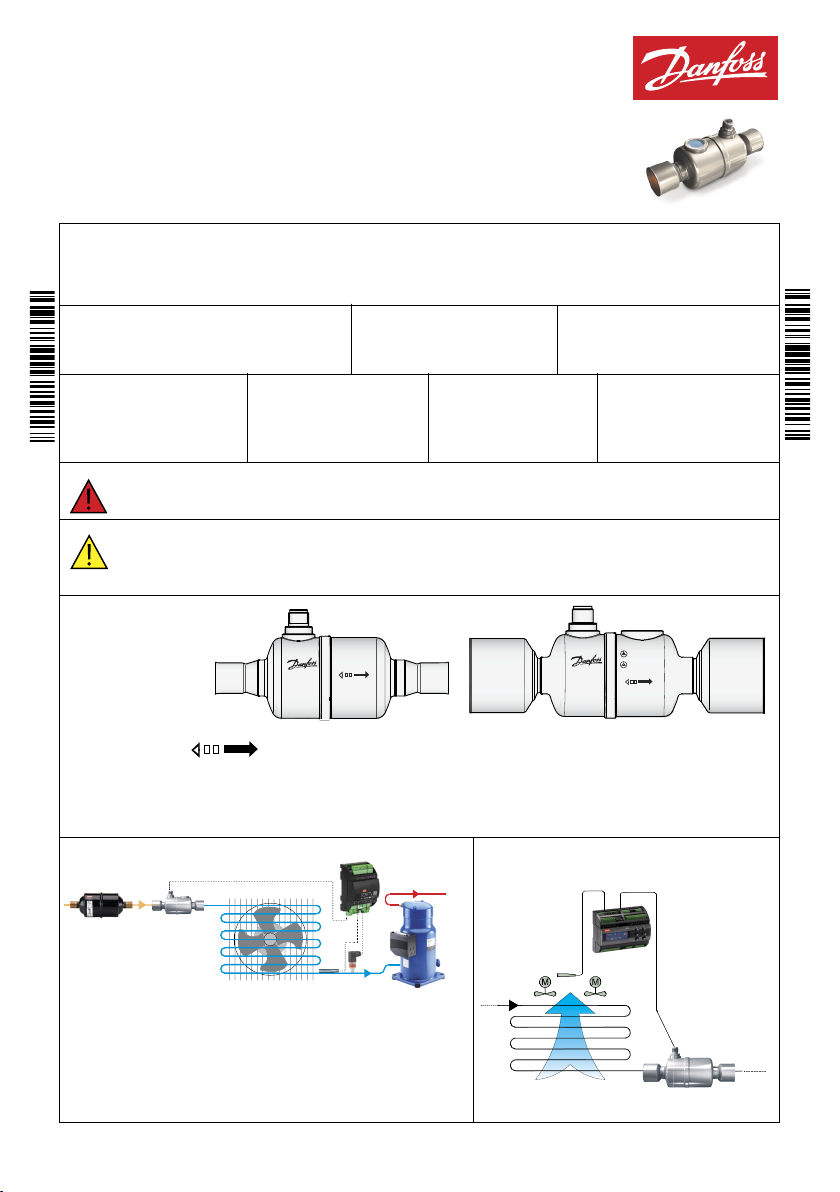

Installation guide

Colibri® Electric Expansion Valves

Type ETS 12C, ETS 24C, ETS 25C, ETS 50C, ETS 100C
Colibri® Electric Regulating Valves

Type KVS 2C, KVS 3C KVS 5C

Refrigerants : R410A, R404A, R507, R134a, R407A, R407B, R407C, R407F, R32, R290, R1234ze, R1234yf, R449A,
R449B, R452A, R1270, R600, R600a, R22, R23, R227, R417A, R444B, R447A, R448A, R454B, R422A, R422D, R427A,
R502, R513A, R413A, R438A, R450A, R455B, R454C, R454A, R452B and *L40

034R9806

*R-number allocation by ASHRAE is pending

Allowable ambient temperature:

Min. -40 °C / -40 °F
Max. 70 °C / 158 °F

Fluid temperature:

Min. -40 °C / -40 °F
Max. 70 °C / 158 °F

Max. working pressure:

50 bar(g) / 725 psi(g)

English

034R9806

Stepper motor type:

Bipolar

Phase current:

800 mA peak /

Coil resistance:

10 Ω (20 °C / 68 °F)

Total steps:

600 full steps

600 mA RMS

Do not connect directly to AC/DC power source.
Connect valve to appropriate controller/driver only.

ETS / KVS Colibri® valves are delivered in open position, ready for brazing.
An AST –g service driver is available for manual operation / service of ETS / KVS Colibri® valves.

Flow direction

Danfoss

MADE IN DENMARK

Colibri® Electric
Expansion valve

ETS XXXC

N0311A
10 Ω, 800mA peak
PS 50bar / MWP 735psig

-40/+70°C / -40/+158°F

034GXXXX

34G156.12

NormalReverse

Bi-flow

Reverse flow

Normal flow
(Using sight glass for flash gas detection - ETS 25C to ETS 100C)
KVS Colibri® valves have no sight glass integrated

Application ETS Colibri®

Application KVS Colibri®

Danfoss

oss

64-3051.1

R64-3051.10

ETS Colibri®

Place the valve close to the evaporator.

It is recommended to use Danfoss filter drier before
the expansion valve or a strainer for particles of 150
micron or smaller.

© Danfoss | DCS (sw) | 2018.01

Danfoss
34G231.10

KVS Colibri®

DKRCC .PI.VD1.F6. ML | 1

Danfoss
34G58.15

2

1

Mounting

-90°

+90°

Brazing

N

2

N2 gas from opposite
site of soldering point.

Max. 150 °C

Max.
15 sec.

Danfoss

34G59.11

Danfoss

34G60..16

Recommended:

Connector Nozzle size

1

/2 inch 2 mm 1/16 inch

5

/8 inch

7

/8 inch
1 1/8 inch
1 3/8 inch
1 5/8 inch 9 mm 3/8 inch

Min.
5 % Ag

Max.
30 sec.

M12 Connection

Motor coil resistance check.

Coil A = Coil B = 10 Ω (20 °C / 68 °F)

© Danfoss | DCS (sw) | 2018.01

Danfoss

34G152.10

A2

MADE IN DENMARK

Colibri® Electric

A1

Expansion valve

ETS XXXC

N0311A
10 Ω, 800mA peak
PS 50bar / MWP 735psig

-40/+70°C / -40/+158°F

034GXXXX

B1

B2

Danfoss

34G153.11

1

2

Installation
video

oss

DKRCC .PI.VD1.F6. ML | 2

ENGINEERING

NormalReverse

GREEN: DRY

YELLOW: WET

Danfoss

34G136.12

MADE IN DENMARK

ETS XXXC

10 Ω, 800mA peak

N0311A

Colibri® Electric
Expansion valve

-40/+70°C / -40/+158°F

PS 50bar / MWP 735psig

034GXXXX

Danf

R

0

TOMORROW

Installation guide

Colibri® Electric Expansion Valves

Type ETS 12C, ETS 24C, ETS 25C, ETS 50C, ETS 100C
Colibri® Electric Regulating Valves

Type KVS 2C, KVS 3C KVS 5C

Kältemittel / Fluides: R410A, R404A, R507, R134a, R407A, R407B, R407C, R407F, R32, R290, R1234ze, R1234yf,

R449A, R449B, R452A, R1270, R600, R600a, R22, R23, R227, R417A, R444B, R447A, R448A, R454B, R422A, R422D,
R427A, R502, R513A, R413A, R438A, R450A, R455B, R454C, R454A, R452B and *L40

034R9806

*R-number allocation by ASHRAE is pending.

Umgebungstemperatur:
Température ambiante:

Min. -40 °C, Max. 70 °C

Schrittmotortyp:
Type de moteur pas à pas:

Bipolar

Stromaufnahme:
Courant de phase:

800 mA Peak (600 mA RMS)

Bitte das ETS / KVS Colibri® nicht direkt
mit einer Spannungsquelle verbinden.
Schließen Sie das Ventil nur an geeignete
Regler/ Steuergeräte an.

Ventile werden in offener Position geliefert,
bereit zum Löten. Für den manuellen
Betrieb / Wartung von ETS / KVS Colibri®
Ventilen, ist ein AST -g-Servicemodul als

Zubehör erhältlich.

Durchflussrichtung /
Sens d’écoulement

Bi-flow /
Bi-directionnel

Umgekehrt
Durchfluss /
Direction inverse

Normaler Durchfluss
(ETS 25C und ETS 100C mit Schauglas für Flashgas Erkennung) Sens normal
(ETS 25C pour ETS 100C - à l’aide du voyant de détection de gaz flash)
KVS Colibri® haben kein Schauglass
Les détendeurs KVS Colibri® n’ont pas de voyant intégré

Anwendung / Application ETS Colibri®

Kältemitteltemperatur:
Température du fluide:

Min. -40 °C, Max. 70 °C

MADE IN DENMARK

Colibri® Electric
Expansion valve

ETS XXXC

N0311A
10 Ω, 800mA peak
PS 50bar / MWP 735psig

-40/+70°C / -40/+158°F

034GXXXX

NormalReverse

Max. Betriebsdruck:
Pression de service max.:

50 bar(g)

Widerstand, Spule:
Résistance de la bobine:

10 Ω (20 °C)

Ne pas raccorder directement le moteur à
une alimentation AC / DC. Raccorder la vanne
au régulateur approprié.

Les vannes sont livrées en position ouverte, prêtes
pour le brasage.
Un pilote d’entretien AST-g est disponible pour

manœuvrer les vannes ETS C / KVS Colibri®.

Danfoss

34G156.12

Anwendung / Application KVS Colibri®

Deutsch, French

Max. Schritte:
Nombre de pas total:

600 full steps

034R9806

Das Ventil direkt am Verdampfer montieren.
Placez la vanne près de l’évaporateur.
Es wird empfohlen Filtertrockner von Danfoss vor dem

Expansionsventil oder einen Filter für Partikel von 150 µm
oder kleiner zu verwenden.
Il est recommandé d’utiliser un filtre déshydrateur Danfoss
avant la vanne de détente, ou un filtre à particules de
150 microns ou moins.

© Danfoss | DCS (sw) | 2018.01

ETS Colibri®

Danfoss

oss

R64-3051.10

64-3051.1

Danfoss
34G231.10

KVS Colibri®

DKRCC .PI.VD1.F6. ML | 3

Danfoss
34G58.15

2

1

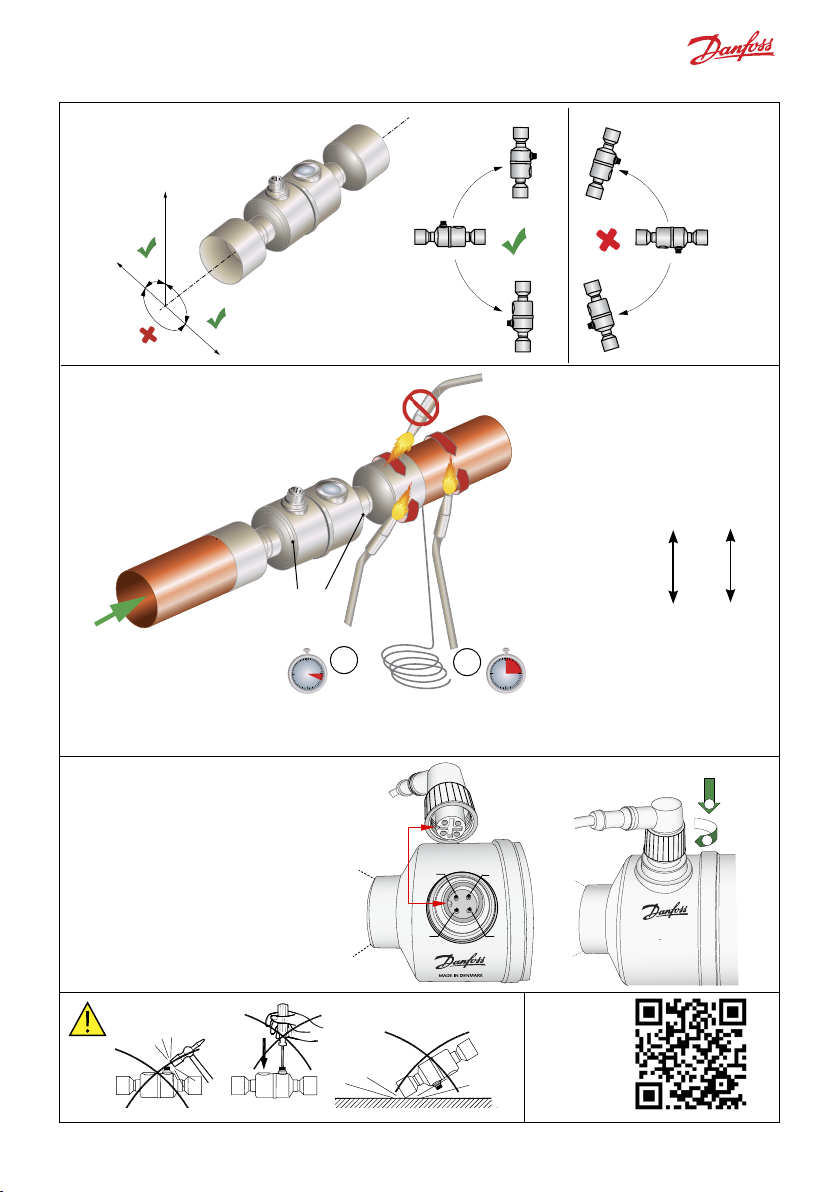

Einbaulage / Montage

-90°

+90°

Löten / Soudure

N

2

Schutzgas gegenüber der
Lötstelle einströmen lassen.

Refroidissement gaz ci-contre
site de point de soudure.

Max. 150 °C

Max.
15 sec.

Danfoss

34G59.11

Danfoss

34G60..16

Empfehlung /

Recommendation

Anschluss Brennerdüse

Raccord Buse de brasage

1

/2 inch 2 mm 1/16 inch

5

/8 inch

7

/8 inch
1 1/8 inch
1 3/8 inch
1 5/8 inch 9 mm 3/8 inch

Min.
5 % Ag

Max.
30 sec.

M12 Connection /

M12 Raccordement

Wicklungswiderstand prüfen.
Vérification de la résistance de
la bobine du moteur.

Wicklung A = Wicklung B = 10 Ω (20 °C)

Bobine A = Bobine B = 10 Ω (20 °C)

© Danfoss | DCS (sw) | 2018.01

Danfoss

34G152.10

B1

B2

A2

MADE IN DENMARK

A1

Colibri® Electric
Expansion valve

ETS XXXC

N0311A
10 Ω, 800mA peak
PS 50bar / MWP 735psig

-40/+70°C / -40/+158°F

034GXXXX

Danfoss

34G153.11

1

2

Installation
Video

Installation
vidéo

oss

DKRCC .PI.VD1.F6. ML | 4

ENGINEERING

Danf

R

0

NormalReverse

GREEN: DRY

YELLOW: WET

Danfoss

34G136.12

MADE IN DENMARK

ETS XXXC

10 Ω, 800mA peak

N0311A

Colibri® Electric
Expansion valve

-40/+70°C / -40/+158°F

PS 50bar / MWP 735psig

034GXXXX

TOMORROW

Installation guide

Colibri® Electric Expansion Valves

Type ETS 12C, ETS 24C, ETS 25C, ETS 50C, ETS 100C
Colibri® Electric Regulating Valves

Type KVS 2C, KVS 3C KVS 5C

Refrigerantes / 制冷 剂 适 用:R410A, R404A, R507, R134a, R407A, R407B, R407C, R407F, R32, R290, R1234ze,

R1234yf, R449A, R449B, R452A, R1270, R600, R600a, R22, R23, R227, R417A, R444B, R447A, R448A, R454B, R422A,
R422D, R427A, R502, R513A, R413A, R438A, R450A, R455B, R454C, R454A, R452B and *L40

034R9806

*R-number allocation by ASHRAE is pending

Temperatura ambiente permisible:

允许运行的环境 温 度:

Min. -40 °C / Max. 70 °C

Tipo de motor a pasos:

步进电机 形式:

Bipolar

双极

Intensidad:

相电流:

800 mA Pico/peak
(600 mA RMS)

No aplicar tensión directamente a la
válvula. Conectar la válvula a un
controlador/driver adecuado.

Las válvulas se entregan abiertas listas para
soldar. Existe un driver de servicio AST-g
para la operación manual y servicio de las

válvulas ETS / KVS Colibrí®.

Dirección del flujo /

流向

MADE IN DENMARK

Colibri® Electric
Expansion valve

ETS XXXC

N0311A
10 Ω, 800mA peak
PS 50bar / MWP 735psig

-40/+70°C / -40/+158°F

Bi-flow

034GXXXX

双向流

Flujo reversible

反向流动方向

Flujo normal
(ETS 25C a ETS 100C incorpora un visor de líquido para detector flash-gas)

正常流动方向（视液镜，用于闪发气体检测–ETS 25C 和 ETS 100C）

Las válvulas KVS Colibri® no tienen visor integrado
KVS Colibri® 电子膨 胀阀没有集成 观察镜

Aplicación / 应用 ETS Colibri®

Temperatura líquido:

流体 温 度:

Min. -40 °C / Max. 70 °C

Resistencia:

电阻:

10 Ω (20 °C)

请仅将阀门连接于合适的控制器/驱动器，勿直
接与交流或直流电源连接。

交付 时 阀门 处 于 全 开 状 态 ,再 进 行 焊 接
一切就绪，准备铜焊. 提供AST -g手操器用于
ETS/KVS Colibri® 电子膨胀阀的手动操作和维修.

Danfoss

34G156.12

NormalReverse

Presión de trabajo máx.:

最大工作压力:

50 bar(g)

Número de pasos total:

总步数:

600 full steps /
600 步

Aplicación / 应用 KVS Colibri®

español,

汉语

034R9806

Colocar la válvula próxima al evaporador.

阀 关 闭 位 置 ，靠 近 蒸 发 器 侧

Se recomienda utilizar un filtro deshidratador Danfoss
antes de la válvula de expansión o un filtro para partículas
de 150 micras o menores.

建议在膨胀阀前使用丹佛斯干燥过滤器或使用过滤目
数小于等于15 0 微米的过滤网

© Danfoss | DCS (sw) | 2018.01

ETS Colibri®

Danfoss

oss

R64-3051.10

64-3051.1

Danfoss
34G231.10

KVS Colibri®

DKRCC .PI.VD1.F6. ML | 5

Danfoss
34G58.15

2

1

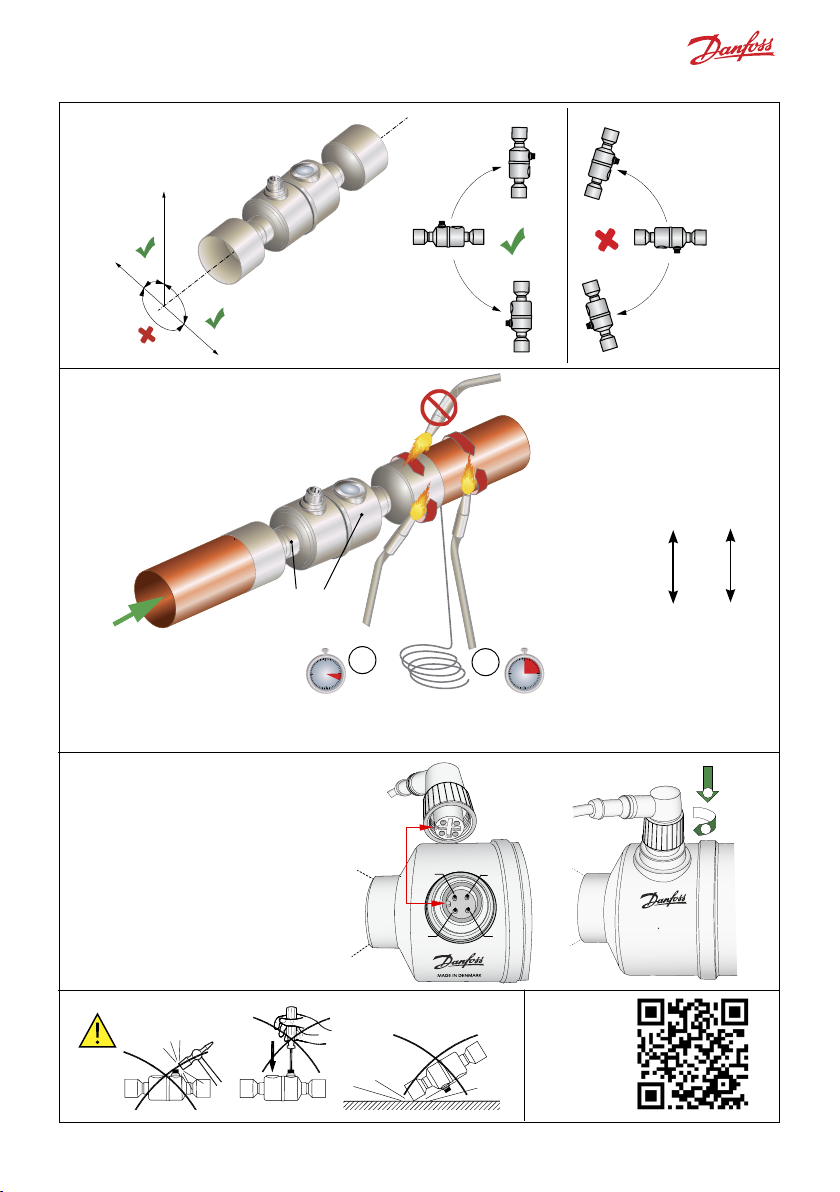

Instalación / 安装

-90°

+90°

Soldadura / 焊接

N

2

Corriente de N2 desde el lado
opuesto a la soldadura.

气体冷 却对面的焊点（氮气保护）

Max. 150 °C

Max.
15 sec.

Danfoss

34G59.11

Danfoss

34G60..16

Recomendación/

推荐

Conexión Boquilla soplete
连接 钎焊嘴

1

/2 inch 2 mm 1/16 inch

5

/8 inch

7

/8 inch
1 1/8 inch
1 3/8 inch
1 5/8 inch 9 mm 3/8 inch

Min.
5 % Ag

Max.
30 sec.

M12 Conexión / M12 链接

Verificar la resistencia de la bobina
del motor.

Bobina A = Bobina B = 10 Ω (20 °C)

电机线圈电阻检查
在20℃时，线圈A=线圈B=10Ω

© Danfoss | DCS (sw) | 2018.01

Danfoss

34G152.10

B1

B2

A2

MADE IN DENMARK

Colibri® Electric
Expansion valve

A1

ETS XXXC

N0311A
10 Ω, 800mA peak
PS 50bar / MWP 735psig

-40/+70°C / -40/+158°F

034GXXXX

Danfoss

34G153.11

1

2

Instalación
vídeo

安裝
視頻

oss

DKRCC .PI.VD1.F6. ML | 6
