Data sheet ESBE Type F
3 & 4-Way Rotary Valves
Applications:
3-way Valve 4-way Valve
Ordering
Information:
The ESBE 3 and 4-Way rotary valves type F are
designed for mixing or diverting applications
on heating and cooling systems. The valves are
capable of controlling and distributing water or
non-corrosive liquids on closed looped systems
to dierent zones by either manual operation or
automatically via electronic motor actuator and
controller.
• Double mixing function for 4-Way valve,
reducing the risk of condensation within
heat source
• Valve position face plate is printed on
both sides and can be rotated allowing a
choice of valve mounting positions
• Easily adaptable with ESBE electronic motor
actuator Series 90
• Suitable uid of 100% water or glycol
Features:
• The F series of valves are a rotary
design allowing for exibility in eld
piping layout.
3-Way Valve
Code No. Reference Connection Cv*
065B8960 3 G 65-50 2-1/2” ANSI Flanged 75
065B89 61 3 F 65 2-1/2” ANSI Flanged 105
065B8962 3 F 80 3” ANSI Flanged 175
065B8963 3 F 100 4” ANSI Flanged 265
065B8964 3 F 125 5” ANSI Flanged 325
065B8965 3 F 150 6” ANSI Flanged 465
mixture (maximum 50% glycol) for heating
or cooling closed loop systems.
Note:
ESBE 3-way valves are at
faced ANSI anges, 4-Way
valve are DIN raised anges
and require mating DIN weld
raised anges and gaskets.
See page 2 for ordering
information.
4-Way Valve
Code No. Reference Connection Cv*
065B6150 4 F 50 2” DIN Flanged 75
065B6165 4 F 65 2-1/2” DIN Flanged 105
065B6180 4 F 80 3” DIN Flanged 175
065B6200 4 F 100 4” DIN Flanged 265
065B6225 4 F 125 5” DIN Flanged 325
065B6250 4 F 150 6” DIN Flanged 465
*Cv = Flow rate allowed by the valve in GPM with a pressure drop of one psi.
VDKIN222 © Danfoss 07/16
Data sheet ESBE Type F
3 & 4-Way Rotary Valves
Ordering
Information (Cont.):
DIN Flanges and Gaskets
Code No. Size Description
065F8950 2”
082F8961 2-1/2”
082F8962 3”
082F8963 4”
082F8964 5”
082F8965 6”
065F8951 2”
082F8966 2-1/2”
082F8967 3”
082F8968 4”
082F8969 5”
082F8970 6”
Replacement Parts
Code No. Description Valve Sizes Valve Typ e
065B0003
065B0004 3” – 6”
082F8981
082F8982 3”
082F8983 4”
082F8984 5”
082F8985 6”
082F8987
082F8988 2-1/2”
082F8989 3”
082F8990 4” - 5”
082F8991 6”
Gasket Set
Complete Interior
Complete Interior
DIN Weld Mating Raised Flange
(Four Flanges Required per 4-Way Valve)
Gasket for DIN Flange
(Four Flanges Required per 4-Way Valve)
2” – 2-1/2”
2-1/2”
2”
3 & 4-Way
3-Way
4-Way
VDKIN222 © Danfoss 07/16
Data sheet ESBE Type F
Flow (GPM)
3 & 4-Way Rotary Valves
Technical
Specications:
Max. operating pressure 90 psi (6 bar)
Max. operating temperature 230°F (110°C)
Min. operating temperature 14°F (-10°C)
Max. dierential pressure
Required motor torque
(Recommendation for
typical application)
1-1/2” – 2”: 8 psi (50kPa)
2-1/2” – 6”: 5 psi (30kPa)
Valve size max. 2” – 45 in lb (5Nm)
Valve size max. 4” – 85 in lb (10Nm)
Valve size max. 6” – 130 in lb (15Nm)
(Recommended exercise function for valve body)
Allowable uid Water (maximum 50% glycol) in a closed loop hydronic system.
Connections
3-Way ANSI Flange, at faced
4-Way DIN Flange, raise faced
Max. Leakage in % of Flow 1.5
1000
65
100
90
80
% Hot Water
70
60
50
40
30
20
10
0
01357910
Valve Position
500
300
200
100
50
30
20
10
0
3
2
0.05 0.10.2 0.30.40.51.0 2.03.0 5.07.0
Cv4
5
2
Cv3
Cv265
Cv175
5
0
Cv1
Cv75
Cv50
Cv35
Pressure drop (psi)
Piping
Arrangement:
3-Way Valves
• Ideal valves for mixing and diverting
applications
• Reduces risk of low temperature water
returning to boiler
4-Way Valves
• Double mixing function, providing
proportional mixing from source to
system and system to source
• Reduces risk of low temperature water
returning to boiler.
VDKIN222 © Danfoss 07/16
Data sheet ESBE Type F
3 & 4-Way Rotary Valves

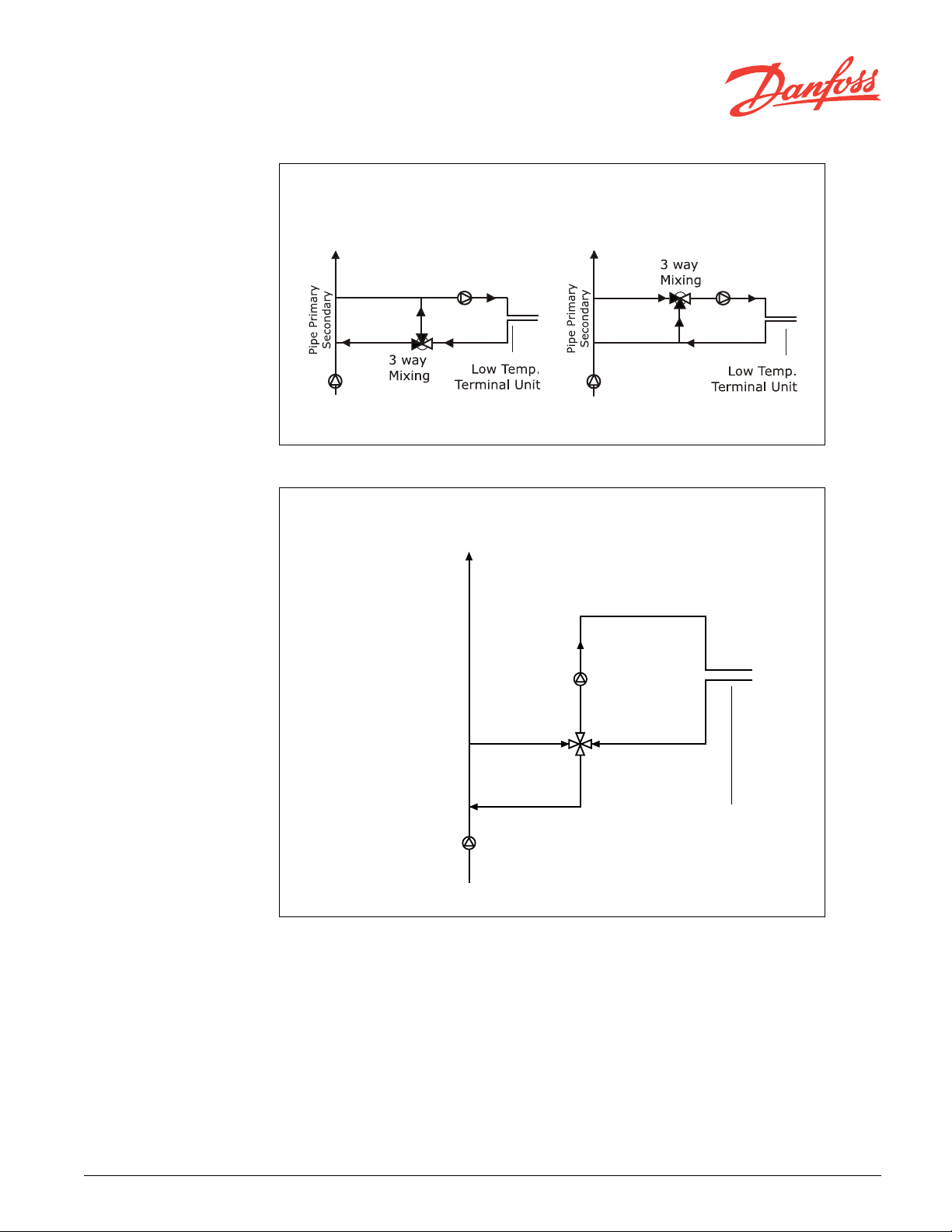

Typical Installation
3-Way Valve
Diverting Mixing
4-Way Valve
Pipe Primary
System
Loop Pump
Mixing
Loop
Pump
4 Way
Mixing
Secondary
Low Temp.
Terminal Unit
VDKIN222 © Danfoss 07/16
Data sheet ESBE Type F
3 & 4-Way Rotary Valves
Dimensions:
D
Material
Valve Body Cast iron
A
E
G
C
B
Typ e F
Size Reference A B C D E F G Weight
2-1/2” 3 F65-50 3.9 (100) 7.9 (200) 2.0 (52) 3.7 (95) 5.1 (130) 6.3 (160) 4 x 3/4” 32.0 (14.5)
2-1/2” 3 F65 3.9 (100) 7.9 (200) 2.0 (52) 3.7 (95) 5.1 (130) 6.3 (160) 4 x 3/4” 32.0 (14.5)
3” 3 F180 4.7 (120) 9.4 (240) 2.5 (63) 4.2 (106) 5.9 (150) 7.5 (190) 4 x 3/4” 37.0 (16.8)
3-Way
4” 3 F100 5.2 (132.5) 10.4 (265) 2.9 (73) 4.6 (116) 6.7 (170) 8.3 (210) 8 x 3/4” 60.0 (27.2)
5” 3 F125 5.9 (150) 11.8 (300) 3.1 (80) 4.8 (123) 7.9 (200) 9.4 (240) 8 x 3/4” 72.0 (32.7)
6” 3 F150 6.9 (175) 13.8 (350) 3.5 (88) 5.1 (130) 8.9 (225) 10.4 (265) 8 x 3/4” 90.0 (40.8)
2” 4 F50 3.8 (97.5) 7.7 (195) 2.0 (50) 3.6 (92) 4.3 (110) 5.5 (140) 4 x .6” 24.3 (11.0)
2-1/2” 4 F65 3.9 (100) 7.9 (200) 2.0 (50) 3.6 (92) 5.1 (130) 6.3 (160) 4 x .6” 26.9 (12.2)
3” 4 F80 4.7 (120) 9.4 (240) 2.6 (65) 4.3 (108) 5.9 (150) 7.5 (190) 4 x .7” 44.1 (20.0)
4” 4 F100 5.2 (132.5) 10.4 (265) 3.2 (81) 4.9 (124) 6.7 (170) 8.3 (210) 4 x .7” 55.1 (25.0)
4-Way
5” 4 F125 5.9 (150) 11.8 (300) 3.2 (81) 4.9 (124) 7.9 (200) 9.4 (240) 8 x .7” 77.2 (35.0)
6” 4 F150 6.9 (175) 13.8 (350) 3.5 (89) 5.2 (131) 8.9 (225) 10.4 (265) 8 x .7” 99.2 (45.0)
F
Slider Brass CW 614N & Stainless
Steel
Stem Stainless Steel
O-ring EPDM
Bushing Plastic / Brass CW 602N
Cover Plate Zinc / Cast Iron
VDKIN222 © Danfoss 07/16
Data sheet ESBE Type F
3 & 4-Way Rotary Valves
Technical Specications:
The 3 or 4-Way rotary valve shall be made of
a cast iron material with anged connections.
The valve should be capable of being utilized
in heating or cooling closed loop applications.
The valve position shall have a face plate with
printing on both sides to provide a choice of
valve mounting positions. The valve should be
capable of assembly with an ESBE series 60 or
90 electric motor actuator.
