User Manual
Orbital Motor, EMD Speed Sensor
Product Overview
Warning
Please note that the EMD speed sensor may fail. Output signals may not represent correct rotation speed
or direction.
Any application of the EMD speed sensor should be subjected to appropriate hazard and risk assessment,
according to relevant safety standards for the application.
Reliability data MTBF for the EMD speed sensor are available on request.
Description
Function of the speed sensor is to detect shaft speed and the direction of rotation. The sensor is mounted
to the endcover of an LSHT Orbital Motor and senses the speed from a magnet that is rotating inside the
motor.
The magnet is connected to the cardan shaft (spool valve motor) or valve drive (disc valve motor) by a
shaft.
Rotation of the magnet generate a rotating magnetic field that is a function of motor speed and
direction.
EMD-Speed sensor convert this magnetic field into output signal of speed and direction.
Sensor principle
After each Power-Up the shaft must rotate 1-2 revolutions before an output signal is generated.
4 | © Danfoss | June 2021 AQ152886482063en-000301
User Manual
Orbital Motor, EMD Speed Sensor
General data
EMD Speed Sensor specifications
Specifications:
Output signal
Speed range 0 - 2500 rpm
Supply voltage 9 - 36 Vdc
Maximum power 0.8 W
Temperature range (ambient) -30 °C to 60 °C
EMC-Immunity (EMI): 100 V/m ISO 13766
Grade of enclosure
Vibration 30 G (294 m/s²)
Shock 50 G (490 m/s²)
*
Configurable with PLUS+1® Service Tool - Please contact Danfoss for further information.
†
According to IEC 529.
*
Pulse mode Push-pull output. Direction = CCW: high, CW: low
Configurable up to 180 pulse/revolutions
Quadrature mode 2 channels with 90° phaseshift each with
90 pulses/revolution Push-pull output
CAN mode Supports CAN 2.0B with SAE J1939 Message Protocol with Proprietary Messages
Baudrate: 250 kbaud (fixed)
Shaft velocity: ± 2500 rpm
†
IP 69 K
D1 D2
Square Wave Direction
Square Wave PhaseASquare Wave Phase
B
©
Danfoss | June 2021 AQ152886482063en-000301 | 5
D1:
U
High
U
Low
P301 344
U
High
> Udc-2V U
Low
< 2V
D2:
P301 345
CCW
U
High
> Udc-2V U
Low
< 2V
CW
U
High
U
Low
D1:
U
High
U
Low
P301 344
U
High
> Udc-2V U
Low
< 2V
D2:
P301 346
U
High
U
Low
U
High
> Udc-2V U
Low
< 2V
User Manual
Orbital Motor, EMD Speed Sensor
Signal definition
Pulse mode
The sensor generates a speed dependent pulse on D1 and a direction signal on D2.
Quadrature mode
The sensor generates a speed dependent pulse on D1 and D2 with a 90 degree phaseshift.
CAN mode
Cyclic message specification
Interface:
Baud rate:
Transmit rate:
Proprietary B
29 bit
Data
0
(LSB)
CAN ID Reserved Sequence
CAN ID:
6 | © Danfoss | June 2021 AQ152886482063en-000301
CAN 2.0 B
250 kBaud
10, 20, 50 (default), 100 or 200 ms (cyclic message transmission)
1
(MSB)
2 3
(LSB)
4
(MSB)
5 6
Angular velocity Reserved CRC-16
number
J1939 proprietary B. Programmable 29 bit message id.
(LSB)
7
(MSB)
User Manual
Orbital Motor, EMD Speed Sensor
Signal definition
Sequence no.:
Angular velocity:
CRC-16: The standard CRC16 polynomial is used to calculate the checksum for byte 0 – 5.
ID = $18FF20XX (source address XX is programmable, default value is $51)
byte (0-255)
Increments 1 for each message
Angular velocity of the shaft.
16 bit integer with 2’s complementary encoding for negative values (-25,000 to
25,000).
-25,000 = -2,500 RPM (CCW)
0 = 0 RPM
25,000 = 2,500 RPM (CW)
(x^16+x^15+x^2+1)
©
Danfoss | June 2021 AQ152886482063en-000301 | 7
User Manual
Orbital Motor, EMD Speed Sensor
Filter parameter
In order to reduce noise when the frequency is calculated in pulse mode or the angular velocity is
calculated in CAN mode, a moving average filter can be activated by setting a filter parameter (MA-filter)
when configuring the sensor.
Valid range for the Moving Average Pulse period time Number (MAPN): 1, 2, 4, 8, 16, 32 & 64.
The (MAPN) can also be dynamic. Valid range is the same 1,2,4…64, the calculation is dependent on the
detected speed and 2 types of filter-calculation, Dynamic 1 (default) & Dynamic 2 can be used.
How Dynamic 1 and Dynamic 2 select the MAPN see the table below.
RPM MAPN
2.0 – 3.4 1 1
3.5 - 5.1 1 2
5.2 - 10 2 4
10 - 20 4 8
20 - 80 8 16
81 - 163 16 32
164 - 2500 32 64
Dynamic 1 Dynamic 2
Positioning
Configuration of filter, see Configuration of EMD-Speed Sensor to other settings on page 13.
It’s possible to use the EMD sensor as feed-back / “encoder” in positioning applications.
In such applications, use pulse mode 180 PPR or Quadrature mode, as you in all other settings will get an
adding error.
The typical backlash in the Orbit motors are shown in the table below:
Motor Backlash Output shaft → Sensor shaft
OMT OMV
Minimum 7.9° 8.0°
Maximum 12.4° 12.1°
8 | © Danfoss | June 2021 AQ152886482063en-000301
∅ 50
29
72
P301 315
Orbital motor
16253
4
P301 314
User Manual
Orbital Motor, EMD Speed Sensor
Product overview
Dimensions
Sensor pinout
Sensor pinout
Pin Controller function
1 Power supply 9-36 V dc
2 Power ground 3 D 1 (configurable output)
4 CAN L
5 CAN H
6 D 2 (configurable output)
Deutsch DT connector – 6 pin
©
Danfoss | June 2021 AQ152886482063en-000301 | 9
6 1
5 2
4 3
Udc [V] + 9 - 36V
dc
D
1
D
2
Udc [V] -
Wiring diagram: Pulse and quadrature mode
P301 400
6 1
5 2
4 3
CAN
L
CAN
H
Wiring diagram: CAN mode
P301 401
Udc [V] + 9 - 36V
dc
Udc [V] -
User Manual
Orbital Motor, EMD Speed Sensor
Product overview
Mating connector
Deutsch DT connector 6 pin Mating connector assembly: (Not offered by Danfoss).
Pcs Description Deutsch® part no. Color
1 Plug DT06-6S-PO12 (black)
1 Wedgelock W6S-PO12 (green)
6 Solid Contacts 0462-209-16141 (nickel)
Options
1 Boot DT6S-BT-BK (black)
For correct mounting please see Deutsch® homepage: www.deutsch.net

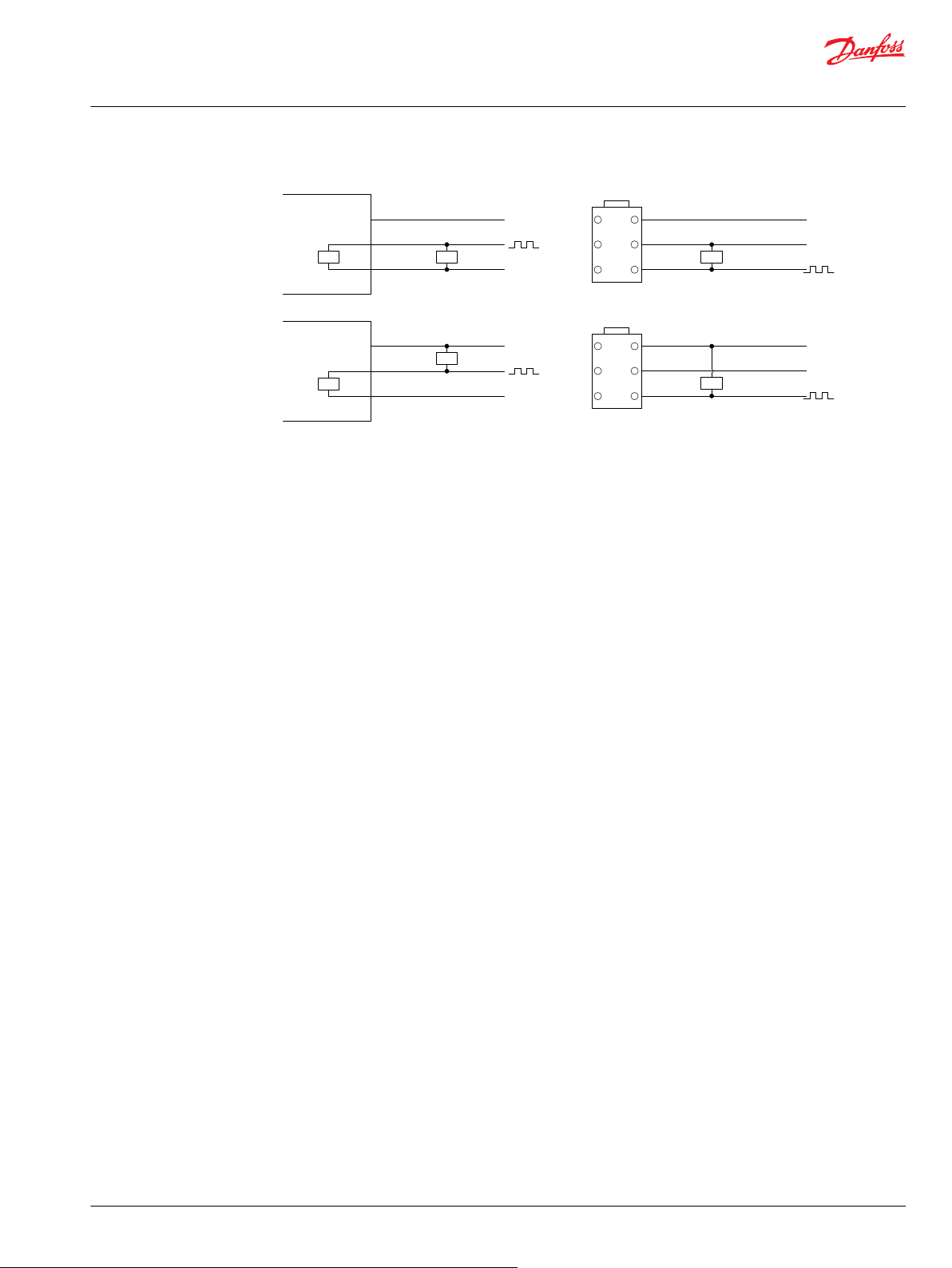

Wiring diagram
Conversion diagram
It is possible to replace an Orbital Motor with EM-sensor with PNP or NPN open collector output with an
Orbital Motor with EMD-sensor. Conversion diagrams show how it is possible to replace present sensor
with EMD-sensor.
10 | © Danfoss | June 2021 AQ152886482063en-000301
The resistor RL which is used in the current NPN/PNP diagram is not needed but can under certain
conditions remain in the circuit:
If RL < UDC/10 mA remove or increase the size of the resistor.
•
If RL > UDC/10 mA no change needed.
•
In case the EM-sensor and the controller have different power supply, it is needed to modify the circuit so
that the EMD-sensor has the same power supply as the controller.
159G34.10
PNP
1
4
3
U
dc
[V]
Brown
Black
Blue
-U
dc
[V]
U
d.c.
[V]
-U
dc
[V]
min. R
L
= U
dc
/ I
max.
(=50 mA)
min. R
L
= U
dc
/ I
max.
(=50 mA)
RL ≥ U
dc
/ 10 mA
RL ≥ U
dc
/ 10 mA
159G34.10
NPN
1
4
3
Brown
Black
Blue
15_0
15_1
R
L
R
L
R
L
R
L
PNP Open Collector Output
NPN Open Collector Output
EMD-Speed Sensor
6 1
5 2
4 3
Udc [V] +
D
1
Udc [V] -
6 1
5 2
4 3
Udc [V] +
D
1
Udc [V] -
P301 402
User Manual
Orbital Motor, EMD Speed Sensor
Product overview
©
Danfoss | June 2021 AQ152886482063en-000301 | 11
User Manual
Orbital Motor, EMD Speed Sensor
Mounting of EMD Speed Sensor
Mounting of EMD Speed Sensor on LSHT Motors
Turn the sensor to the desired position and mount the sensor on the plug.
It is possible to mount the sensor in 36 positions.
To lock the sensor, push the clip into the sensor as shown.
12 | © Danfoss | June 2021 AQ152886482063en-000301
User Manual
Orbital Motor, EMD Speed Sensor
Configuration of EMD-Speed Sensor to other settings

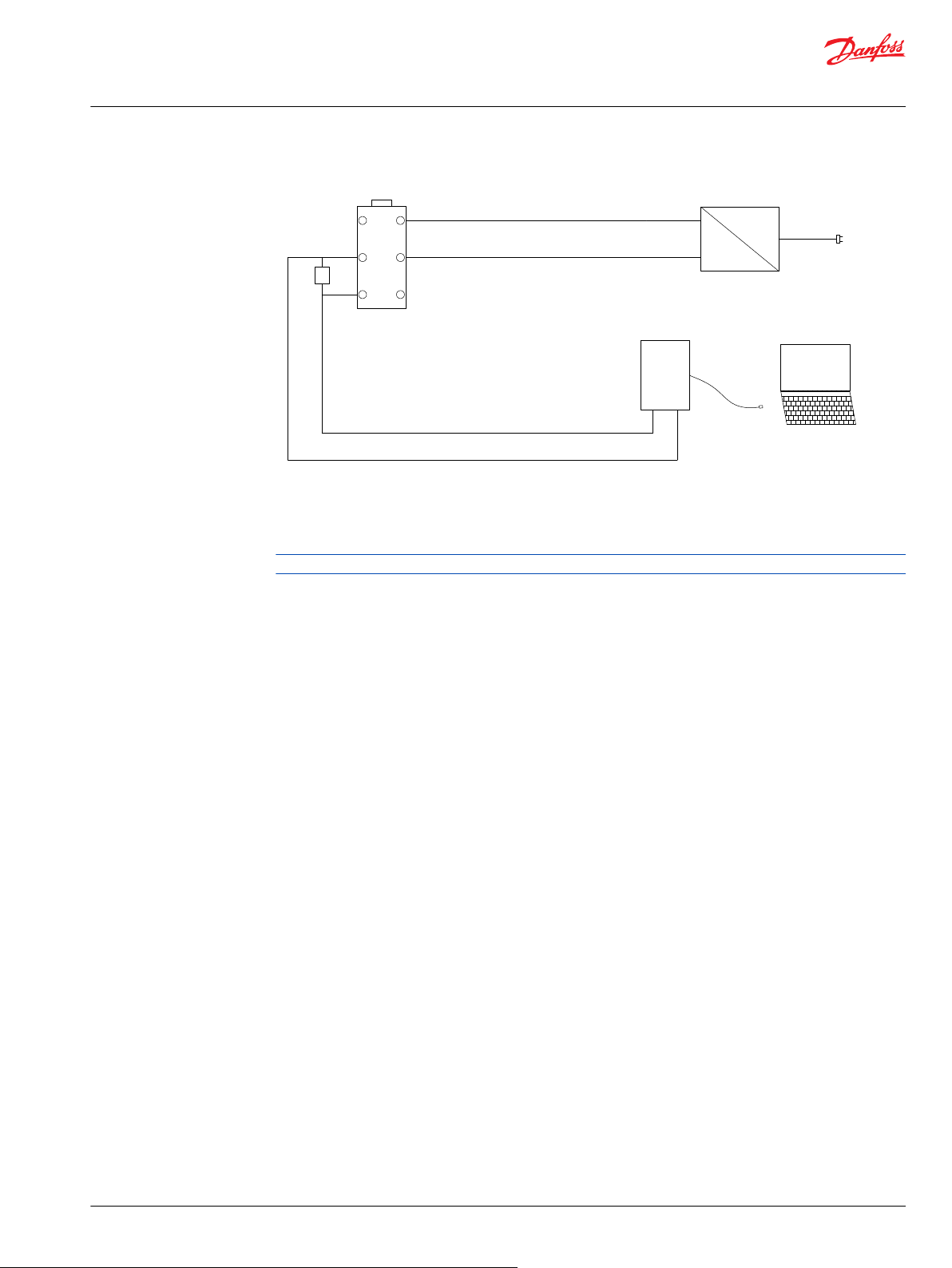

Connect configuration box
Use CG150-2 CAN/USB gateway interface communicator and configuration box. See Configuration box on
page 17.
1. Switch on power supply.
2. Upstart PLUS+1® Service Tool (P1D software).
P1D file for EMD can be found here:
http://powersolutions.danfoss.com/products/PLUS-1-GUIDE/GUIDE-service-tool-software-and-license
Start Screen

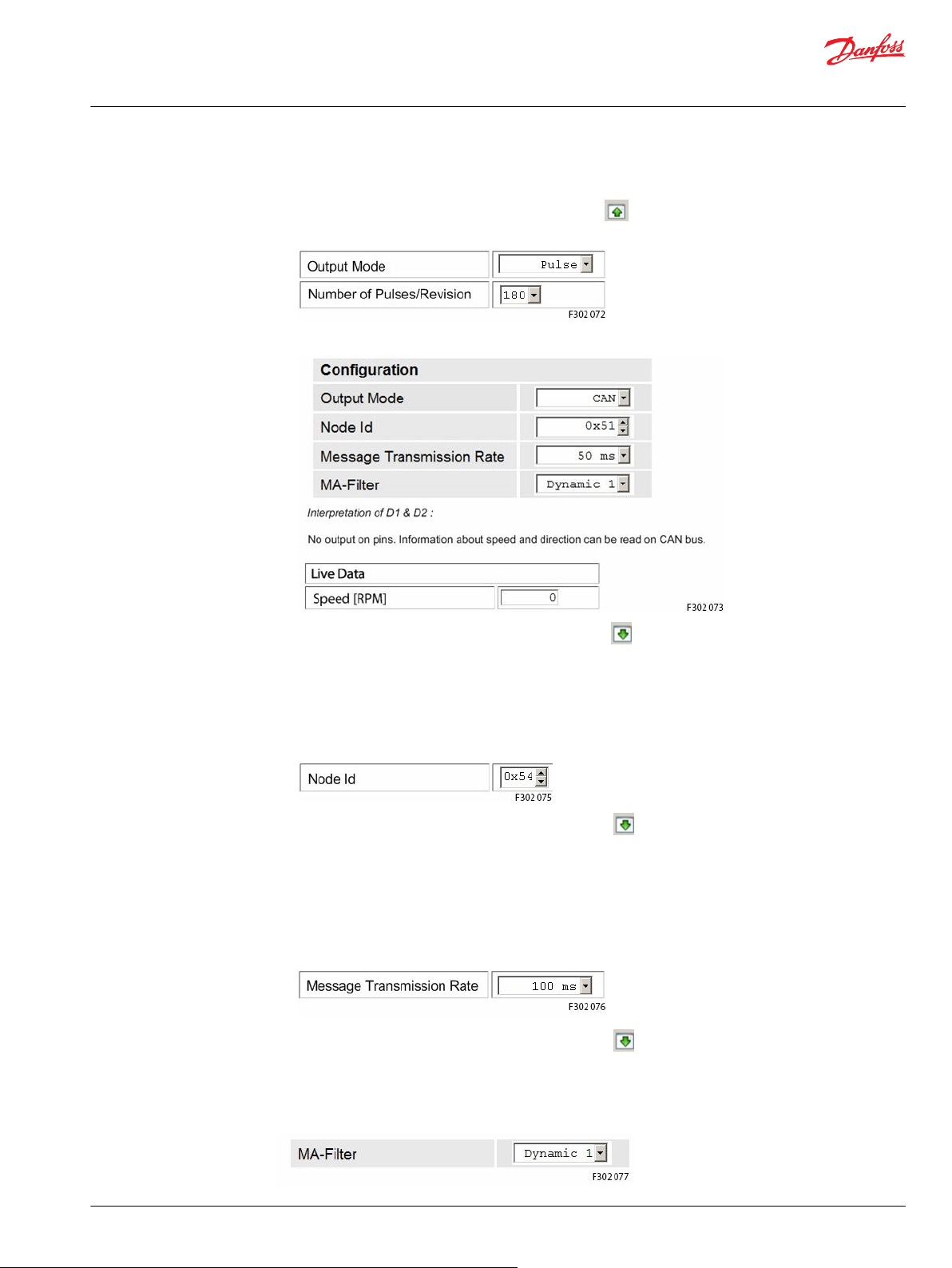

Changing of numbers of pulses/rev in pulse mode
1.
Upload the EMD-speed sensor setting to computer
OEM configurable sensor 11114575 has following default setting:
2. Change of numbers of Pulses/Rev in Pulse mode for example to 60 pulses / rev: Select 60
Valid range for pulses: 20 – 120 pulses / rev + 180 pulses / rev.
MA-Filter is default Dynamic 1 (See below for change of MA-Filter).
3.
Download selected parameter to EMD speed sensor
©
Danfoss | June 2021 AQ152886482063en-000301 | 13
User Manual
Orbital Motor, EMD Speed Sensor
Configuration of EMD-Speed Sensor to other settings
Change of MA-Filter in Pulse mode
MA-Filter is default Dynamic 1 in the range 20 - 120 pulses / rev.
MA-Filter is not available at 180 pulses / rev.
1. Change MA-Filter in Pulse mode for example to 16: Select 16
2.
Download selected parameter to EMD speed sensor
Changing of Pulse mode into Quadrature mode
1.
Upload the EMD-speed sensor setting to computer
OEM configurable sensor 11114575 has following default setting:
2. Change of mode from Pulse mode to Quadrature mode. Select Quadrature
3.
Download selected parameter to EMD speed sensor
14 | © Danfoss | June 2021 AQ152886482063en-000301
User Manual
Orbital Motor, EMD Speed Sensor
Configuration of EMD-Speed Sensor to other settings
Changing of pulse mode into CAN mode
1.
Upload the EMD-speed sensor setting to computer
OEM configurable sensor 11114575 has following default setting:
2. Change of mode from Pulse mode to CAN mode. Select CAN
3.
Download selected parameter to EMD speed sensor
Changing of Node Id in CAN mode
OEM configurable sensor 11114575 has following default Node Id: 0x51
1. Change Node Id from 0x51 to for example to 0x54. Select 0x54
2.
Download selected parameter to EMD speed sensor:
Changing of Message Transmission Rate in CAN mode
OEM configurable sensor 11114575 has following default Message Transmission Rate: 50 ms.
EMD speed sensor has following Message Transmission Rate setting range: 10, 20, 50, 100, 200 ms
1. Change Message Transmission Rate from 50 ms to for example 100 ms. Select 100 ms
2.
Download selected parameter to EMD speed sensor:
Change of MA-Filter in CAN mode
OEM configurable sensor 11114575 has following default MA-Filter: Dynamic 1
©
Danfoss | June 2021 AQ152886482063en-000301 | 15
User Manual
Orbital Motor, EMD Speed Sensor
Configuration of EMD-Speed Sensor to other settings
EMD speed sensor has following MA-Filter setting range: 1, 2, 4, 8, 16, 32, 64, Dynamic 1, Dynamic 2
1. Change MA-Filter from Dynamic 1 to for example 16. Select 16
2.
Download selected parameter to EMD speed sensor:
16 | © Danfoss | June 2021 AQ152886482063en-000301
P301 410
6
5
4
1
2
3
D1
R = 120Ω
GND
+24V DC
24V DC
CG 150
USB
230V AC
GND
+24V DC
CANL
CANL
CANH
CANH
D2
R
User Manual
Orbital Motor, EMD Speed Sensor
Configuration box
Configuration box
Order information: CG150-2 CAN/USB gateway interface communicator: Danfoss part number 11153051.
PLUS+1® Service Tool V7.1.10 is needed to support CG150-2
©
Danfoss | June 2021 AQ152886482063en-000301 | 17
Danfoss
Power Solutions GmbH & Co. OHG
Krokamp 35
D-24539 Neumünster, Germany
Phone: +49 4321 871 0
Danfoss
Power Solutions ApS
Nordborgvej 81
DK-6430 Nordborg, Denmark
Phone: +45 7488 2222
Danfoss
Power Solutions (US) Company
2800 East 13th Street
Ames, IA 50010, USA
Phone: +1 515 239 6000
Danfoss
Power Solutions Trading
(Shanghai) Co., Ltd.
Building #22, No. 1000 Jin Hai Rd
Jin Qiao, Pudong New District
Shanghai, China 201206
Phone: +86 21 2080 6201
Products we offer:
Hydro-Gear
www.hydro-gear.com
Daikin-Sauer-Danfoss
www.daikin-sauer-danfoss.com
Cartridge valves
•
DCV directional control
•
valves
Electric converters
•
Electric machines
•
Electric motors
•
Gear motors
•
Gear pumps
•
Hydraulic integrated
•
circuits (HICs)
Hydrostatic motors
•
Hydrostatic pumps
•
Orbital motors
•
PLUS+1® controllers
•
PLUS+1® displays
•
PLUS+1® joysticks and
•
pedals
PLUS+1® operator
•
interfaces
PLUS+1® sensors
•
PLUS+1® software
•
PLUS+1® software services,
•
support and training
Position controls and
•
sensors
PVG proportional valves
•
Steering components and
•
systems
Telematics
•
Danfoss Power Solutions is a global manufacturer and supplier of high-quality hydraulic and
electric components. We specialize in providing state-of-the-art technology and solutions
that excel in the harsh operating conditions of the mobile off-highway market as well as the
marine sector. Building on our extensive applications expertise, we work closely with you to
ensure exceptional performance for a broad range of applications. We help you and other
customers around the world speed up system development, reduce costs and bring vehicles
and vessels to market faster.
Danfoss Power Solutions – your strongest partner in mobile hydraulics and mobile
electrification.
Go to www.danfoss.com for further product information.
We offer you expert worldwide support for ensuring the best possible solutions for
outstanding performance. And with an extensive network of Global Service Partners, we also
provide you with comprehensive global service for all of our components.
Local address:
Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products
already on order provided that such alterations can be made without subsequent changes being necessary in specifications already agreed.
All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
©
Danfoss | June 2021 AQ152886482063en-000301
Loading...
