Danfoss ECO80 Data sheet

Data Sheet
ECO80
EVPN Pneumatic Actuation
New for ECO80LS, the EVPN is an On-Off pneumatic actuator solution designed for mainly on-road applications with focus on the vast number of refuse and snow & ice applications requiring lowering loads during “dead engine” conditions.
There are two EVPN versions:
Pneumatic Actuation: Designed for all- pneumatic operator control and adapts to any system that actuates each control spool individually with external air supply lines to actuate the spools from neutral to spool-in & spool-out position.
Electro-Pneumatic Actuation: This patented technology is designed to adapt to vehicle systems that utilize electric-over-pneumatic operator controls. This EVPN version eliminates the need for individual pneumatic tubing installation at each valve section and eliminates remotely mounted electro­pneuematic control stations. Two on board electro­pneumatic solenoid valves mounted to each valve section actuate the spools from neutral to Spool-in & Spool-out position, solenoids are fed from an unique air supply from end plate (EVO) that’s can be used to air supply
Features
Control specification
Supply Voltage (UDC) Rated 12 VDC 24 VDC
Range 11 – 15
VDC Current (A) Resistance (Ω) 24 Ω 96 Ω Power (W) 6 W 6 W Reaction time from neutral position to max.
spool travel
Enclosure
Connector type Protection class Deutsch DT04-2P IP 67
©
Danfoss | May 2019 AI302200221033en-000101 | 1
22°C - Coil temp
500 mA 250 mA
Max. 50 ms
22 – 30 VDC
Data Sheet
ECO80 EVPN Pneumatic Actuation
Operating Conditions
Pilot air supply pressure (bar) Minimum 5 bar
Maximum 12 bar
Tank pressure (bar) Static 25 bar
Dynamic 40 bar
Oil temperature (°C) Recommended 30 60 °C
Minimum -30 °C Maximum 90 °C
Ambient temperature Minimum -30 °C
Maximum 60 °C
Oil viscosity Operating range 12 - 75 mm2/s
Minimum viscosity 4 mm2/s Maximum viscosity 460 mm2/s
Filtration / maximum contamination according to ISO 4406 23/19/16
2 | © Danfoss | May 2019 AI302200221033en-000101
3
1
2
2
1
6
7
8
9
10
2
3
4
3
5
Data Sheet
ECO80 EVPN Pneumatic Actuation
EVPN, Pure Pneumatic

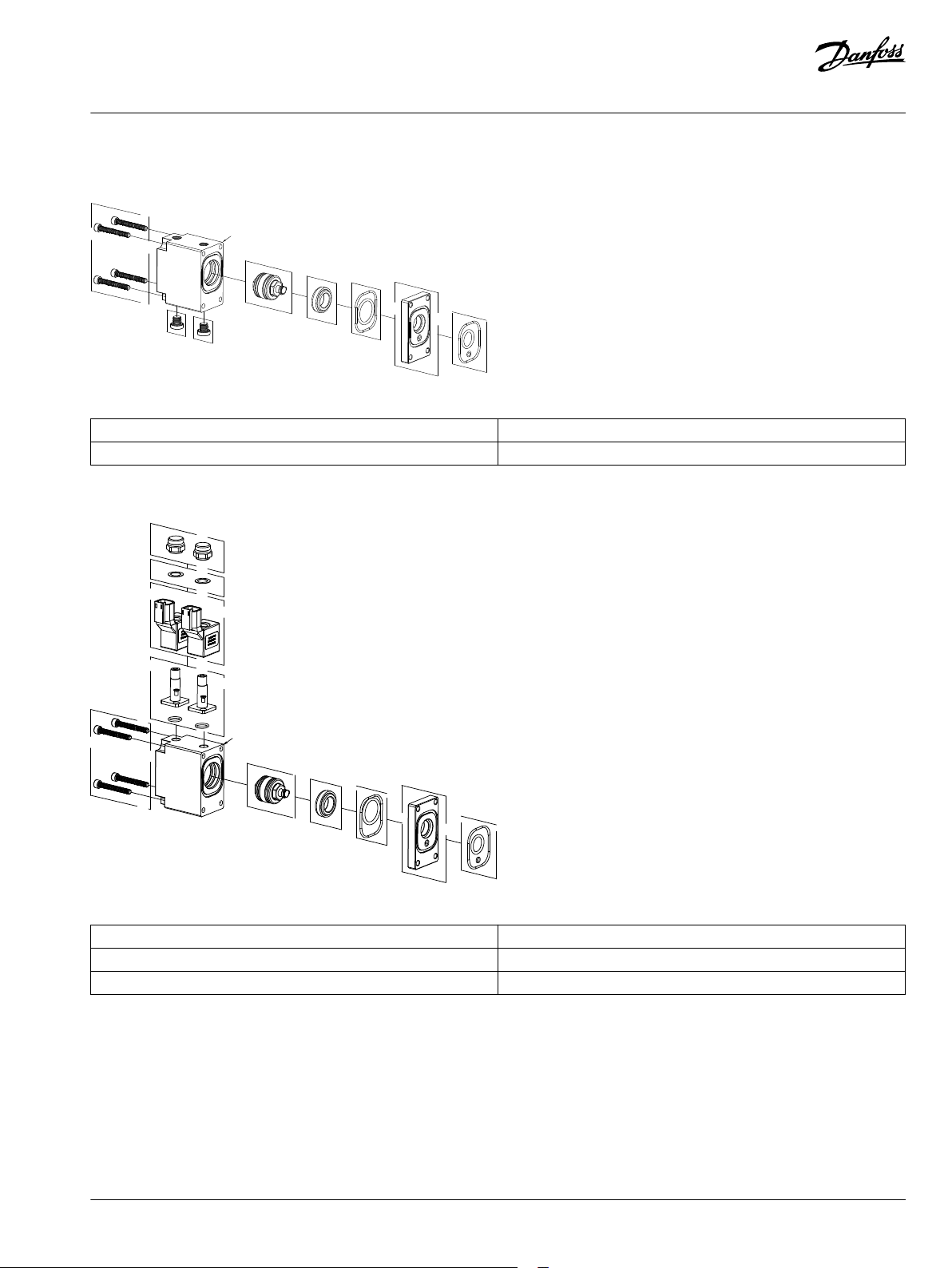

EVPN, Pure pneumatic exploded view
Part numbers EVPN, Pure pneumatic
Description Part number EVPN-ACTUATOR-TOP-PN 11198492
EVPN, Electrical Pneumatic
EVPN, Electrical Pneumatic exploded view
Part numbers EVPN, Electrical pneumatic
Description Part number EVPN-ACTUATOR-TOP-DT-12V-A 11193722 EVPN-ACTUATOR-TOP-DT-24V-A 11193723
©
Danfoss | May 2019 AI302200221033en-000101 | 3
A
PT T
B
A
PT T
B
A
PT T
B
Data Sheet
ECO80 EVPN Pneumatic Actuation
Product details
Part numbers EVBS, Spool module
Symbol Code number
Spool size, flow range l/min C E 40 80
11194019 11194025
4-way, 3-position Closed neutral position
11194018 11194024
4-way, 3-position Throttled, open neutral position
11194020 11194026
3-way, 3-position Closed neutral position, P -> A
Service kit EVHCO
Description Part number SVC KIT-EVPN-COIL-DT-12V 11234123 SVC KIT-EVPN-COIL-DT-24V 11234124 SVC KIT-EVPN-SEALS 11230331
4 | © Danfoss | May 2019 AI302200221033en-000101
Data Sheet
ECO80 EVPN Pneumatic Actuation
EVPN, Specification Sheet as ref.: Four section valve with electro pneumatic actuation
©
Danfoss | May 2019 AI302200221033en-000101 | 5
