Danfoss Eco Installation guide

Instruction Manual

Danfoss Eco™

Electronic Radiator Thermostat

www.danfoss.com

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

Installation Guide

1. Installation

1.1 Identify your Danfoss Eco™ ..........................................................4

1.2 In the package ......................................................................5

1.3 Overview of valve adapters ..........................................................5

1.4 Installing the right adapter ..........................................................7

1.5 Inserting the batteries ...............................................................8

1.6 Mounting the Danfoss Eco™ .........................................................9

1.7 Download Danfoss Eco™ App .......................................................9

1.8 Pairing Danfoss Eco™ .............................................................10

1.9 Automatic adjustments............................................................10

1.10 Removing Danfoss Eco™ .......................................................... 11

1.11 Resetting Danfoss Eco™ to default settings......................................... 11

2. Technical Specications ................................................................ 12

2

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

User Guide

3. Display

3.1 Display screen .................................................................... 13

3.2 Red illuminating ring ..............................................................13

3.3 Display rotation ...................................................................14

3.4 Manual mode ..................................................................... 14

4. Temperature and Programme Settings

4.1 Time ............................................................................. 15

4.2 Default temperature ..............................................................15

4.3 Setting temperatures ............................................................. 15

4.4 Create your own schedule ........................................................16

4.5 Vacation ..........................................................................16

4.6 Overrule a vacation ............................................................... 17

4.7 Cancel an existing vacation programme ...........................................17

4.8 Pause ............................................................................. 17

4.9 Open window setting ............................................................. 18

5. Additional Settings

5.1 Setting options via the Danfoss Eco™ App.......................................... 19

5.2 Software updates ................................................................. 20

5.3 Data security ..................................................................... 21

6. Safety Precautions...................................................................... 21

7. Disposal ................................................................................ 21

3

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

1. Installation

1.1 Identify your Danfoss Eco™

Code no. Version characteristics

014G1000

014G1001

014G1002

014G1003

014G1020

014G1021

Code no. Version characteristics

014G1100

014G1101

014G1102

014G1103

014G1104

014G1105

014G1106

014G1107

014G1108

014G1109

014G1110

014G1111

014G1112

Adapters included: RA adapter

Adapters included: RA, M30 x 1.5 adapters

IT - Adapters included RA, M30, Cale & Giacomini

RU - Adapters included RA & M30

UK (Combi, Bi-Di valve) - RA (Premounted)

UK (Combi, Bi-Di valve, RLV-D) - RA (Premounted)

DK - Adapters included RA, M30, RAV & RAVL

DE - Adapters included RA, M30, RAV & RAVL

FR - Adapters included RA, M30, M28 Comap

HU, HR, RO, SK, UA - Adapters included RA, M30, RTD

IT - Adapters included RA, M30, M28 Herz, Cale & Giacomini

PL, CZ, LT, EE, LV, SI - Adapters included RA, M30 & RTD

NL, BE, NO, FI, IS, TR - Adapters included RA & M30

ES, PT - Adapters included RA, M30, M28 Orkli

UK - Adapters included RA, M30

AT - Adapters included RA, M30 & M28 Herz

SE - Adapters included RA, M30 & M28 MMA

RU - Adapters Included RA, M30, RTD, M28 Herz & Giacomini

CH - Adapters included RA, M30, RAVL & RAV

4

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

26

34

26

3 4

R

A

V

(

Ø

3

4

m

)

D

a

n

f

o

s

R

A

VL

(

Ø

2

6

m

)

D

a

n

f

os

s

R

A

D

a

n

f

o

s

M

2

8

O

r

k

l

i

,

C

o

m

a

p

,

H

e

r

z

,

M

A

0

1

3

R9

6

3

VU

F

Q

B

1

0

2

M

3

0

H

e

i

m

e

i

e

r

,

T

A

,

O

v

e

n

t

r

o

p

,

H

o

n

e

y

w

e

l

A

d

a

p

t

e

r

s

e

le

ct

io

n

g

u

id

e

R

T

D

a

n

f

o

s

3

4

2

6

26

3 4

R

A

V

(

Ø

3

4

m

)

D

a

n

f

o

s

R

A

V

L

(

Ø

2

6

m

m)

Da

n

f

o

ss

R

A

D

a

nf

o

ss M

2

8

O

r

k

l

i

,

C

om

a

p

,

H

e

r

z

,

M

A

0

1

3

R

9

6

3

V

U

F

Q

B

1

0

2

M

30

He

i

m

e

i

er,

T

A

,

O

v

e

nt

r

o

p

,

H

on

e

y

w

e

l

A

d

a

p

te

r

s

e

l

e

c

t

i

o

n

g

u

i

d

e

R

T

D

a

n

f

o

s

3

4

2

6

1.2 In the package

Danfoss Eco™ are supplied with the adapters as listed in 1.1. In addition each pack contains:

Danfoss Eco™ Quick Guide Requires 2x AA batteries Allen Key

Adapter

selection guide

Ad a p

s ele

t e r

c t i on g u i de

?

RA (Ø V 3

A

4 D

m

d

a

m

a

n

p

)

f os

te

s

r

s e le c t i o n

R A

(

Ø

V L

2 6 D

m anf

m )

o

ss

R A

D a n fo s s

R T D

D a n fo

s s

C a l

e

M

Heim 3 0 e

O i

e

v en

r ,

Ho

T

t

A

ro n

,

ey

p ,

w

e l

l G i

a c o m i

n n i

O

M r

2

k 8

l

i

,

H

C e

o r

A

m

z ,

a M

p

d

,

M

A

a

s

p

ele

t e r

c t i o n guide

?

R (

A

Ø V 3 4 Da

m

A

m

n

d

f

)

os

a p

s

t e r s e l e c t io n

R A

( Ø2

V L 6 D

m a m

nf )

o ss

R A

D a n f o ss

R T Da D nf o s s

Adapter selection

C a l

H

M eim

3 0 O

e i

v

e e

r H

,

n T

o

t

A

ro

n , e

p y , w e

G

l l

i a c om i n n i

O M r k

2 l

8 i ,

H

Co e r m

z, ap

M M

, A

RAV (Ø34 mm) Danfoss

RAVL (Ø26 mm) Danf oss

RA Danfoss

RTD Danfoss

C

M30 Heimeier, TA, Oventrop, Honeywell

Giacominni

M28 Orkli, Comap, Herz, MMA

Adapter Guide Adapters

1.3 Overview of Valve Adapters

Adapters for a wide range of dierent valve types are available as accessories.

Adapter type Code no. Adapter Valve

For Danfoss RA valves

For M30 x 1.5 (K) valves

014G0251

014G0252

5

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

34

26

Adapter type Code no. Adapter Valve

For Danfoss RAV valves

014G0250

For Danfoss RAVL valves

For Danfoss RTD valves

014G0253

For M28 valves:

- MMA

- Herz

014G0264

- Comap

For Orkli valves 014G0257

For Cale and Giacomini valves

014G0263

(Both adaptors supplied)

6

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

1.4 Installing the right adapter

The Danfoss Eco™ pack contains an adapter guide to help you nd the correct adapter for your valve. If you need additional help in nding the correct adapter follow the QR code on the guide and follow the video instruction.

Adapter for RA valves Adapter for M30 x 1.5 (K) valves

Adapter for RAV valves Adapter for RAVL valves

Adapter for RTD valves

7

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

Adapters for M28 valves (MMA, Herz and Comap)

Adapters for M28 valves (Orkli)

Adapter for Caleffi valves Adapter for Giacomini valves

1.5 Inserting the batteries

Remove the battery cover as shown in the diagram and insert two AA batteries. Make sure the batteries are correctly oriented.

Rechargeable batteries must not be used. When replacing batteries the time and date settings are lost immediately. After replacing batteries re-connect to a smartphone to activate a schedule. The red ring will ash. Re-connect to the App and the time and date will be restored. If you do not re-connect the sensor will remain in manual mode.

The low battery symbol is displayed approx. one month before the batteries run out. Before the batteries run out Danfoss Eco™ will leave the valve in Frost Protection position to protect the heating system from damage. Estimated battery life time is up to 2 years.

8

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

1.6 Mounting the Danfoss Eco™

Screw the Danfoss Eco™ onto the mounted adapter until a click sound is heard. Once the thermostat is tightened properly, then adjust the display to your preferred display orientation. A large M is flashing in the display to indicate that Installation Mode is activated. Press and hold the button for 3 seconds. The temperature set point will show on the screen once the Danfoss Eco™ is mounted.

1.7 Download Danfoss Eco™ App

Download the Danfoss Eco™ App.

Danfoss Eco™

9

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

1.8 Pairing Danfoss Eco™

Note: Turn on Bluetooth on your smart phone to connect to the Danfoss Eco™.

Follow the prompts from the Danfoss Eco™ App to pair your Danfoss Eco™. Bluetooth range is 10m (depending on the building construction and surroundings).

1.9 Automatic adjustments

When Danfoss Eco™ is installed it will automatically begin to adjust itself to your heating system, during the first week after insallation. During this process you might experience that the thermostat reacts slowly or turns the heat up and down by itself. This is normal and a necessary part of the adjustment process.

1. Adjusting to the valve

During the first night of operation Danfoss Eco™ will shut off the radiator heat and then open again to detect the exact opening point of the valve. This will allow Danfoss Eco™ to control the heat as efficiently as possible. If necessary, the procedure is repeated once a night for up to a week.

2. Adaptive Learning

If you activate Adaptive Learning Danfoss Eco™ learns during the first week of operation when it is necessary to start heating the room in order to reach the correct temperature at the correct time. The intelligent control will continuously adjust the heating time compared to seasonal temperature changes. Using Saving Program requires that your heating system has enough heat for a short period during heat up. If you experience problems you should contact your installer.

10

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

1.10 Removing Danfoss Eco™

1. 2.

Press and hold until large M flashes. This indicates you are in mounting mode

3.

Press firmly on the tab and unscrew the thermostat from the adapter.

Remove the cover.

1.11 Resetting Danfoss Eco™ to default settings

1. 2.

Remove the cover and take out one battery.

Press and hold , keep holding while reinserting the battery. The screen will go blank after approx 3 seconds.

11

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

2. Technical specications

Thermostat type Programmable electronic radiator valve controller

Recommended use Residential (pollution degree 2)

Actuator Electromechanical

Display LCD with white backlight

Software classication A

Control PID

Power supply 2 x 1.5 V alkaline AA batteries (not included)

Power consumption 3 μW in standby 1.2 W when active

Transmission Frequency / Power 2,4 GHz / <2,1mW

Battery life Up to 2 years

Low battery signal

Ambient temperature range 0 to 40 °C

Transportation temperature range -20 to 65 °C

Maximum water temperature 90 °C

Temperature setting range 4 to 28 °C

Measurement interval Measures temperature every minute

Clock accuracy +/- 10 min/year

Spindle movement Linear, up to 4.5 mm, max. 2 mm on valve (1 mm/s)

Noise level <30 dBA

Safety classication Type 1

Open-window function Activated at temperature decrease

Weight (incl. batteries) 198 g (with RA adapter)

IP class

Battery icon will ash in display. If battery level is critical the red ring will ash.

20 (not to be used in hazardous installations or in places where it will be exposed to water)

Approvals, markings etc.

12

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

3. Display

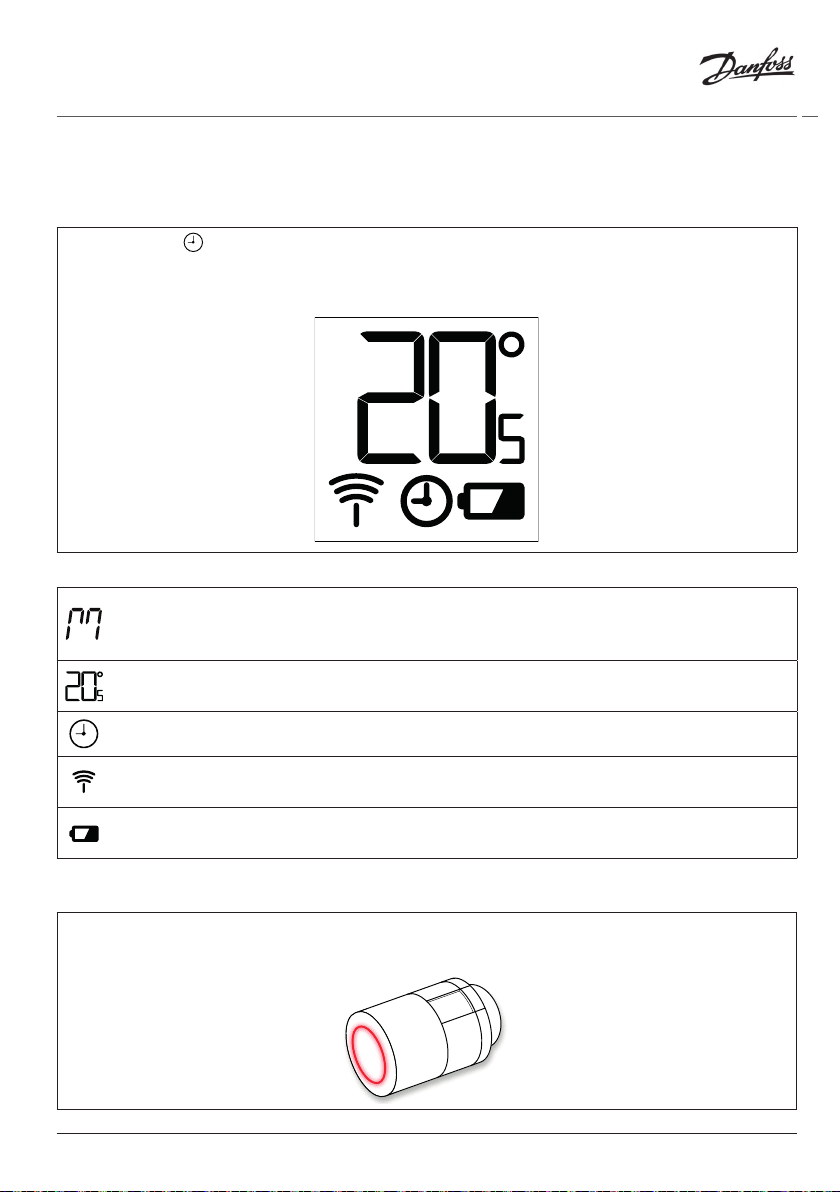

3.1 Display Screen

Short press on and the Display Screen appears. Danfoss Eco™ is displaying the set temperature, not the measured room temperature.

Display symbols:

Installation Mode must always be activated when installing or removing Danfoss Eco™. The thermostat may be irreparably damaged if not in the correct position during installation.

Temperature is shown in degrees Celsius. Danfoss Eco™ is displaying the set temperature,

not the measured room temperature.

Scheduled Mode

The antenna symbol ashes when you need to connect the App to the thermostat. If you are connected, the red ring will illuminate (the display will be blank).

Low battery. Battery icon will ash in display. If battery level is critical the red ring will ash.

3.2 Red illuminating ring

The red ring will be constantly on when you are connected to the Danfoss Eco™ App. It also flashes to indicate when the batteries are critically low on power.

13

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

3.3 Display rotation

Danfoss Eco™ can be mounted in a horizontal or veritcal position, depending on your radiator valve. You can set the display rotation to either ‘horizontal’ or ‘vertical’ within the Danfoss Eco™ App under Advanced Settings.

3.4 Manual mode

Danfoss Eco™ can be used without the Danfoss Eco™ App in Manual Mode. Functionality is reduced.

Use the handwheel to adjust the temperature. The display shows the required temperature and not the room temperature. In manual mode there are no comfort or setback temperatures or times set.

14

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

4. Schedules and Temperatures

4.1 Time

The device will take the correct time from your smart phone. There is no need to set the time. Danfoss Eco™ uses a 24 hour time display.

Note. If the batteries have been removed from the Danfoss Eco™ you will need to connect to the Danfoss Eco™ App to correct the time once the batteries are replaced.

4.2 Default temperature

The default temperatures for Danfoss Eco™ are as below:

Icon Name Default Temperature

At Home 21°C

Away / Asleep 17°C

Vacation 15°C

The default temperatures can be changed in the Danfoss Eco™ App.

4.3 Setting temperatures

Set your own temperatures for your setback periods in the Danfoss Eco™ App.

Scroll on temperatures to set your preferred temperatures. The Danfoss Eco™ can be set from 5°C to 28°C. Danfoss recommend a dierence between ‘At Home’ temperature and ‘Away/Asleep’ that does not exceed 4 degrees.

Note: Changes in temperature from the home screen are temporary (Until next setback period)

15

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

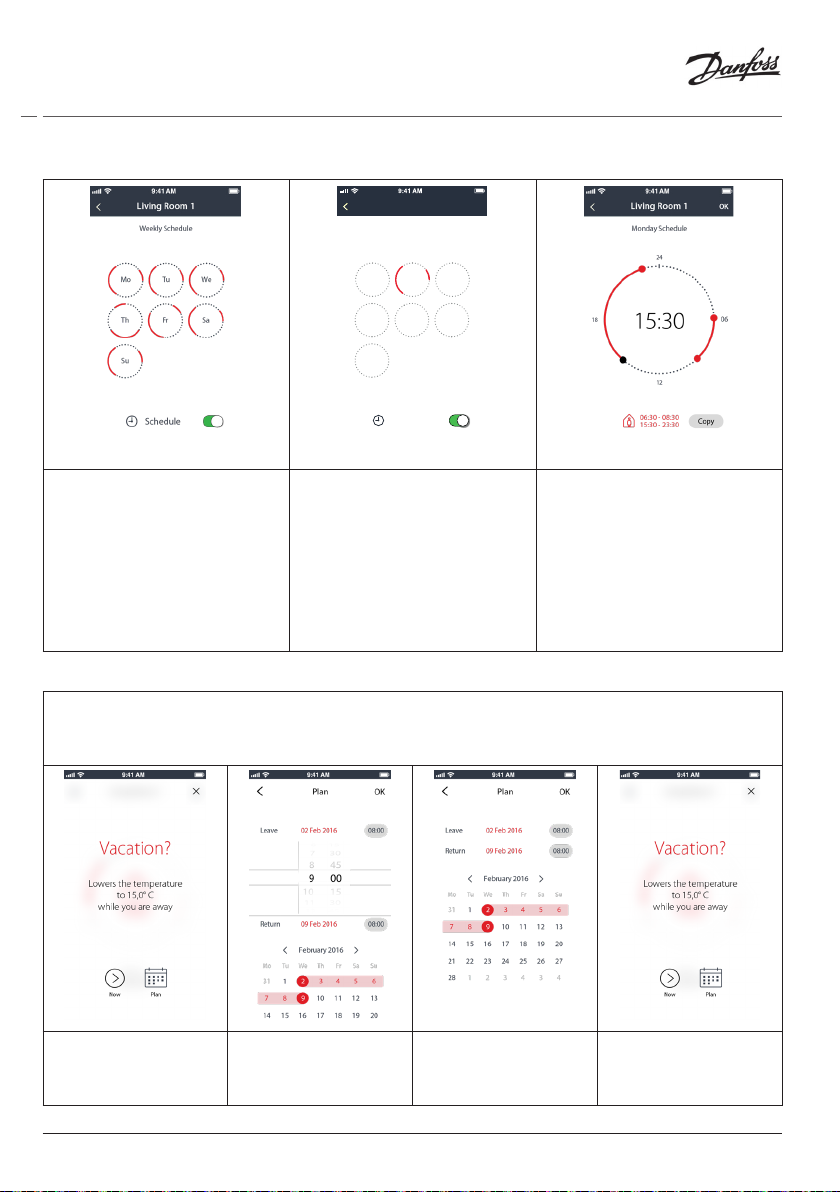

4.4 Create your own schedule

Living Room 1

Weekly Schedule

Mo Tu We

Th Fr Sa

Su

Schedule

Within the Danfoss Eco™ App you can create your own schedule. You can choose any setback times within 24 hours and a maximum of 3 setback periods per day.

The weekly schedule shows the ‘At Home’ periods in red. The ‘copy’ functionallity allows you to copy the schedule you have created to other days.

The Danfoss Eco™ App display shows both the 24 hour clock wheel, showing your At Home time in red and a summary of your schedule, with the detailed times set. The minimum At Home period is 30 minutes.

4.5 Vacation

A Vacation programme keeps the setback temperature for a period, defined by you. Use a Vacation programme to save energy, when you are away from home. Vacation programme is set within the Danfoss Eco™ App.

Vacation mode can be planned or set straight away (Now).

Planned Vacations use a calendar and time setting.

Schecule your Vacation in the Danfoss Eco™ App.

The Danfoss Eco™ App display conrms your Vacation date.

16

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

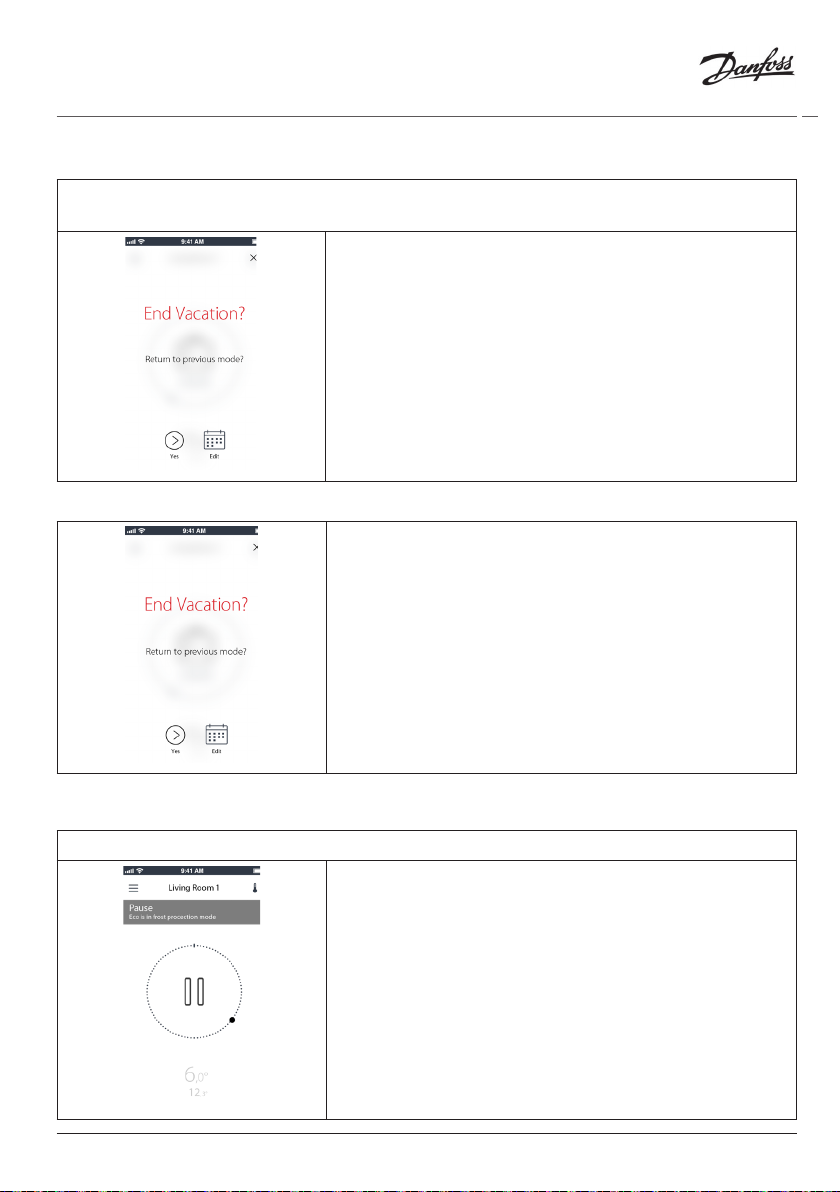

4.6 Overrule a vacation

If returning earlier than expected you might wish to shift from the Vacation programme to your normal schedule.

When in ‘Vacation’ setting the Danfoss Eco™ App will give options to end the Vacation period or edit the dates and times.

4.7 Cancel an existing vacation programme

If the Vacation is planned for the future you can simply edit the dates or cancel the programme.

4.8 Pause

The Pause programme keeps the setback temperature until another programme is selected.

When Danfoss Eco™ is turned down to Min level manually, a notication banner is shown, and center icon switches to ‘Pause’. To exit Pause click the centre icon on the Danfoss Eco™ App and return to the scheduled or manual setpoint.

17

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

4.9 Open window function

Danfoss Eco™ features an Open-window function, which closes the valve if the room temperature is falling dramatically, thus reducing the heat loss. The heat is turned o for up to 30 minutes, before Danfoss Eco™ returns to its original settings. When Open-window has been activated, the function is quarantined for 45 minutes.

Note! Be aware that the Open-window function will be aected, if curtains or furniture are covering Danfoss Eco™, preventing it from detecting the decreasing temperature.

18

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

5. Settings & Installation modes

5.1 Setting options via the Danfoss Eco™ App

Command Options

Thermostats

Restrictions

Advanced Settings

System Information

EULA

List of the installed Danfoss Eco™ thermostats (by name)

Add Danfoss Eco™ Option to add another Danfoss Eco™

PIN Code Option to add a PIN code to the Danfoss

Change PIN Code Option to change PIN code

Child Lock To protect your Danfoss Eco™ activate the

Min/Max Temperatures Limit the temperature range. The MIN/

Adaptive Learning Adaptive Learning ensures you get the

Heat Control The Heat Control ensures that Danfoss

Display Rotation The Danfoss Eco™ display can be rotated

Mode Mounting Mode

Frost Protection The minimum temperature to protect your

Software version information Confirms the latest sofware version of the

Legal information Full terms and conditions of the Danfoss

Option to change the name of the Danfoss Eco™ or to un-pair an existing Danfoss Eco™.

Eco™ App

Child Lock, once activated the Danfoss Eco™ can only be adjusted by the Danfoss Eco™ App and the Manual function is overridden.

MAX settings are adjusted by scrolling the temperatures in the Danfoss Eco™ App.

temperature you asked for at the right time. Adaptive Learning uses historical data to determine how fast (degrees/hour) each room can be reheated.

Eco™reaches the comfort temperature on time, according to the schedule. Options are for Moderate or Quick. Moderate ensures sufficient return temperature.

by 180°. This allows the display to be read from hoziontal and vertical mounting.

heating system. Set between 4-10°C.

Danfoss Eco™ App that is downloaded to your device.

Eco™ App.

19

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

Topics Links to the FAQ site for the main help

topics for troubleshooting issues with your Danfoss Eco™.

Show Introduction Screens Plays the introduction screens that first

appear when you download the Danfoss Eco™ App.

Help

Demo Mode Try the Danfoss Eco™ App with the Demo

Mode feature. This will not adjust the Danfoss Eco™ but will show the screens and functionallity within the Danfoss Eco™App. NB. To exit the Demo Mode double click on the word ‘Demo’ on the Danfoss Eco™ App screen.

5.2 Software Updates

Danfoss Eco™ thermostat can be updated via the Danfoss Eco™ App The Danfoss Eco™ App will inform when a new software is available.

Update failed – there is no response from the thermostat. The display is blank and and no light is illuminating the red ring.

If the update failed, you have to open the thermostat list. Do that by closing the App completely, or simply press the thermostat name in the top of the home screen.

20

‘Unknown thermostat’ should appear on the list.

Choose ‘Unknown device’

Press install Stay close to the

thermostat

Installation Guide Danfoss Eco™ Electronic Radiator Thermostat

5.3 Data Security

The data security for of the Danfoss Eco™ thermostat and Danfoss Eco™ App, that is paired to your smartphone is guaranteed. The system is tested annually by independent specialists.

Data encryption: The wireless connection to your Danfoss Eco™ thermostat is protected against threats from unknown devices with latest encryption technology, and first time pairing with the thermostat can only be done by physically pressing the button on the thermostat.

Security through PIN code: A PIN code assigned by the user ensures that only authorized persons can make changes to the system.

User Personal data such as temperature or set-points are only stored in the thermostat, so therefore only your personal App can access this.

In addition to the security functions that ensure data protection at any point during the data transmission from your smartphone to the Danfoss Eco™ thermostat, we ensure the highest level of security with further technical and organizational measures. Danfoss continuously checks and develops these further.

6. Safety precautions

The thermostat is not intended for children and must not be used as a toy. Do not leave packaging materials where children may be tempted to play with them, as this is extremely dangerous. Do not attempt to dismantle the thermostat as it contains no user-serviceable parts. Do not remove the cover to clean the thermostat. The external cover can be cleaned with a soft cloth.

7. Disposal

The thermostat must be disposed of as electronic waste.

21
