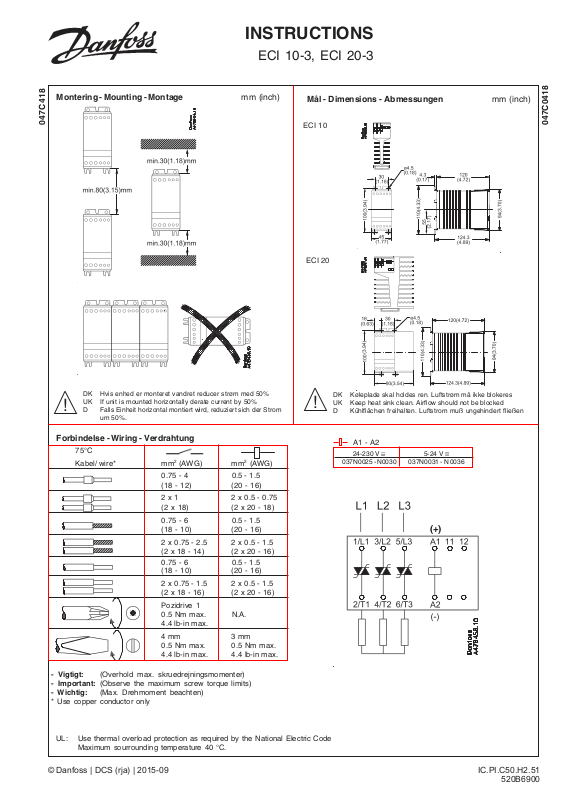

INSTRUCTIONS
ECI 10-3, ECI 20-3
<![endif]>047C418
Montering - Mounting - Montage |
mm (inch) |
Mål - Dimensions - Abmessungen |
mm (inch) |
|
|
||
|
|
ECI 10 |
|
ECI 20
|
DK |
Hvis enhed er monteret vandret reducer strøm med 50% |
! |
|
DK |
|
Køleplade skal holdes ren. Luftstrøm må ikke blokeres |
|||
! |
UK |
If unit is mounted horizontally derate current by 50% |
|
UK |
|
Keep heat sink clean. Airflow should not be blocked |
||||
D |
Falls Einheit horizontal montiert wird, reduziert sich der Strom |
D |
|
Kühlflächen freihalten. Luftstrom muß ungehindert fließen |
||||||
|
|
um 50%. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Forbindelse - Wiring - Verdrahtung |
|
|
|
|
|
|
|
A1 - A2 |
75°C |
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|||||
Kabel/ wire* |
|
mm2 (AWG) |
mm2 (AWG) |
|||||||
|
|
|
|
0.75 - 4 |
0.5 - 1.5 |
|
|
|||
|
|
|
|
(18 - 12) |
(20 - 16) |
|
||||
|
|
|
|
|
2 x 1 |
2 x 0.5 - 0.75 |
||||
|
|
|
|
|
||||||
|
|
|
|
|
(2 x 18) |
(2 x 20 - 18) |
||||
|
|
|
|
|
||||||
|
|
|
|
0.75 - 6 |
0.5 - 1.5 |
|
|
|||
|
|
|
|
(18 - 10) |
(20 - 16) |
|
||||
|
|
|
|
|||||||
|
|
|
|
|
2 x 0.75 - 2.5 |
2 x 0.5 - 1.5 |
||||
|
|
|
|
|
||||||
|
|
|
|
|
||||||
|
|
|
|
|
(2 x 18 - 14) |
(2 x 20 - 16) |
||||
|
|
|
|
|
||||||
|
|
|
|
|
||||||
|
|
|
|
0.75 - 6 |
0.5 - 1.5 |
|
|
|||
|
|
|
|
(18 - 10) |
(20 - 16) |
|
||||
|
|
|
|
|
2 x 0.75 - 1.5 |
2 x 0.5 - 1.5 |
||||
|
|
|
|
|
||||||
|
|
|
|
|
||||||
|
|
|
|
|
(2 x 18 - 16) |
(2 x 20 - 16) |
||||
|
|
|
|
|
||||||
|
|
|
|
|
||||||
|
|
|
|
|
Pozidrive 1 |
|
|
|
|
|
|
|
|
|
|
0.5 Nm max. |
N.A. |
||||
|
|
|
|
|
||||||
|
|
|
|
|
||||||
|
|
|
|
|
4.4 lb-in max. |
|
|
|
|
|
|
|
|
|
|
4 mm |
3 mm |
||||
|
|
|
|
|
0.5 Nm max. |
0.5 Nm max. |
||||
|
|
|
|
|
4.4 lb-in max. |
4.4 lb-in max. |
24-230 V |
5-24 V ≡ |
037N0025 - N0030 |
037N0031 - N 0036 |
|
|
(+)
- Vigtigt: (Overhold max. skruedrejningsmomenter)
-Important: (Observe the maximum screw torque limits)
-Wichtig: (Max. Drehmoment beachten)
* Use copper conductor only
UL: Use thermal overload protection as required by the National Electric Code Maximum sourrounding temperature 40 °C.
