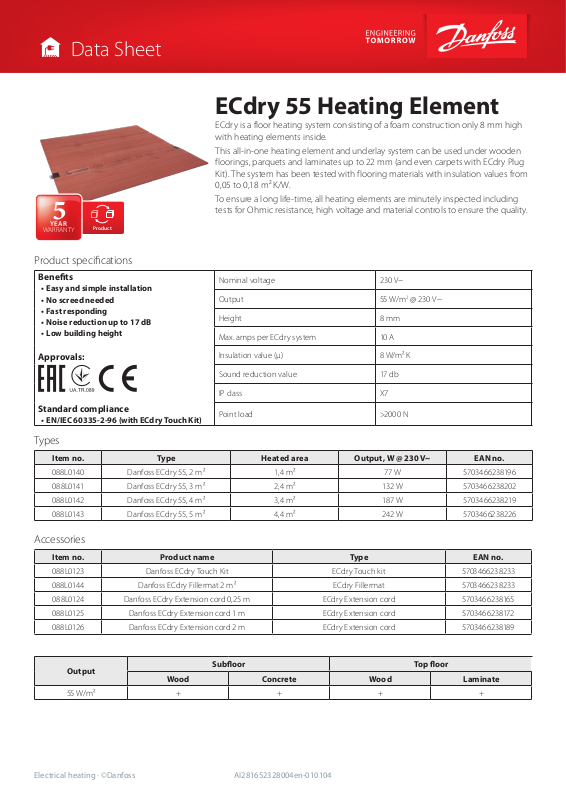

Danfoss ECdry 55 Data sheet

Data Sheet

YEAR

WARRANTY

Product specifications

Product

ECdry 55 Heating Element

ECdry is a floor heating system consisting of a foam construction only 8 mm high
with heating elements inside.

This all-in-one heating element and underlay system can be used under wooden
floorings, parquets and laminates up to 22 mm (and even carpets with ECdry Plug
Kit). The system has been tested with flooring materials with insulation values from
0,05 to 0,18 m² K/W.

To ensure a long life-time, all heating elements are minutely inspected including
tests for Ohmic resistance, high voltage and material controls to ensure the quality.

Benefits

• Easy and simple installation

• No screed needed

• Fast responding

• Noise reduction up to 17 dB

• Low building height

Approvals:

Standard compliance

• EN/IEC 60335-2-96 (with ECdry Touch Kit)

Nominal voltage 230 V~

Output 55 W/m2 @ 230 V~

Height 8 mm

Max. amps per ECdry system 10 A

Insulation value (μ) 8 W/m² K

Sound reduction value 17 db

IP class X7

Point load >2000 N

Types

Item no. Typ e Heated area Output, W @ 230 V~ EAN no.

088L014 0 Danfoss ECdry 55, 2 m² 1,4 m² 77 W 5703466238196
088L0141 Danfoss ECdry 55, 3 m² 2,4 m² 132 W 5703466238202
088L0142 Danfoss ECdry 55, 4 m² 3,4 m² 187 W 5703466238219
088L0143 Danfoss ECdry 55, 5 m² 4,4 m² 242 W 5703466238226

Accessories

Item no. Product name Type EAN no.

088 L0123 Danfoss ECdry Touch Kit ECdry Touch kit 5703466238233
088L014 4 Danfoss ECdry Fillermat 2 m² ECdry Fillermat 5703466238233
088 L0124 Danfoss ECdry Extension cord 0,25 m ECdry Extension cord 5703466238165
088 L0125 Danfoss ECdry Extension cord 1 m ECdry Extension cord 5703466238172
088 L0126 Danfoss ECdry Extension cord 2 m ECdry Extension cord 5703466238189

Output

55 W/m² + + + +

Wood Concrete Wood Laminate

Subfloor Top floor

AI281652328004en-010104Electrical heating · ©Danfoss
