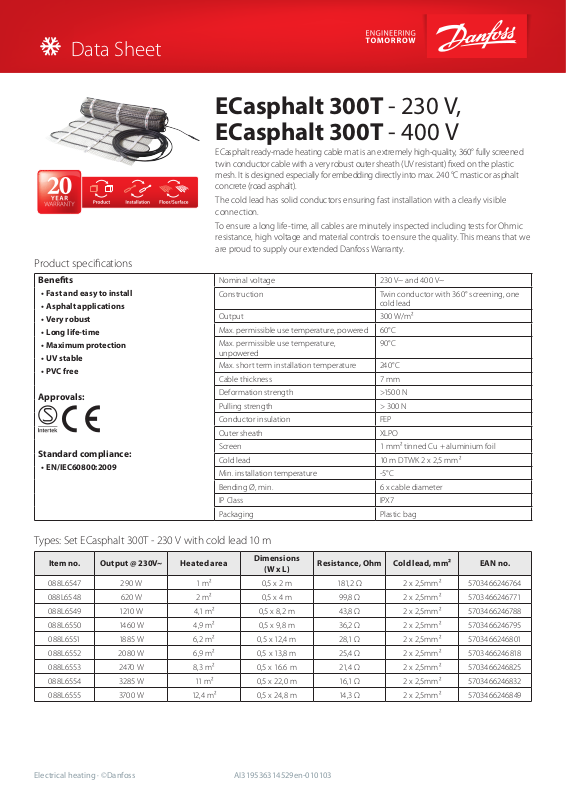

Danfoss ECasphalt 300T Data sheet

Data Sheet

Product speciﬁcations

ECasphalt 300T - 230 V, ECasphalt 300T - 400 V

ECasphalt ready-made heating cable mat is an extremely high-quality, 360° fully screened twin conductor cable with a very robust outer sheath (UV resistant) ﬁxed on the plastic mesh. It is designed especially for embedding directly into max. 240 °C mastic or asphalt concrete (road asphalt).

The cold lead has solid conductors ensuring fast installation with a clearly visible connection.

To ensure a long life-time, all cables are minutely inspected including tests for Ohmic resistance, high voltage and material controls to ensure the quality. This means that we are proud to supply our extended Danfoss Warranty.

Beneﬁts

• Fast and easy to install

• Asphalt applications

• Very robust

• Long life-time

• Maximum protection

• UV stable

• PVC free

Approvals:

Standard compliance:

• EN/IEC60800:2009

Nominal voltage 230 V~ and 400 V~ Construction Twin conductor with 360° screening, one

Output 300 W/m² Max. permissible use temperature, powered 60°C Max. permissible use temperature,

unpowered Max. short term installation temperature 240°C Cable thickness 7 mm Deformation strength >150 0 N Pulling strength > 300 N Conductor insulation FEP Outer sheath XLPO Screen 1 mm² tinned Cu + aluminium foil Cold lead 10 m DTWK 2 x 2,5 mm² Min. installation temperature -5°C Bending Ø, min. 6 x cable diameter IP Class IPX7 Packaging Plastic bag

Types: Set ECasphalt 300T - 230 V with cold lead 10 m

cold lead

90°C

Item no. Output @ 230V~ Heated area

088L6547 290 W 1 m² 0,5 x 2 m 181,2 Ω 2 x 2,5mm² 5703466246764 088L6548 620 W 2 m² 0,5 x 4 m 99,8 Ω 2 x 2,5mm² 5703466246771 088L6549 1210 W 4,1 m² 0,5 x 8,2 m 43,8 Ω 2 x 2,5mm² 5703466246788 088L6550 1460 W 4,9 m² 0,5 x 9,8 m 36,2 Ω 2 x 2,5mm² 5703466246795 088L6551 18 85 W 6,2 m² 0,5 x 12,4 m 28,1 Ω 2 x 2,5mm² 5703466246801 088L6552 2080 W 6,9 m² 0,5 x 13,8 m 25,4 Ω 2 x 2,5mm² 5703466246818 088L6553 2470 W 8,3 m² 0,5 x 16.6 m 21,4 Ω 2 x 2,5mm² 5703466246825 088L6554 3285 W 11 m ² 0,5 x 22,0 m 16,1 Ω 2 x 2,5mm² 5703466246832 088L6555 3700 W 12,4 m² 0,5 x 24,8 m 14,3 Ω 2 x 2,5mm² 5703466246849

Electrical heating · ©Danfoss AI319536314529en-010103

Dimensions

(W x L)

Resistance, Ohm Cold lead, mm² EAN no.

Types: Set ECasphalt 300T - 400 V with cold lead 10 m

Item no. Output @ 400V~ Heated area

088L6558 525 W 1,7 m² 0,5 x 3,4 m 3 07,7 2 x 2,5mm² 5703466246856 088L6559 1080 W 3,5 m² 0,5 x 7,0 m 152,4 2 x 2,5mm² 5703466246863 088L6560 1775 W 5,9 m² 0,5 x 11,8 m 90,9 2 x 2,5mm² 5703466246870 088 L6561 2315 W 7,9 m² 0,5 x 15,8 m 70,0 2 x 2,5mm² 5703466246887 088L6562 705 W 2,4 m² 0,75 x 3,2 m 286,6 2 x 2,5mm² 5703466246894 088L6563 1050 W 3,6 m² 0,75 x 4,8 m 152,4 2 x 2,5mm² 5703466246900 088L6564 1745 W 6 m² 0,75 x 8,0 m 91,4 2 x 2,5mm² 5703466246917 088L6565 2630 W 8,3 m² 0,75 x 11,0 m 60,8 2 x 2,5mm² 5703466246924 088L6566 2885 W 9,8 m² 0,75 x 13,0 m 55,4 2 x 2,5mm² 5703466246931 088L6567 3625 W 12 m ² 0,75 x 16,0 m 44,1 2 x 2,5mm² 5703466246948 088L6568 4270 W 14, 6 m² 0,75 x 19,4 m 37, 5 2 x 2,5mm² 5703466246955 088L6569 5745 W 19,1 m ² 0,75 x 25,4 m 27,8 2 x 2,5mm² 5703466246962 088L6570 6570 W 21,2 m² 0,75 x 28,2 m 24,4 2 x 2,5mm² 5703466246979 088L6571 1745 W 6 m² 1,00 x 6,0 m 90,4 2 x 2,5mm² 5703466246986 088L6572 3625 W 12 m² 1,00 x 12,0 m 43,5 2 x 2,5mm² 5703466246993 088L6573 4200 W 14,8 m² 1,00 x 14,8 m 37, 6 2 x 2,5mm² 5703466247006 088L6574 5760 W 19 m ² 1,00 x 19,0 m 27, 4 2 x 2,5mm² 5703466247013

Dimensions

(W x L)

Resistance, Ohm Cold lead, mm² EAN no.
