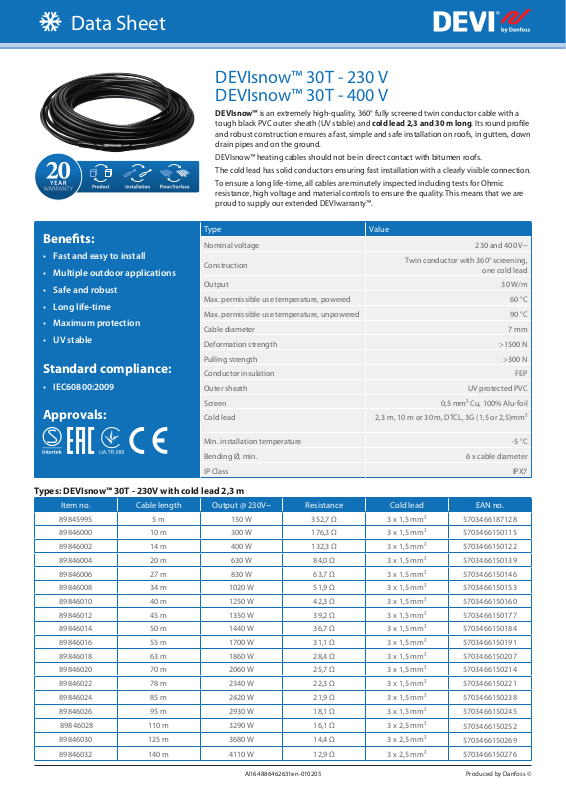

Danfoss DEVIsnow 30T Data sheet
4.DataFrost protectionSheetof ground areas
EVIsnow™
DEVIsnow™ 30T - 230 V
DEVIsnow™ 30T - 400 V
DEVIsnow™ is an extremely high-quality, 360° fully screened twin conductor cable with a tough black PVC outer sheath (UV stable) and cold lead 2,3 and 30 m long. Its round profile and robust construction ensures a fast, simple and safe installation on roofs, in gutters, down drain pipes and on the ground.
DEVIsnow™ heating cables should not be in direct contact with bitumen roofs.
The cold lead has solid conductors ensuring fast installation with a clearly visible connection.
To ensure a long life-time, all cables are minutely inspected including tests for Ohmic resistance, high voltage and material controls to ensure the quality. This means that we are proud to supply our extended DEVIwarranty™.
Benefits:
•Fast and easy to install
•Multiple outdoor applications
•Safe and robust
•Long life-time
•Maximum protection
•UV stable
Standard compliance:
• IEC60800:2009
Approvals:
Type |
Value |
|
Nominal voltage |
230 and 400 V~ |
|
Construction |
Twin conductor with 360° screening, |
|
one cold lead |
||
|
||
Output |
30 W/m |
|
Max. permissible use temperature, powered |
60 °C |
|
Max. permissible use temperature, unpowered |
90 °C |
|
Cable diameter |
7 mm |
|
Deformation strength |
>1500 N |
|
Pulling strength |
>300 N |
|
Conductor insulation |
FEP |
|
Outer sheath |
UV protected PVC |
|
Screen |
0,5 mm2 Cu, 100% Alu-foil |
|
Cold lead |
2,3 m, 10 m or 30 m, DTCL, 3G (1,5 or 2,5)mm² |
|
Min. installation temperature |
-5 °C |
|
Bending Ø, min. |
6 x cable diameter |
|
IP Class |
IPX7 |
Types: DEVIsnow™ 30T - 230V with cold lead 2,3 m
Item no. |
Cable length |
Output @ 230V~ |
Resistance |
Cold lead |
EAN no. |
|
|
|
|
|
|
89845995 |
5 m |
150 W |
352,7 Ω |
3 x 1,5 mm² |
5703466187128 |
|
|
|
|
|
|
89846000 |
10 m |
300 W |
176,3 Ω |
3 x 1,5 mm² |
5703466150115 |
|
|
|
|
|
|
89846002 |
14 m |
400 W |
132,3 Ω |
3 x 1,5 mm² |
5703466150122 |
|
|
|
|
|
|
89846004 |
20 m |
630 W |
84,0 Ω |
3 x 1,5 mm² |
5703466150139 |
|
|
|
|
|
|
89846006 |
27 m |
830 W |
63,7 Ω |
3 x 1,5 mm² |
5703466150146 |
|
|
|
|
|
|
89846008 |
34 m |
1020 W |
51,9 Ω |
3 x 1,5 mm² |
5703466150153 |
|
|
|
|
|
|
89846010 |
40 m |
1250 W |
42,3 Ω |
3 x 1,5 mm² |
5703466150160 |
|
|
|
|
|
|
89846012 |
45 m |
1350 W |
39,2 Ω |
3 x 1,5 mm² |
5703466150177 |
|
|
|
|
|
|
89846014 |
50 m |
1440 W |
36,7 Ω |
3 x 1,5 mm² |
5703466150184 |
|
|
|
|
|
|
89846016 |
55 m |
1700 W |
31,1 Ω |
3 x 1,5 mm² |
5703466150191 |
|
|
|
|
|
|
89846018 |
63 m |
1860 W |
28,4 Ω |
3 x 1,5 mm² |
5703466150207 |
|
|
|
|
|
|
89846020 |
70 m |
2060 W |
25,7 Ω |
3 x 1,5 mm² |
5703466150214 |
|
|
|
|
|
|
89846022 |
78 m |
2340 W |
22,3 Ω |
3 x 1,5 mm² |
5703466150221 |
|
|
|
|
|
|
89846024 |
85 m |
2420 W |
21,9 Ω |
3 x 1,5 mm² |
5703466150238 |
|
|
|
|
|
|
89846026 |
95 m |
2930 W |
18,1 Ω |
3 x 1,5 mm² |
5703466150245 |
|
|
|
|
|
|
89846028 |
110 m |
3290 W |
16,1 Ω |
3 x 2,5 mm² |
5703466150252 |
|
|
|
|
|
|
89846030 |
125 m |
3680 W |
14,4 Ω |
3 x 2,5 mm² |
5703466150269 |
|
|
|
|
|
|
89846032 |
140 m |
4110 W |
12,9 Ω |
3 x 2,5 mm² |
5703466150276 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AI164886462631en-010205 |
|
Produced by Danfoss © |
|
Types: DEVIsnow™ 30T - 230V with cold lead 30 m
Item no. |
Cable length |
Output @ 230V~ |
Resistance |
Cold lead |
EAN no. |
|
|
|
|
|
|
140F0635 |
10 m |
300 W |
176,3 Ω |
3 x 1,5 mm² |
5703466229392 |
|
|
|
|
|
|
140F0636 |
14 m |
400 W |
132,3 Ω |
3 x 1,5 mm² |
5703466229408 |
|
|
|
|
|
|
140F0637 |
20 m |
630 W |
84,0 Ω |
3 x 1,5 mm² |
5703466229415 |
|
|
|
|
|
|
140F0638 |
27 m |
830 W |
63,7 Ω |
3 x 1,5 mm² |
5703466229422 |
|
|
|
|
|
|
140F0639 |
34 m |
1020 W |
51,9 Ω |
3 x 1,5 mm² |
5703466229439 |
|
|
|
|
|
|
140F0640 |
40 m |
1250 W |
42,3 Ω |
3 x 1,5 mm² |
5703466229446 |
|
|
|
|
|
|
140F0641 |
45 m |
1350 W |
39,2 Ω |
3 x 1,5 mm² |
5703466229453 |
|
|
|
|
|
|
140F0642 |
50 m |
1440 W |
36,7 Ω |
3 x 1,5 mm² |
5703466229460 |
|
|
|
|
|
|
140F0643 |
55 m |
1700 W |
31,1 Ω |
3 x 1,5 mm² |
5703466229477 |
|
|
|
|
|
|
140F0644 |
63 m |
1860 W |
28,4 Ω |
3 x 1,5 mm² |
5703466229484 |
|
|
|
|
|
|
140F0645 |
70 m |
2060 W |
25,7 Ω |
3 x 1,5 mm² |
5703466229491 |
|
|
|
|
|
|
140F0646 |
78 m |
2340 W |
22,3 Ω |
3 x 1,5 mm² |
5703466229507 |
|
|
|
|
|
|
140F0647 |
85 m |
2420 W |
21,9 Ω |
3 x 1,5 mm² |
5703466229514 |
|
|
|
|
|
|
140F0648 |
95 m |
2930 W |
18,1 Ω |
3 x 1,5 mm² |
5703466229521 |
|
|
|
|
|
|
140F0649 |
110 m |
3290 W |
16,1 Ω |
3 x 2,5 mm² |
5703466229538 |
|
|
|
|
|
|
140F0650 |
125 m |
3680 W |
14,4 Ω |
3 x 2,5 mm² |
5703466229545 |
|
|
|
|
|
|
140F0651 |
140 m |
4110 W |
12,9 Ω |
3 x 2,5 mm² |
5703466229552 |
|
|
|
|
|
|
Types: DEVIsnow™ 30T - 400 V with cold lead 10 m
Item no. |
Cable length |
Output @ 400 V~ |
Resistance |
Cold lead |
EAN no. |
|
|
|
|
|
|
89845996 |
8,5 m |
267 W |
599,3 Ω |
3 x 1,5 mm² |
5703466187241 |
|
|
|
|
|
|
89846050 |
17,5 m |
520 W |
307,7 Ω |
3 x 1,5 mm² |
5703466163092 |
|
|
|
|
|
|
89846053 |
35,0 m |
1090 W |
146,8 Ω |
3 x 1,5 mm² |
5703466163108 |
|
|
|
|
|
|
89846056 |
70,0 m |
2160 W |
74,1 Ω |
3 x 1,5 mm² |
5703466163115 |
|
|
|
|
|
|
89846060 |
110,0 m |
3225 W |
49,6 Ω |
3 x 1,5 mm² |
5703466163122 |
|
|
|
|
|
|
89846062 |
145,0 m |
4295 W |
37,3 Ω |
3 x 1,5 mm² |
5703466164648 |
|
|
|
|
|
|
89846063 |
170,0 m |
4955 W |
32,3 Ω |
3 x 2,5 mm² |
5703466164655 |
|
|
|
|
|
|
89846065 |
190,0 m |
5770 W |
27,7 Ω |
3 x 2,5 mm² |
5703466163139 |
|
|
|
|
|
|
89846067 |
215,0 m |
6470 W |
24,7 Ω |
3 x 2,5 mm² |
5703466164662 |
|
|
|
|
|
|
Types: DEVIsnow™ 30T - 400 V with cold lead 30 m
Item no. |
Cable length |
Output @ 400 V~ |
Resistance |
Cold lead |
EAN no. |
|
|
|
|
|
|
140F0652 |
17,5 m |
520 W |
307,7 Ω |
3 x 1,5 mm² |
5703466163092 |
|
|
|
|
|
|
140F0653 |
35,0 m |
1090 W |
146,8 Ω |
3 x 1,5 mm² |
5703466163108 |
|
|
|
|
|
|
140F0654 |
70,0 m |
2160 W |
74,1 Ω |
3 x 1,5 mm² |
5703466163115 |
|
|
|
|
|
|
140F0655 |
110,0 m |
3225 W |
49,6 Ω |
3 x 1,5 mm² |
5703466163122 |
|
|
|
|
|
|
140F0656 |
145,0 m |
4295 W |
37,3 Ω |
3 x 1,5 mm² |
5703466164648 |
|
|
|
|
|
|
140F0657 |
170,0 m |
4955 W |
32,3 Ω |
3 x 2,5 mm² |
5703466164655 |
|
|
|
|
|
|
140F0658 |
190,0 m |
5770 W |
27,7 Ω |
3 x 2,5 mm² |
5703466163139 |
|
|
|
|
|
|
140F0659 |
215,0 m |
6470 W |
24,7 Ω |
3 x 2,5 mm² |
5703466164662 |
|
|
|
|
|
|
AI164886462631en-010205 |
Produced by Danfoss © |
