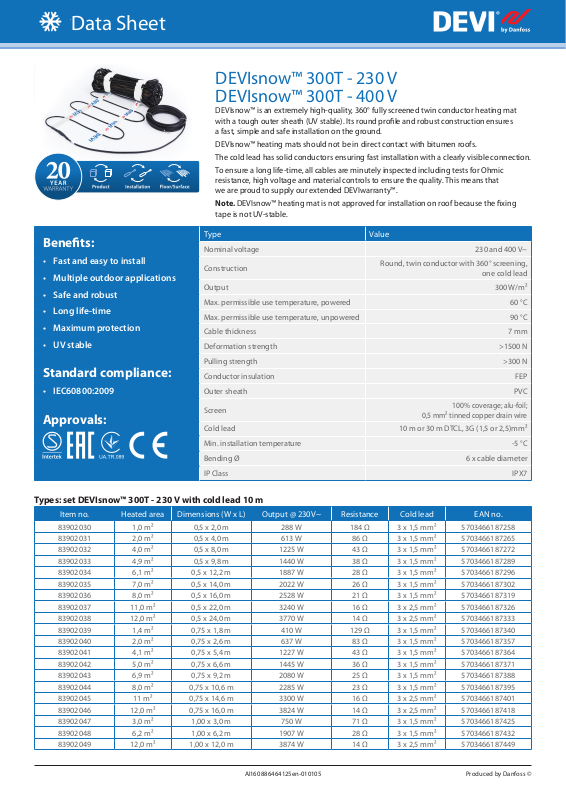

Danfoss DEVIsnow 300T Data sheet

4. Frost protection of ground areas

Data Sheet

DEVIsnow™

Beneﬁts:

• Fast and easy to install

• Multiple outdoor applications

• Safe and robust

• Long life-time

• Maximum protection

• UV stable

Standard compliance:

• IEC60800:2009

Approvals:

DEVIsnow™ 300T - 230 V DEVIsnow™ 300T - 400 V

DEVIsnow™ is an extremely high-quality, 360° fully screened twin conductor heating mat with a tough outer sheath (UV stable). Its round proﬁle and robust construction ensures a fast, simple and safe installation on the ground.

DEVIsnow™ heating mats should not be in direct contact with bitumen roofs. The cold lead has solid conductors ensuring fast installation with a clearly visible connection. To ensure a long life-time, all cables are minutely inspected including tests for Ohmic

resistance, high voltage and material controls to ensure the quality. This means that we are proud to supply our extended DEVIwarranty™.

Note. DEVIsnow™ heating mat is not approved for installation on roof because the ﬁxing tape is not UV-stable.

Type Value

Nominal voltage 230 and 400 V~

Construction

Output 300 W/m²

Max. permissible use temperature, powered 60 °C

Max. permissible use temperature, unpowered 90 °C

Cable thickness 7 mm

Deformation strength >1500 N

Pulling strength >300 N

Conductor insulation FEP

Outer sheath PVC

Screen

Cold lead 10 m or 30 m DTCL, 3G (1,5 or 2,5)mm²

Min. installation temperature -5 °C

Bending Ø 6 x cable diameter

IP Class IPX7

Round, twin conductor with 360° screening,

one cold lead

100% coverage; alu-foil;

0,5 mm² tinned copper drain wire

Types: set DEVIsnow™ 300T - 230 V with cold lead 10 m

Item no. Heated area Dimensions (W x L) Output @ 230V~ Resistance Cold lead EAN no.

83902030 1,0 m² 0,5 x 2,0 m 288 W 184 Ω 3 x 1,5 mm² 5703466187258 83902031 2,0 m² 0,5 x 4,0 m 613 W 86 Ω 3 x 1,5 mm² 5703466187265 83902032 4,0 m² 0,5 x 8,0 m 1225 W 43 Ω 3 x 1,5 mm² 5703466187272 83902033 4,9 m² 0,5 x 9,8 m 1440 W 38 Ω 3 x 1,5 mm² 5703466187289 83902034 6,1 m² 0,5 x 12,2 m 1887 W 28 Ω 3 x 1,5 mm² 5703466187296 83902035 7,0 m² 0,5 x 14,0 m 2022 W 26 Ω 3 x 1,5 mm² 5703466187302 83902036 8,0 m² 0,5 x 16,0 m 2528 W 21 Ω 3 x 1,5 mm² 5703466187319 83902037 11,0 m² 0,5 x 22,0 m 3240 W 16 Ω 3 x 2,5 mm² 5703466187326 83902038 12,0 m² 0,5 x 24,0 m 3770 W 14 Ω 3 x 2,5 mm² 5703466187333 83902039 1,4 m² 0,75 x 1,8 m 410 W 129 Ω 3 x 1,5 mm² 5703466187340 83902040 2,0 m² 0,75 x 2,6 m 637 W 83 Ω 3 x 1,5 mm² 5703466187357 83902041 4,1 m² 0,75 x 5,4 m 1227 W 43 Ω 3 x 1,5 mm² 5703466187364 83902042 5,0 m² 0,75 x 6,6 m 1445 W 36 Ω 3 x 1,5 mm² 5703466187371 83902043 6,9 m² 0,75 x 9,2 m 2080 W 25 Ω 3 x 1,5 mm² 5703466187388 83902044 8,0 m² 0,75 x 10,6 m 2285 W 23 Ω 3 x 1,5 mm² 5703466187395 83902045 11 m² 0,75 x 14,6 m 3300 W 16 Ω 3 x 2,5 mm² 5703466187401 83902046 12,0 m² 0,75 x 16,0 m 3824 W 14 Ω 3 x 2,5 mm² 5703466187418 83902047 3,0 m² 1,00 x 3,0 m 750 W 71 Ω 3 x 1,5 mm² 5703466187425 83902048 6,2 m² 1,00 x 6,2 m 1907 W 28 Ω 3 x 1,5 mm² 5703466187432 83902049 12,0 m² 1,00 x 12,0 m 3874 W 14 Ω 3 x 2,5 mm² 5703466187449

Types: DEVIsnow™ 300T - 400 V with cold lead 10 m

Item no. Heated area Dimensions (W x L) Output @ 400 V~ Resistance Cold lead EAN no.

83902020 1,70 m² 0,5 x 3,4 m 520 W 308 Ω 3 x 1,5 mm² 5703466157657 83902023 3,50 m² 0,5 x 7,0 m 1050 W 152 Ω 3 x 1,5 mm² 5703466157664 83902026 5,90 m² 0,5 x 11,8 m 1760 W 91 Ω 3 x 1,5 mm² 5703466157671 83902029 7,90 m² 0,5 x 15,8 m 2285 W 70 Ω 3 x 1,5 mm² 5703466157688 83902050 2,40 m² 0,75 x 3,2 m 700 W 229 Ω 3 x 1,5 mm² 5703466157695 83902053 3,60 m² 0,75 x 4,8 m 1050 W 152 Ω 3 x 1,5 mm² 5703466157701 83902056 6,00 m² 0,75 x 8,0 m 1750 W 91 Ω 3 x 1,5 mm² 5703466157718 83902059 8,25 m² 0,75 x 11,0 m 2630 W 61 Ω 3 x 1,5 mm² 5703466157725 83902062 9,75 m² 0,75 x 13,0 m 2890 W 55 Ω 3 x 1,5 mm² 5703466157732 83902065 12,00 m² 0,75 x 16,0 m 3625 W 44 Ω 3 x 1,5 mm² 5703466157749 83902068 14,55 m² 0,75 x 19,4 m 4270 W 37 Ω 3 x 1,5 mm² 5703466157756 83902071 19,05 m² 0,75 x 25,4 m 5750 W 28 Ω 3 x 2,5 mm² 5703466157763 83902073 21,15 m² 0,75 x 28,2 m 6300 W 25 Ω 3 x 2,5 mm² 5703466161432 83902080 6,0 m² 1,00 x 6,0 m 1750 W 90 Ω 3 x 1,5 mm² 5703466157770 83902083 12,0 m² 1,00 x 12,0 m 3675 W 44 Ω 3 x 1,5 mm² 5703466157787 83902086 14,8 m² 1,00 x 14,8 m 4250 W 38 Ω 3 x 1,5 mm² 5703466157794 83902089 19,0 m² 1,00 x 19,0 m 5840 W 27 Ω 3 x 2,5 mm² 5703466157800

Types: DEVIsnow™ 300T - 400 V with cold lead 30 m

Item no. Heated area Dimensions (W x L) Output @ 400 V~ Resistance Cold lead EAN no.

140F0618 1,70 m² 0,5 x 3,4 m 520 W 308 Ω 3 x 1,5 mm² 5703466229224 140F0619 3,50 m² 0,5 x 7,0 m 1050 W 152 Ω 3 x 1,5 mm² 5703466229231 140F0620 5,90 m² 0,5 x 11,8 m 1760 W 91 Ω 3 x 1,5 mm² 5703466229248 140F0621 7,90 m² 0,5 x 15,8 m 2285 W 70 Ω 3 x 1,5 mm² 5703466229255 140F0622 2,40 m² 0,75 x 3,2 m 700 W 229 Ω 3 x 1,5 mm² 5703466229262 140F0623 3,60 m² 0,75 x 4,8 m 1050 W 152 Ω 3 x 1,5 mm² 5703466229279 140F0624 6,00 m² 0,75 x 8,0 m 1750 W 91 Ω 3 x 1,5 mm² 5703466229286 140F0625 8,25 m² 0,75 x 11,0 m 2630 W 61 Ω 3 x 1,5 mm² 5703466229293 140F0626 9,75 m² 0,75 x 13,0 m 2890 W 55 Ω 3 x 1,5 mm² 5703466229309 140F0627 12,00 m² 0,75 x 16,0 m 3625 W 44 Ω 3 x 1,5 mm² 5703466229316 140F0628 14,55 m² 0,75 x 19,4 m 4270 W 37 Ω 3 x 1,5 mm² 5703466229323 140F0629 19,05 m² 0,75 x 25,4 m 5750 W 28 Ω 3 x 2,5 mm² 5703466229330 140F0630 21,15 m² 0,75 x 28,2 m 6300 W 25 Ω 3 x 2,5 mm² 5703466229347 140F0631 6,0 m² 1,00 x 6,0 m 1750 W 90 Ω 3 x 1,5 mm² 5703466229354 140F0632 12,0 m² 1,00 x 12,0 m 3675 W 44 Ω 3 x 1,5 mm² 5703466229361 140F0633 14,8 m² 1,00 x 14,8 m 4250 W 38 Ω 3 x 1,5 mm² 5703466229378 140F0634 19,0 m² 1,00 x 19,0 m 5840 W 27 Ω 3 x 2,5 mm² 5703466229385
