DEVIreg™ Touch is an electronic programmable timer
thermostat used for controlling electrical floor heating
elements. The thermostat is designed for fixed installation
only and can be used for both direct heating of the entire
room and for comfort heating of the floor. Among others,
the thermostat has the following features:
• A touchscreen display with backlight.
• An easy-to-follow menu-driven programming and
operation.
3Installation Guide
DEVIreg™ Touch
• An installation wizard with room/floor type-specific
setup.
• Support for multiple frame systems.
• Compatible with several 3rd party NTC sensors.
• Thermostat settings can be specified before installation and imported to the thermostat using a
web-generated code, or copied from a thermostat in a
similar installation.
• Smart access to thermostat settings after installation by using a web code interface for easy setup or
remote troubleshooting.
More information on this product can also be found at:
touch�devi�com
1�1 Technical Specifications
Operation voltage220-240 V~, 50/60 Hz
Standby power consumptionMax. 0.40 W
Relay:
Resistive load
Inductive load
Sensing unitsNTC 6.8 kOhm at 25°C
Max. 16 A / 3680 W @ 230 V
cos φ= 0.3 Max. 1 A
NTC 10 kOhm at 25°C
NTC 12 kOhm at 25°C
NTC 15 kOhm at 25°C (Default)
NTC 33 kOhm at 25°C
NTC 47 kOhm at 25°C
Installation Guide4
DEVIreg™ Touch
Sensing values:
(Default NTC 15 K)
0°C
20°C
50°C
ControlPWM (Pulse Wide Modulation)
Ambient temperature0° to +30°C
Frost protection temperature5°C to +9°C (default 5°C)
Temperature rangeRoom temperature: 5-35°C.
Sensor failure monitoringThe thermostat has a built-in
Cable specification max.1x4 mm2 or 2x2,5 mm
Ball pressure test temperature 75°C
Pollution degree2 (domestic use)
Controller type1C
Software classA
Storage temperature-20°C to +65°C
42 kOhm
18 kOhm
6 kOhm
Floor temperature: 5-45°C.
Max. floor: 20-35°C (if unrecoverable seal is broken then up to
45°C). Min. floor: 10-35°C, only
with combination of room and
floor sensor.
monitoring circuit, which will
switch off the heating if the
sensor is disconnected or shortcircuited
2
5Installation Guide
DEVIreg™ Touch
IP class21
Protection classClass II -
Dimensions85 x 85 x 20-24 mm
Weight103 g
(in-wall depth: 22 mm)
Electrical safety and Electro-Magnetic Compatibility for
this product is covered by the compliance with the EN/IEC
Standard “Automatic electrical controls for household and
similar use”:
• EN/IEC 60730-1 (general)
• EN/IEC 60730-2-9 (thermostat)
1�2 Safety Instructions
Make sure the mains supply to the thermostat is turned off
before installation.
Important: When the thermostat is used to control a floor
heating element in connection with a wooden floor or
similar material, always use a floor sensor and never set the
maximum floor temperature to more than 35°C.
Please also note the following:
• The installation of the thermostat must be done by an
authorized and qualified installer according to local
regulations.
Installation Guide6
DEVIreg™ Touch
• The thermostat must be connected to a power supply
via an all-pole disconnection switch.
• Always connect the thermostat to continuous power
supply.
• Do not expose the thermostat to moisture, water,
dust, and excessive heat.
2 Mounting Instructions
Please observe the following placement guidelines:
Place the thermostat at a suitable height on the wall
(typically 80-170cm.).
The thermostat should not be placed in wet rooms.
Place it in an adjacent room. Always place the thermostat according to local regulation on IP classes.
Do not place the thermostat on the inner side of an
exterior wall.
Always install the thermostat at least 50 cm. from
windows and doors.
7Installation Guide
DEVIreg™ Touch
Do not place the thermostat in a way that it will be
exposed to direct sunlight.
Note: A floor sensor enables a more accurate
temperature control and is recommended in all floor
heating applications and mandatory under wooden
floors to reduce the risk of over-heating the floor.
Place the floor sensor in a conduit in an appropriate place
where it is not exposed to sunlight or draft from door openings.
• Equally distant and >2cm from two heating cables.
• The conduit should be flush with the floor surface -
countersink the conduit if necessary.
• Route the conduit to the connection box.
• The bending radius of the conduit must be min 50mm.
Installation Guide8
DEVIreg™ Touch
Follow the steps below to mount the thermostat:
1. Open the thermostat:
Important: Do NOT press on the display screen when
removing the front part.
Press your fingers under the side of the front part and
pull toward you:
2. Connect the thermostat according to the connection
diagram.
NTCN
Dtouch
L
Maximum
Load 16 (1) A
Sensor
Standby maximum 0.4W
L
L
O
O
A
A
N
L
D
D
Mains
220-240V
50-60 Hz
IP21
T30
The screen of the heating cable must be connected to
the earth conductor of the power supply cable by
using a separate connector.
Note: Always install the floor sensor in a conduit in the
floor.
9Installation Guide
DEVIreg™ Touch
3. Mount and reassemble the thermostat.
• Fasten the thermostat to a socket or an exterior wall
box by driving the screws through the holes in each
side of the thermostat.
• Put the frame on.
• Click the display module back in place.
Important: Do NOT press on the display screen when clicking the display module back in place.
Initially main supply the thermostat for 15 hours to fully
charge the battery. The current time and day is then kept
for 24 hours if mains supply is off. All other settings are
stored permanently.
3 Settings
3�1 Initial Settings
Initial settings must be specified when the unit is activated
for the first time:
Installation Guide10
DEVIreg™ Touch
1. Use the arrows in the right
side of the screen to go to
your language, and press to
select it. Then press in the
upper right corner to
confirm.
2. Press the hour numbers and
use the < and > arrows to set
the hour. Press to confirm.
3. Press the minutes numbers
and use the < and > arrows
to set the minutes. Press
to confirm. Press again to
go to the SET DATE screen.
4. Press the day, month and
year respectively and set the
date using the < and >
arrows and pressing to
confirm. When the date is
correct, press to confirm
on the SET DATE screen.
11Installation Guide
DEVIreg™ Touch

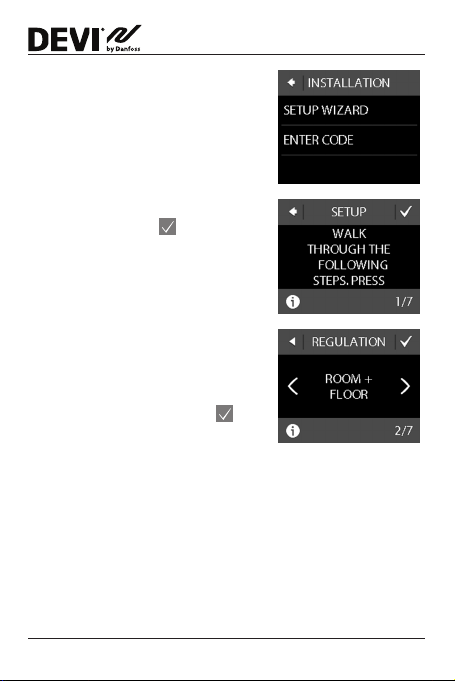

5. If you have already made
the installation setup online,
press ENTER CODE and go
directly to Step 13 now. Otherwise press
SETUP WIZARD
and go to Step 6.
6. On the SETUP information
screen, press to start.
7. Use the < and > arrows to
select whether only a floor
sensor or a combination of
room and floor sensors
should be used. Press to
confirm.
Note: A “room only” option may also be available. For details, see
the “Maximum Floor Temperature” section.
Installation Guide12
DEVIreg™ Touch

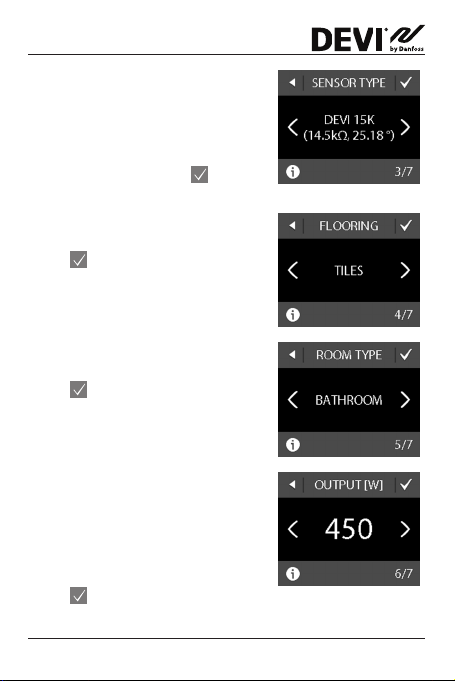

8. Use the < and > arrows to
select the installed floor
sensor type. (Measured
resistance and corresponding temperature are shown
in brackets). Press to
confirm.
9. Use the < and > arrows to
select the flooring type. Press
to confirm.
10. Use the < and > arrows to
select the room type. Press
to confirm.
11. Use the < and > arrows to
select the approximate load
of the heating element. If an
external relay is used or the
installed output is unknown,
select the “– –” option. Press
to confirm.
13Installation Guide
DEVIreg™ Touch
12. Use the < and > arrows to
select whether the timer
should be activated or not.
Press to confirm and end
the initial thermostat setup.
Skip Step 13.
13. Enter your web-generated
code. Then press to end
the initial thermostat setup.
If no check mark ( )
appears, the hexacode is
incorrect.
3�2 Forecast
The forecast feature is used when you switch between
economy temperature and comfort temperature. If forecast
is turned on, heating will start so that the requested temperature is reached at the specified time.
For example, if your comfort temperature is set to 22°C and
the comfort period starts at 6.00 o’clock am, heating will
start before 6 o’clock so that your room temperature will be
22°C at 6 o’clock. If forecast is turned off, heating will not
start until 6 o’clock and it will take a while to reach a room
temperature of 22°C.
The forecast feature also optimises heating stop when switching from comfort temperature to economy temperature.
Installation Guide14
DEVIreg™ Touch
How to turn the forecast feature on and off�
1. Touch the thermostat display
to activate it, then press menu.
2. Press SETTINGS in the bottom
right corner of the menu. Then
press OPTIONS.
3. Press FORECAST. Then press
ON to optimise heating start/
stop or OFF to simply let the
heating start/stop at the specified time. Press to confirm.
To return to the normal temperature display, press the back
arrow in the upper left corner of the screen until you get to
the main menu, then press .
15Installation Guide
DEVIreg™ Touch
3�3 Window Open
How to turn “window open detection” on or off
1. Touch the thermostat display
to activate it, then press
menu.
2. Press SETTINGS in the bottom
right corner of the menu. Then
press OPTIONS.
3. Press WINDOW OPEN. Then
press ON to temporarily turn
off heating in case of a sudden
temperature drop in the room
or OFF to let the thermostat
heat during sudden temperature drops in the room. Press
to confirm.
To return to the normal temperature display, press the back
arrow in the upper left corner of the screen until you get to
the main menu, then press .
Installation Guide16
DEVIreg™ Touch
3�4 Maximum Floor Temperature
How to set the maximum floor temperature
1. Touch the thermostat display
to activate it, then press
menu.
2. Press SETTINGS in the bottom
right corner of the menu. Then
press INSTALLATION and MANUAL SETUP.
3. Press MAX� FLOOR. Then use
the < and > arrows to set the
allowed maximum floor
temperature.
Press to confirm.
To return to the normal temperature display, press the back
arrow in the upper left corner of the screen until you get to
the main menu, then press .
17Installation Guide
DEVIreg™ Touch

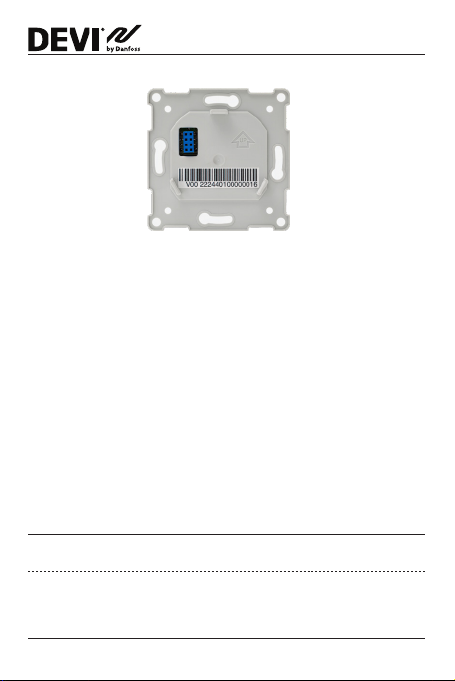

If you break the small plastic seal
on the back of the display module, e.g. using a screwdriver, it will
be possible to set the maximum
floor temperature up to 45°C.
Furthermore, it will be possible to
use only a room sensor. However,
this option is not recommendable due to an increased risk
of overheating the floor.
Important: When the thermostat is used to control a floor
heating element in connection with a wooden floor or
similar material, always use a floor sensor and never set the
maximum floor temperature to more than 35°C.
Note: Please contact the floor supplier before changing the
maximum floor temperature and be aware of the following:
• The floor temperature is measured where the sensor
is placed.
• The temperature of the bottom of a wooden floor can
be up to 10 degrees higher than the top.
• Floor manufactures often specify the max. temperature on the top surface of the floor.
Installation Guide18
DEVIreg™ Touch
Thermal
resistance
Examples of
flooring
[m2K/W]
0.058 mm HDF based
laminate
0.1014 mm beech
parquet
0.1322 mm solid oak
plank
< 0.17Max. carpet thick-
ness suitable for
floor heating
0.1822 mm solid fir
planks
DetailsApproximate
setting for
25˚C floor
temperature
> 800 kg/m328˚C
650 - 800
3
kg/m
31˚C
> 800 kg/m332˚C
acc. to EN
34˚C
1307
450 - 650
3
kg/m
35˚C
19Installation Guide
DEVIreg™ Touch
4 Symbols
The following symbols may appear in the upper left corner
of the temperature display:
SymbolWhat it means
The thermostat is in manual mode, i.e. the timer
function is off. The timer lets you automatically
switch between economy and comfort temperatures according to a predefined schedule.
An away period has been planned. On the date of
departure, the away period starts at 00:00 and the
specified away temperature will be maintained 24
hours a day until the date of return at 00:00. At this
time the normal temperature settings will resume.
An error has occurred. If you press the warning
symbol, more information on the error will appear.
Installation Guide20
DEVIreg™ Touch
5 Warranty
6 Disposal Instruction
21Installation Guide
DEVIreg™ Touch
Installation Guide22
DEVIreg™ Touch
Danfoss
produc
All trademarks in this material are property of the respective companies. Danfoss and all Danfoss logotypes are trademarks of Danfoss A/S. All rights reserved.
Danfoss A/S
DEVI • devi.com • +45 7488 8500 • E-Mail: EH@danf
Danfoss A/S
Nordborgvej 81
6430 Nordborg, Syddanmark
Denmark
can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to
ts already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed.
