Danfoss CPCE Installation guide [ar]

A34N147.13

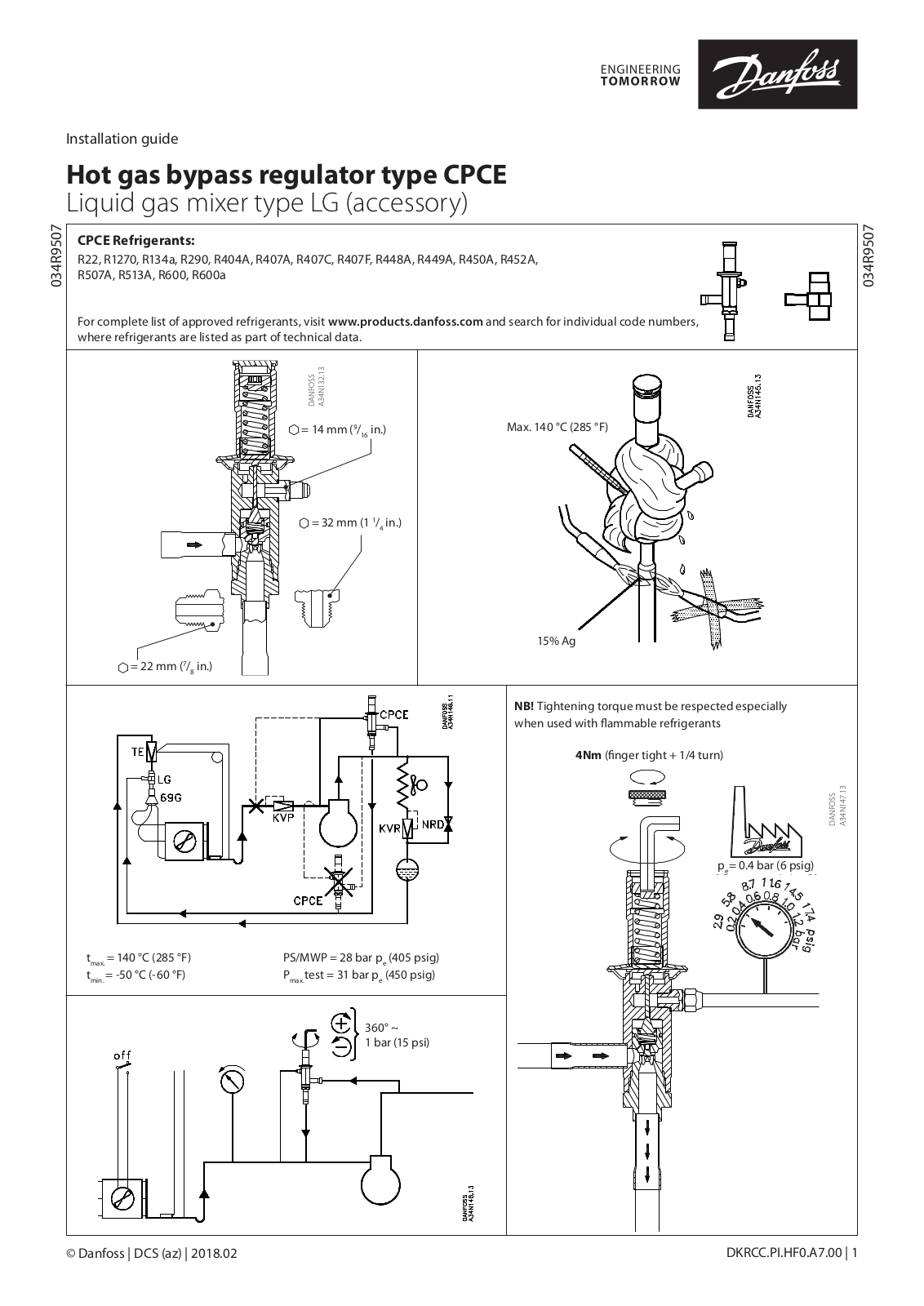

Installation guide

Hot gas bypass regulator type CPCE
Liquid gas mixer type LG (accessory)

CPCE Refrigerants:

R22, R1270, R134a, R290, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A,
R507A, R513A, R600, R600a

034R9507

034R9507

For complete list of approved refrigerants, visit www.products.danfoss.com and search for individual code numbers,
where refrigerants are listed as part of technical data.

DANFOSS

A34N132.13

= 14 mm (9/16 in.)

= 32 mm (1 1/4 in.)

= 22 mm (7/8 in.)

Max. 140 °C (285 °F)

15% Ag

NB! Tightening torque must be respected especially
when used with flammable refrigerants

4Nm (finger tight + 1/4 turn)

t

= 140 °C (285 °F)

max.

t

= -50 °C (-60 °F)

min.

© Danfoss | DCS (az) | 2018.02

PS/MWP = 28 bar pe (405 psig)
P

test = 31 bar pe (450 psig)

max.

360° ~
1 bar (15 psi)

DANFOSS

pe= 0.4 bar (6 psig)

DKRCC.PI.HF0.A7.00 | 1
